Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model Number |
6AG1332-5HD01-7AB0 |
|
Base Model |
6ES7332-5HD01-0AB0 |
|
Description |

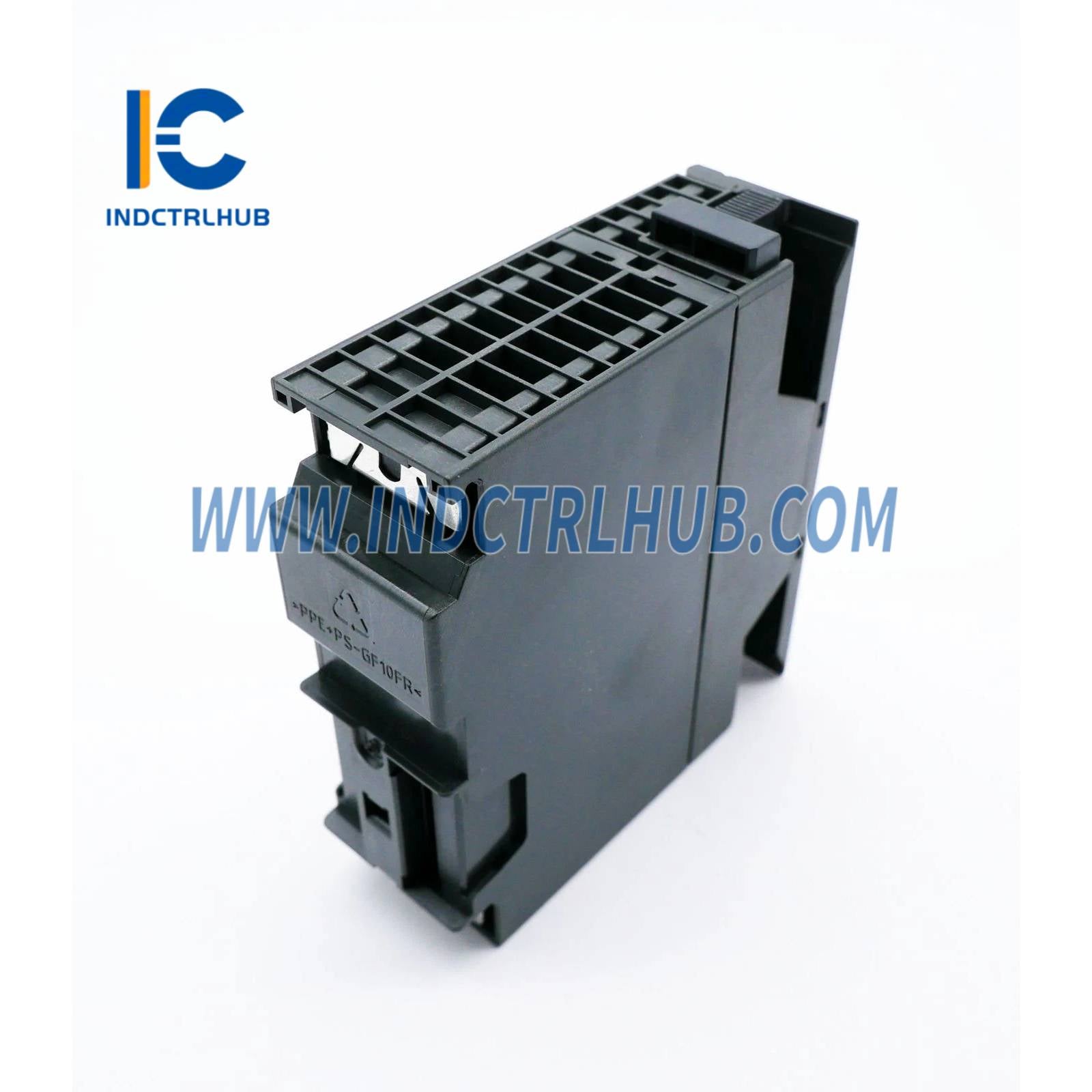

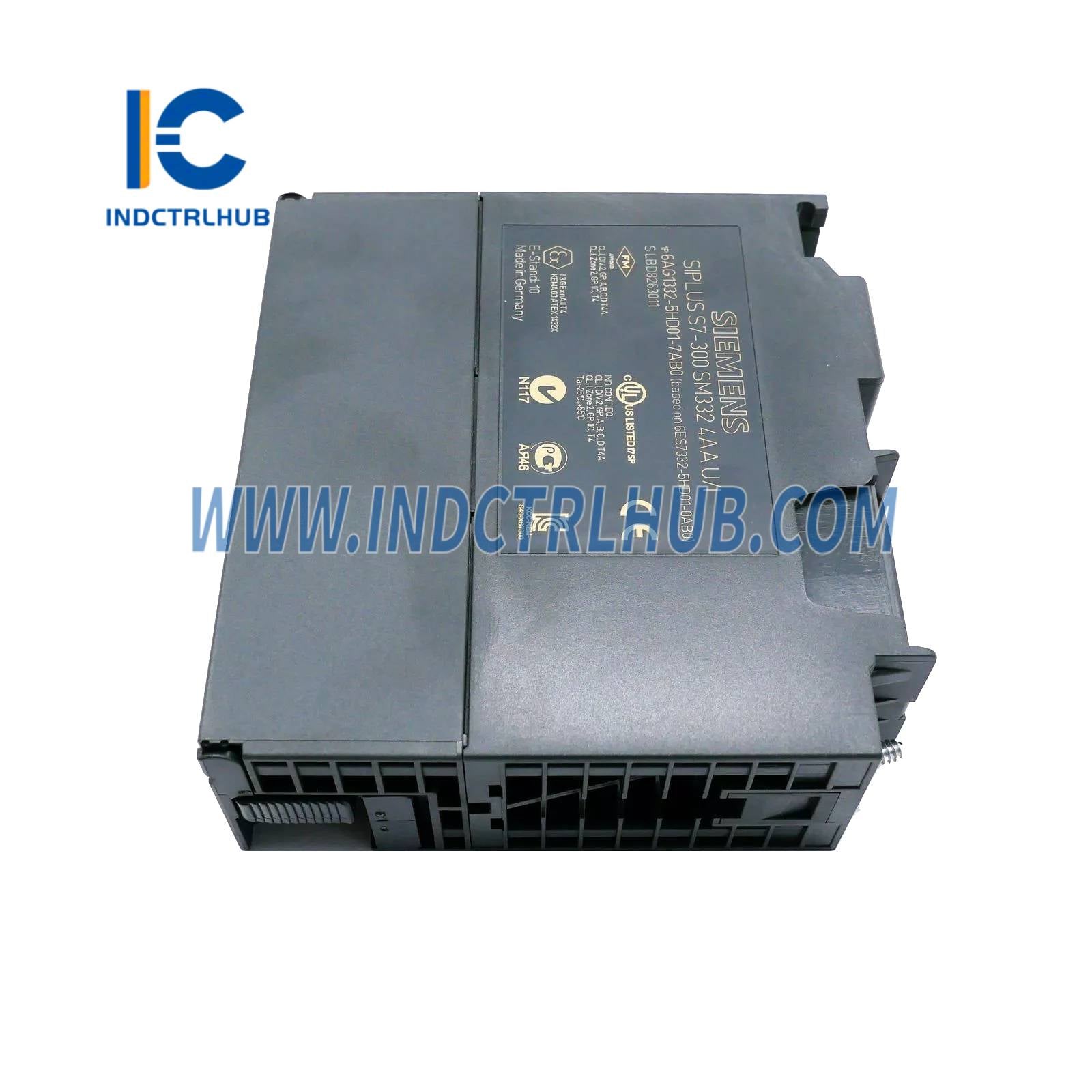

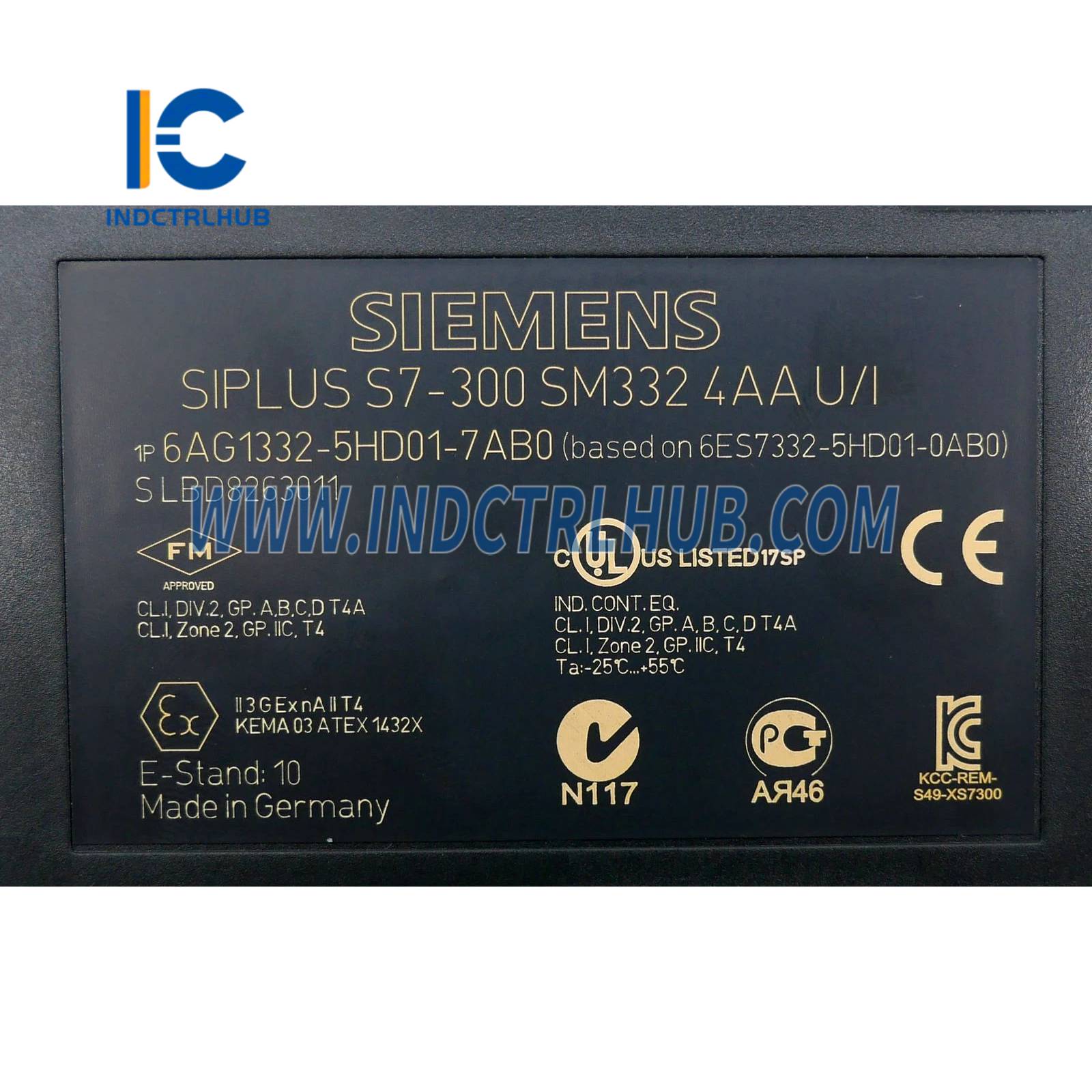

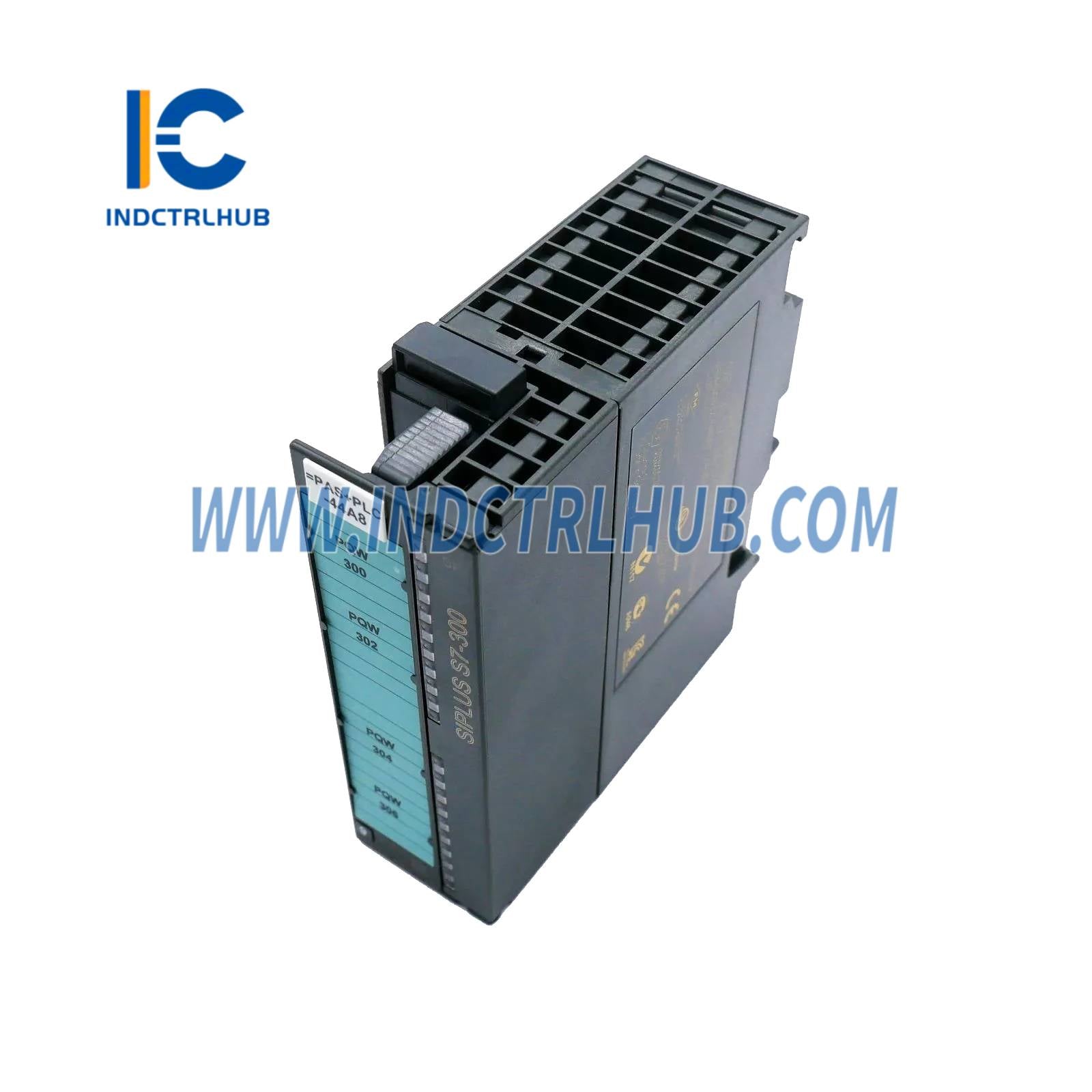

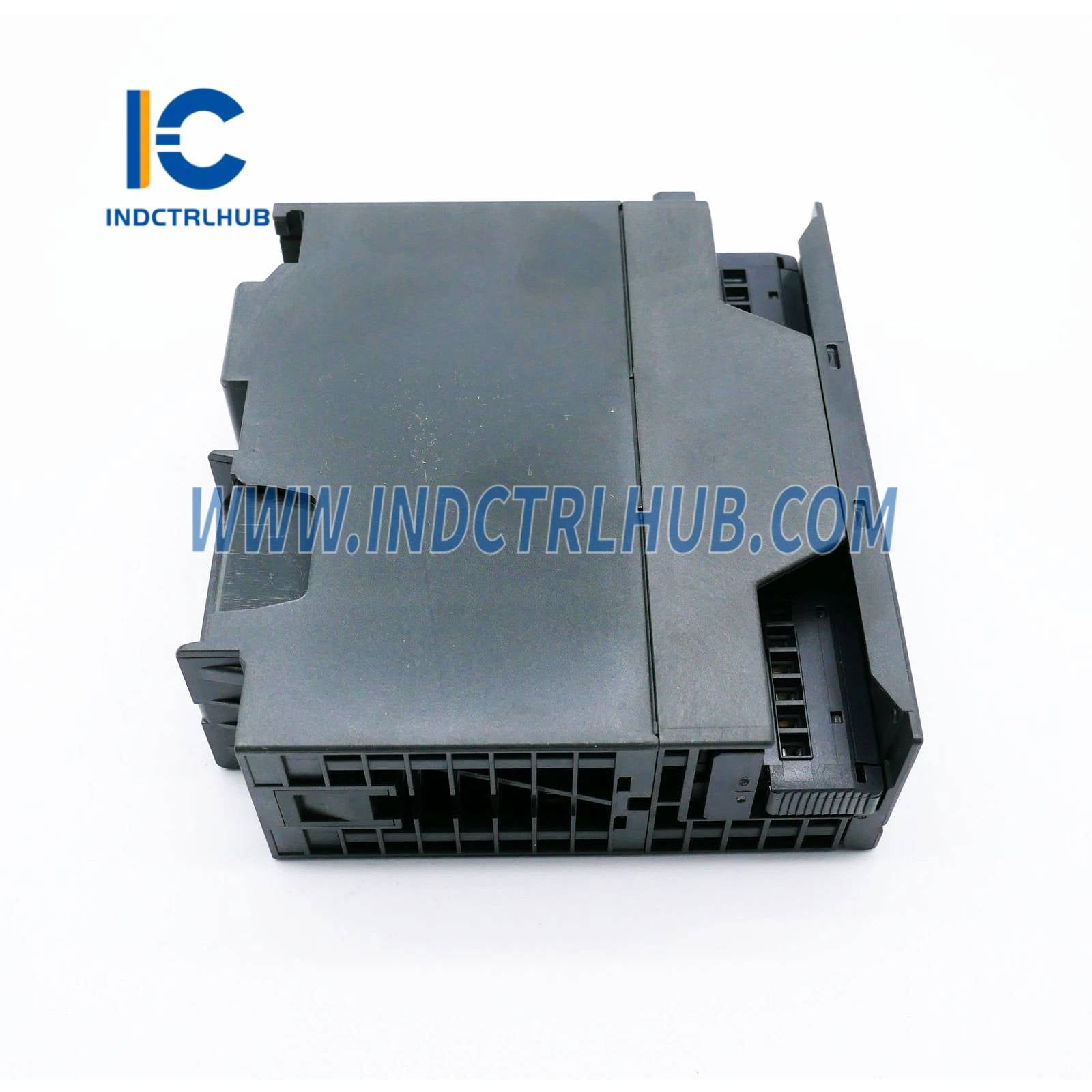

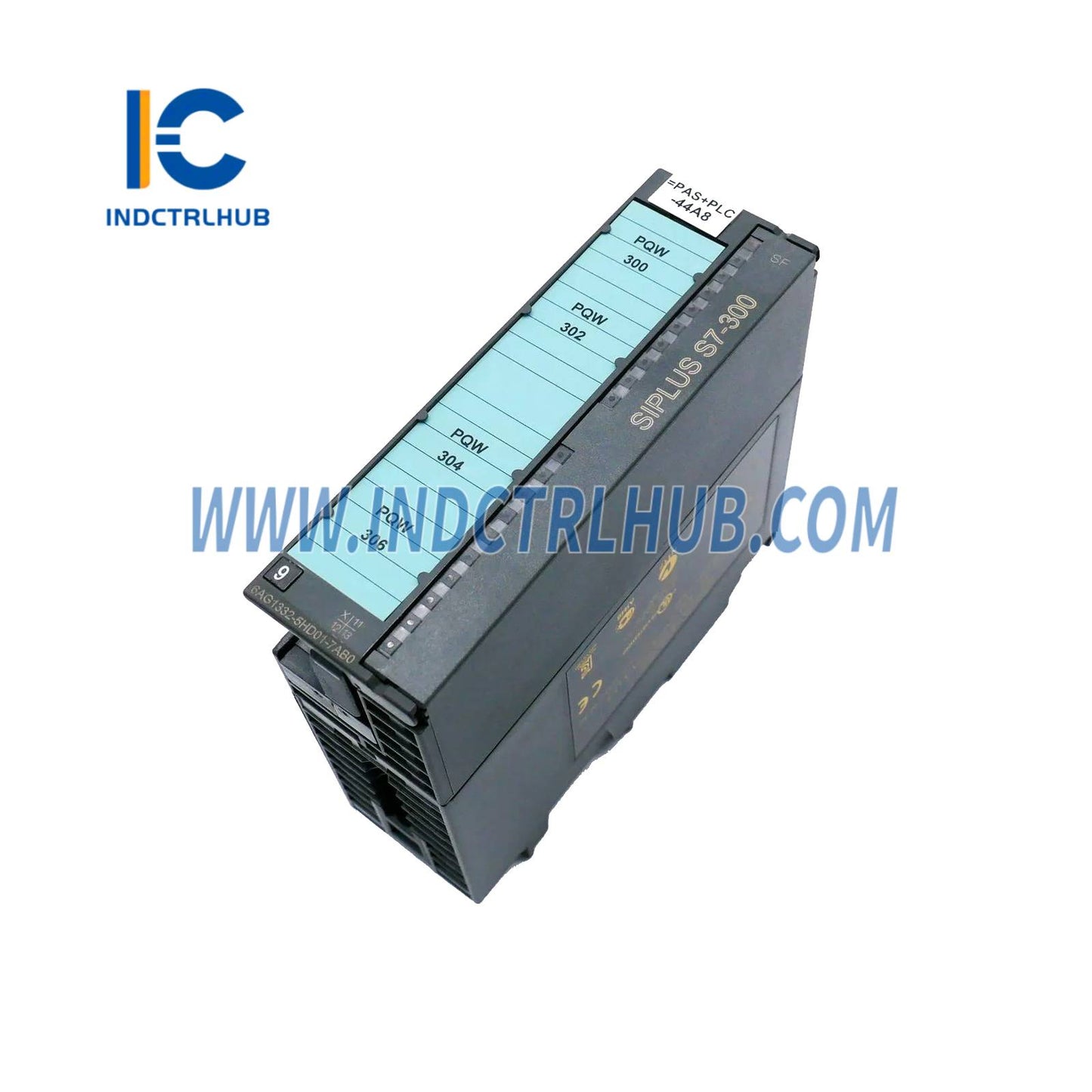

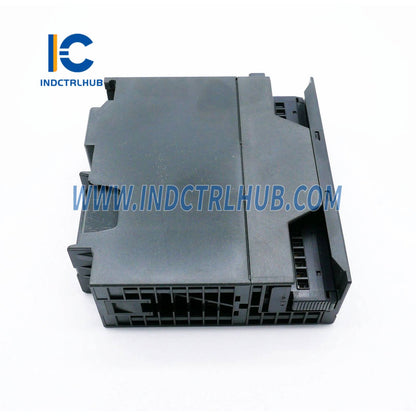

SIPLUS SM 332 with conformal coating, -25…+70 °C, analog output SM 332, isolated, 4 AQ (Analog Outputs), Voltage/Current, diagnostics, 11/12 bits resolution, 20-pole connection, hot swapping with active backplane bus. |
|
Product Family |
SIPLUS S7-300 SM 332 |
|
Product Lifecycle (PLM) |
PM400: Announcement of product phase-out |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Number of Analog Outputs |
4 AQ |
|
Output Type |
Voltage / Current (U/I) |
|
Resolution |
11/12 bits |
|
Diagnostics Functionality |
Yes |
|
Isolation |
Yes |
|
Hot Swap (Insert/Remove with Active Backplane) |
Supported |
|
Operating Temperature Range |
-25 to +70 °C |
|

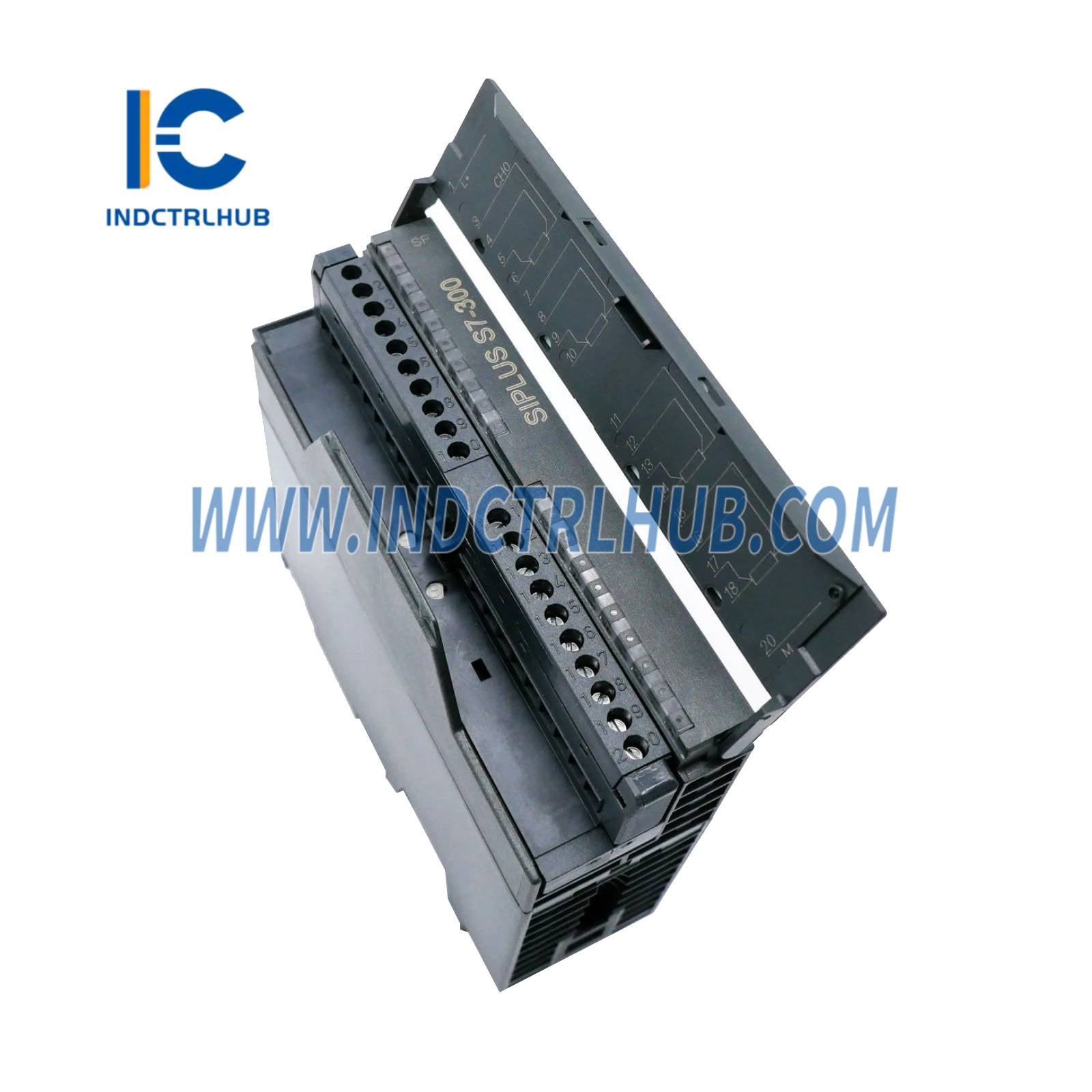

Connector Type |
1 × 20-pole |
|
Conformal Coating |
Yes (SIPLUS ruggedized version) |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.255 kg |
|
Packaging Dimensions (L x W x H) |
15.00 x 11.00 x 5.00 cm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
6AG1332-5HD01-7AB0 |
|
EAN |
4042948497128 |
|
UPC |
040892692136 |
|
Commodity Code |
85389091 |
|
Catalog ID |
A&DSE/SIP ADD |
|
Product Group |
X0SM |
|
Group Code |
R151 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since 01.01.2012 |
|
Product Class |
A: Standard product, returnable per guidelines |
|
WEEE Directive Compliance |
Yes |
|
REACH Art. 33 Notification |
Lead (CAS-No. 7439-92-1) > 0.1% w/w |
