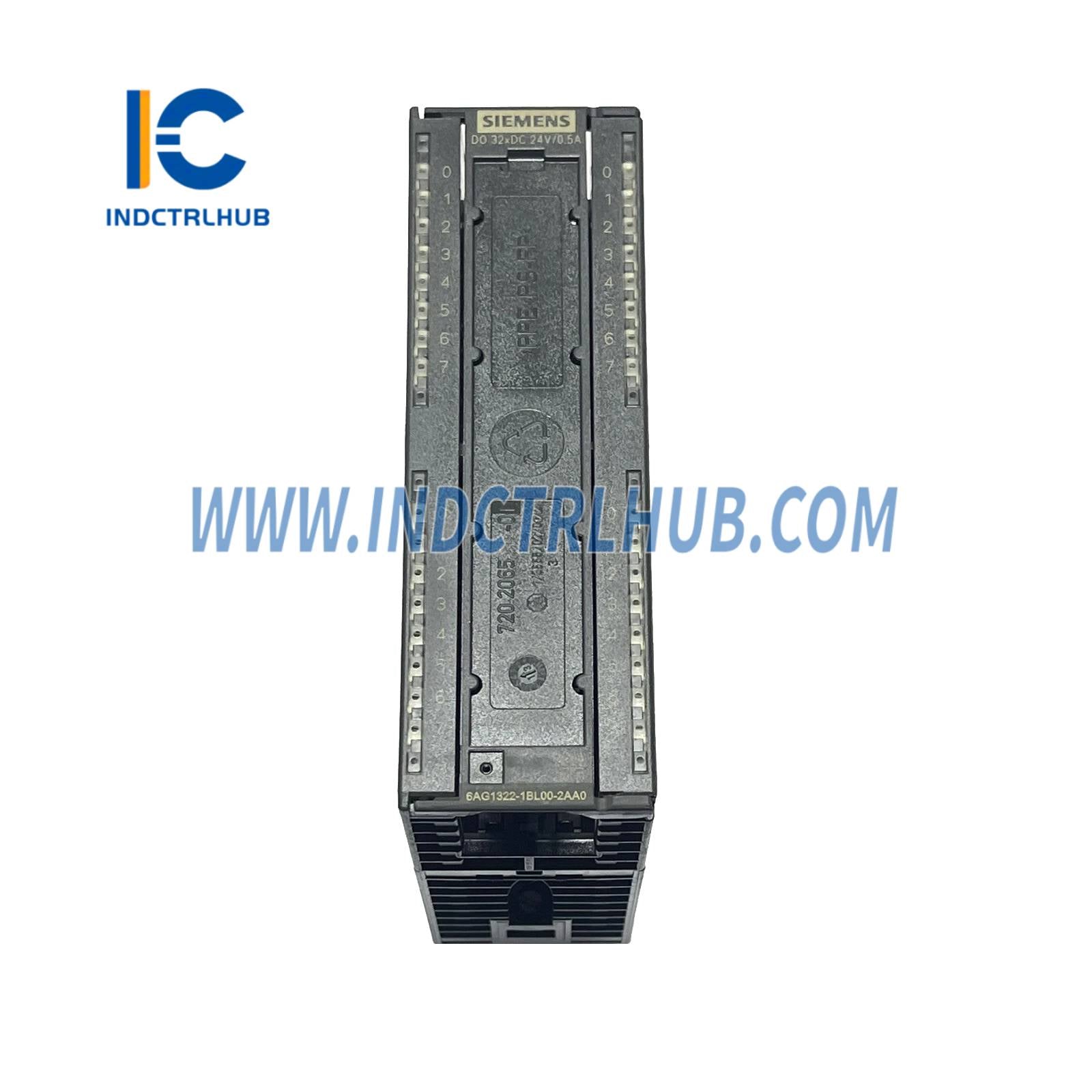

Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model Number |
6AG1322-1BL00-2AA0 |
|
Base Model |
6ES7322-1BL00-0AA0 |
|
Description |
SIPLUS SM 322 with conformal coating, -25…+70 °C, digital output isolated, 32 DQ, 24 V DC, 0.5 A per channel, 1×40-pole, total current 4 A/group (16 A/module). |
|
Product Family |
SIPLUS S7-300 SM 322 |
|
Product Lifecycle (PLM) |
PM400: Announcement of product phase-out |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Number of Digital Outputs |
32 DQ |
|
Output Voltage |
24 V DC |
|
Max Output Current per Channel |
0.5 A |
|
Max Total Current per Group |
4 A |
|
Max Total Current per Module |
16 A |
|
Isolation |
Yes |
|
Operating Temperature Range |
-25 to +70 °C |
|
Connector Type |
1 × 40-pole |
|
Conformal Coating |
Yes (SIPLUS ruggedized version) |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.306 kg |
|
Packaging Dimensions (L x W x H) |
15.00 x 13.00 x 4.90 cm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
6AG1322-1BL00-2AA0 |
|
EAN |
4025515136613 |
|
UPC |
662643199093 |
|
Commodity Code |
85389091 |
|
Catalog ID |
A&DSE/SIP ADD |
|
Product Group |
X0SM |
|
Group Code |
R151 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since 01.01.2012 |
|
Product Class |
A: Standard product, returnable per guidelines |
|
WEEE Directive Compliance |
Yes |
|
REACH Art. 33 Notification |
Lead (CAS-No. 7439-92-1) > 0.1% w/w |
