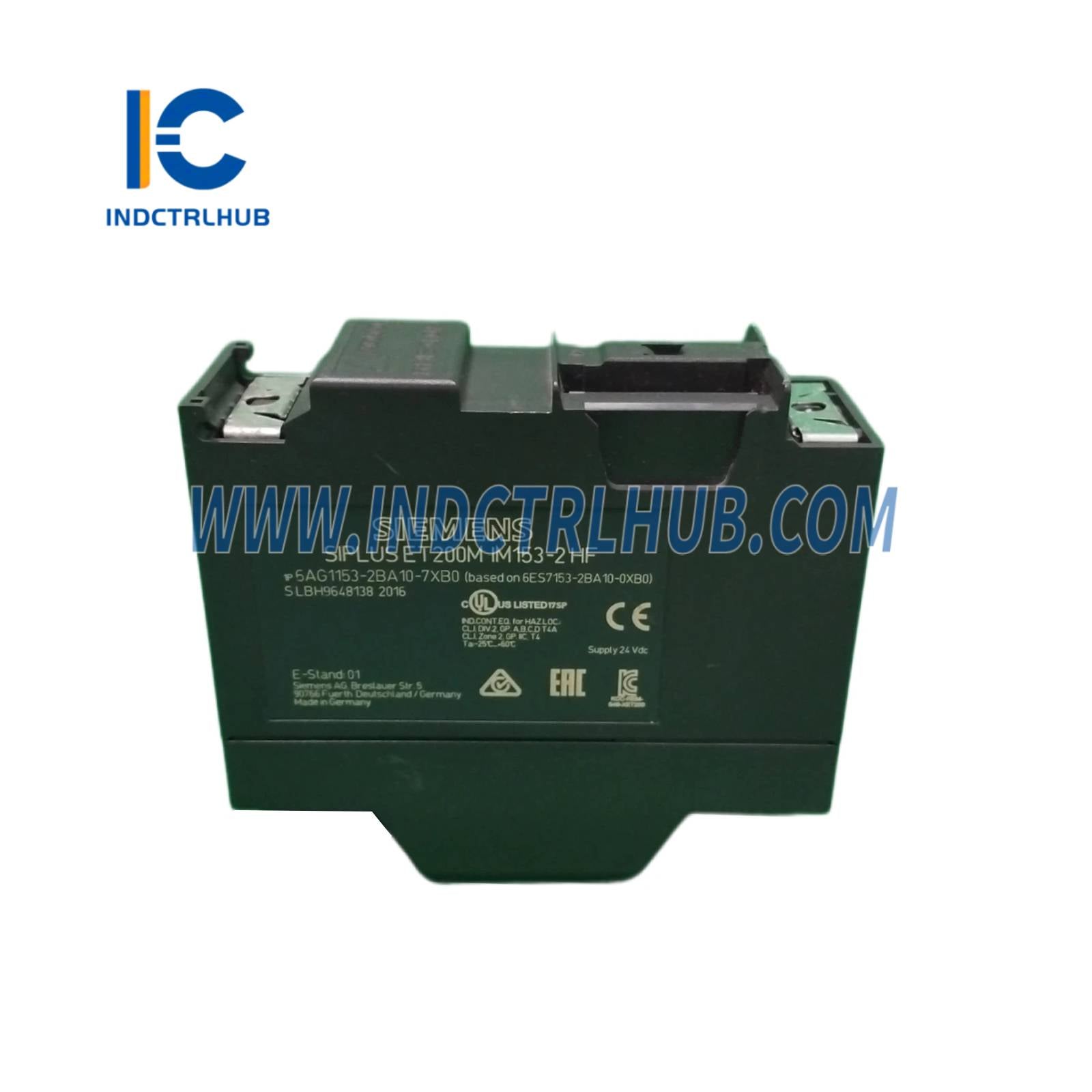

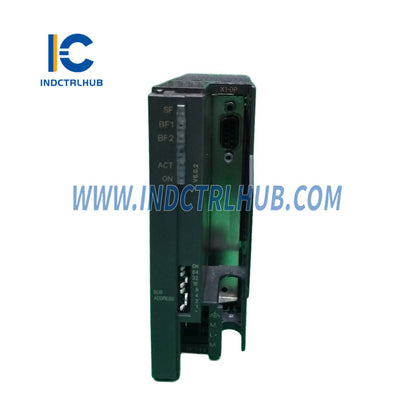

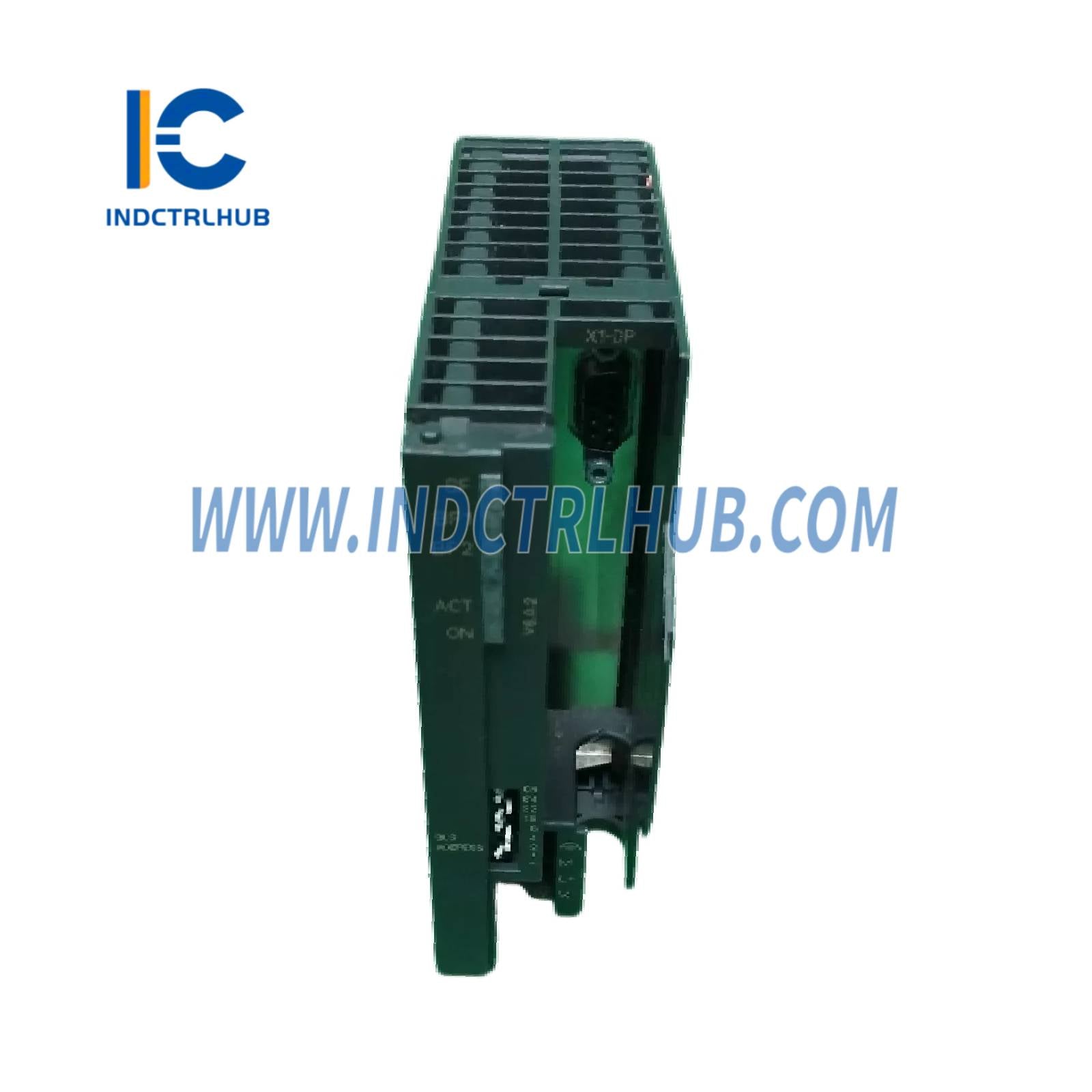

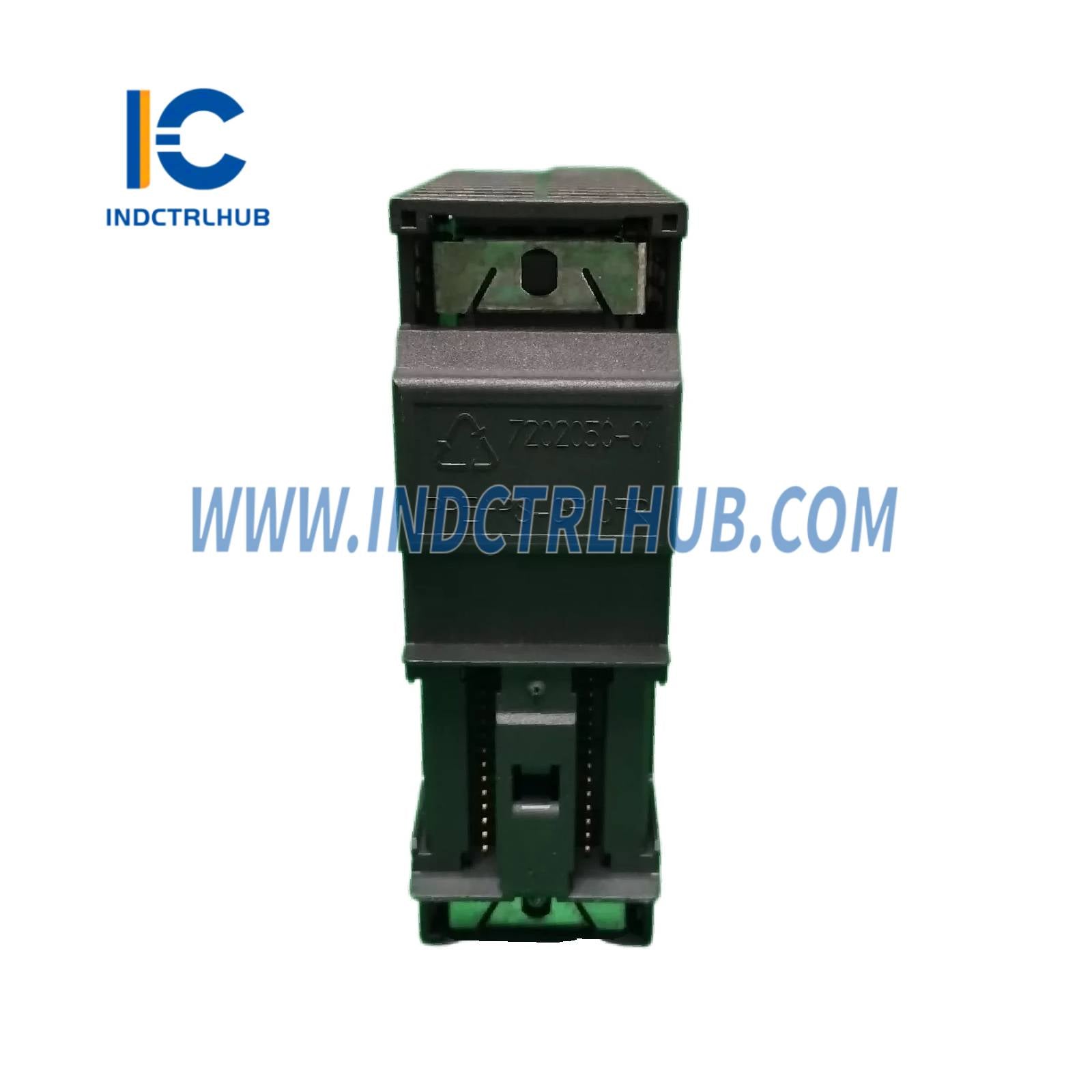

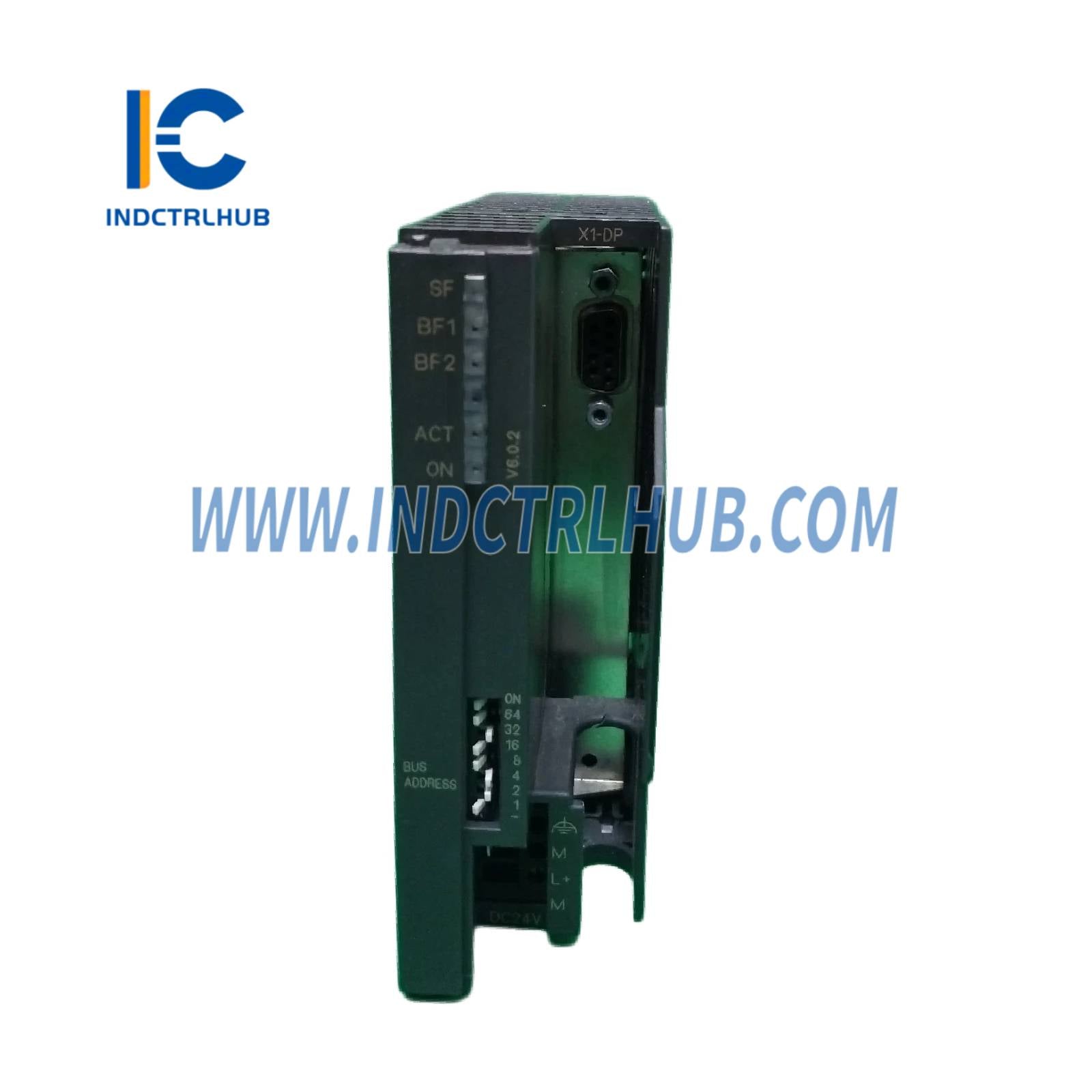

Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model Number |
6AG1153-2BA10-7XB0 |
|
Base Model |
6ES7153-2BA10-0XB0 |
|
Description |
SIPLUS IM 153-2 High Feature with conformal coating, -40…+70 °C, based on 6ES7153-2BA10-0XB0. Supports redundancy, time stamping, isochronous mode, HART, and 64-channel modules. |
|
Product Family |
SIPLUS ET 200M IM 153-1/153-2 |
|
Product Lifecycle (PLM) |
PM400: Announcement of product phase-out |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Operating Temperature Range |
-40 to +70 °C |
|
Startup Temperature |
-25 °C |
|
Conformal Coating |
Yes (SIPLUS ruggedized version) |
|
Max S7-300 Modules |
12 modules |
|
Redundancy Capability |
Yes |
|
Time Stamp Functionality |
Yes |
|
Isochronous Mode |
Supported |
|
Slave Initiative (Drive ES / Switch ES) |
Supported |
|
HART Capability |
Expanded quantity structure for auxiliary variables |
|
64-Channel Module Compatibility |
Supports 32 signals per slot |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.288 kg |
|
Packaging Dimensions (L x W x H) |
15.00 x 13.00 x 5.00 cm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
6AG1153-2BA10-7XB0 |
|
EAN |
4047618054519 |
|
UPC |
804766200717 |
|
Commodity Code |
85176200 |
|
Catalog ID |
A&DSE/SIP ADD |
|
Product Group |
X0SM |
|
Group Code |
R151 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since 24.04.2015 |
|
Product Class |
A: Standard stock item, returnable per guidelines |
|
WEEE Directive Compliance |
Yes |
|
REACH Art. 33 Notification |
Lead (CAS-No. 7439-92-1) > 0.1% w/w |
