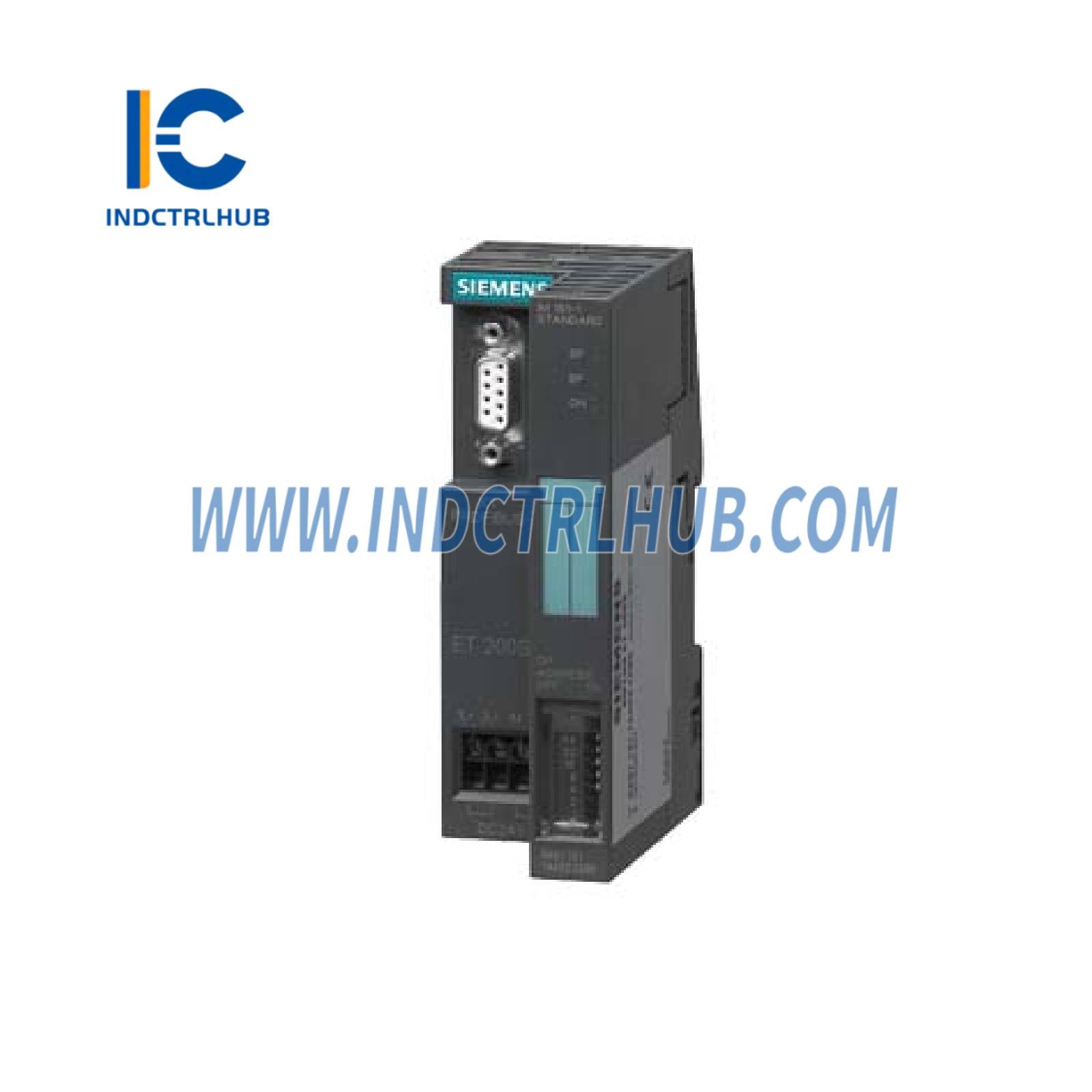

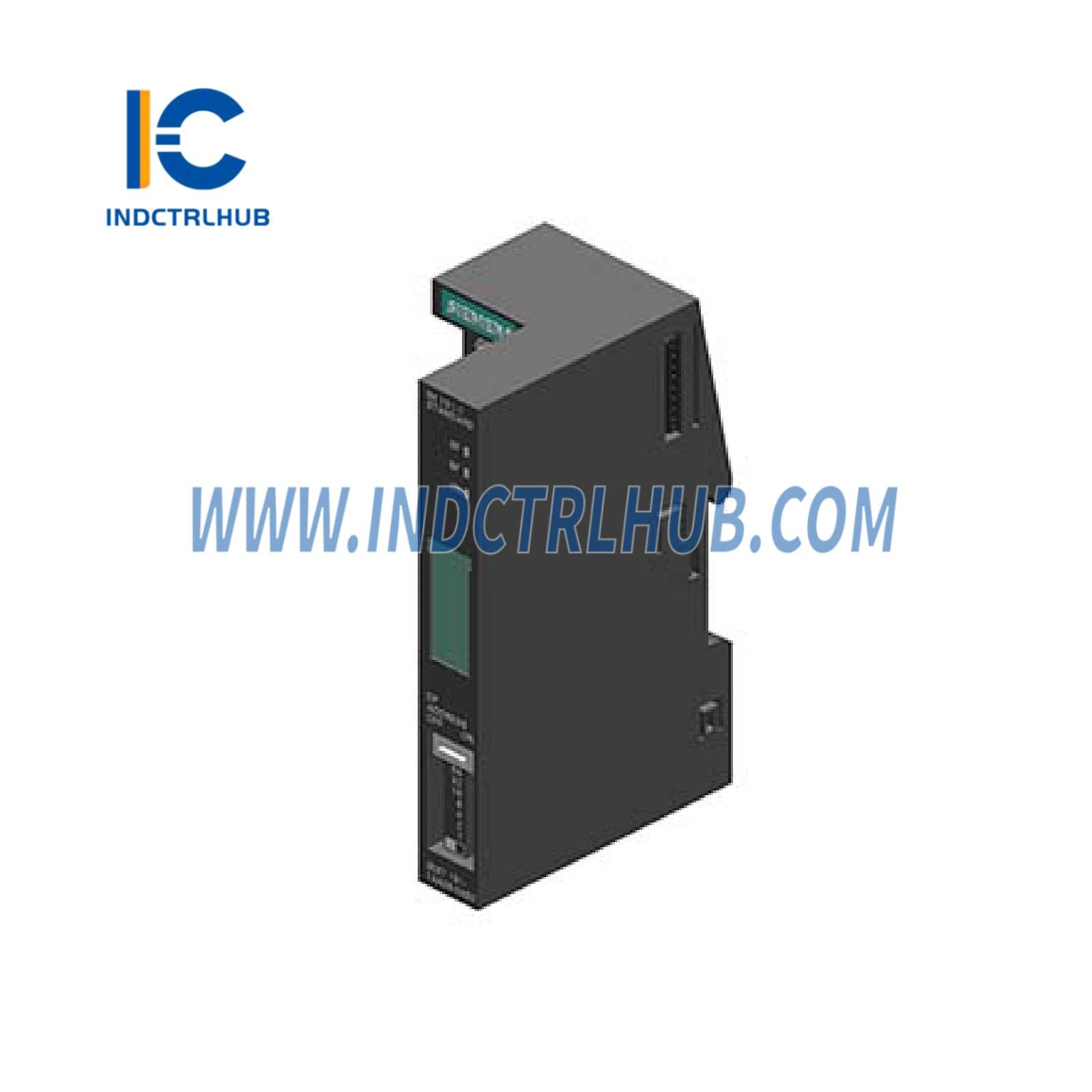

Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model Number |
6AG1151-1AA06-7AB0 |
|
Description |
Spare part - Interface module based on 6ES7151-1AA06-0AB0 with conformal coating. Operates in harsh environments (-25…+70 °C). Includes termination module. |
|
Product Family |
Not available |
|
Product Lifecycle |
PM410: Product cancellation |
|
Base Model |
6ES7151-1AA06-0AB0 |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Operating Temperature Range |
-25…+70 °C |
|
Input/Output Data Volume |
244 bytes each for inputs and outputs |
|
Maximum I/O Modules |
63 modules |
|
Maximum System Width |
Up to 2 m |
|
Supported Protocols |
PROFIBUS DP V0 and V1 |
|
Bus Connection |
9-pin D-sub connector |
|
Conformal Coating |
Yes (SIPLUS version for environmental protection) |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.172 kg |
|
Packaging Dimensions (L x W x H) |
8.30 x 12.50 x 7.00 cm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
6AG1151-1AA06-7AB0 |
|
EAN |
4047618074814 |
|
Commodity Code |
85176200 |
|
Catalog ID |
A&DSE/SIP ADD |
|
Product Group |
4572 |
|
Group Code |
R151 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since: 15.07.2016 |
|
Product Class |
A: Standard stock item, returnable per guidelines |
|
WEEE Directive Compliance |
Yes |
|
REACH Art. 33 Notification |
Lead (CAS-No. 7439-92-1) > 0.1% w/w |
|
SCIP Number |
Not available |
