Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model Number |
6AG1132-4BD02-7AA0 |
|
Description |

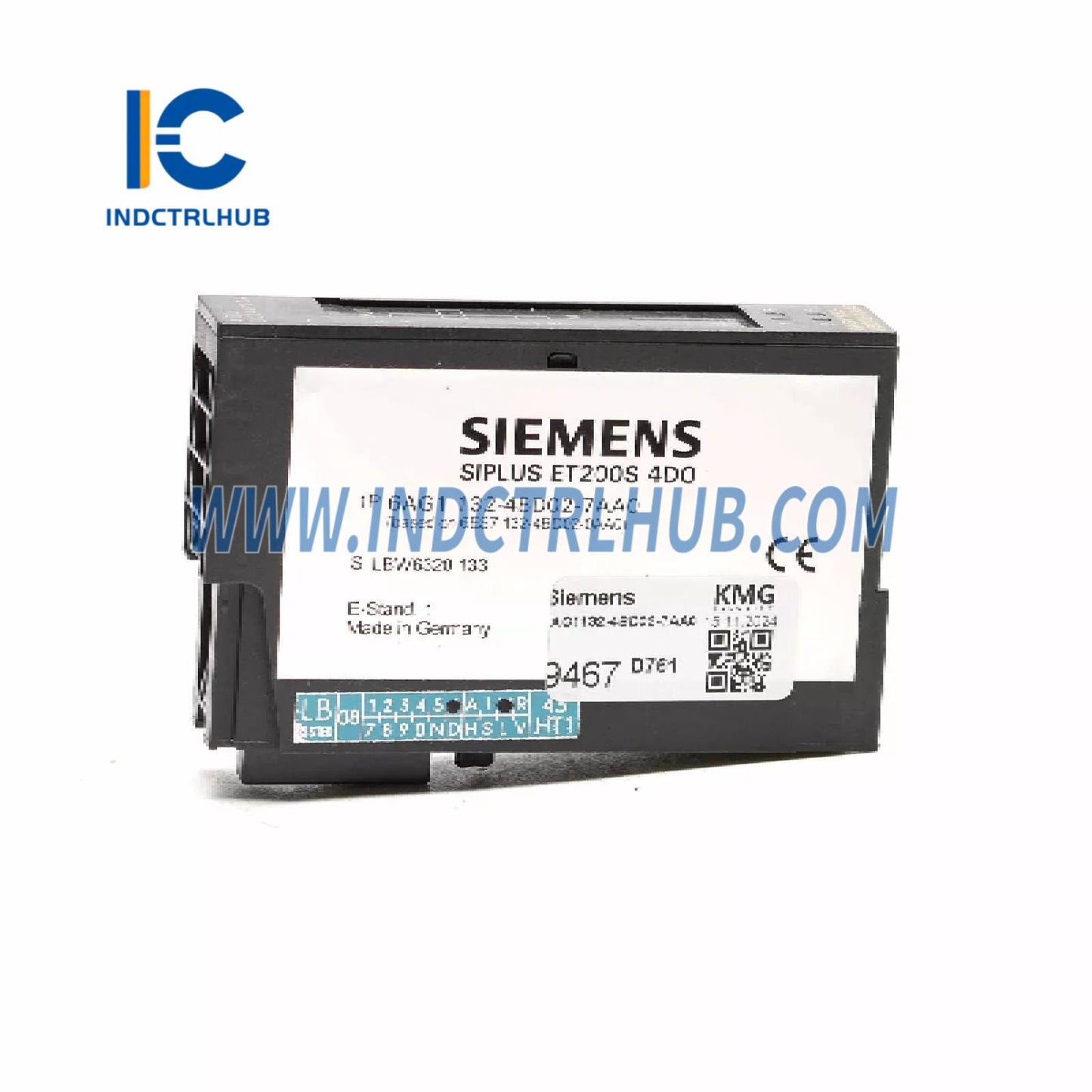

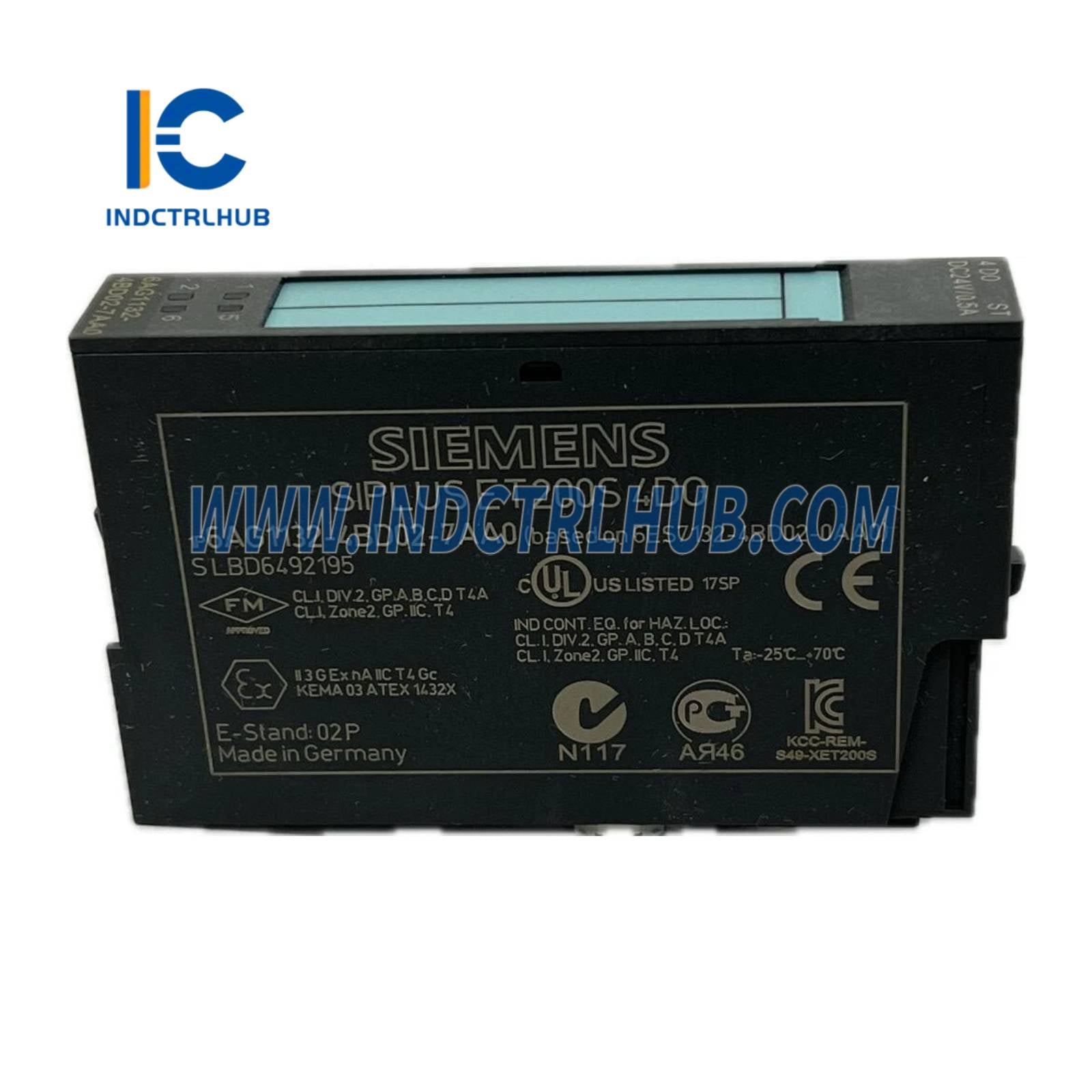

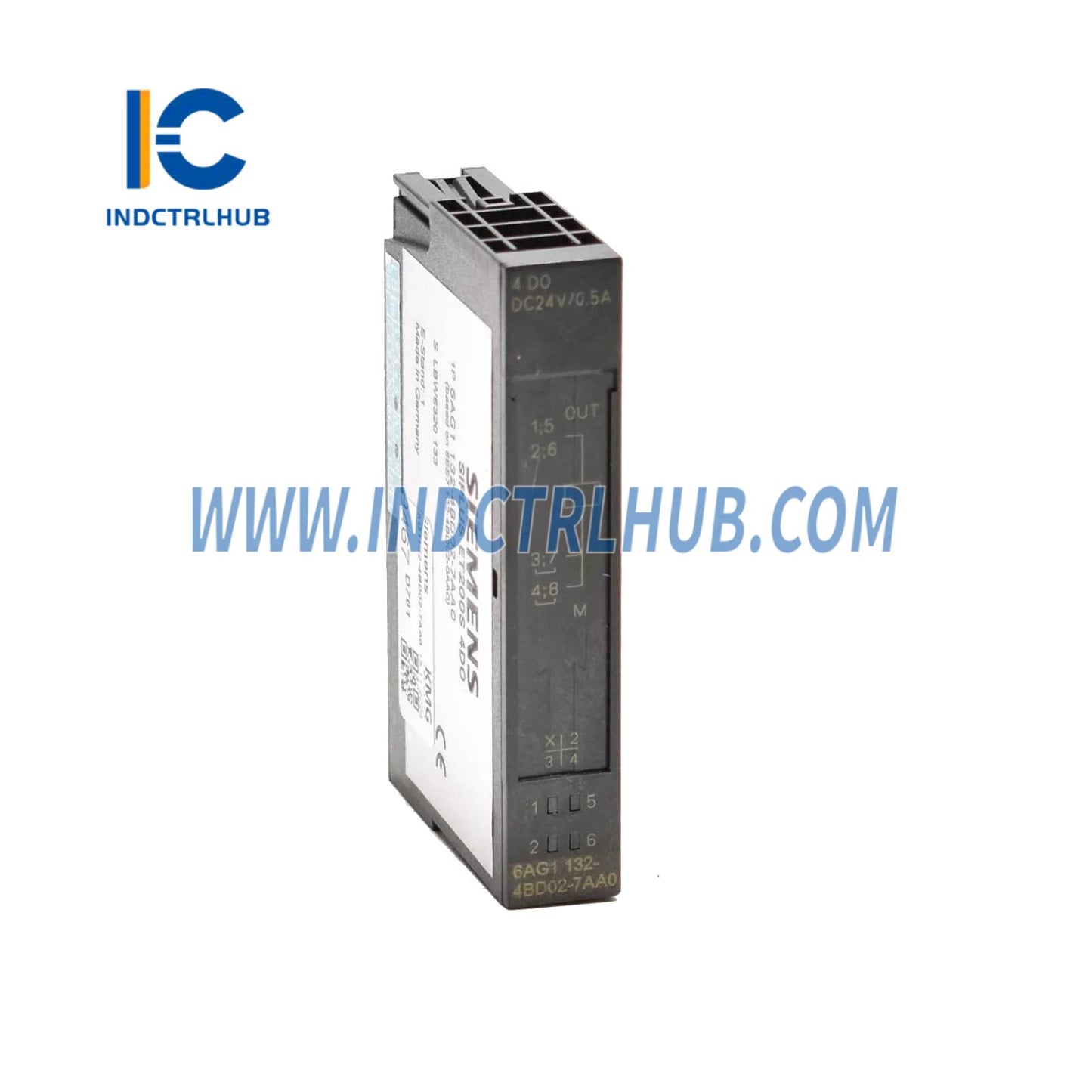

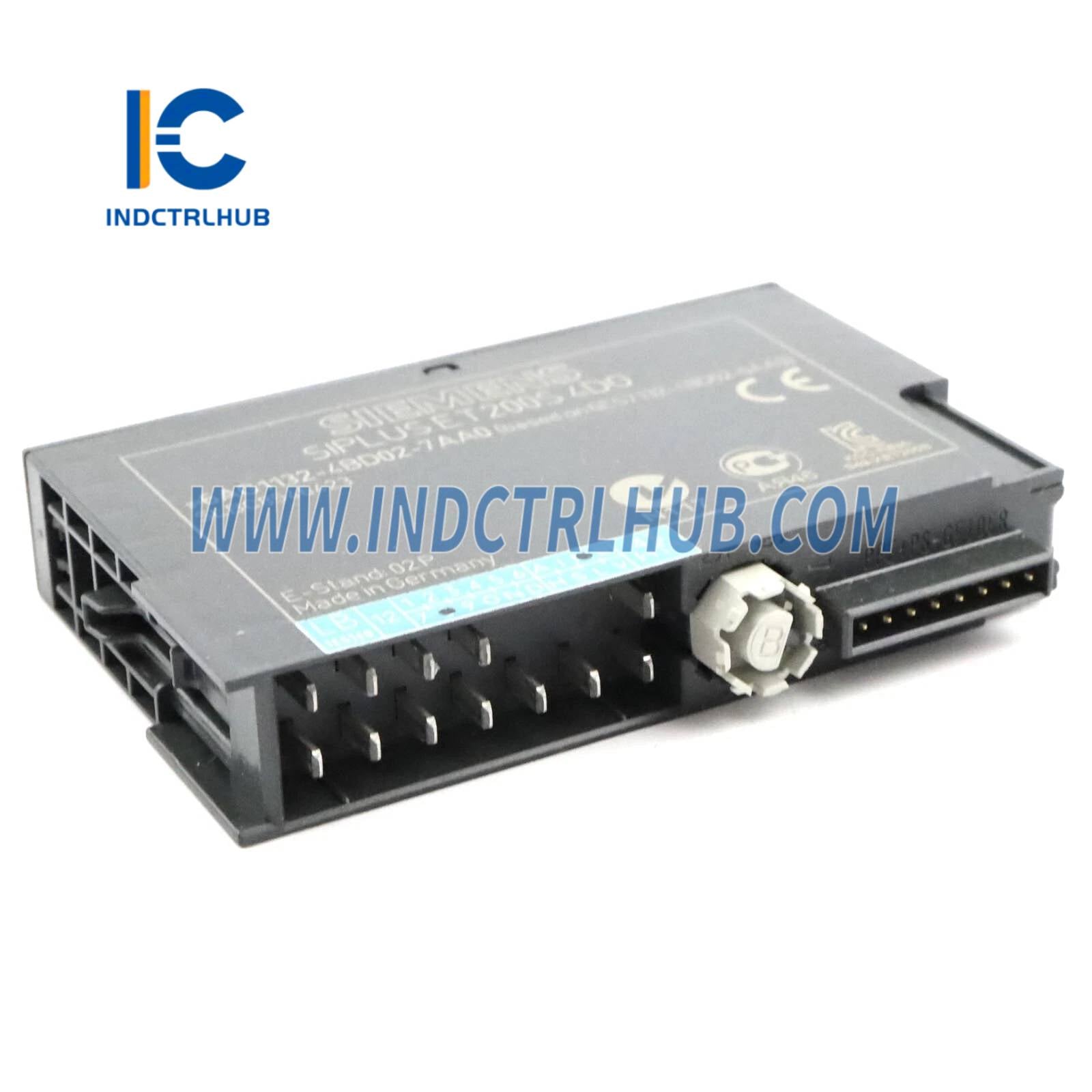

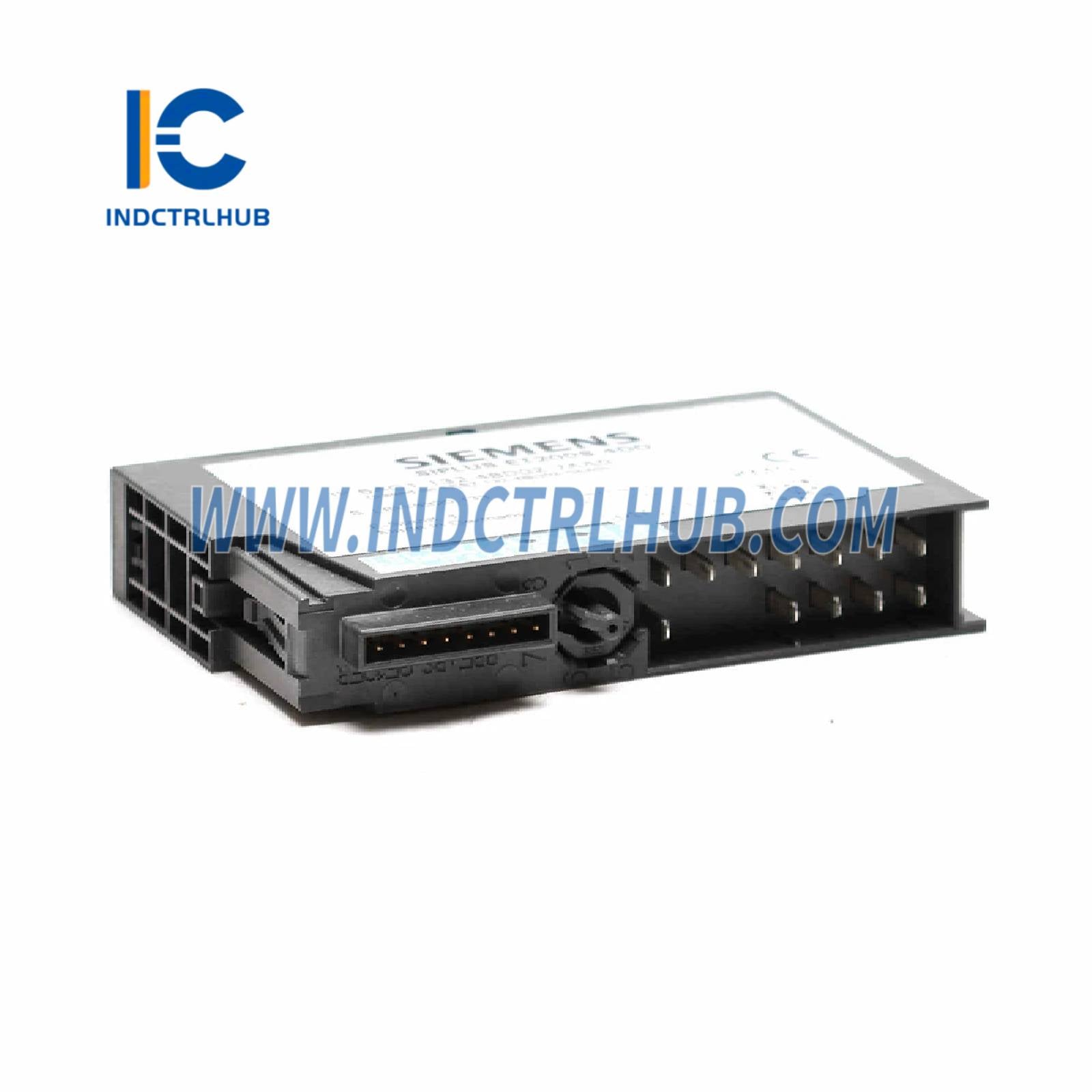

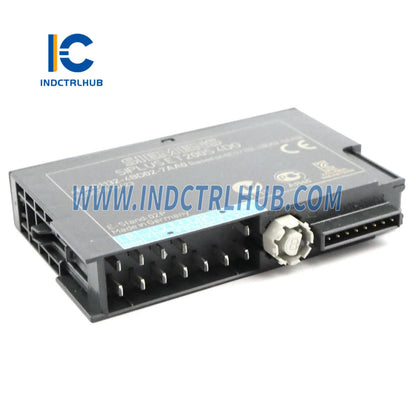

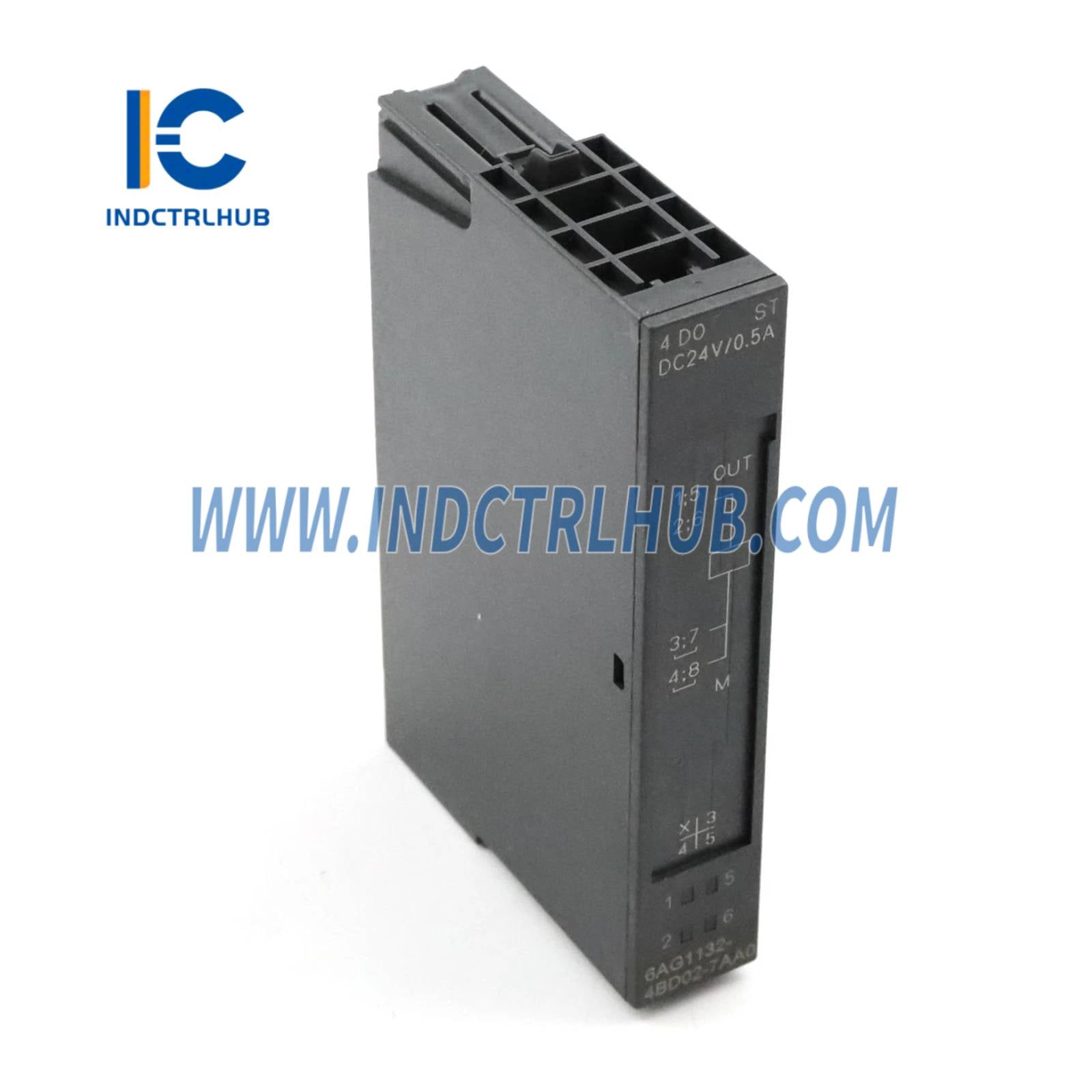

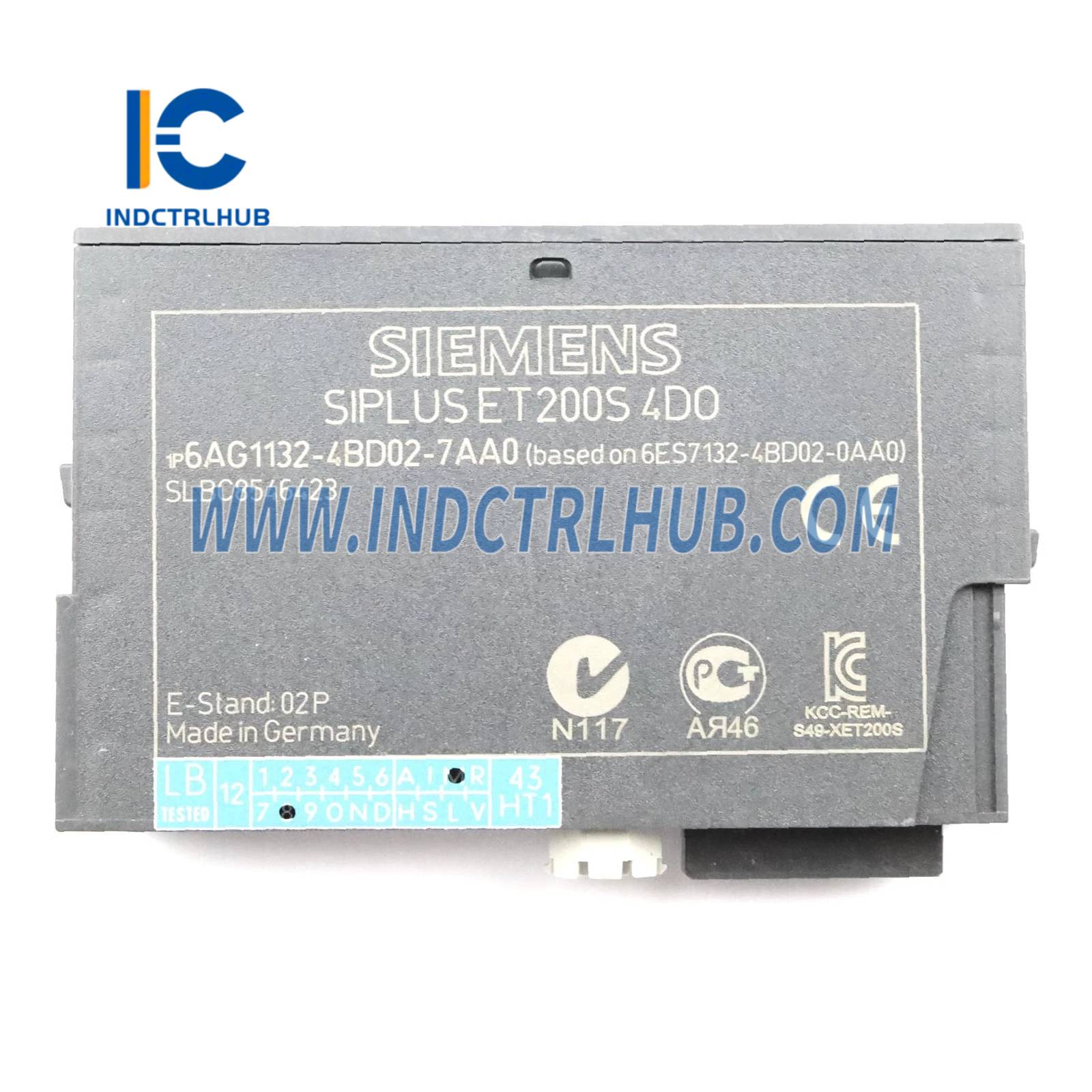

SIPLUS ET 200S EM 4DQ electronic module (based on 6ES7132-4BD02-0AA0) with conformal coating. 24 V DC / 0.5 A, 15 mm width. Rated for harsh environments: -25…+70 °C. Supplied in a pack of 5 units |
|
Product Family |
Not available |
|
Product Lifecycle |
PM410: Product cancelled |
|
PLM Effective Date |
Cancelled since 01.10.2023 |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Voltage / Current Rating |
24 V DC / 0.5 A |
|
Module Width |
15 mm |
|
Operating Temperature Range |
-25…+70 °C |
|
Units per Pack |
5 |
|
Base Model |
6ES7132-4BD02-0AA0 |
|
Conformal Coating |
Yes (SIPLUS version for extended temperature and environmental protection) |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.178 kg |
|
Packaging Dimensions (L x W x H) |
8.00 x 9.00 x 6.30 cm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
6AG1132-4BD02-7AA0 |
|
EAN |
4042948448212 |
|
UPC |
040892548440 |
|
Commodity Code |
85389091 |
|
Catalog ID |
A&DSE/SIP ADD |
|
Product Group |
4398 |
|
Group Code |
R151 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since: 01.01.2012 |
|
Product Class |
A: Standard product (returnable per guidelines) |
|
WEEE Directive Compliance |
Yes |
|
REACH Art. 33 Notification |
Lead (CAS-No. 7439-92-1) > 0.1% w/w |
|
SCIP Number |
Not available |
