Product Description

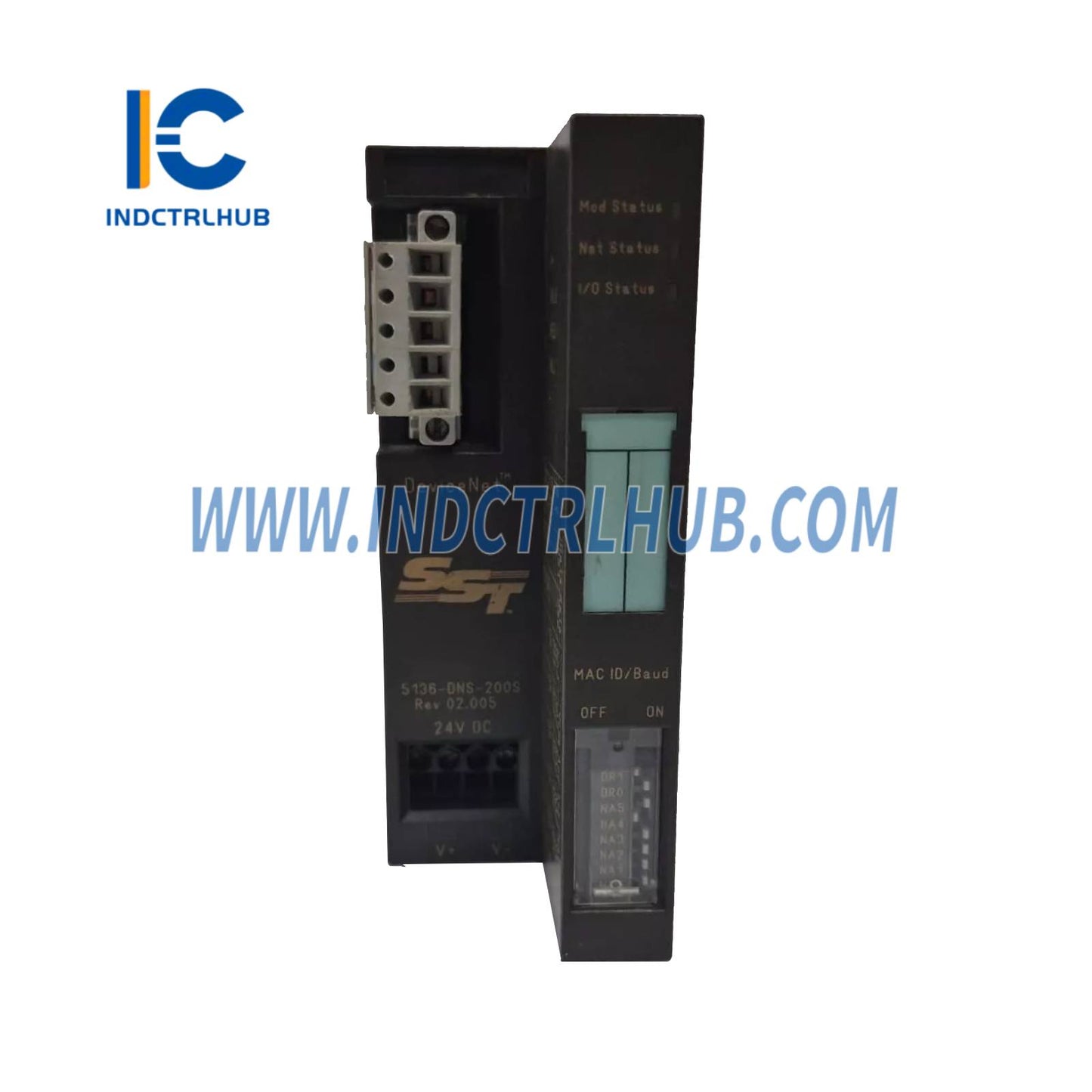

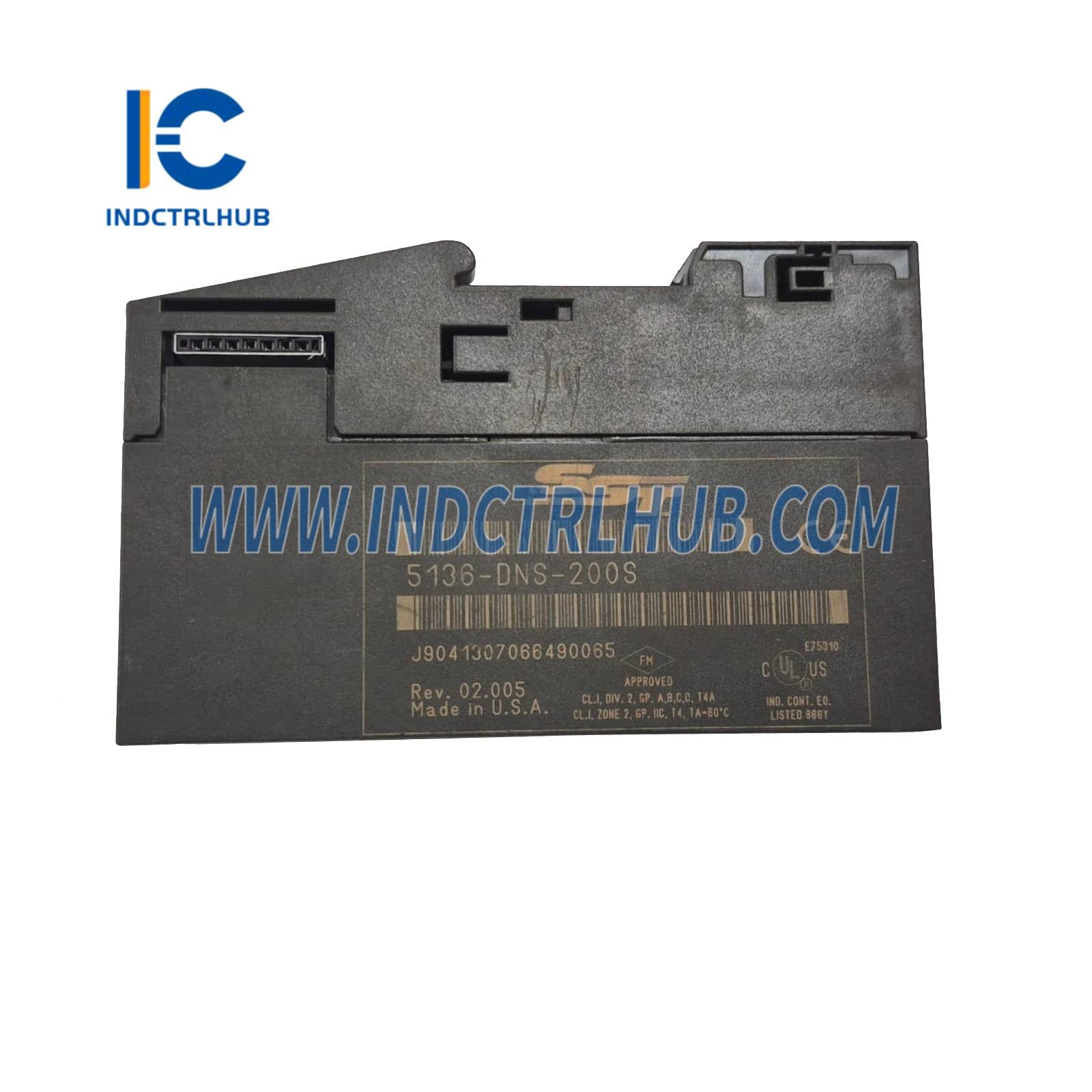

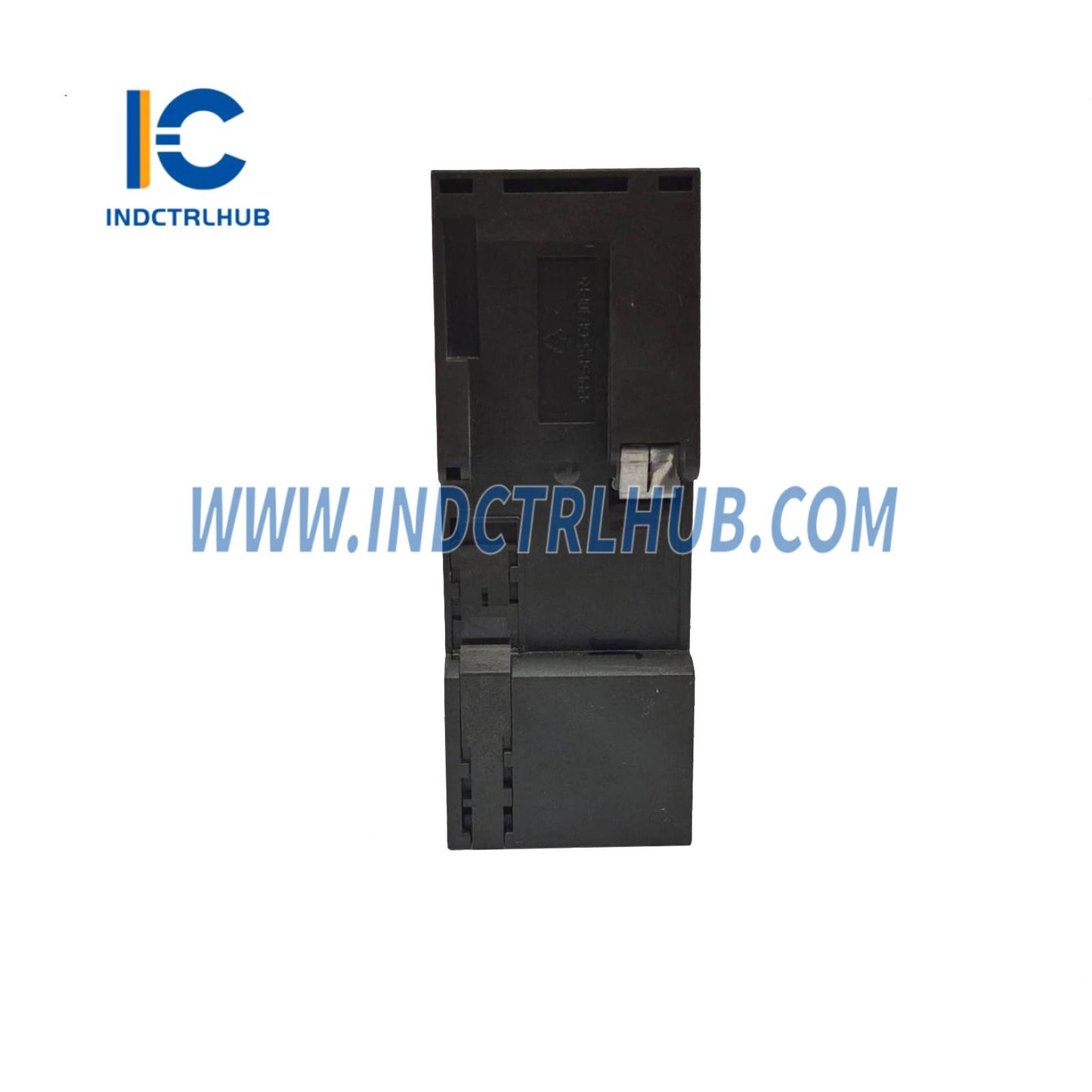

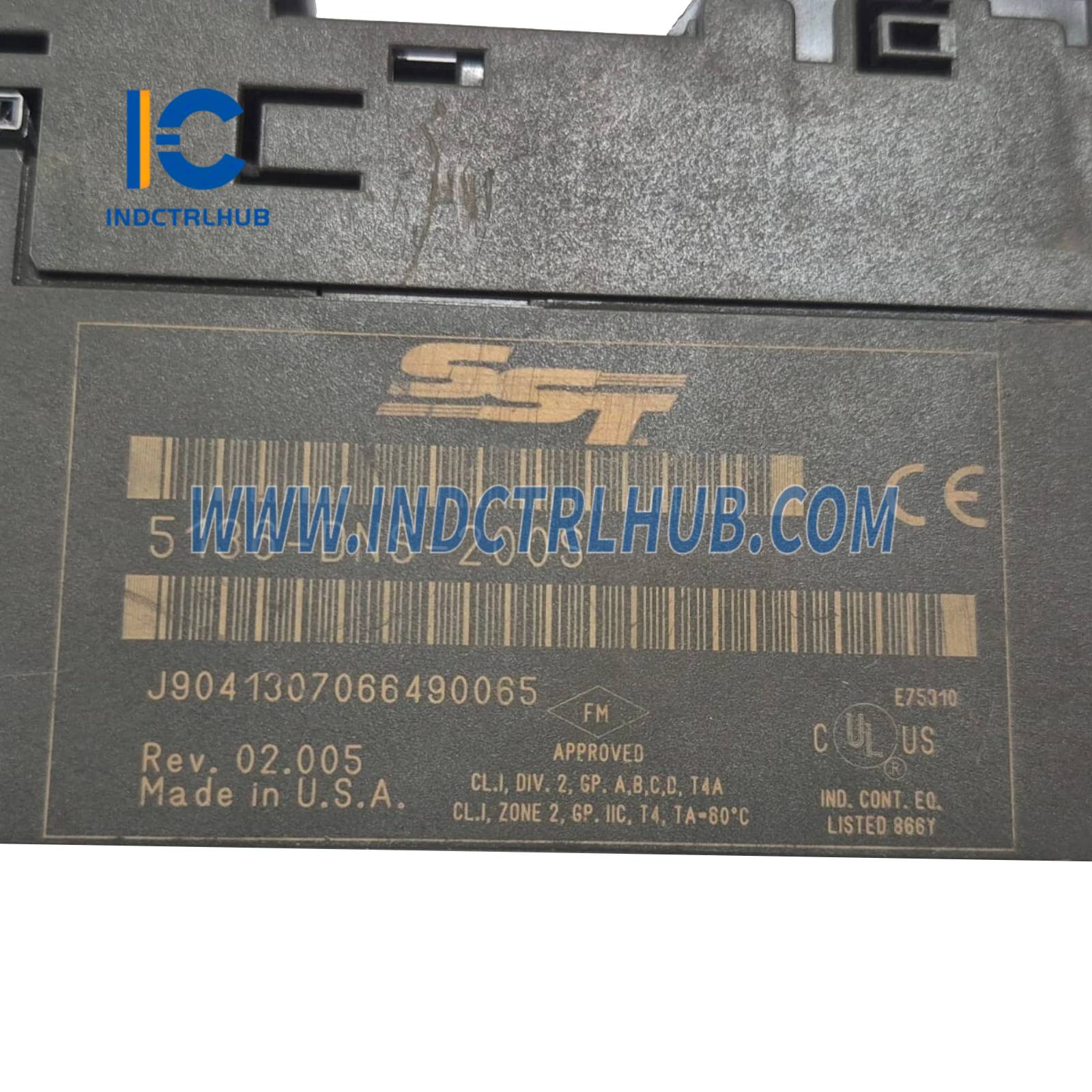

Siemens 5136-DNS-200S DeviceNet Slave Adapter
Product Overview
- The Siemens 5136-DNS-200S, also known as the SST DeviceNet Slave Adapter, is a communication module designed for the Siemens Simatic ET200S distributed I/O system. Developed with licensed technology from Siemens by SST (now part of Molex), this module enables connectivity between a DeviceNet network and Siemens ET200S expansion modules, functioning as a DeviceNet slave. It is widely used in industrial automation applications, such as manufacturing, process control, and material handling, to integrate Siemens I/O with DeviceNet-based control systems.
Technical Specifications
- The 5136-DNS-200S has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 5136-DNS-200S |
| Manufacturer | Siemens (Developed by SST/Molex) |
| Description | DeviceNet Slave Adapter, Communication Module, ET200S |
| Series | Simatic ET200S |
| Communication Protocol | DeviceNet (Slave) |
| Power Supply | 24 VDC |
| Current Consumption | 125 mA max (without expansion modules) |

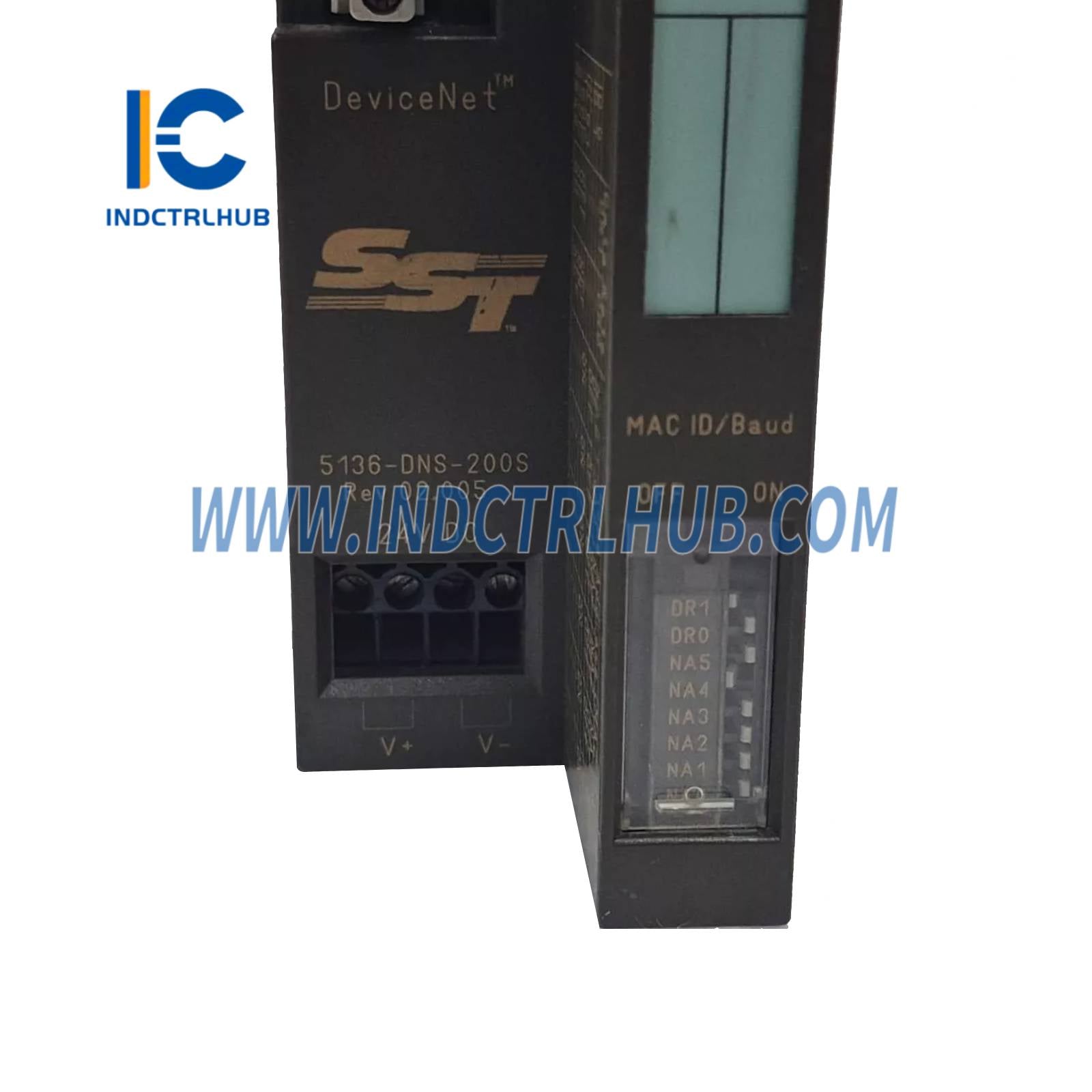

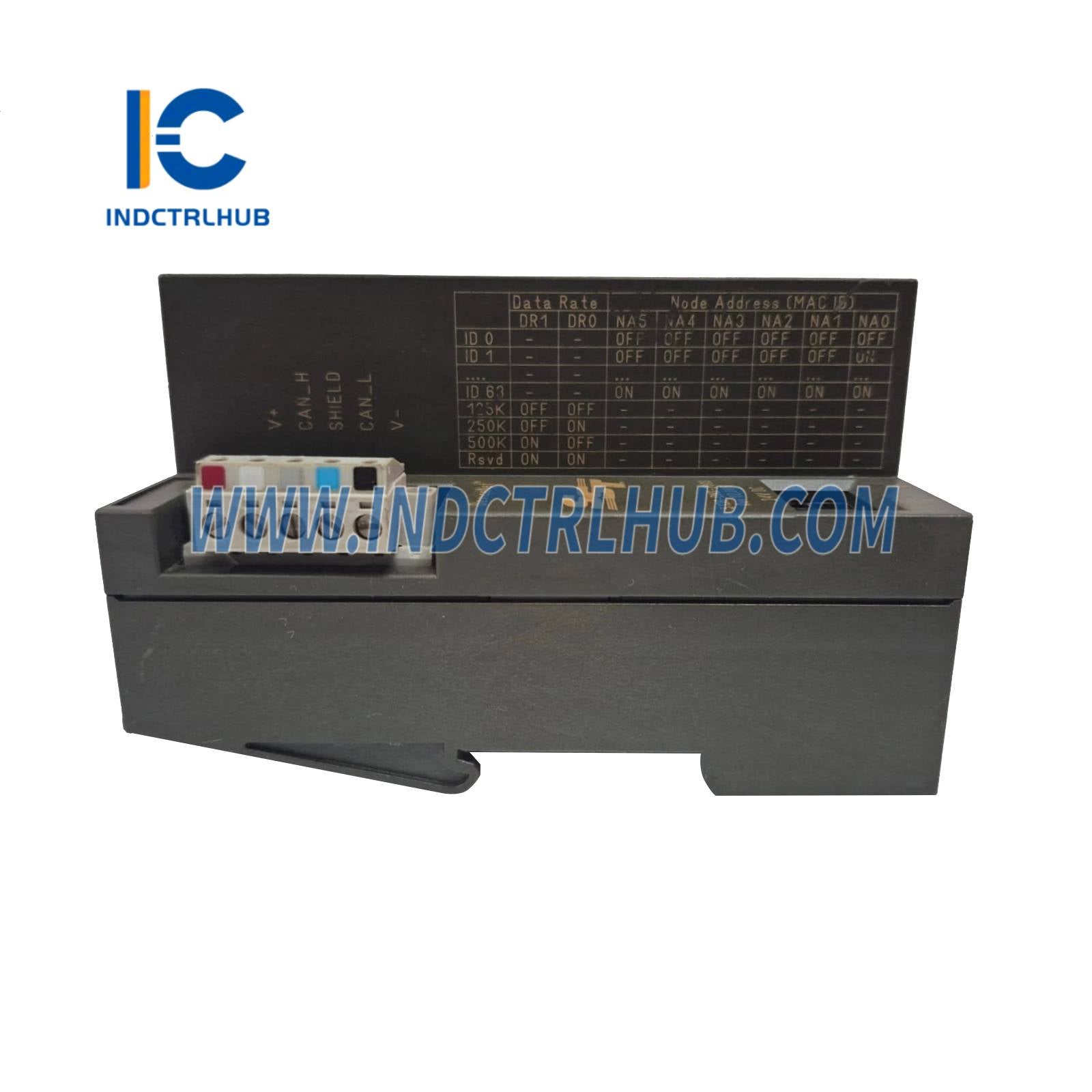

| Data Rate | 125 kbps, 250 kbps, or 500 kbps (DIP switch configurable) |
| Node Address | 0–63 (DIP switch configurable) |
| I/O Data | Supports fragmented I/O, max. 244 bytes input and/or output |
| Connection Types | Supports poll, strobe, cyclic, and change-of-state I/O connections |

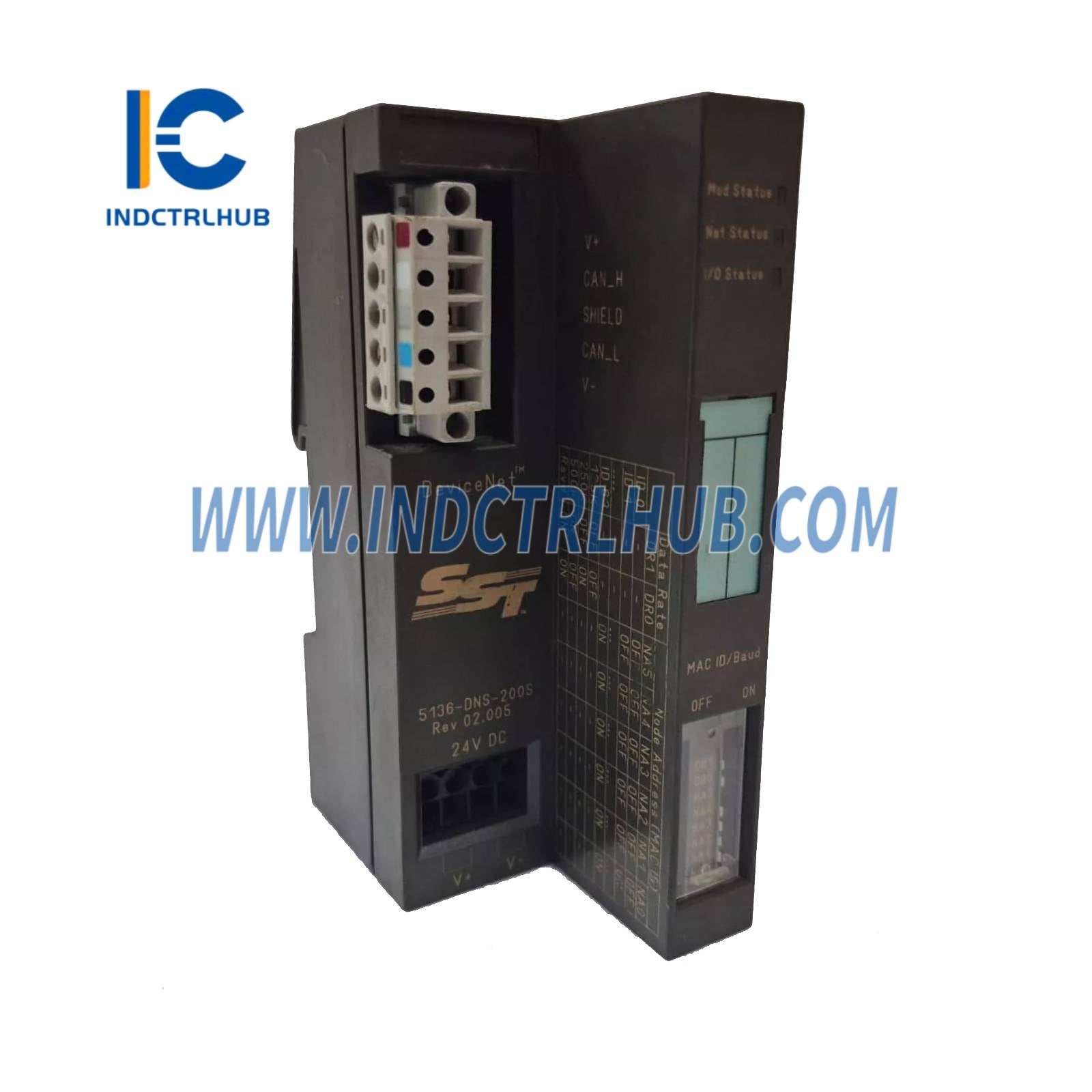

| Connectors | 5-pin screw terminals for DeviceNet; ET200S backplane for I/O modules |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Shock: 10 g ½ sine wave for 11 ms Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz Relative Humidity: 5% to 95% non-condensing |
| Dimensions | Approx. 45 mm (W) x 115 mm (H) x 76 mm (D) |
| Weight | Approx. 0.3 kg |
| Mounting | DIN rail mounting, integrated into ET200S rack |
Additional Details
- The 5136-DNS-200S includes the following additional information based on industry sources:
- Function: Acts as a DeviceNet slave, enabling communication between a DeviceNet master (e.g., PLC or controller) and Siemens ET200S I/O modules; supports integration of digital and analog I/O modules (e.g., 4DI, 4DO, PM-E) for distributed control; facilitates seamless data exchange in DeviceNet networks.
