Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model/Part Number |
3SK1111-1AB30 |
|
Description |

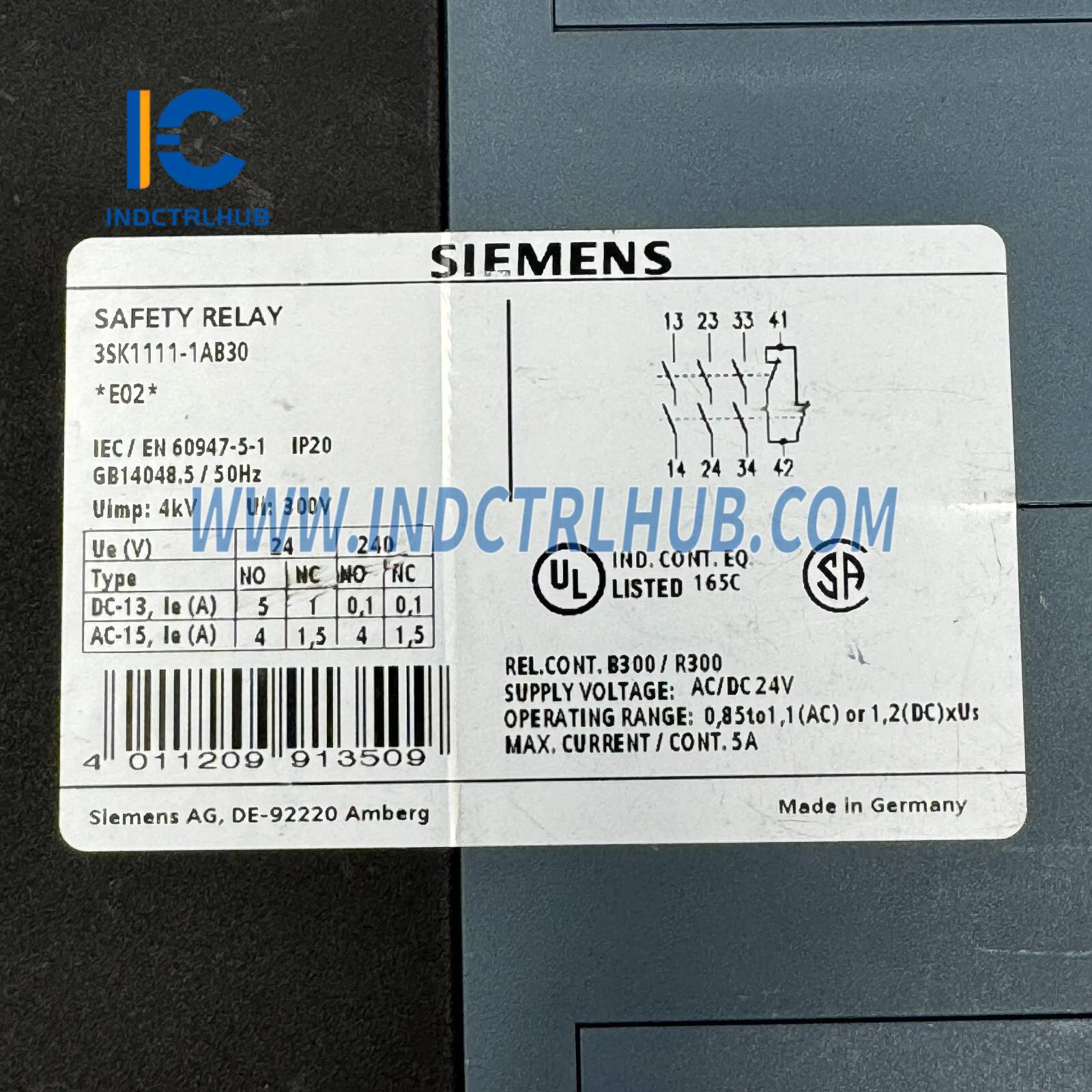

SIRIUS safety relay, Basic unit, Standard series, 3 NO relay enabling circuits, 1 NC relay signaling circuit, 24 V AC/DC, screw terminal |
|
Product Family |
SIRIUS 3SK1 Standard basic units |
|
Product Lifecycle (PLM) |
PM300: Active Product |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Supply Voltage (Us) |
24 V AC/DC |
|
Relay Enabling Circuits |
3 Normally Open (NO) contacts |
|
Relay Signaling Circuit |
1 Normally Closed (NC) contact |
|

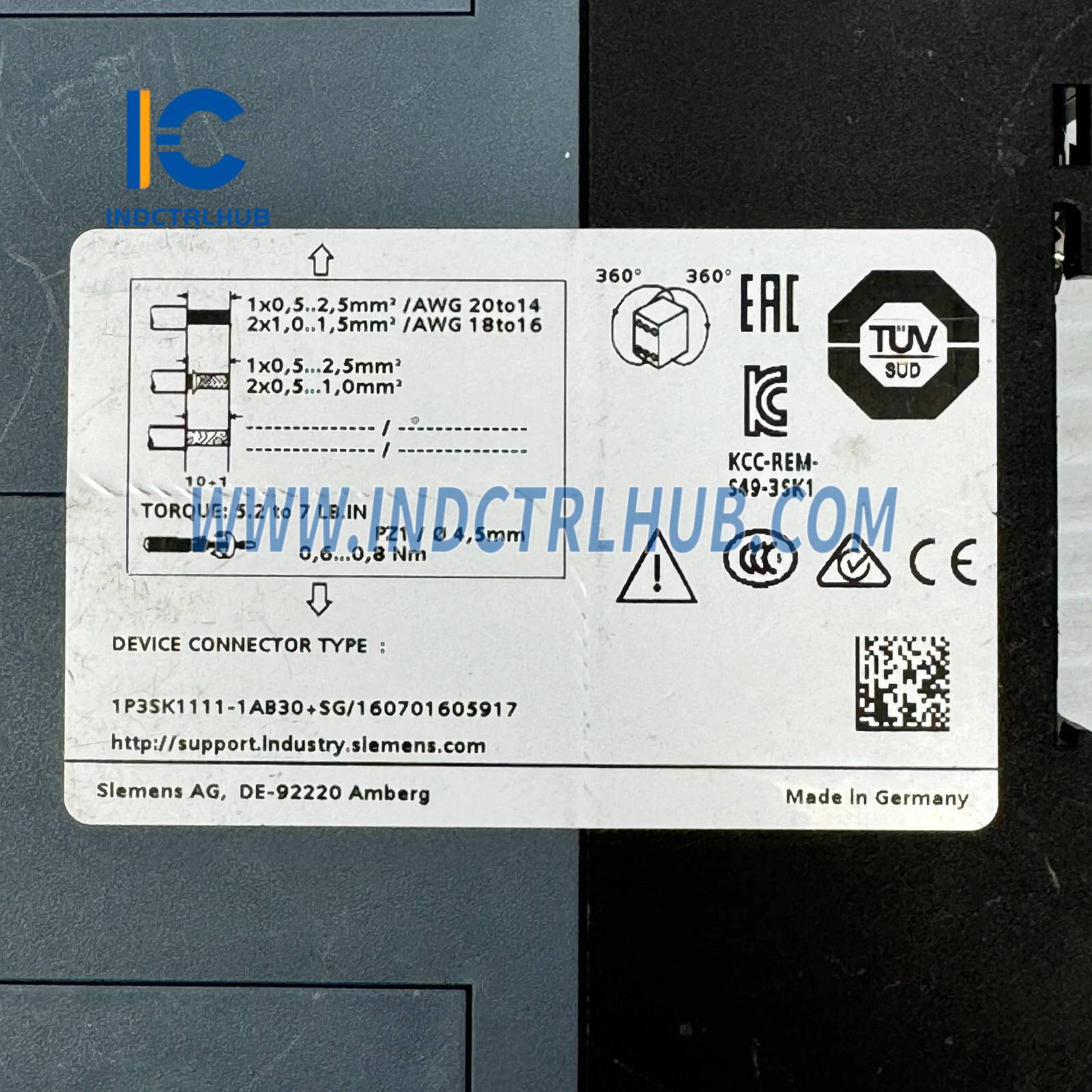

Connection Type |
Screw terminal |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.265 kg |
|
Packaging Dimensions (L x W x H) |
36.00 x 109.00 x 152.00 mm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
3SK1111-1AB30 |
|
EAN |
4011209913509 |
|
UPC |
Not available |
|
Commodity Code |
85371098 |
|
Catalog ID (LKZ_FDB) |
CC-IC10 |
|
Product Group |
3761 |
|
Group Code |
R711 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since 05.11.2012 |
|
Product Class |
A: Standard product, returnable within guidelines |
|
WEEE Take-Back Obligation |
Yes |
|
REACH Art. 33 Notification Substances |
Lead (CAS 7439-92-1), Lead monoxide (CAS 1317-36-8), 6,6’-di-tert-butyl-2,2’-methylenedi-p-cresol, Bisphenol A (CAS 80-05-7) |
|
SCIP Number |
dfc0302a-975a-4711-91b0-b3174fe6fd13 |
