Product Description

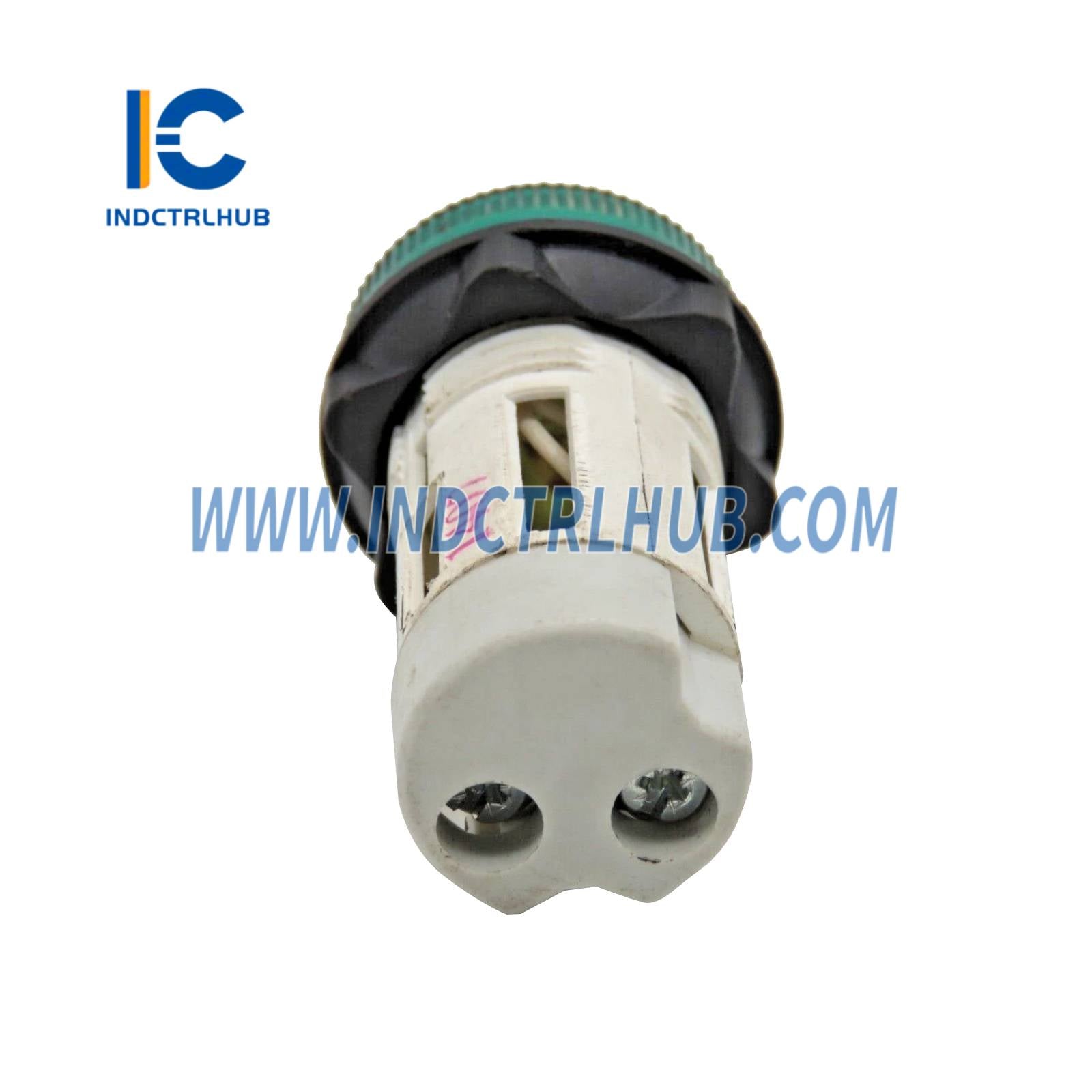

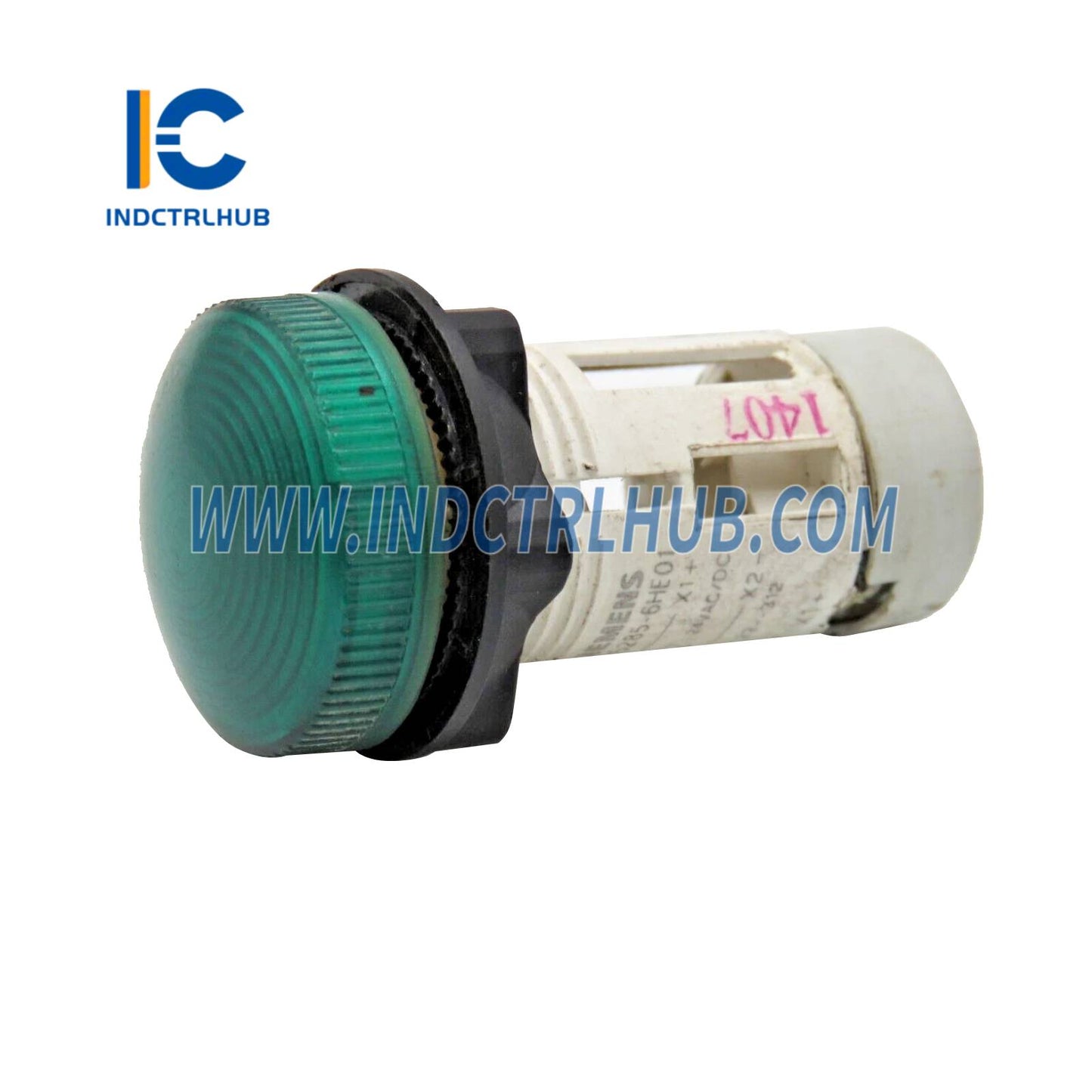

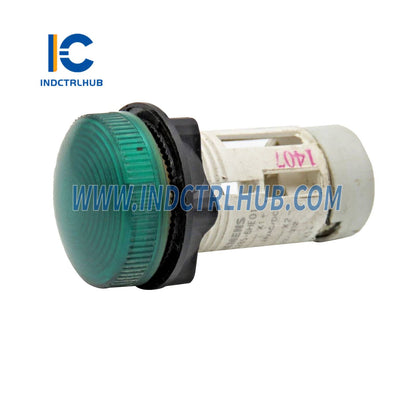

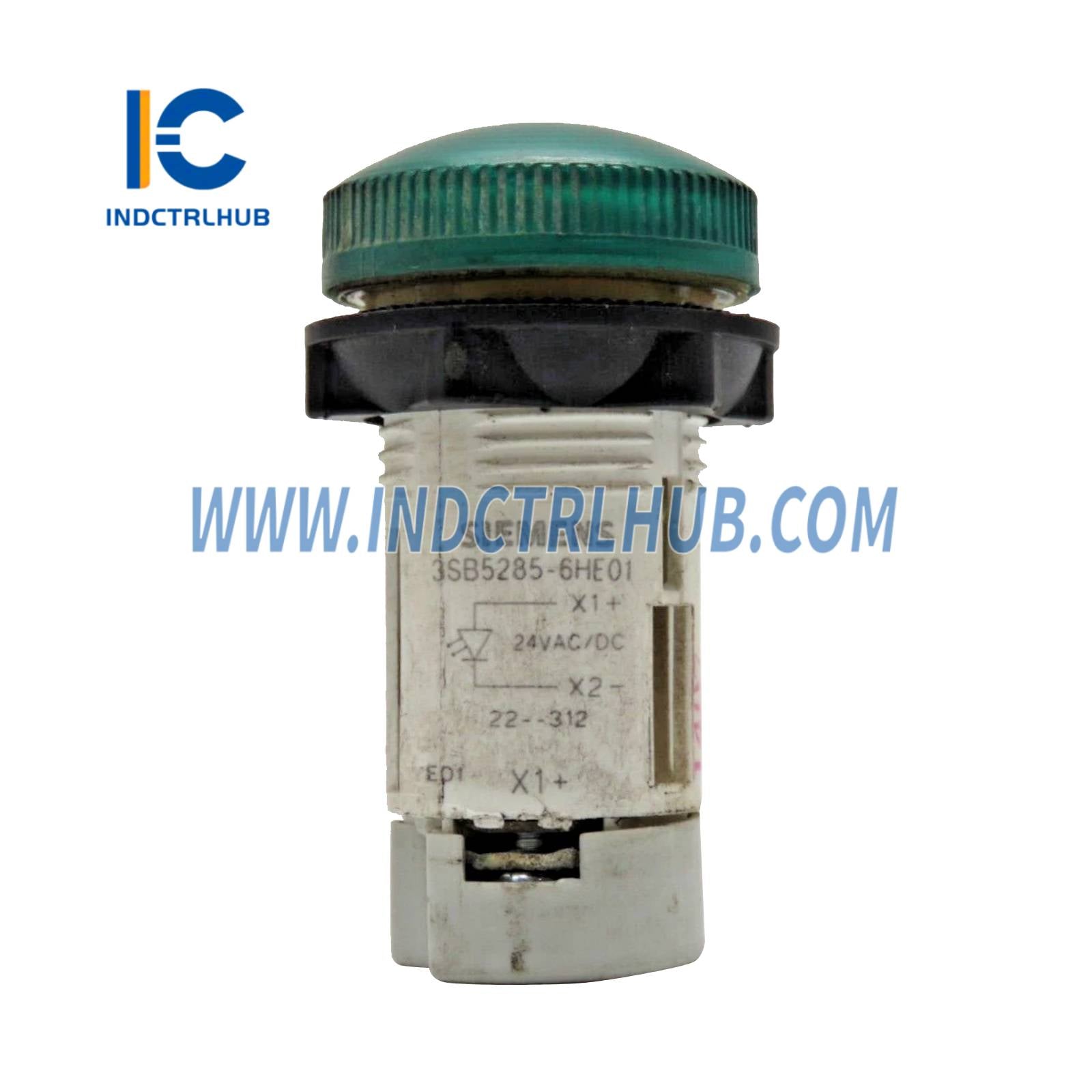

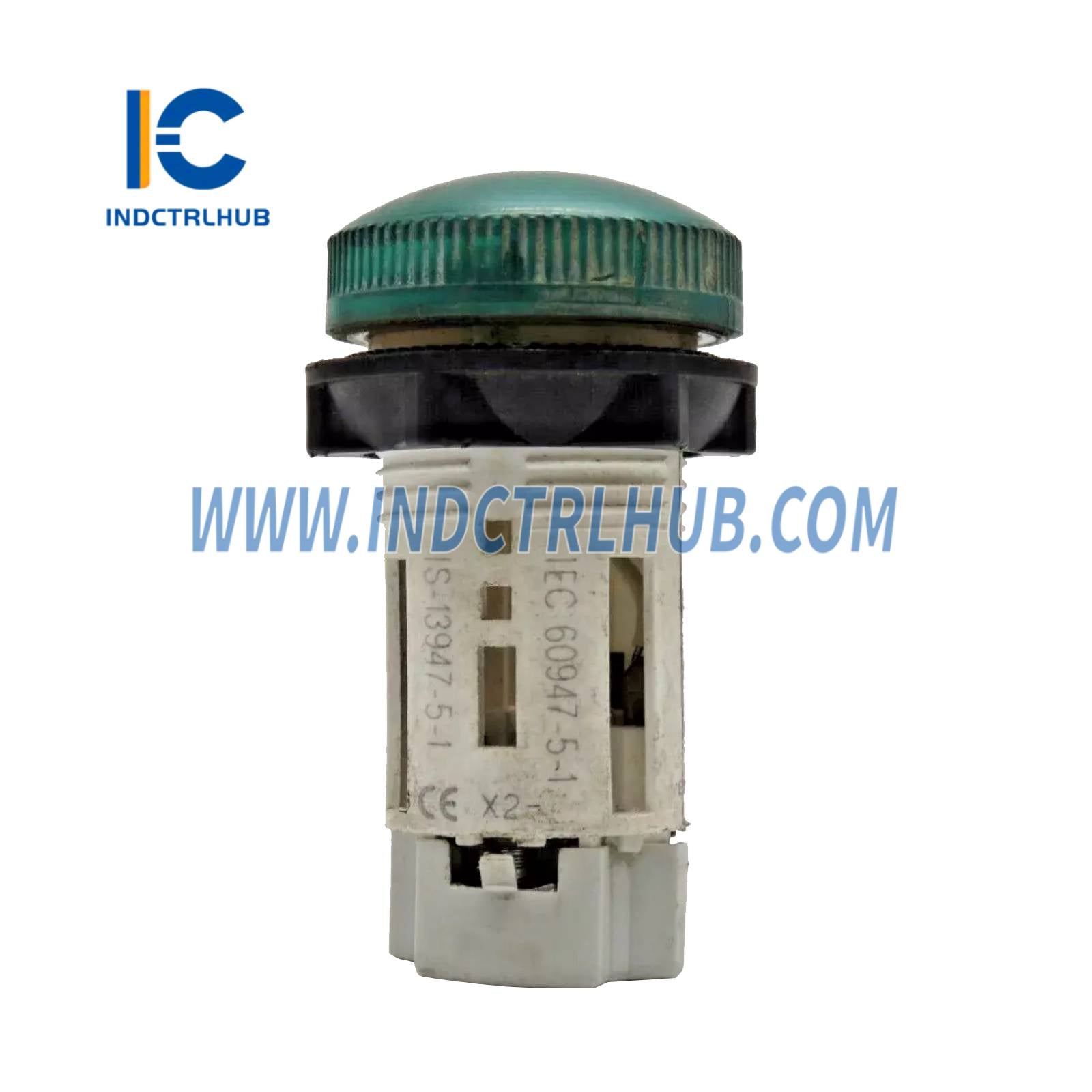

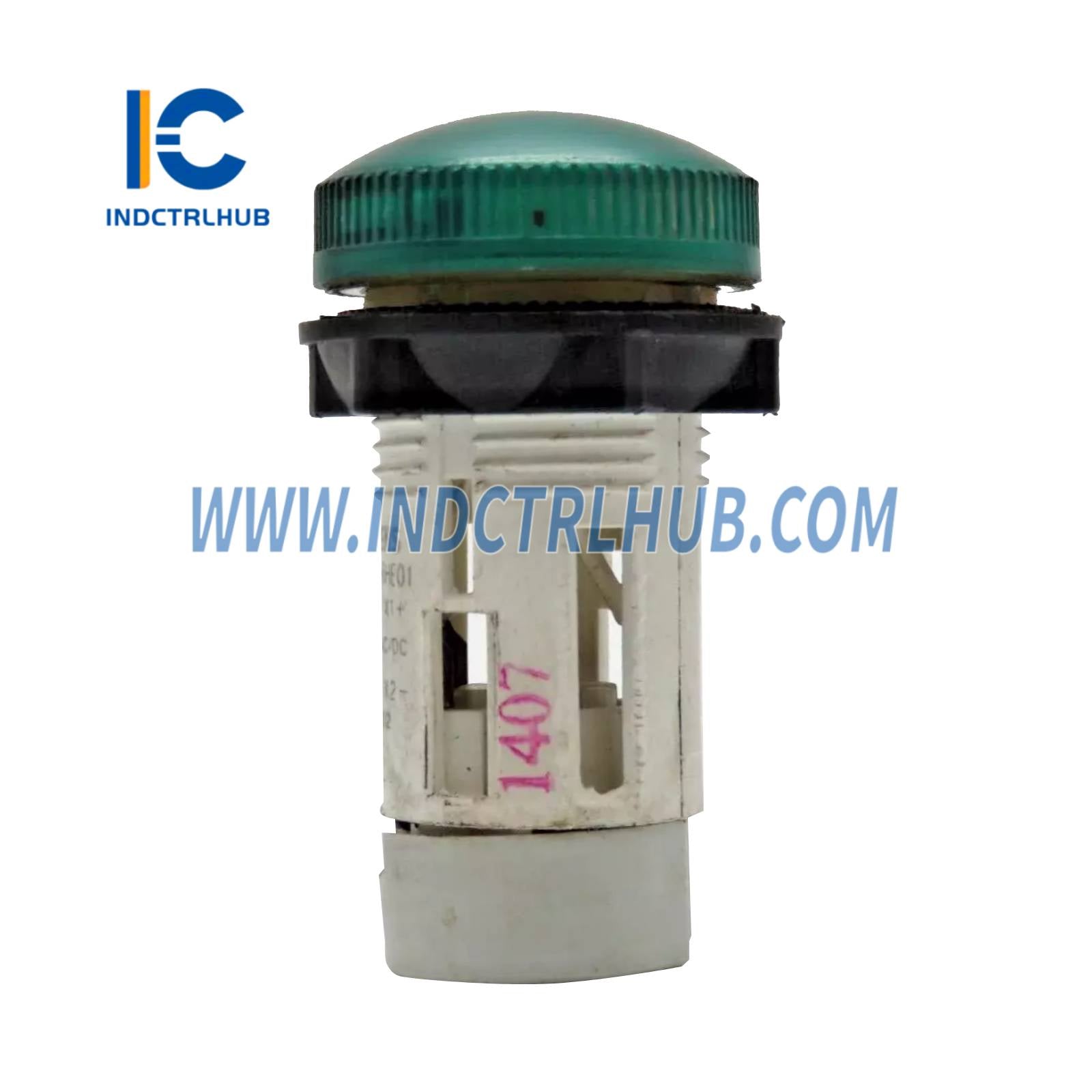

Siemens 3SB5285-6HE01 Compact LED Indicator Light, Green
Product Overview
- The Siemens 3SB5285-6HE01 is a compact LED indicator light from the 3SB5 series, designed for use in industrial control panels and automation systems. This green indicator light operates on 24 V AC/DC and provides clear visual status indication for machines or equipment. It is widely used in manufacturing, process control, and building automation for reliable and energy-efficient signaling.
Technical Specifications
- The 3SB5285-6HE01 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 3SB5285-6HE01 |
| Manufacturer | Siemens |
| Description | Compact LED Indicator Light, Green, 24 V AC/DC |
| Series | 3SB5 |
| Voltage Rating | 24 V AC/DC |
| Light Source | Integrated LED |
| Color | Green |
| Power Consumption | Low (typical for LED, <1 W) |
| Lens Material | Plastic |
| Mounting | Panel mount, 22 mm diameter cutout |
| Connection Type | Screw terminals |
| Protection Rating | IP65 (front), IP40 (rear) |
| Environmental Specifications | Ambient Temperature: -25°C to +70°C Relative Humidity: 5% to 95% non-condensing Suitable for indoor industrial environments |
| Dimensions | Approx. 28 mm (diameter) x 45 mm (depth, including terminals) |
| Weight | Approx. 0.017 kg |
Additional Details
- The 3SB5285-6HE01 includes the following additional information based on industry sources:
- Function: Provides visual indication of machine or equipment status (e.g., operational, on, or specific condition met); green color typically signals normal operation or active state; LED technology ensures bright illumination, low power consumption, and long lifespan.
