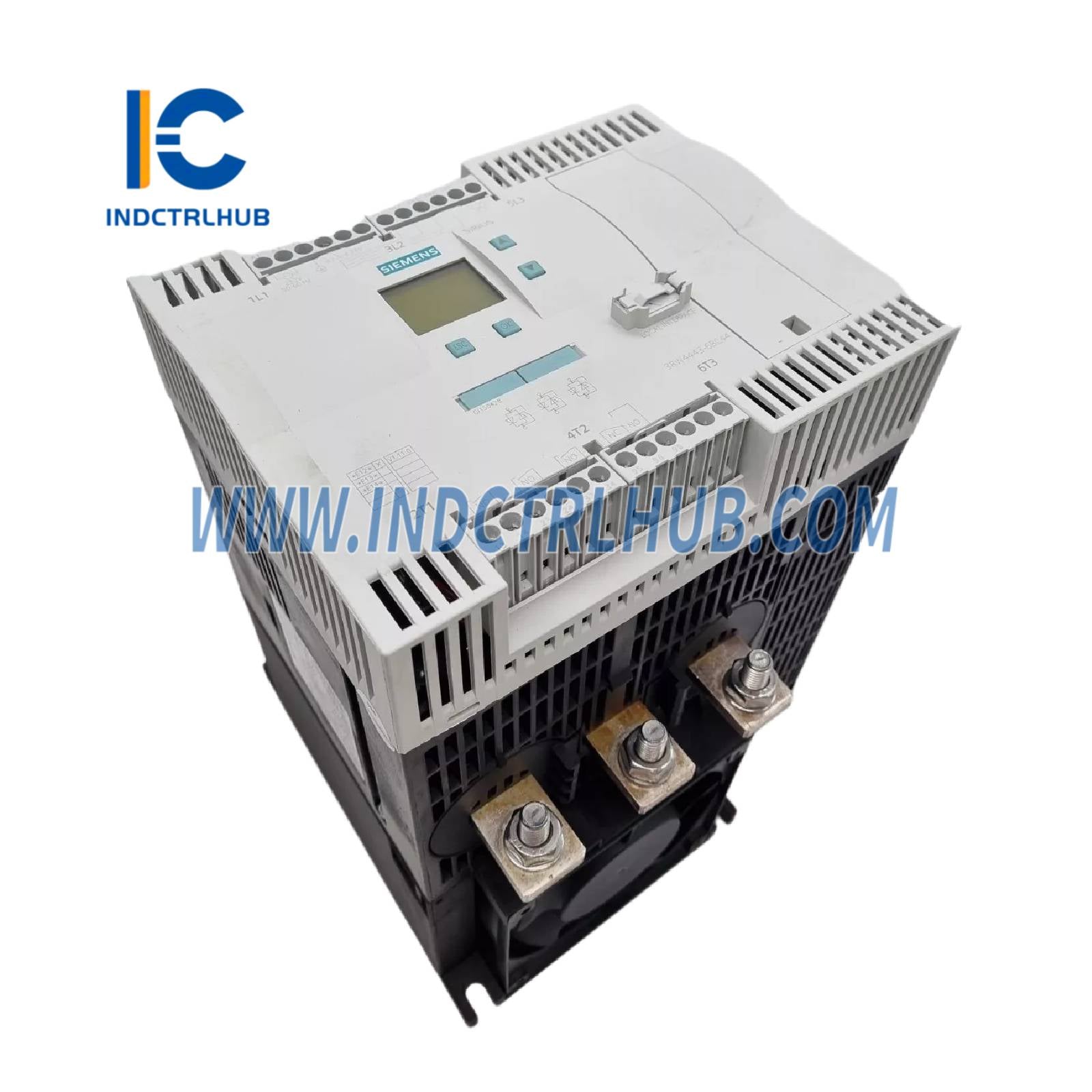

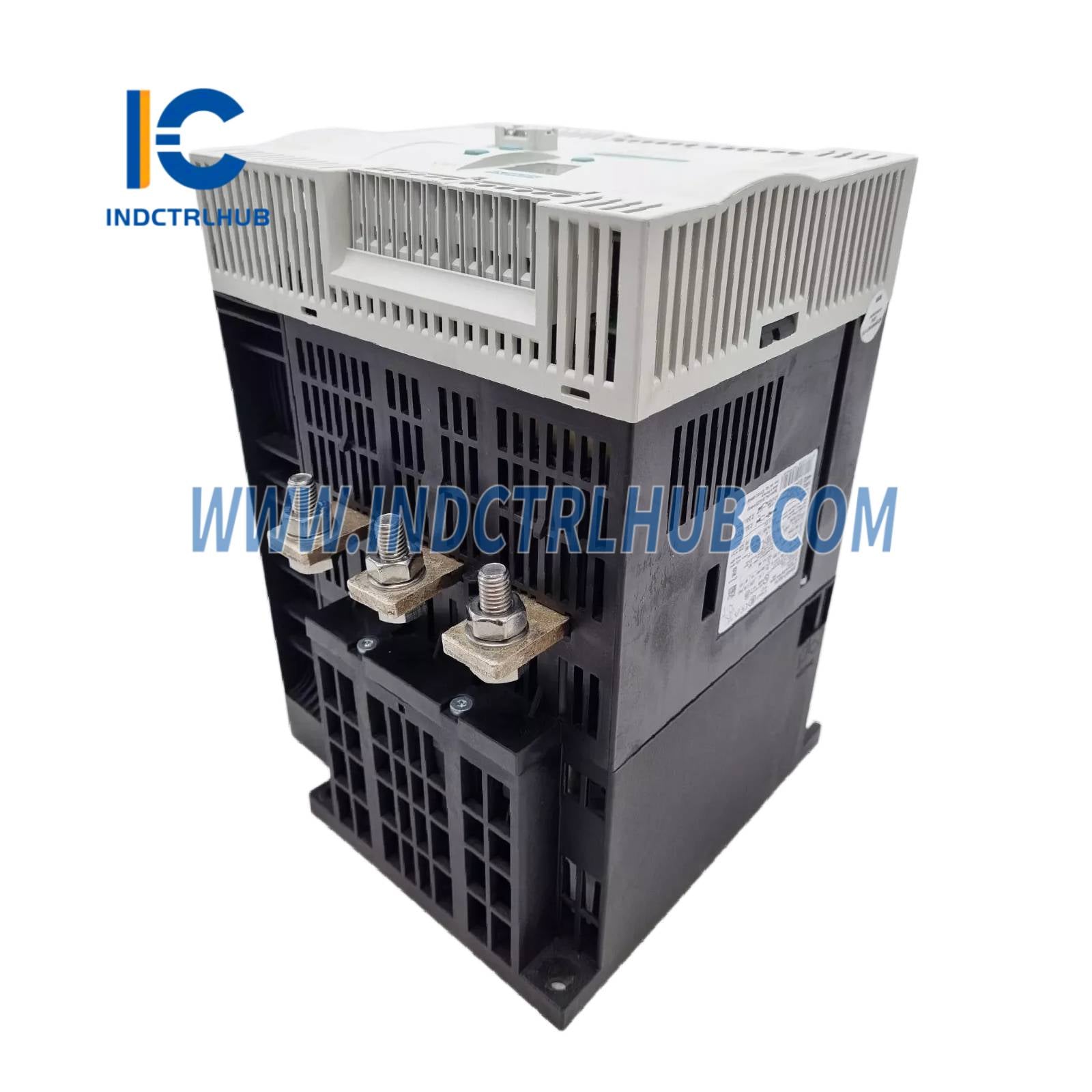

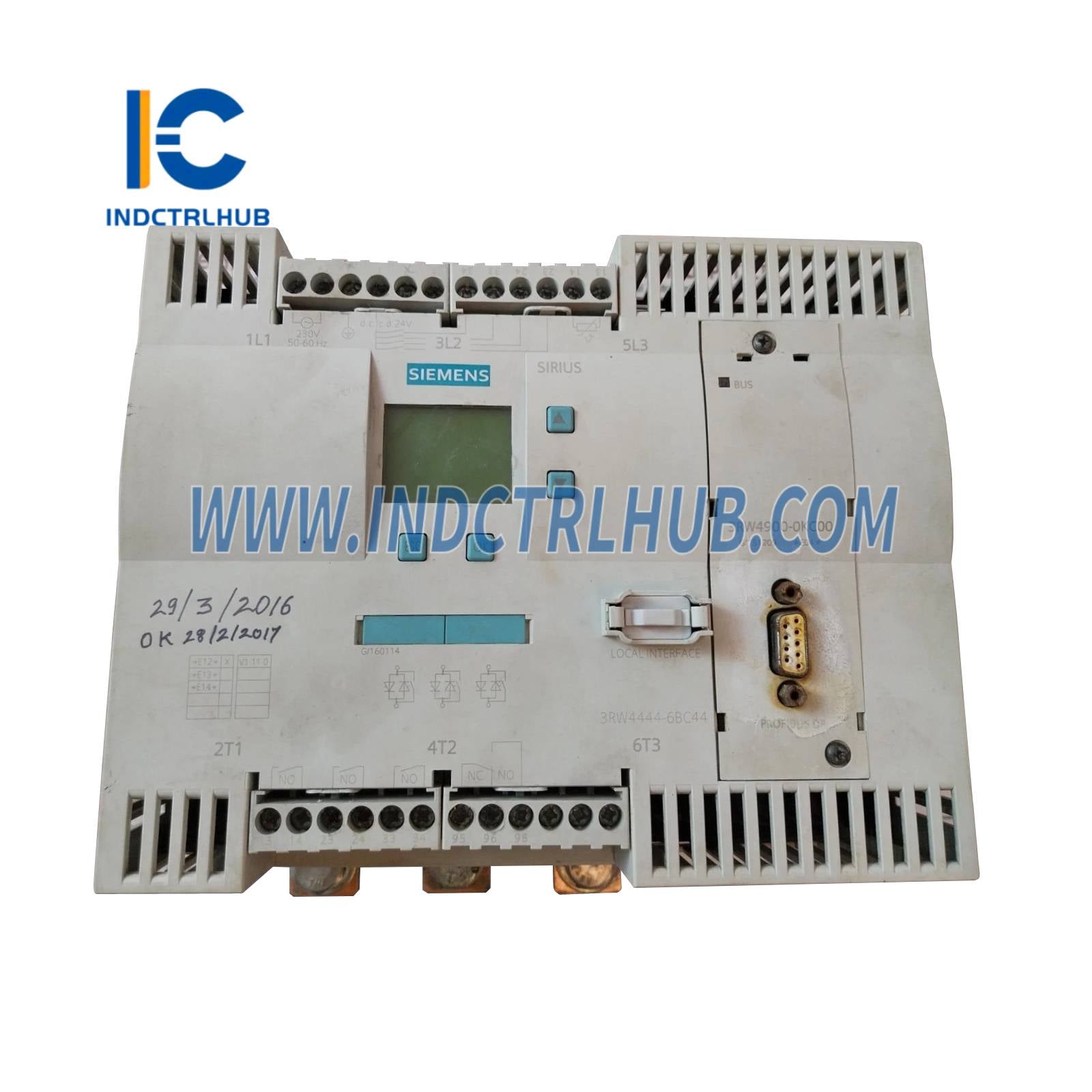

Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model/Part Number |
3RW4444-6BC44 |
|
Description |
SIRIUS soft starter, Values at 400 V, 40 °C: Standard: 250 A, 132 kW; Inside-delta: 433 A, 250 kW; 200-460 V AC, 230 V AC; Screw terminals |
|
Product Lifecycle (PLM) |
PM490: Start of final year of support (Phased-out product) |
|
Successor |
SIRIUS 3RW5 (Preferred successor: 3RW5544-6HA14) |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Rated Current (Standard Connection) |
250 A |
|
Rated Power (Standard Connection) |
132 kW (at 400 V) |
|
Rated Current (Inside-Delta Connection) |
433 A |
|
Rated Power (Inside-Delta Connection) |
250 kW (at 400 V) |
|
Operating Voltage Range |
200–460 V AC |
|
Control Supply Voltage |
230 V AC |
|
Ambient Temperature |
Up to 40 °C |
|
Connection Type |
Screw terminals |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
11.230 kg |
|
Packaging Dimensions (L x W x H) |
346.00 x 433.00 x 384.00 mm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
3RW4444-6BC44 |
|
EAN |
4011209637542 |
|
UPC |
754554923987 |
|
Commodity Code |
85371098 |
|
Catalog ID (LKZ_FDB) |
CC-IC10 |
|
Product Group |
3728 |
|
Group Code |
R711 |
|
Country of Origin |
Czech Republic |
|
RoHS Compliance |
Since 28.05.2009 |
|
Product Class |
C: Made-to-order product (not reusable or returnable) |
|
WEEE Take-Back Obligation |
Yes |
|
REACH Art. 33 Notification |
Contains Lead (CAS No. 7439-92-1), Lead Monoxide (CAS No. 1317-36-8), Lead titanium zirconate (CAS No. 12626-81-2) |
|
SCIP Number |
b9f07877-f218-4758-a628-008e1d86e8ac |
