Product Description
General Information
|
Field |
Detail |
|---|---|
|
Manufacturer |
Siemens |
|
Model/Part Number |
3RN2010-1BW30 |
|
Description |

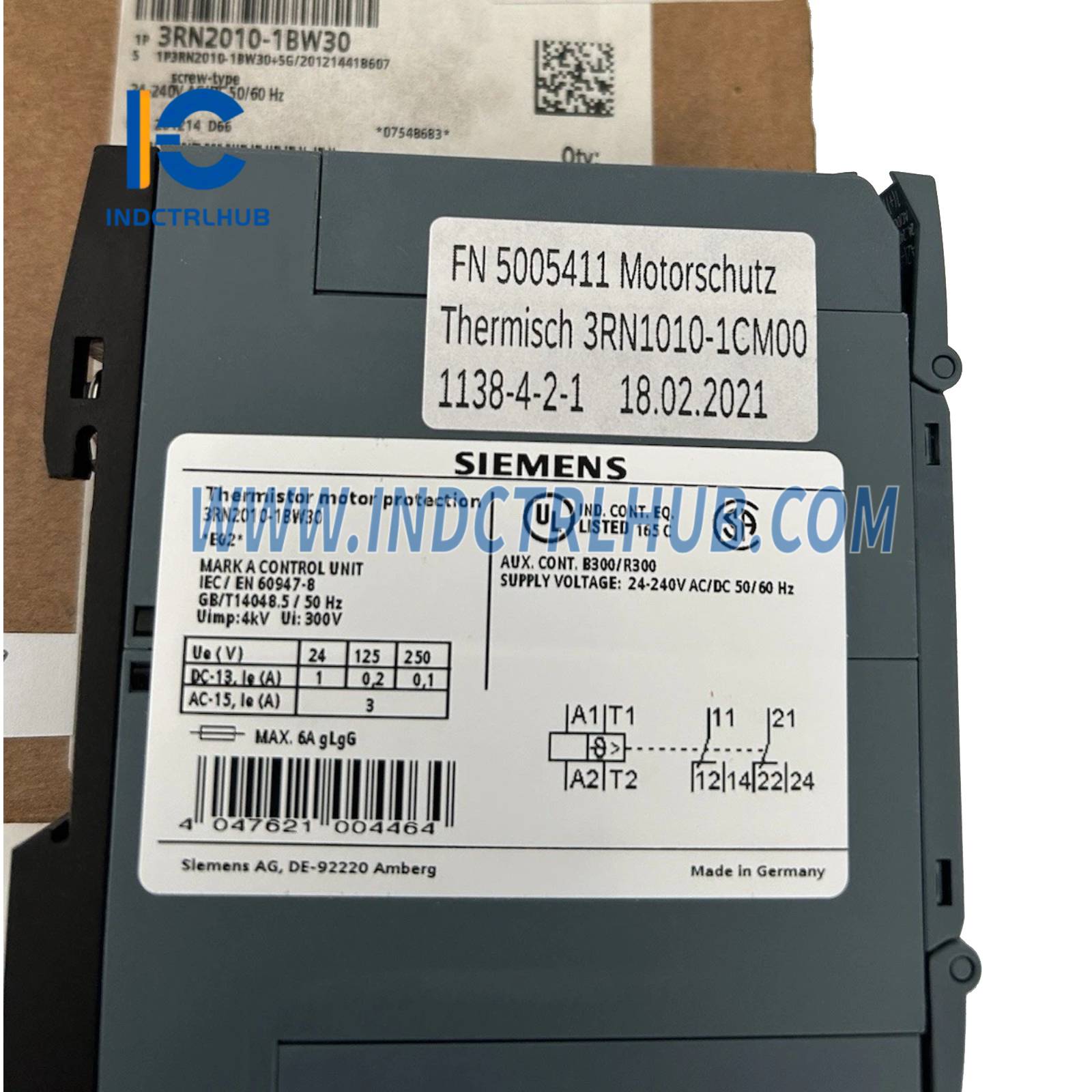

Thermistor motor protection relay standard evaluation unit |
|
Product Family |
SIRIUS 3RN2 thermistor motor protection |
|
Product Lifecycle (PLM) |
PM300: Active Product |
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Enclosure Width |
22.5 mm |
|

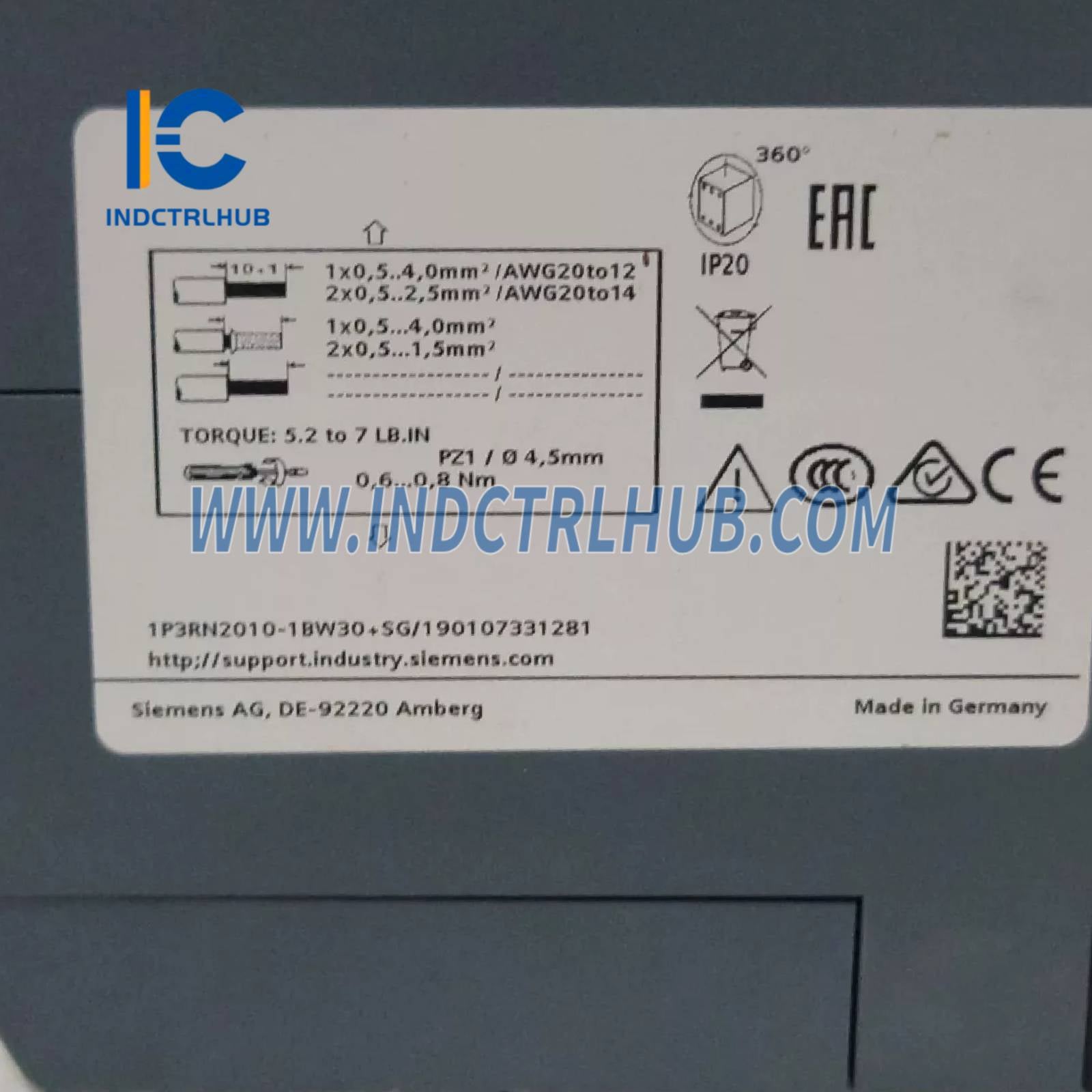

Terminals |
Screw terminal |
|

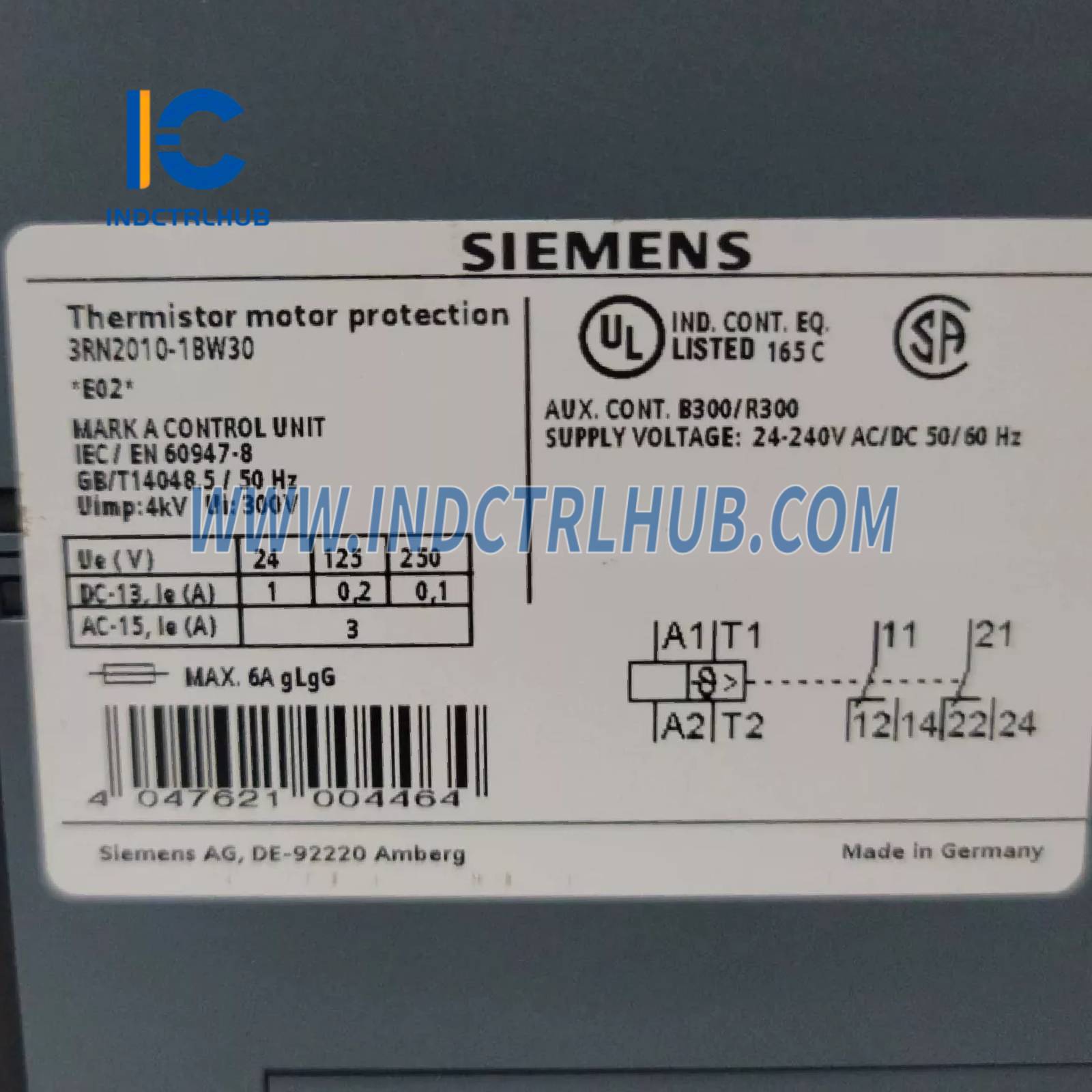

Contacts |
2 changeover contacts |
|
Operating Voltage (Us) |
24 V to 240 V AC/DC |
|
Reset Function |
Auto RESET |
|

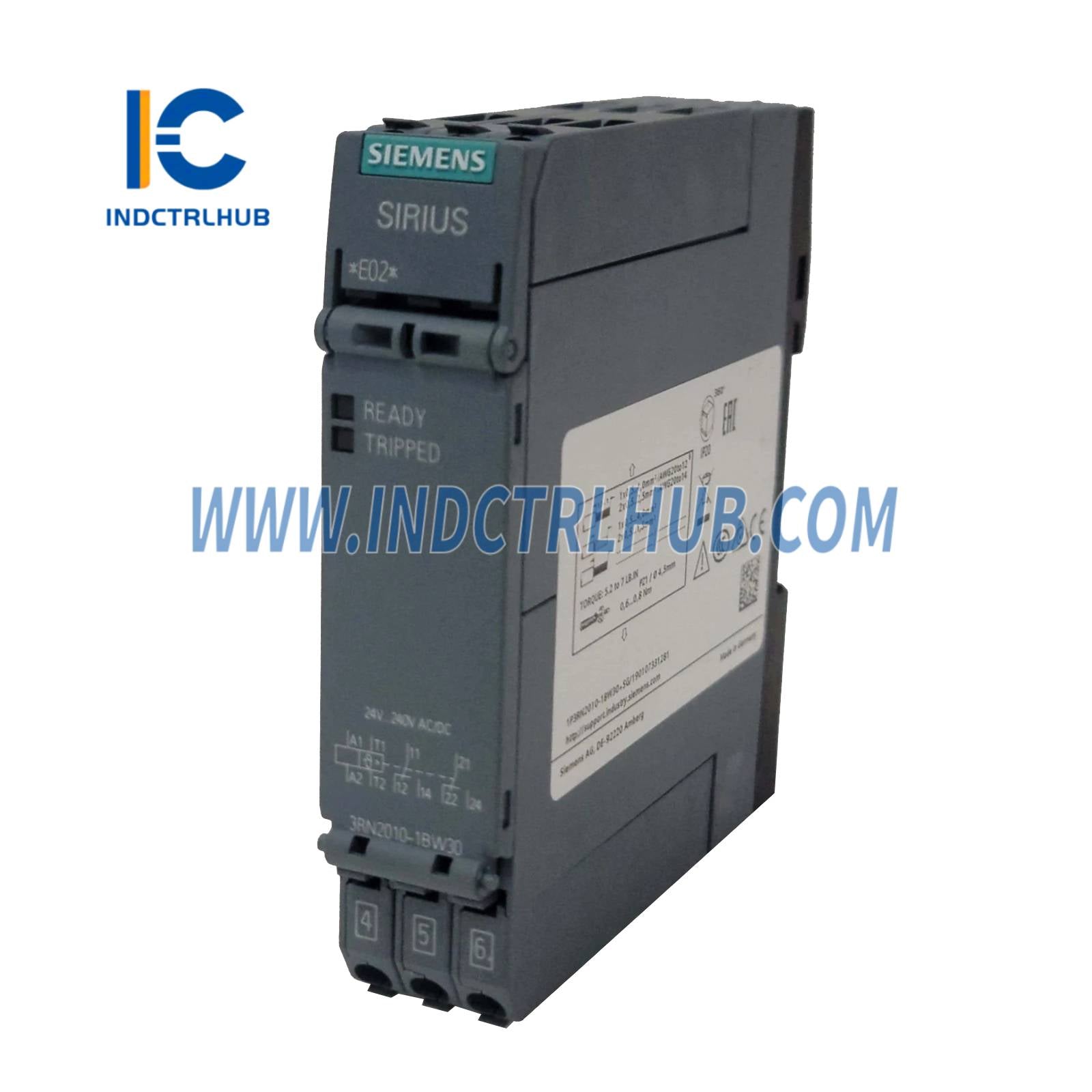

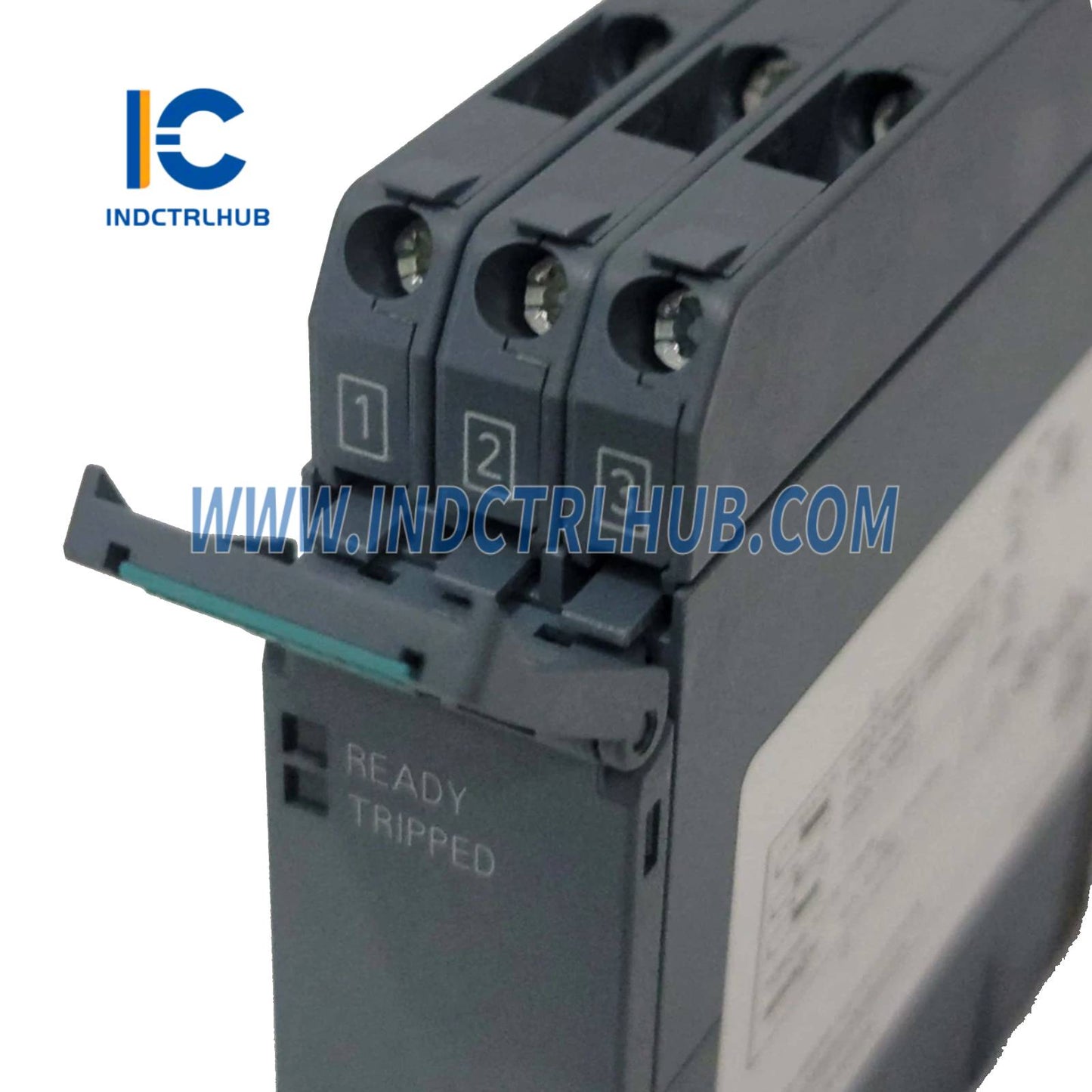

LED Indicators |
2 LEDs (Ready / Tripped) |
|
Application |
Suitable for bimetallic switch |
|
Electrical Isolation |
Yes |
Physical & Packaging Details
|
Specification |
Detail |
|---|---|
|
Net Weight |
0.180 kg |
|
Packaging Dimensions (L x W x H) |
111.00 x 131.00 x 38.00 mm |
Additional Product Information
|
Specification |
Detail |
|---|---|
|
Article Number |
3RN2010-1BW30 |
|
EAN |
4047621004464 |
|
UPC |
804766415579 |
|
Commodity Code |
85364900 |
|
Catalog ID (LKZ_FDB) |
CC-IC10 |
|
Product Group |
4953 |
|
Group Code |
R711 |
|
Country of Origin |
Germany |
|
RoHS Compliance |
Since 28.05.2009 |
|
Product Class |
A: Standard stock product, returnable under guidelines |
|
WEEE Take-Back Obligation |
Yes |
|
REACH Substances Notified |
Lead (CAS No. 7439-92-1), Lead monoxide (CAS No. 1317-36-8), 6,6’-di-tert-butyl-2,2’-methylenedi-p-cresol |
|
SCIP Number |
1f6de216-6eac-4ba2-ac8d-01f414389c8f |
Accessories
|
Accessory |
Description |
|---|---|
|
3ZY1311-0AA00 |
Push-in lugs for wall mounting |
|
3ZY1122-1BA00 |
Removable terminal block (screw terminals) |
|
3ZY1440-1AA00 |
Coding pins for removable terminals |
|
3ZY1122-2BA00 |
Removable terminal block (push-in terminals) |
