Product Description
Product Overview
| Parameter | Details |
|---|---|
| Part Number | SDCS-DSL-4 / 3ADT200005R0001 |

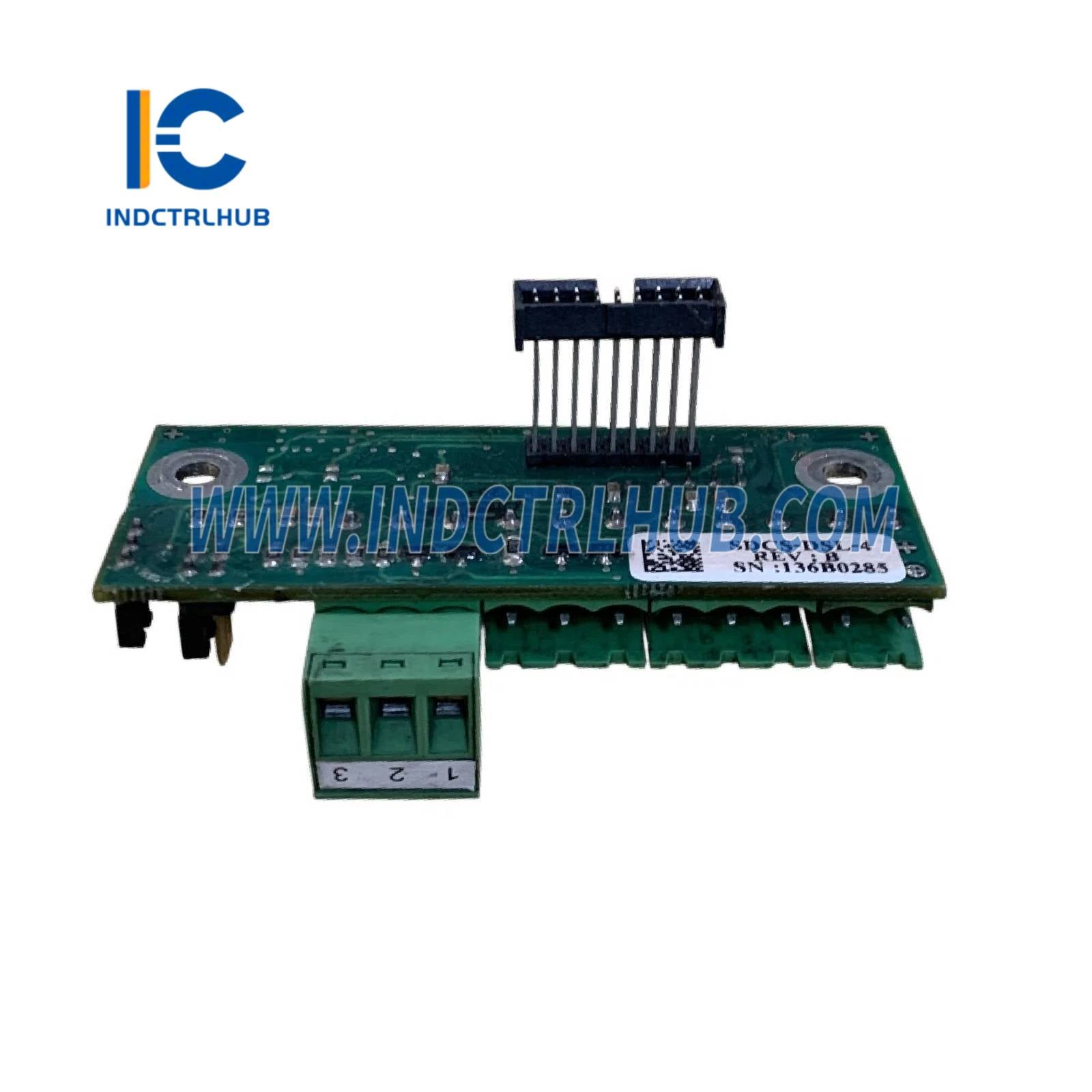

| Product Name | SDCS-DSL-4 Serial Communication Board |
| Application | Communication interface for ABB DCS800 series DC drives in industrial automation and drive systems |
| Compatibility | Compatible with ABB DCS800 drive systems, including control boards like SDCS-CON-4 and power modules; supports 12-pulse operation |
| Function | Provides peer-to-peer DCS-Link communication via CAN bus for drive-to-drive data exchange and control of external field supplies (e.g., DCF803-0035) |
Functional Specifications
| Parameter | Details |
|---|---|
| Interface Type | CAN bus-based serial communication (RS-485 compatible) |
| Voltage Supply | 24 V DC from drive system |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 16 cm x 16 cm x 12 cm (approximate PCB size) |
| Weight | 0.05 kg |
| Power Consumption | Low power, typically <5 W |
| Connection Ports | CAN bus connector for drive-to-drive linking; supports fiber-optic options |
| Protection | ESD protection, overvoltage safeguards |
| Certifications | CE marked; RoHS compliant; suitable for industrial environments |
| Standards Compliance | IEC 61131-2 compliant for programmable controllers; API 670 for related drive protection |
Ordering Information
| Parameter | Details |
|---|---|
| Part Number Configuration | 3ADT200005R0001 (SDCS-DSL-4 Communication Board for DCS800 drives) |
| Available Options | Variants for specific fieldbus protocols (e.g., Profibus, Modbus); included standard in D5...D7 drive configurations |
| Customization | Protocol-specific firmware or connector adaptations available upon request |
