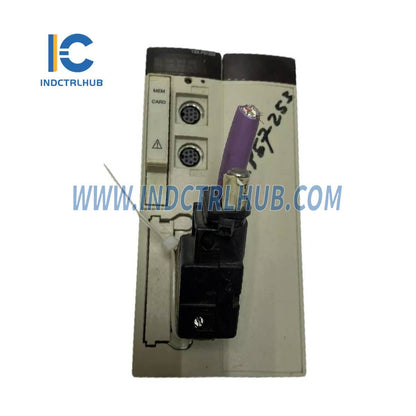

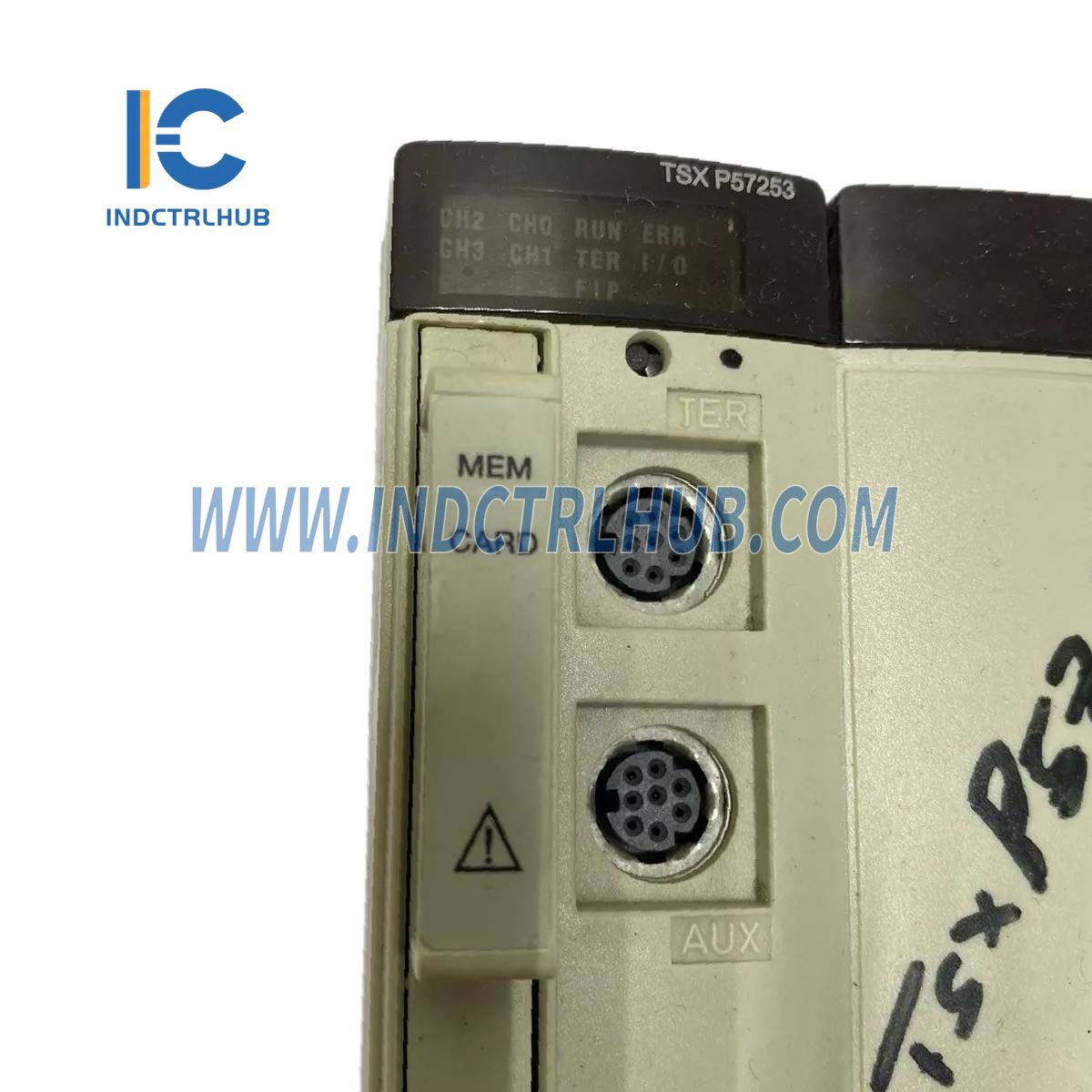

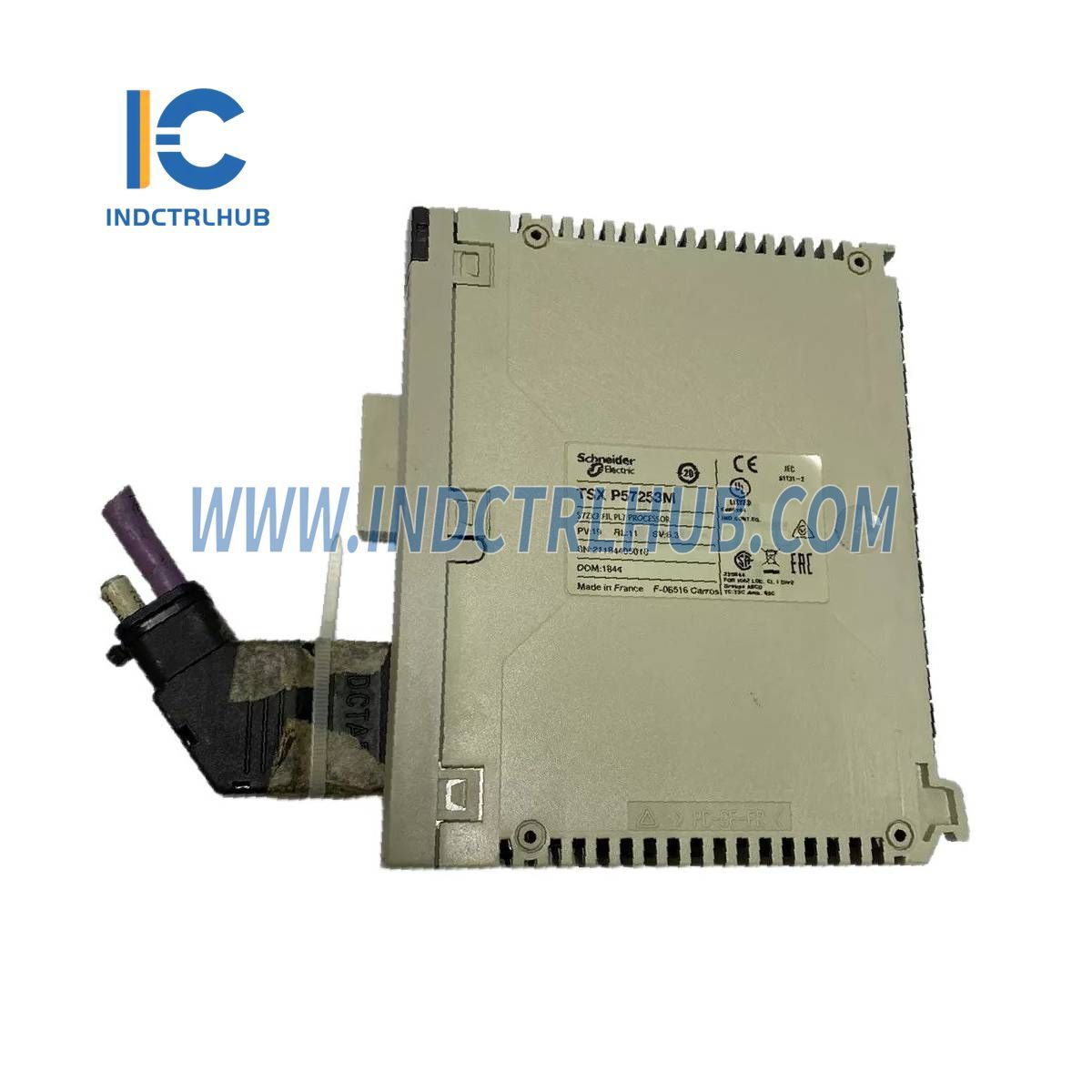

Product Description
General Information
| Field | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model/Part Number | TSXP57253M |
| Description | Double-Format PL7 Processor |
Main Specifications
| Specification | Details |
|---|---|
| Range of Product | Modicon Premium Automation Platform |
| Product or Component Type | Double-Format PL7 Processor |
| Software Designation | PL7 Junior/Pro |
Complementary Specifications
| Parameter | Details |
|---|---|
| Number of Racks | 16 (4/6/8 slots) 8 (12 slots) |
| Number of Slots | 96, 128, 64 |
| Discrete I/O Processor Capacity | 1024 I/O |
| Analogue I/O Processor Capacity | 80 I/O |
| Number of Application-Specific Channels | 24 |
| Number of Process Control Channels | 10 up to 30 simple loops |
| Integrated Connection Type | Non-isolated serial link (2 female mini DIN, 19.2 kbit/s) Fipio manager (127 agents) SUB-D 9 |
| Communication Module Processor Capacity | 1 fieldbus module (none if CANopen used) 1 network module 4 AS-Interface bus modules 1 CANopen |
| Current Consumption | 820 mA at 5 V DC |
| Module Format | Double |
| Net Weight | 0.56 kg (1.23 lb) |
Environmental Specifications
| Parameter | Details |
|---|---|
| Ambient Air Temperature (Operation) | 0…60 °C (32…140 °F) |
| Ambient Air Temperature (Storage) | -25…70 °C (-13…158 °F) |
| Relative Humidity (Operation) | 10…95% (without condensation) |
| Relative Humidity (Storage) | 5…95% (without condensation) |
| Operating Altitude | 0...2000 m (0...6561.68 ft) |
| Protective Treatment | TC |
| IP Degree of Protection | IP20 |
| Pollution Degree | 2 |
Certifications & Standards
| Field | Details |
|---|---|
| Standards | CSA C22.2 No 213 Class I Division 2 (Groups A, B, C, D) CSA C22.2 No 142 IEC 61131-2 UL 508 73/23/EEC 89/336/EEC 92/31/EEC 93/68/EEC |
| Product Certifications | GL, RINA, DNV, LR, ABS, BV, RMRS |
Ordering & Shipping Details
| Parameter | Details |
|---|---|
| Category | 22558 - TSX PREMIUM, ATRIUM & PL7 PRO |
| Discount Schedule | PC22 |
| GTIN | 00785901530367 |
| Number of Units in Package | 1 |
| Package Weight | 1.00 kg (2.21 lb) |
| Returnability | No |
| Country of Origin | France (FR) |
Packing Units
| Parameter | Details |
|---|---|
| Unit Type of Package 1 | PCE |
| Package 1 Height | 9.5 cm (3.74 in) |
| Package 1 Width | 18 cm (7.09 in) |
| Package 1 Length | 26 cm (10.24 in) |
