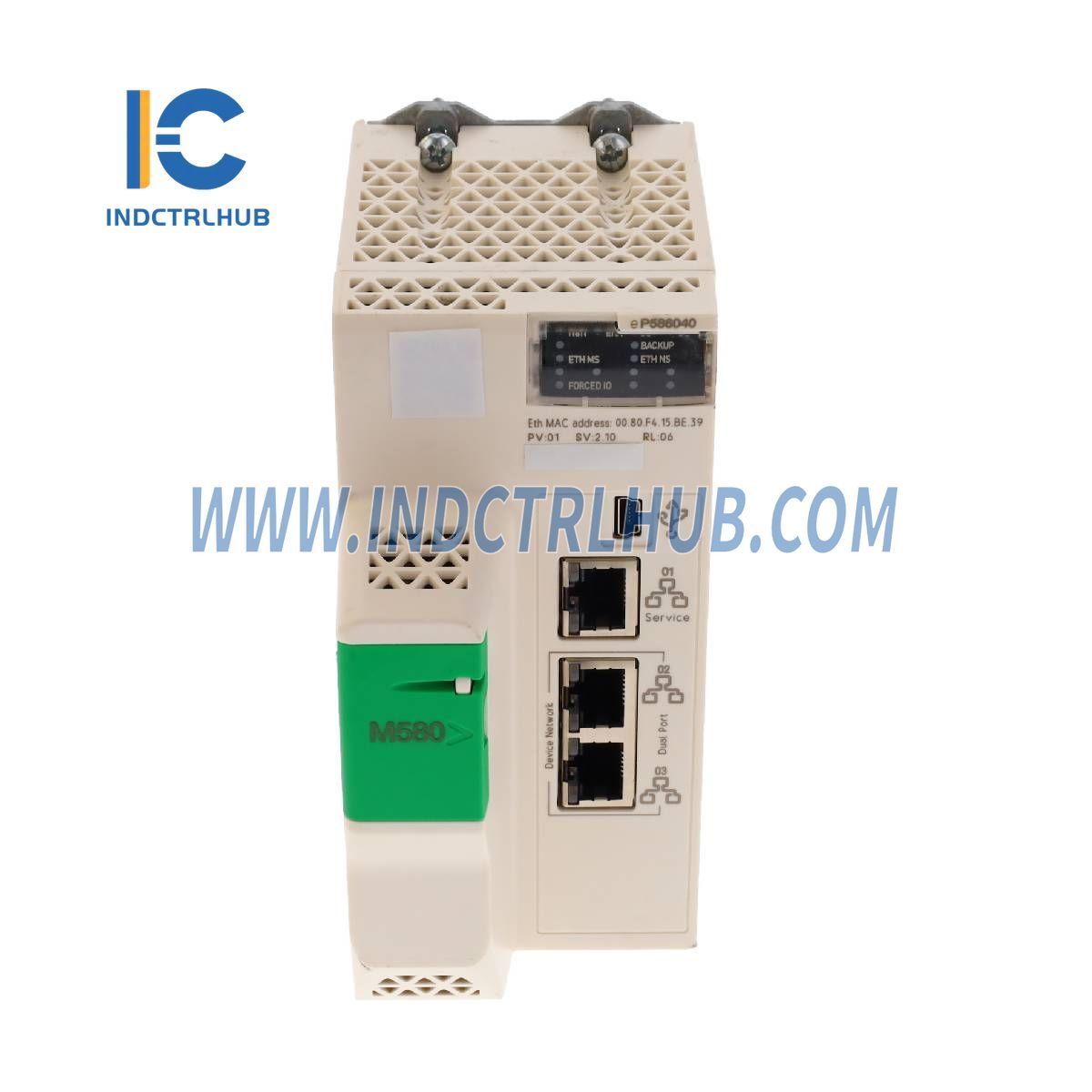

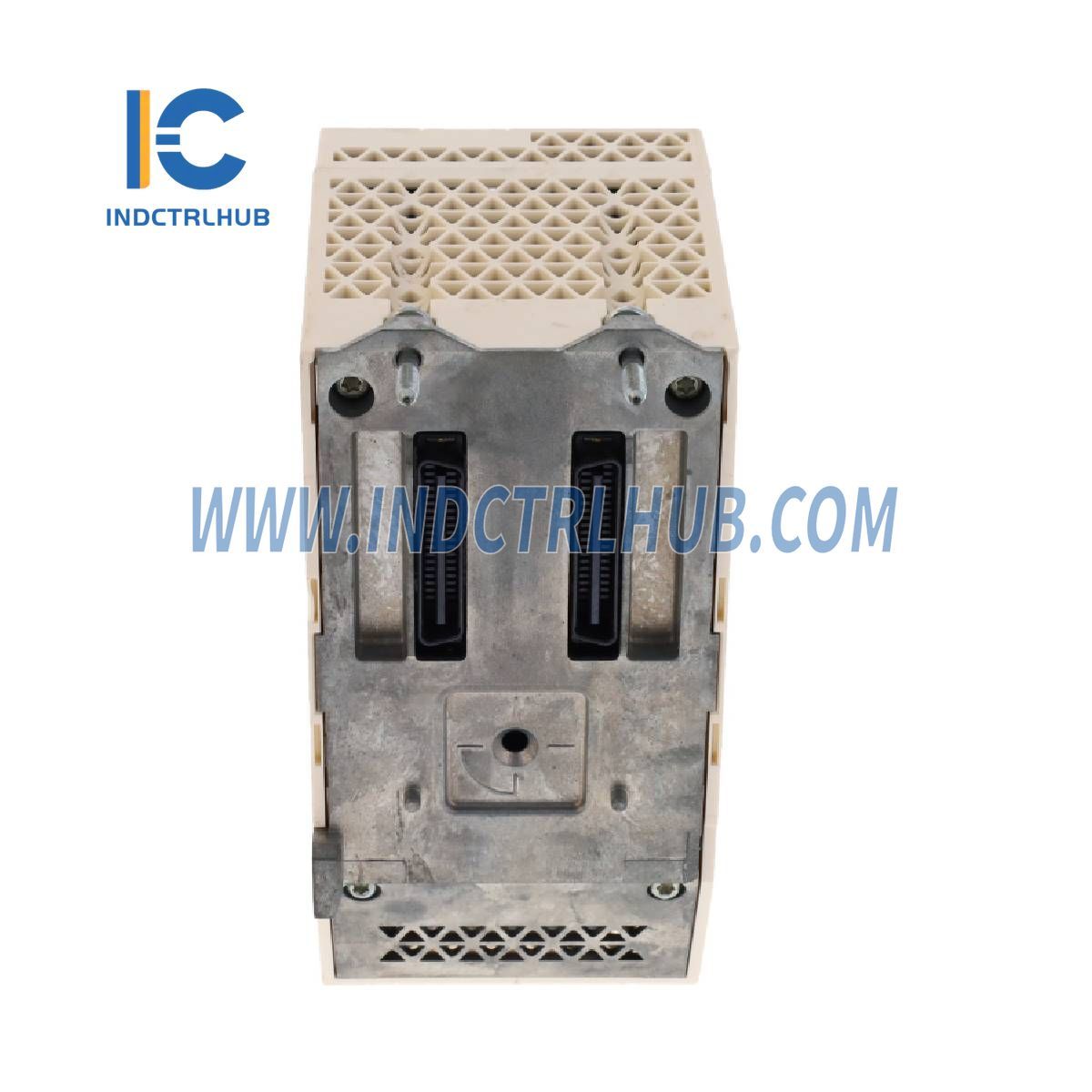

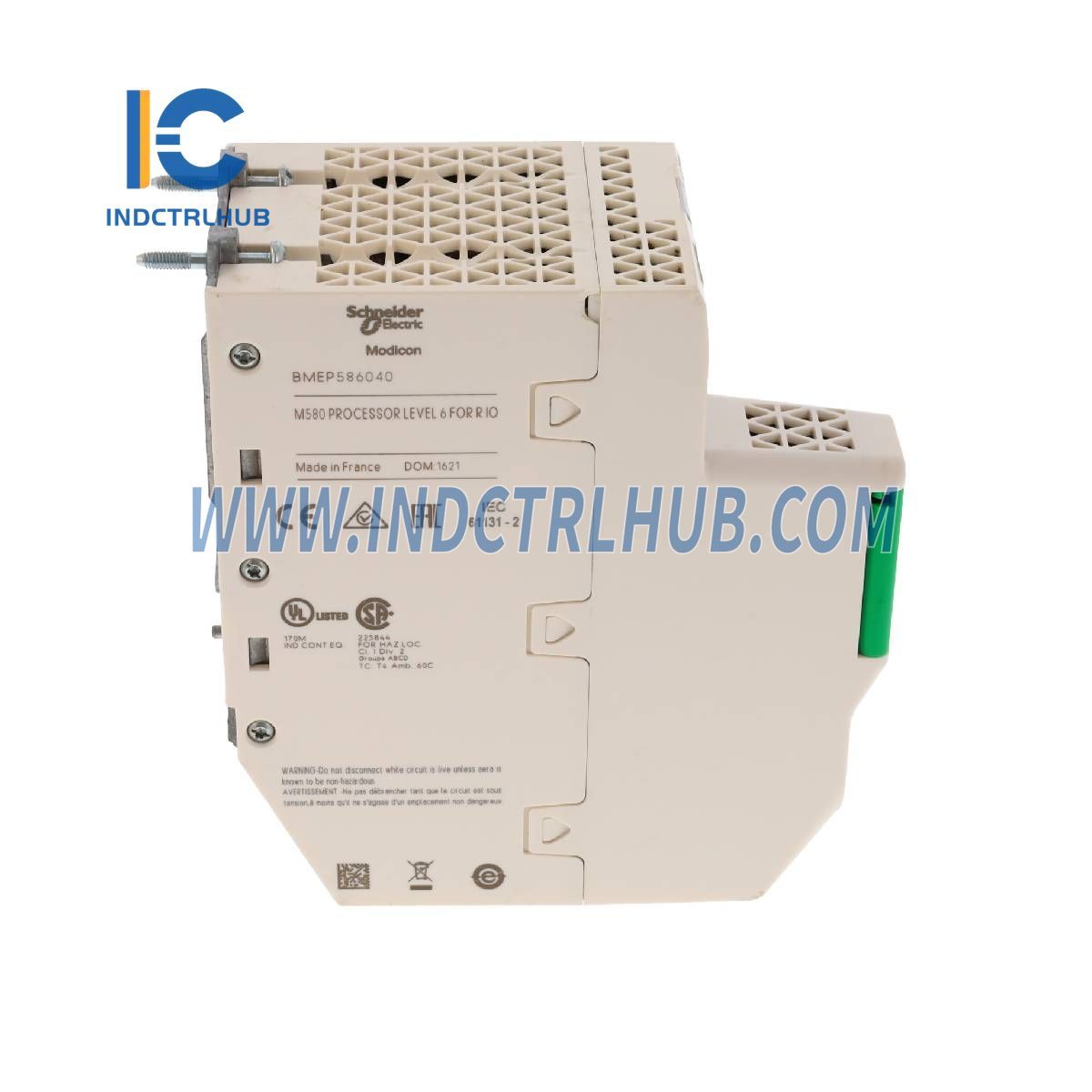

Schneider BMEP586040 processor module M580

Manufacturer

Schneider Electric

Model/Part Number

BMEP586040

Description

Processor Module M580

Range of Product

Modicon M580

Product or Component Type

Processor Module

Number of Racks

8

Local I/O Processor Capacity (Discrete)

6144 I/O

Local I/O Processor Capacity (Analog)

1536 I/O

Number of Application-Specific Channels (Local Rack)

216

Application-Specific I/O

Accurate Time Stamping, Motion Control, SSI Encoder, HART, Serial Link, Counter, Process Control Checks

Control Channels

Programmable Loops

Integrated Connection Type

1 Ethernet TCP/IP (Service Port)  2 Ethernet TCP/IP (Device Network)  USB Type Mini B

Number of Remote I/O Stations

31 (2 Racks per Remote Drop)

Number of Distributed Equipment

64

Communication Module Processor Capacity

6 Ethernet Communication Modules  24 AS-Interface Modules

Communication Services

RIO Scanner, DIO Scanner

Memory Description

Expandable Flash (4 GB for Data Storage)  Integrated RAM (10 kB for System Memory)  Integrated RAM (64 MB for Program and Data)

Application Structure

1 Cyclic/Periodic Master Task  128 Event Tasks  1 Periodic Fast Task  2 Auxiliary Tasks

Number of Instructions per ms

40 Kinst/ms (100% Boolean)  60 Kinst/ms (65% Boolean + 35% Fixed Arithmetic)

Current Consumption

295 mA at 24 V DC

MTBF Reliability

600,000 Hours

Marking

CE

Vibration Resistance

3 gn

Shock Resistance

30 gn

Ambient Air Temperature (Operation)

0…60 °C

Ambient Air Temperature (Storage)

-40…85 °C

Operating Altitude

0…2000 m  2000…5000 m (with Derating Factor)

Relative Humidity

5…95% at 55 °C (Without Condensation)

IP Degree of Protection

IP20

Net Weight

0.849 kg
