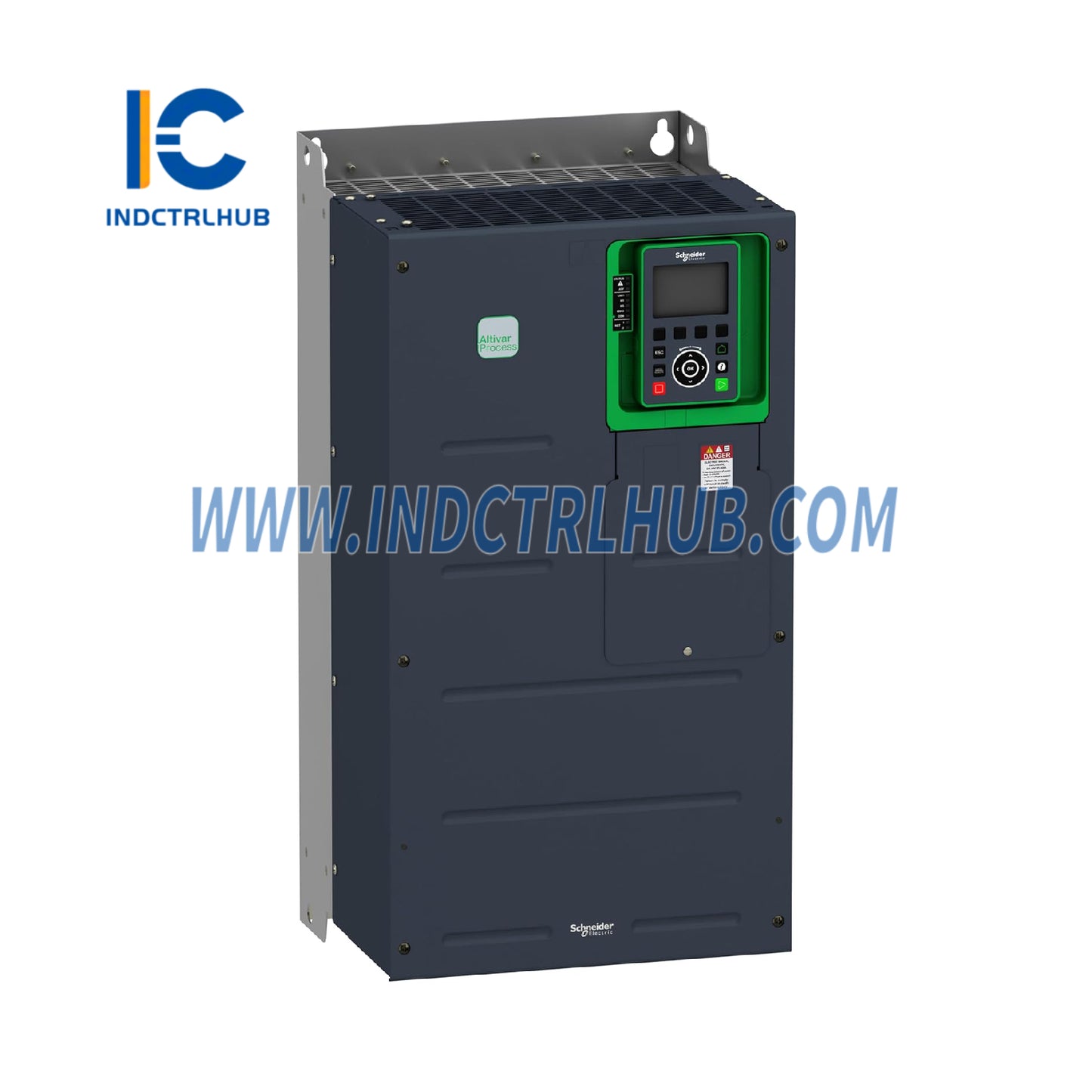

Schneider ATV930D37Y6 Variable speed drive - ATV930

Manufacturer

Schneider Electric

Model/Part Number

ATV930D37Y6

Product Description

Variable speed drive - ATV930 - 37kW - 400/480V - with braking unit - IP21

Product Range

Altivar Process ATV900

Application

Industrial process control for asynchronous and synchronous motors

Mounting Mode

Wall-mounted

Enclosure Rating

IP21 (UL Type 1)

EMC Filter

Integrated with EMC plate option

Rated Motor Power

37.0 kW

30.0 kW

Continuous Output Current

74.5 A

61.5 A

Line Current at 380 V

66.2 A

54.8 A

Line Current at 480 V

57.3 A

48.3 A

Apparent Power at 480 V

47.6 kVA

40.2 kVA

Max Transient Current (60s)

89.4 A

92.3 A

Base Load Current

74.5 A

61.5 A

Max Output Voltage

480 V

Rated Supply Voltage

380–480 V ±15%

Network Frequency

50–60 Hz

Prospective Line Isc

50 kA

Max Input Current

66.2 A

Motor Types

Asynchronous, permanent magnet, synchronous reluctance

Output Frequency

Up to 599 Hz

Switching Frequency

2–16 kHz adjustable (derating above 4 kHz)

Torque Control

Variable, optimized, constant torque modes

Motor Slip Compensation

Adjustable, automatic, or suppressible (not in PM motor law)

Braking to Standstill

DC Injection

Braking Unit

Integrated

4 Quadrant Operation

Supported

Acceleration/Deceleration Time

0.01–9999 s separately adjustable

Discrete Inputs

10 (DI1–DI8: 24 V DC, DI7/DI8 as pulse input up to 30 kHz)

Discrete Outputs

2 (up to 30 V DC, 100 mA or 20 mA as pulse output)

Analog Inputs

3 (0–10 V, 0–20 mA, 12-bit resolution)

Analog Outputs

2 (0–10 V or 0–20 mA, 10-bit resolution)

Relay Outputs

3 (R1, R2, R3 with NO/NC contacts, up to 5 A)

Communication Ports

2 RJ45 Ethernet (Modbus TCP, Ethernet/IP), RS-485 serial (Modbus)

Protocols

Modbus TCP, Modbus Serial, EtherNet/IP, optional Profibus, PROFINET

Slot Options

Encoder interfaces, CANopen, DeviceNet, I/O and relay extensions

STO (Safe Torque Off)

✔

SS1 (Safe Stop 1)

✔

SLS, SBC/SBT

✔

SOS, SP, SS2, SLP, SDI

✖

Drive Protections

Overload, overheating, phase loss, short-circuit, overspeed, undervoltage, etc.

Motor Protections

Thermal, phase break, safe torque off

Width x Height x Depth

226 mm × 673 mm × 271 mm

Net Weight

28.2 kg

Cooling Method

Natural (106 W) / Forced convection (796 W)

Electrical Connection

Screw terminals: 0.5–50 mm² (varies by section)

Digital Input Supply

24 V DC (19–30 V), <1.25 mA, protected

Internal Potentiometer Supply

10.5 V DC ±5%, <10 mA

Digital Input & STO Supply

24 V DC (21–27 V), <200 mA, protected

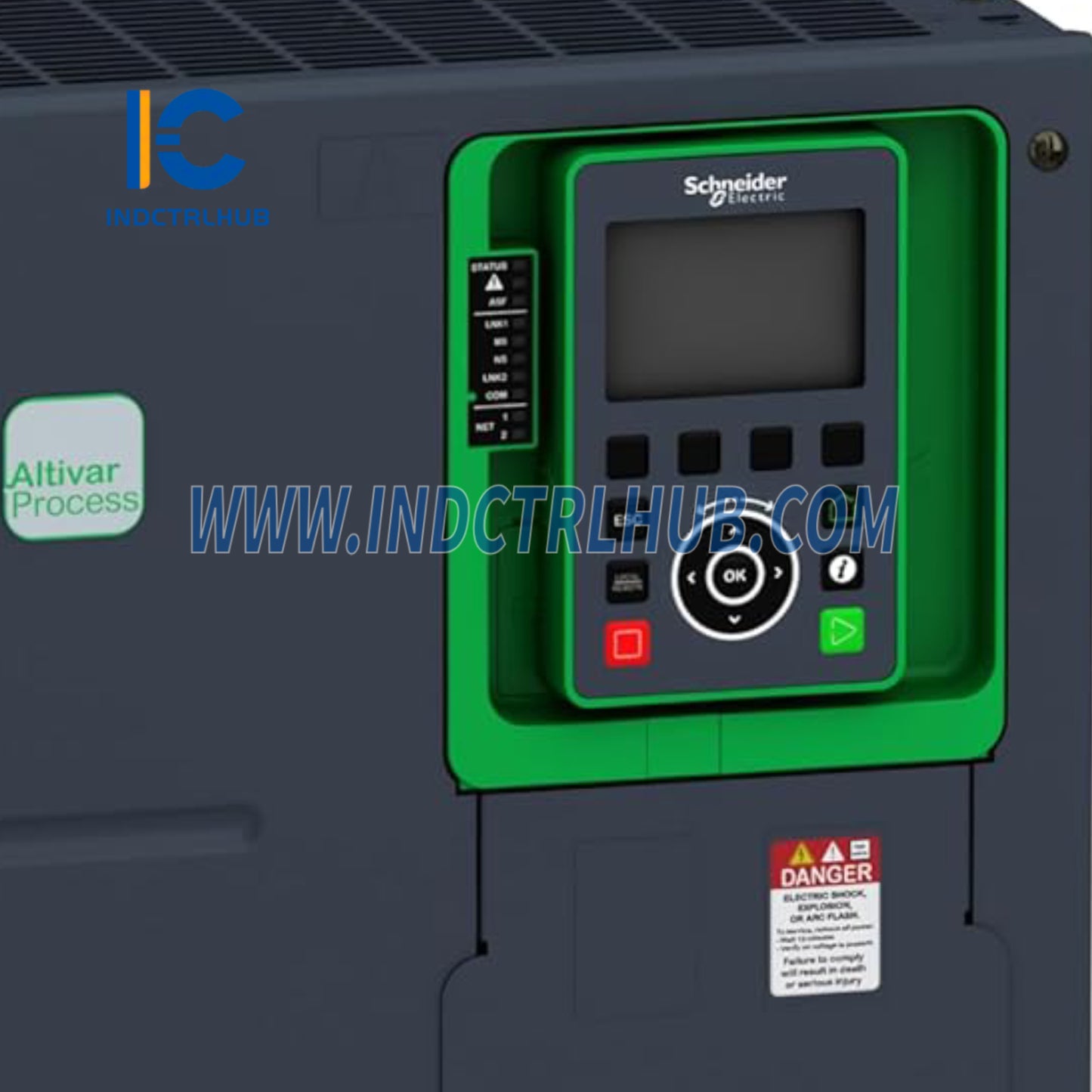

Local Signaling LEDs

3 diagnostic, 5 embedded comm., 2 comm. module, 1 power
