Schneider ATV930C22N4 Variable speed drive, Altivar Process
Schneider ATV930C22N4 Variable speed drive, Altivar Process
Manufacturer: Schneider
Product No.: ATV930C22N4
Condition:1000 in stock
Product Type: Variable speed drive, Altivar Process ATV900
Product Origin: USA
Payment: T/T, Western Union
Weight: 183000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping

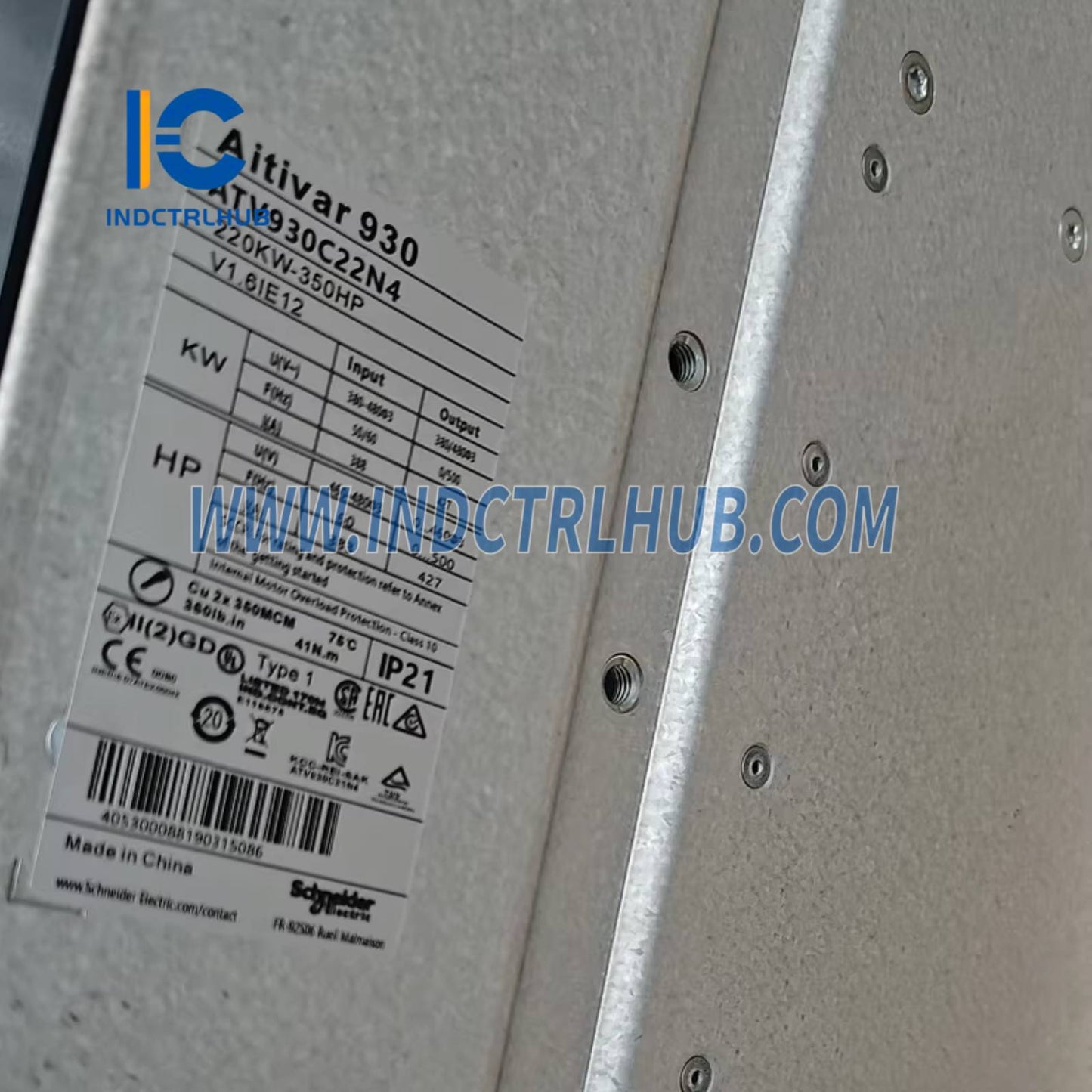

General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ATV930C22N4 |
|
Description |
Variable speed drive, Altivar Process ATV900, ATV930, 220 kW, 400/480 V, with braking unit, IP00 |
|
Series |
Altivar Process ATV900 |
|
Application |
Industrial |
|
Motor Types |
Asynchronous and synchronous motors |
|
Mounting |
Wall mount |
|
Protection Rating |
IP00 (drive), UL Type 1 (enclosure) |
_
_
Electrical Specifications
|
Parameter |
Value |
|---|---|
|
Rated Supply Voltage [Us] |
380_480 V -15%/+10% |
|
Frequency |
50_60 Hz |
|
Input Current (Max) |
397 A |
|
Output Voltage (Max) |
480 V |
|
Output Current (Cont.) |
302 A (HD), 427 A (ND) at 2.5 kHz |
|
Motor Power |
220 kW (ND), 160 kW (HD) |
|
Apparent Power |
247 kVA (ND), 187 kVA (HD) |
|
Switching Frequency |
1_8 kHz adjustable, 2.5 kHz nominal |
|
Max Output Frequency |
599 Hz |
|
Braking Unit |
Integrated |
|
EMC Filter |
Integrated |
|
Line Current |
397 A @ 380 V (ND), 296 A @ 380 V (HD) |
|
Power Dissipation |
5030 W (forced convection), 451 W (natural convection) |
|
Overload Protection |
Yes, multiple levels |
_
_
Motor Control Capabilities
|
Feature |
Supported Modes |
|---|---|
|
Asynchronous Motor Control |
Constant torque, variable torque, optimized torque |
|
Synchronous Motor Control |
Permanent magnet, synchronous reluctance |
|
Motor Slip Compensation |
Adjustable, automatic |
|
4-Quadrant Operation |
Yes |
|
Braking to Standstill |
DC injection |
_
_
I/O Specifications
|
Type |
Count |
Description |
|---|---|---|
|
Discrete Inputs |
10 |
DI1__I8: 24 V DC, 3.5 kΩ; DI7 & DI8 support pulse input up to 30 kHz |
|
Discrete Outputs |
2 |
Logic output, up to 30 V DC, 100 mA (pulse output mode: 20 mA) |
|
Analog Inputs |
3 |
Configurable 0_10 V (30 kΩ) or 0(4)_20 mA (250 Ω), 12-bit resolution |
|
Analog Outputs |
2 |
Configurable 0_10 V (470 Ω) or 0_20 mA (500 Ω), 10-bit resolution |
|
Relay Outputs |
3 |
R1: NO/NC; R2, R3: NO; durability up to 1 million cycles |
|
Max Switching Current |
R1: 3 A (resistive), 2 A (inductive); R2/R3: 5 A (resistive), 2 A (inductive) |
_
_
Communication and Interface
|
Feature |
Description |
|---|---|
|
Protocols Supported |
Modbus serial, Modbus TCP, EtherNet/IP |
|
Ports |
2 RJ45 (Ethernet), 1 RJ45 (RS485) |
|
Transmission Rates |
Ethernet: 10/100 Mbps; Modbus: 4.8 to 38.4 kbps |
|
Data Format |
8-bit, configurable parity (odd/even/none) |
|
Addressing |
1_247 |
|
Expansion Slots |
3 (Slots A, B, C) for optional communication and I/O modules |
_
_
Safety and Protection
|
Feature |
Status |
|---|---|
|
Safe Torque Off (STO) |
_ |
|
Safe Stop 1 (SS1) |
_ |
|
Safely Limited Speed (SLS) |
_ |
|
Safe Operating Stop (SOS) |
_ |
|
Safe Position (SP) |
_ |
|
Safe Stop 2 (SS2) |
_ |
|
Safe Direction (SDI) |
_ |
|
Safe Brake Control (SBC/SBT) |
_ |
|
Other Protections |
Motor/drive thermal, phase loss, over/undervoltage, short-circuit, overspeed |
_
_
Physical Specifications
|
Parameter |
Value |
|---|---|
|
Dimensions (W x H x D) |
440 _ 1195 _ 380 mm |
|
Net Weight |
172 kg |
|

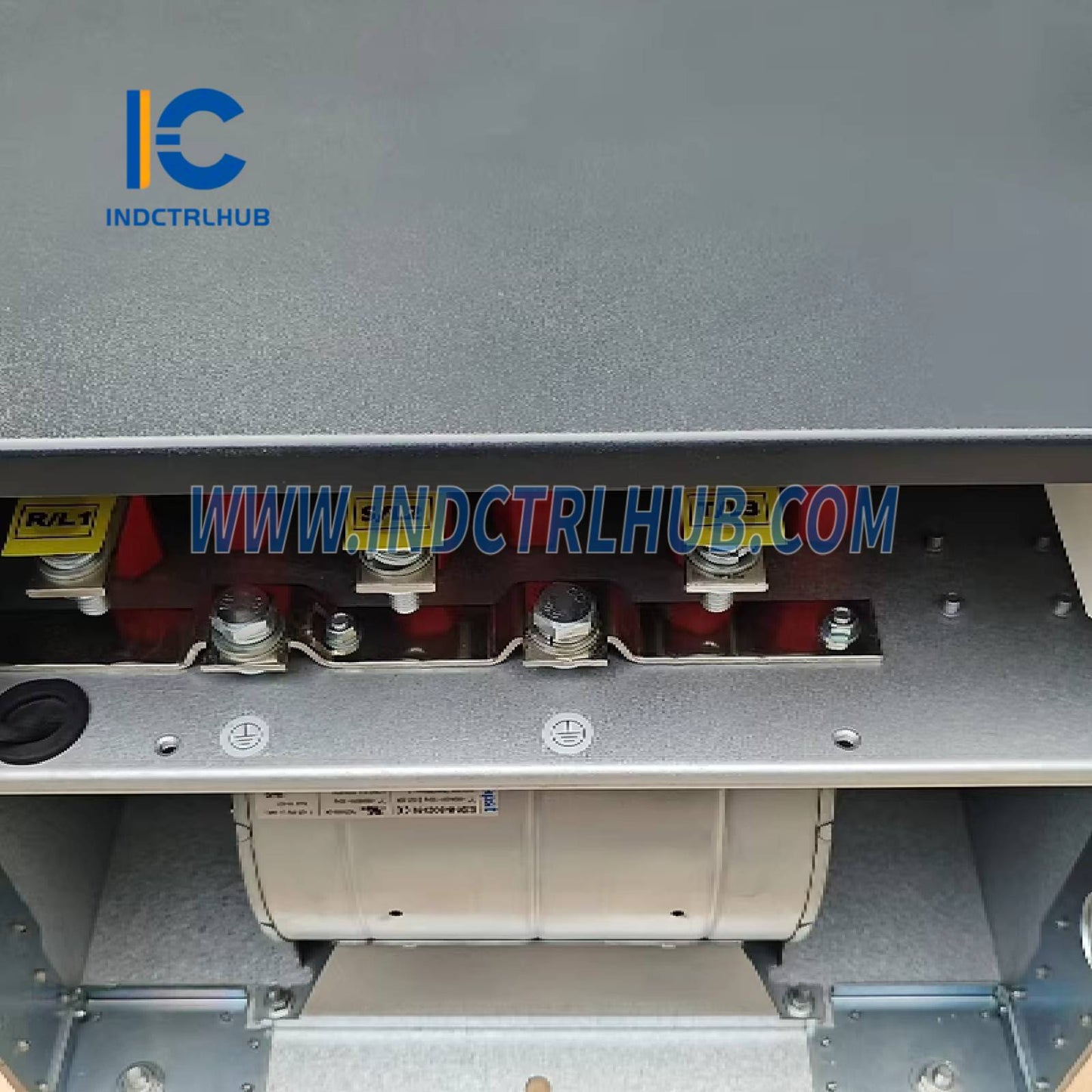

Electrical Connections |
Control: 0.5_1.5 mm²; Power: 2_150 mm² / 2_350 kcmil |
_
_
Power Supply
|
Source |
Voltage / Current |
Notes |
|---|---|---|
|
Digital Inputs (Ext.) |
24 V DC (19_30 V), <1.25 mA |
Overload/short-circuit protected |
|
Reference Potentiometer |
10.5 V DC ±5%, <10 mA |
Internal supply |
|
Digital Inputs + STO |
24 V DC (21_27 V), <200 mA |
Internal supply, protected |
_
