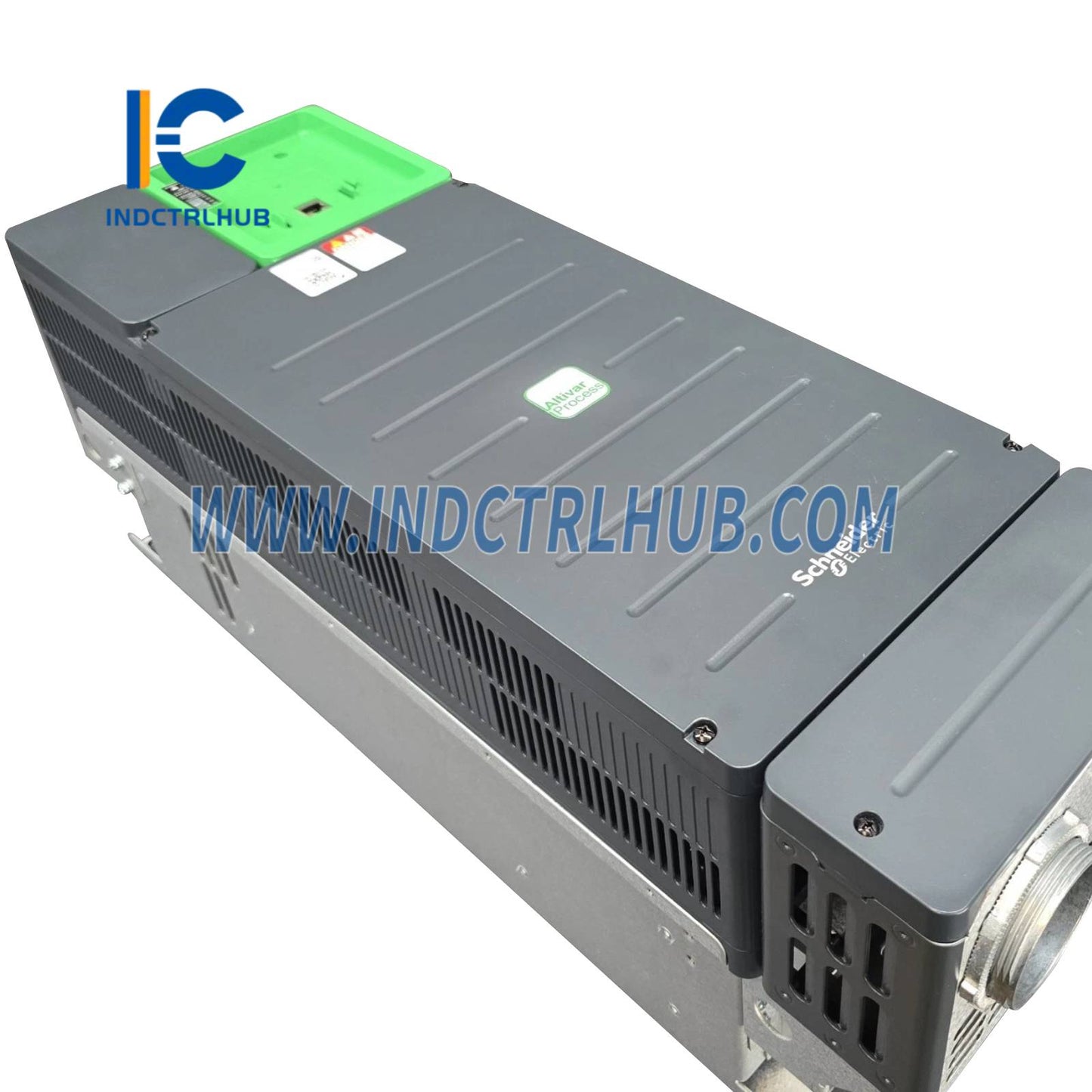

Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ATV630D45N4 |
|
Product Range |
Altivar Process ATV600 |
|
Device Type |
Variable Speed Drive |
|
Application |
Process and Utilities |
|
Mounting Mode |
Wall Mount |
|
IP Protection |
IP21 / UL Type 1 |
|
Cooling Type |
Forced Convection |
|
Communication Ports |
Modbus Serial, Ethernet, Modbus TCP |

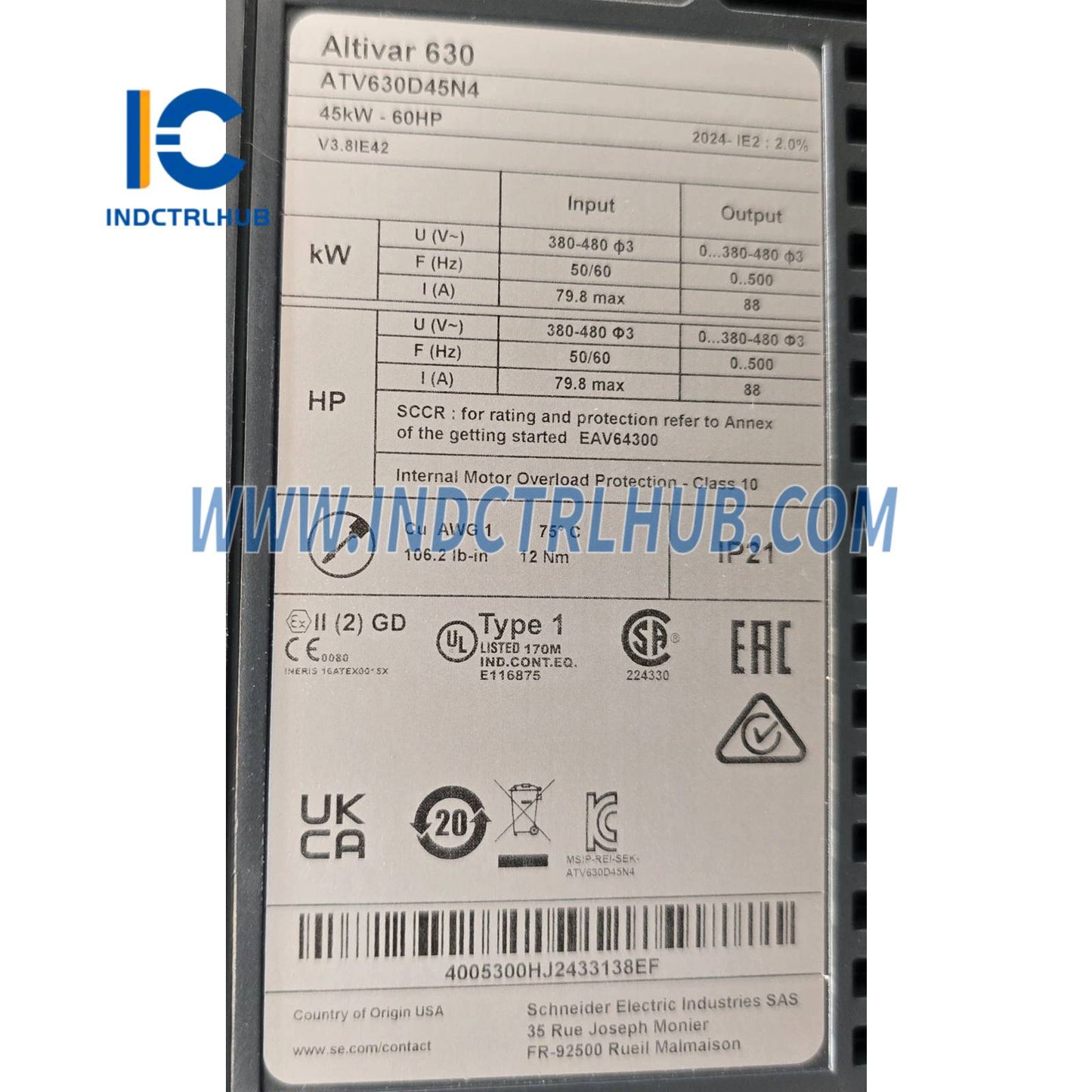

Technical Specifications
|
Category |
Specification |
|---|---|
|
Rated Supply Voltage |
380–480 V ±10% |
|
Supply Frequency |
50–60 Hz ±5% |
|
Motor Power |
45 kW (Normal Duty), 37 kW (Heavy Duty) |
|
Motor Horsepower |
60 HP (Normal), 50 HP (Heavy) |
|
Nominal Output Current |
88 A |
|
Line Current |
79.8 A @ 380 V (ND), 69.1 A @ 480 V (ND), 67.1 A @ 380 V (HD), 59 A @ 480 V (HD) |
|
Output Frequency Range |
0.1–500 Hz |
|
Temporary Current Boost |
1.1×In for 60 s (ND), 1.5×In for 60 s (HD) |
|
Output Voltage |
≤ Power supply voltage |
|
Motor Compatibility |
Asynchronous, Synchronous Motors |
|
EMC Filter |
Integrated, IEC 61800-3 Category C2 (50 m), C3 (150 m) |
|
Safety Function |
STO (Safe Torque Off), SIL 3 |

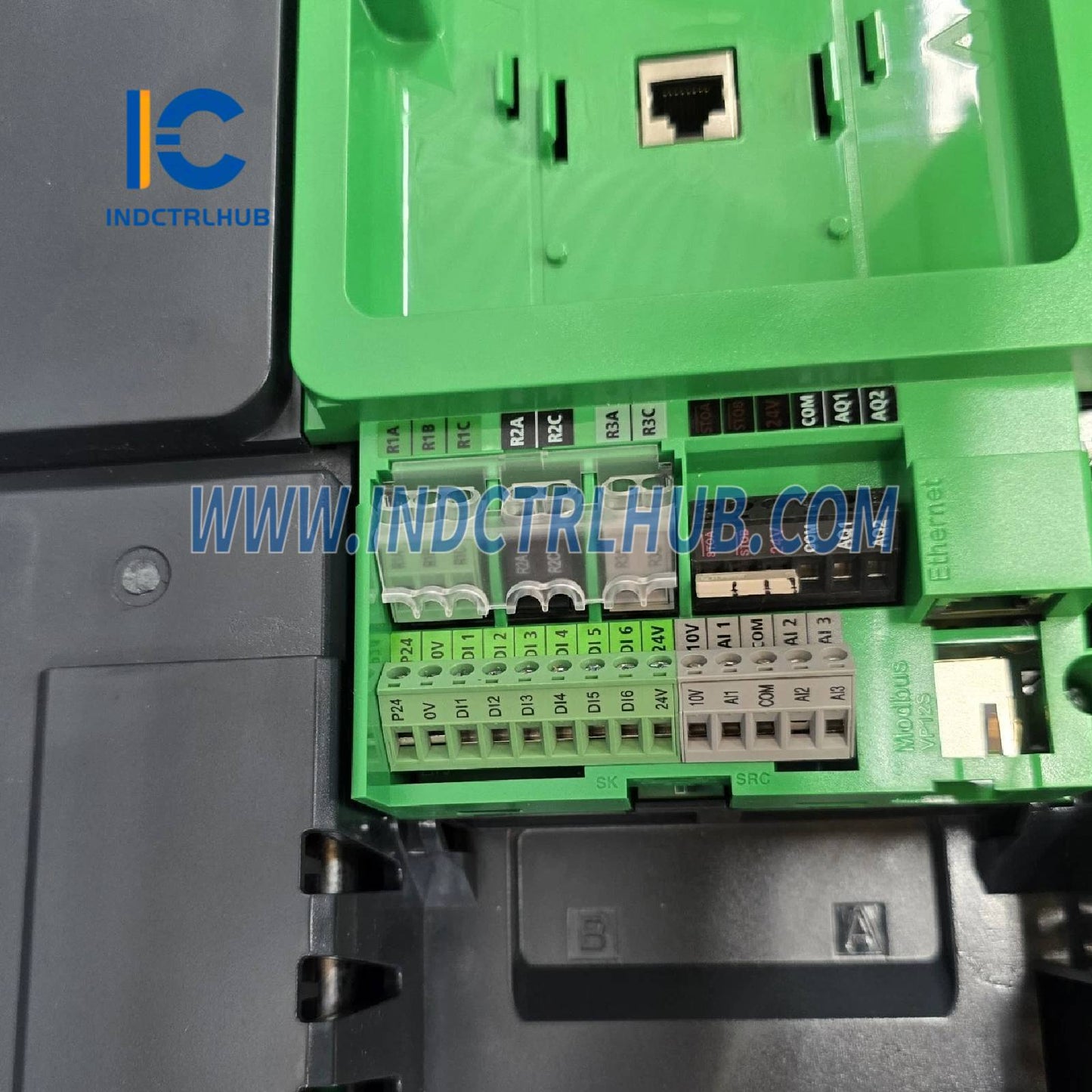

I/O Specifications
|
Type |
Details |
|---|---|
|
Discrete Inputs |
8 (DI1–DI8); DI7 & DI8: pulse input up to 30 kHz; 24 VDC |
|
Analog Inputs |
3 (AI1–AI3): 0–10 V, ±10 V, 0–20 mA, resolution 12-bit |
|
Analog Outputs |
2 (AQ1, AQ2): 0–10 V / 0–20 mA, resolution 10-bit |
|
Relay Outputs |
3 (R1, R2, R3); configurable logic; 3 A resistive, 2 A inductive |
|
Output Relay Ratings |
250 VAC / 30 VDC |

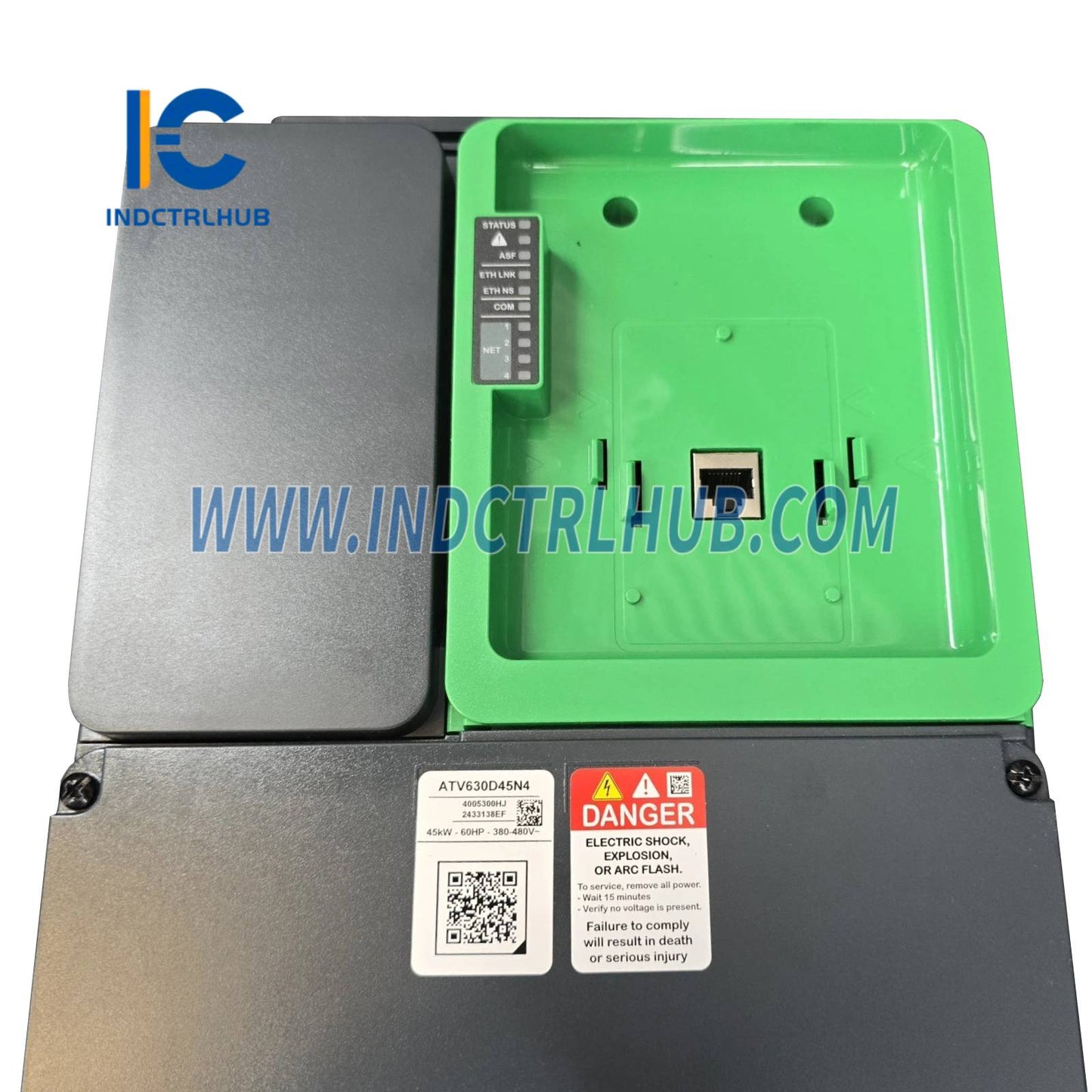

Communication & Networking
|
Feature |
Specification |
|---|---|
|
Physical Interface |
RJ45 (Ethernet/Modbus TCP), 2-wire RS485 |
|
Communication Protocols |
Modbus TCP, Modbus Serial, Ethernet |
|
Transmission Speeds |
4800 bps to 38.4 Kbps (serial); 10/100 Mbps (Ethernet) |
|
Data Format |
8 bits, configurable parity |
|
Communication Slot Options |
Profibus DP, PROFINET, DeviceNet, BACnet, CANopen, Ethernet/IP, etc. |
|
Address Range (Modbus) |
1–247 |

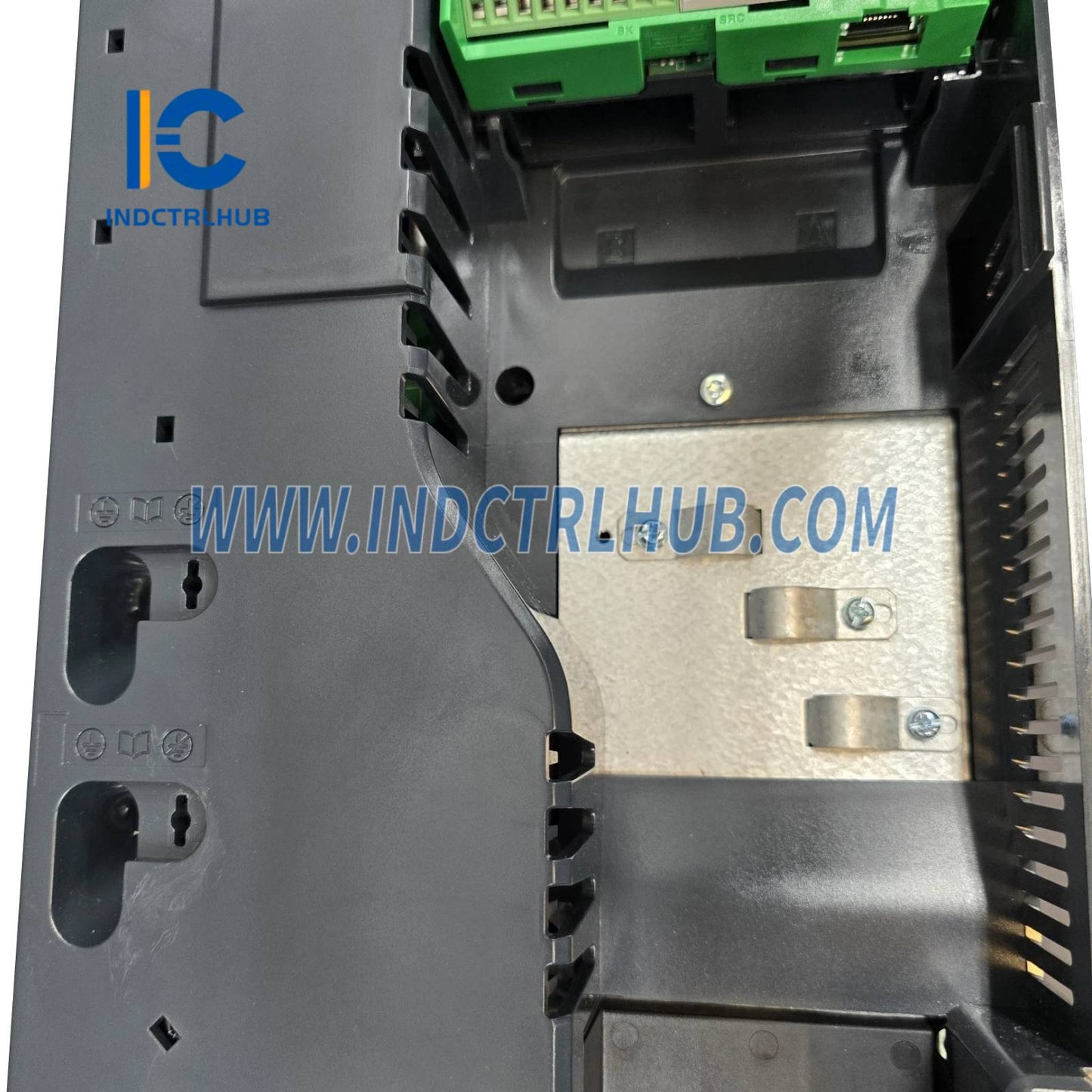

Electrical and Mechanical
|
Feature |
Specification |
|---|---|
|
Electrical Connections |
Control: 0.5–1.5 mm²; Line: 35–50 mm²; Motor: 50 mm² |
|
Control Supply |
24 VDC external (19–30 V), internal 10.5 VDC for pot, 24 VDC for STO |
|
Sampling Duration |
Discrete Inputs: 2–5 ms; Analog Inputs: 5 ms; Analog Output: 10 ms |
|
Accuracy |
±0.6% AI, ±1% AO over 60 °C; Linearity error: ±0.15% AI, ±0.2% AO |
|
Refresh Time |
Relay outputs: 5 ms |
Application Suitability
|
Sector |
Example Applications |
|---|---|
|
Building (HVAC) |
Centrifugal & Screw Compressors |
|
Water/Wastewater |
Pumps (centrifuge, screw, submersible), Mixers, Compressors, Fans |
|
Oil & Gas |
ESP, Water Injection, Jet Fuel, Refinery Compressors |
|
Food & Beverage |
Pumps, Fans, Atomization |
|
Mining/Metals |
Fans, Pumps |
