Product Description
Product Details
-

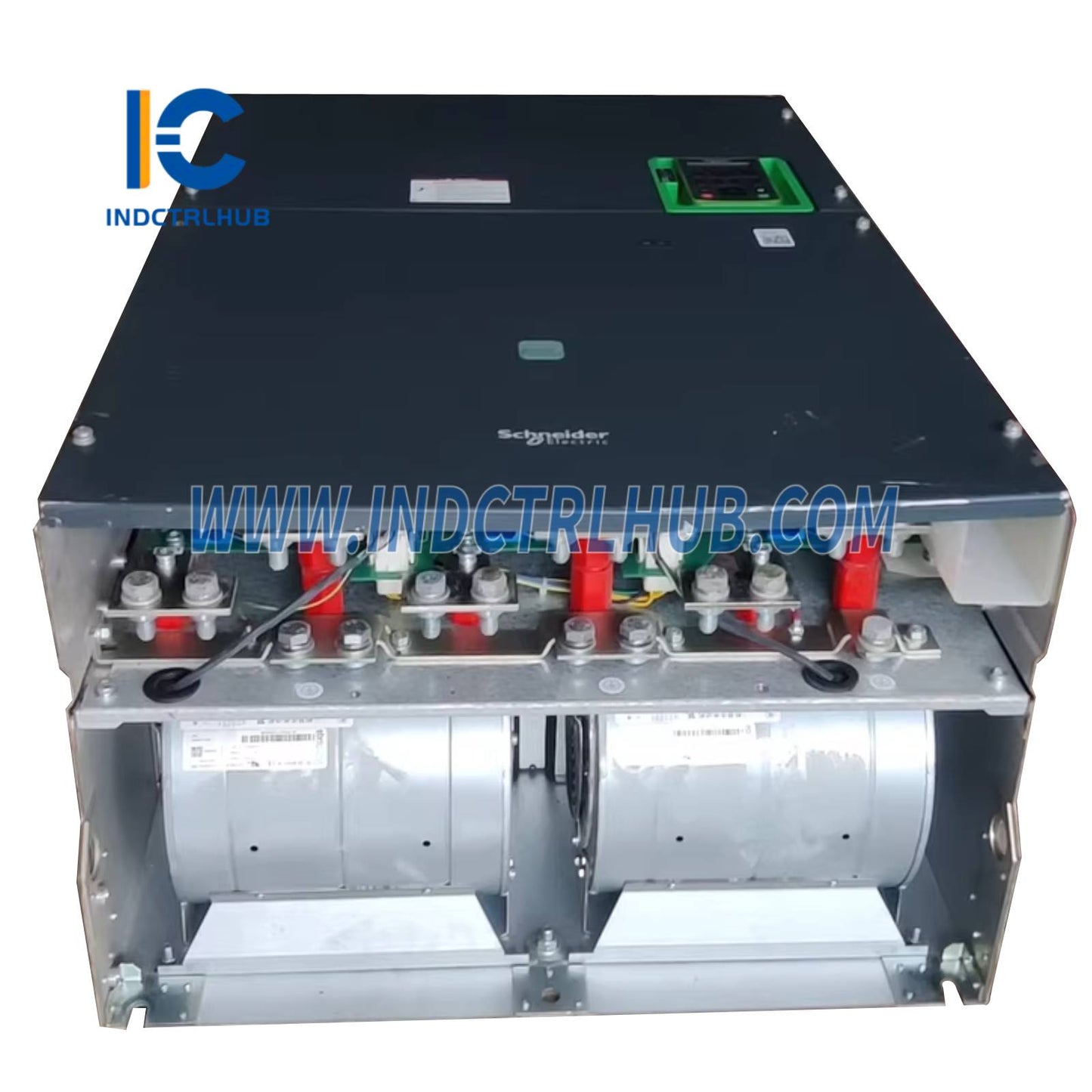

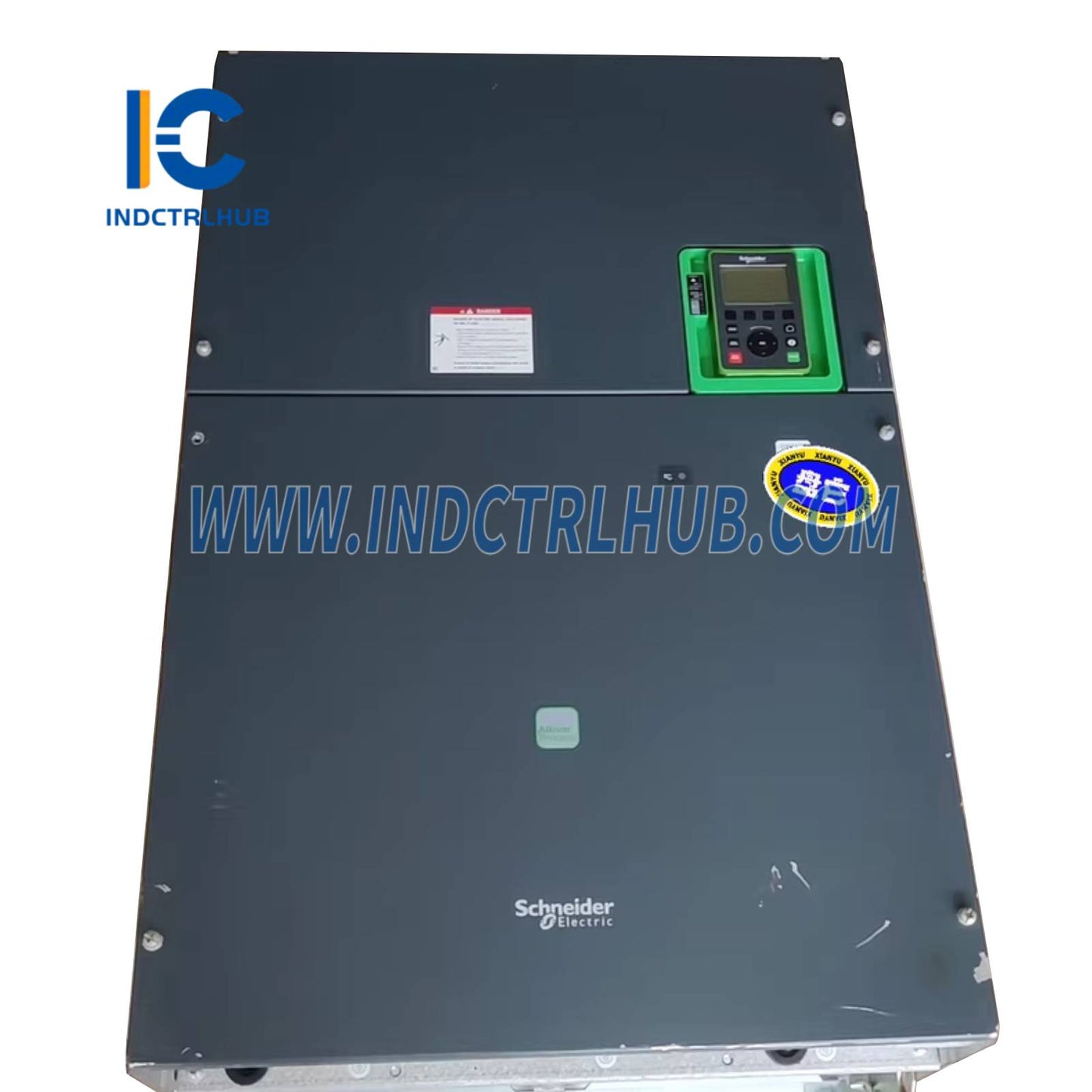

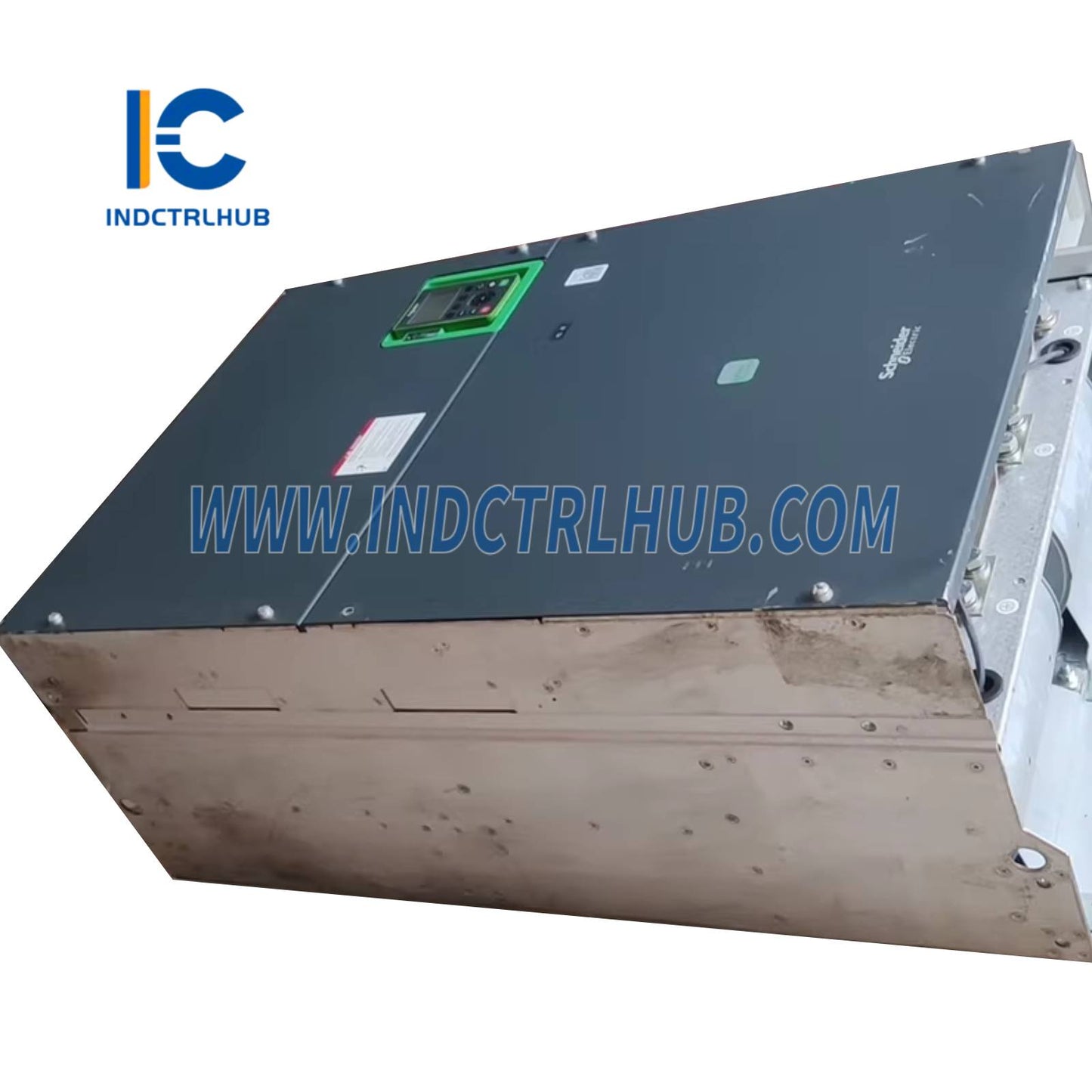

Manufacturer: Schneider Electric
-
Model/Part Number: ATV630C31N4
-
Description: Variable speed drive, Altivar Process ATV600, ATV630, 315kW/500 hp, 380…480 V, IP00
Specifications
|
Feature |
Specification |
|---|---|
|
Range of Product |
Altivar Process ATV600 |
|
Product Specific Application |
Process and utilities |
|
Product or Component Type |
Variable speed drive |
|
Variant |
Standard version |
|
Device Short Name |
ATV630 |
|
Mounting Mode |
Wall mount |
|
Communication Port Protocol |
Modbus Serial, Ethernet, Modbus TCP |
|
Rated Supply Voltage (Us) |
380…480 V - 15…10 % |
|
Nominal Output Current |
616 A |
|
IP Degree of Protection |
IP21 (standard) / IP00 (with no kit) |
|
Product Destination |
Asynchronous motors, Synchronous motors |
|
EMC Filter |
Integrated with 50 m conforming to IEC 61800-3 category C3 |
|
Cooling Type |
Forced convection |
|
Supply Frequency |
50…60 Hz - 5…5 % |
|
Motor Power |
315 kW (normal duty), 250 kW (heavy duty) |
|
Motor Power (hp) |
500 hp normal duty, 400 hp heavy duty |
|
Line Current |
569 A (380 V, normal duty), 461 A (480 V, normal duty) |
|
Continuous Output Current |
616 A (normal duty, 2.5 kHz), 481 A (heavy duty, 2.5 kHz) |
|
Speed Drive Output Frequency |
0.1…500 Hz |
|
Safety Function |
Safe Torque Off (STO) SIL 3 |
|
Option Card |
Various communication and I/O options (Profibus DP, Modbus TCP, etc.) |
|
Discrete Input Number |
8 |
|
Discrete Input Logic |
Positive and Negative logic options |
|
Discrete Output Number |
0 (No direct outputs) |
|
Analog Input Number |
3 (Voltage and Current software-configurable) |
|
Analog Output Number |
2 (Voltage and Current software-configurable) |
|
Relay Output Number |
3 (Configurable relay logic, 100,000 cycle electrical durability) |
|
Maximum Output Frequency |
500 Hz |
|
Nominal Switching Frequency |
2.5 kHz |
|
Braking to Standstill |
By DC injection (No brake chopper integrated) |
|
Maximum Input Current |
569 A |
|
Maximum Output Voltage |
480 V |
|
Apparent Power |
351 kVA at 480 V (normal duty), 286 kVA at 480 V (heavy duty) |
|
Protection Type |
Thermal protection, Safe Torque Off, Overcurrent, Short-circuit protection, etc. |
|
Width |
598 mm |
|
Height |
1195 mm |
|
Depth |
380 mm |
|
Net Weight |
203 kg |
|
Insulation Resistance |
> 1 MOhm (500 V DC for 1 minute) |
|
Noise Level |
68 dB (conforming to 86/188/EEC) |
|
Vibration Resistance |
1.5 mm peak to peak (f= 2…13 Hz) |
|
Shock Resistance |
15 gn for 11 ms (conforming to IEC 60068-2-27) |
|
Operating Temperature |
-10…40 °C (without derating), 40…60 °C (with derating factor) |
|
Operating Altitude |
<= 1000 m (no derating), 1000…3000 m (1% current derating per 1000 m) |
