Product Description
General Information
-

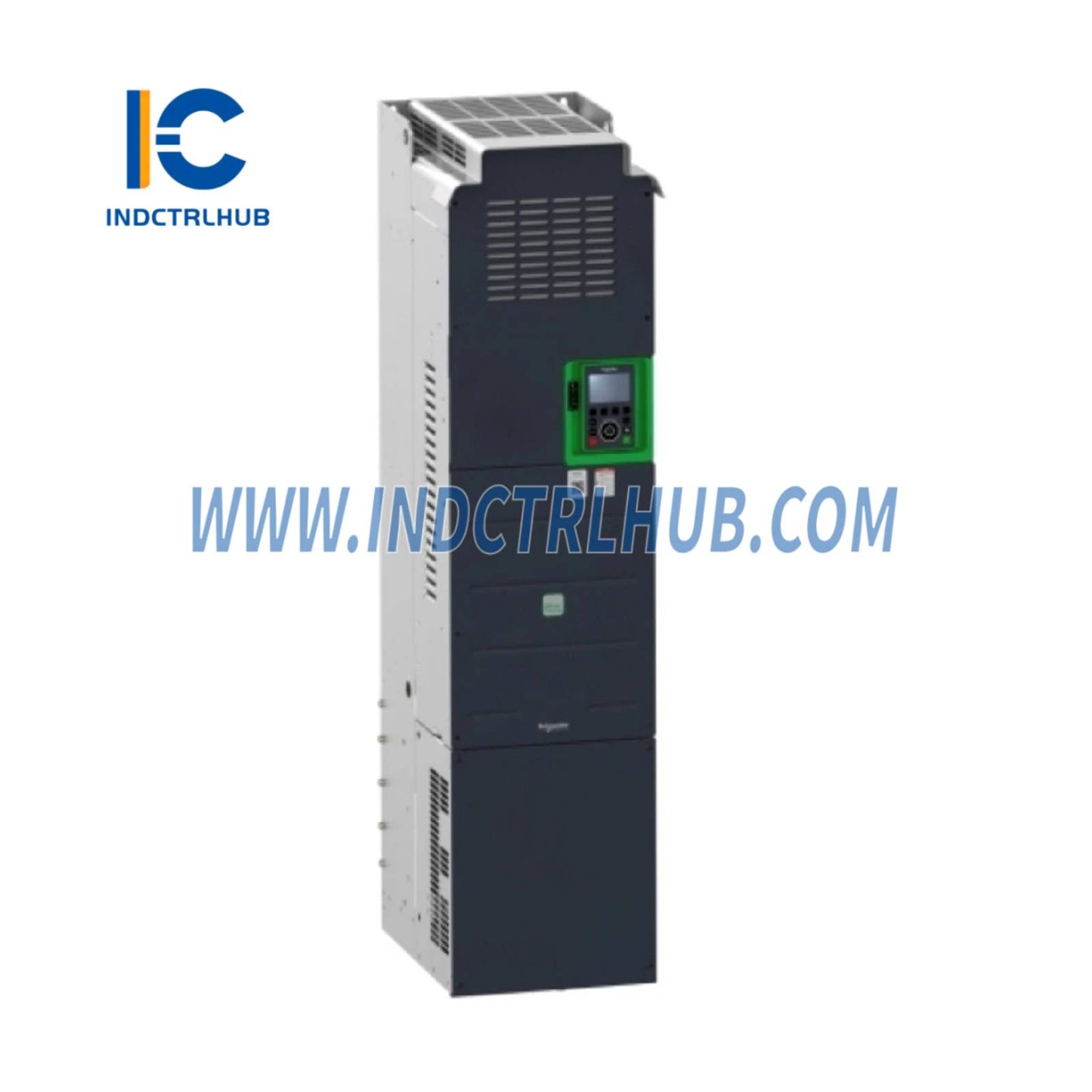

Manufacturer: Schneider Electric
-
Model/Part Number: ATV630C13N4
-
Description: Variable speed drive, ATV630, 130 kW, 380–480V, IP00
Specifications
|
Specification |
Details |
|---|---|
|
Range of Product |
Altivar Process ATV600 |
|
Product Specific Application |
Process and utilities |
|
Product Type |
Variable speed drive |
|
Variant |
Standard version |
|
Device Short Name |
ATV630 |
|
Mounting Mode |
Wall mount |
|
Communication Port Protocol |
Ethernet, Modbus TCP, Modbus Serial |
|
Rated Supply Voltage |
380…480 V ±15…10% |
|
Relative Mains Voltage Tolerance |
10% |
|
Network Frequency Tolerance |
5% |
|
Nominal Output Current |
250 A |
|
IP Protection Degree |
IP21 |
|
Product Destination |
Asynchronous motors, Synchronous motors |
|
EMC Filter |
Integrated with 150 m conforming to IEC 61800-3 category C3 |
|
Cooling Type |
Forced convection |
|
Supply Frequency |
50…60 Hz ±5% |
|
Motor Power (kW) |
132 kW (normal duty), 110 kW (heavy duty) |
|
Motor Power (hp) |
200 hp (normal duty), 150 hp (heavy duty) |
|
Line Current |
237 A (380 V, normal duty), 213 A (480 V, normal duty) |
|
201 A (380 V, heavy duty), 165 A (480 V, heavy duty) |
|
|
Continuous Output Current |
250 A at 2.5 kHz (normal duty), 211 A at 2.5 kHz (heavy duty) |
|
Speed Drive Output Frequency |
0.1…500 Hz |
|
Safety Function |
STO (Safe Torque Off) SIL 3 |
|
Option Card Slots |
Communication modules, digital/analog I/O, relay extension |
|
Discrete Input Number |
8 (programmable as pulse input) |
|
Discrete Output Number |
0 |
|
Analogue Input Number |
3 (software-configurable voltage/current) |
|
Analogue Output Number |
2 (software-configurable voltage/current) |
|
Relay Output Number |
3 (configurable relay logic, various applications) |
|
Maximum Switching Current |
3 A at 250 V AC, 3 A at 30 V DC (resistive load) |
|
Maximum Output Voltage |
480 V |
|
Maximum Transient Current |
275 A for 60 s (normal duty), 316.5 A for 60 s (heavy duty) |
|
Power Dissipation |
2755 W at 380 V (2.5 kHz) |
|
Motor Slip Compensation |
Adjustable, automatic or suppressed |
|
Switching Frequency |
2.5…8 kHz, adjustable |
|
Braking to Standstill |
By DC injection |
|
Brake Chopper Integrated |
No |
|
Environment Insulation Resistance |
>1 MΩ, 500 V DC for 1 minute to earth |
|
Noise Level |
69.9 dB (conforming to 86/188/EEC) |
|
Vibration Resistance |
1.5 mm peak to peak (f=2…13 Hz), 1 gn (f=13…200 Hz) |
|
Shock Resistance |
15 gn for 11 ms |
|
Relative Humidity |
5…95 % (without condensation) |
|
Operating Temperature |
-15…50°C (without derating), 50…60°C (with derating) |
|
Operating Altitude |
≤ 1000 m |
