Product Description

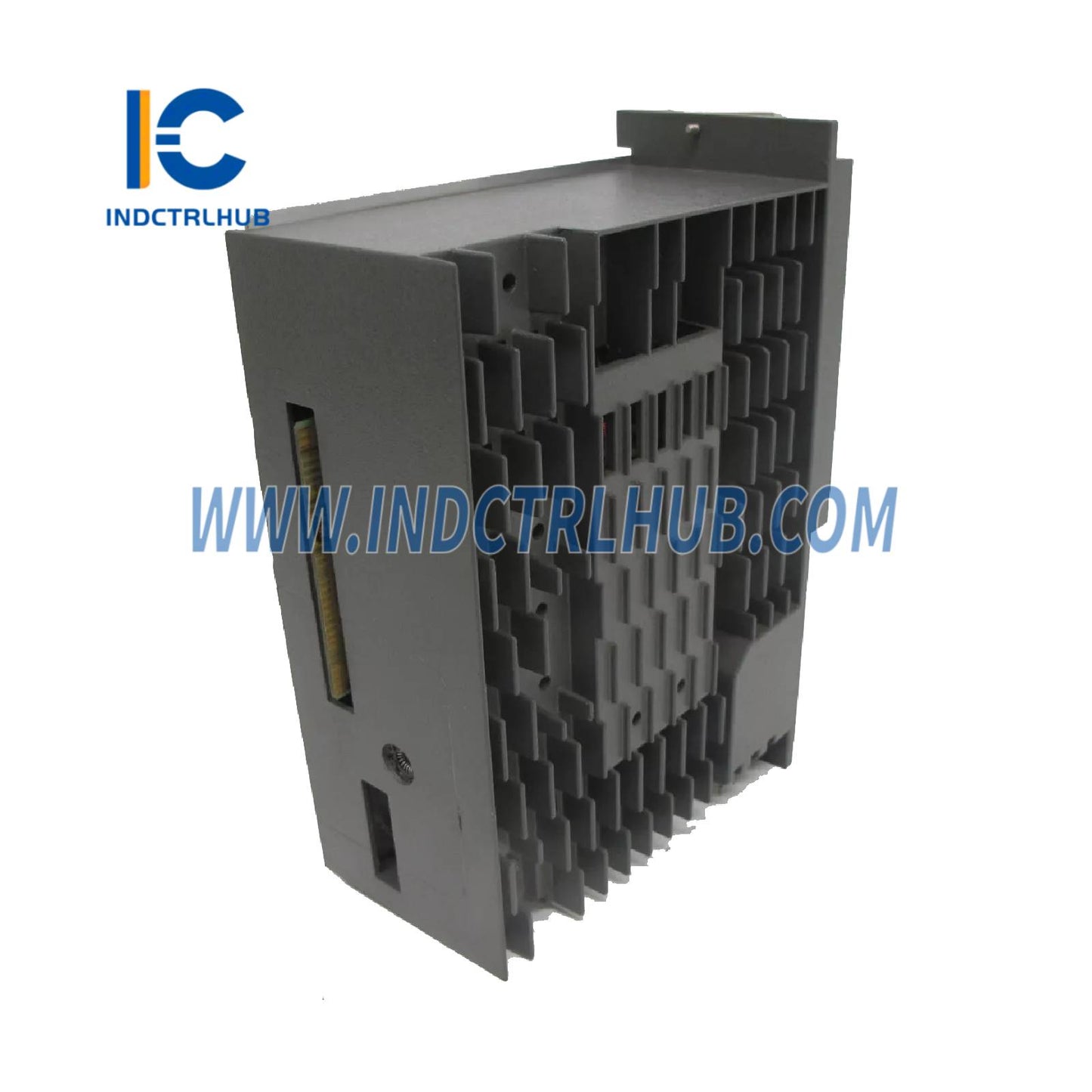

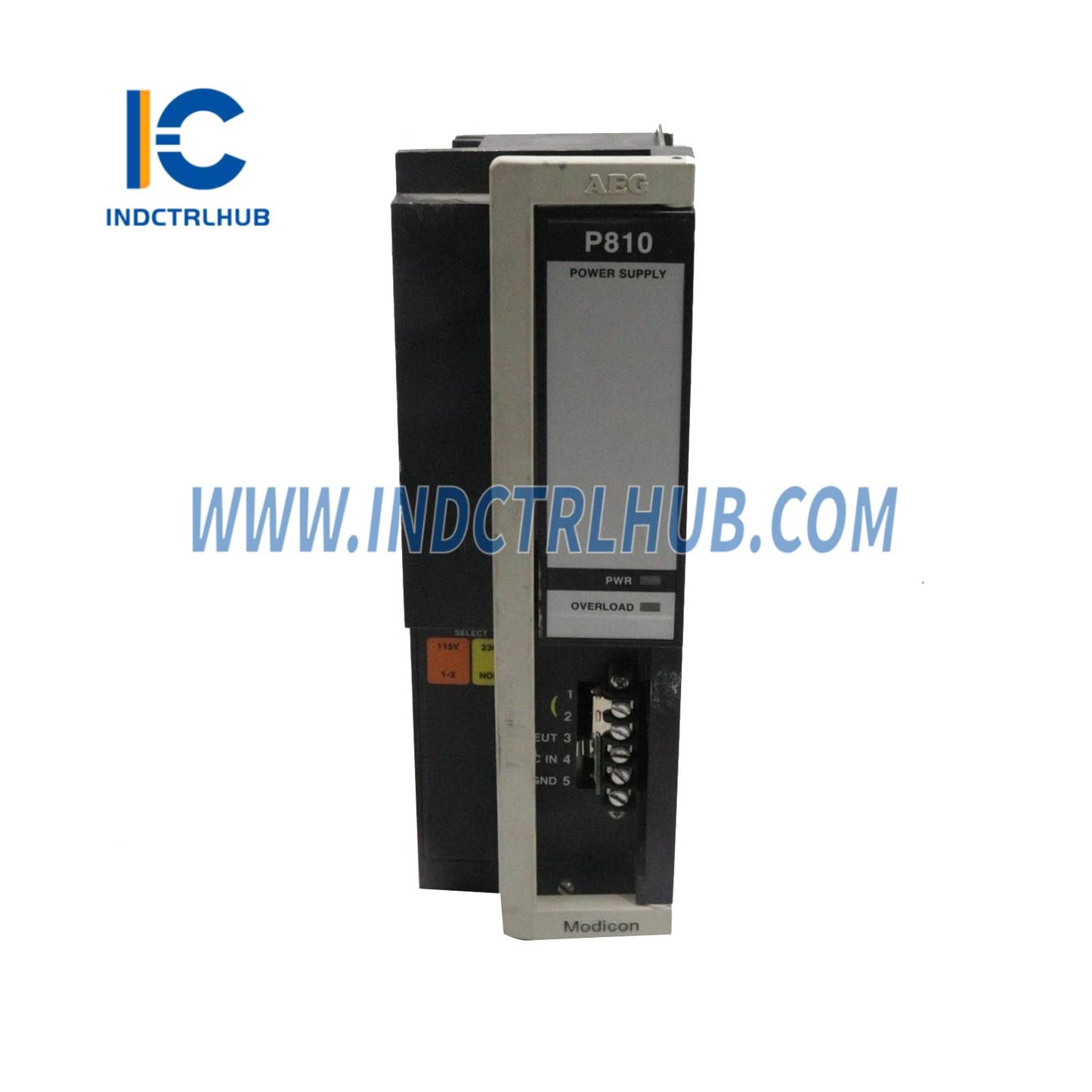

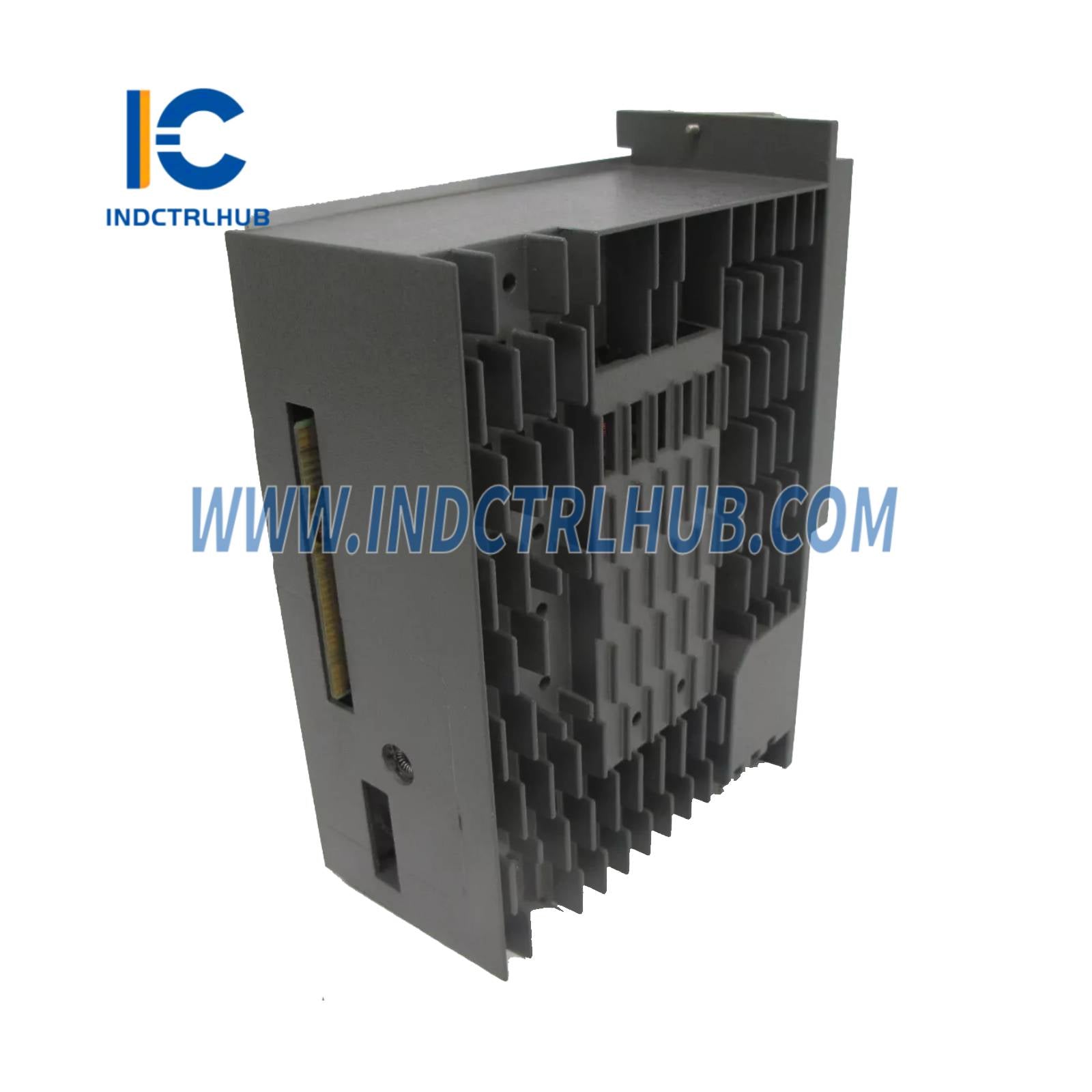

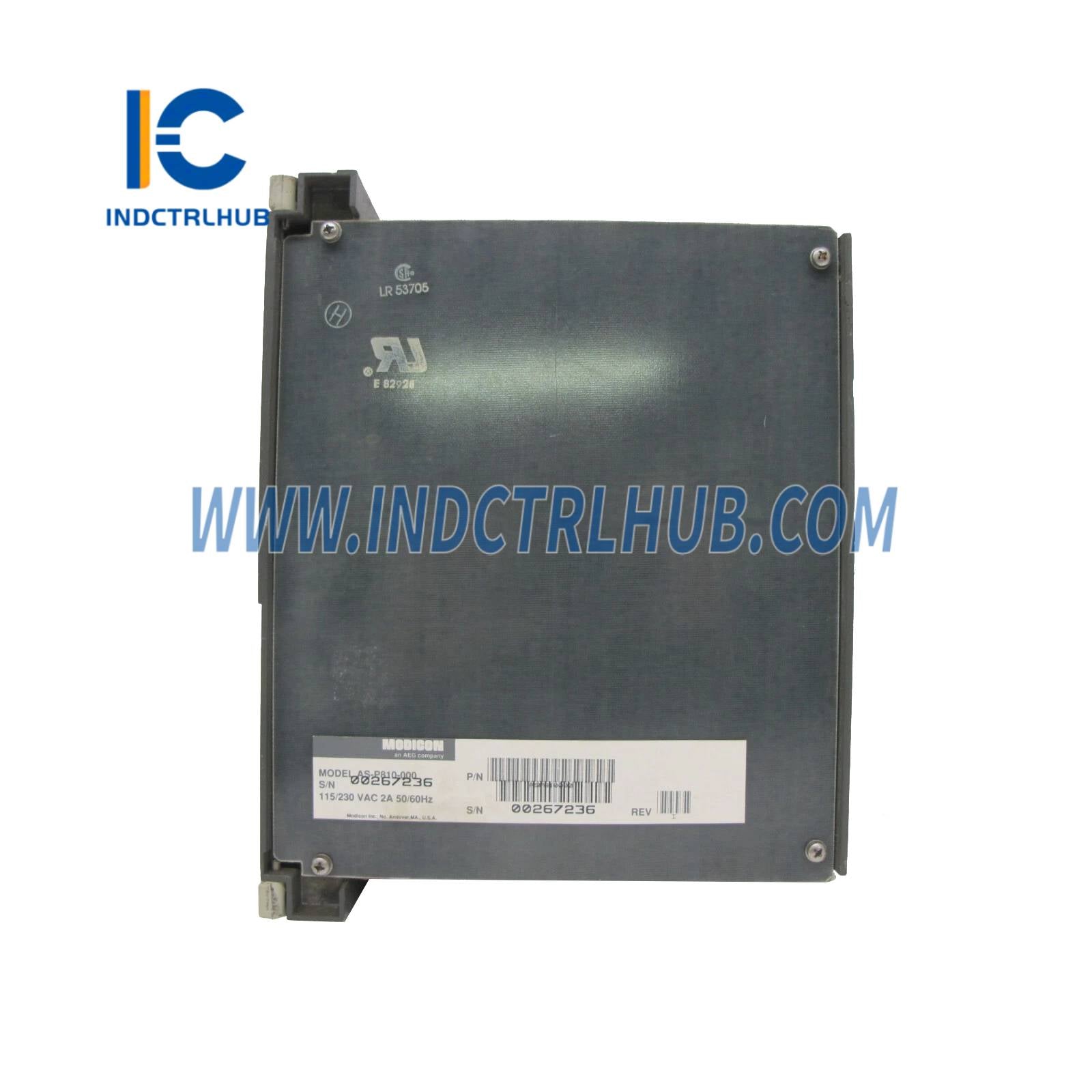

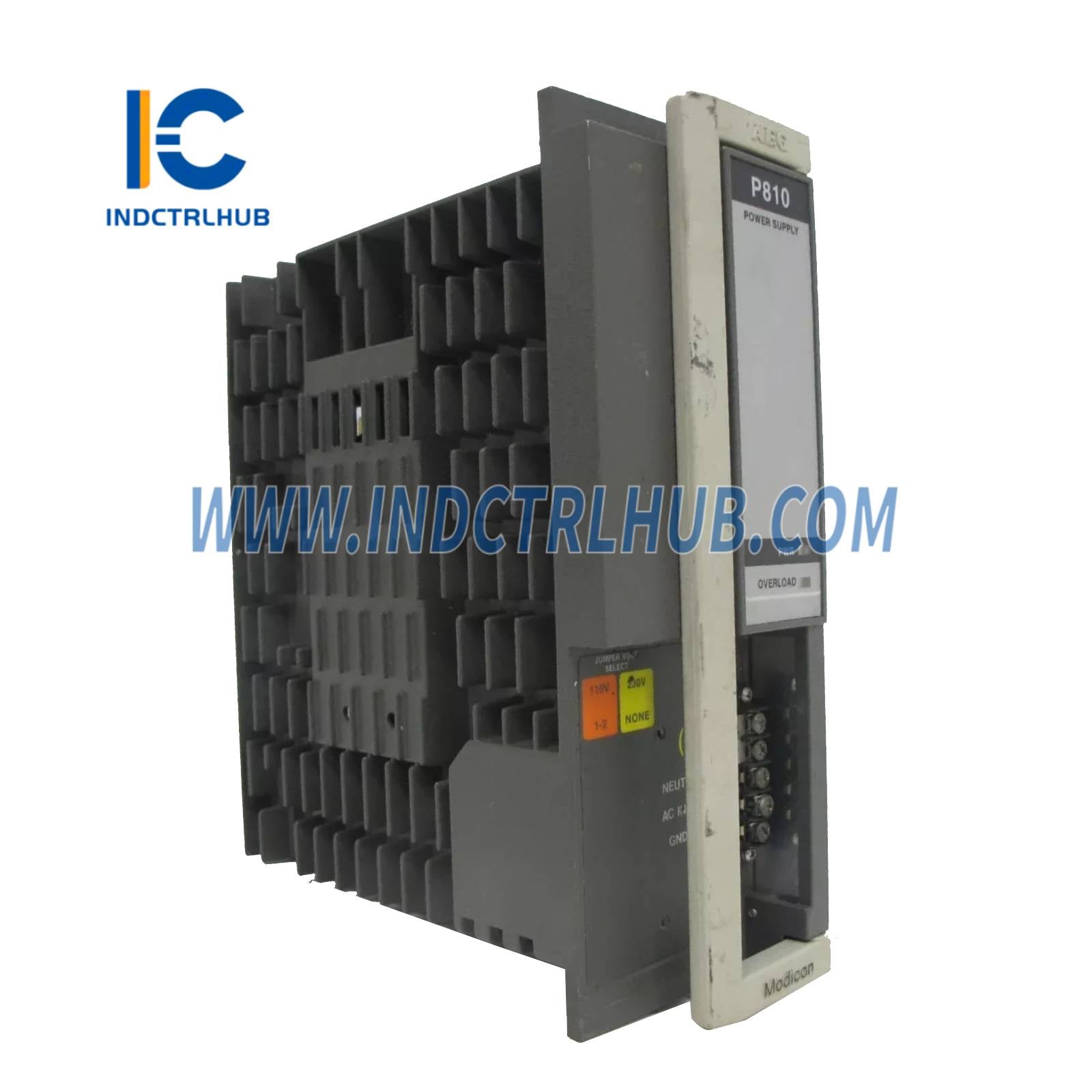

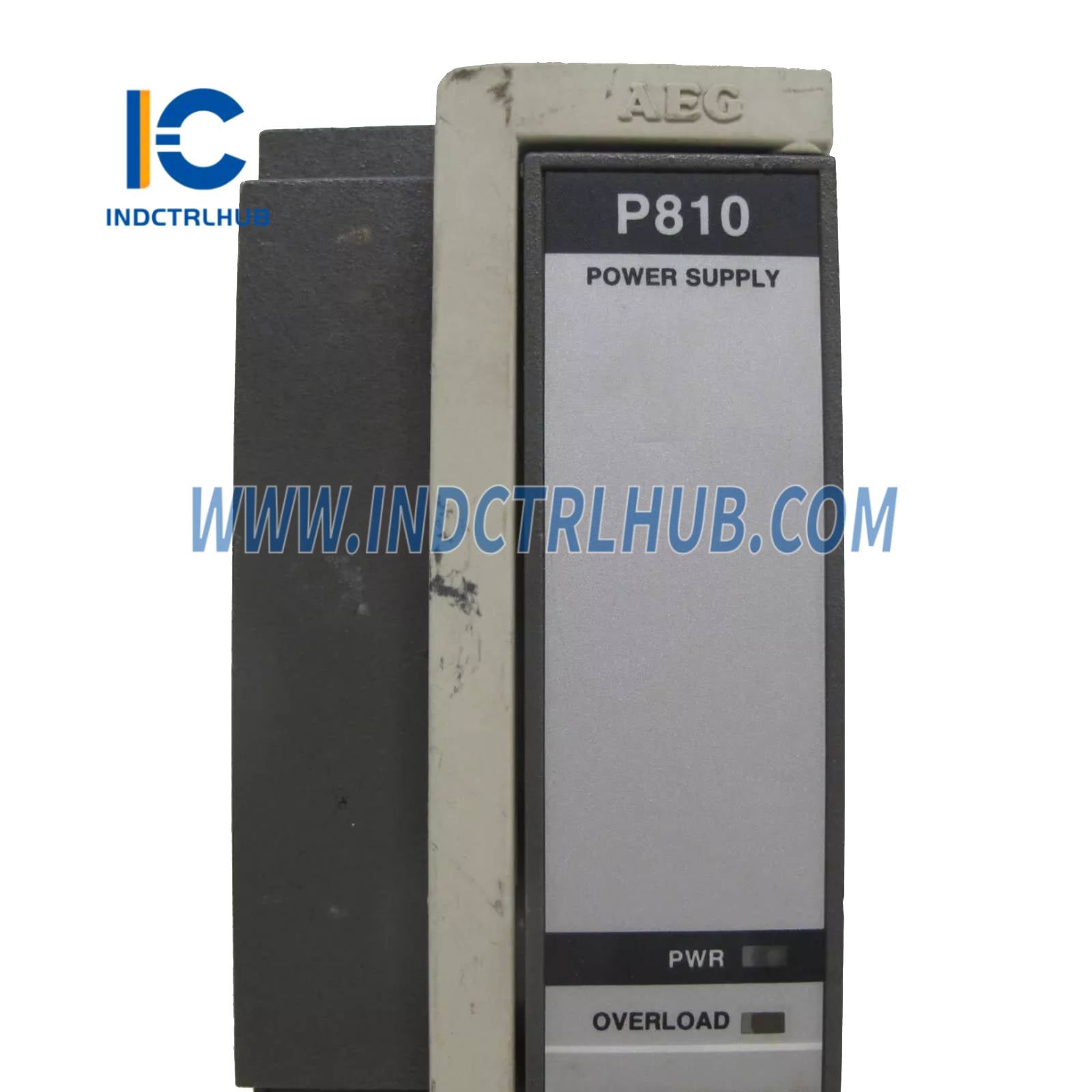

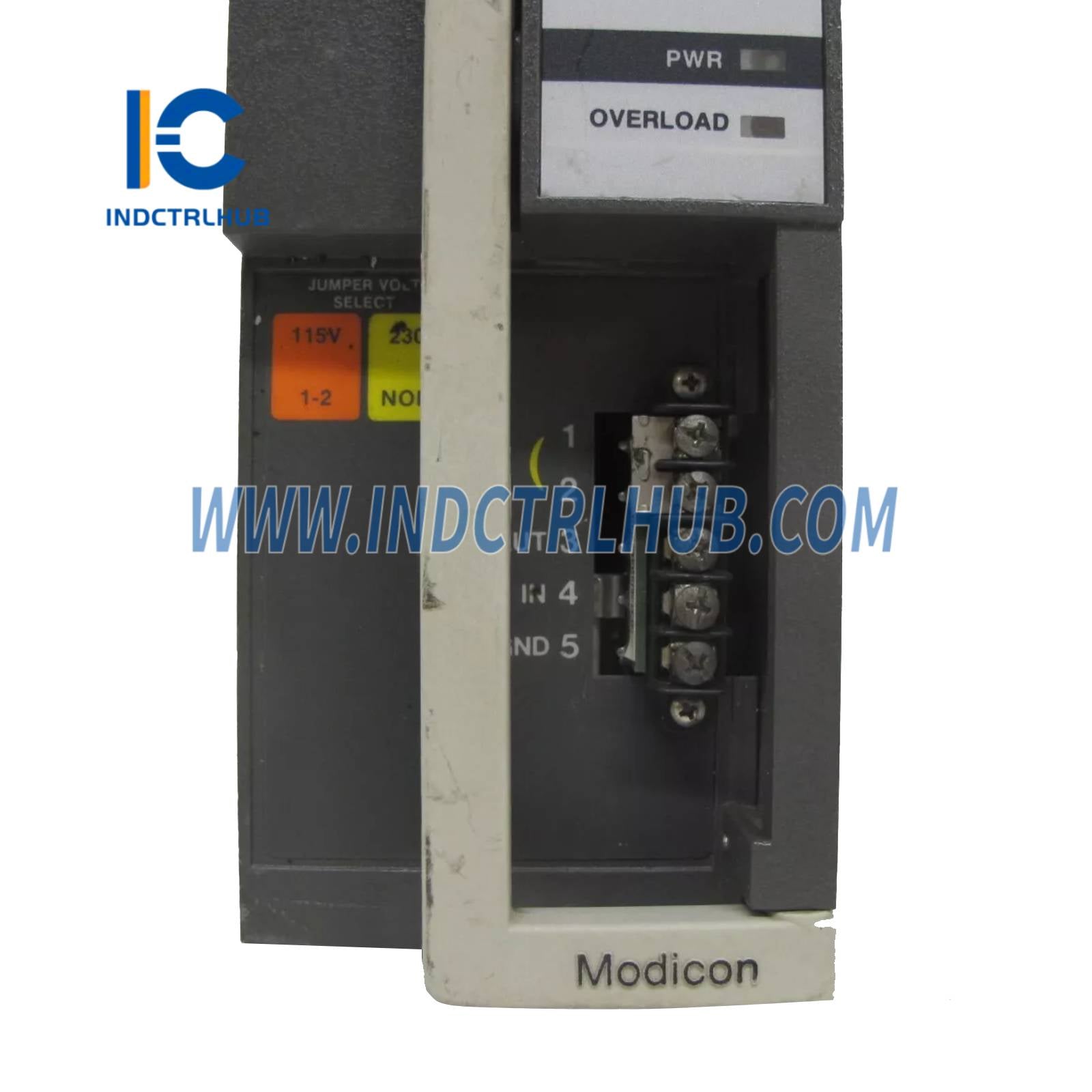

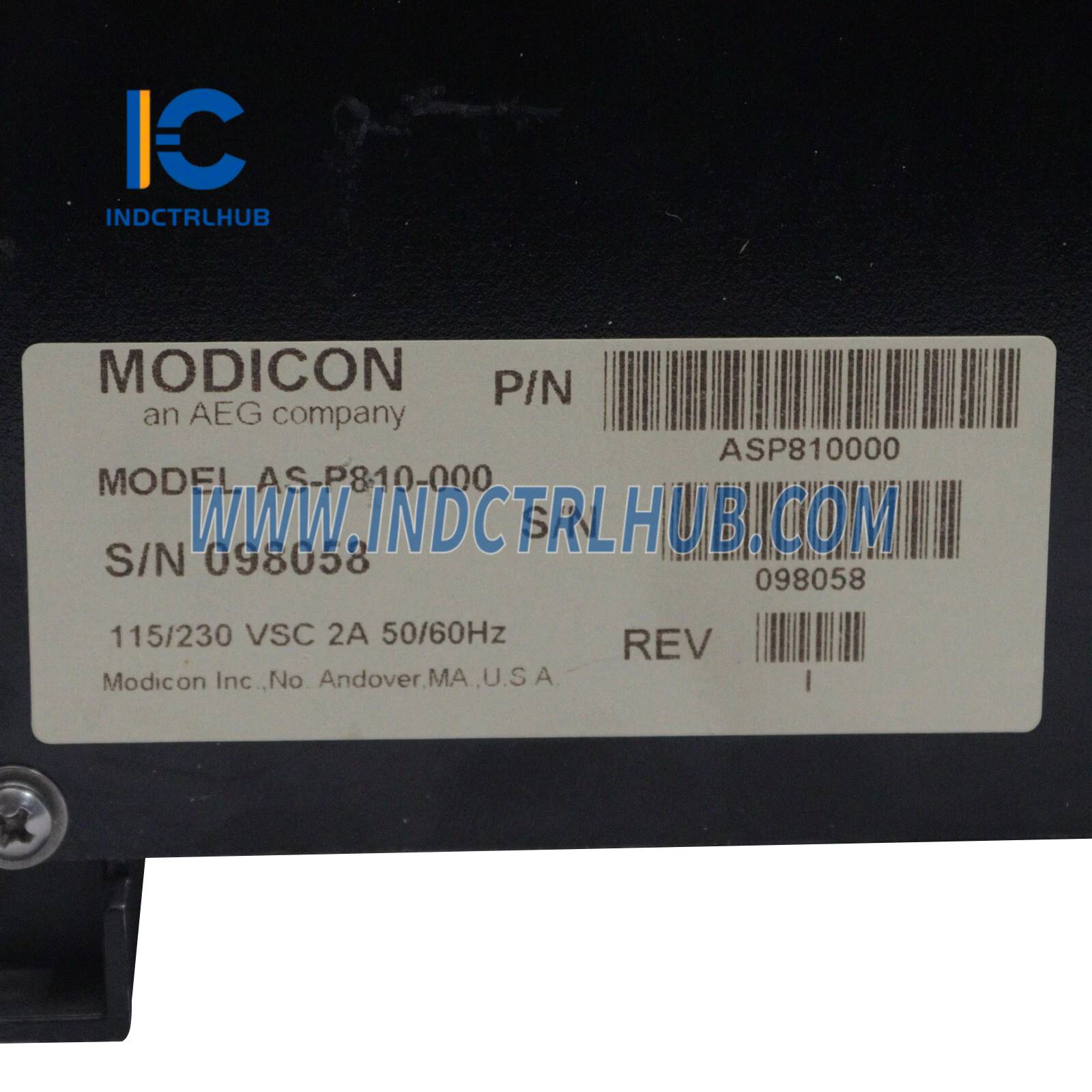

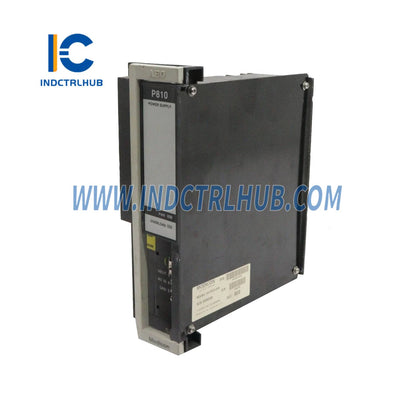

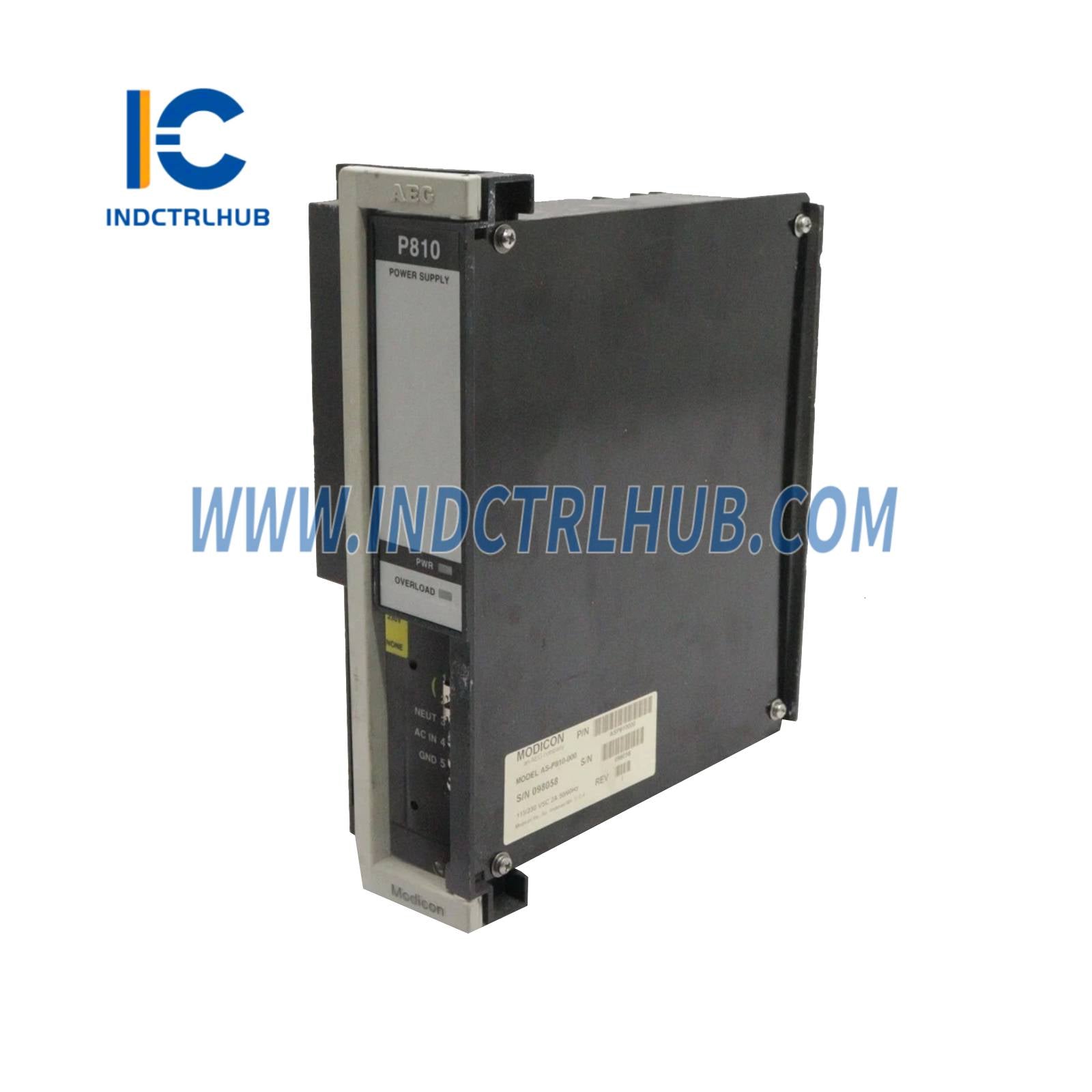

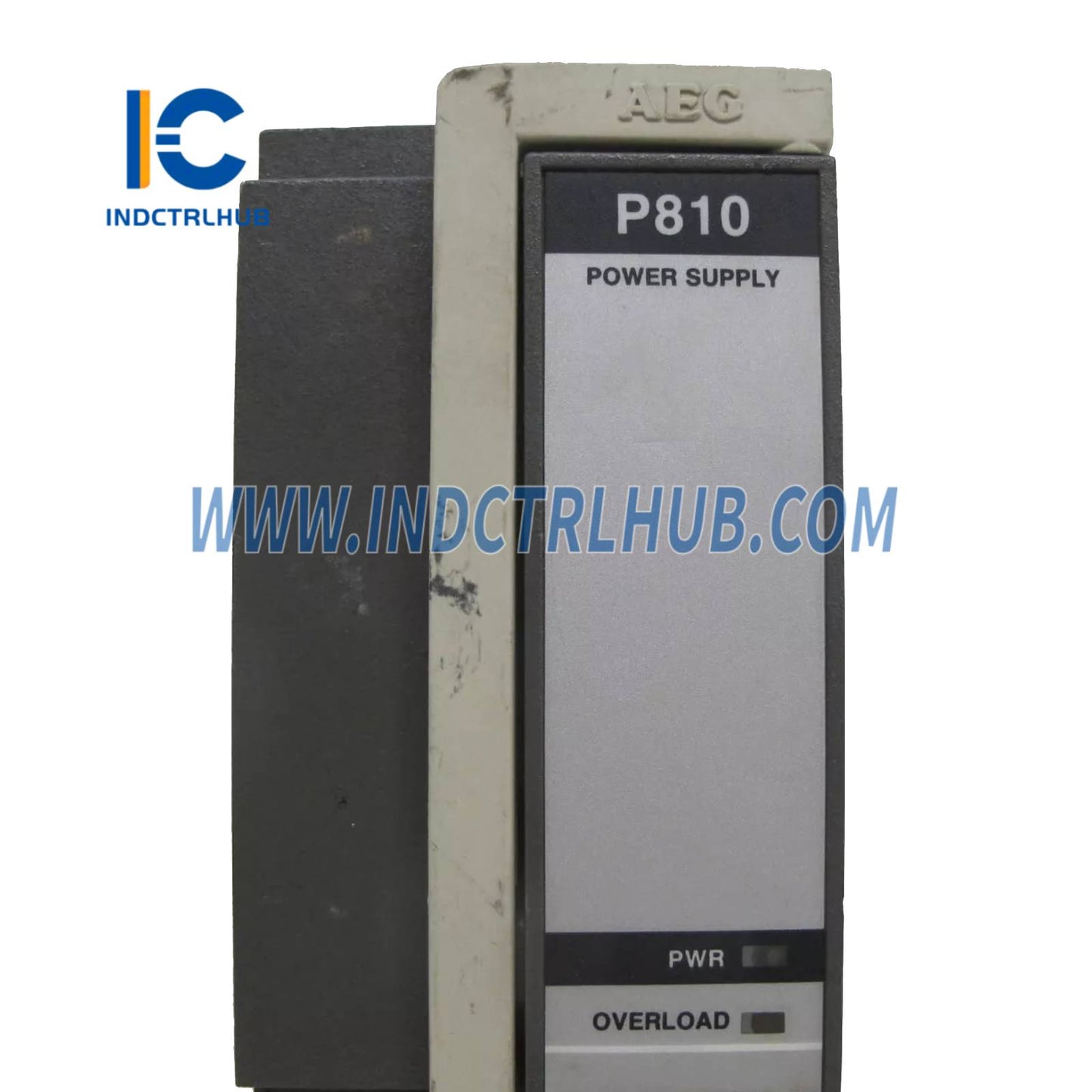

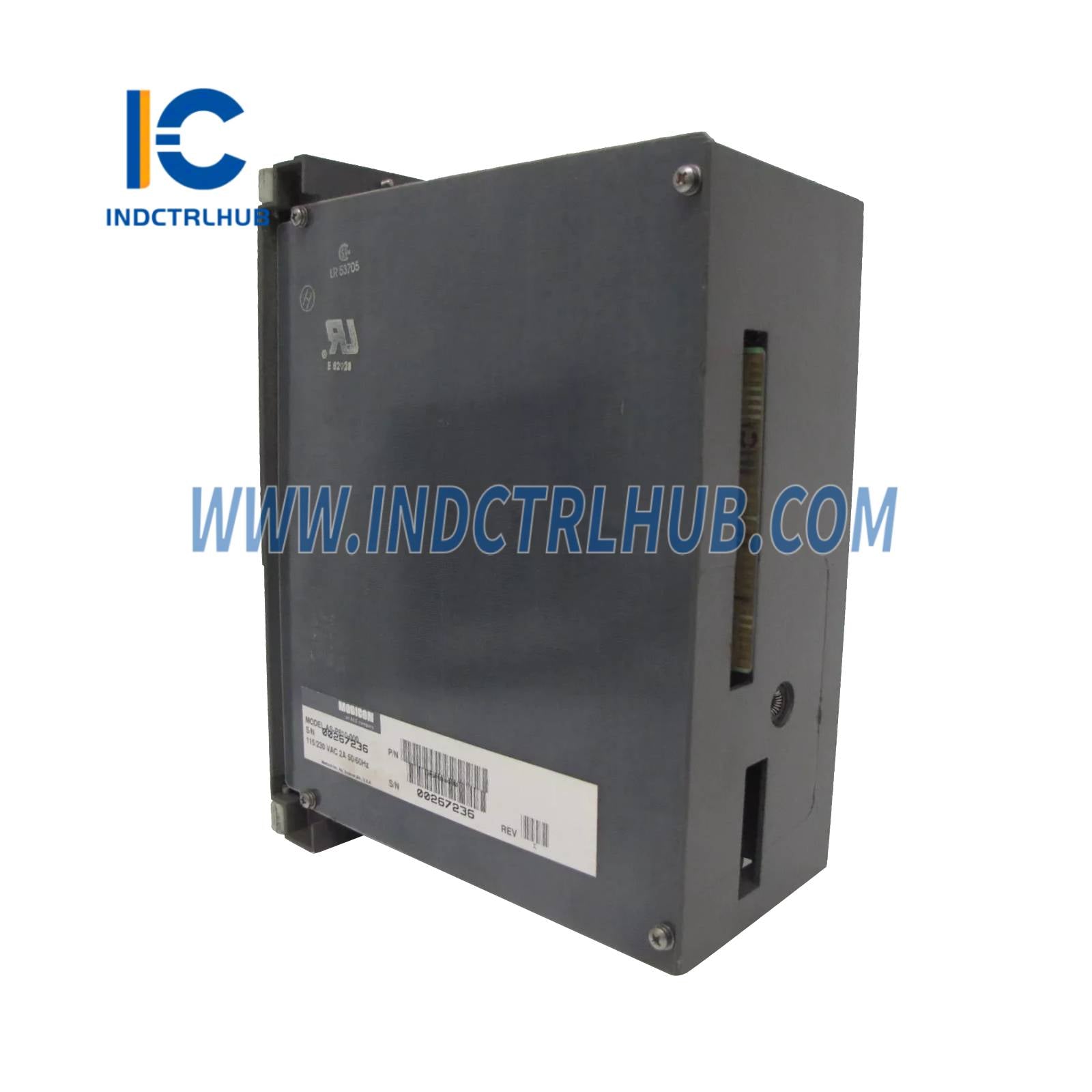

Schneider Electric AS-P810-000 Modicon 800IO AC Power Supply
Product Overview
- The Schneider Electric AS-P810-000 is a Modicon 800IO AC Power Supply Module designed for the Modicon 984 Series and 800 Series PLC systems. It serves as a primary or auxiliary power supply, delivering reliable power to programmable logic controllers (PLCs) and associated I/O modules. This module is used in industrial automation applications, such as manufacturing, material handling, and textile machines, ensuring stable operation in demanding environments.
Technical Specifications
- The AS-P810-000 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | AS-P810-000 |
| Manufacturer | Schneider Electric |
| Description | Modicon 800IO AC Power Supply, Primary/Auxiliary |
| Series | Modicon 984 Series / 800 Series |
| Function | Provides power to Modicon 984/800 Series PLCs and I/O modules |
| Input Voltage | 115/230 VAC (selectable, 85–132 VAC or 170–265 VAC) |
| Input Current | 1.5 A at 115 VAC / 0.85 A at 230 VAC |
| Frequency | 50/60 Hz (47–63 Hz) |
| Output Power | 70 W maximum |
| Output Ratings | +5 V at 12 A +12 V at 0.1 A -12 V at 0.1 A +4.3 V at 5 A -5 V at 0.3 A |
| Power Consumption | 180 VA (typical line power) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms (IEC 60068-2-27) Vibration: 1 g, 10–500 Hz (IEC 60068-2-6) |
| Dimensions | Approx. 250 mm (H) x 40 mm (W) x 105 mm (D) |
| Weight | Approx. 1.5 kg |
| Mounting | Plugs into Modicon 984/800 Series rack |
| Certifications | CE, UL, CSA C22.2 No. 142 |
