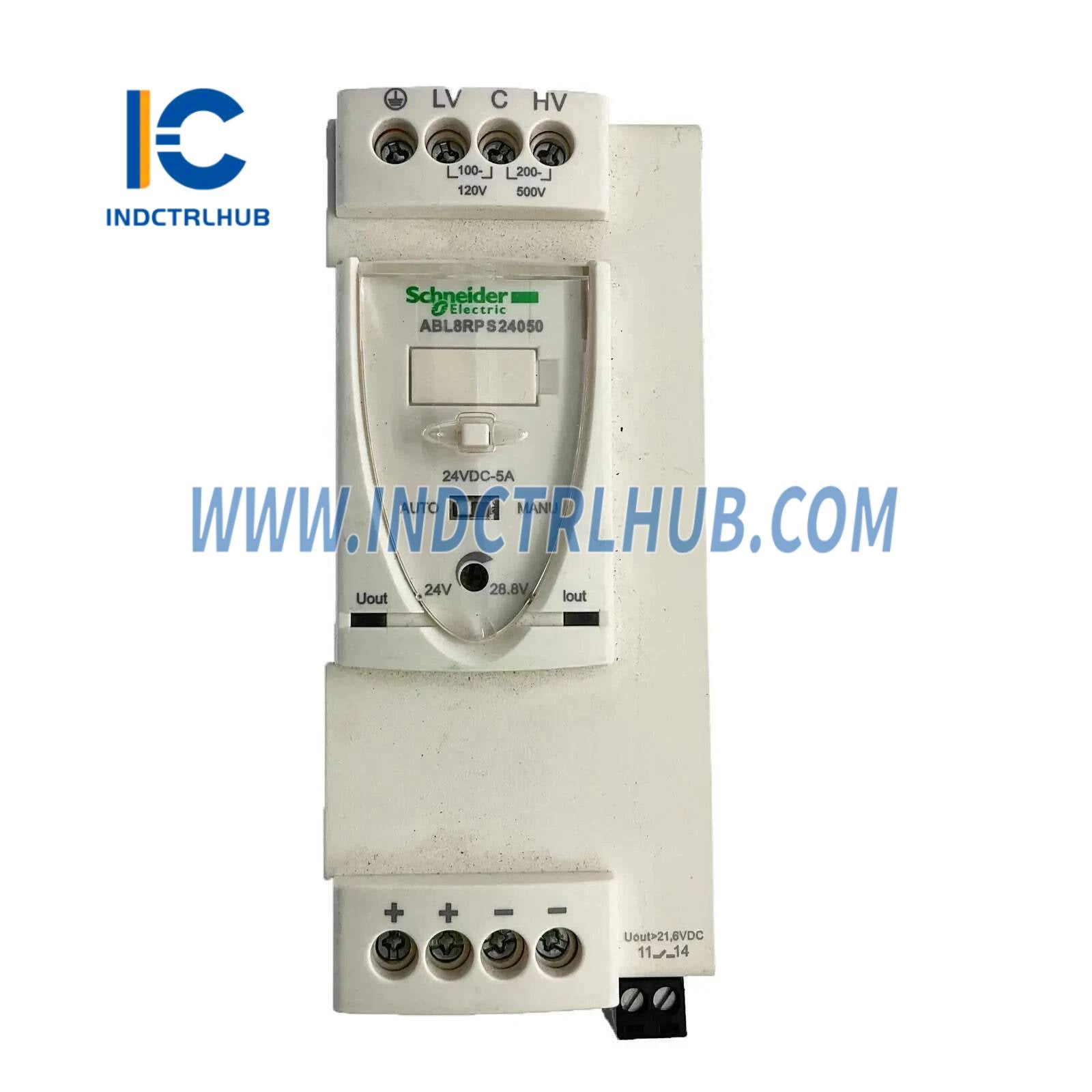

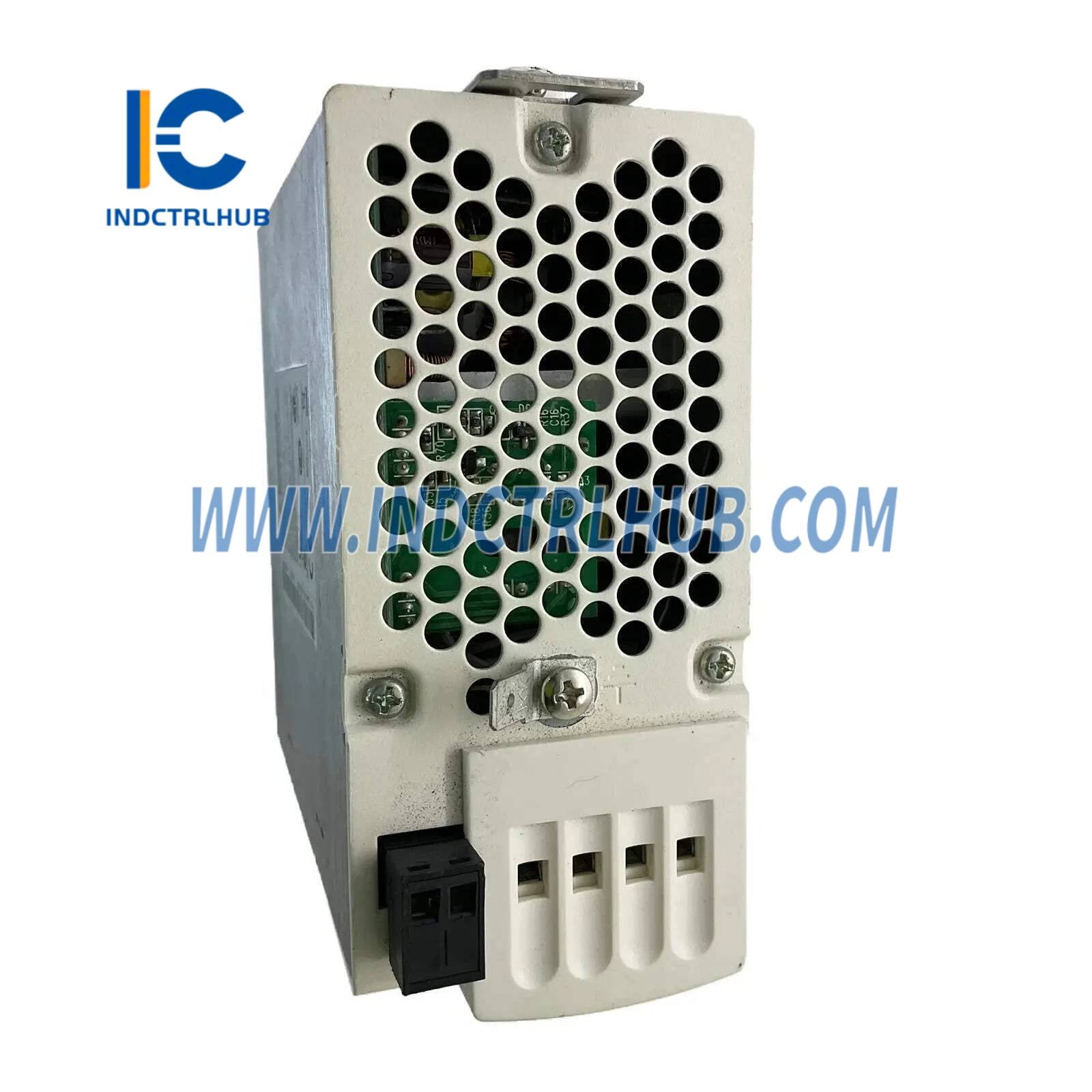

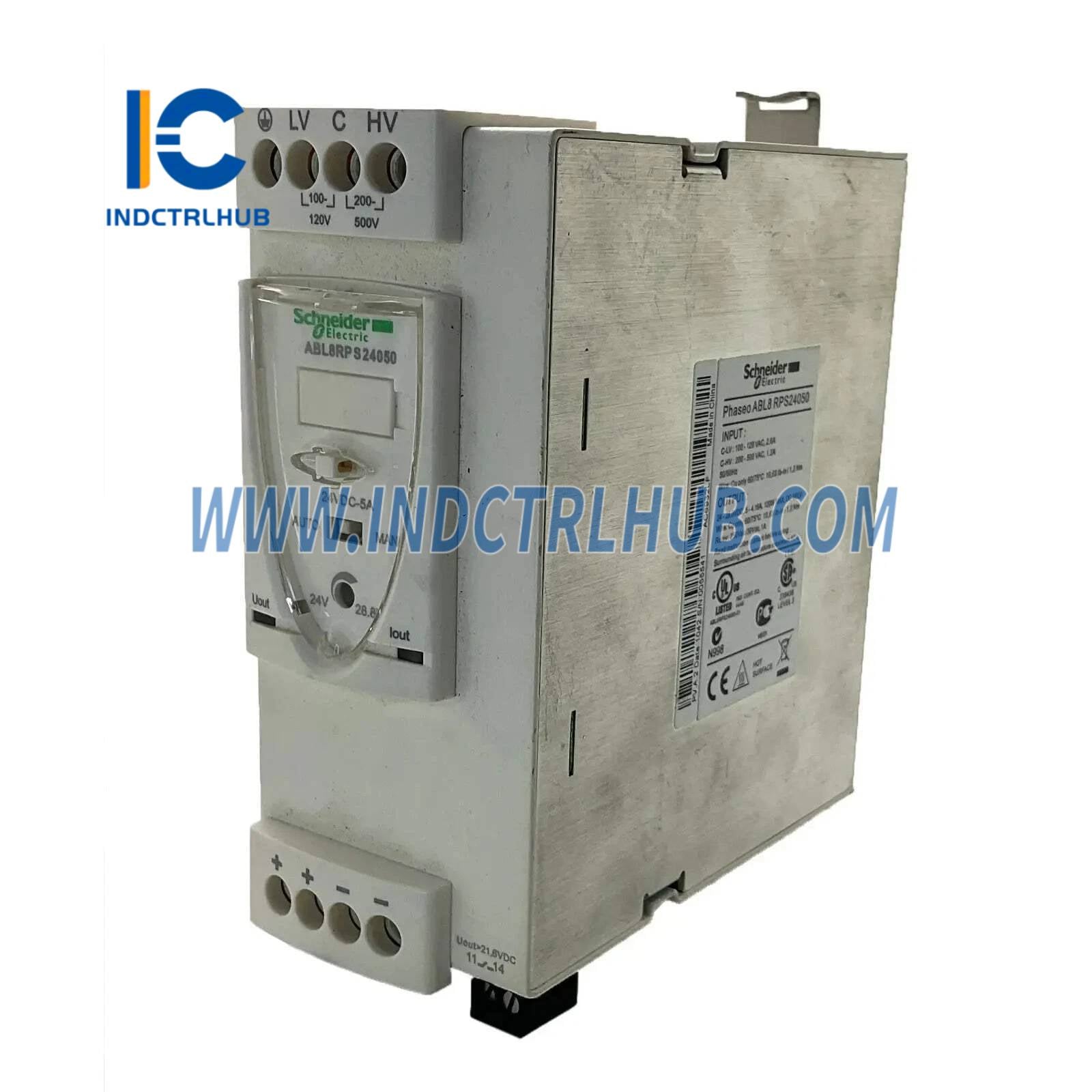

Schneider ABL8RPS24050 Regulated switch power supply
Schneider ABL8RPS24050 Regulated switch power supply
Manufacturer: Schneider
Product No.: ABL8RPS24050
Condition:1000 in stock
Product Type: Regulated switch power supply
Product Origin: USA
Payment: T/T, Western Union
Weight: 700g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ABL8RPS24050 |
|
Description |
Regulated switch power supply, Modicon power supply, 1 or 2 phase, 100_500V, 24V DC, 5A |
|
Product Type |
Power Supply (Regulated Switch Mode) |
|
Range of Product |
Modicon Power Supply |
_
_
Technical Specifications
|
Category |
Specification |
|---|---|
|

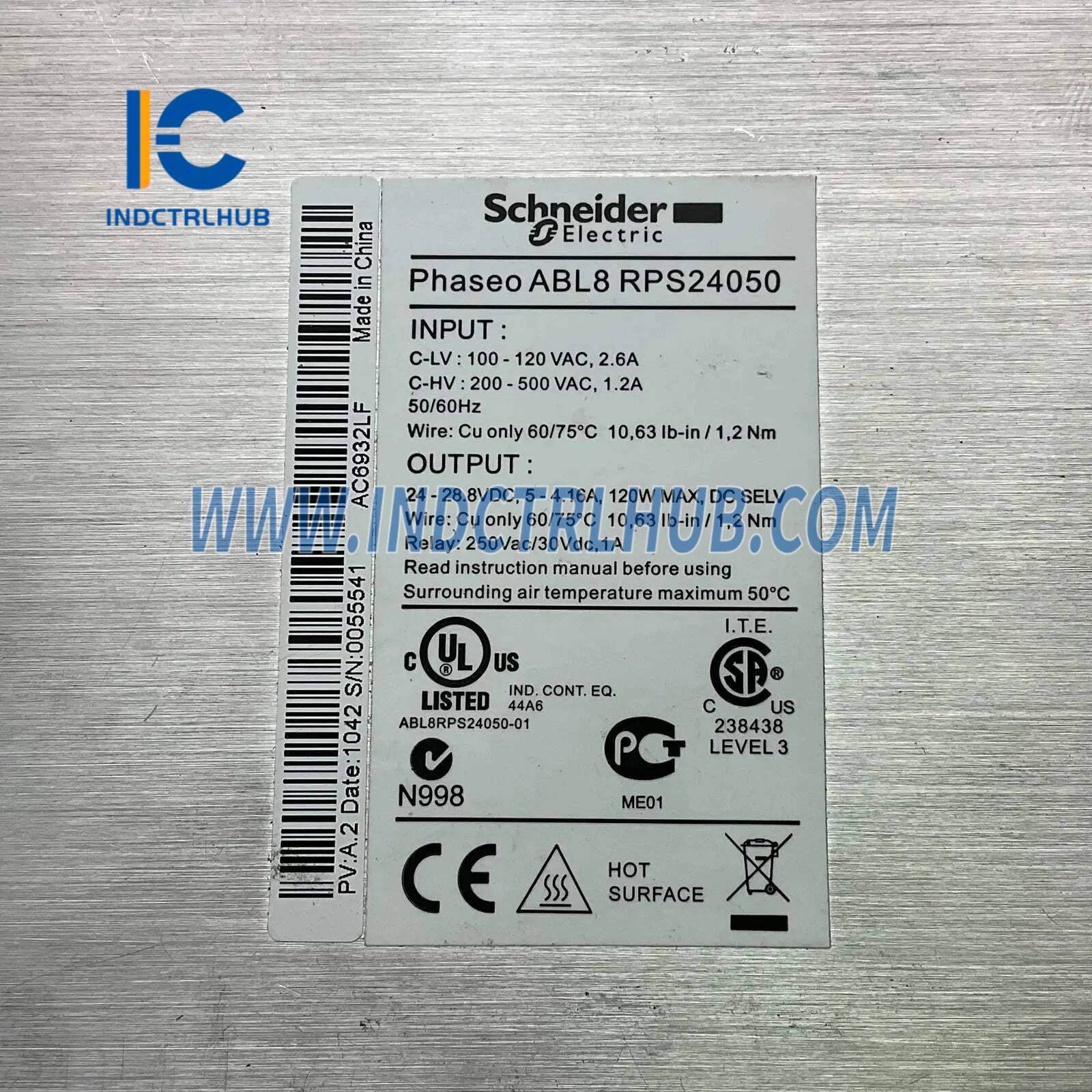

Nominal Input Voltage |
100_120 V AC (single phase: N-L1), 200_500 V AC (phase-to-phase: L1-L2) |
|
Input Voltage Limits |
85_132 V AC, 170_550 V AC |
|
Rated Output Voltage |
24 V DC |
|
Output Current |
5 A |
|
Rated Power |
120 W |
|
Temporary Current Boost |
1.5 _ In (for 4 seconds) |
|
Efficiency |
87% |
|
Power Dissipation |
15.5 W |
|
Output Voltage Adjustment |
24_28.8 V adjustable |
|
Inrush Current |
30 A |
|
Power Factor |
0.59 at 120 V AC, 0.51 at 240 V AC |
|
Anti-harmonic Filter |
Low frequency harmonic currents |
|
Output Coupling |
Parallel, Series |
|

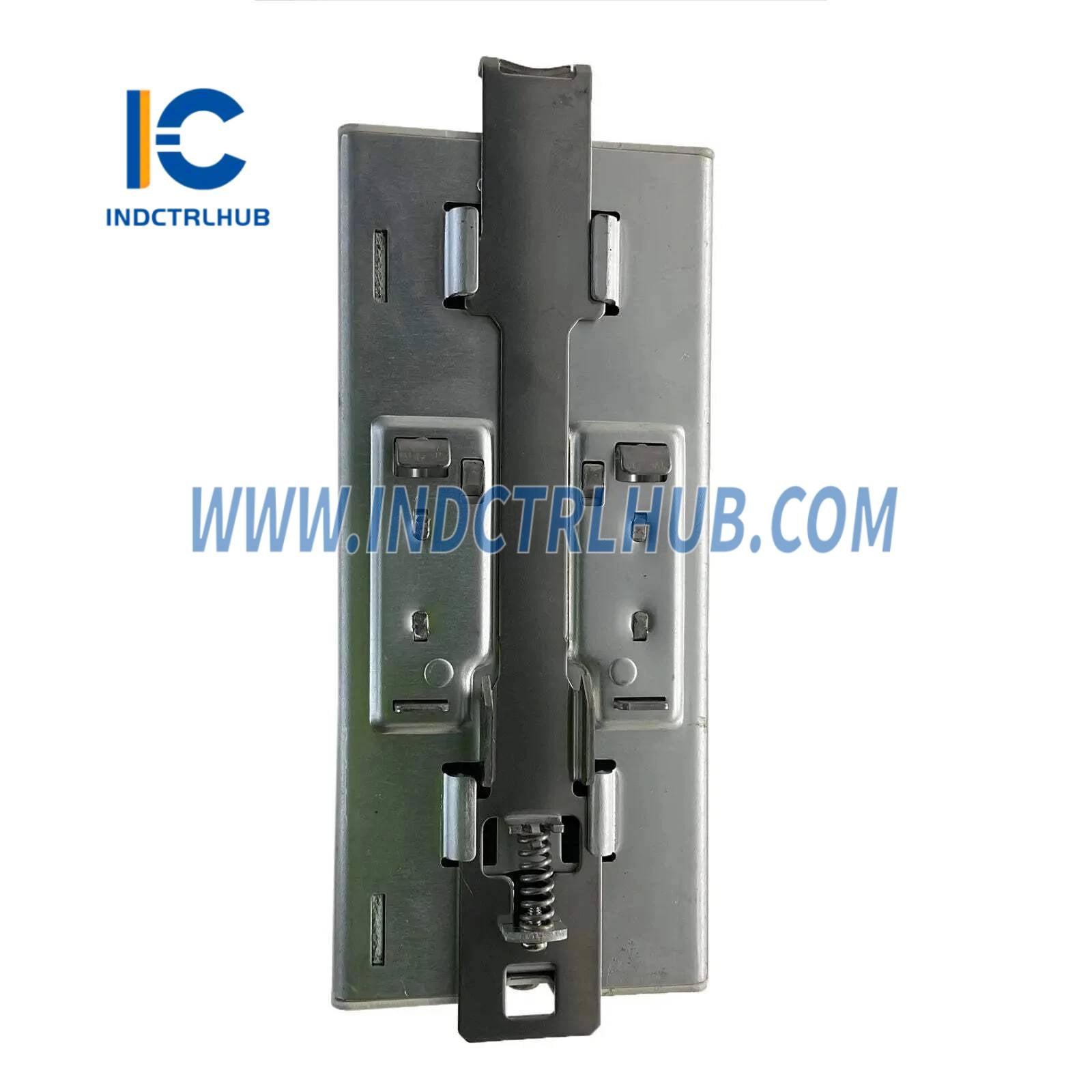

Mounting Support |
35 _ 7.5 mm or 35 _ 15 mm symmetrical DIN rail |
|
Operating Position |
Vertical |
|
Marking |
CE |
_
_
Protection Functions
|
Type |
Details |
|---|---|
|
Overload |
Manual or automatic reset |
|
Overvoltage |
30_32 V, manual reset |
|
Short-circuit |
Manual or automatic reset |
|
Undervoltage |
Trips if U < 21.6 V |
|
Thermal |
Automatic reset |
_
_

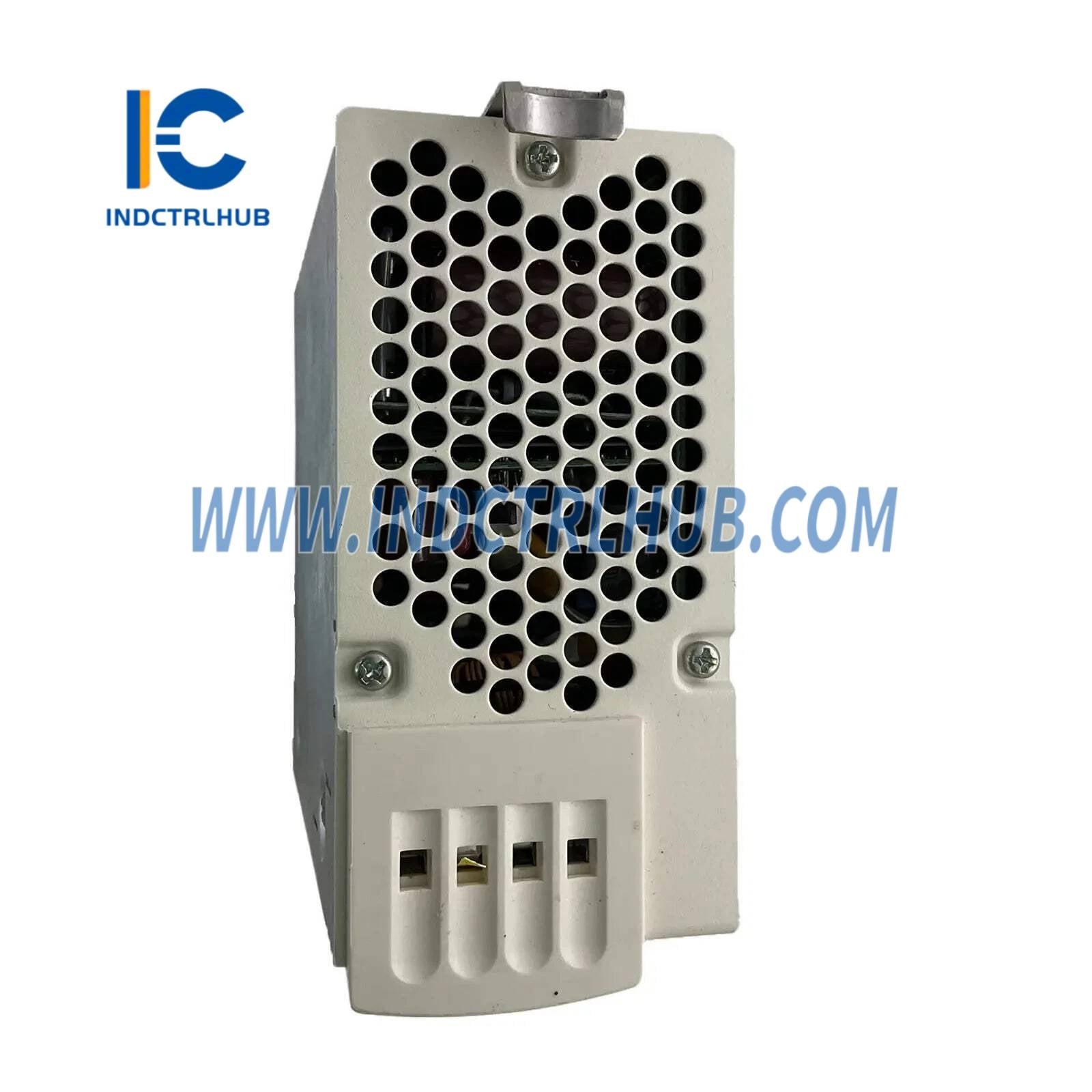

Connection Terminals
|
Function |
Terminal Type & Size |
|---|---|
|
Input Connection |
Screw terminal, 3 _ 0.5_4 mm² (AWG 22_12) |
|
Input Ground |
Screw terminal, 1 _ 0.5_4 mm² (AWG 22_12) |
|
Output Connection |
Screw terminal, 4 _ 0.5_4 mm² (AWG 22_12) |
|
Output Ground |
Screw terminal, 1 _ 0.5_4 mm² (AWG 22_12) |
|
Diagnostic Relay |
Removable screw terminal, 2 _ 2.5 mm² |
_
_
Indicators
|
LEDs |
Function |
|---|---|
|
1 LED (Green/Red) |
Output voltage |
|
1 LED (Green/Red/Orange) |
Output current |
_
_
Physical Specifications
|
Dimension |
Value |
|---|---|
|
Width |
56 mm |
|
Height |
143 mm |
|
Depth |
125 mm |
|
Net Weight |
0.7 kg |
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Altitude |
Up to 2000 m |
|
Ambient Operating Temperature |
_25 to +50 °C (no derating), +50 to +60 °C (with derating) |
|
IP Protection |
IP20 (IEC 60529) |
_
_
Certifications and Standards
|
Type |
Details |
|---|---|
|
Certifications |
CCSAUS, EAC, KC, RCM, UL |
|
Standards _ EMC |
IEC 61000-6-1, IEC 61000-6-3, EN 55024, IEC 61000-6-4, EN/IEC 61204-3 |
|
Standards _ Safety |
IEC 60950-1, EN/IEC 61204-3, EN/IEC 62368-1 |
|
SELV Compliance |
IEC 60950-1, IEC 60204-1, IEC 60364-4-41 |
|
Dielectric Strength |
3500 V (input__round), 4000 V (input__utput), 500 V (output__round) |
