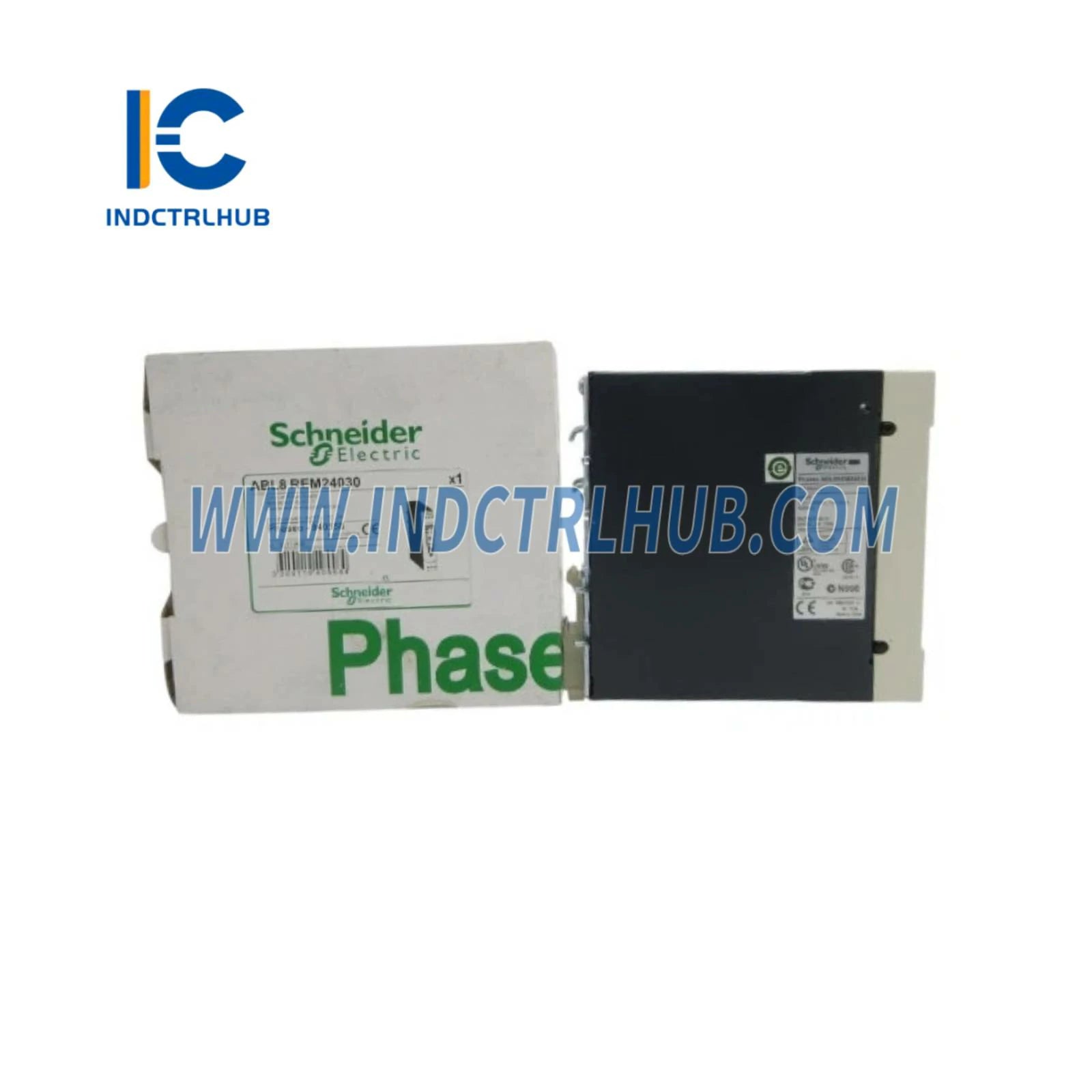

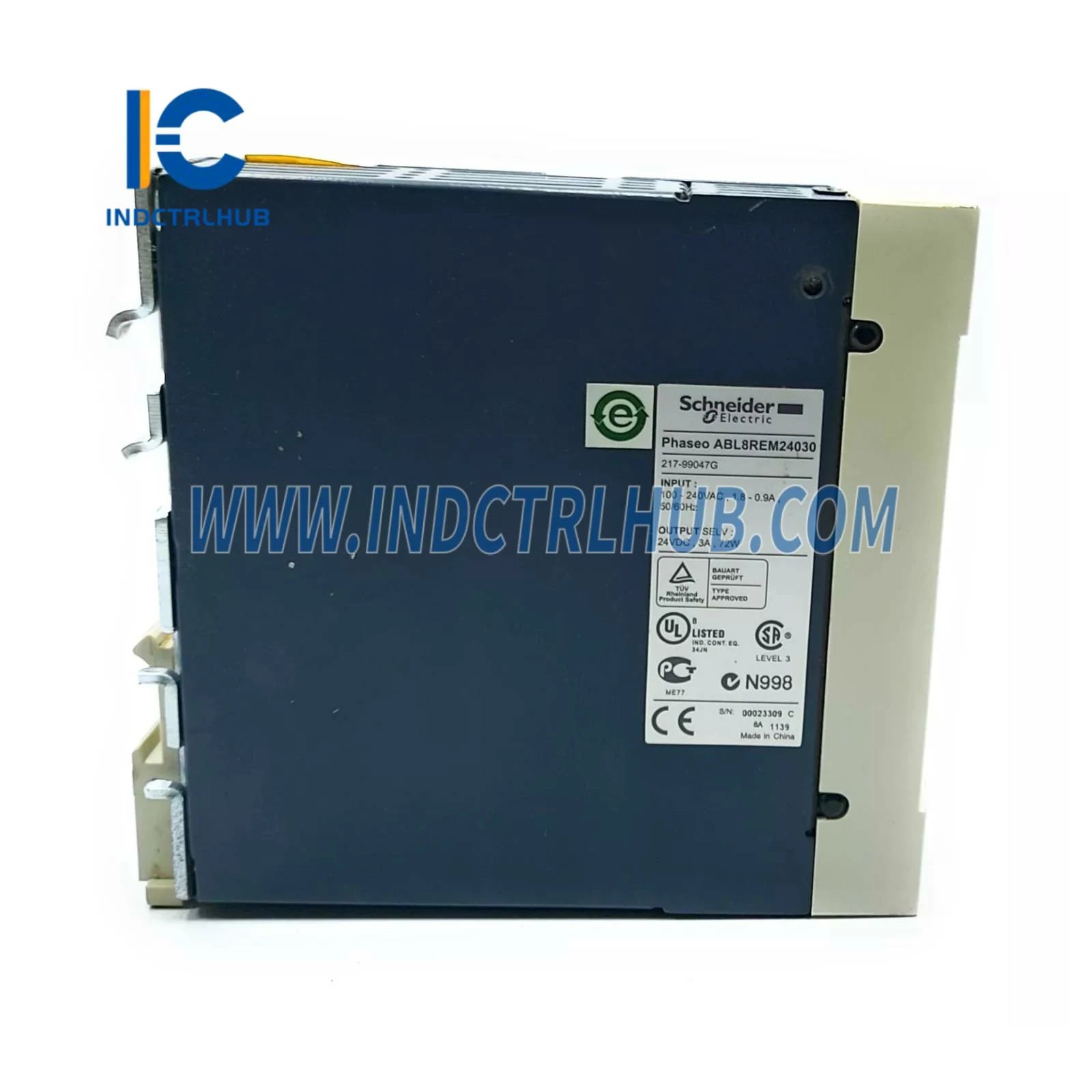

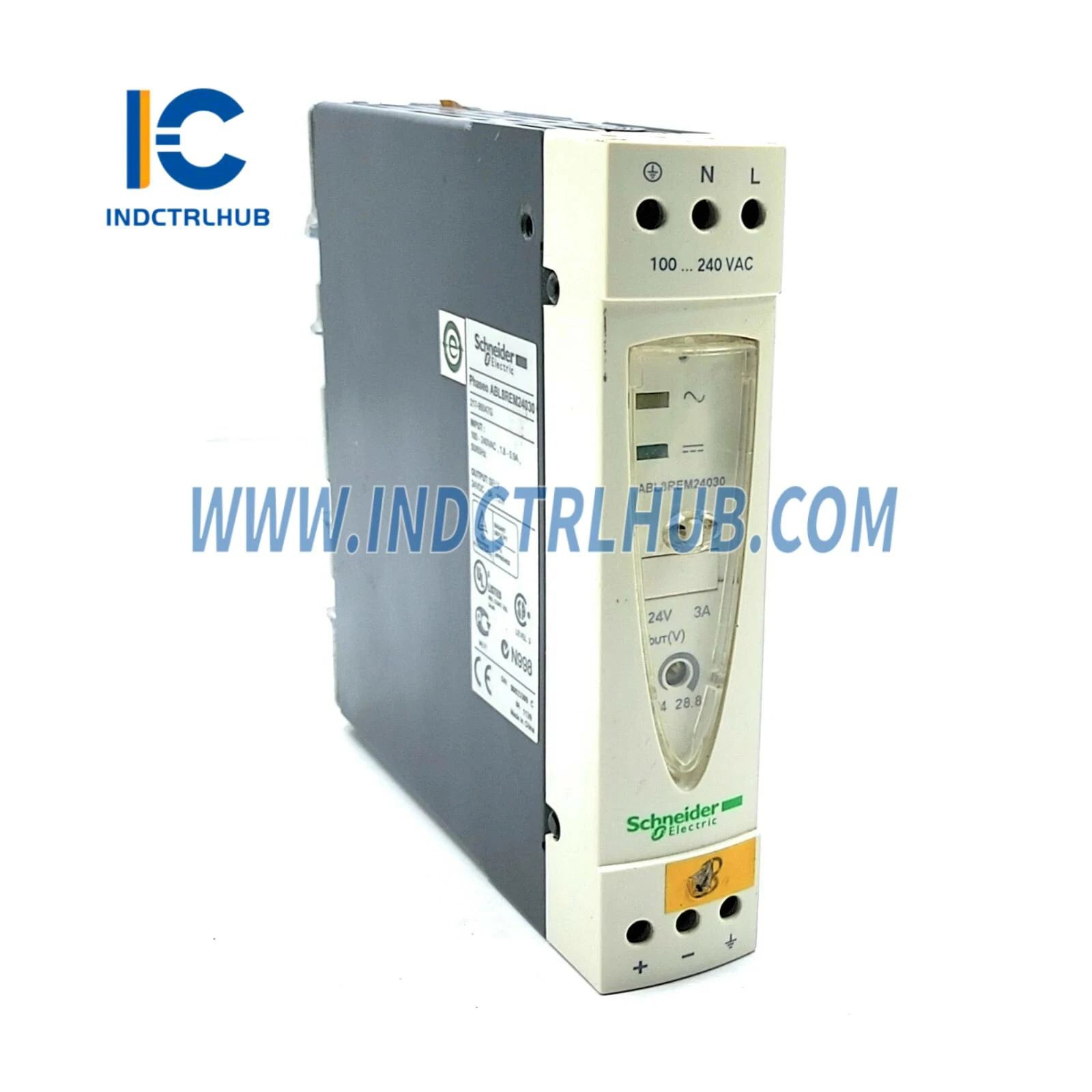

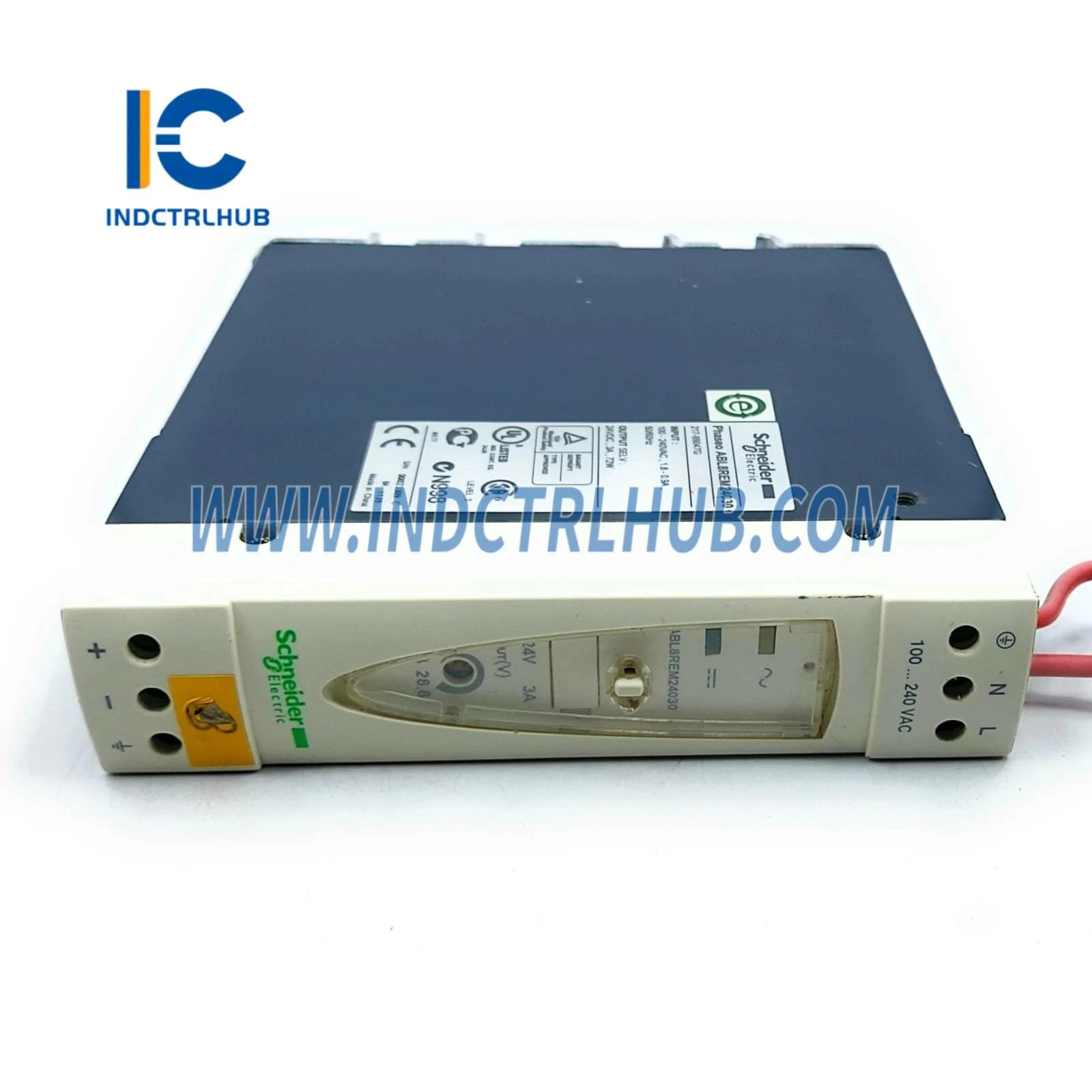

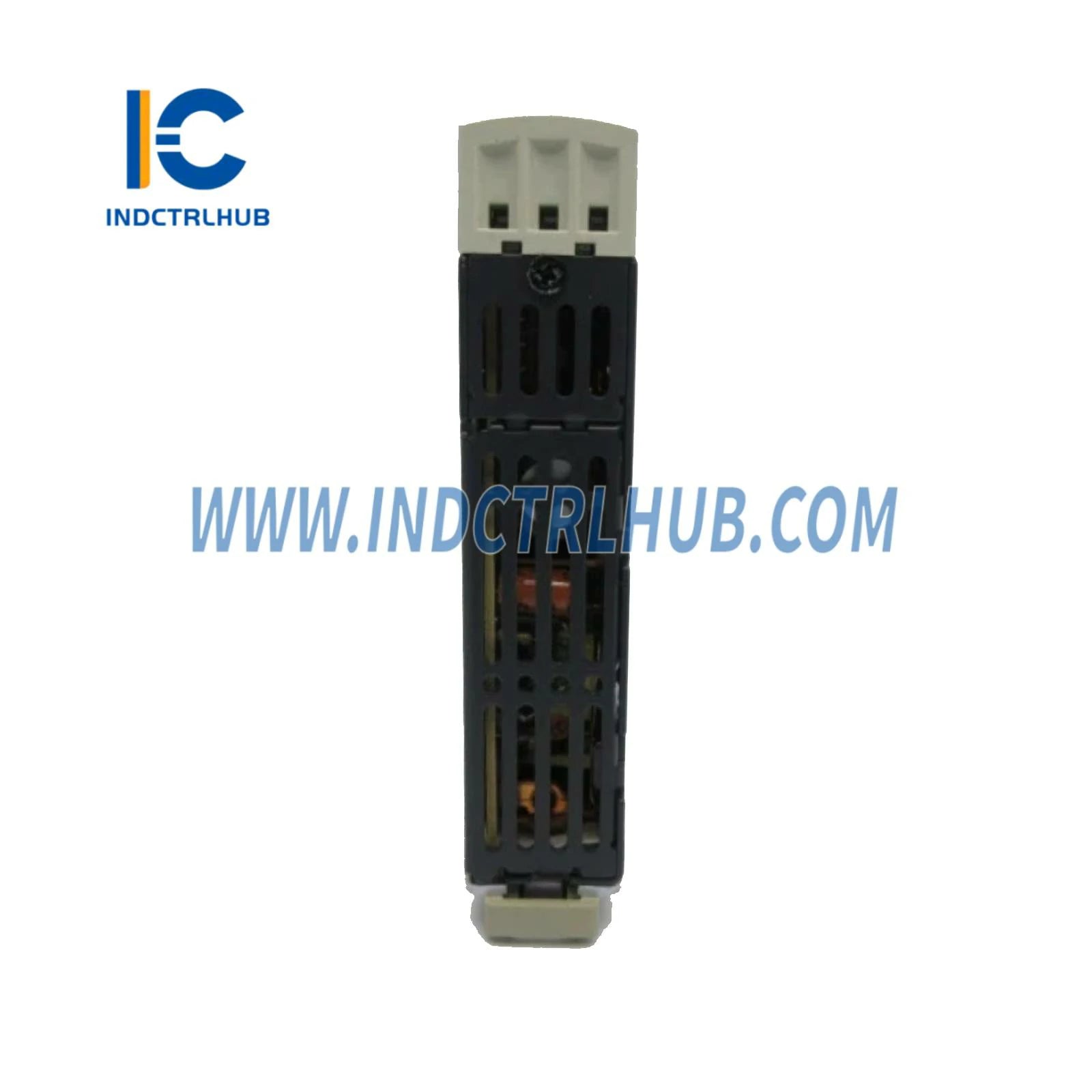

Schneider ABL8REM24030 Modicon Power Supply
Schneider ABL8REM24030 Modicon Power Supply
Manufacturer: Schneider
Product No.: ABL8REM24030
Condition:1000 in stock
Product Type: Modicon Power Supply
Product Origin: USA
Payment: T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ABL8REM24030 |
|
Description |
Regulated switch power supply, Modicon power supply, 1 or 2 phase, 100_240V AC, 24V, 3A |
|
Range of Product |
Modicon Power Supply |
|
Product Type |
Power supply |
|
Power Supply Type |
Regulated switch mode |
_
_
Electrical Specifications
|
Parameter |
Value |
|---|---|
|
Nominal Input Voltage |
100_240 V AC phase-to-phase (L1-L2) or single phase (N-L1); 110_220 V DC |
|
Input Voltage Limits |
85_264 V AC; 100_250 V DC |
|
Rated Power |
72 W |
|
Output Voltage |
24 V DC |
|
Output Current |
3 A |
|
Power Dissipation |
12.7 W |
|
Inrush Current |
30 A |
|
Power Factor |
0.65 at 24 V DC |
|
Efficiency |
85% |
|
Output Voltage Adjustment |
100_120% adjustable |
|
Current Consumption |
0.83 A (240 V AC), 1.46 A (100 V AC) |
_
_
Protections
|
Protection Type |
Description |
|---|---|
|
Overload |
1.1 _ In, protected |
|
Overvoltage |
Trip if > 1.5 _ Un |
|
Undervoltage |
Trip if < 0.8 _ Un |
|
Short Circuit |
Auto reset |
_
_
Connections & Indicators
|
Feature |
Description |
|---|---|
|
Input Terminals |
2 _ 0.14_2.5 mm² (AWG 26_14) |
|
Input Ground Terminal |
1 _ 0.14_2.5 mm² (AWG 26_14) |
|
Output Terminals |
2 _ 0.14_2.5 mm² (AWG 26_14) |
|
Output Ground Terminal |
1 _ 0.14_2.5 mm² (AWG 26_14) |
|
Status LEDs |

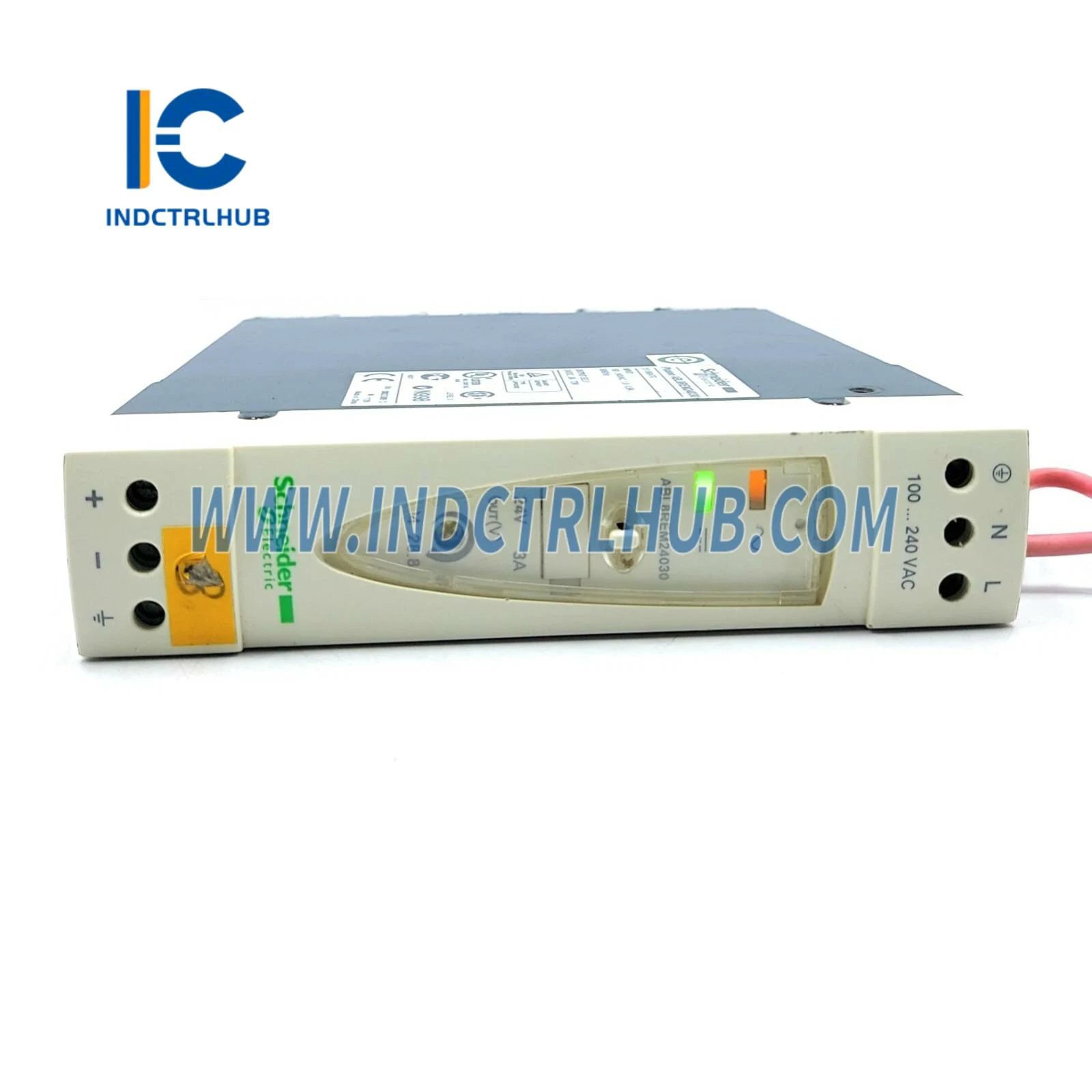

1 green (output), 1 orange (input) |
_
_
Mechanical Specifications
|
Parameter |
Value |
|---|---|
|
Depth |
120 mm |
|
Height |
120 mm |
|
Width |
27 mm |
|
Net Weight |
0.52 kg |
|
Mounting |

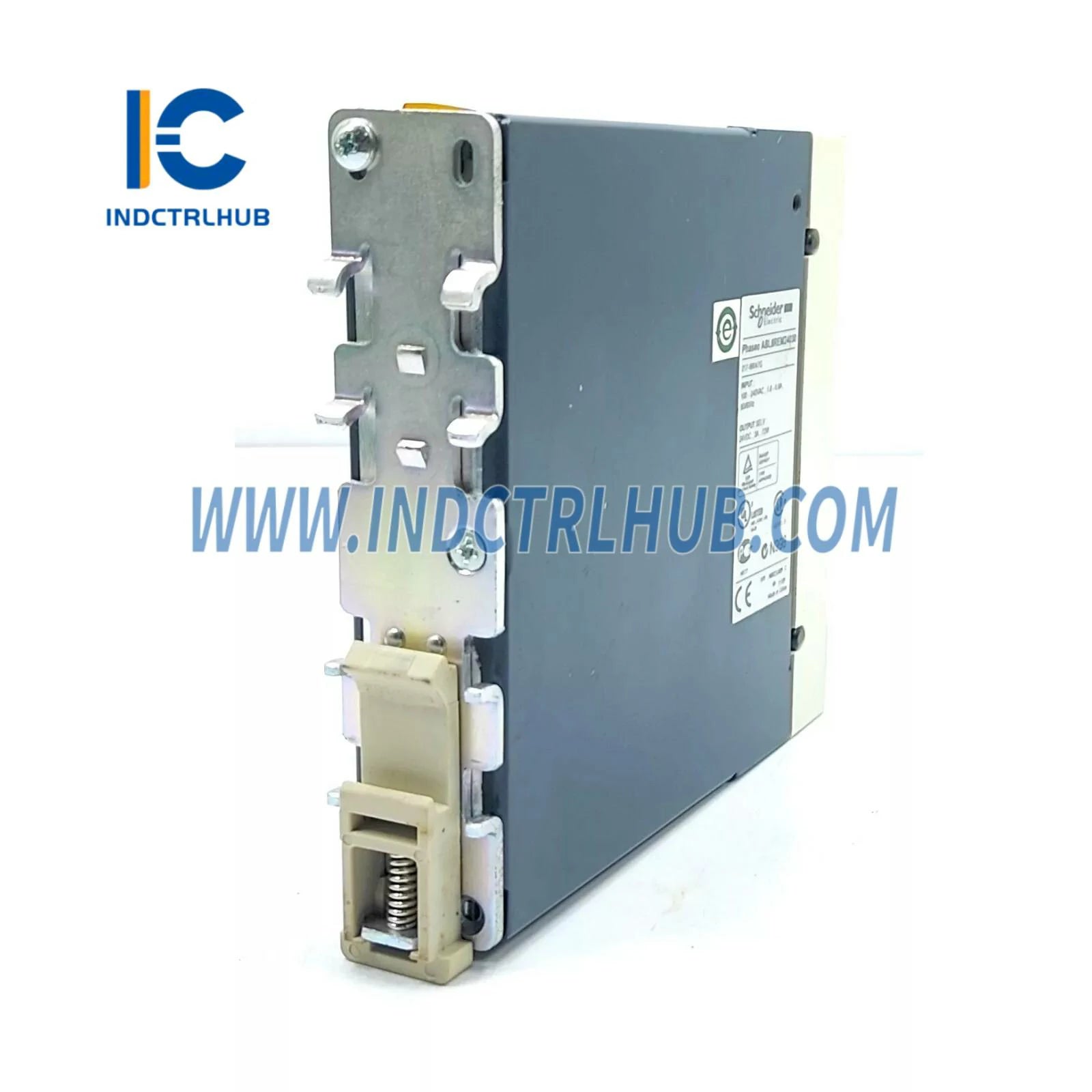

DIN rail (35_15, 35_7.5, 75_7.5 mm) |
|
Operating Position |
Vertical |
_
_
Output Coupling
_
-
Parallel
-
Series
_
_
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Altitude |
Up to 2000 m |
|
Operating Temperature |
0_50°C (no derating), 50_60°C (with derating) |
|
IP Degree of Protection |
IP20 (IEC 60529) |
|
Dielectric Strength |
3000 V (input__round), 3000 V (input__utput), 500 V (output__round/outputs) |
_
_
Standards & Certifications
|
Type |
Standards/Certifications |
|---|---|
|
Standards |
UL 508, CSA C22.2 No 60950-1, EN/IEC 62368-1, EN/IEC 60950 |
|
Certifications |
CSA 22-2 No 950, EAC, RCM, KC, UL |
|
EMC Compliance |
EN 50081-1, EN 50082-2, EN 55024 |
_
_
Packaging Details
|
Parameter |
Value |
|---|---|
|
Unit Type |
PCE |
|
Units per Package |
1 |
|
Package Height |
4.1 cm |
|
Package Width |
13.8 cm |
|
Package Length |
14.7 cm |
|
Package Weight |
280 g |
