Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ABE7R16S210 |
|
Description |

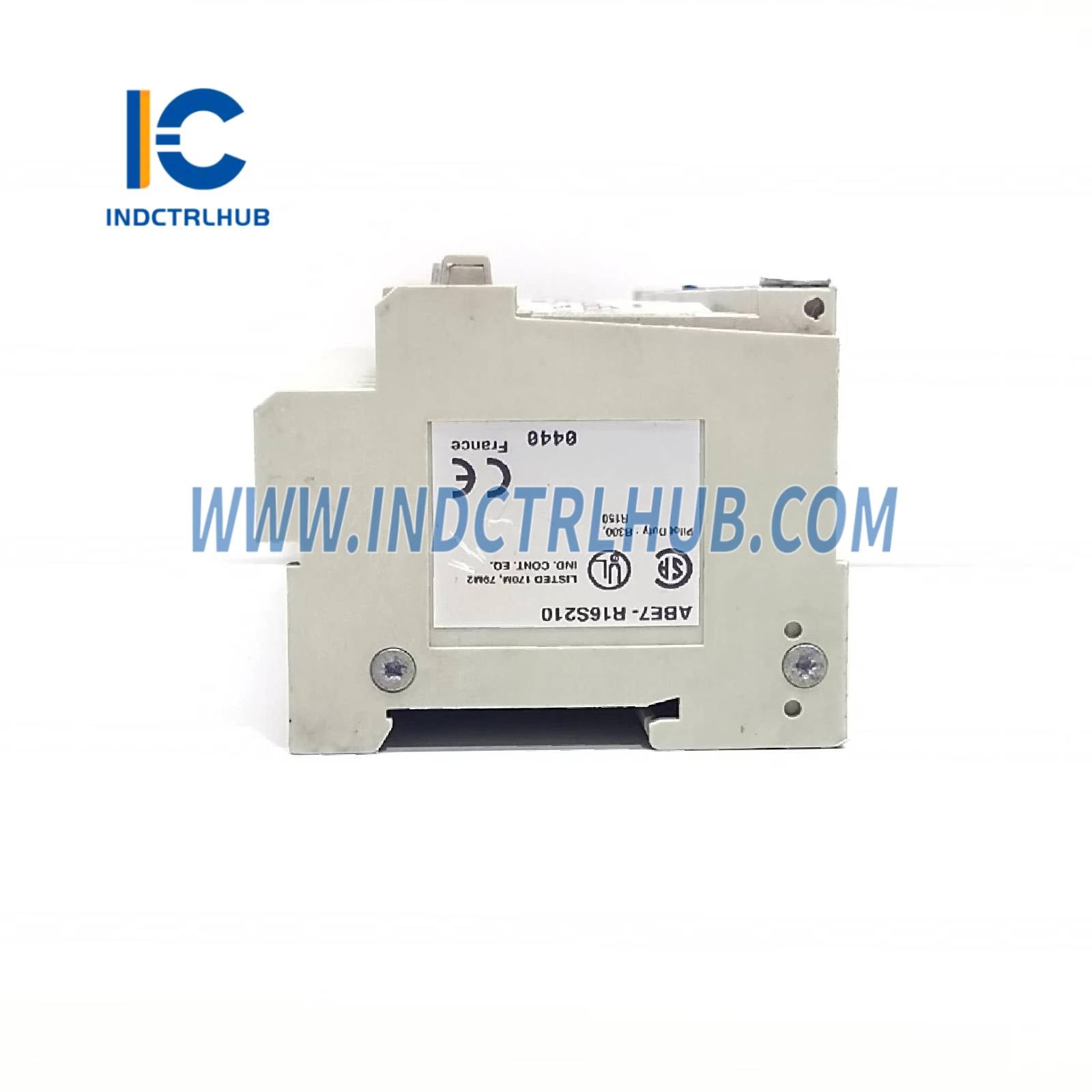

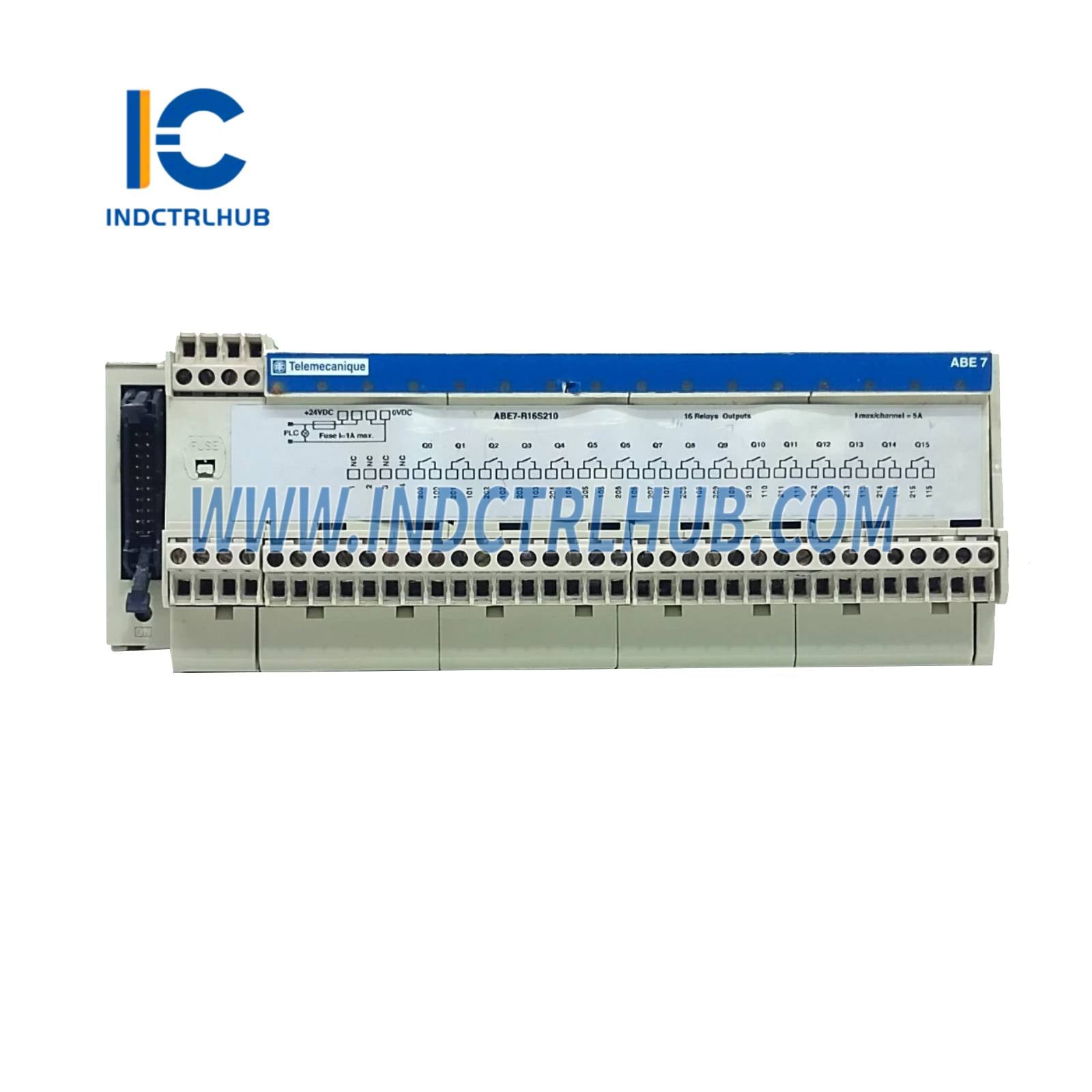

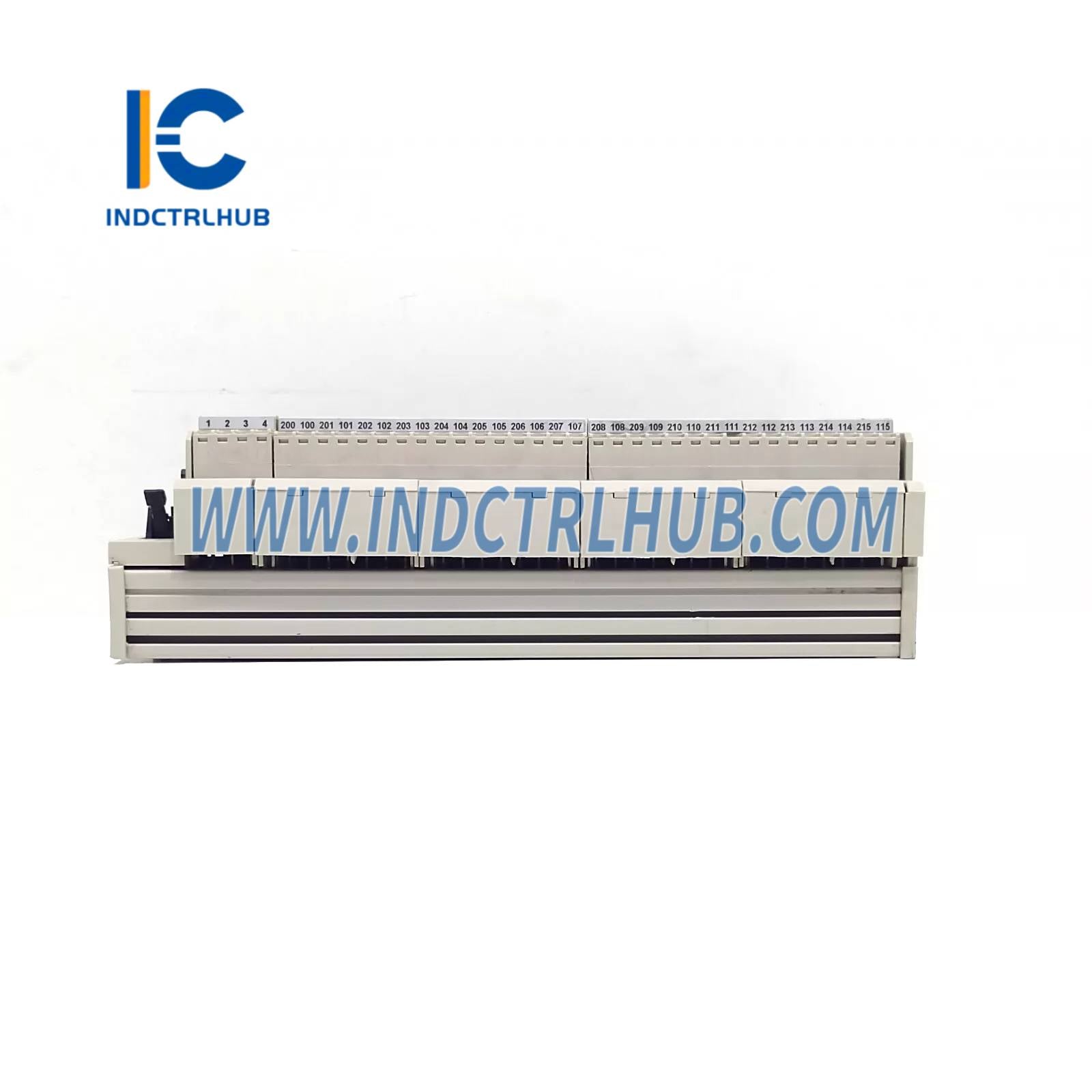

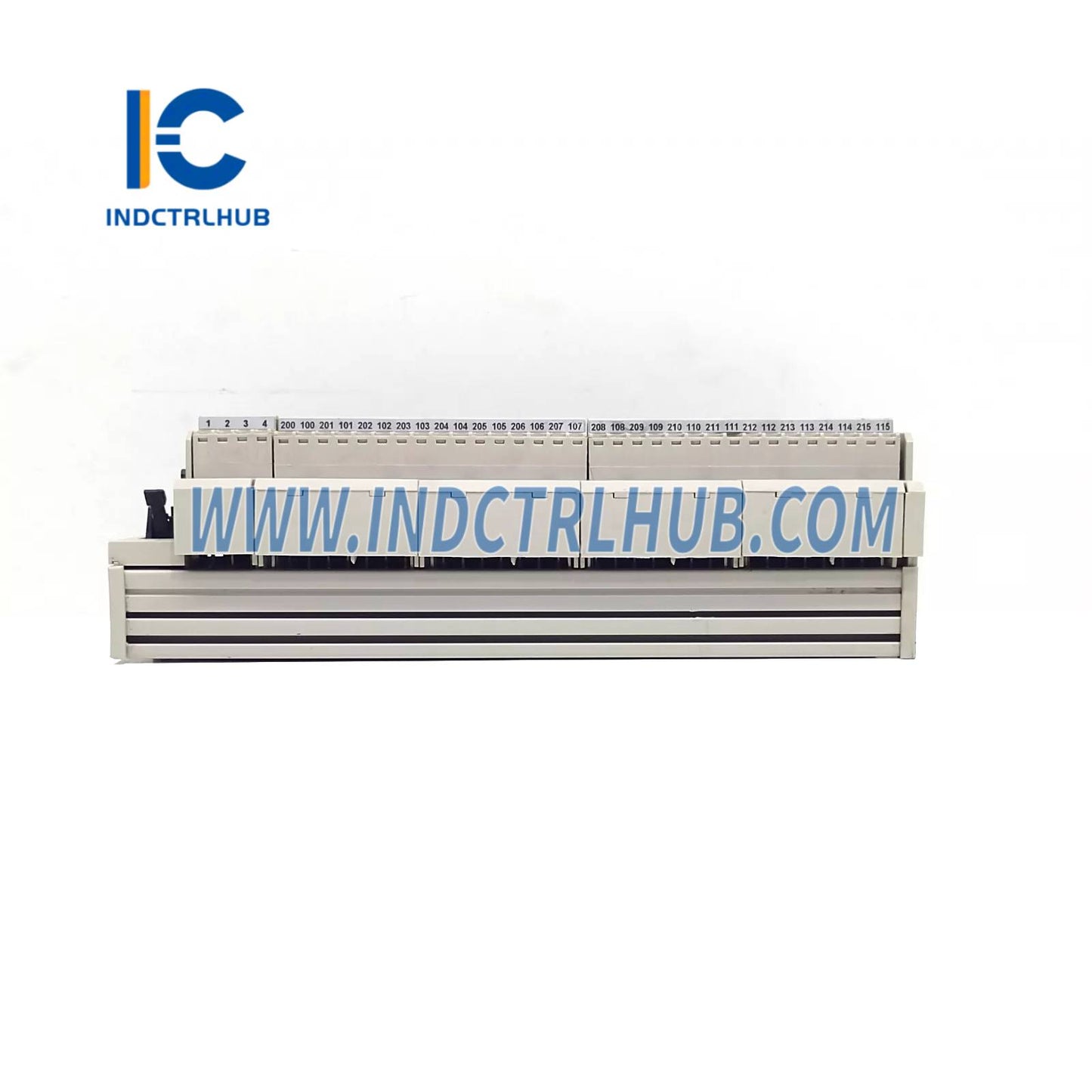

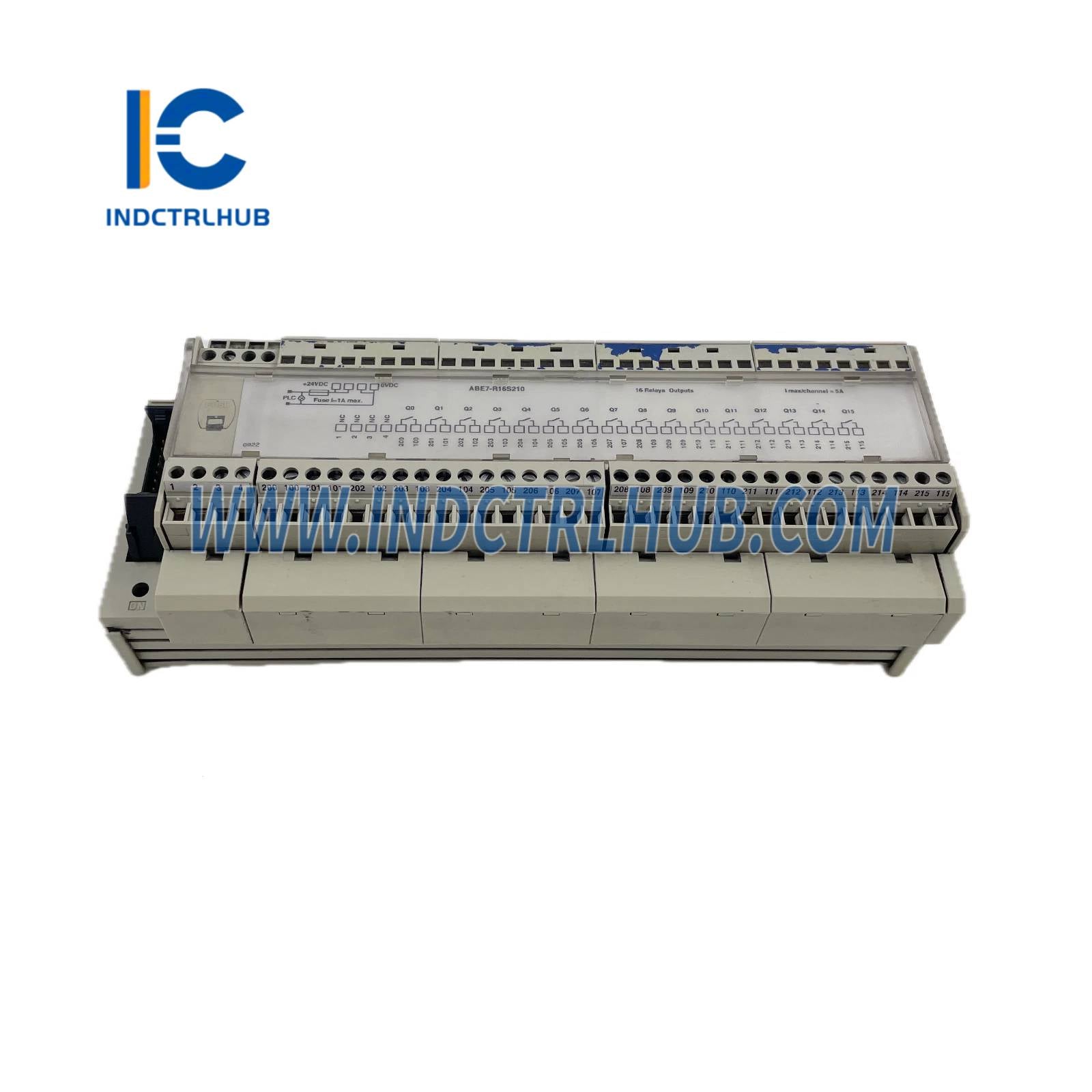

Sub-base - soldered electromechanical relays ABE7 - 16 channels - relay 10 mm |
|
Range of Product |
Modicon ABE7 |
|
Product Type |
Electromechanical output relay sub-base |
|
Rated Supply Voltage |
24 V DC (PLC end) |
|
Number of Channels |
16 |
|
Number of Terminals per Channel |
2 |
|
Terminal Block Type |
Removable |
|
Polarity Distribution |
Volt-free |
|
Fixing Mode |
By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
|
Maximum Current per Output Common |
10 A |
|
Current per Channel |
5 A (preactuator end) |
|
Minimum Switching Current |
10 mA >= 5 V |
|
Drop-out Voltage |
2.4 V (20 °C, PLC end) |
|
Switching Frequency |
≤ 0.5 Hz (no load) ≤ 10 Hz (at Ie) |
|
Threshold Tripping Voltage |
19.7 V (40 °C) |
|
Drop-out Current |
1 mA (20 °C) |
|
Maximum Power Dissipation per Channel |
0.36 W (PLC end) |
|
Contact Type and Composition |
1 NO (preactuator end) |
|
Maximum Switching Voltage |
250 V AC (50/60 Hz) IEC 60947-5-1 30 V DC IEC 60947-5-1 |
|
Electrical Durability |
500,000 cycles (600 mA 24 V DC-13 10 ms preactuator end) 500,000 cycles (1500 mA 230 V AC-12 preactuator end) |
|
Electrical Reliability |
1e-008 |
|
Operating Time |
≤ 10 ms (coil energisation and NO closing) ≤ 5 ms (coil de-energisation and NO opening) |
|
Contact Bounce Time |
≤ 5 ms (1 NO) |
|
Operating Rate in Hz |
10 Hz (no load) 0.5 Hz (at Ie) |
|
Mechanical Durability |
20,000,000 cycles |
|
Rated Impulse Withstand Voltage |
2.5 kV (IEC 60947-1) |
|
Rated Insulation Voltage |
2000 V |
|
Installation Category |
II (IEC 60664-1) |
|
Tightening Torque |
5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
|
Width |
8.1 in (206 mm) |
|
Net Weight |
0.405 kg (0.893 lb) |
Environmental Specifications
|
Field |
Details |
|---|---|
|
Max Immunity to Microbreaks |
5 ms |
|
Dielectric Strength |
2000 V (IEC 60947-1) |
|

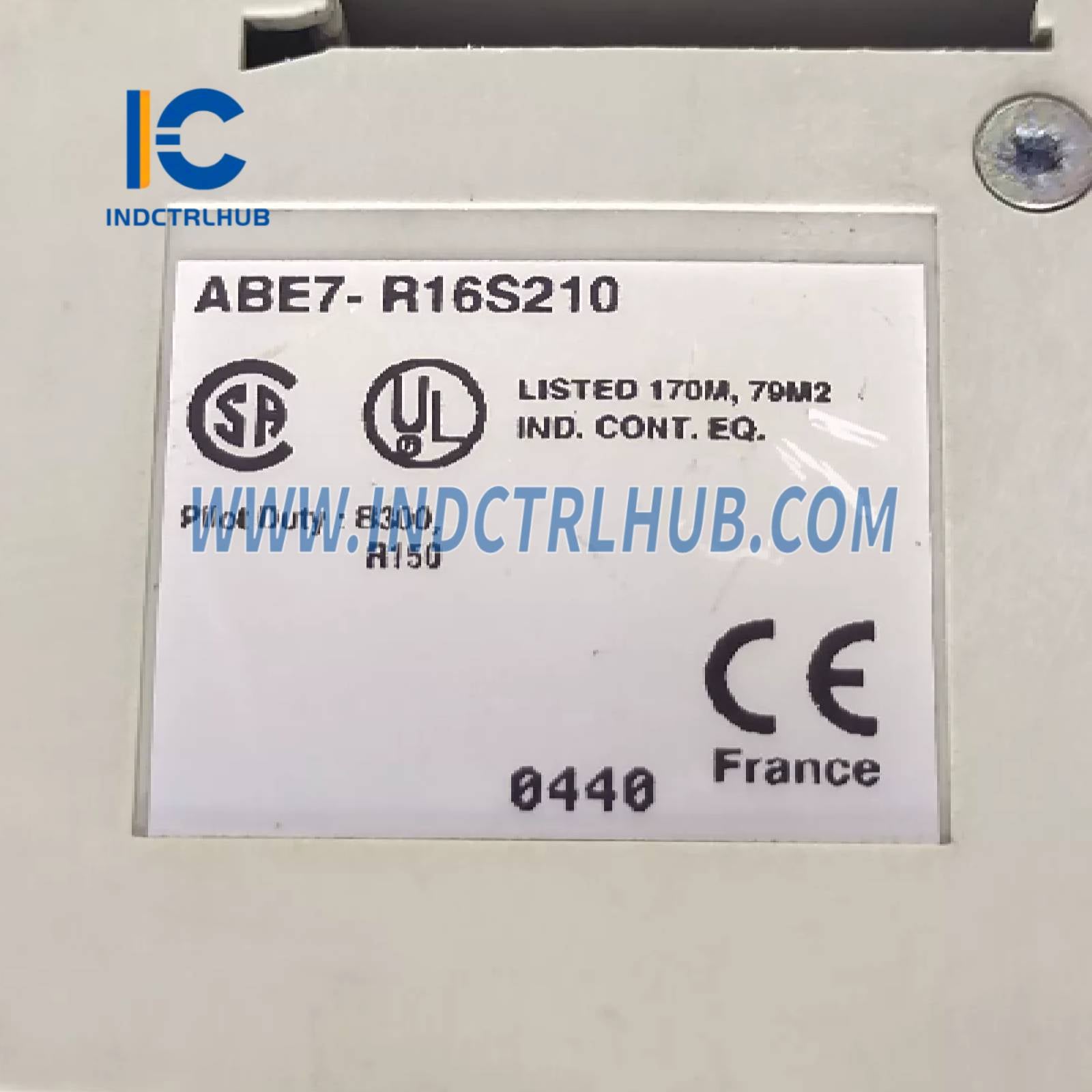

Product Certifications |
GL, CSA, DNV, UL, EAC |
|
IP Degree of Protection |
IP2X (IEC 60529) |
|
Protective Treatment |
TC |
|
Resistance to Incandescent Wire |
750 °C (1382 °F) (30 s) (IEC 60695-2-11) |
|
Shock Resistance |
15 gn (11 ms) (IEC 60068-2-27) |
|
Resistance to Radiated Fields |
9.1 V/m (10 V/m) (26000000…1000000000 Hz) (IEC 61000-4-3, level 3) |
|
Resistance to Fast Transients |
2 kV (level 3) (IEC 61000-4-4) |
|
Ambient Temperature (Operation) |
-5 to 60 °C (23 to 140 °F) (IEC 61131-2) |
|
Ambient Temperature (Storage) |
-40 to 80 °C (-40 to 176 °F) (IEC 61131-2) |
|
Pollution Degree |
2 (IEC 60664-1) |
Packaging Information
|
Unit |
Type |
Qty |
Dimensions (L × W × H) |
Weight |
|---|---|---|---|---|
|
Package 1 |
PCE |
1 |
8.31 × 3.23 × 2.76 in |
581.000 g (20.494 oz) |
|
Package 2 (Bulk) |
S03 |
15 |
15.75 × 11.81 × 11.81 in |
9.103 kg (20.069 lb) |
Commercial Information
|
Field |
Details |
|---|---|
|
Category |
US10CP222375 |
|
Discount Schedule |
0CP2 |
|
GTIN |
3389110545289 |
|
Returnability |
No |
|
Country of Origin |
France (FR) |
