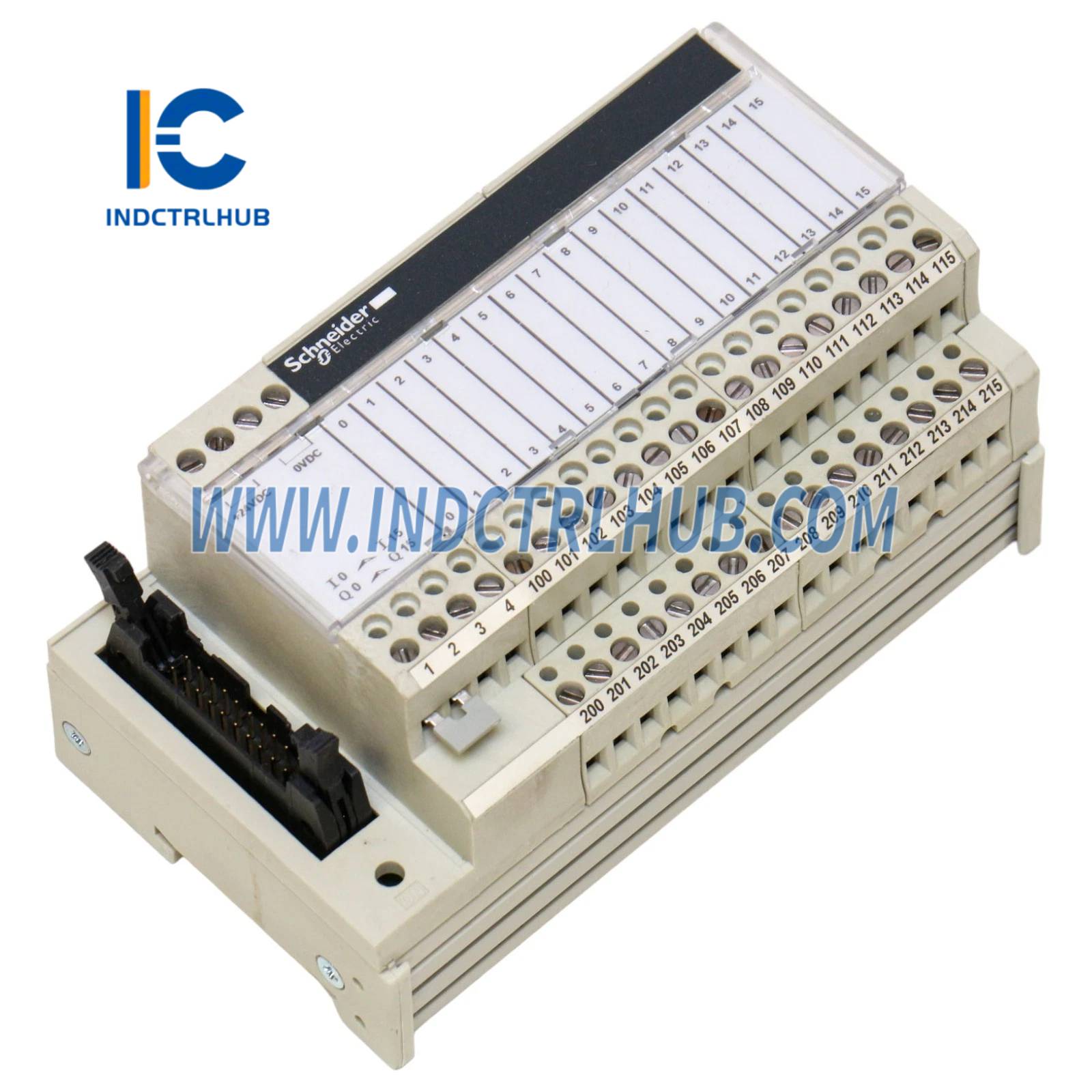

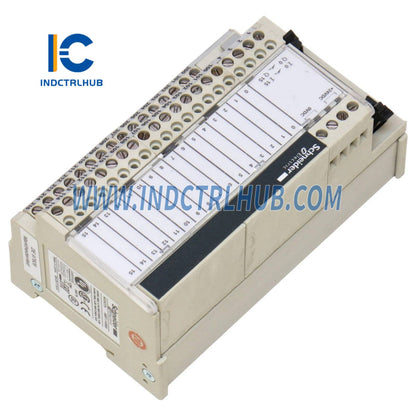

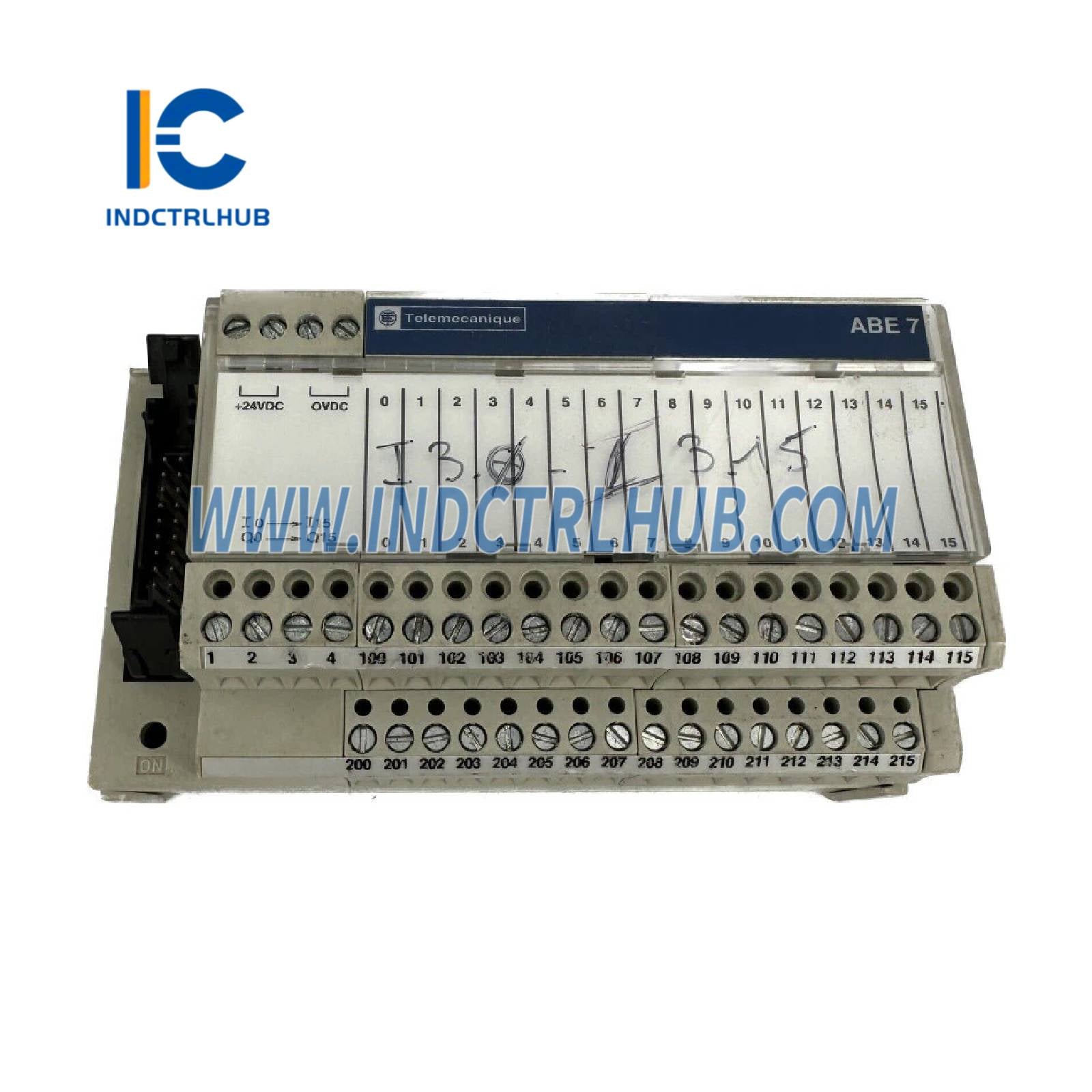

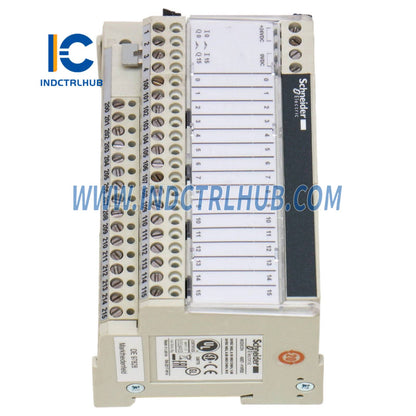

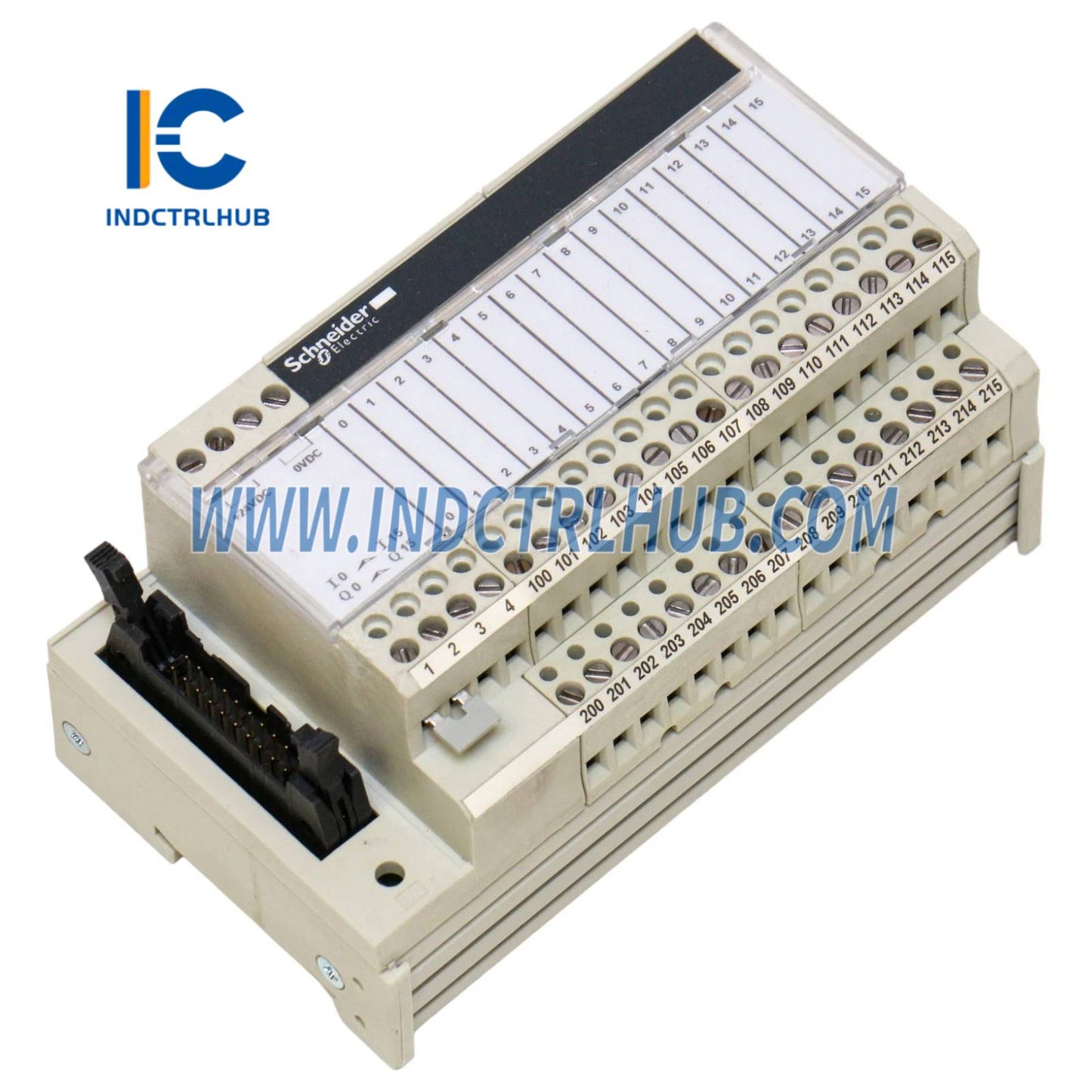

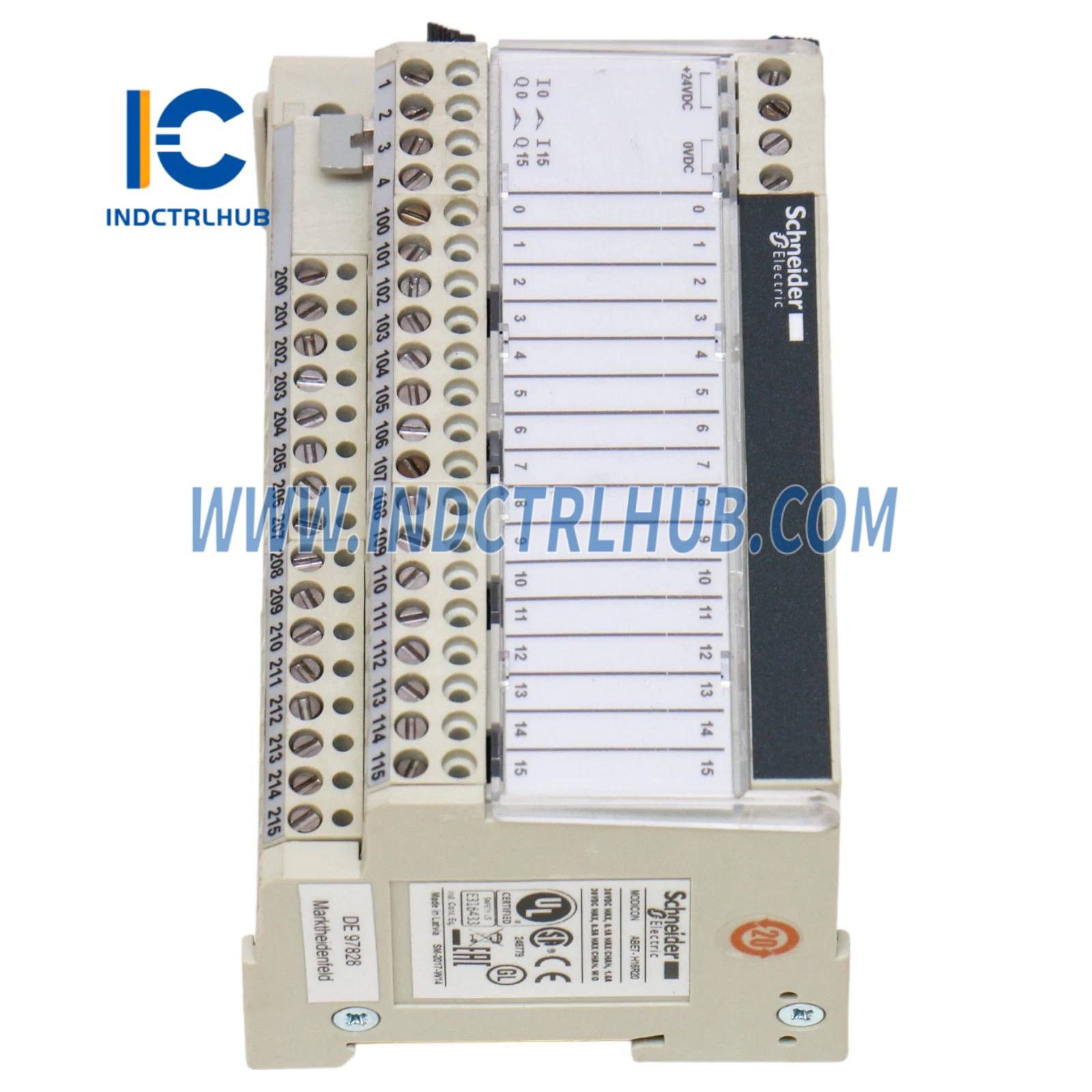

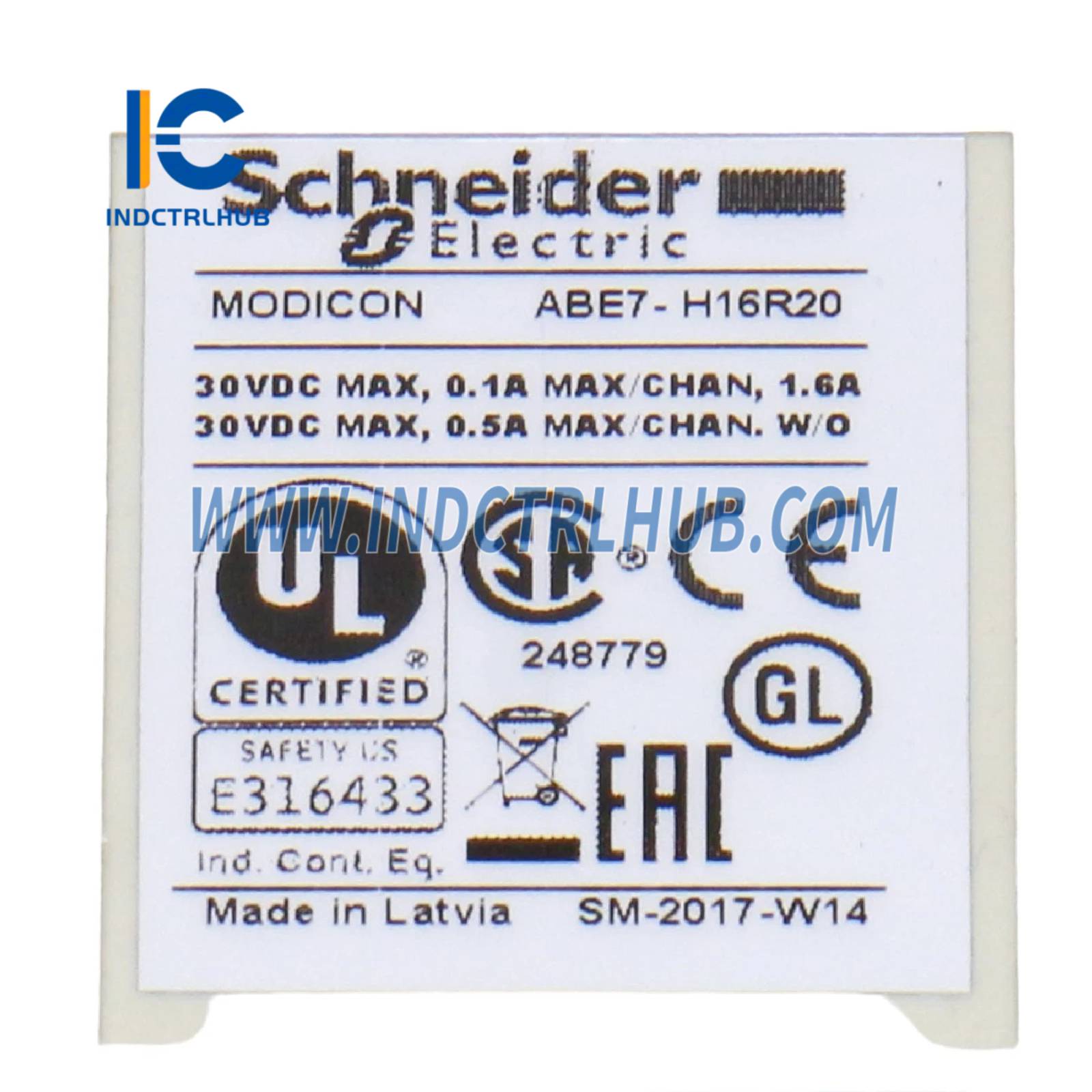

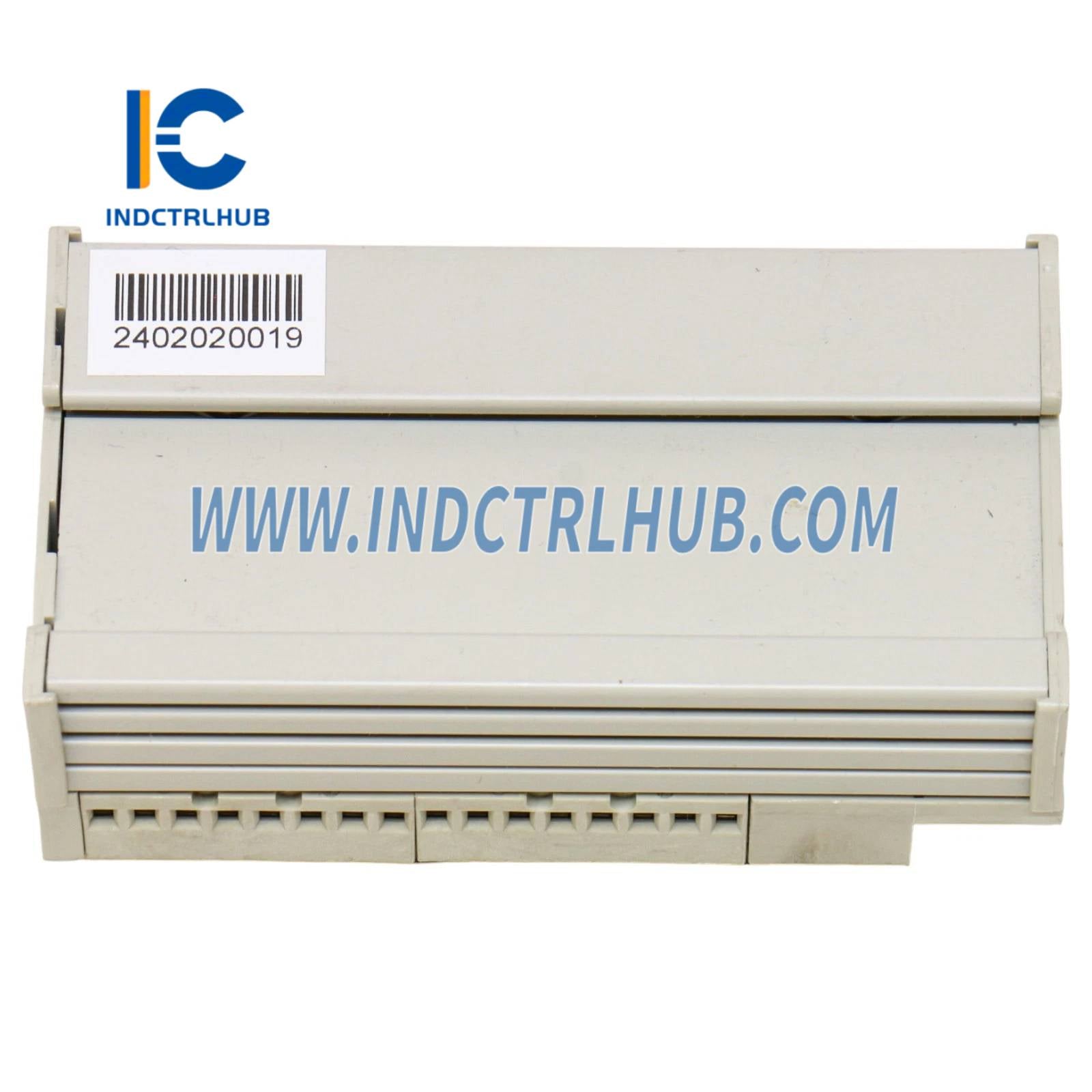

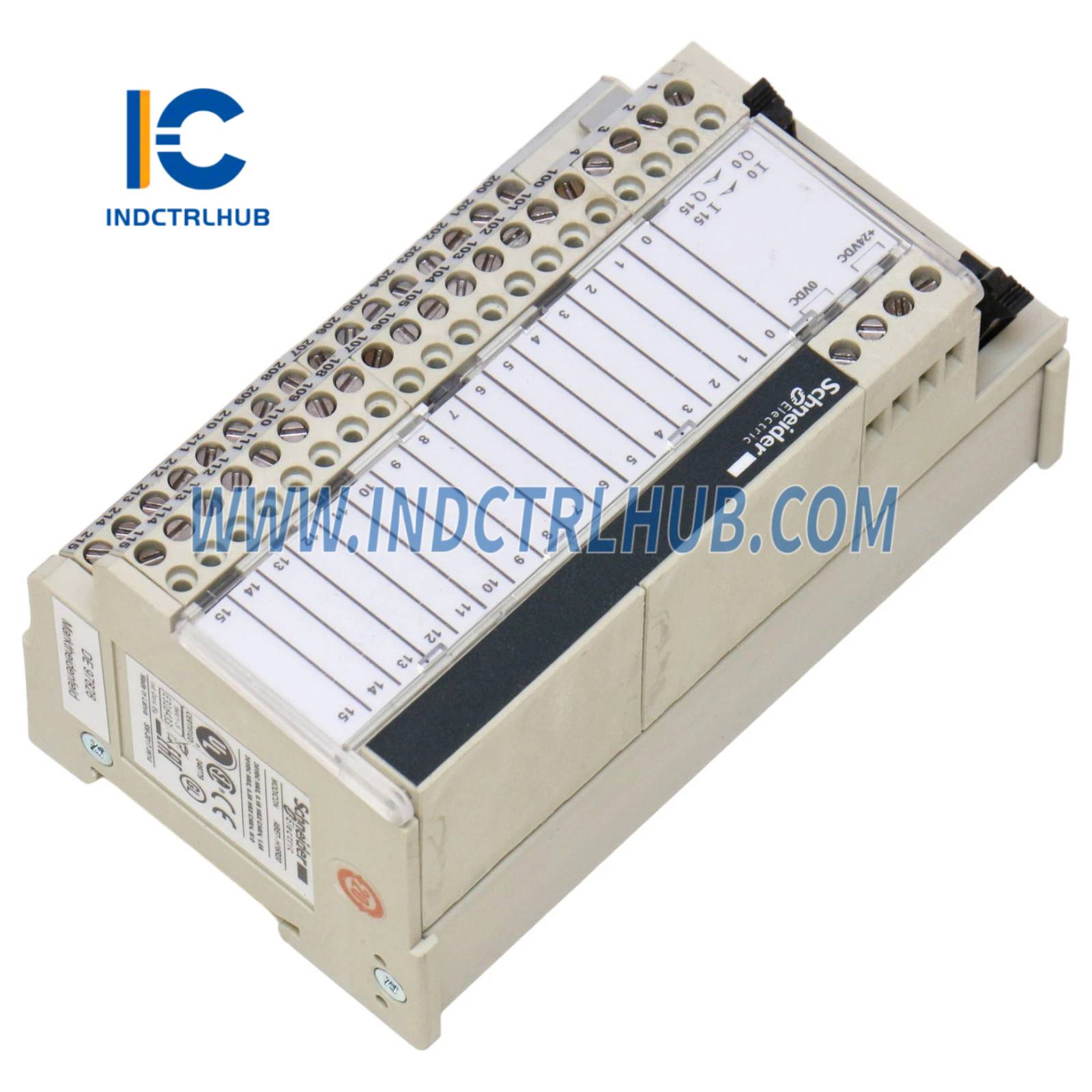

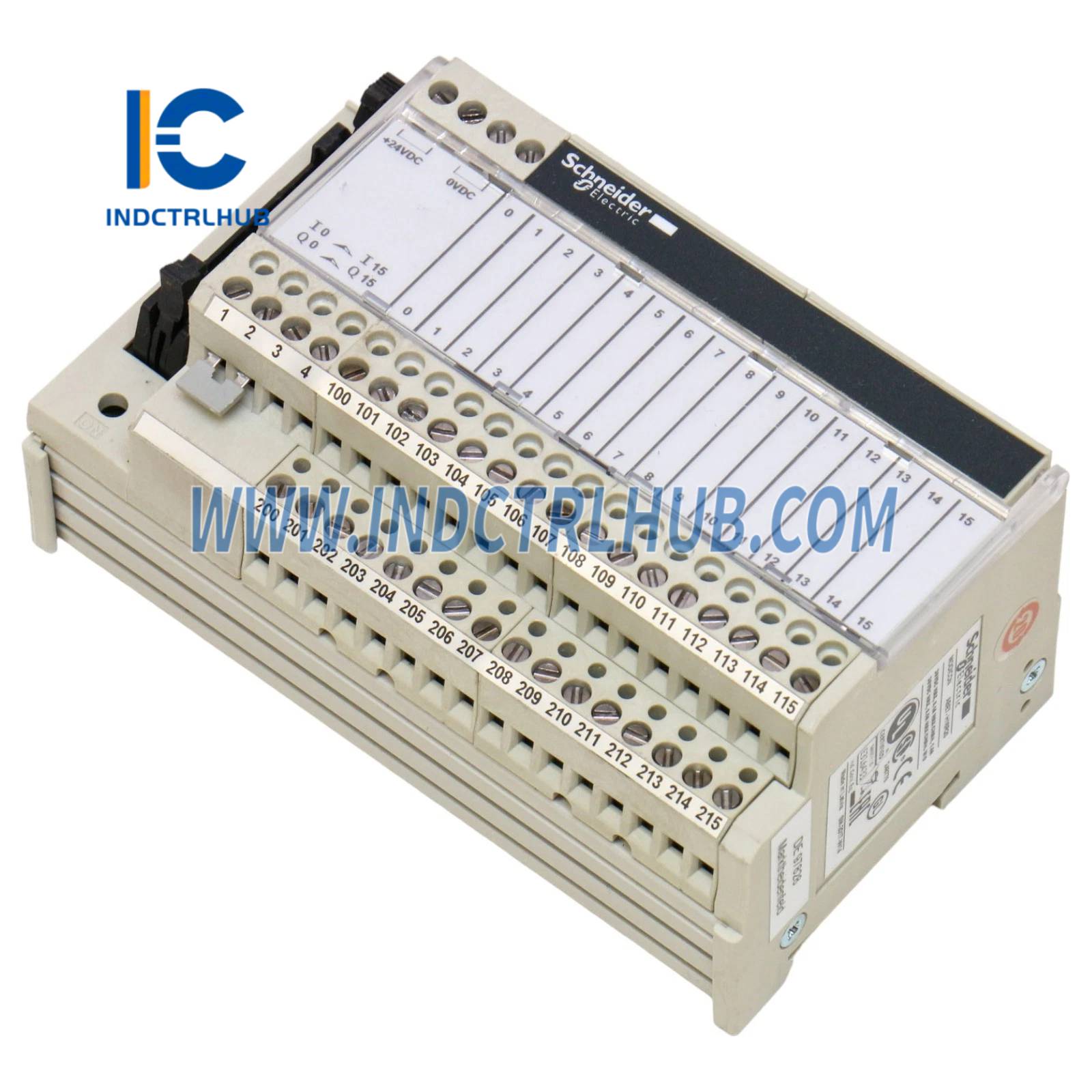

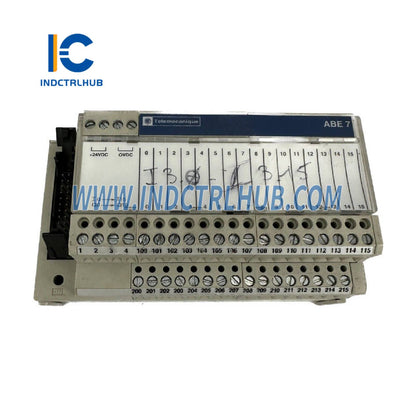

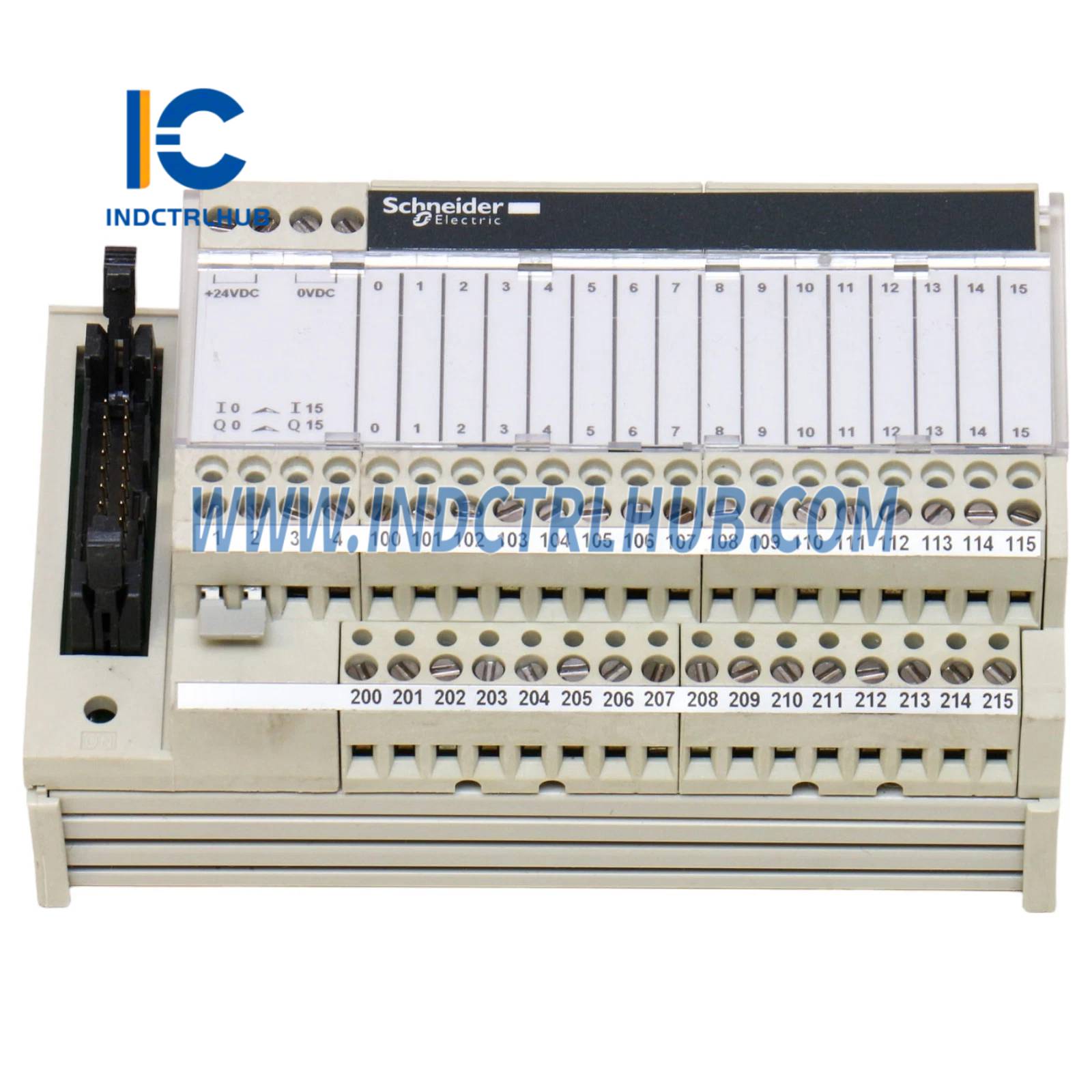

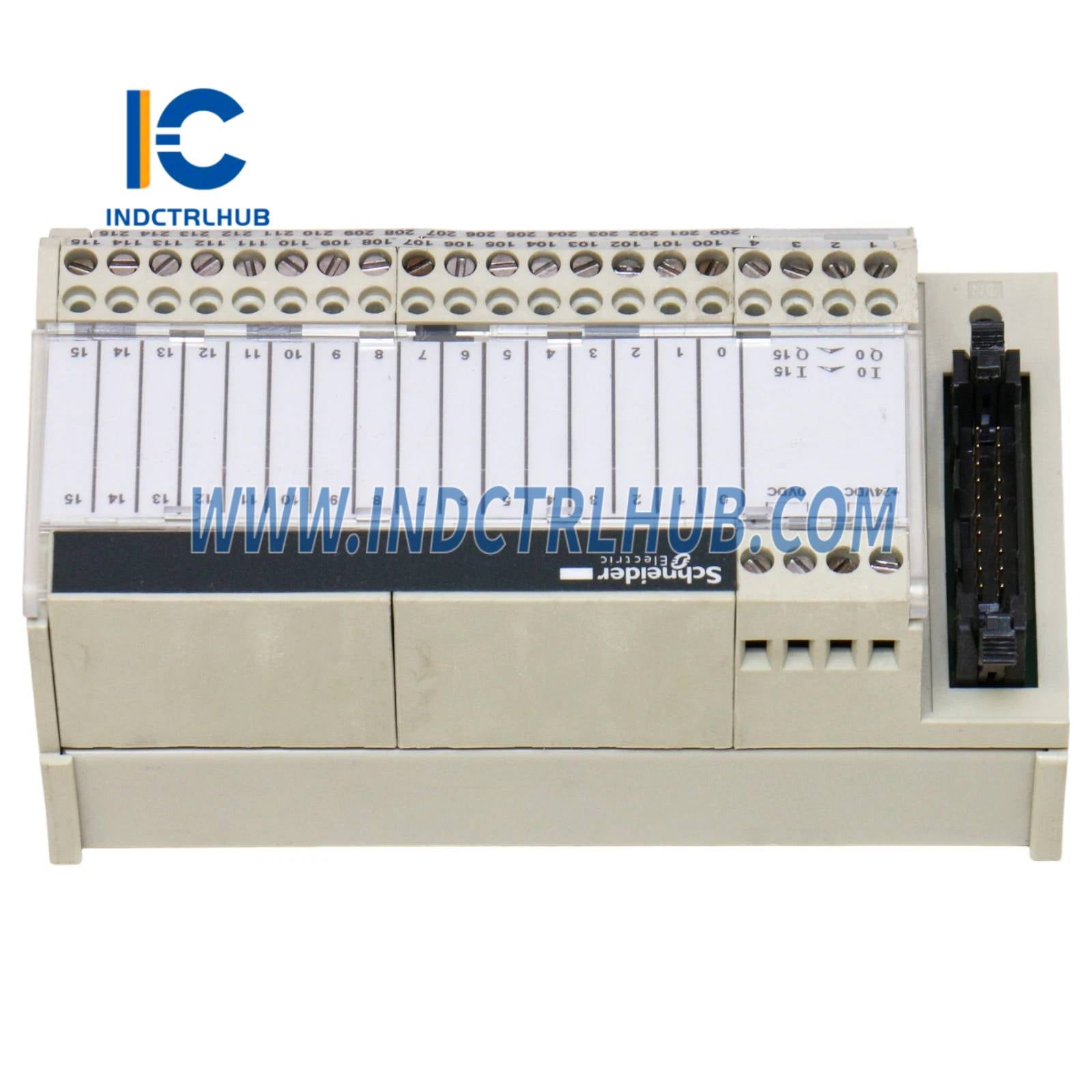

Schneider ABE7H16R20 Passive discrete I/O sub-base

Manufacturer

Schneider Electric

Model/Part Number

ABE7H16R20

Series/Range

Modicon ABE7

Product Type

Passive Discrete I/O Sub-base

Description

Passive connection sub-base ABE7 _ 16 inputs or outputs

Sub-base Type

I/O sub-base

Rated Supply Voltage [Us]

19_30 V DC (IEC 61131-2)

Number of Channels

16

Terminals per Channel

2

Supply Voltage Type

DC

Polarity Distribution

0 V or 24 V

Number of Horizontal Rows

2

Status LEDs

1 LED (Green) _ power ON

Short-circuit Protection

2 A internal fuse, 5 _ 20 mm, fast blow (PLC end)

Connector Types

SUB-D 15, SUB-D 9, HE-10

Pin Count

20 pins

Fixing Mode

Clips for 35 mm DIN rail or screws with plate and fixing kit

Max Supply Current

1.8 A

Current per Channel

0.5 A

Max Current per Output Common

1.8 A

Voltage Drop (fuse)

0.3 V

Rated Insulation Voltage [Ui]

2000 V

Installation Category

II (IEC 60664-1)

Tightening Torque

0.6 N·m (5.3 lbf·in) for _3.5 mm flat screwdriver

Flexible with cable end

1 _ 0.09_1 _ 1.5 mm² (AWG 28_16)

Solid

1 _ 0.14_1 _ 2.5 mm² (AWG 26_12)

Flexible without cable end

1 _ 0.14_1 _ 2.5 mm² (AWG 26_14)

Flexible with cable end (2 wires)

2 _ 0.09_2 _ 0.75 mm² (AWG 28_20)

Solid (2 wires)

2 _ 0.2_2 _ 2.5 mm² (AWG 24_14)

IP Degree of Protection

IP2X (IEC 60529)

Shock Resistance

15 gn for 11 ms (IEC 60068-2-27)

Vibration Resistance

2 gn (10_150 Hz) (IEC 60068-2-6)

ESD Protection

4 kV (contact), 8 kV (air) (IEC 61000-4-2 level 3)

Radiated Fields Resistance

10 V/m, 26 MHz to 1 GHz (IEC 61000-4-3 level 3)

Fast Transients Resistance

2 kV (IEC 61000-4-4 level 3)

Incandescent Wire Resistance

750 °C (1382 °F) (IEC 60695-2-11)

Operating Temperature

-5_60 °C (23_140 °F)

Storage Temperature

-40_80 °C (-40_176 °F)

Pollution Degree

2 (IEC 60664-1)

Width

125 mm (4.9 in)

Net Weight

0.3 kg (0.7 lb US)

Category

US10CP222375

Discount Schedule

0CP2

GTIN

3389110544954

Returnability

Yes

Country of Origin

United States
