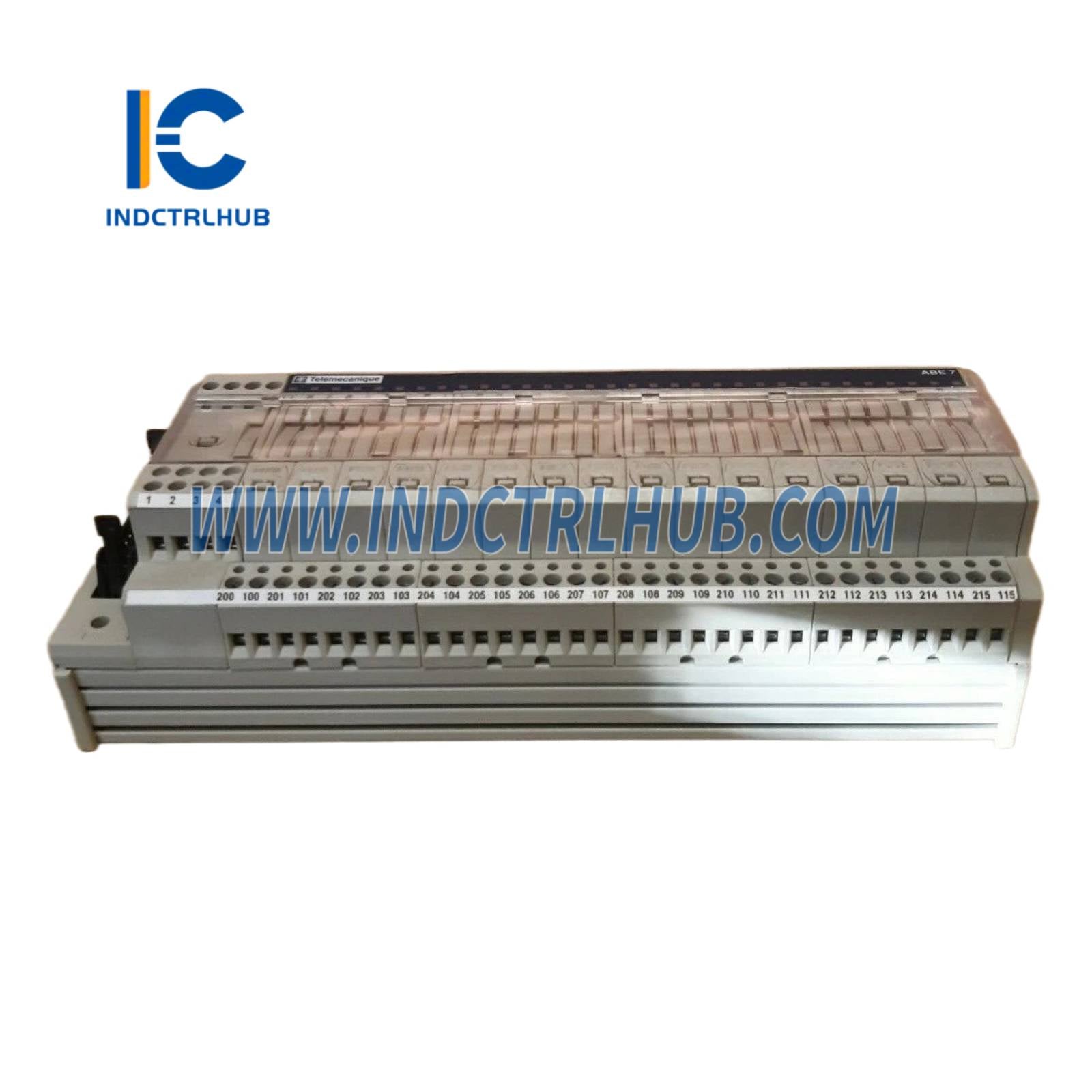

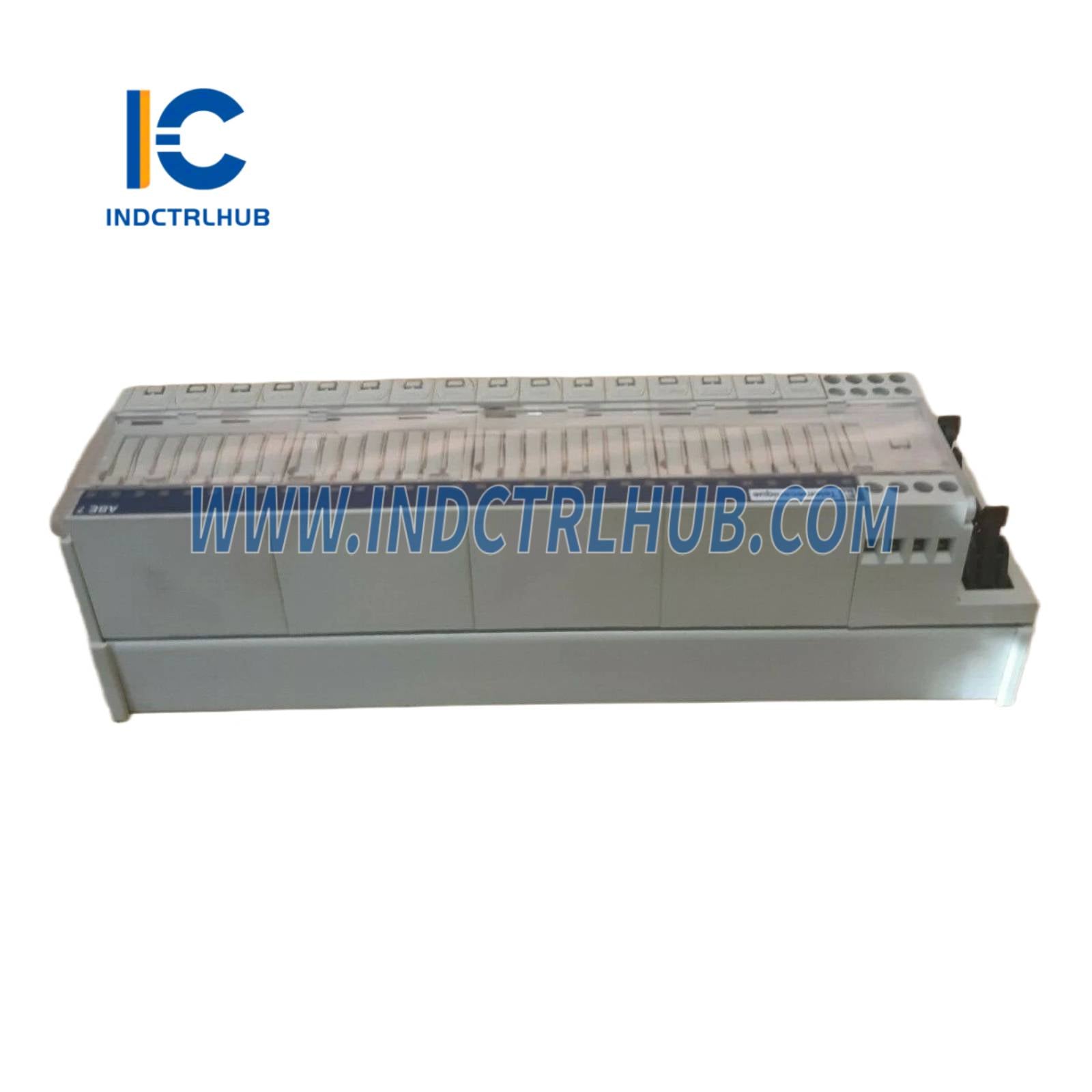

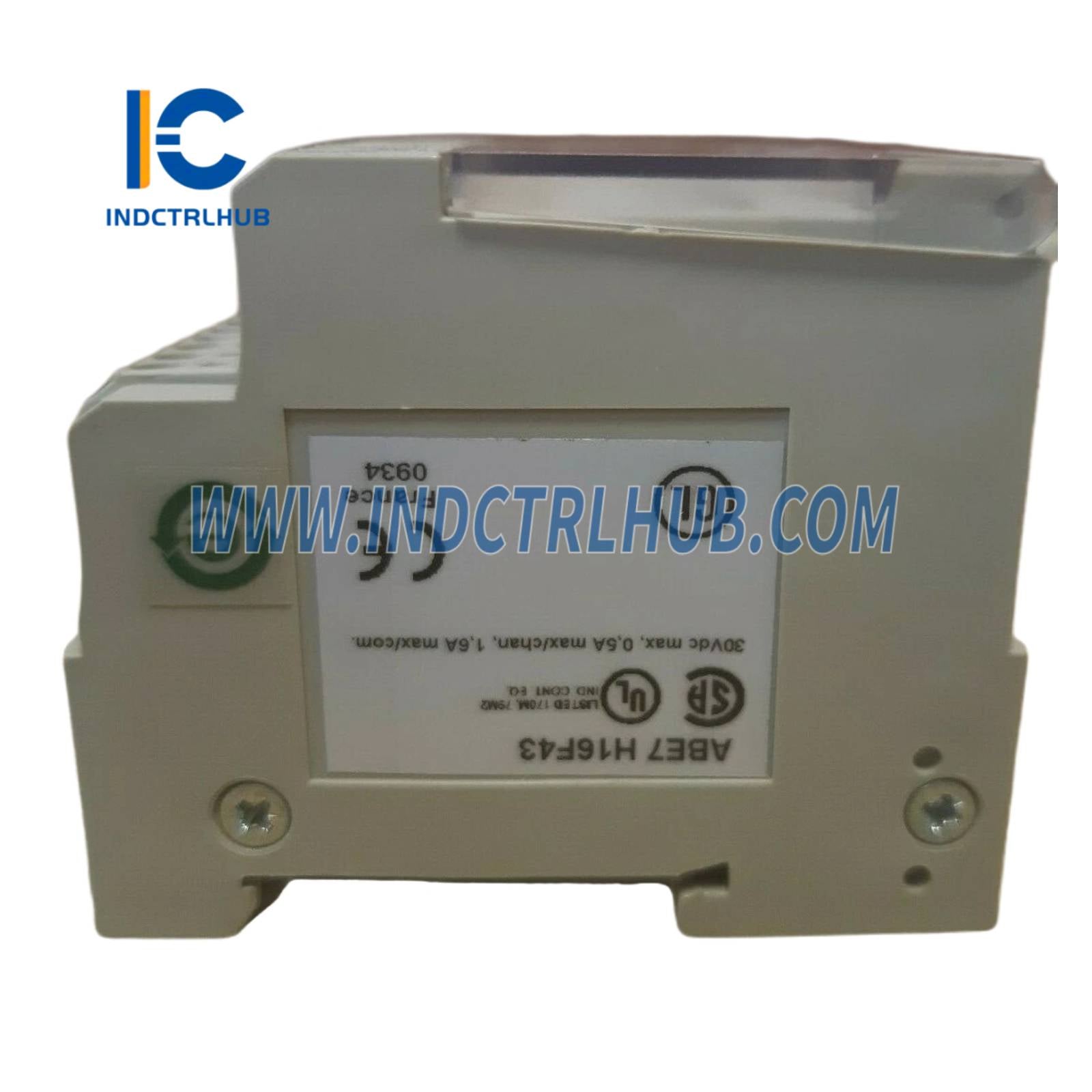

Product Description
General Information
|
Field |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ABE7H16F43 |
|
Description |
Passive connection sub-base ABE7 – 16 outputs – fuses – LED – isolator |
|
Range of Product |
Modicon ABE7 |
|
Product Type |
Passive discrete I/O sub-base |
|
Sub-base Type |
Output sub-base |
|
Country of Origin |
France |
|
GTIN |
3389110644494 |
|
Returnability |
No |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Rated Supply Voltage [Us] |
19…30 V (DC) IEC 61131-2 |
|
Number of Channels |
16 |
|
Terminals per Channel |
2 |
|
Connections – Terminals |
Screw type (various wire sizes; flexible & solid) |
|
Channel Additional Info |
1 switch disconnector per channel |
|
Connector Type |
HE-10 |
|
Number of Pins |
20 |
|
Status LEDs |
- 1 Green per channel (status) - 1 Red per channel (fuse blown) - 1 Green (power ON) |
|
Polarity Distribution |
0 V |
|
Short-Circuit Protection |
- 2 A internal fuse (PLC end) - 0.125 A fuse/channel (output circuit) |
|
Current per Channel |
0.125 A |
|
Max Current per Output Common |
1.8 A |
|
Max Supply Current |
1.8 A |
|
Voltage Drop on Power Supply Fuse |
0.3 V |
|
Max Voltage Drop per Channel |
2 V |
|
Rated Insulation Voltage [Ui] |
2000 V |
|
Installation Category |
II (IEC 60664-1) |
|
Number of Horizontal Rows |
1 |
|
Fixing Mode |
DIN rail (clips) or solid plate (screws + fixing kit) |
|
Tightening Torque |
0.6 N·m (5.3 lbf.in) flat Ø 3.5 mm |
|
Width |
8.1 in (206 mm) |
|
Net Weight |
1.41 lb (0.64 kg) |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Degree of Protection (IP) |
IP2X (IEC 60529) |
|
Ambient Operating Temperature |
-5 to 60 °C (23 to 140 °F) |
|
Ambient Storage Temperature |
-40 to 80 °C (-40 to 176 °F) |
|
Pollution Degree |
2 (IEC 60664-1) |
|
Resistance to Incandescent Wire |
750 °C (IEC 60695-2-11) |
|
Shock Resistance |
15 gn for 11 ms (IEC 60068-2-27) |
|
Vibration Resistance |
2 gn, 10–150 Hz (IEC 60068-2-6) |
|
Electrostatic Discharge Resistance |
4 kV (contact), 8 kV (air) (IEC 61000-4-2 Level 3) |
|
Radiated Field Resistance |
10 V/m, 26 MHz–1 GHz (IEC 61000-4-3 Level 3) |
|
Fast Transient Resistance |
2 kV (IEC 61000-4-4 Level 3) |
Certifications
|
Certification |
Standard/Organization |
|---|---|
|
UL |
Yes |
|
CSA |
Yes |
|
DNV |
Yes |
|
GL |
Yes |
|
EAC |
Yes |
