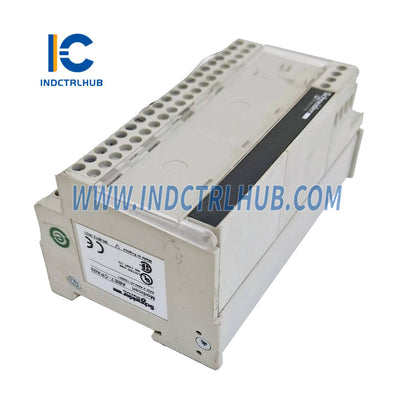

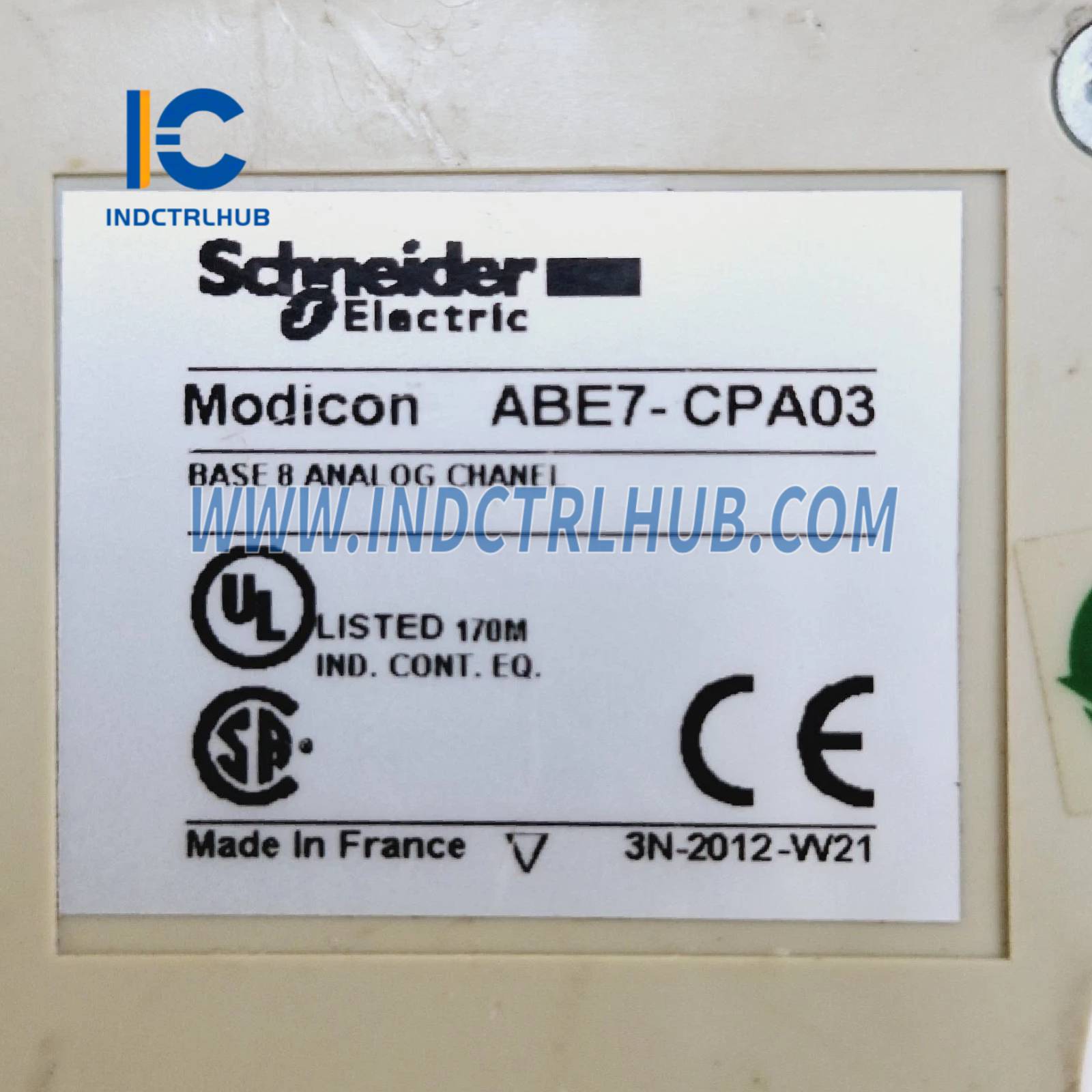

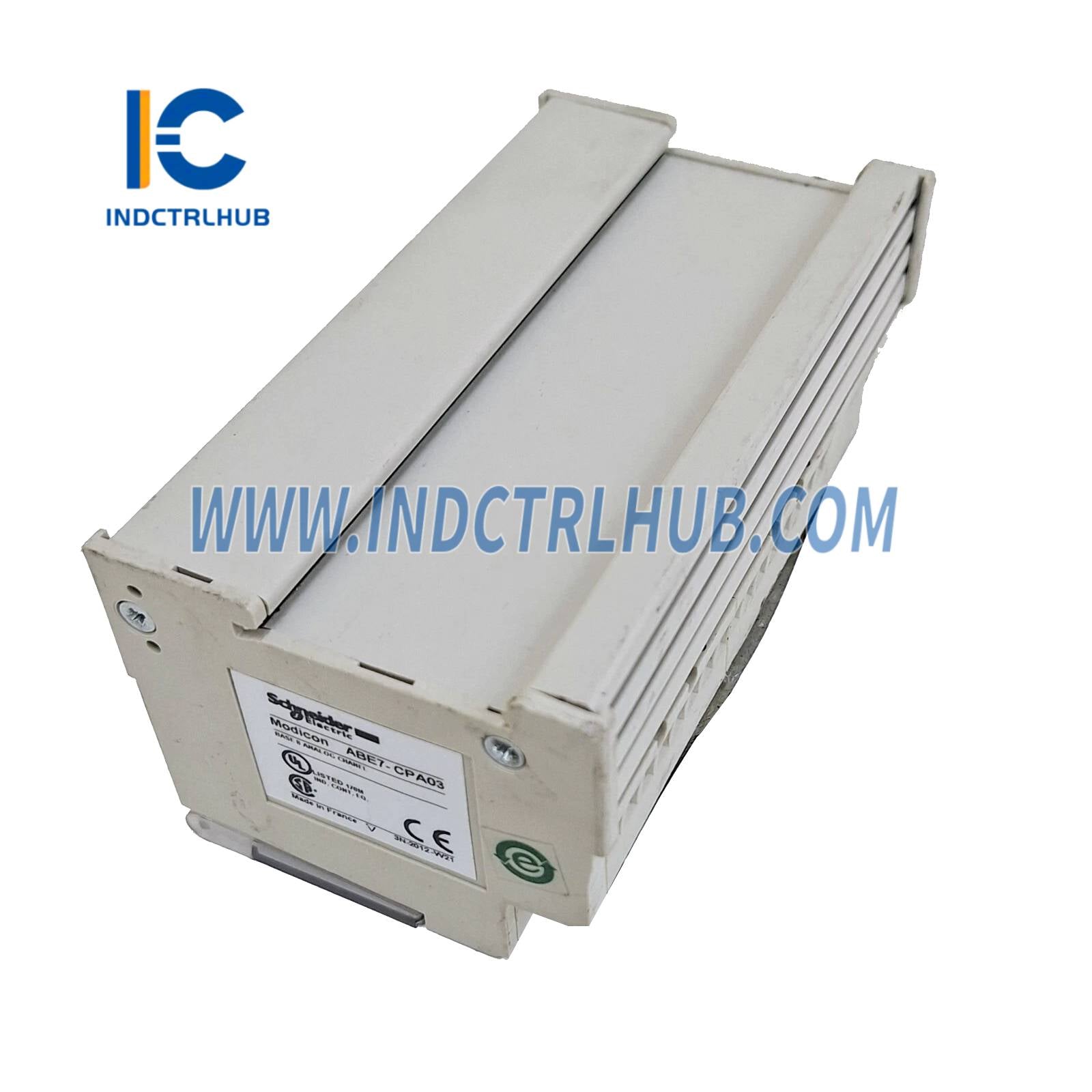

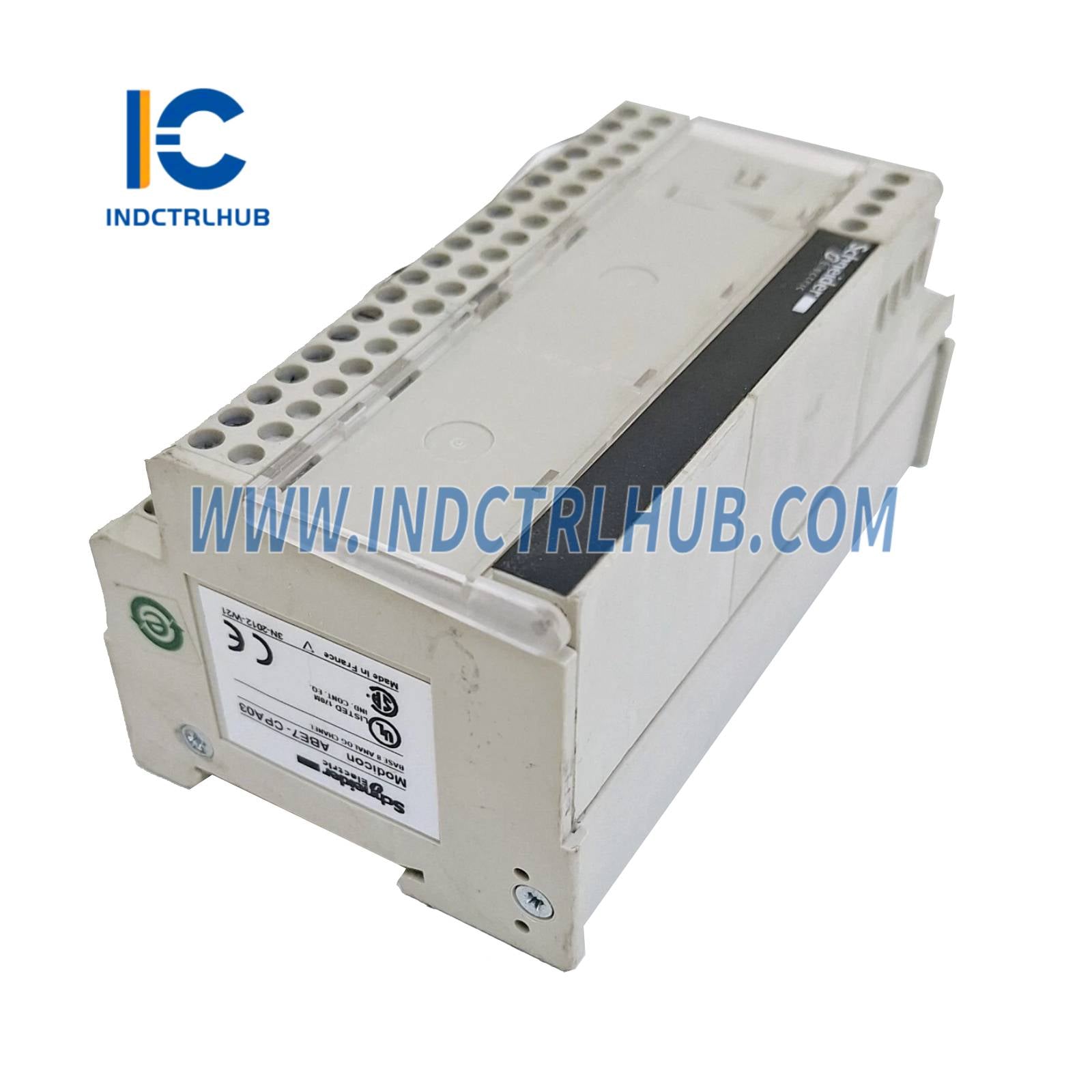

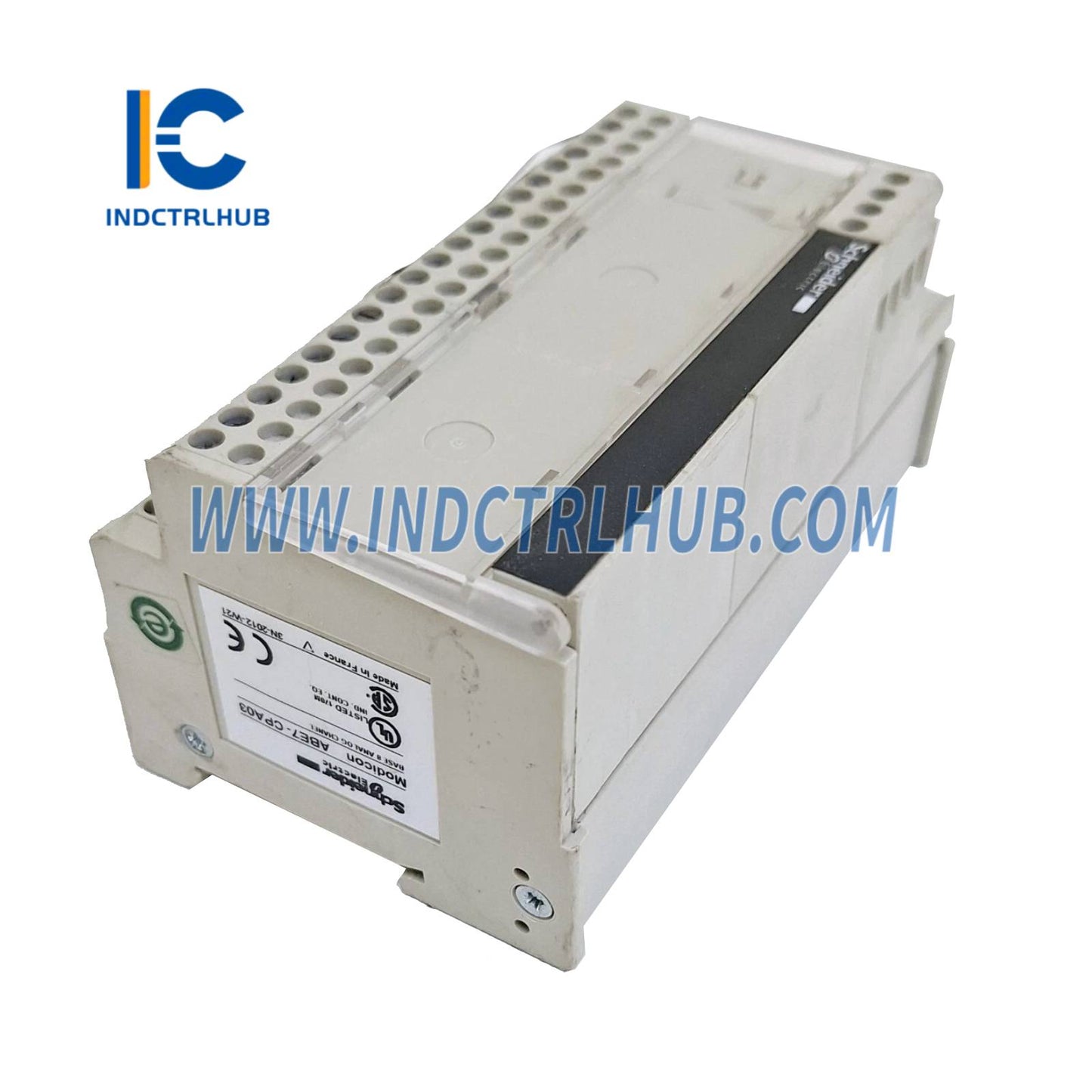

Schneider ABE7CPA03 Connection sub-base ABE7
Schneider ABE7CPA03 Connection sub-base ABE7
Manufacturer: Schneider
Product No.: ABE7CPA03
Condition:1000 in stock
Product Type: Connection sub-base ABE7
Product Origin: USA
Payment: T/T, Western Union
Weight: 330g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
_
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
ABE7CPA03 |
|
Series |
Modicon ABE7 |
|
Description |
Connection sub-base ABE7 _ for distribution of 8 analog channels |
_
_
Description
_
-
Sub-base for the distribution of_8 analog input channels.
-
Each input is_isolated.
-
Designed for_Modicon X80 IO module BMXAM0800.
-

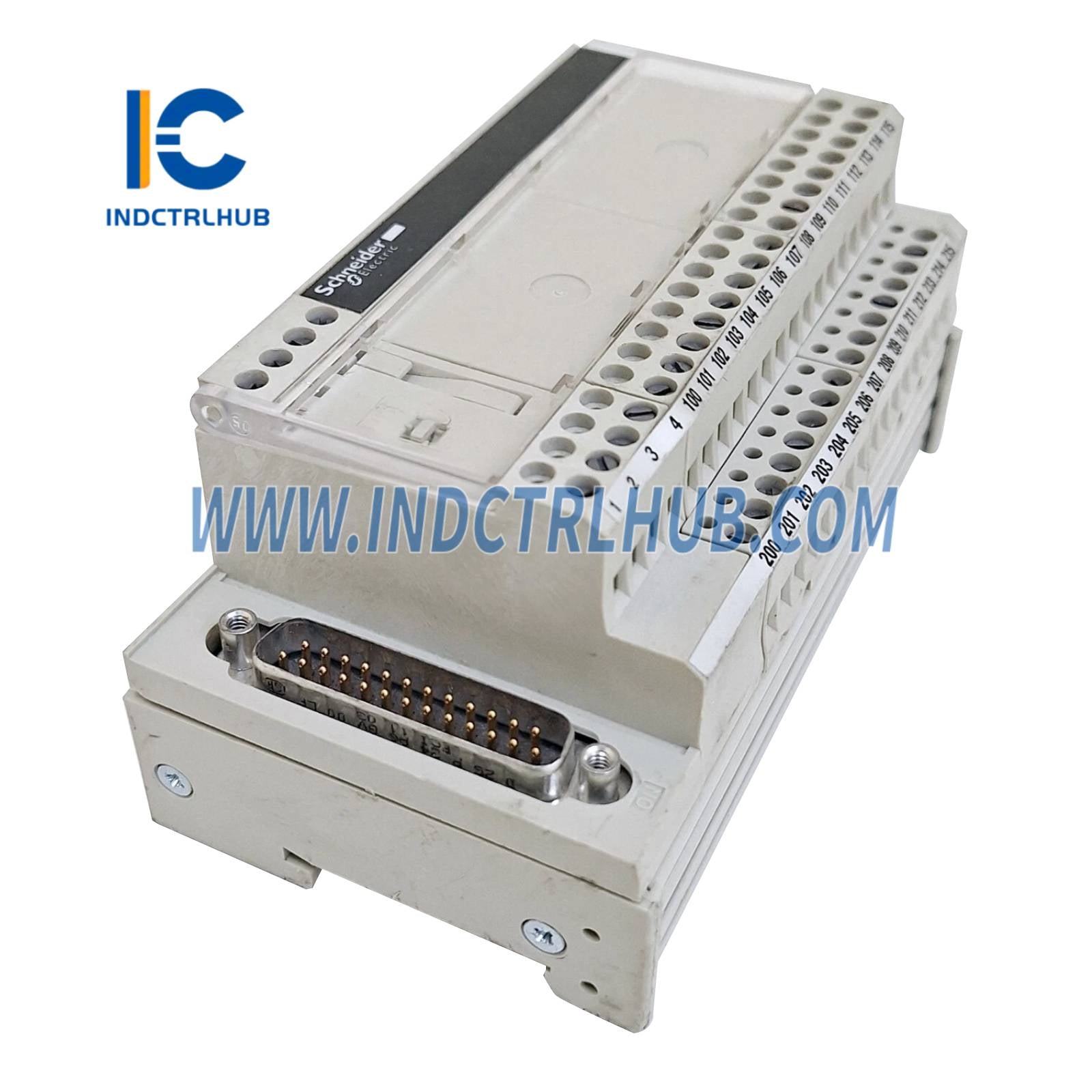

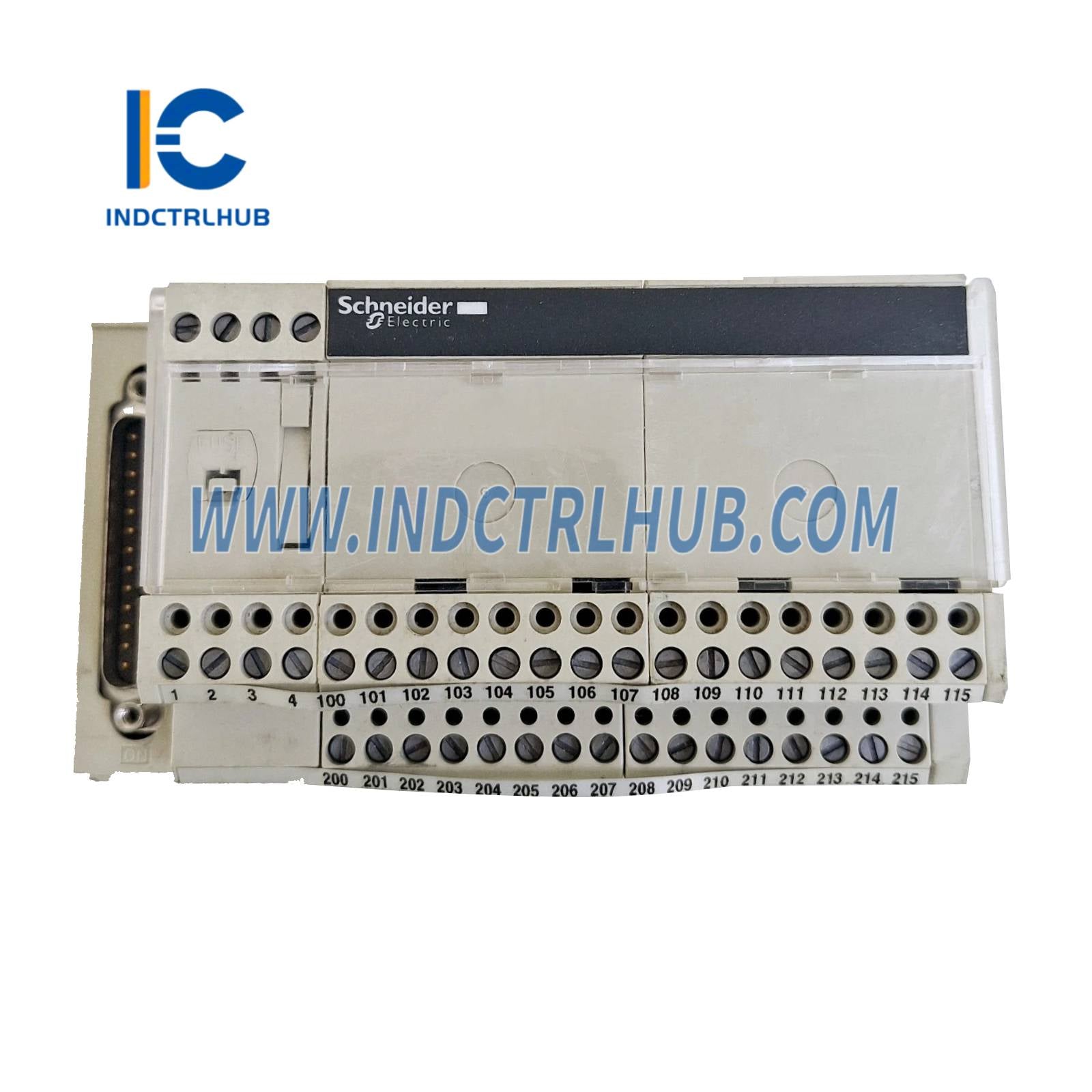

Electrical connection via_screw terminals_and a_25-way SUB-D connector_to PLCs.
-
Offers_pre-wired system compatibility_with HE10 PLC card connectors.
-
Ideal for_industrial automation_applications.
_
_
Specifications
_
Main Specifications
|
Parameter |
Value |
|---|---|
|
Product Type |
Connection sub-base for analog/counter channels |
|
Number of Channels |
8 |
|
Function of Module |
Analog input (current, voltage), Pt100 (Premium) |
|
Control Circuit Voltage |
24 V DC |
|
PLC Connection |
SUB-D 25 connector |
_
Terminal Connections
|
Type |
Range (AWG/mm²) |
|---|---|
|
Flexible with cable end (1x) |
AWG 28_16 / 0.09_1.5 mm² |
|
Solid (1x) |
AWG 26_12 / 0.14_2.5 mm² |
|
Flexible without cable end (1x) |
AWG 26_14 / 0.14_2.5 mm² |
|
Flexible with cable end (2x) |
AWG 28_20 / 0.09_0.75 mm² |
|
Solid (2x) |
AWG 24_14 / 0.2_2.5 mm² |
_
Electrical
|
Parameter |
Value |
|---|---|
|
Rated Insulation Voltage [Ui] |
2000 V |
|
Installation Category |
II (IEC 60664-1) |
|
Tightening Torque |
0.6 N·m (5.3 lbf.in), flat _ 3.5 mm |
_
Physical
|
Parameter |
Value |
|---|---|
|
Mounting |
DIN rail (35 mm) or screw (plate) |
|
Net Weight |
0.33 kg (0.73 lb) |
|
IP Protection |
IP20 (IEC 60529) |
|
Protective Treatment |
TC |
_
Environmental Limits
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
0_60°C (32_140°F) |
|
Storage Temperature |
-40_80°C (-40_176°F) |
|
Shock Resistance |
15 gn for 11 ms (IEC 60068-2-27) |
|
Vibration Resistance |
2 gn, 10_150 Hz (IEC 60068-2-6) |
|
Electrostatic Discharge |
4 kV (contact), 8 kV (air) (IEC 61000-4-2) |
|
Radiated Fields Immunity |
10 V/m, 26 MHz_1 GHz (IEC 61000-4-3) |
|
Fast Transients |
2 kV (IEC 61000-4-4) |
|
Pollution Degree |
2 (IEC 60664-1) |
|
Incandescent Wire Resistance |
750 °C (1382 °F), 30 s (IEC 60695-2-11) |
_
_
Certifications
_
-
UL
-
CSA
-
DNV
-
GL
-
BV
-
LROS
-
Standards: CSA C22.2, IEC 61131, UL 508
_
_
Ordering & Shipping Details
|
Field |
Details |
|---|---|
|
Category |
US10CP222375 |
|
Discount Schedule |
0CP2 |
|
GTIN |
3389110705003 |
|
Returnability |
Yes |
|
Country of Origin |
Latvia (LV) |
