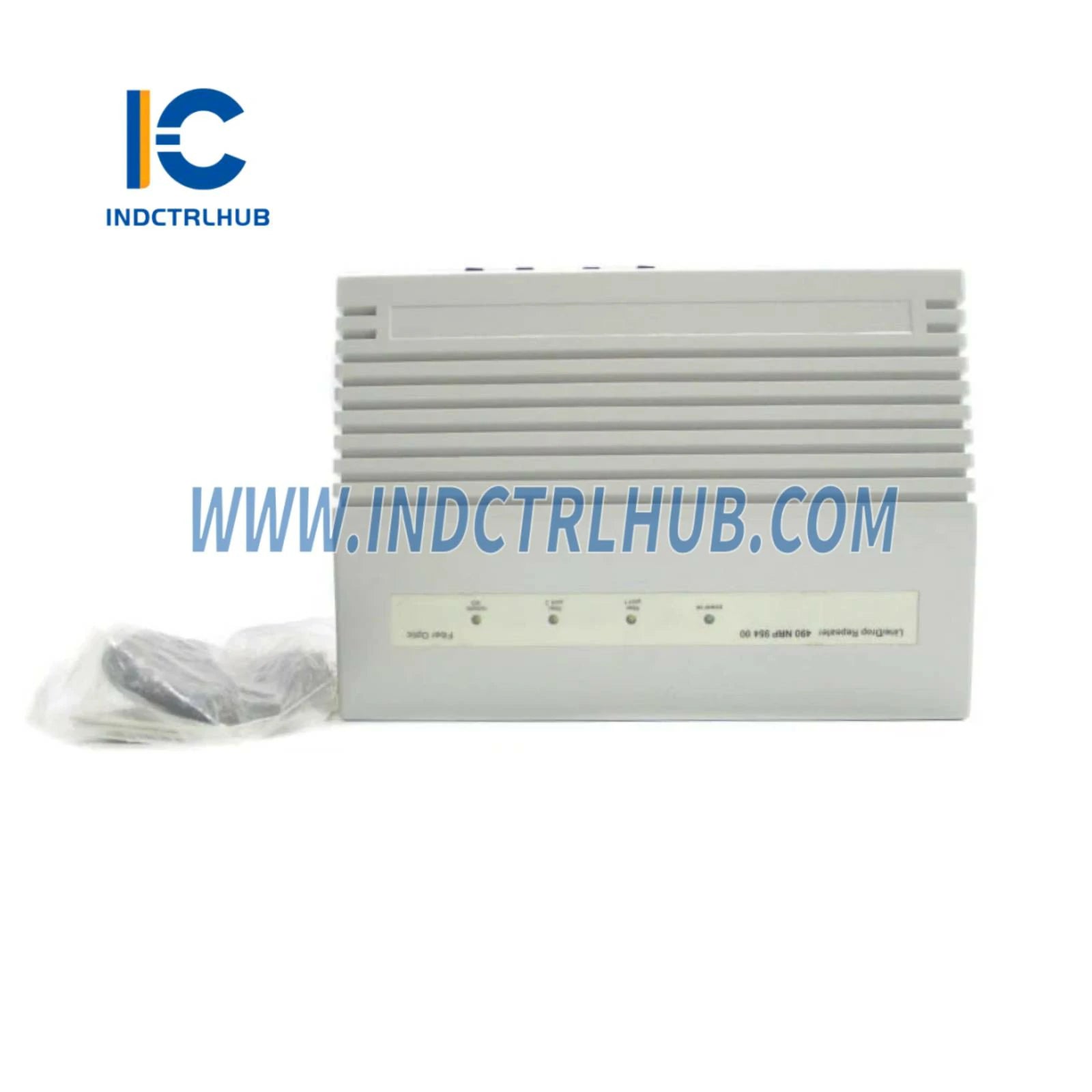

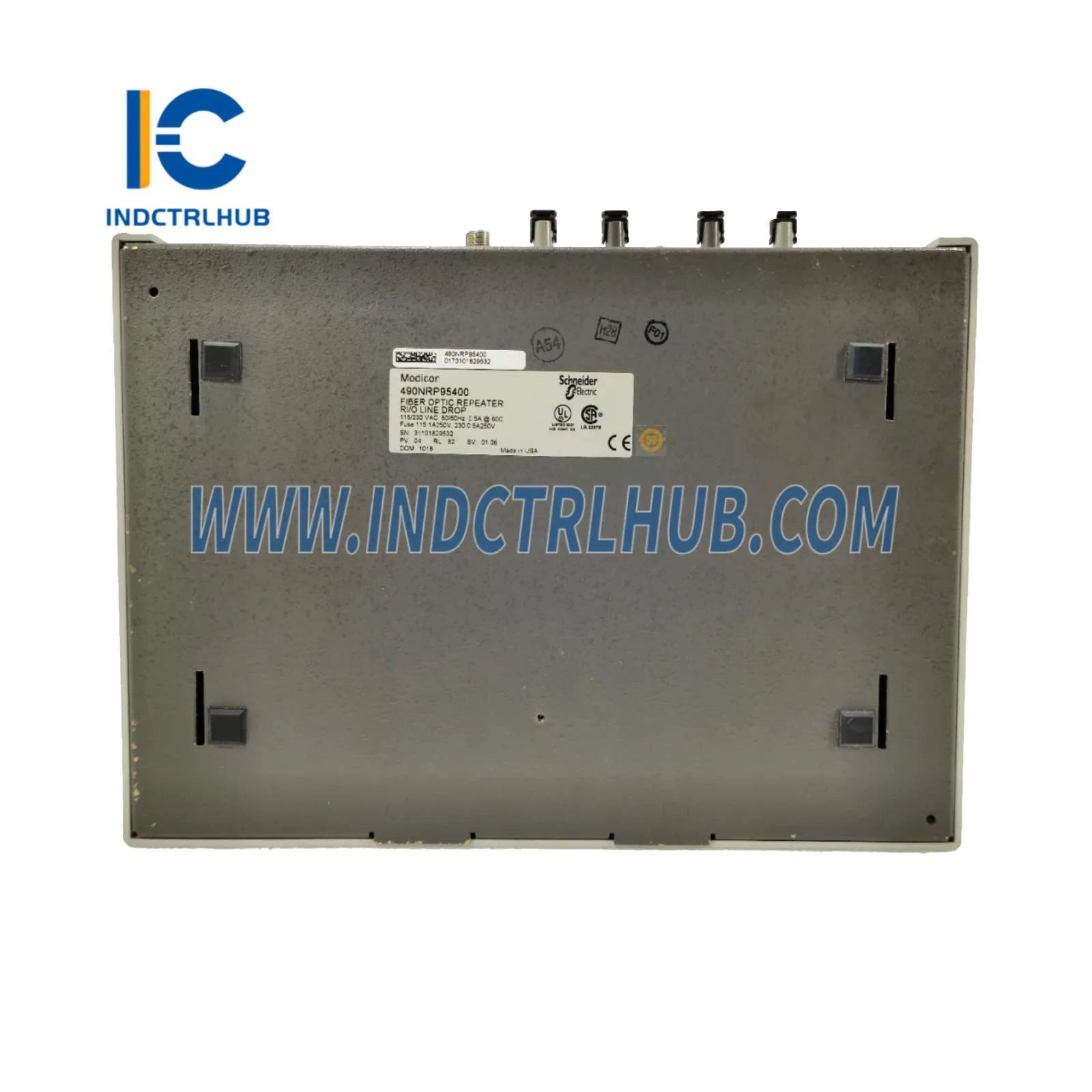

Schneider Electric 490NRP95400 Modicon Fiber Optic Repeater
Product Overview
- The Schneider Electric 490NRP95400 is a Modicon Fiber Optic Repeater designed for the Modicon Quantum automation platform. It extends Remote I/O (RIO) communication by amplifying and retransmitting RIO bus signals over fiber optic cables, enabling reliable long-distance data transmission. This module is used in industrial automation applications, such as material handling, packaging, and textile machines, to connect remote I/O drops to Quantum controllers in environments with high electromagnetic interference (EMI) or large facility layouts.
Technical Specifications
- The 490NRP95400 has the following specifications based on industry sources:

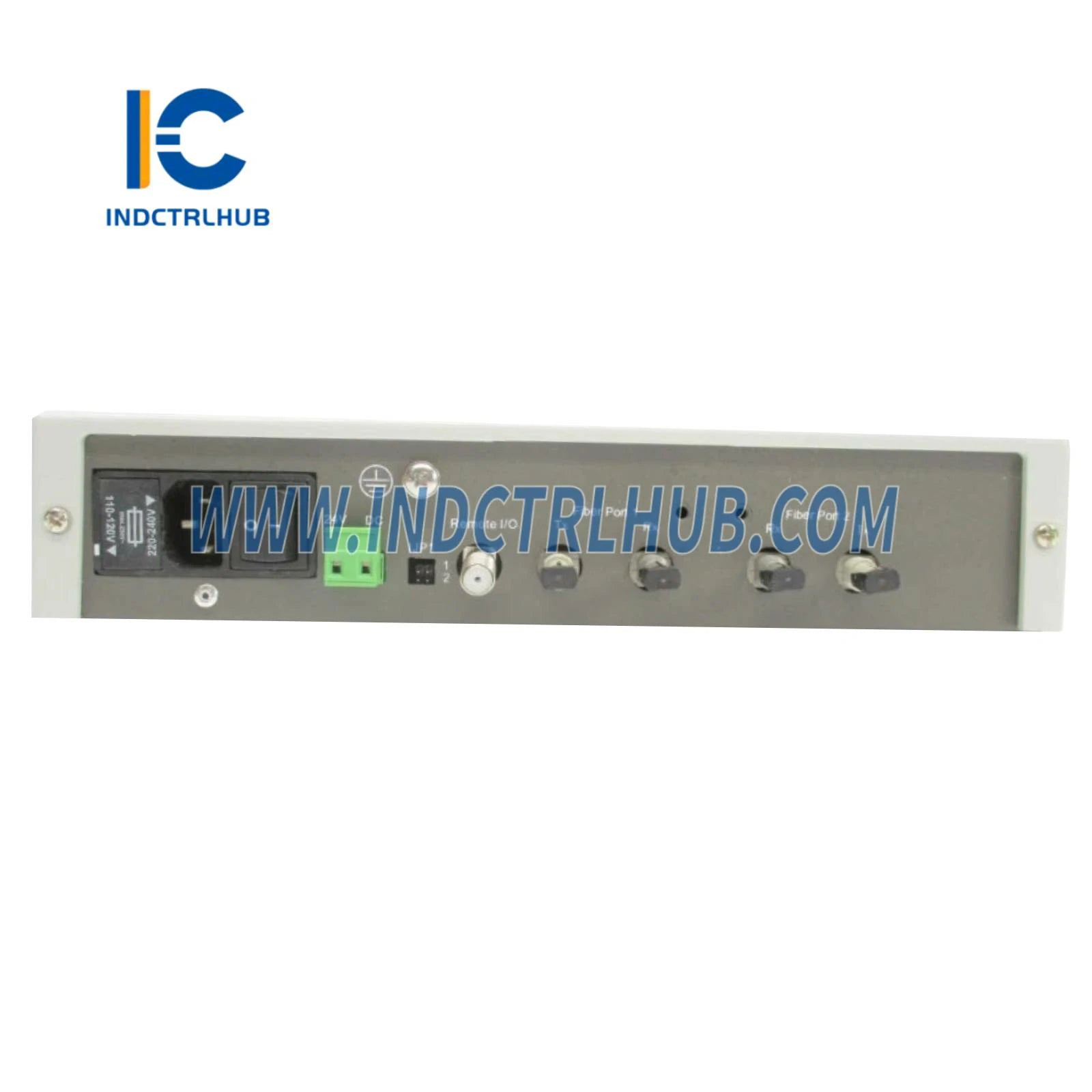

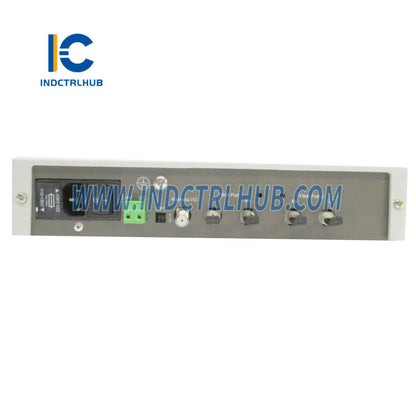

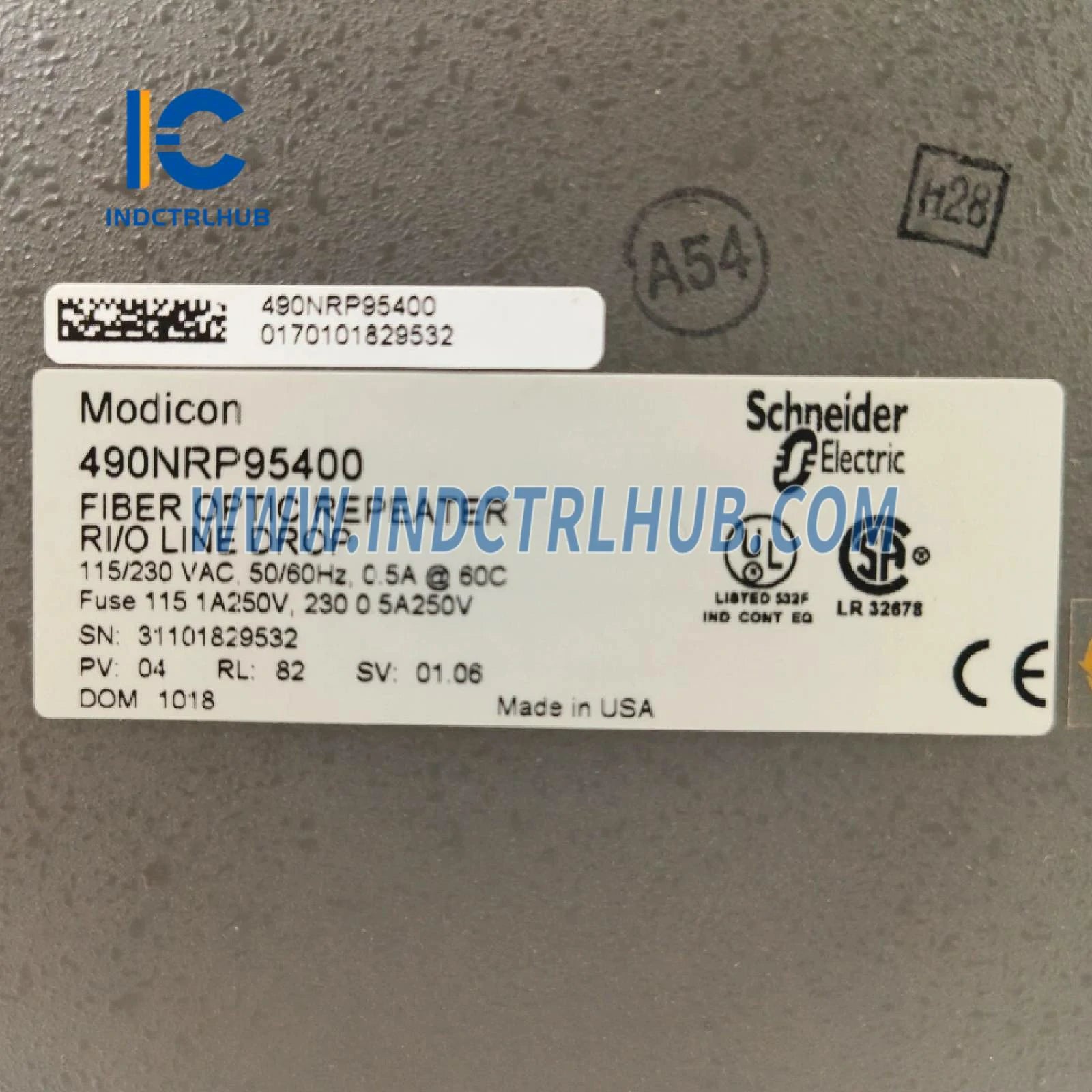

| Specification | Details |
|---|---|
| Model/Part Number | 490NRP95400 |
| Manufacturer | Schneider Electric |
| Description | Modicon Quantum Fiber Opti Repeater, Remote I/O (RIO) Drop |
| Series | Modicon Quantum |
| Function | Extends RIO communication via fiber optic cable; supports bus and line drop configurations |
| Communication Protocol | Remote I/O (RIO), 1.544 Mbps (Manchester encoding) |
| Fiber Optic Ports | 2 ST-type connectors (low-loss, industrial-grade) |
| Electrical Port | 1 F-type connector (for RIO electrical line drop) |
| Fiber Type | Multimode fiber (50/125 µm, 62.5/125 µm, or 100/140 µm) |
| Maximum Distance | Up to 10 km (6.2 miles) with multimode fiber |
| Power Supply | 115/230 VAC (selectable) or 24 VDC |
| Power Consumption | Approx. 5 W |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms (IEC 60068-2-27) Vibration: 1 g, 10–500 Hz (IEC 60068-2-6) |
| Dimensions | Approx. 200 mm (H) x 160 mm (W) x 60 mm (D) |
| Weight | Approx. 1 kg |
| Mounting | Panel or shelf mounting |
| Certifications | CE, UL, CSA C22.2 No. 142, RoHS |
