Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
47600 |
|
Description |

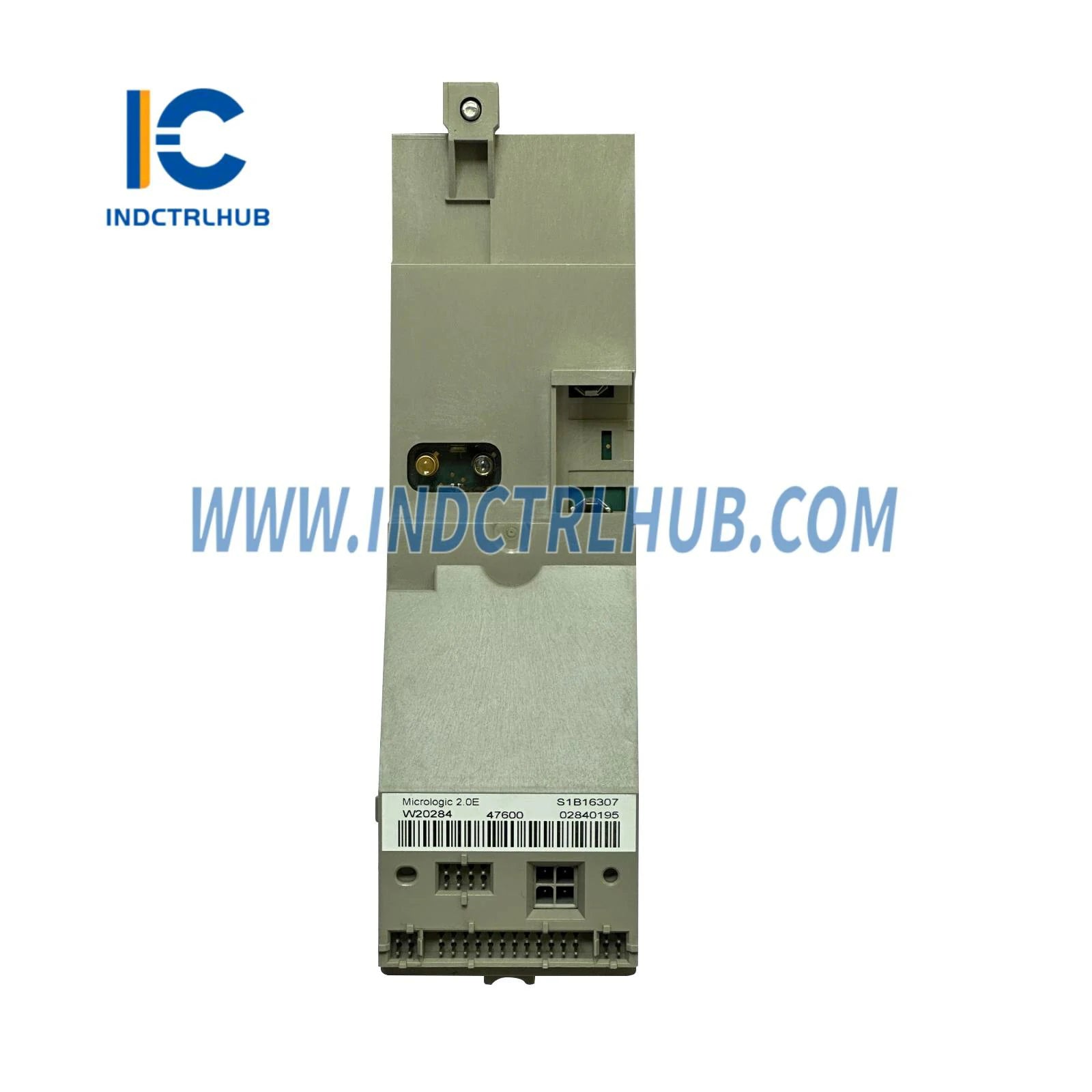

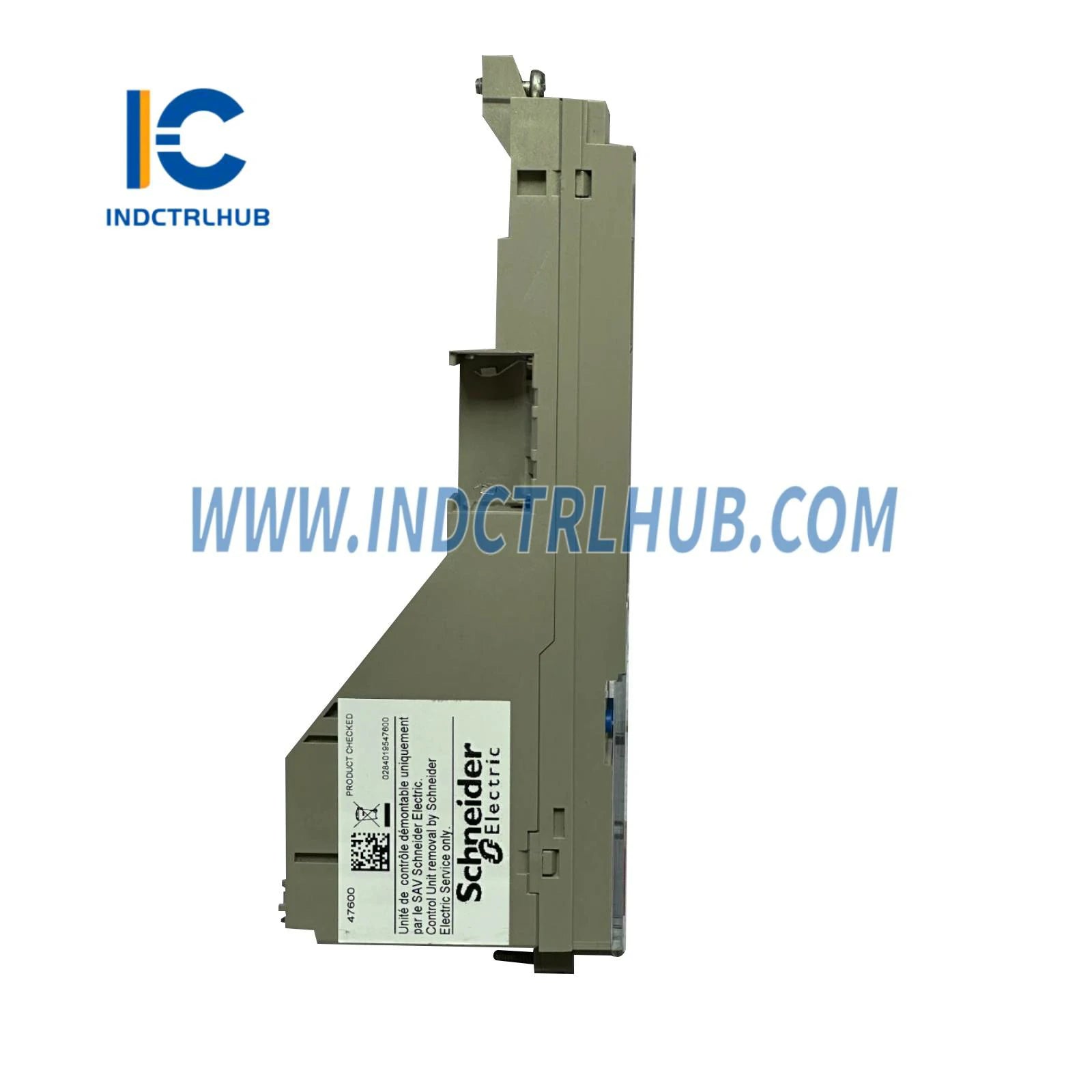

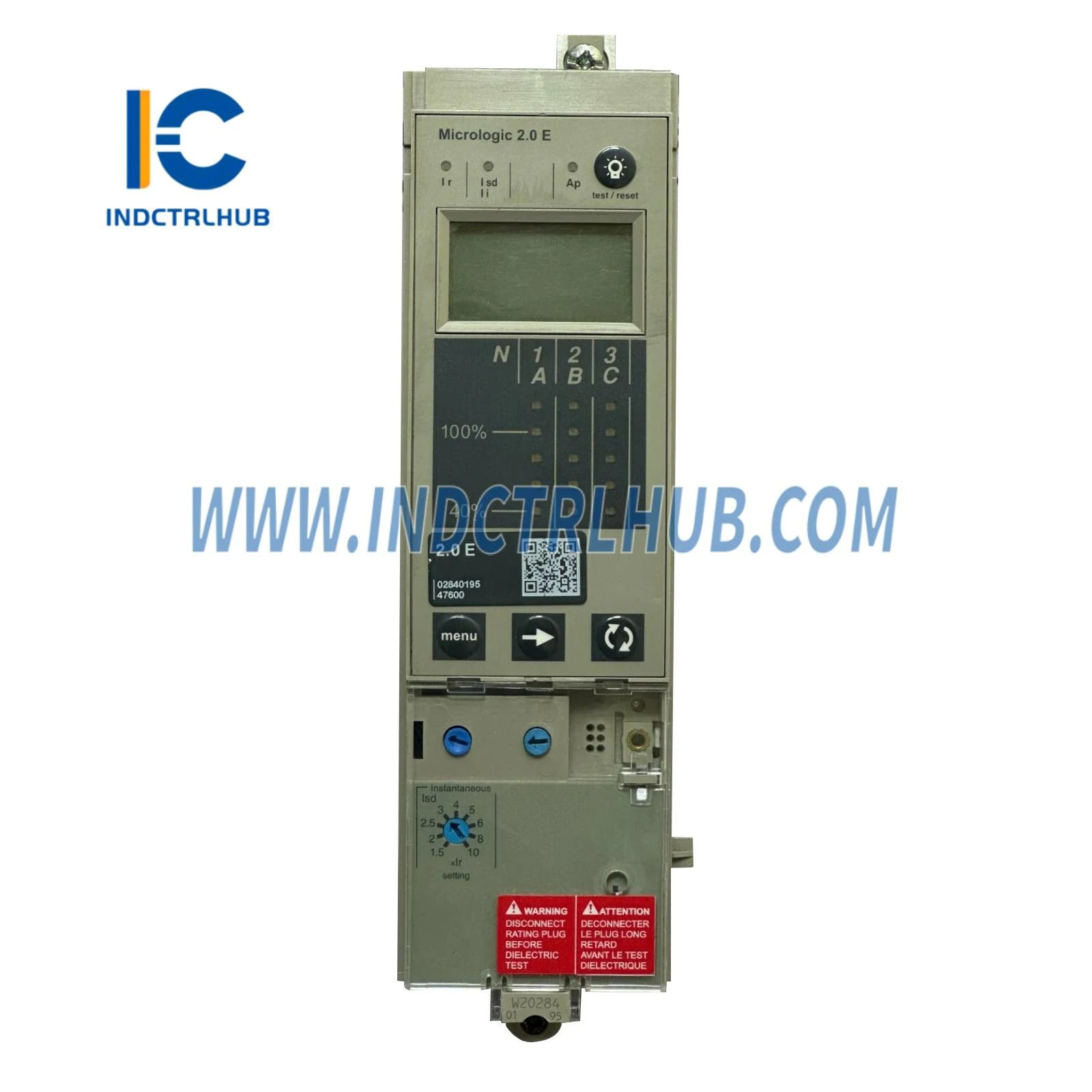

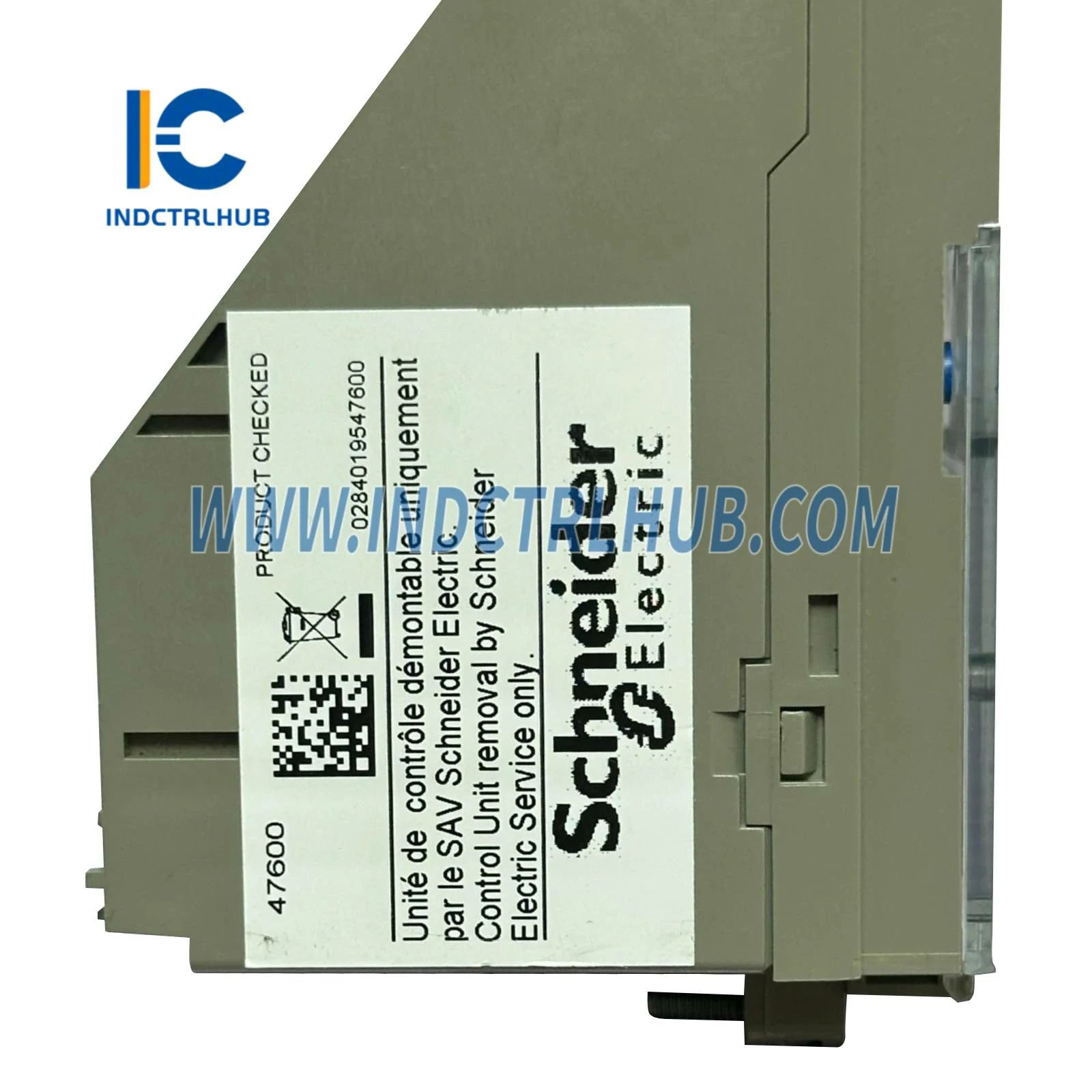

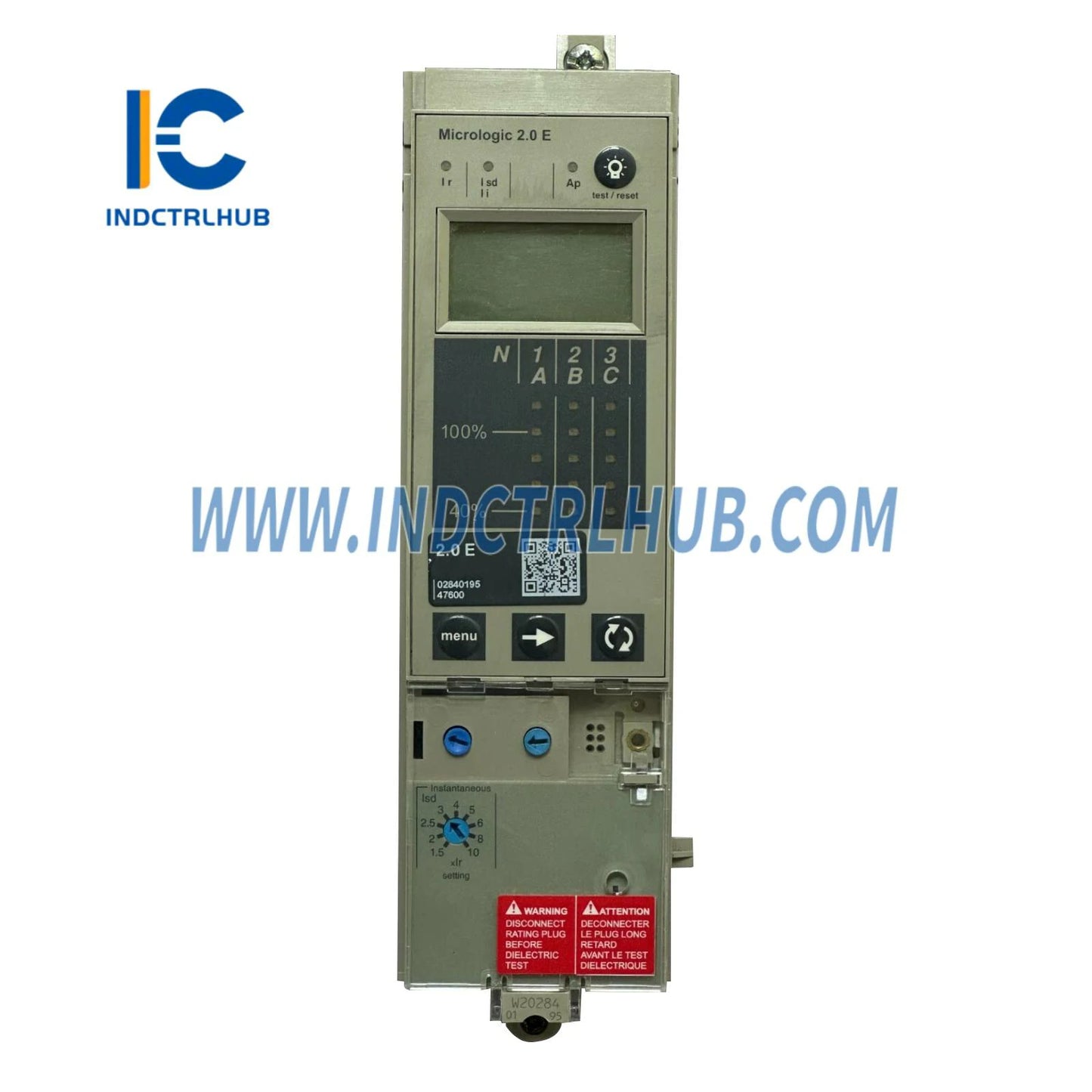

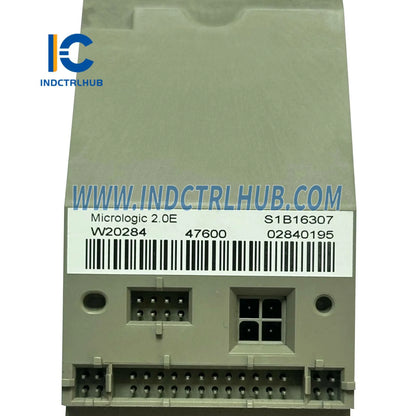

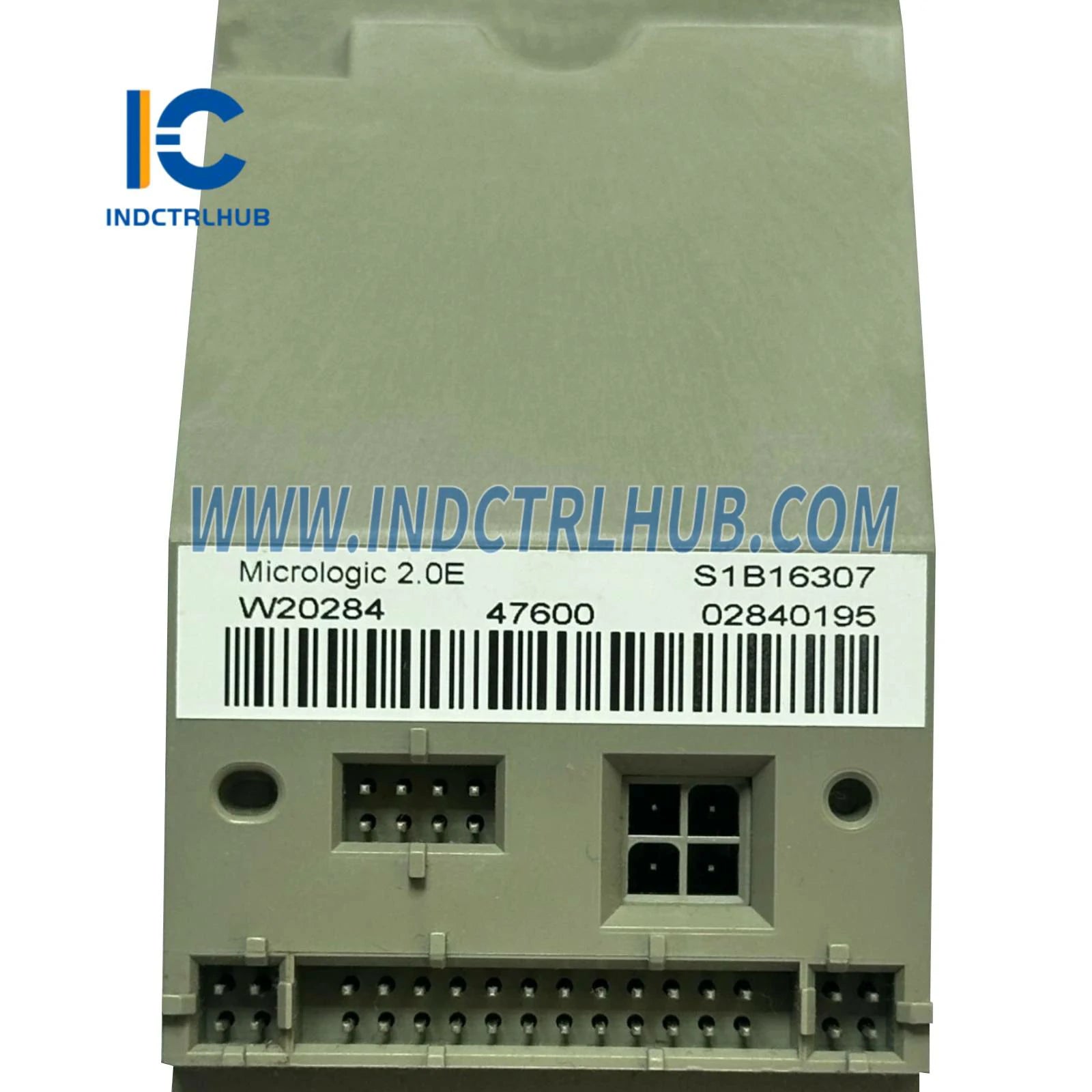

Control unit MicroLogic 2.0E, MasterPact NT/NW, basic protections LI, energy meter measurement |
Specifications
Main Specifications
|
Parameter |
Value |
|---|---|
|
Product Type |
Control unit |
|
Trip Unit Name |
MicroLogic 2.0 E |
|
Trip Unit Technology |
Electronic |
|
Compatible Ranges |
MasterPact NT, NW, MT; Compact NS |
|
Application |
Distribution |
|
Number of Poles |
3P, 4P |
|
Protected Poles Description |
3t, 4t, 3t + N/2 |
|
Trip Unit Protection Functions |
Basic protection |
|
Protection Types |
Overload (long-time), Instantaneous short-circuit |
|
Trip Unit Rating (at 50°C) |
630 A to 6300 A |
|
Network Type |
AC |
|
Network Frequency |
50/60 Hz |
|
Mounting Mode |
Fixed, Drawout |
Protection Settings
|
Parameter |
Value |
|---|---|
|
Long-Time Pickup (Ir) Adjustment Type |
Adjustable (9 settings) |
|
Long-Time Pickup Adjustment Range |
0.4 to 1 x In |
|
Long-Time Delay (tr) Adjustment Type |
Adjustable (9 settings) |
|
Long-Time Delay Adjustment Range |
- 0.7–16.6 s @ 7.2 x Ir- 0.7–24 s @ 6 x Ir- 12.5–600 s @ 1.5 x Ir |
|
Thermal Memory |
20 minutes |
|
Instantaneous Pickup (Ii) Adjustment Type |
Adjustable (9 settings) |
|
Instantaneous Pickup Adjustment Range |
1.5 to 10 x Ir |
|
Earth-Leakage Protection |
Without |
|
Zone Selective Interlocking (ZSI) |
Without |
Display & Communication
|
Parameter |
Value |
|---|---|
|
Local Signaling |
3 red LEDs (electrical fault), 1 red LED (internal error) |
|
Display Type |
Digital |
|
Measurement Capability |
Energy meter |
|
Data Communication |
For measurement readout, protection, and alarm settings |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
-25 to 70 °C |
|
Storage Temperature |
-40 to 85 °C |
Packing Information
|
Parameter |
Package 1 |
Package 2 |
|---|---|---|
|
Unit Type |
PCE |
S03 |
|
Number of Units |
1 |
15 |
|
Height |
6.6 cm |
30.0 cm |
|
Width |
8.0 cm |
30.0 cm |
|
Length |
21.7 cm |
40.0 cm |
|
Weight |
273.0 g |
4.522 kg |
