Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |

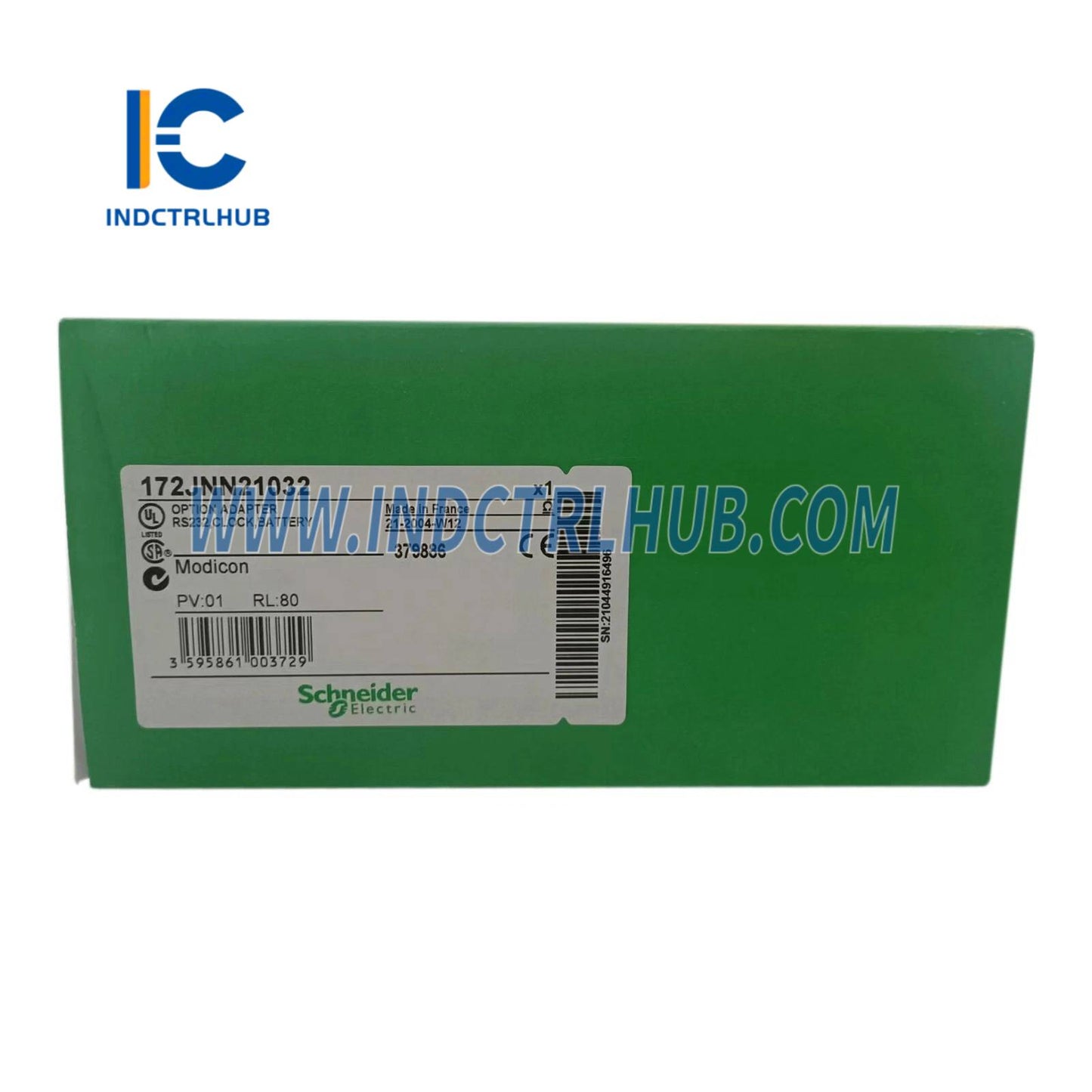

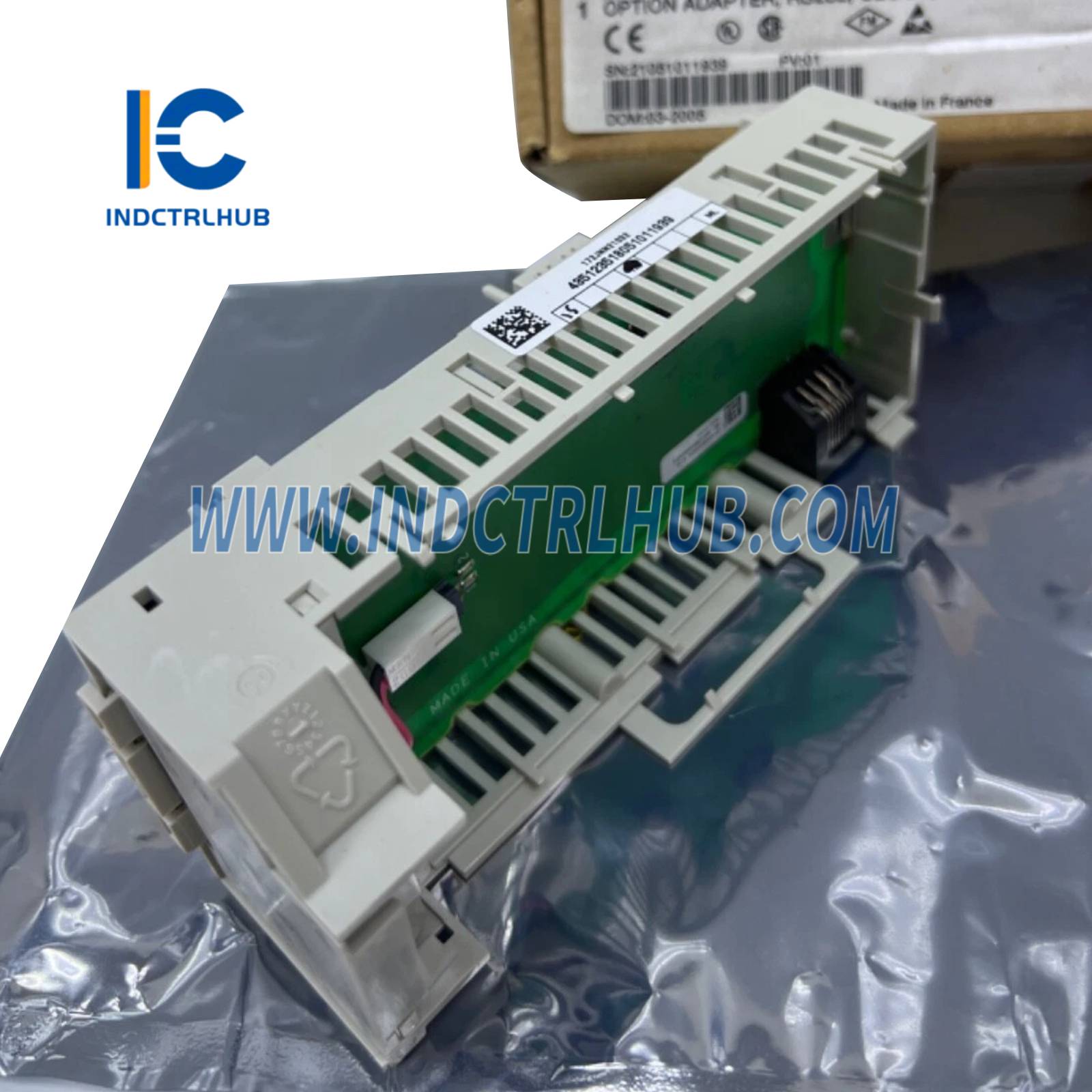

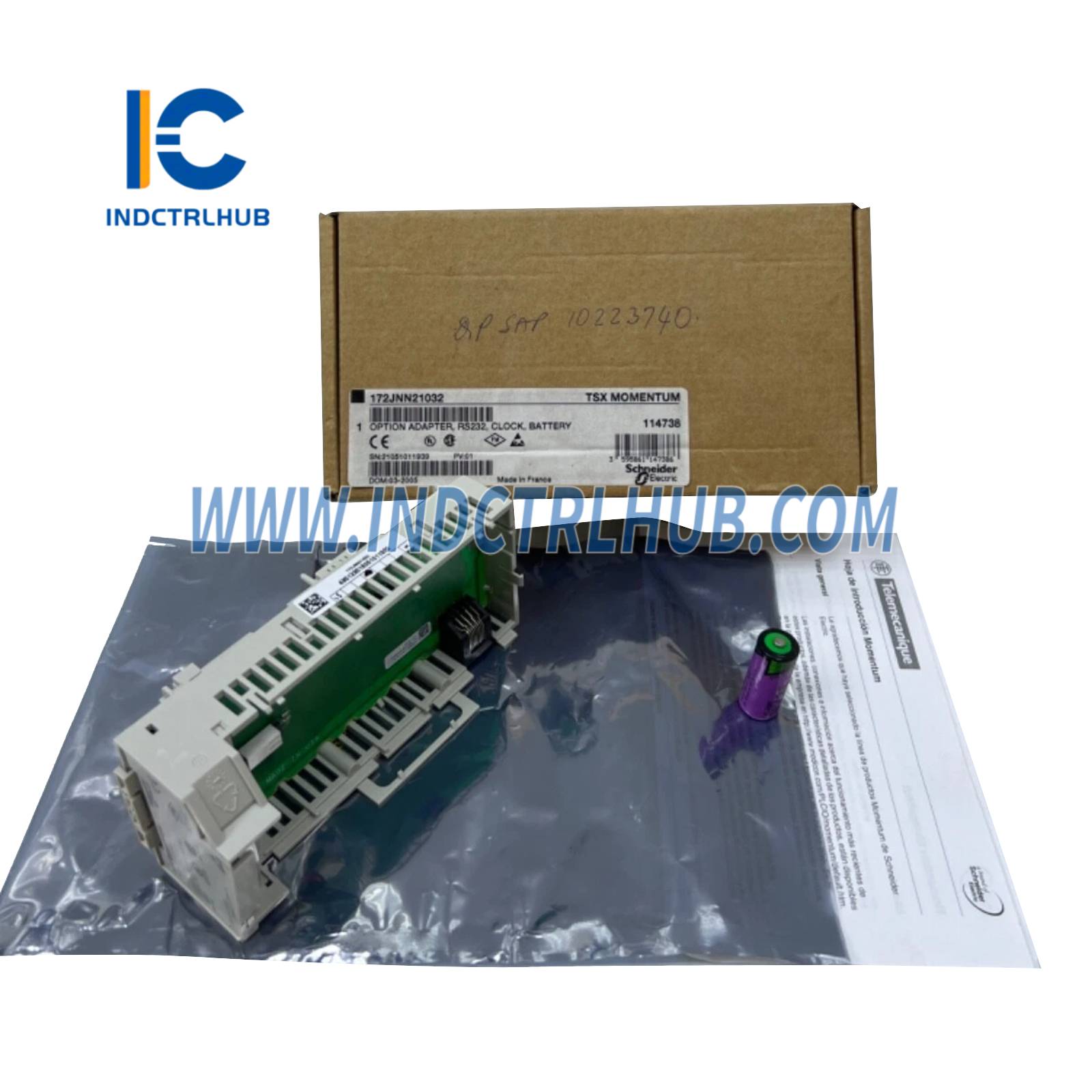

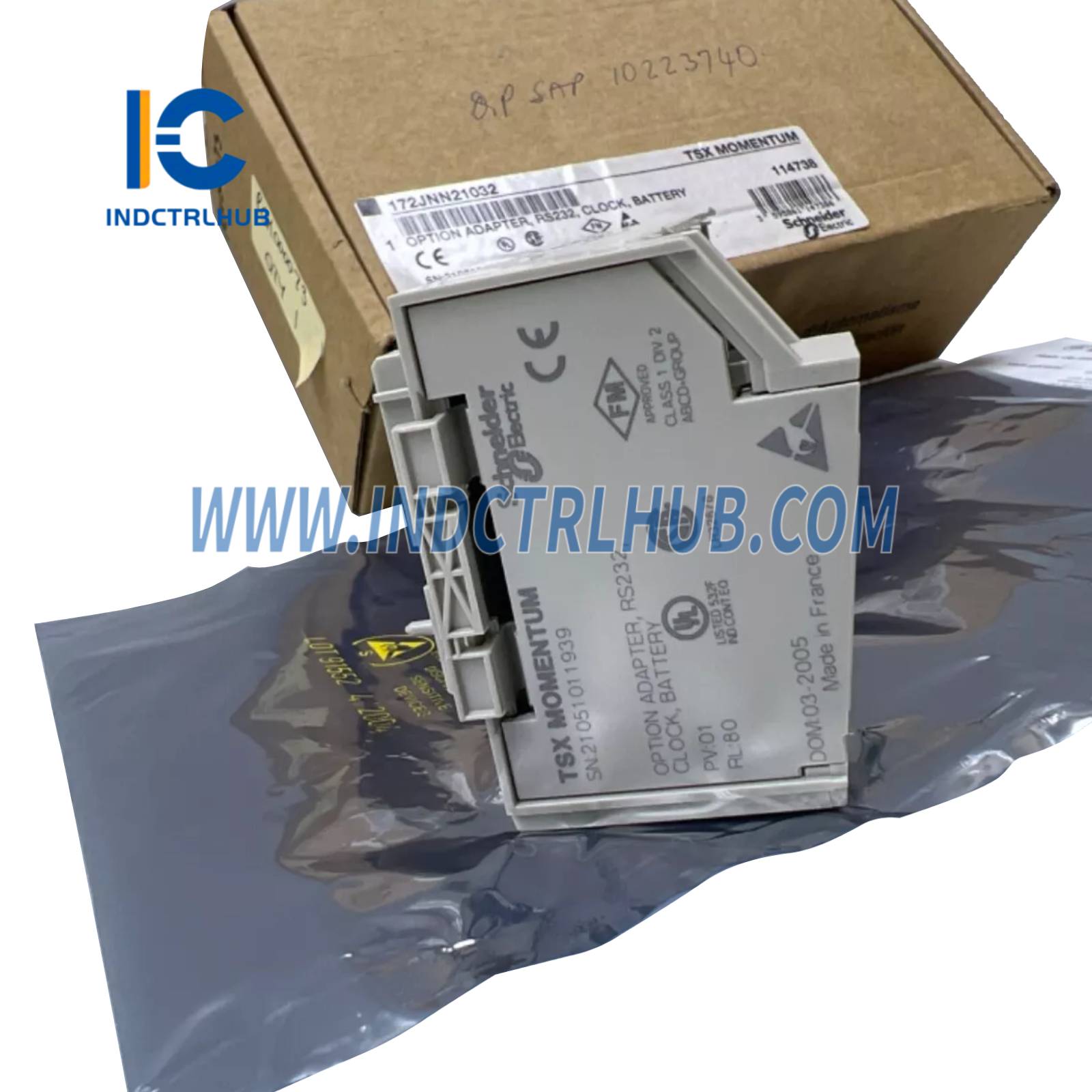

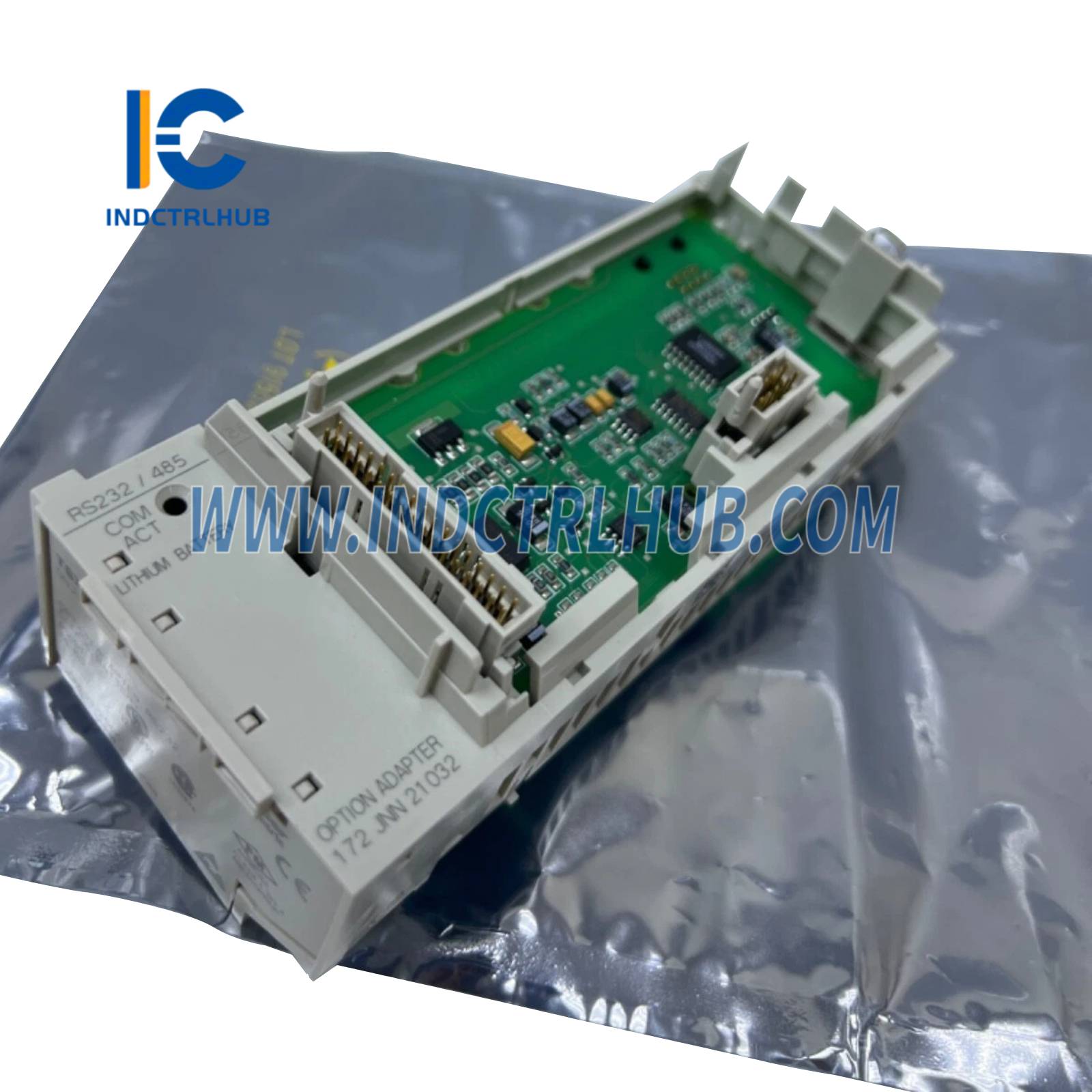

172JNN21032 |
|
Description |
Modicon Momentum - Serial Link Option Adaptor - Single Port |
Specifications
Main Specifications
|
Parameter |
Value |
|---|---|
|
Range of Product |
Modicon Momentum automation platform |
|
Product or Component Type |
Serial Link Option Adaptor |
|
Number of Ports |
1 |
|
Communication Port Type |
Single |
Complementary Specifications
|
Parameter |
Value |
|---|---|
|
Rated Supply Voltage [Us] |
5 V DC |
|
Input Voltage Tolerance |
±5% |
|
Power Supply |
Via I/O base |
|
Clock Drift |
±13 s/day |
|
Battery Type |
Lithium (2/3 AA), <30 days autonomy after low battery indication |
|
Battery Life |
5 years |
|
Communication Port Support |
RS232 or RS485 (selectable) |
|
Electrical Connection |
1 D-shell 9-pin connector for Modbus Plus |
|
Local Signaling |
1 LED (communication indicator) |
|
Current Consumption |
700 mA at 12 V DC |
|
Material |
Lexan |
|
Marking |
CE |
|
Module Format |
Standard |
|
Dimensions (H x W x D) |
25 mm x 143.1 mm x 60.06 mm |
|
Net Weight |
85.05 g |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Dielectric Strength |
500 V DC |
|
Protection Degree (IP) |
IP20 (IEC 529) |
|
Protective Treatment |
Conformal coating (Humiseal 1A33, TC) |
|
Shock Resistance |
±15 gn (11 ms, half sine wave) |
|
Vibration Resistance |
1 gn (57…150 Hz), 0.075 mm (10…57 Hz) |
|
ESD Resistance |
8 kV (air, IEC 801-2) |
|
EMI Resistance |
10 V/m (80–1000 MHz, IEC 801-3) |
|
Operating Temperature |
0 to 60 °C |
|
Storage Temperature |
-40 to 85 °C |
|
Relative Humidity |
5 to 95% (non-condensing) |
|
Operating Altitude |
≤ 2000 m |
|
Certifications |
UL, CSA, NEMA Type 1 |
|
Standards |
IEC 529 |
Packing Information
|
Parameter |
Package 1 |
Package 2 |
|---|---|---|
|
Unit Type |
PCE |
S03 |
|
Number of Units per Package |
1 |
12 |
|
Height |
7.0 cm |
30 cm |
|
Width |
11.0 cm |
30 cm |
|
Length |
21.0 cm |
40 cm |
|
Weight |
227.0 g |
3.239 kg |
