Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
171CCC96030 |
|
Description |

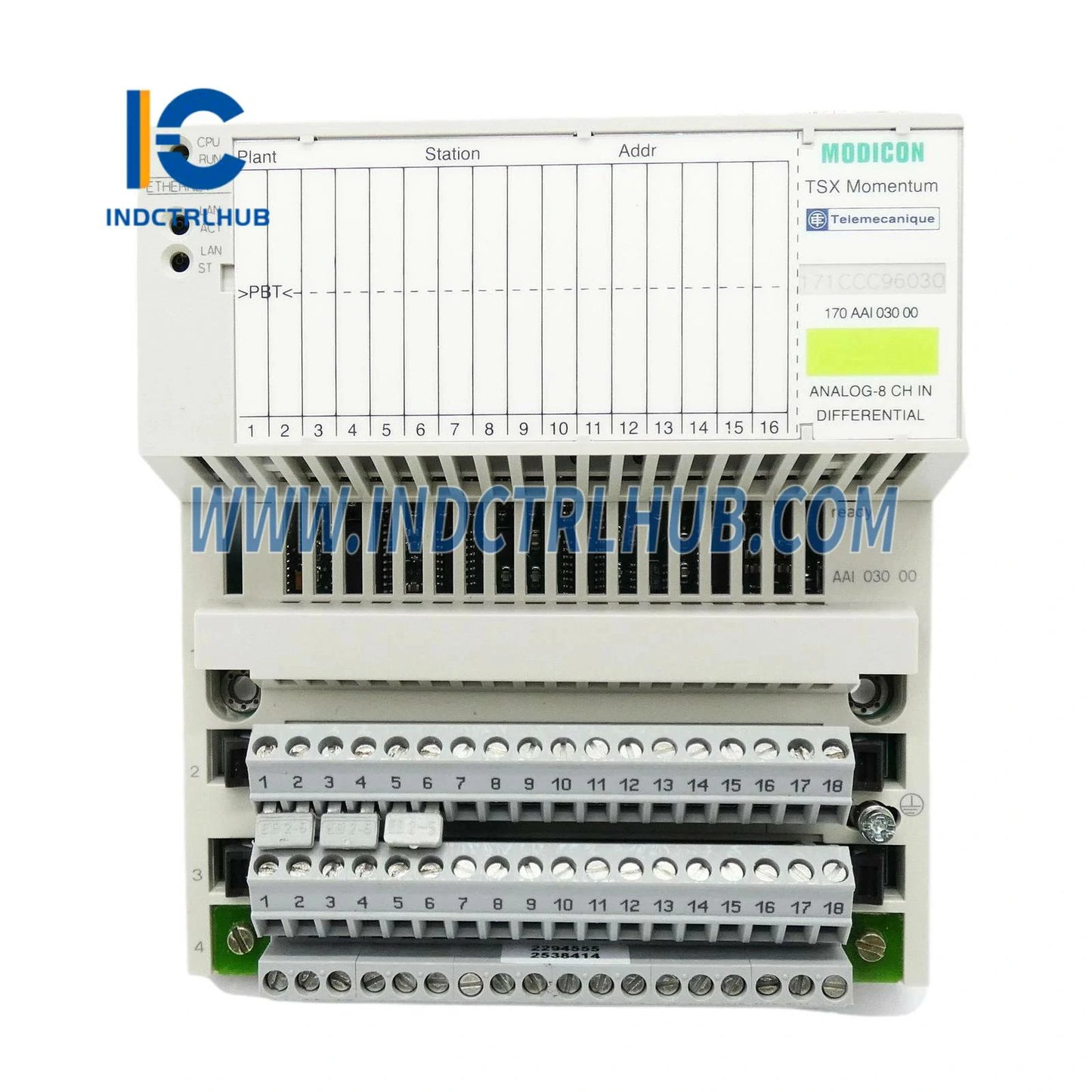

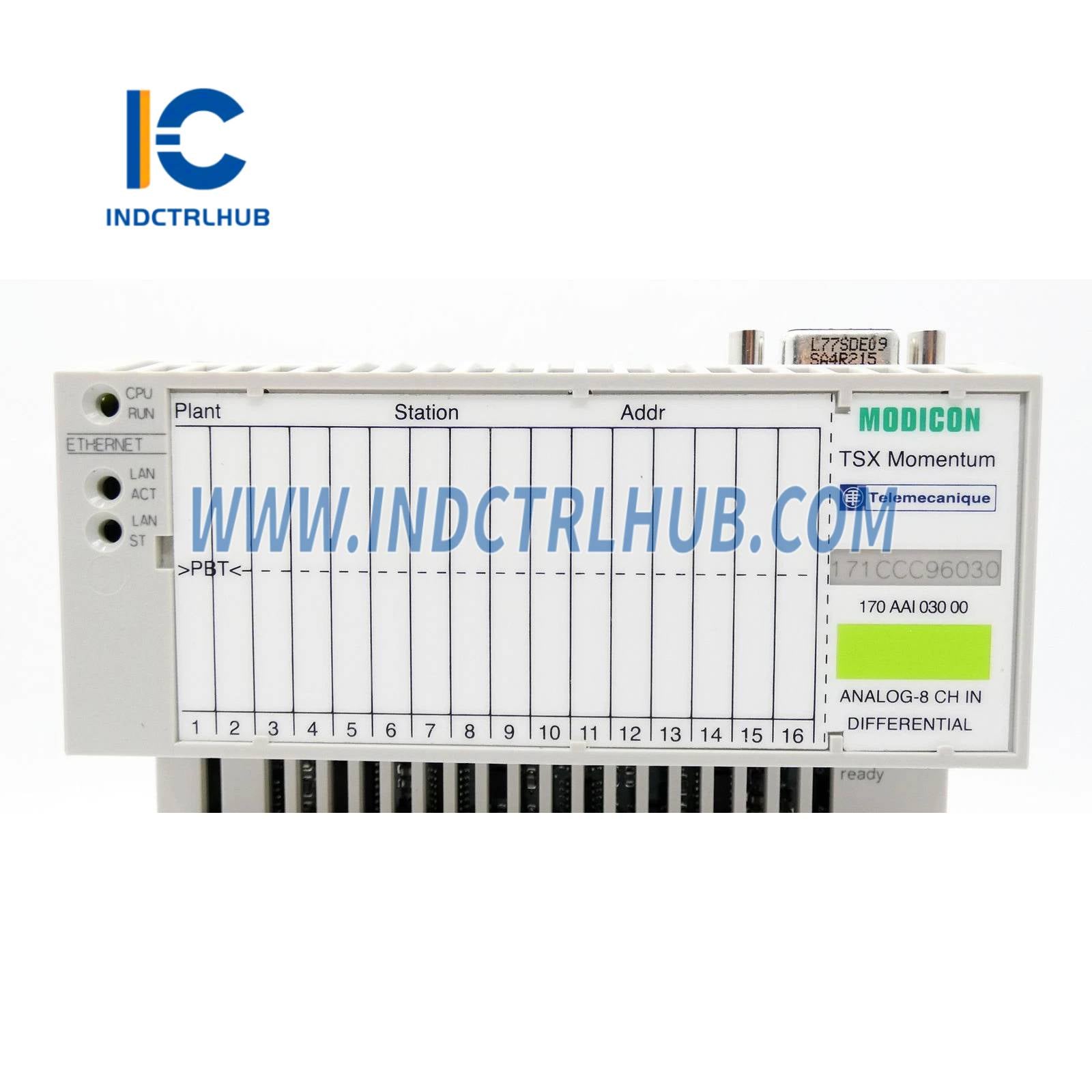

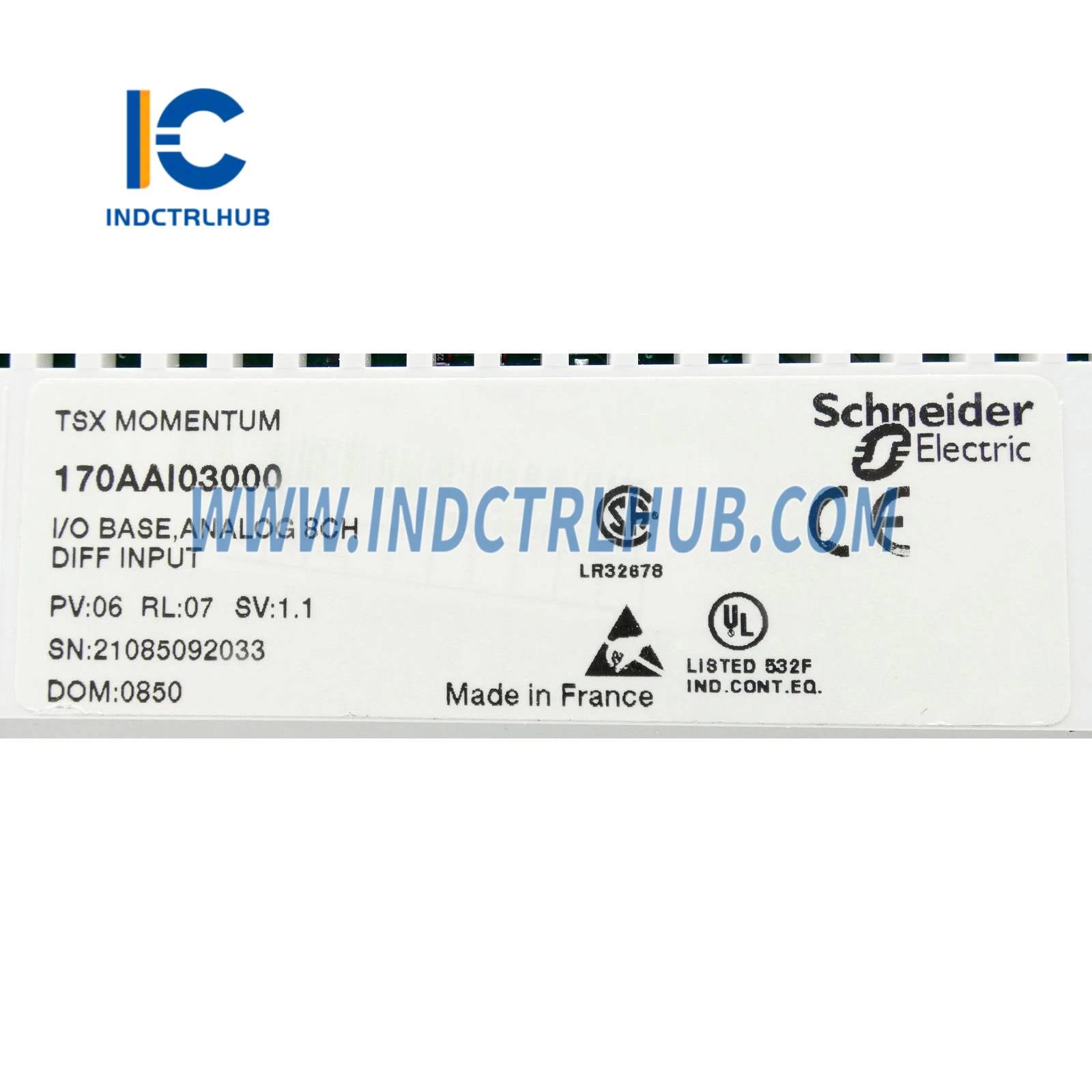

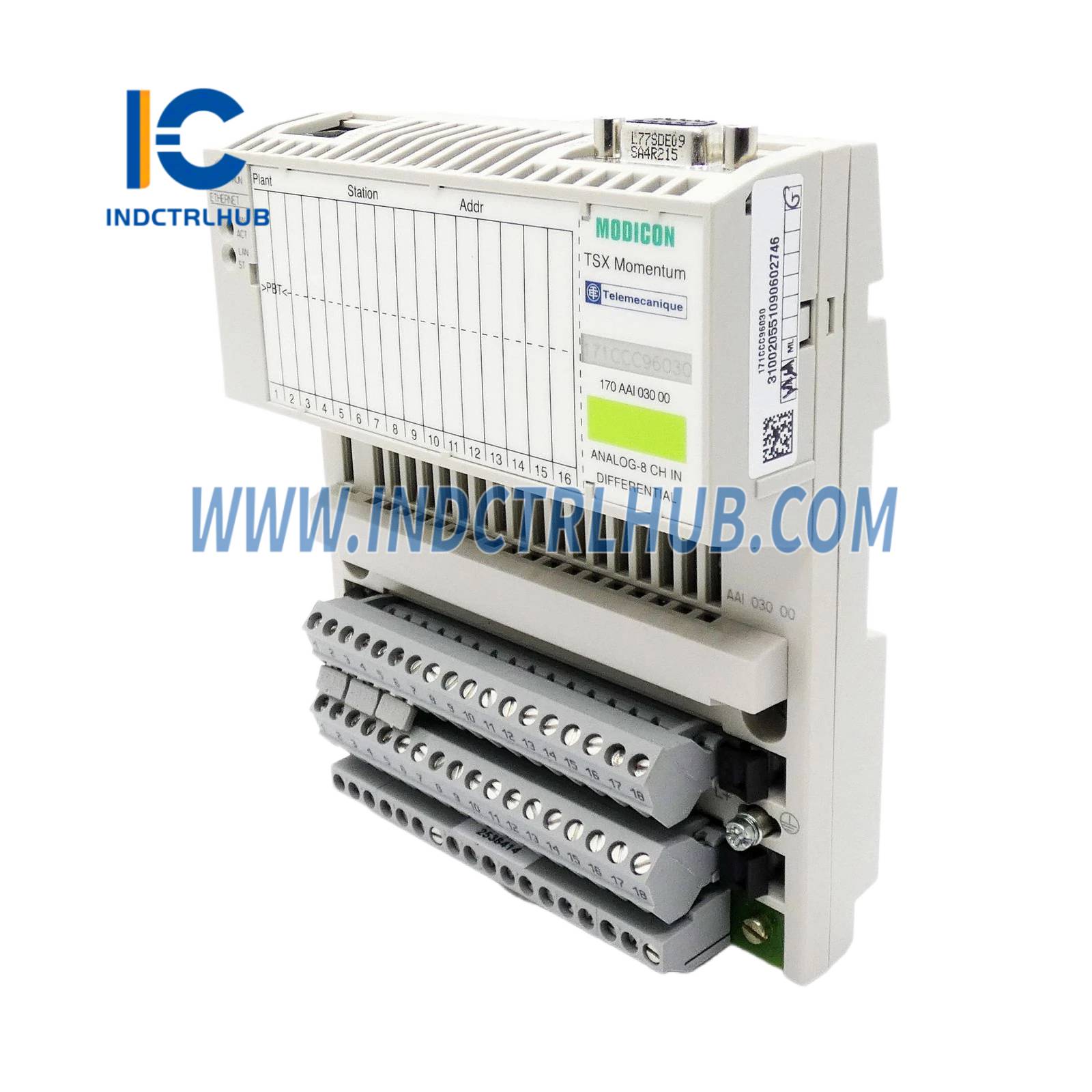

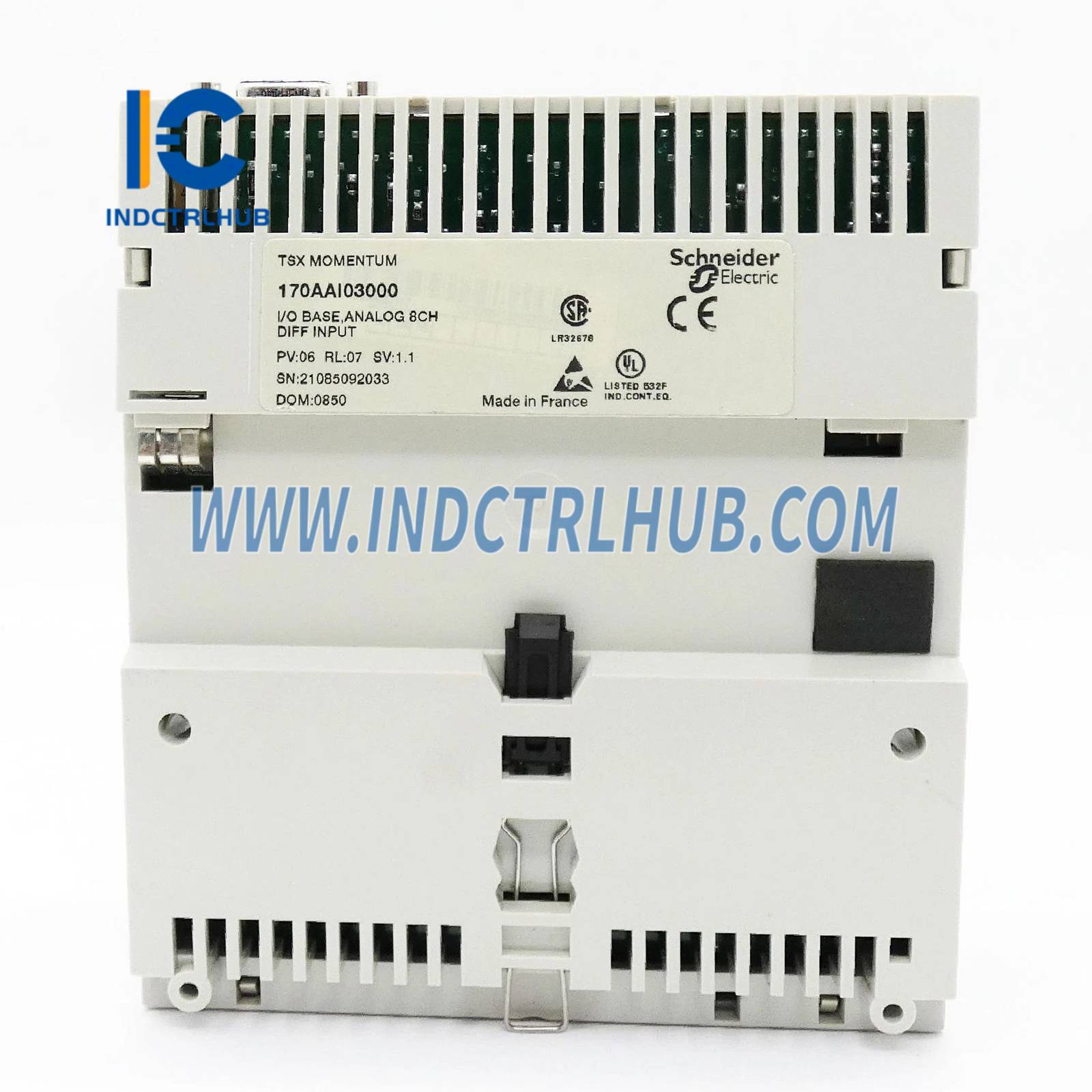

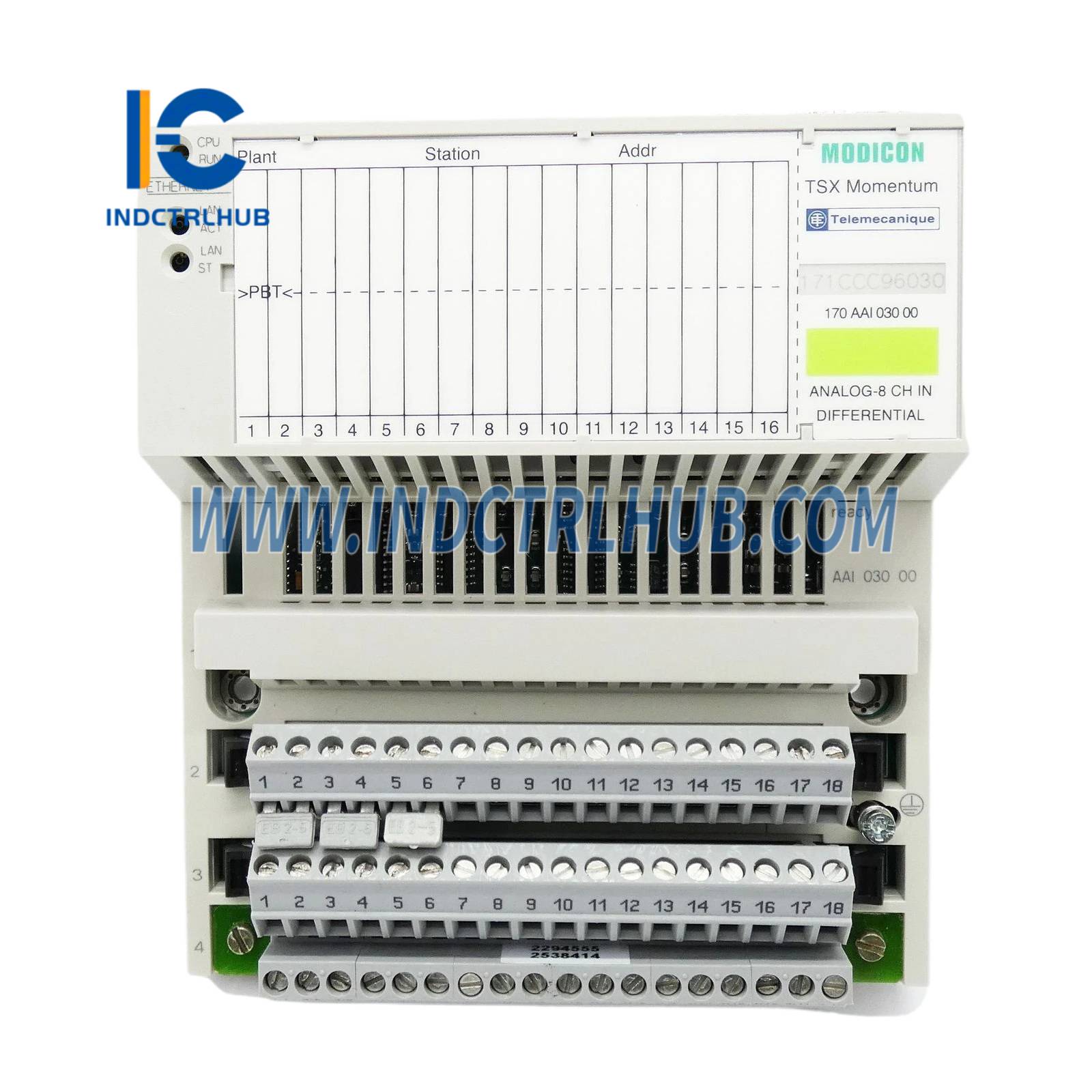

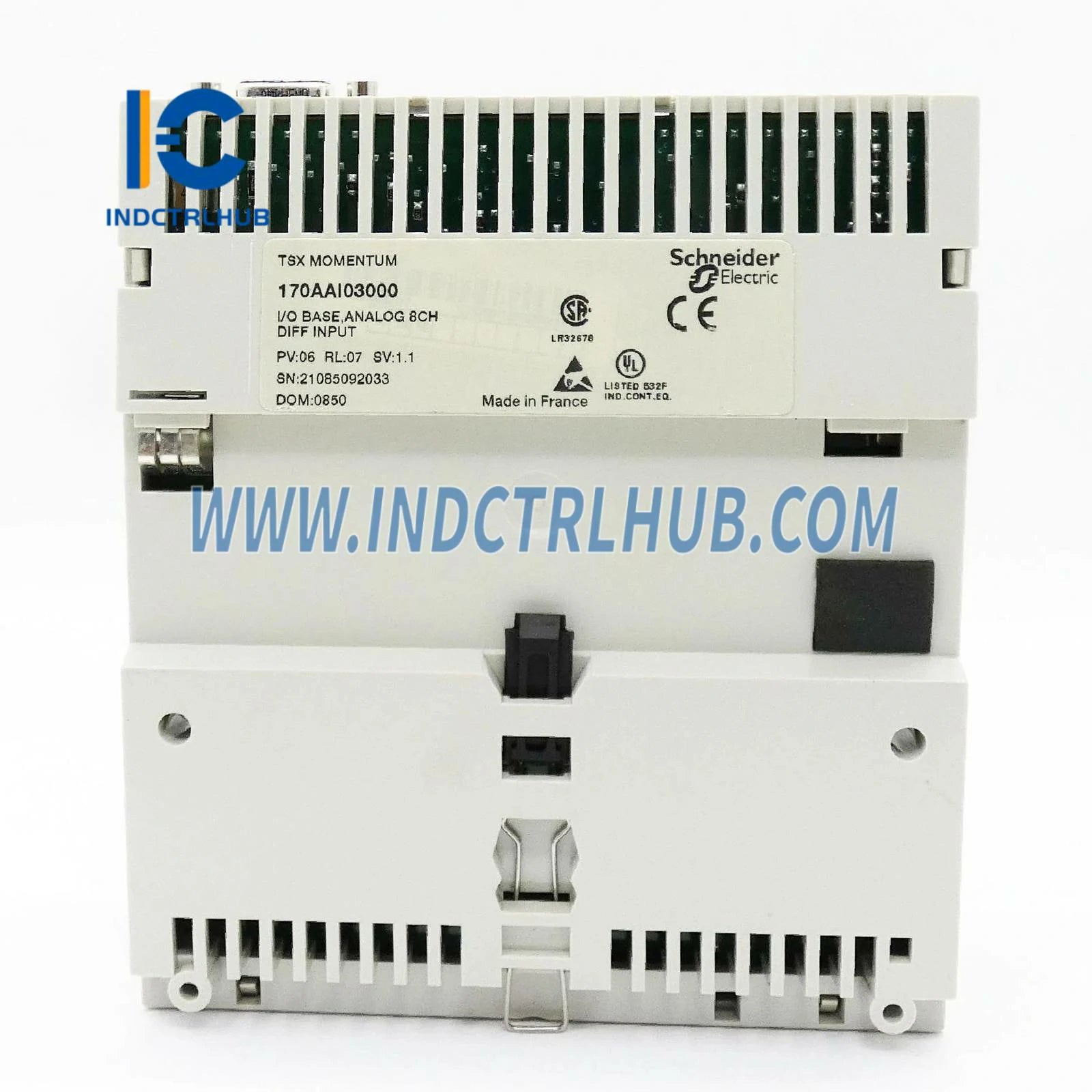

M1/M1E processor adaptor, Modicon Momentum, Transparent Ready, 544kB RAM, Ethernet |
Specifications
Main Specifications
|
Parameter |
Value |
|---|---|
|
Range of Product |
Modicon Momentum automation platform |
|
Product or Component Type |
M1/M1E processor adaptor |
|
Concept |
Transparent Ready |
|
Level or Class |
Class B10 |
|
Software Designation |
Concept v2.6, Modsoft ≥ v2.5, ProWORX NxT v2.0, ProWORX 32 |
|
Communication Protocol |
Ethernet |
|
Processor Name |
X86-based (INTEL, AMD), IEC executive |
|
Clock Frequency |
50 MHz |
Complementary Specifications
|
Parameter |
Value |
|---|---|
|
Web Services |
Rack viewer, Web page loader software tool, Data editor |
|
Ethernet Service |
I/O scanning, Modbus TCP messaging |
|
Discrete I/O Processor Capacity |
8192 inputs / 8192 outputs |
|
Register I/O Processor Capacity |
26048 inputs / 26048 outputs |
|
I/O Limit Processor Capacity |
8192 bits max |
|
I/O Words per Drop |
128 (Concept), 80 (ProWORX) |
|
Memory Type |
1 MB flash, 544 kB RAM |
|
Memory Description |
18 kB LL984 program, 200 kB IEC program, 24 kB data |
|
Word Length |
16 bit |
|
Supply Voltage |
5.0 V DC ±5% |
|
Power Supply Source |
From Momentum I/O base |
|
Execution Time per Kinstruction |
1 ms |
|
Number of Ports |
1 I/O bus, 1 Ethernet |
|
Material |
Lexan |
|
Marking |
CE |
|
Net Weight |
0.042 kg |
Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Protective Treatment |
TC |
|
Operating Ambient Temperature |
0 to 60 °C |
|
Storage Ambient Temperature |
-40 to 85 °C |
|
Relative Humidity |
5 to 96% (non-condensing) |
|
Operating Altitude |
Up to 2000 m |
|
Shock Resistance |
≤ 15 gn, 11 ms half-sine wave |
|
Vibration Resistance |
1 gn, 0.75 mm (double amplitude) |
|
Product Certifications |
UL, cUL, FM Class 1 Division 2, NEMA 250 |

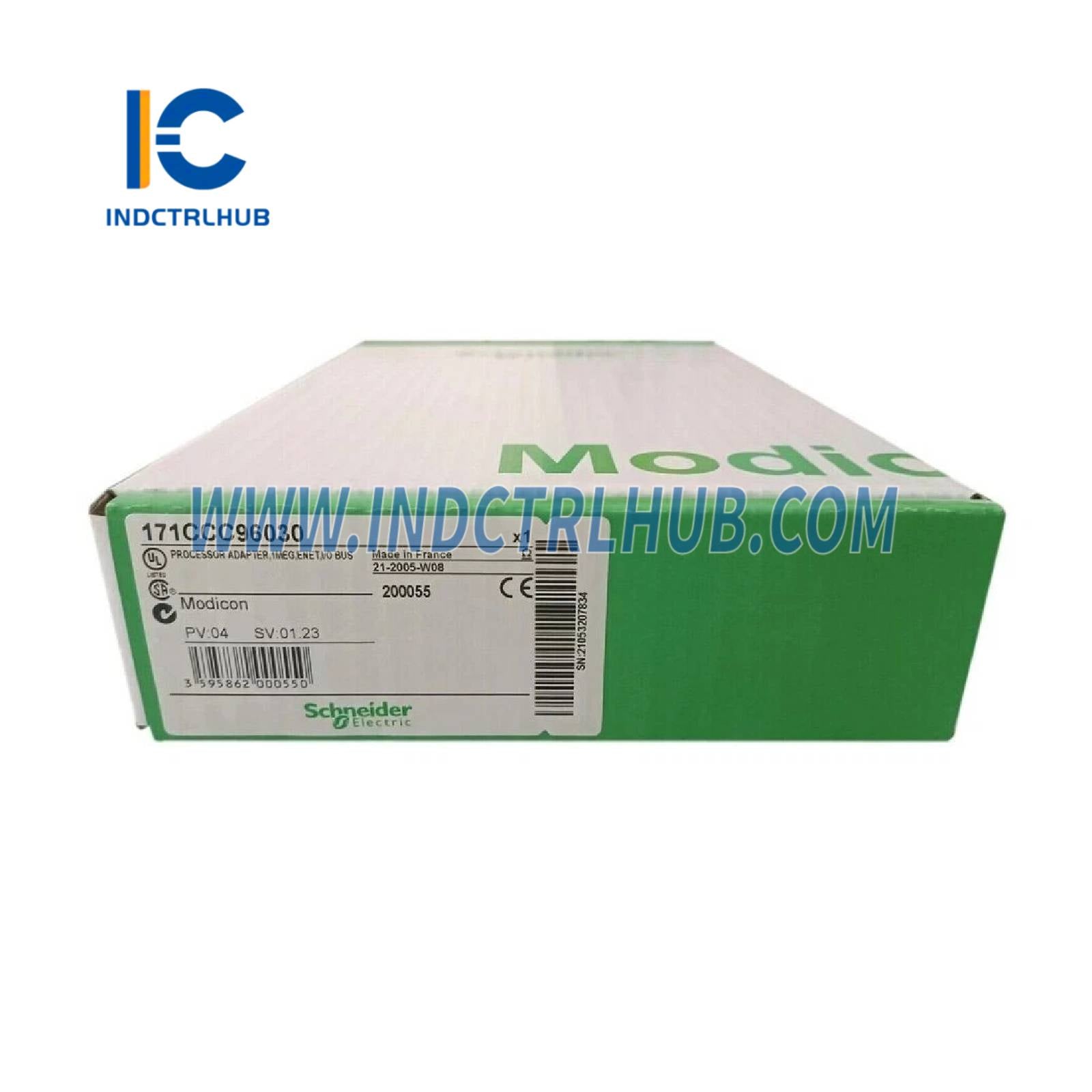

Packing Information
|
Parameter |
Package 1 |
Package 2 |
Package 3 |
|---|---|---|---|
|
Unit Type |
PCE |
S02 |
S03 |
|
Number of Units per Package |
1 |
4 |
8 |
|
Height |
6 cm |
15 cm |
30 cm |
|
Width |
18 cm |
30 cm |
30 cm |
|
Length |
26 cm |
40 cm |
40 cm |
|
Weight |
197 g |
1.122 kg |
2.203 kg |
