Manufacturer: Schneider Electric

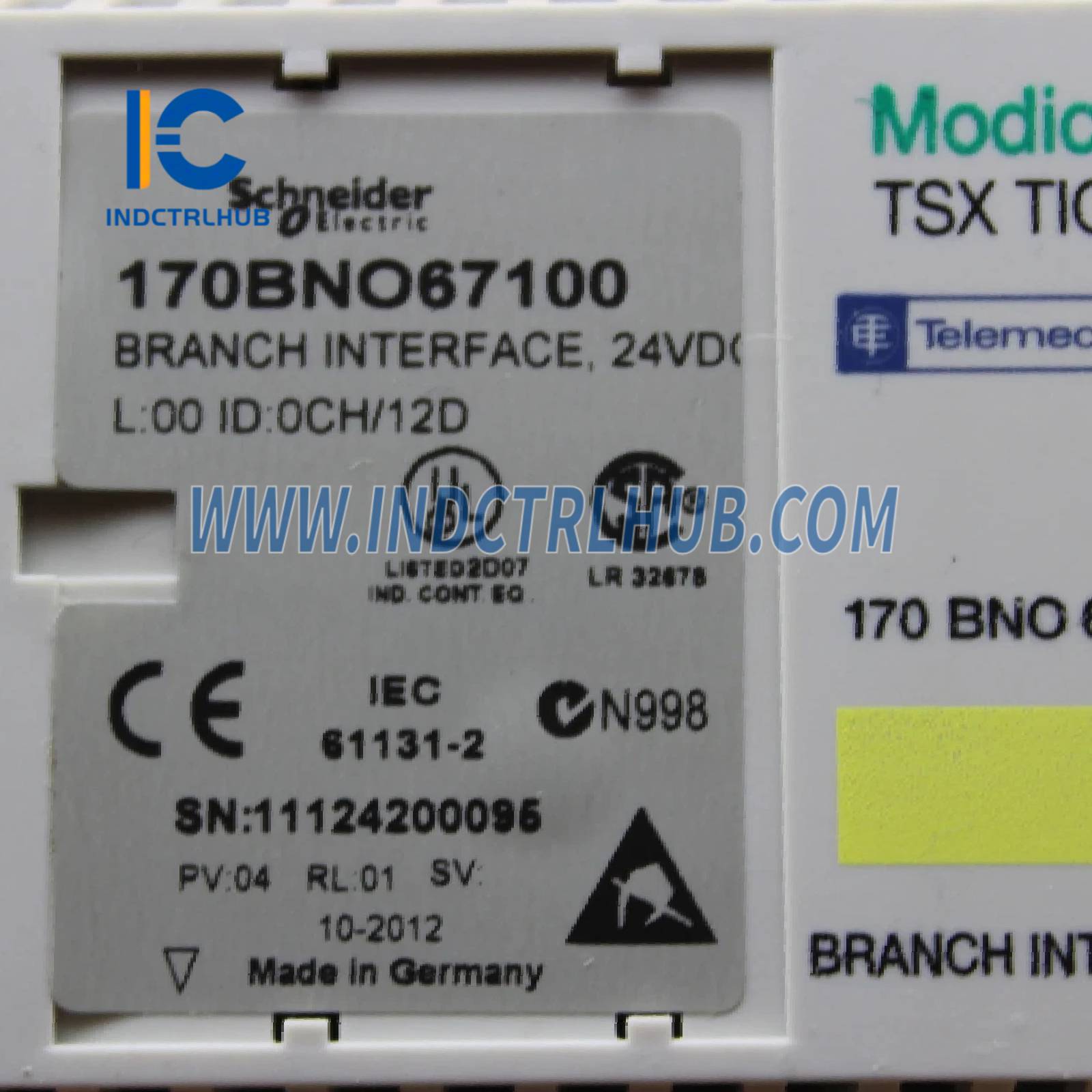

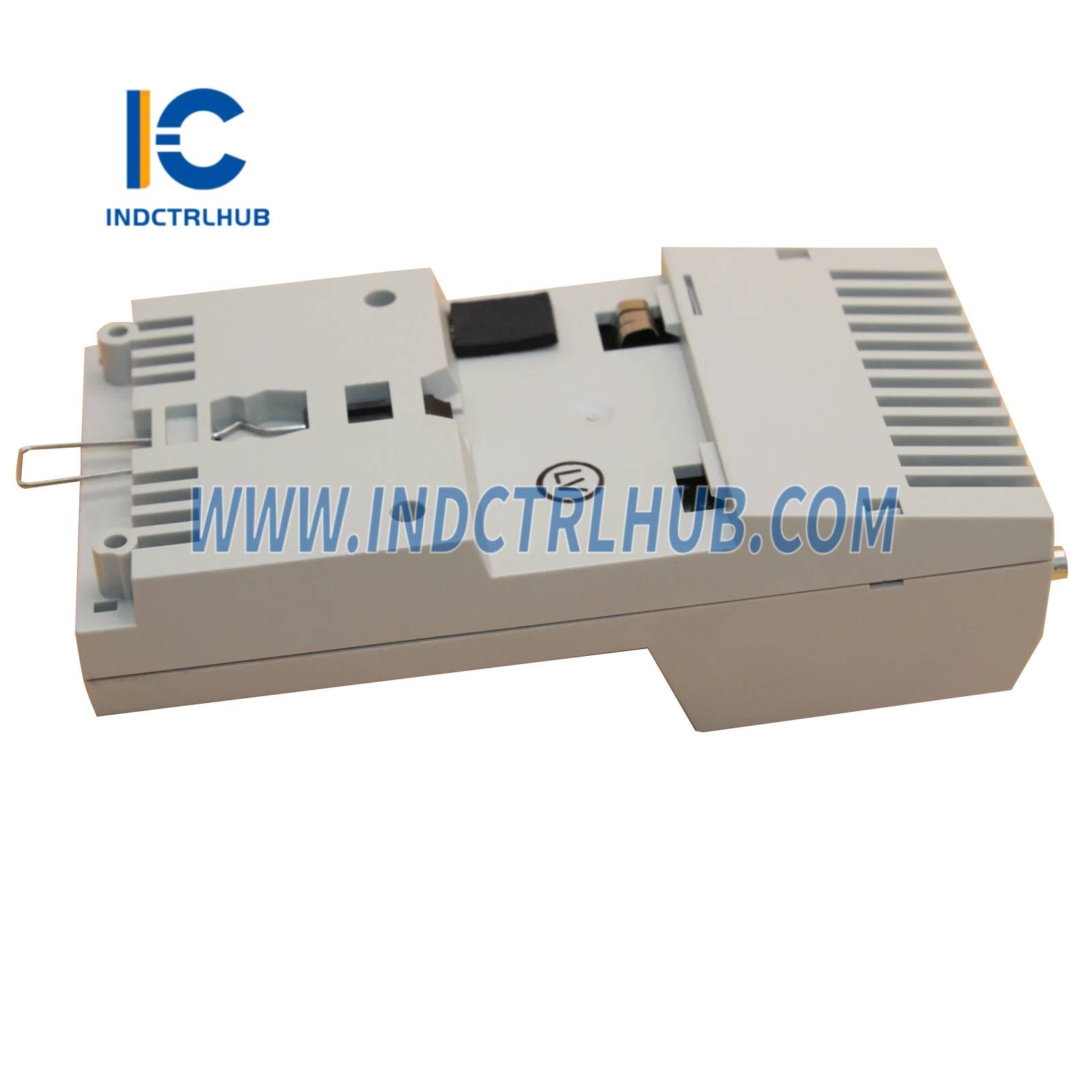

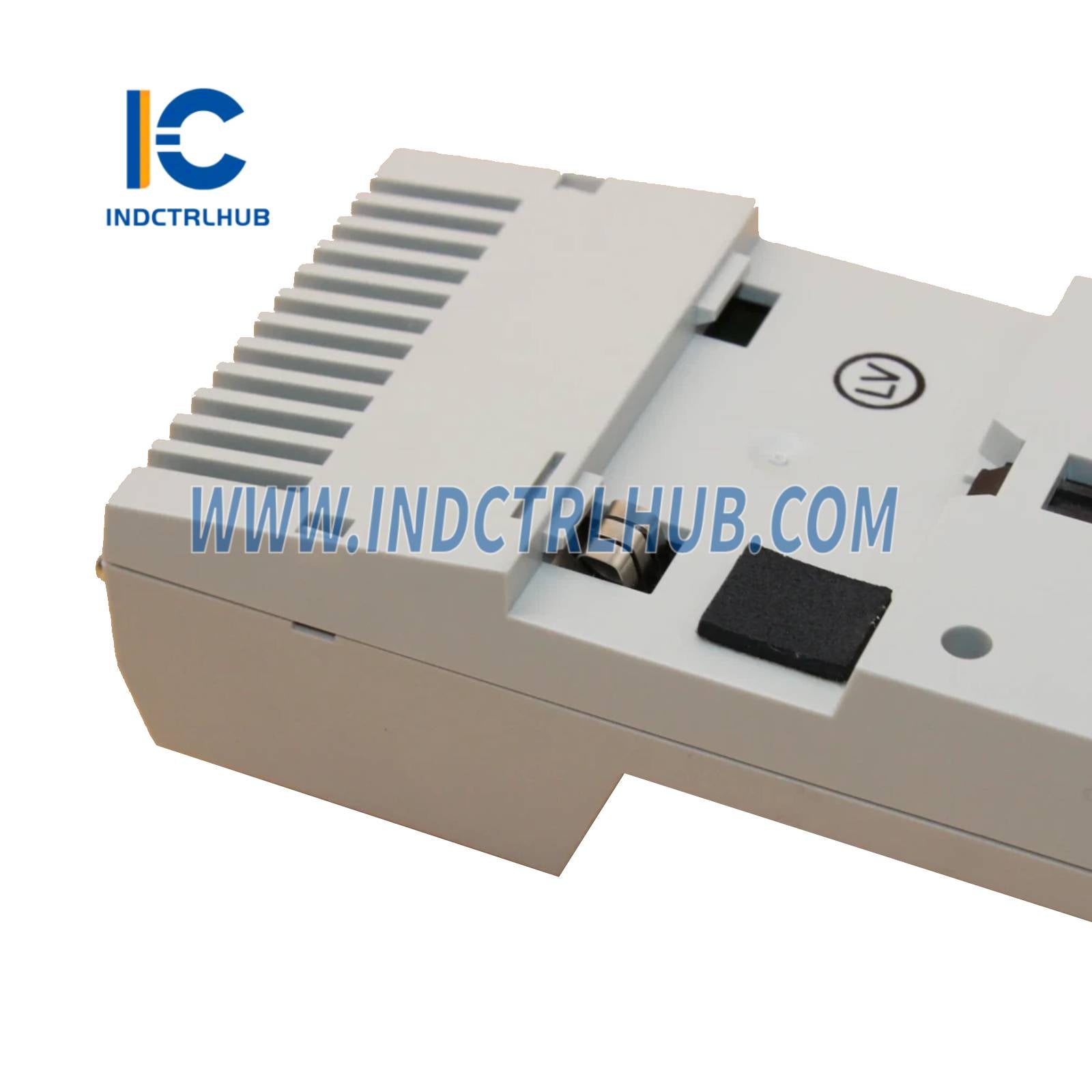

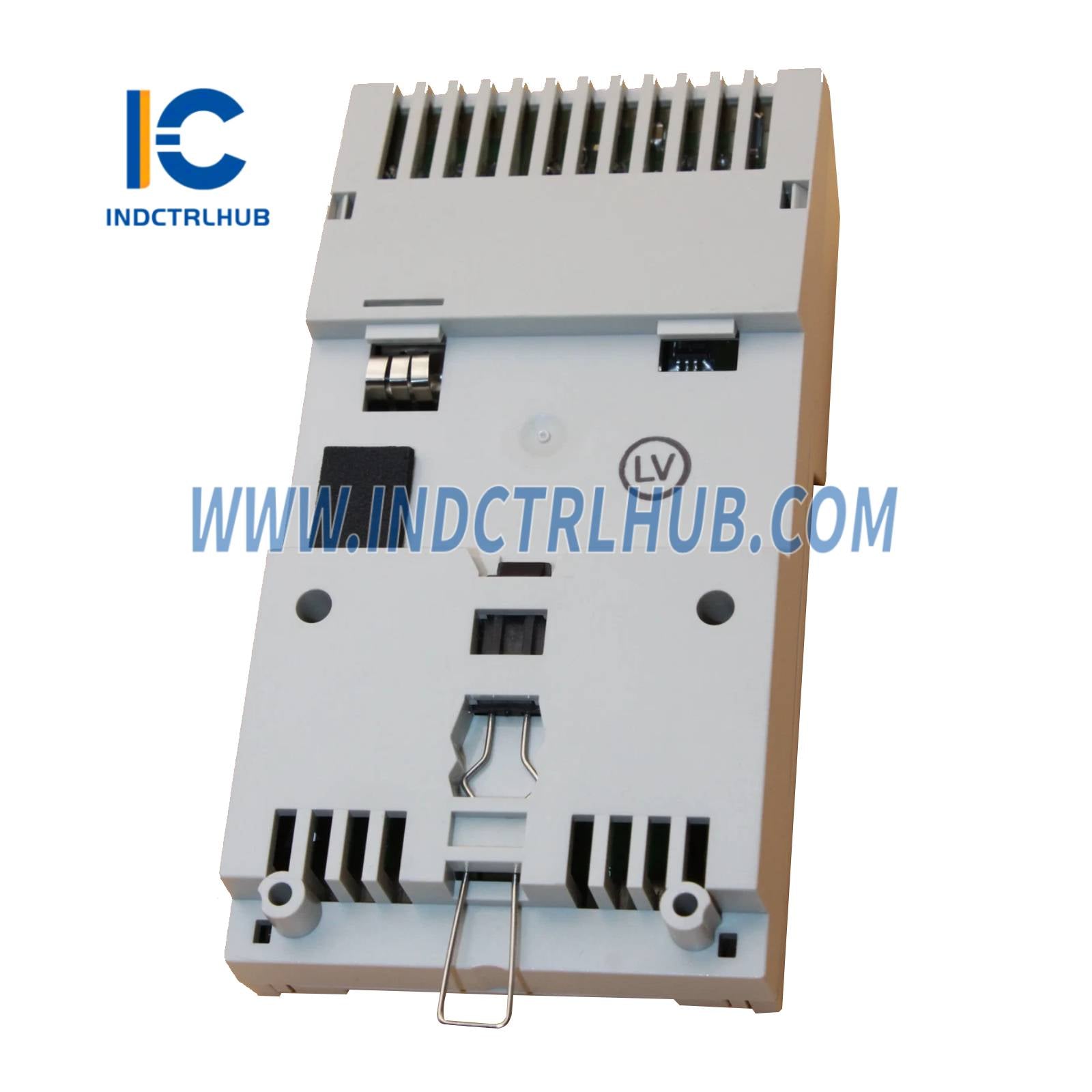

Model/Part Number: 170BNO67100

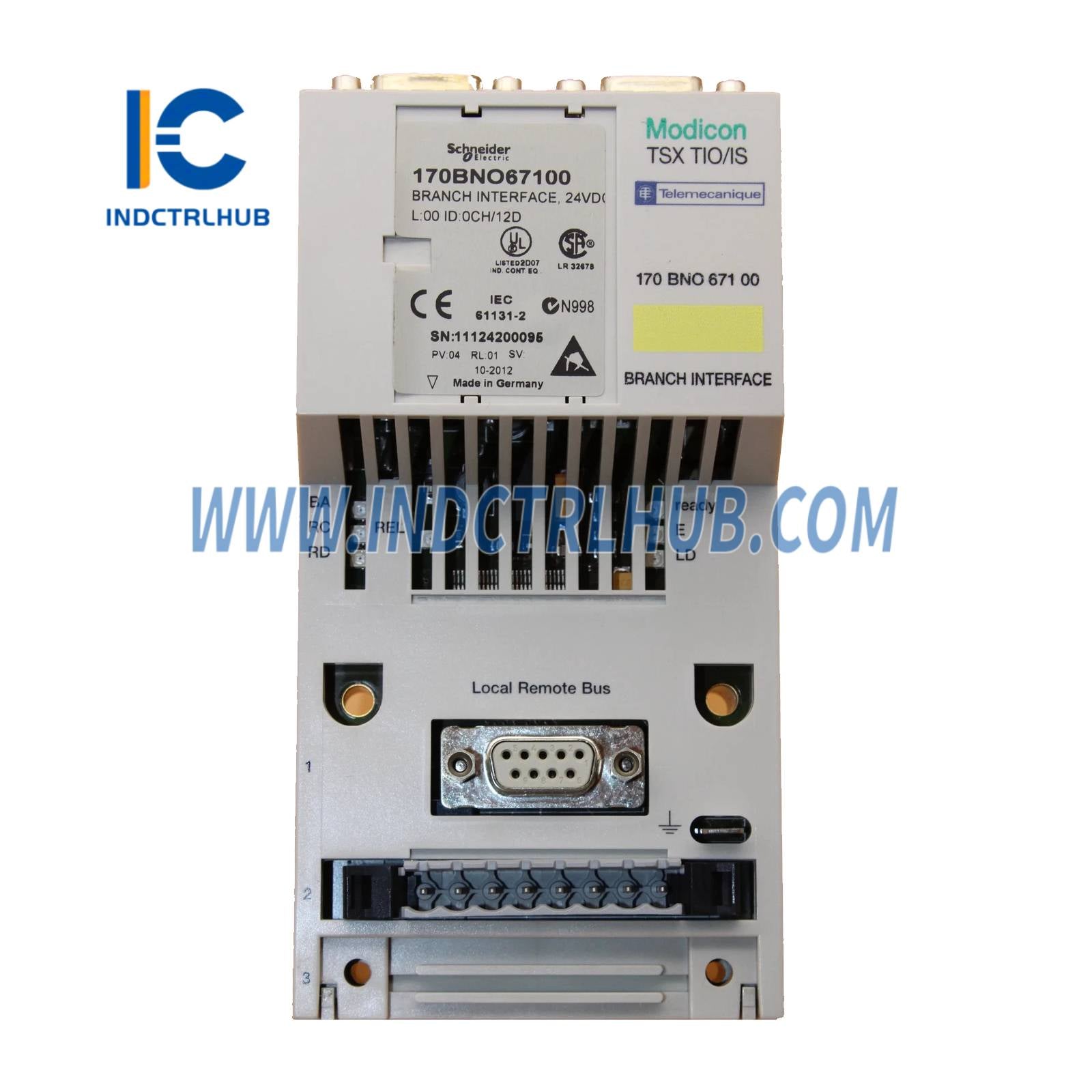

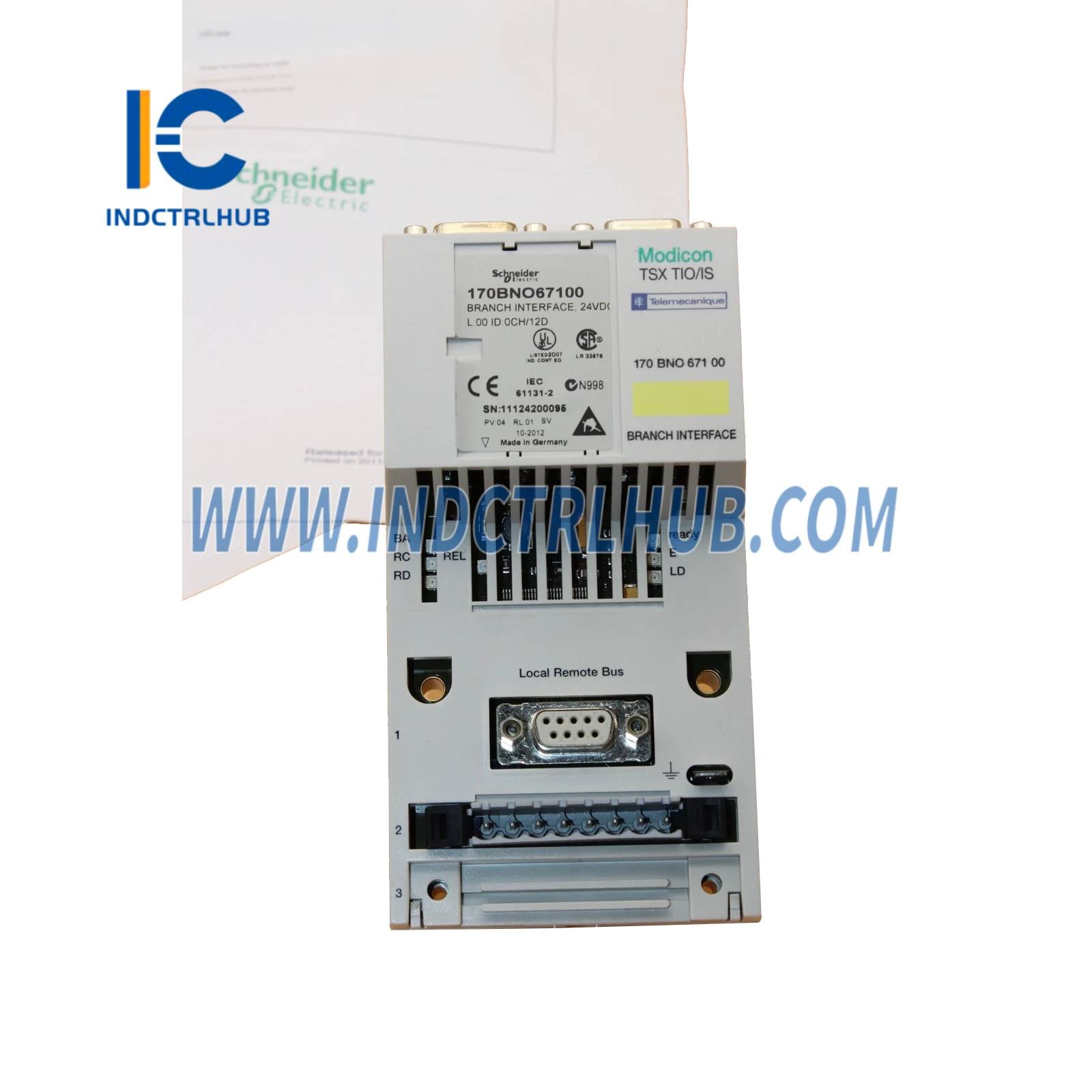

Description: Branch interface for Interbus communication adaptor - 24 V DC
Specifications
Main Specifications
|
Category |
Details |
|---|---|
|
Range of Product |
Modicon Momentum automation platform |
|
Accessory/Separate Part Designation |
Branch interface |
|
Accessory/Separate Part Type |
Interface |
|
Accessory/Separate Part Category |
Connection accessories |
|
Accessory/Separate Part Destination |
Interbus communication adaptor |
|
Communication Port Protocol |
Interbus generation SUPI 2 |
Electrical Characteristics
|
Category |
Details |
|---|---|
|
Rated Supply Voltage |
24 V DC |
|
Output Current Limits |
0.2…2 A |
|
Power Dissipation |
2.5 W |
|
Current Consumption |
100 mA |
Connection & Signaling
|
Category |
Details |
|---|---|
|
Electrical Connection |

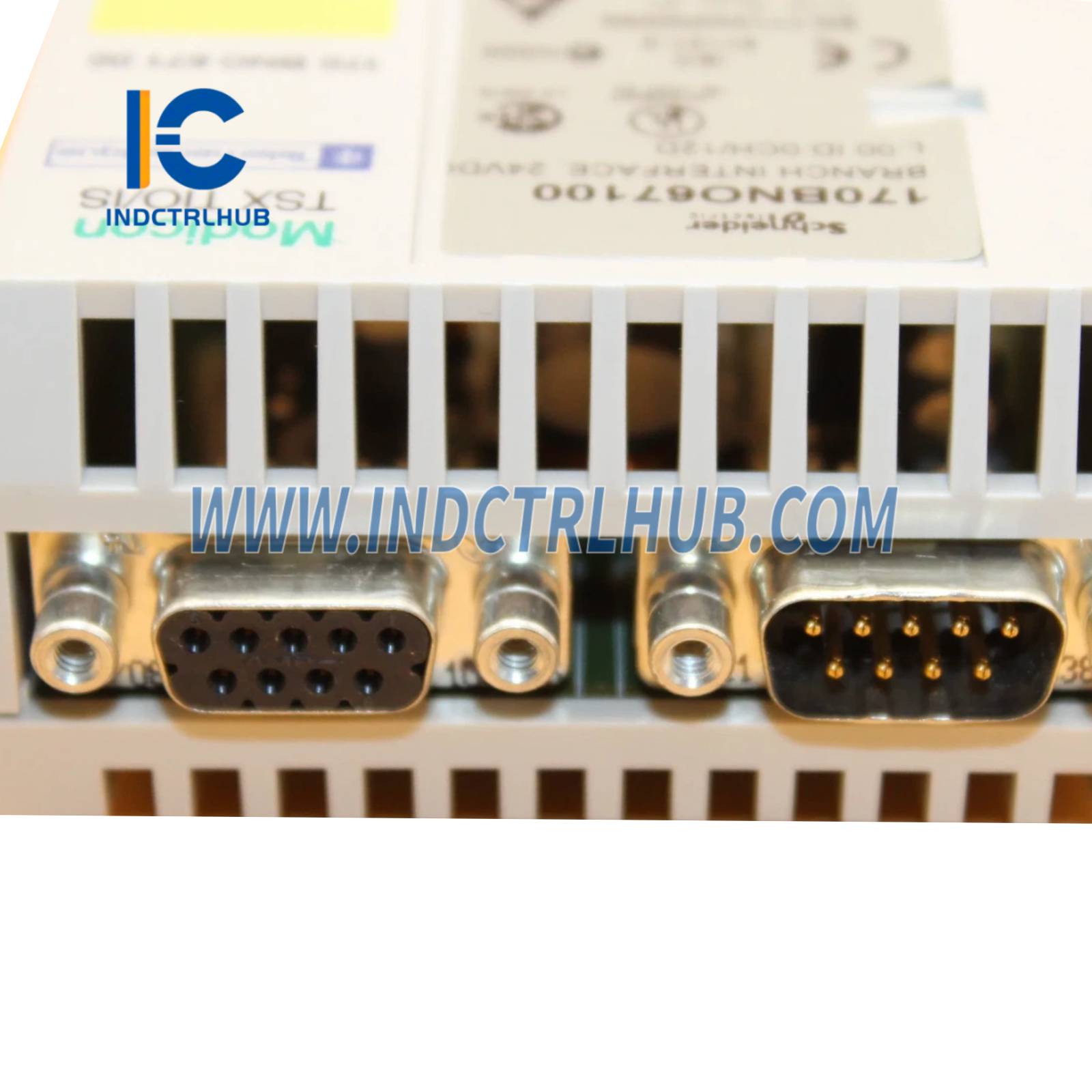

1 RS485 connector RJ45 for incoming remote bus, 1 RS485 connector RJ45 for outgoing remote bus, 1 terminal block (8 pins) |
|
Local Signaling |

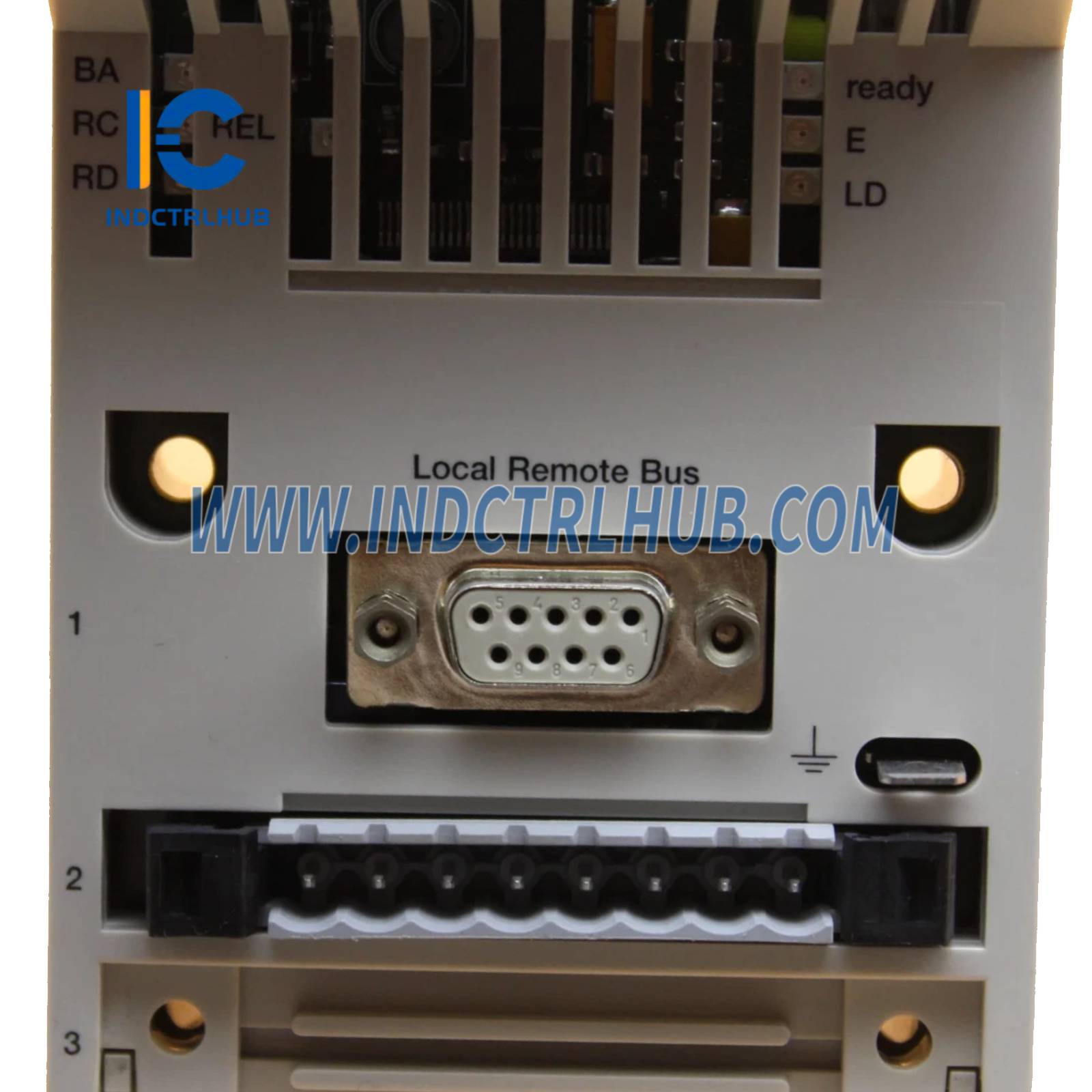

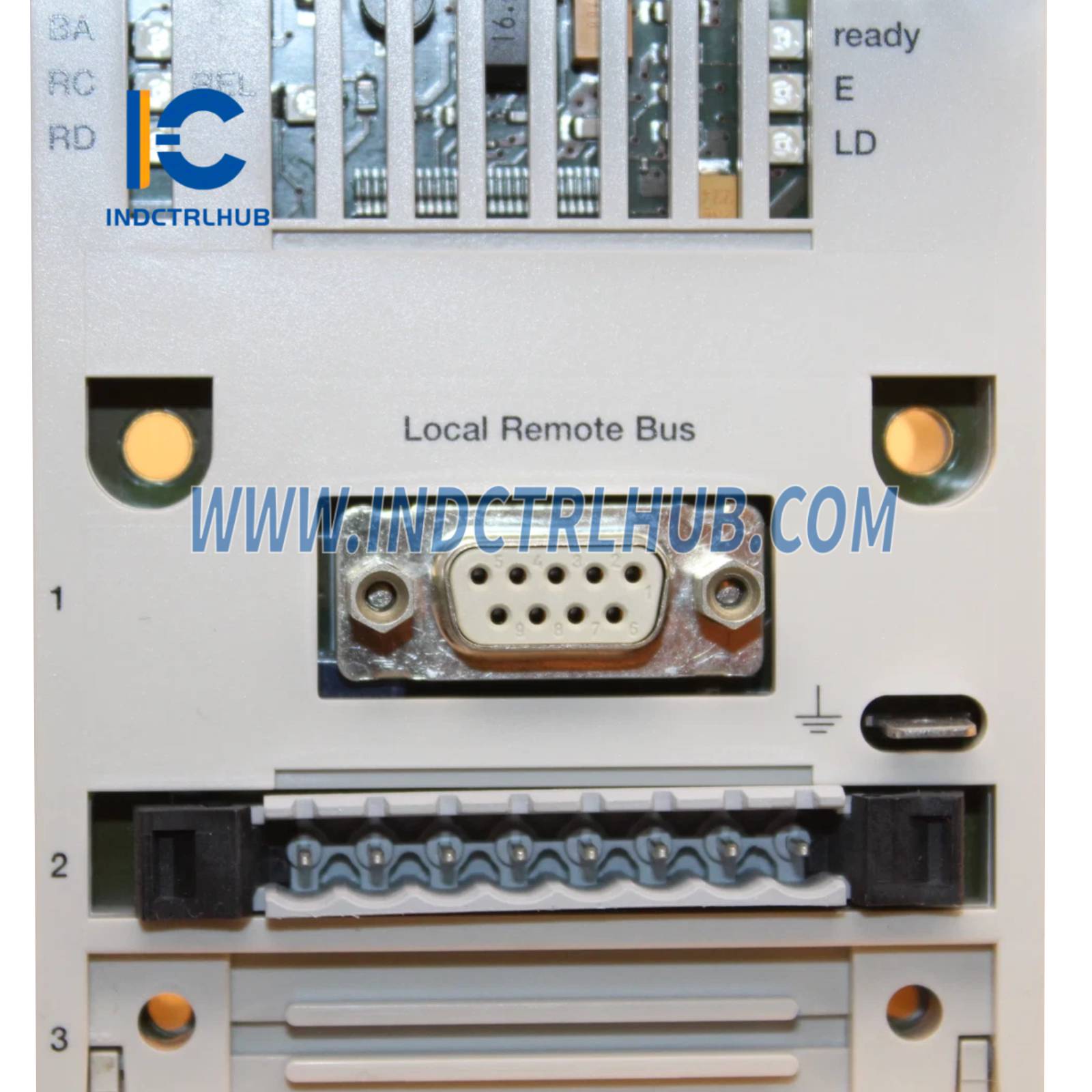

1 LED (green) for remote bus check (RC), 1 LED (green) for bus active (BA), 1 LED (green) for local remote bus branch disabled (LD), 1 LED (green) for ready for operation (ready), 1 LED (green) for relay output (REL), 1 LED (red) for remote bus branch error (E), 1 LED (red) for remote bus disabled (RD) |
Physical Characteristics
|
Category |
Details |
|---|---|
|
Net Weight |
0.015 kg |
