Product Description

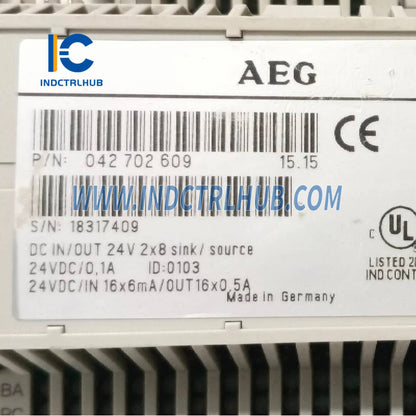

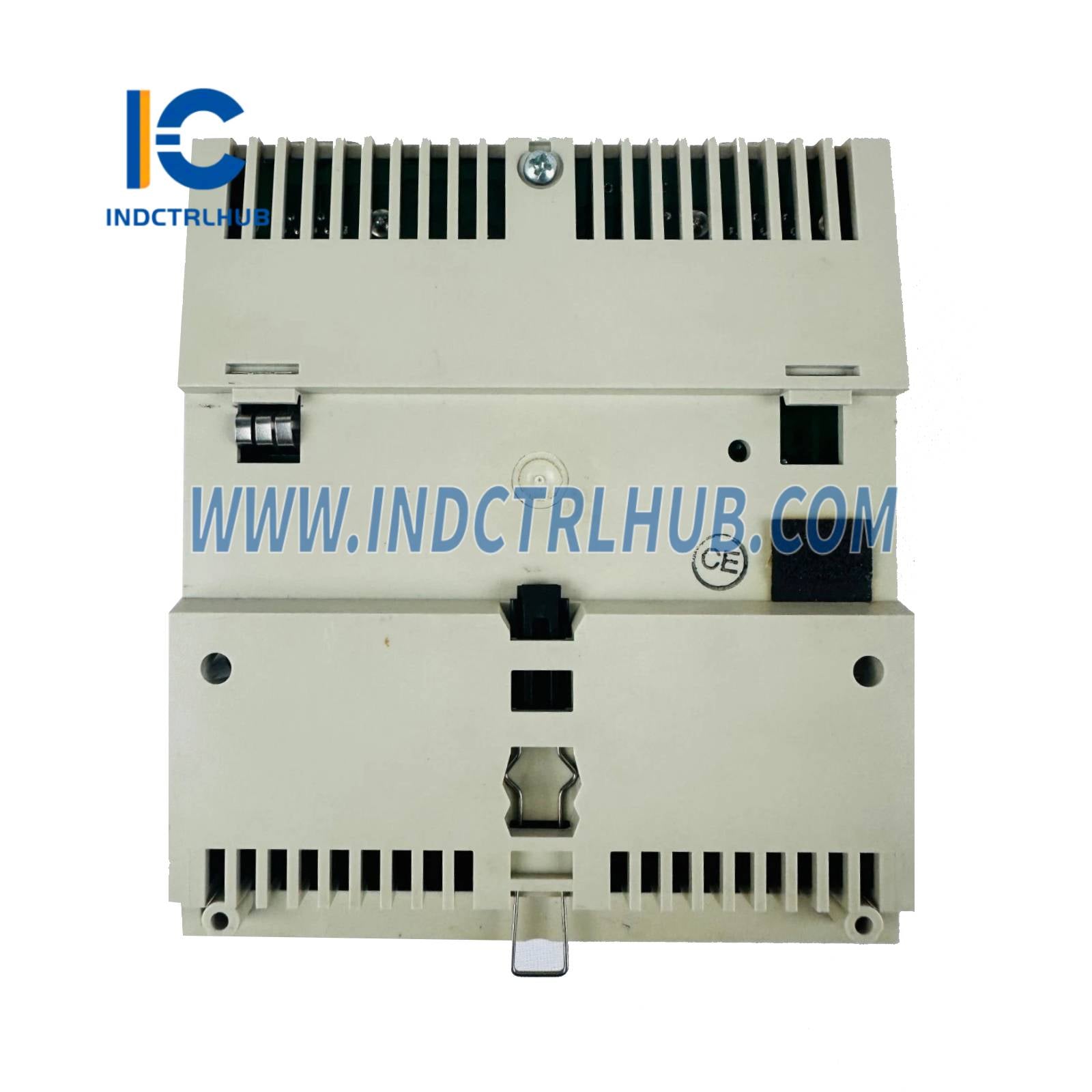

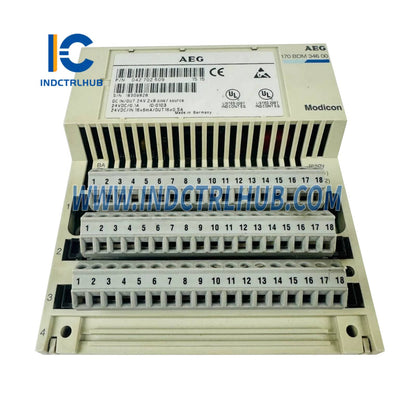

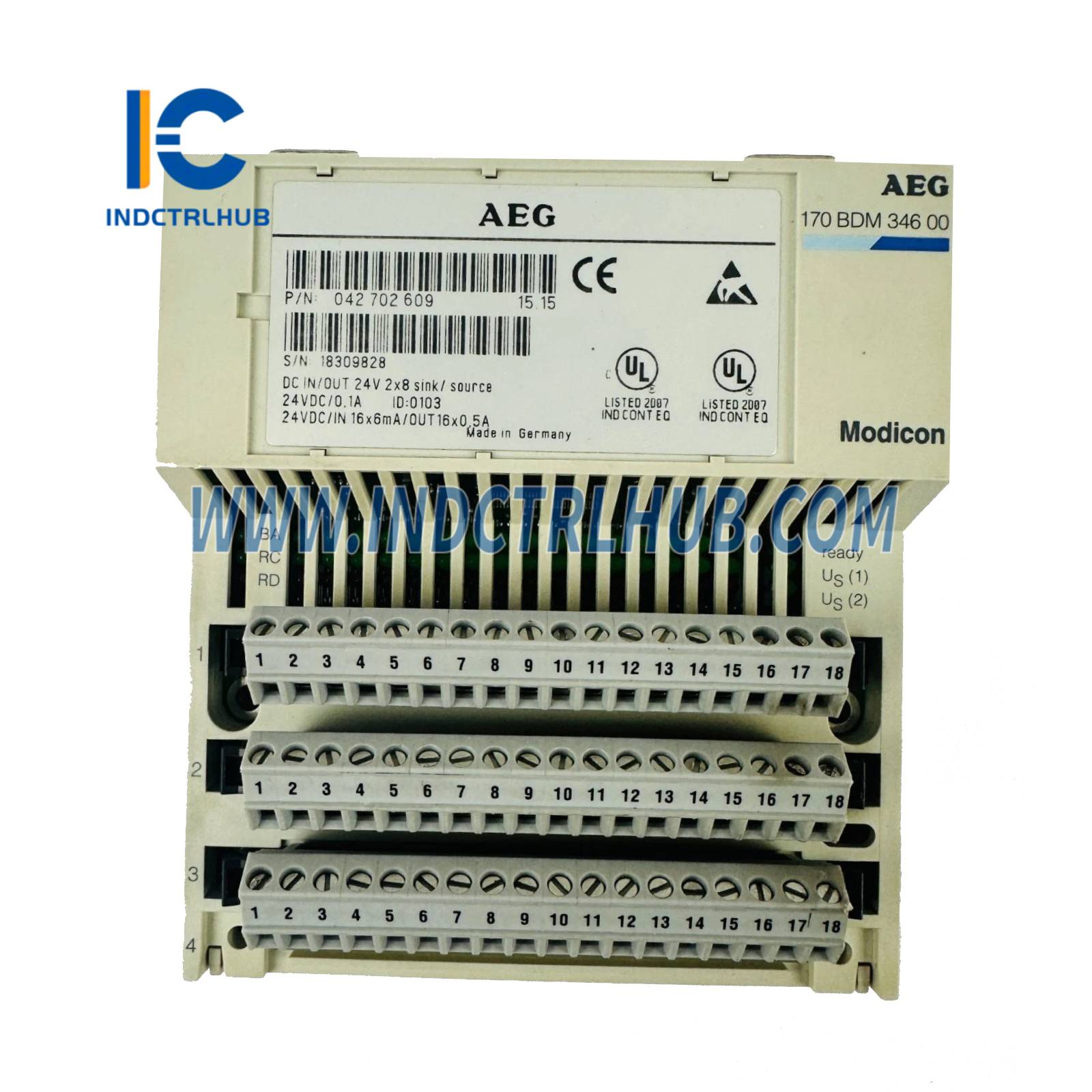

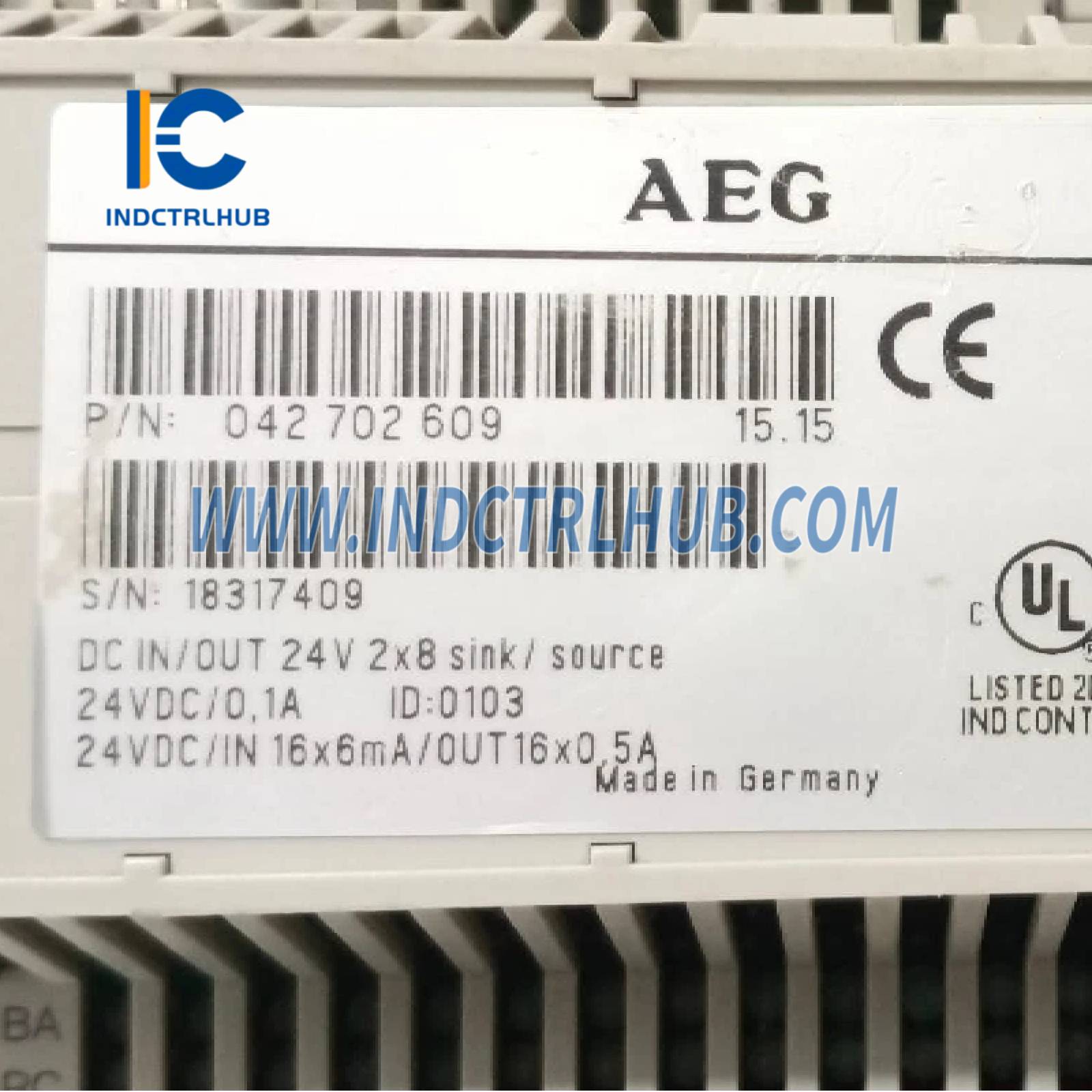

Schneider Electric 170BDM34600 Modicon Momentum Interbus TIO Module
Product Overview
- The Schneider Electric 170BDM34600 is a Modicon Momentum Interbus TIO (Terminal Input/Output) Module designed for the Momentum automation platform. This module serves as a communication interface for Interbus-S networks, enabling digital input and output operations. It supports 8 digital inputs and 8 digital outputs, facilitating distributed I/O control in industrial automation applications such as manufacturing, material handling, and process control.
Technical Specifications
- The 170BDM34600 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 170BDM34600 |
| Manufacturer | Schneider Electric |
| Description | Modicon Momentum Interbus TIO Module, 8 Digital Inputs, 8 Digital Outputs |
| Series | Modicon Momentum |
| Function | Provides Interbus-S communication for 8 digital inputs and 8 digital outputs |
| Input/Output | 8 digital inputs (24 VDC, sinking) 8 digital outputs (24 VDC, sourcing, 0.5 A per point) |
| Input Voltage | 24 VDC nominal (11–30 VDC) |
| Output Voltage | 24 VDC nominal |
| Communication | Interbus-S protocol (500 kbps) |
| Isolation | 500 V AC between field and bus |
| Power Supply | 24 VDC external (for I/O and Interbus) |
| Power Consumption | Approx. 5 W (including I/O) |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms (IEC 60068-2-27) Vibration: 1 g, 10–500 Hz (IEC 60068-2-6) |
| Dimensions | Approx. 143 mm (H) x 125 mm (W) x 48 mm (D) |
| Weight | Approx. 0.25 kg |
| Mounting | DIN rail or panel mounting |
| Certifications | CE, UL, CSA C22.2 No. 142 |
