Product Description
Product Details

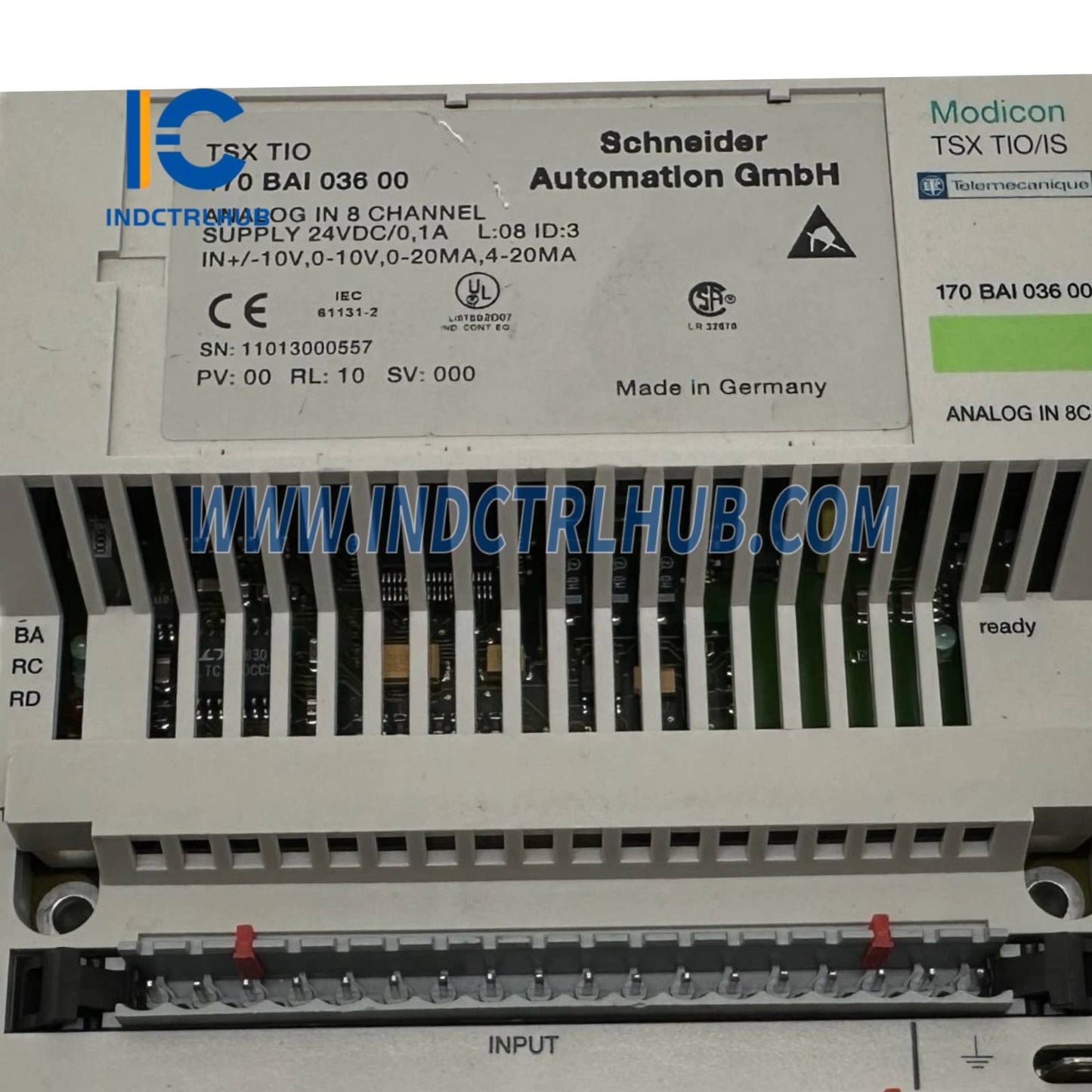

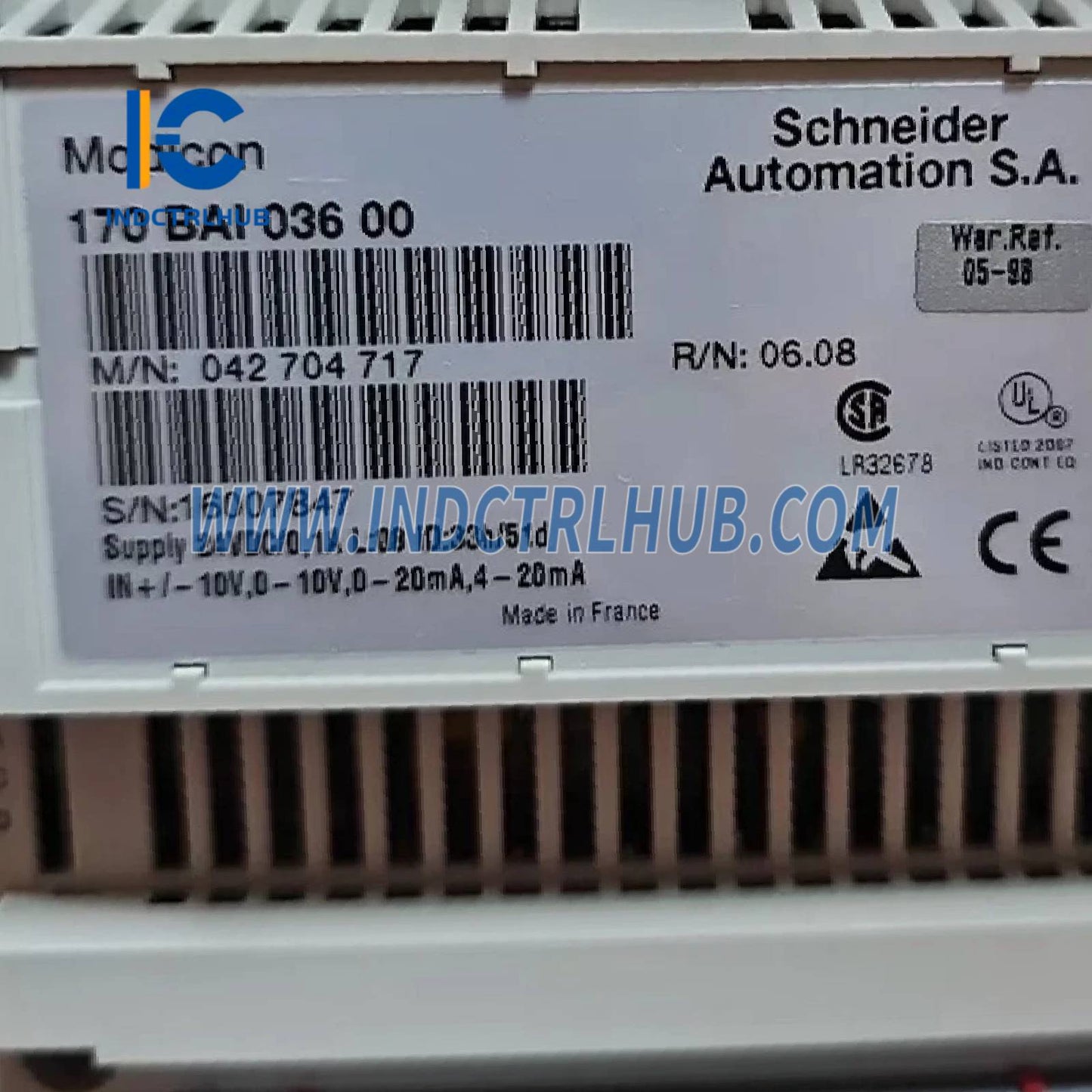

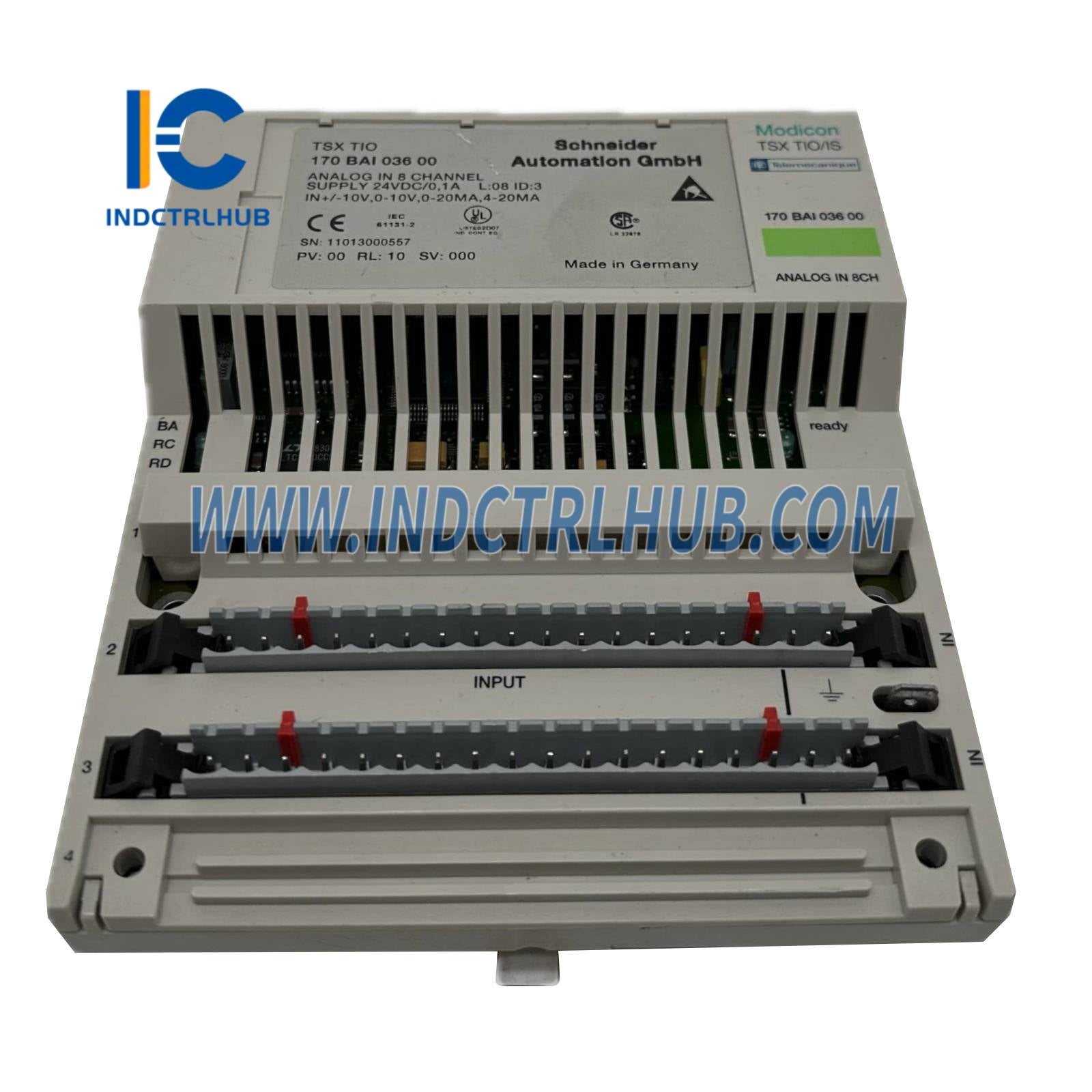

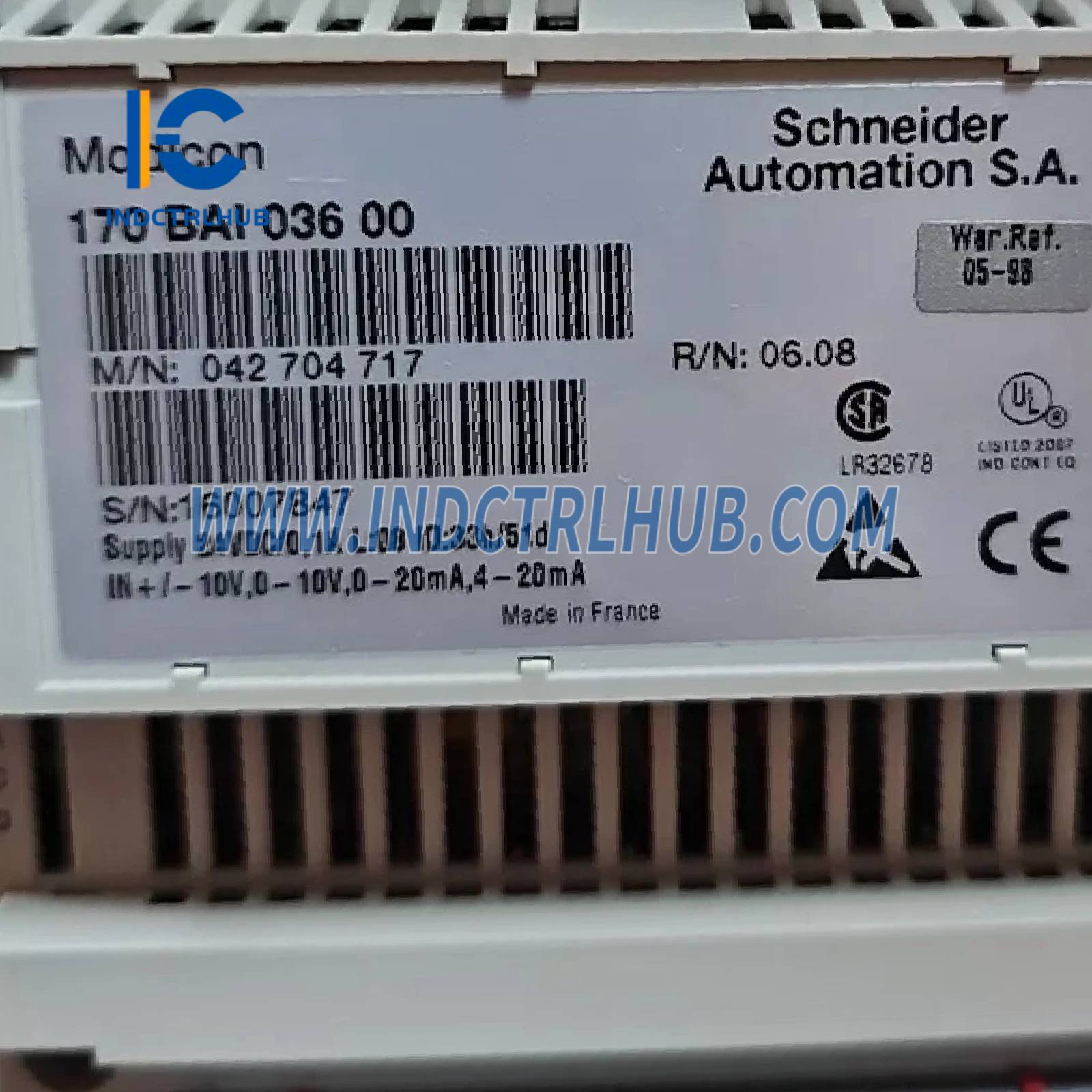

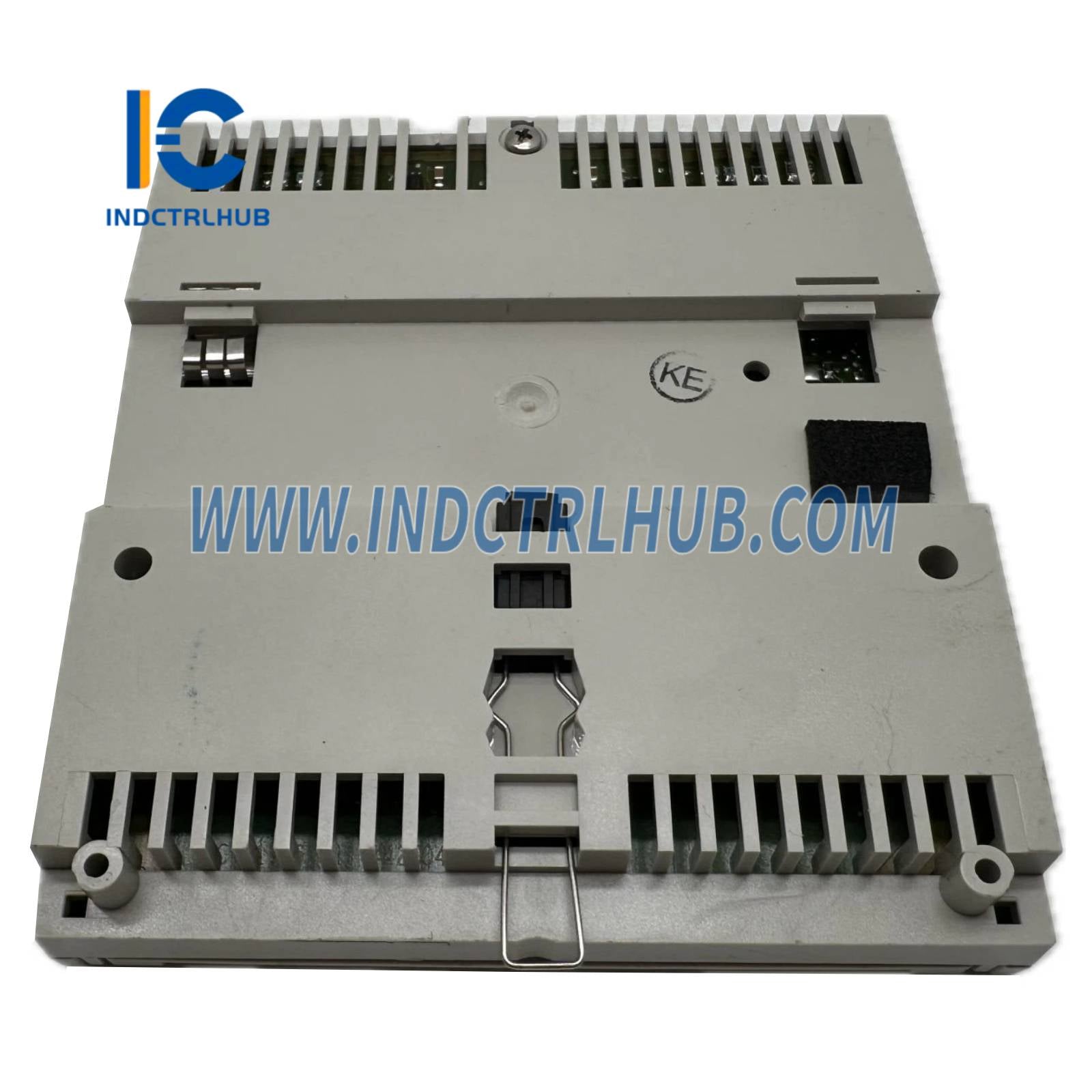

Manufacturer: Schneider Electric
Model/Part Number: 170BAI03600
Description: Distributed analog input, Modicon Momentum - 8 Input
Specifications
Main Specifications
|
Category |
Details |
|---|---|
|
Range of Product |
Modicon Momentum automation platform |
|
Product Type |
Analog input base |
|
Analog Input Number |
8 |
|
Analog Input Type |
Differential |
|
Analog Input Range |
+/- 20 mA (14 bits + sign, 250 kΩ), 4…20 mA (15 bits + sign, 250 kΩ), +/- 10 V (14 bits + sign, > 0.1 kΩ), +/- 5 V (14 bits + sign, > 0.1 kΩ), 1…5 V (15 bits + sign, > 0.1 kΩ) |
|
Data Format |
Full 16 bits signed |
Accuracy & Conversion
|
Category |
Details |
|---|---|
|
Absolute Accuracy Error |
+/- 0.13 % full scale at 25 °C (1…5 V), +/- 0.19 % full scale at 60 °C (1…5 V), +/- 0.21 % full scale at 25 °C (+/- 5 V), +/- 0.26 % full scale at 60 °C (+/- 5 V), +/- 0.27 % full scale at 25 °C (+/- 10 V), +/- 0.27 % full scale at 25 °C (4…20 mA), +/- 0.32 % full scale at 25 °C (+/- 20 mA), +/- 0.32 % full scale at 60 °C (+/- 10 V), +/- 0.38 % full scale at 60 °C (4…20 mA), +/- 0.41 % full scale at 60 °C (+/- 20 mA) |
|
Conversion Time |
12 ms per channel |
|
Isolation Between Channels |
+/- 200 V DC for 1 minute |
|
Isolation Between Channels and Ground |
500 V AC for 1 minute |
|
Isolation Between Channels and Bus |
500 V AC for 1 minute |
|
Permissible Common Mode Voltage |
100 V DC (47…63 Hz) between channels to ground, 250 V AC (47…63 Hz) between channels to ground |
|
Common Mode Rejection |
> 80 dB between channels to ground |
Electrical & Mechanical Characteristics
|
Category |
Details |
|---|---|
|
External Power Requirement |
< 382 mA DC, 20.4…28.8 V DC, 24 V DC |
|
Reverse Polarity Protection |
Internal |
|
Marking |
CE |
|
Local Signaling |
1 LED (green) for ready, 8 LEDs for channel status |
|
Electrical Connection |
2 connectors for removable terminal blocks |
|
Dimensions (L x W x H) |
47.5 mm (Depth), 125 mm (Height), 141.5 mm (Width) |
|
Net Weight |
0.215 kg |
Environment
|
Category |
Details |
|---|---|
|
Standards |
EN 50081-2, IEC 1131 |
|
Product Certifications |
FM Class 1 Division 2, CSA, UL |
|
Protective Treatment |
TC |
|
Resistance to Electrostatic Discharge |
4 kV contact, 8 kV air (IEC 801-2) |
|
Resistance to Electromagnetic Fields |
10 V/m (80…1000 MHz, IEC 801-3) |
|
Ambient Air Temperature (Operation) |
0…60 °C |
|
Ambient Air Temperature (Storage) |
-40…85 °C |
|
Relative Humidity |
95 % without condensation |
|
Operating Altitude |
<= 5000 m |
