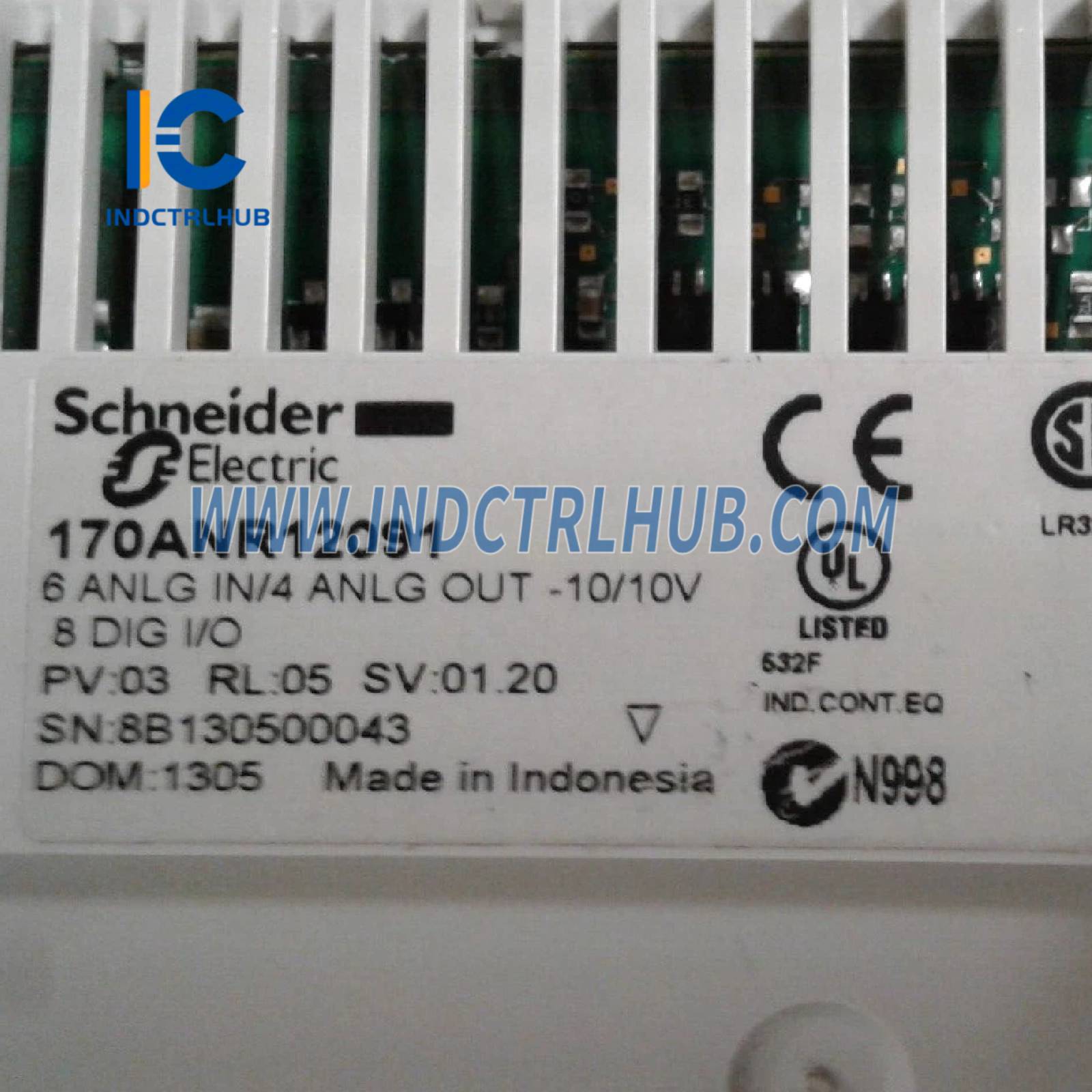

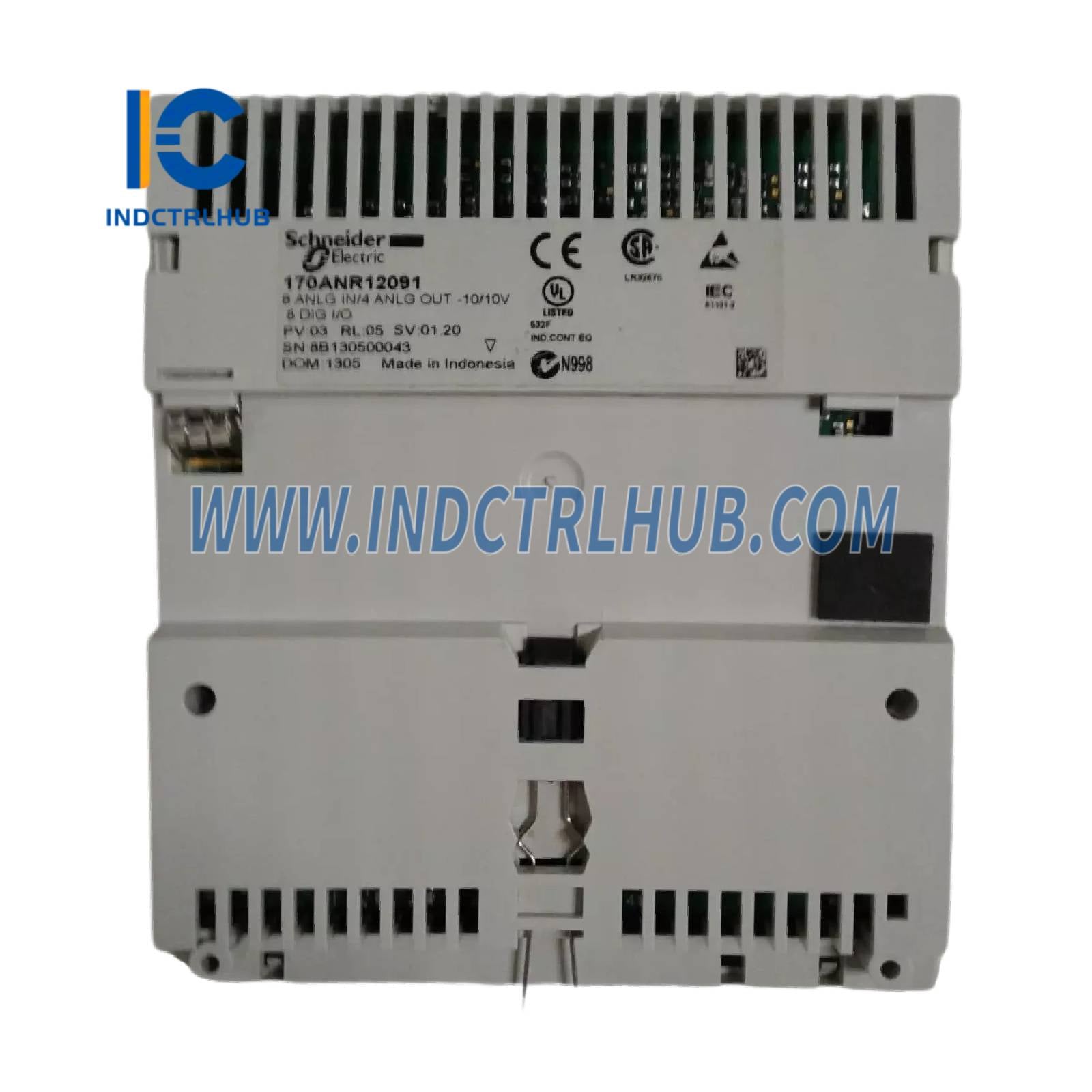

Schneider 170ANR12091 Distributed analog/discrete I/O

Range of Product

Modicon Momentum automation platform

Product Type

Analogue, discrete I/O base

Group of Channels

1 group of 8 discrete outputs, 2 groups of 4 discrete inputs, 1 group of 6 analog inputs, 1 group of 4 analog outputs

Analog Input Range

+/- 10 V DC

Analog Input Type

Single-ended

Analog Input Resolution

14 bits +/- 10 V

Discrete Input Voltage

24 V DC

Analog Output Range

+/- 10 V 14 bits

Discrete Output Voltage

10…30 V

Output Short-circuit Protection

With discrete output

Output Overload Protection

With discrete output

Discrete Input Number

8 conforming to IEC 1131-2 Type 2

Rated Supply Voltage (Us)

24 V (19.2…30 V) DC

Maximum Analog Input Voltage

15 V

Input Voltage Limits

3…32 V

Discrete Input Logic

Positive

Voltage State 0 Guaranteed

<= 5 V for discrete input

Voltage State 1 Guaranteed

>= 11 V for discrete input

Current State 0 Guaranteed

<= 2 mA (discrete input)

Current State 1 Guaranteed

>= 6 mA (discrete input)

Input Overvoltage Protection

45 V for 10 s (discrete input)

Input Resistance

1 MΩ (analog input circuit), 4 kΩ (discrete input)

Output Load

>= 2 kΩ +/- 10 V analog output

Conversion Time

0.75 ms (analog input circuit), 1.2 ms (analog output)

Conversion Error

+/- 0.4 % +/- 10 V at 25 °C (analog output)

Fail State

Hold or reset to zero for analog output

Discrete Output Type

Transistor

Discrete Output Logic

Positive

Discrete Output Current

2 A per group, 2 A per module, 0.25 A per point

Maximum Leakage Current

0.4 mA DC (30 V discrete output)

Maximum Voltage Drop

<0.4 V (0.25 A at state on discrete output)

Surge Current

2.5 A for 1 ms (discrete output)

Response Time

1.05 ms (state 1 to 0 for discrete output)

Isolation Voltage

500 V (duration = 1 min) between analog I/O and operating voltage

Maximum Power Dissipation

6 W

Marking

CE

Local Signaling

8 LEDs for channel status

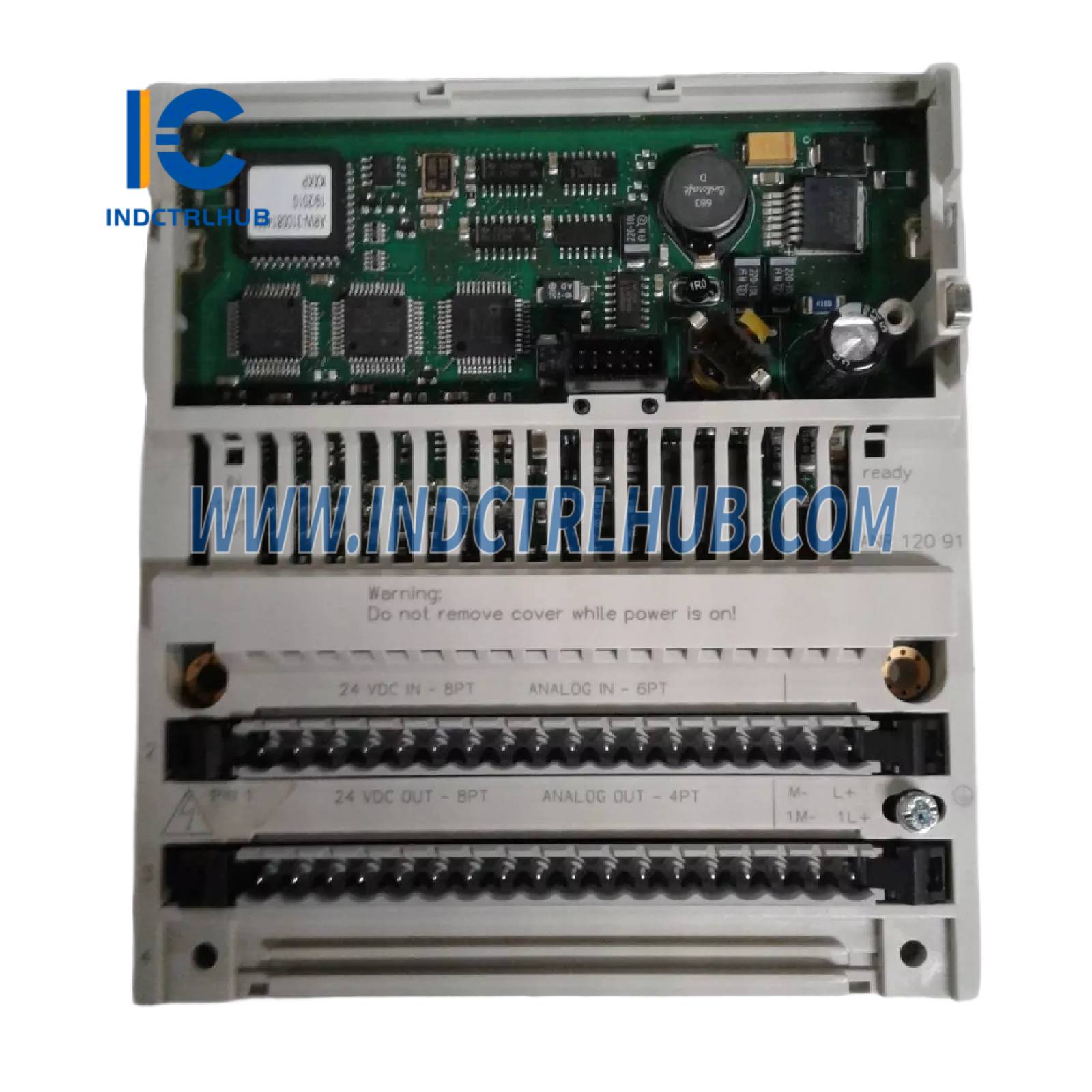

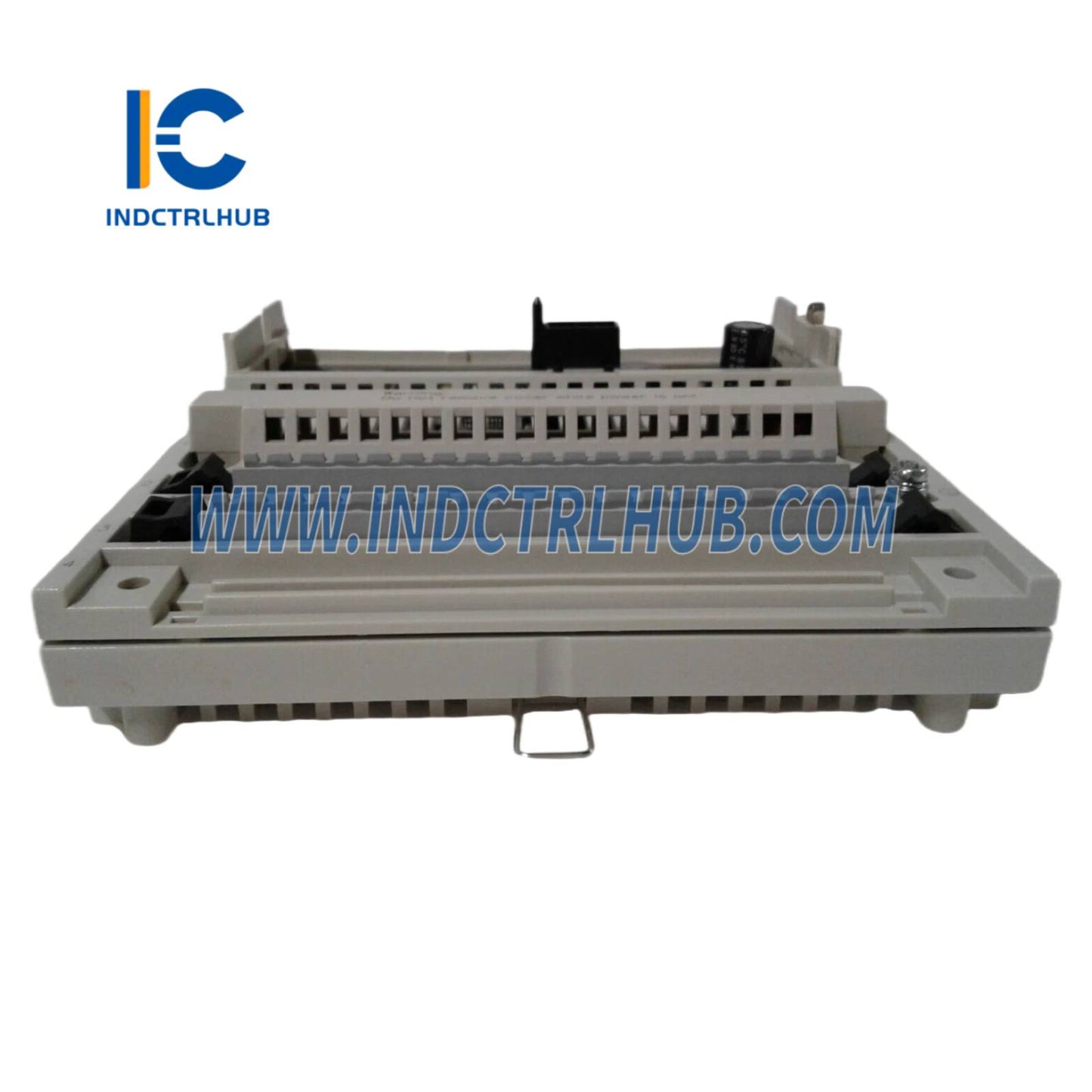

Electrical Connection

2 connectors for removable terminal blocks

Current Consumption

400 mA at 24 V DC

Dimensions (L x W x H)

47.5 mm (Depth), 125 mm (Height), 141.5 mm (Width)

Net Weight

0.24 kg

Product Certifications

UL, CSA

Protective Treatment

TC

Resistance to Electrostatic Discharge

4 kV contact, 8 kV air (IEC 801-2)

Resistance to Electromagnetic Fields

10 V/m (80…1000 MHz, IEC 801-3)

Ambient Air Temperature (Operation)

0…60 °C

Ambient Air Temperature (Storage)

-40…85 °C

Relative Humidity

95 % without condensation

Operating Altitude

<= 5000 m
