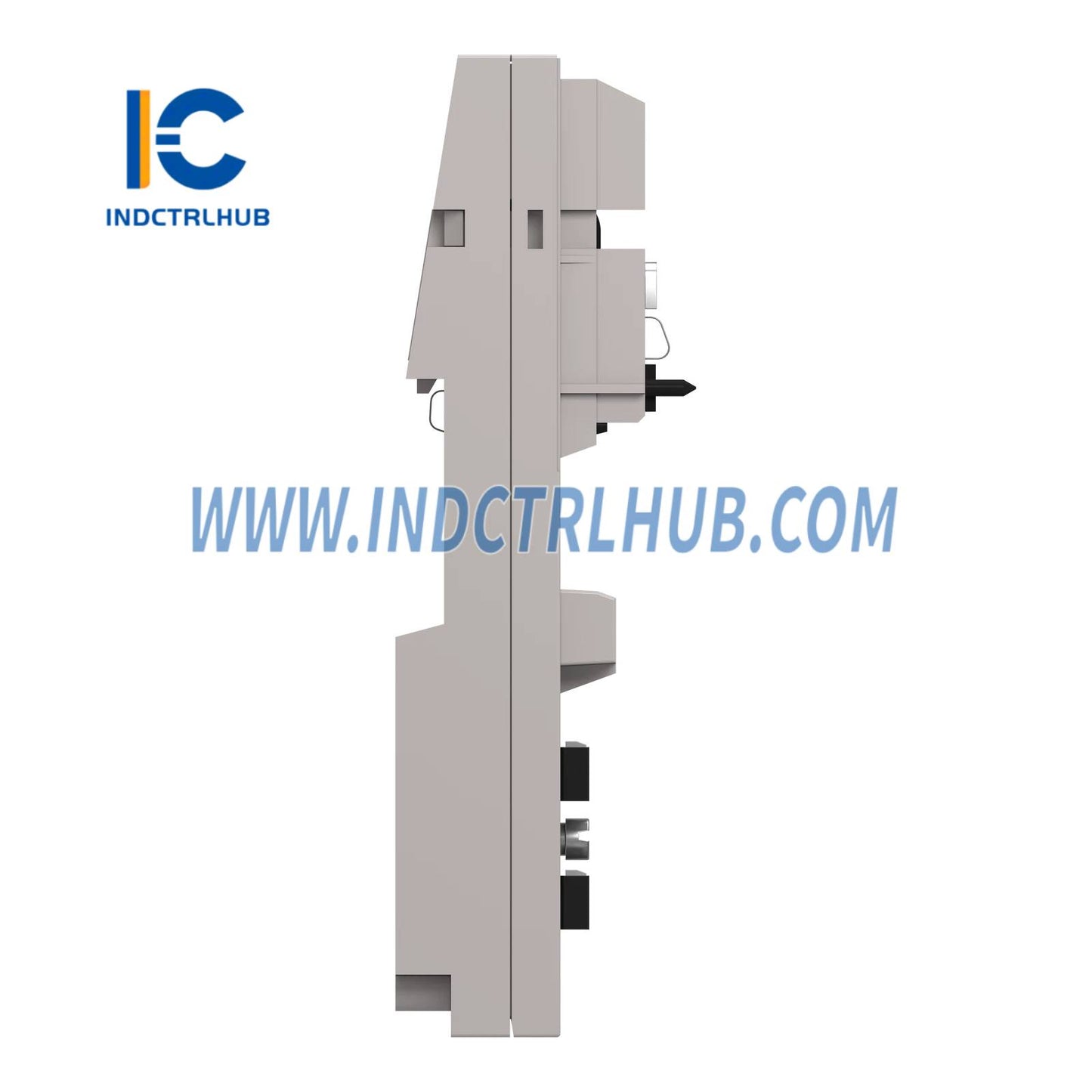

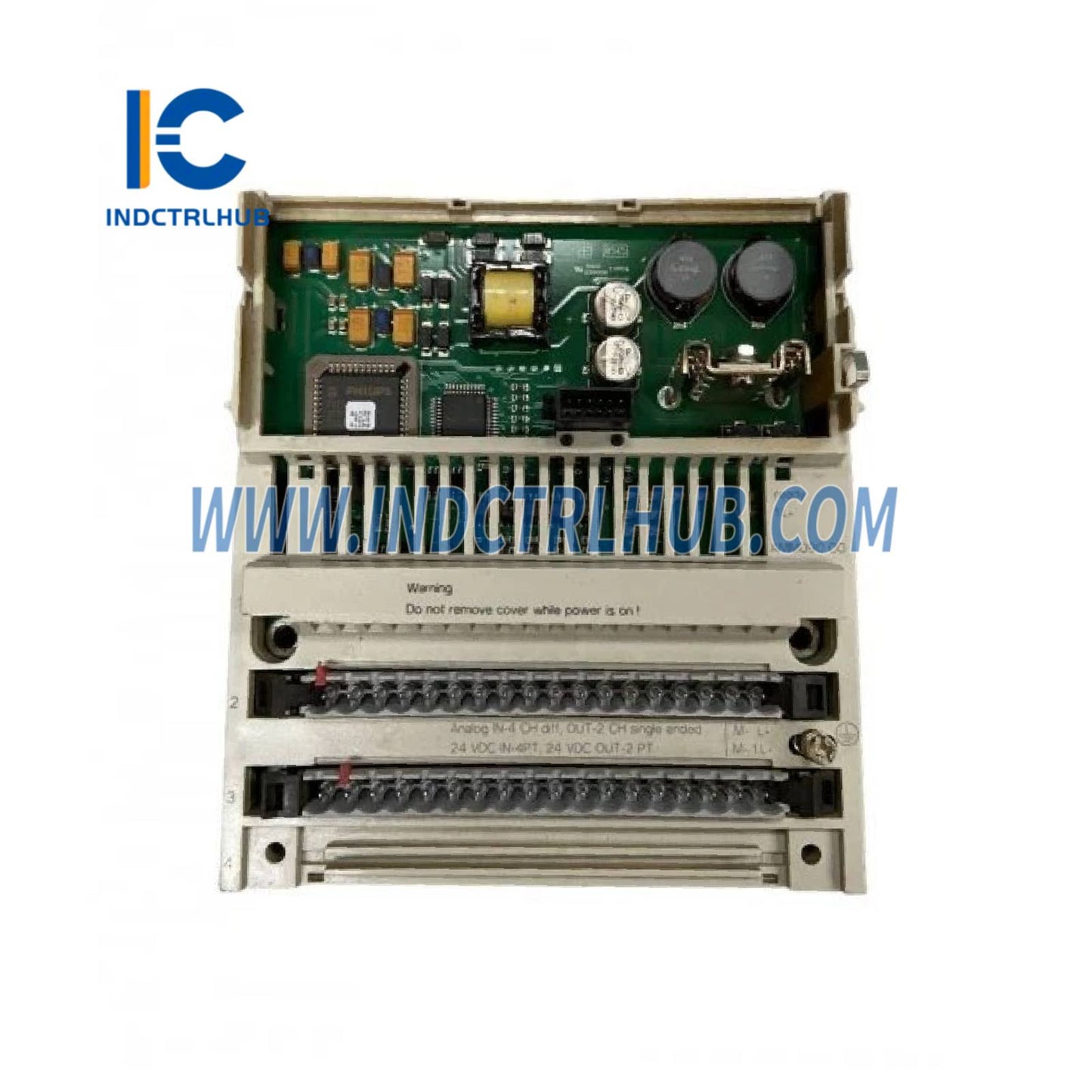

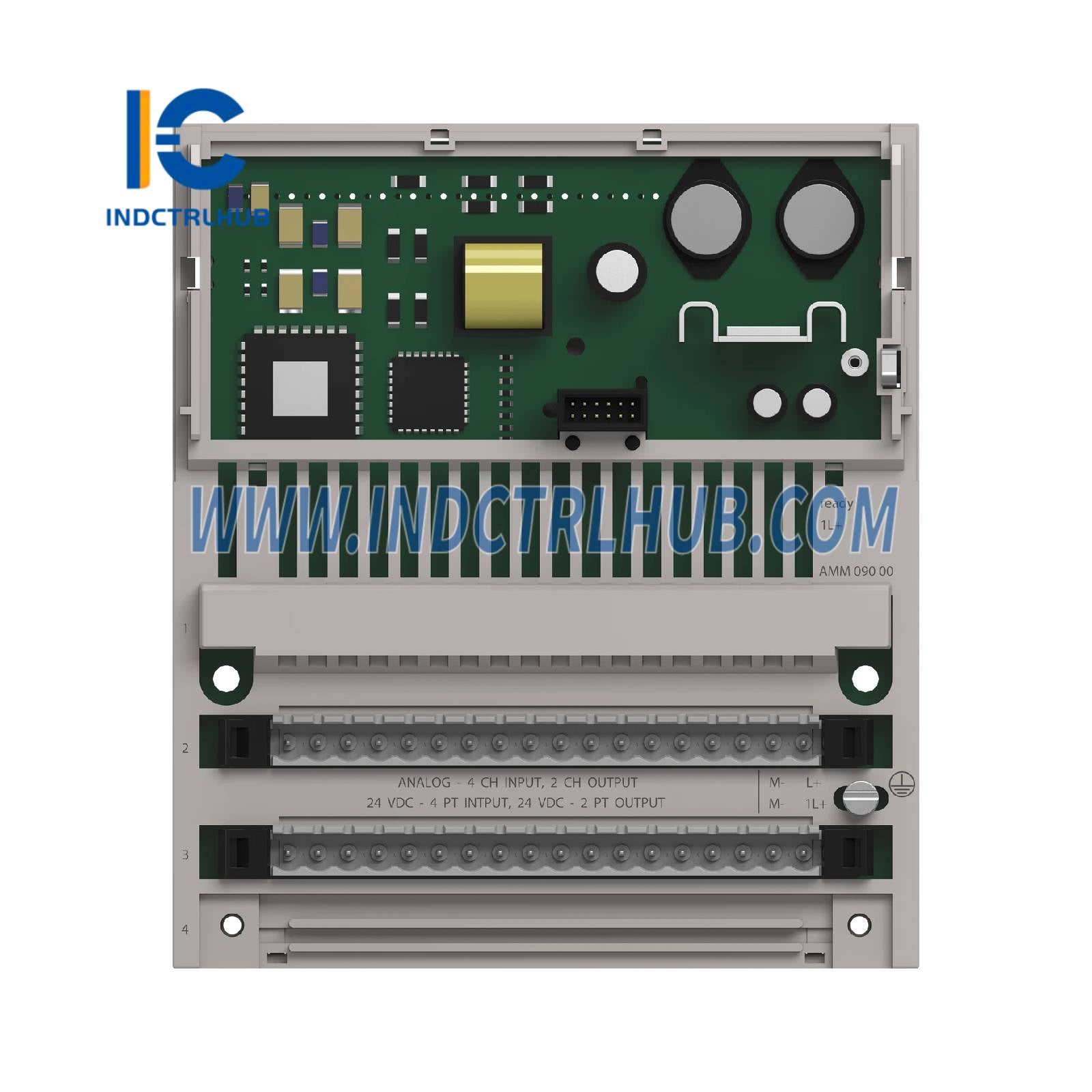

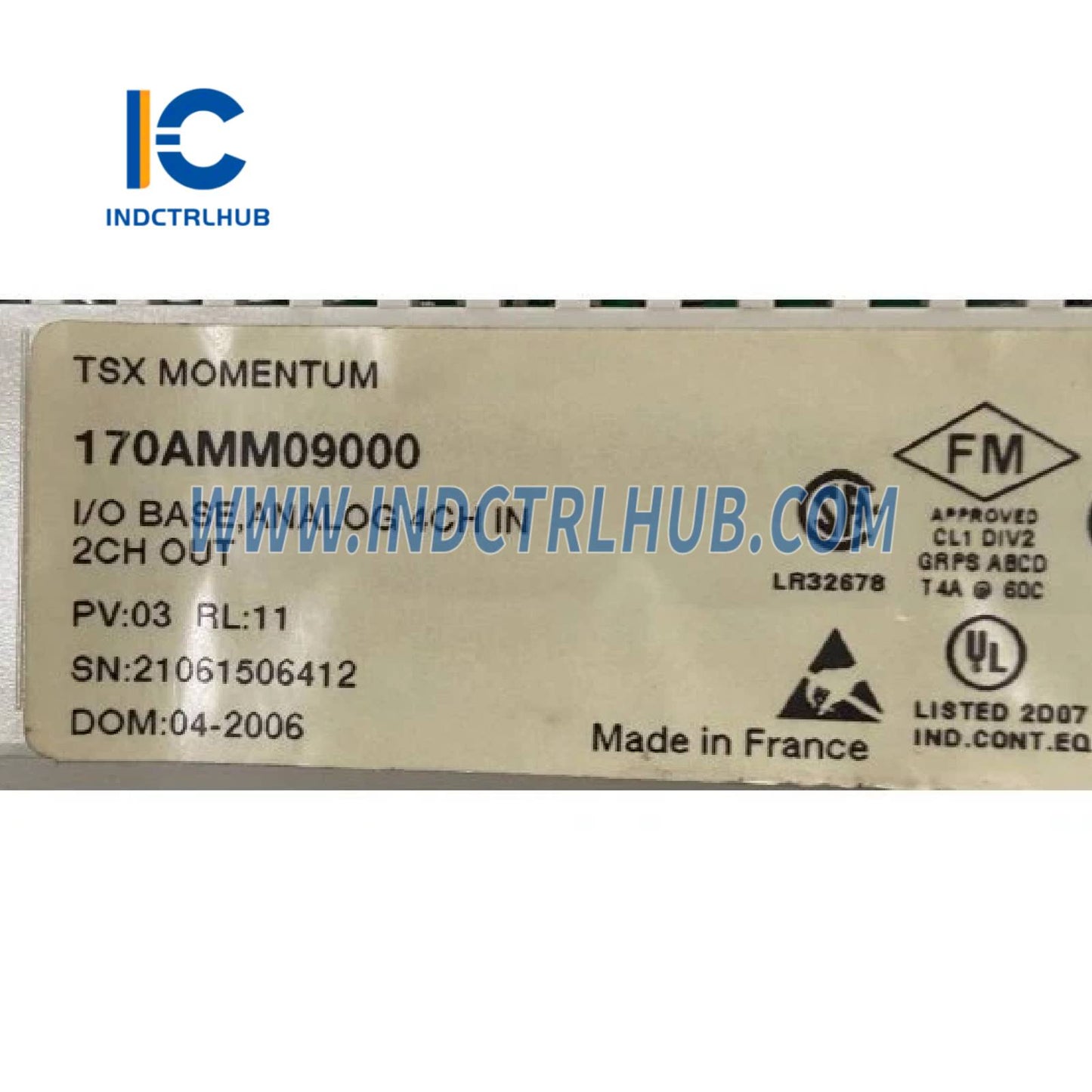

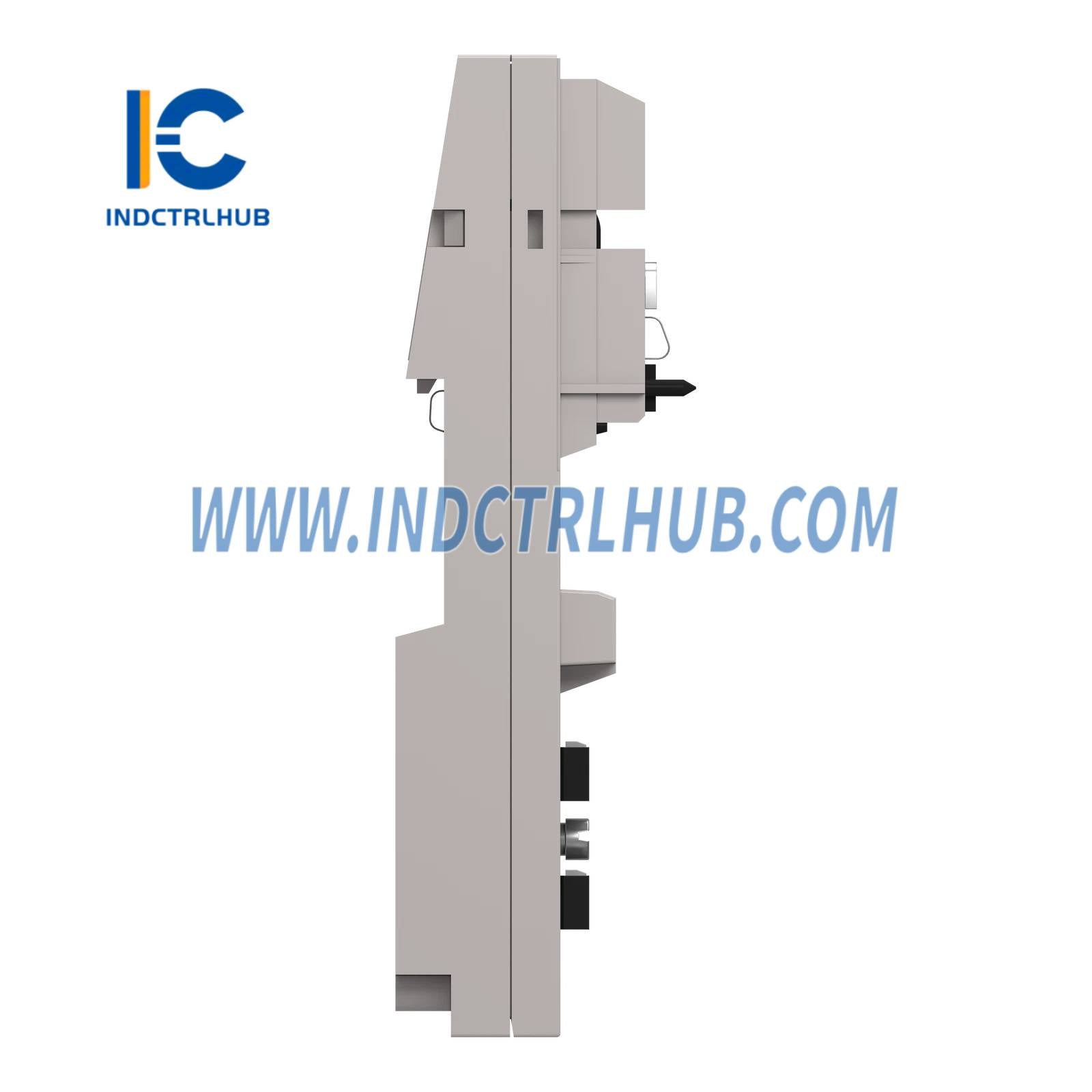

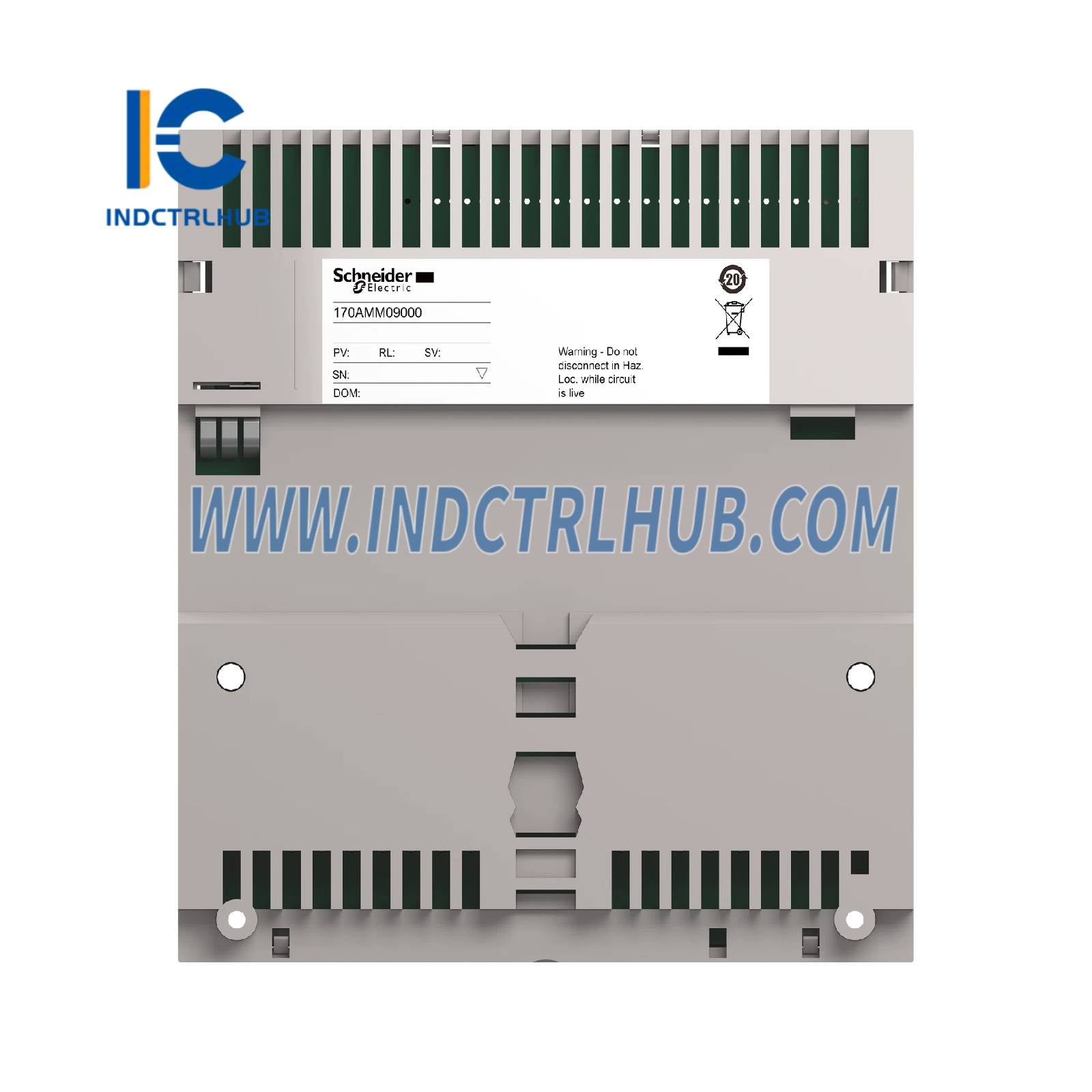

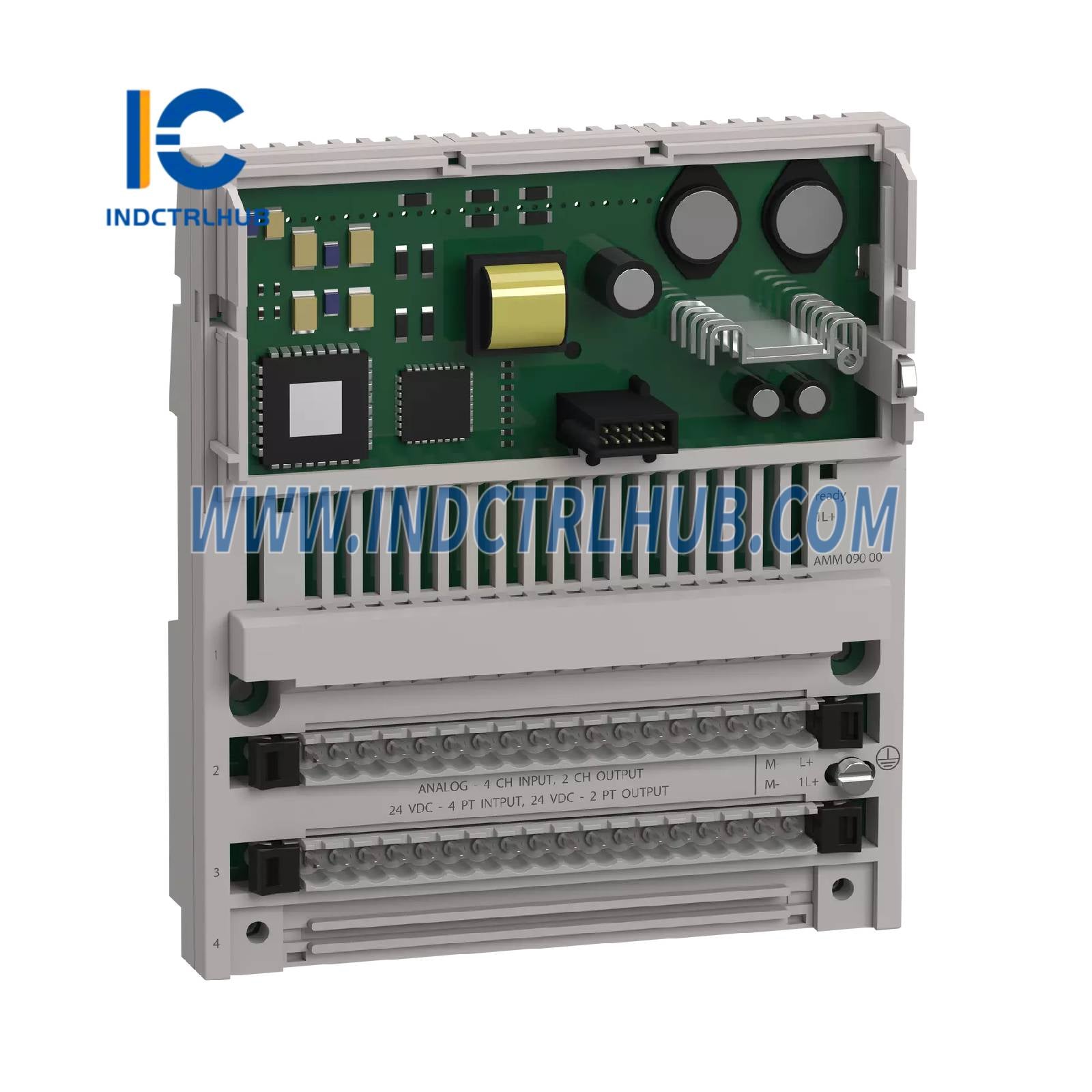

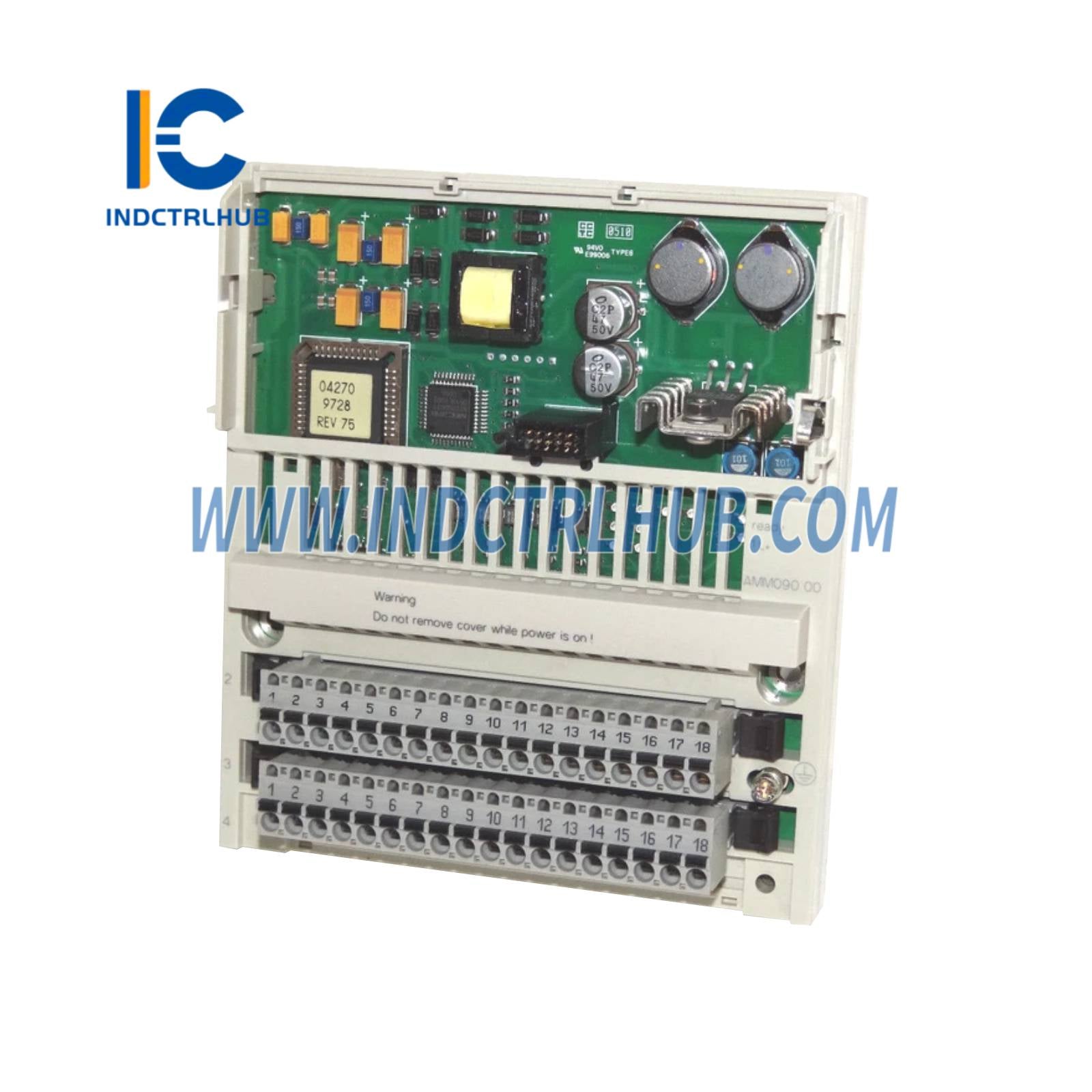

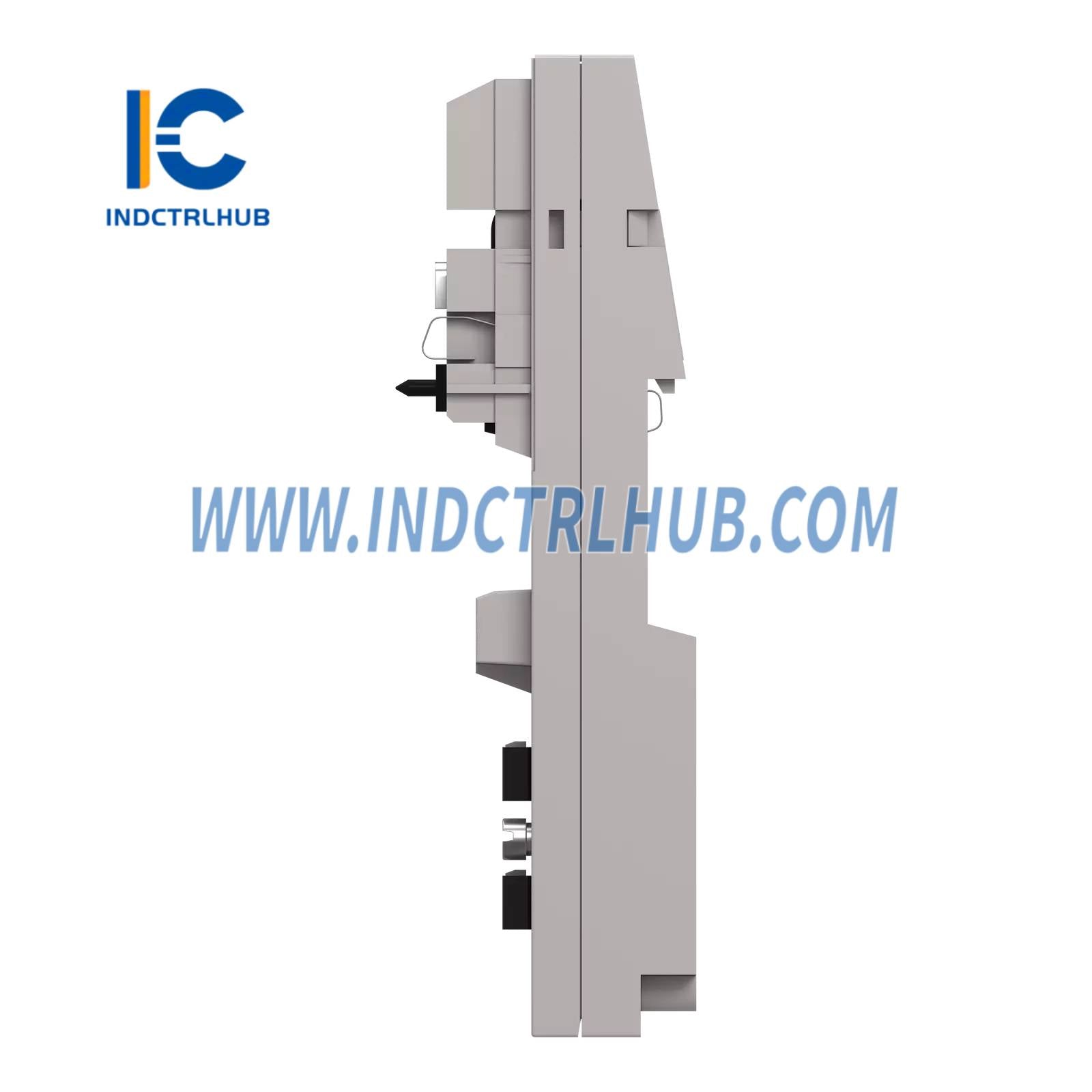

Schneider 170AMM09000 Distributed analog/discrete I/O Modicon Momentum

Manufacturer

Schneider Electric

Model/Part Number

170AMM09000

Description

Distributed analog/discrete I/O Modicon Momentum

Product Type

Analog and discrete I/O base

Range of Product

Modicon Momentum automation platform

Input Type

Differential

Input Range

+/- 10 V, +/- 20 mA, +/- 5 V, 1…5 V, 4…20 mA

Resolution

12 bits (1…5 V, 4…20 mA), 13 bits (+/- 20 mA, +/- 5 V), 14 bits (+/- 10 V)

Input Resistance

1 MOhm

Input Overvoltage Protection

-50…50 V (<= 100 s) (analog)

Conversion Time

10 ms (analog input circuit)

Conversion Error

+/- 0.35% (+/- 10 V, 0…20 mA at 25°C) +/- 0.70% (+/- 10 V, 0…20 mA at 60°C)

Common Mode Rejection

> 54 dB (analog input circuit)

Output Range

+/- 10 V, 0…20 mA

Output Resolution

12 bits

Output Load

<= 600 Ohm (0…20 mA), >= 3 kOhm (+/- 10 V)

Conversion Time

1 ms (analog output)

Conversion Error

+/- 0.35% (+/- 10 V, 0…20 mA at 25°C) +/- 0.70% (+/- 10 V, 0…20 mA at 60°C)

Discrete Input Voltage

24 V DC

Discrete Output Voltage

<= 30 V

Discrete Output Current

1 A per point, 2 A per group, 2 A per module

Discrete Output Type

Transistor

Discrete Input Logic

Positive

Discrete Output Logic

Positive

Input Voltage Limits

< 30 V

Input Overvoltage Protection

-30…30 V (24 V DC input)

Output Short-Circuit Protection

Yes

Output Overload Protection

Yes

Response Time

< 0.1 ms (discrete output) 2.2 ms from state 0 to state 1 (discrete input) 3.3 ms from state 1 to state 0 (discrete input)

Dimensions

Depth: 47.5 mmHeight: 125 mmWidth: 141.5 mm

Weight

0.24 kg

Electrical Connection

2 connectors for removable terminal blocks

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95% without condensation

Operating Altitude

<= 5000 m

Electrostatic Discharge Resistance

4 kV contact, 8 kV air (IEC 801-2)

EM Field Resistance

10 V/m (80–1000 MHz, IEC 801-3)

CE

Marked

UL

Certified

CSA

Certified

FM Class 1 Division 2

Certified
