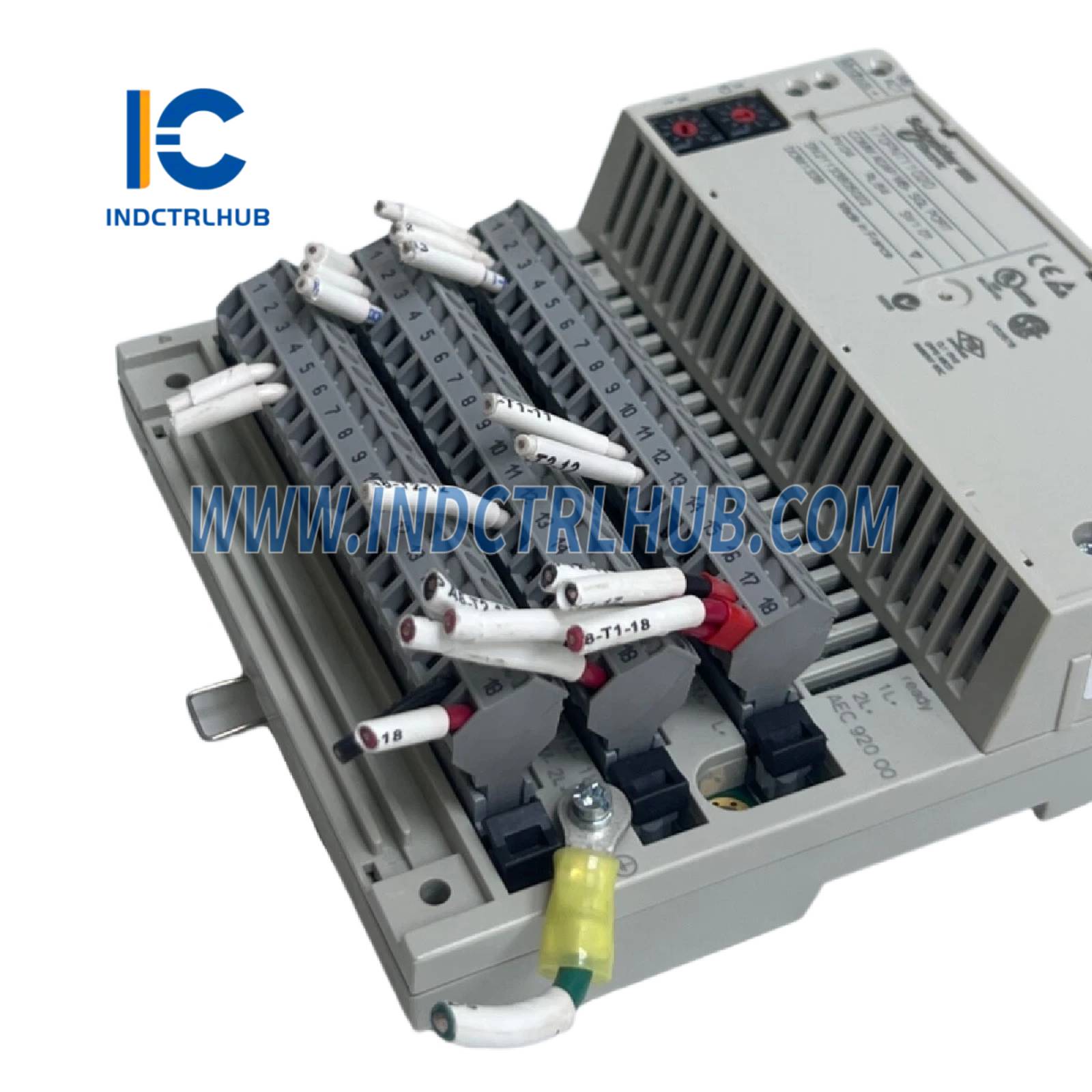

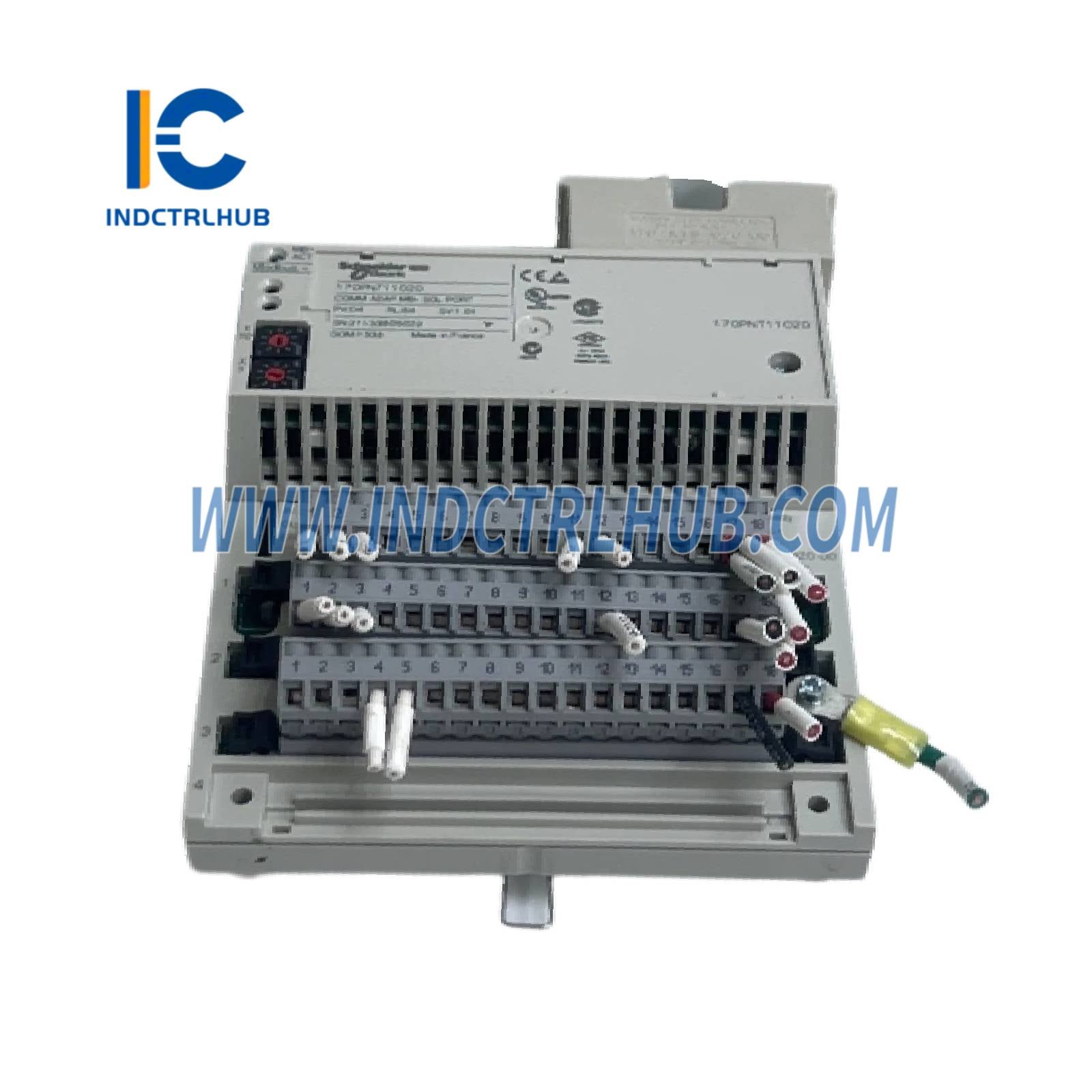

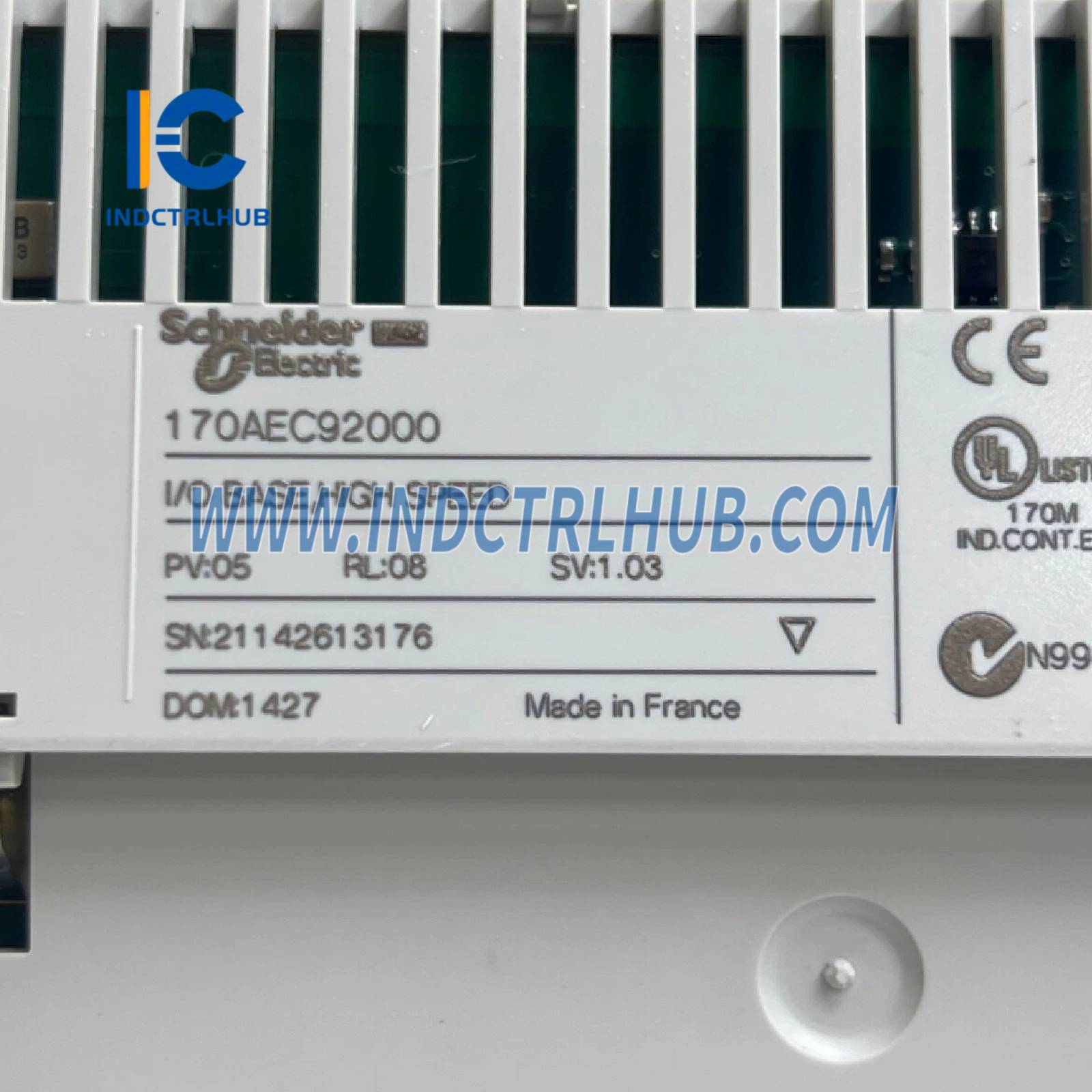

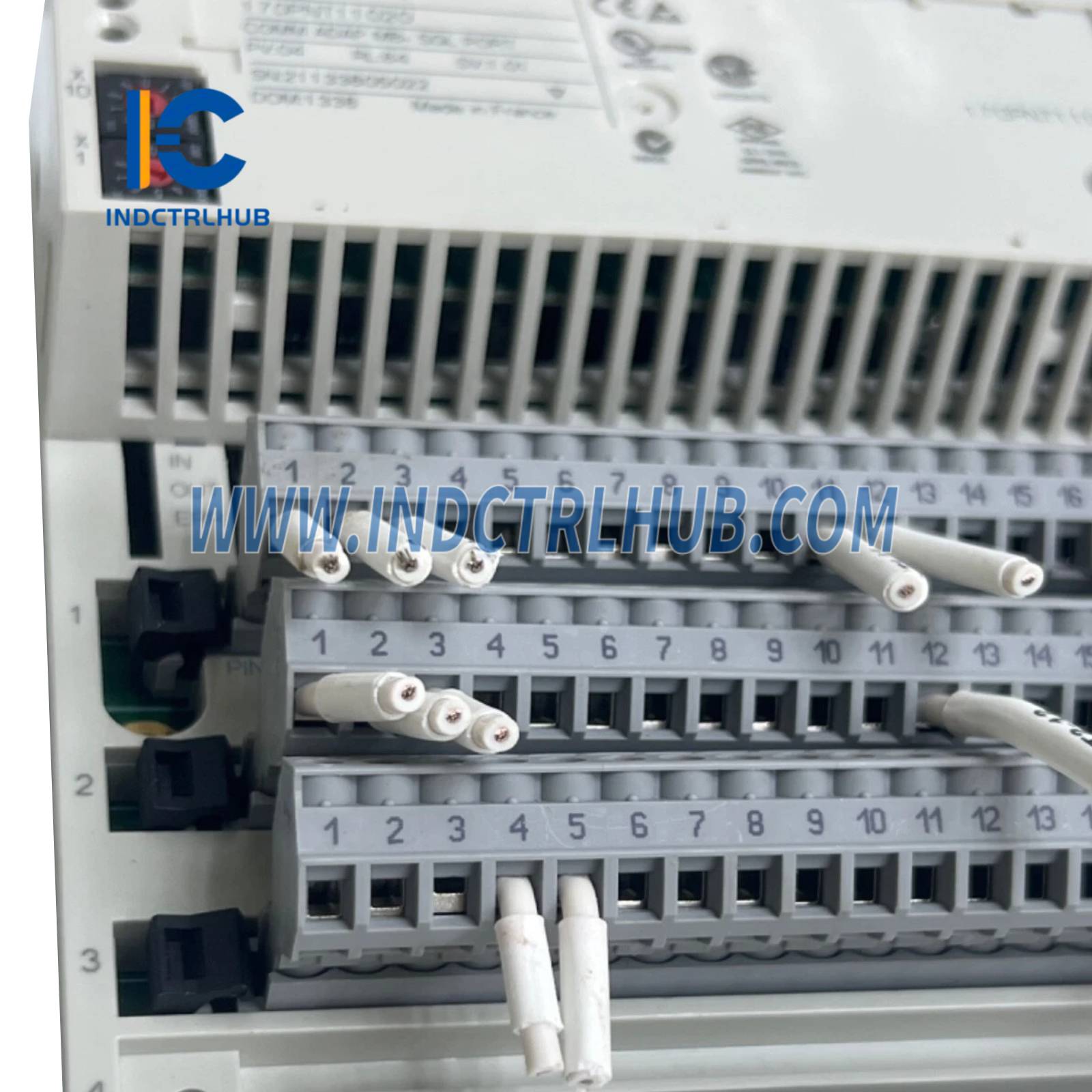

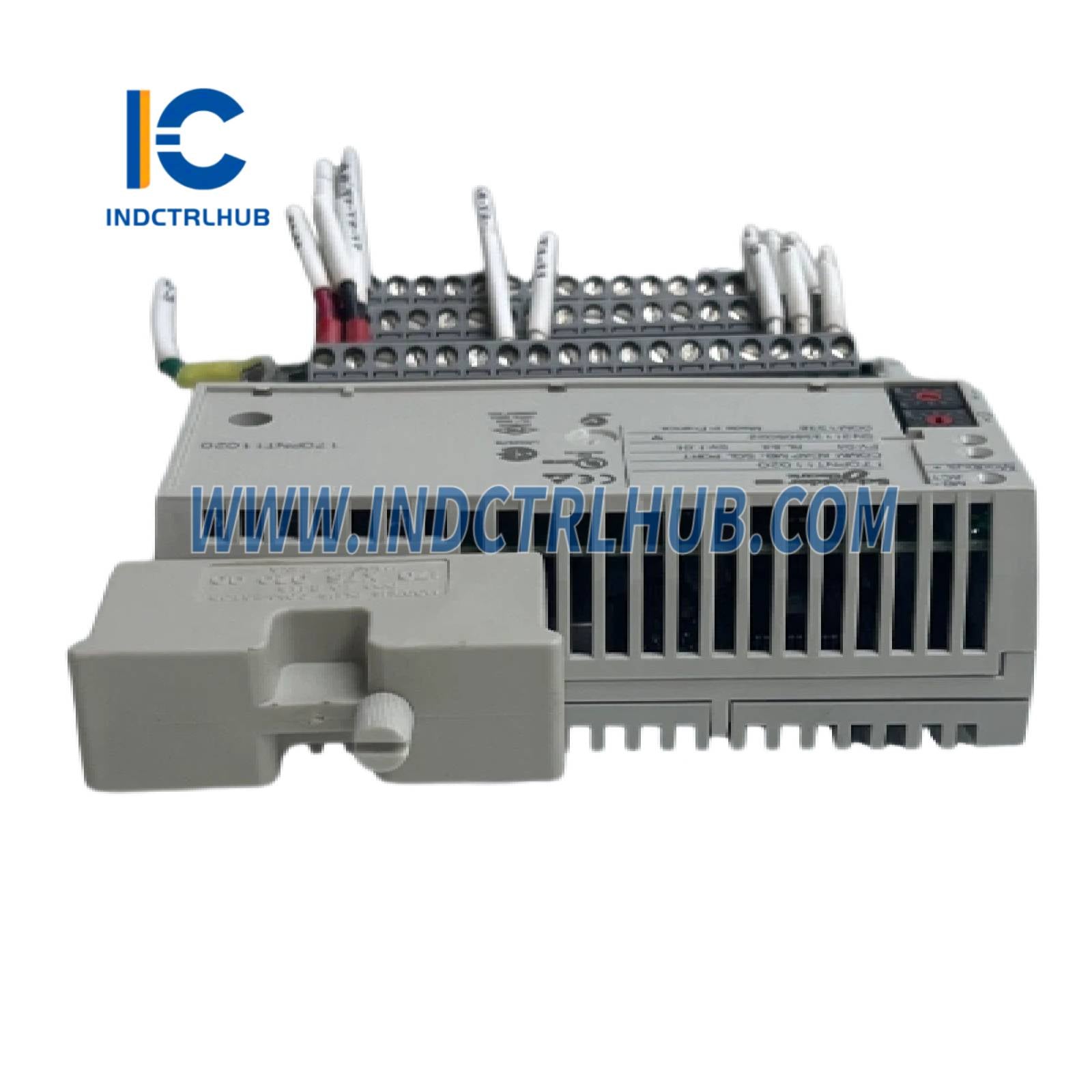

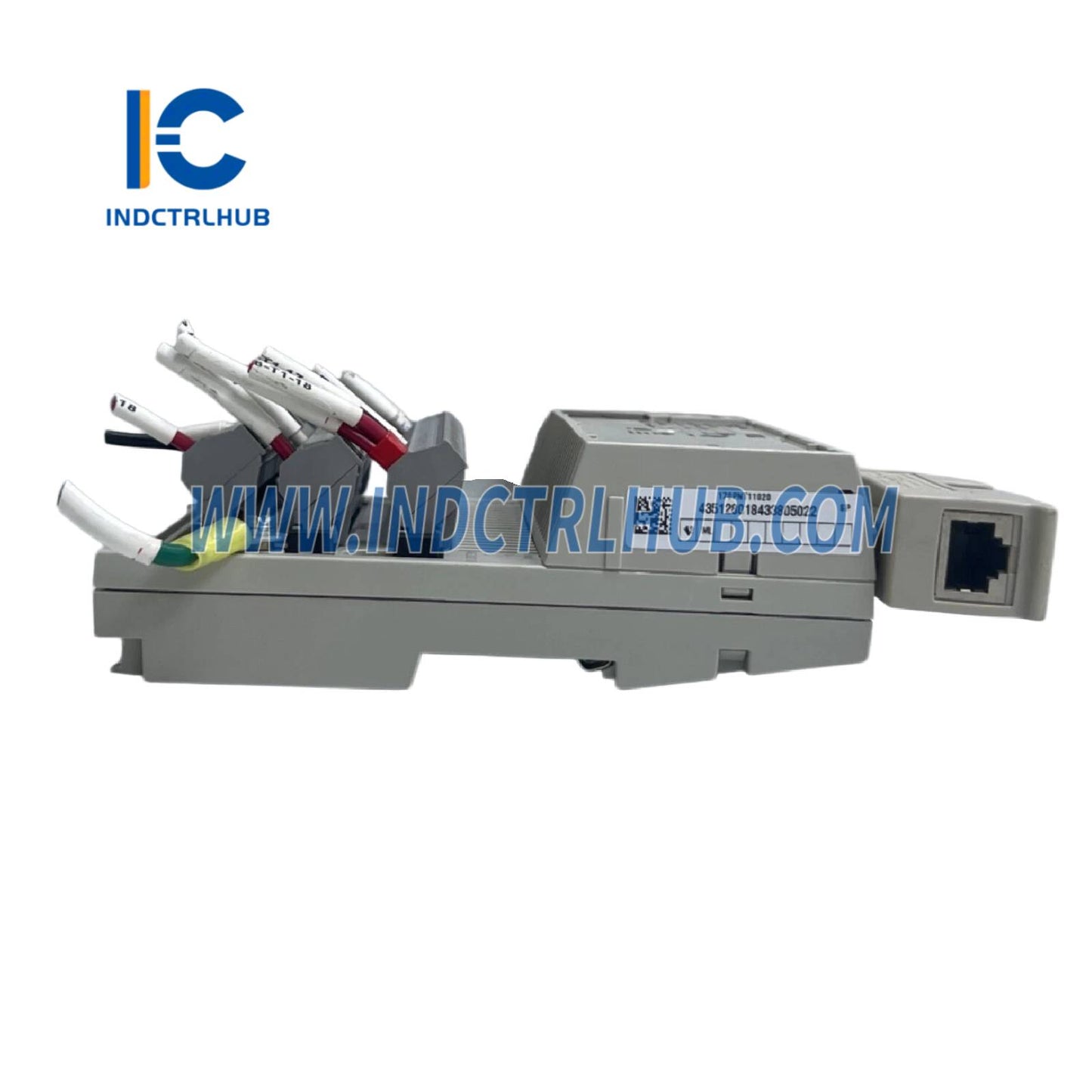

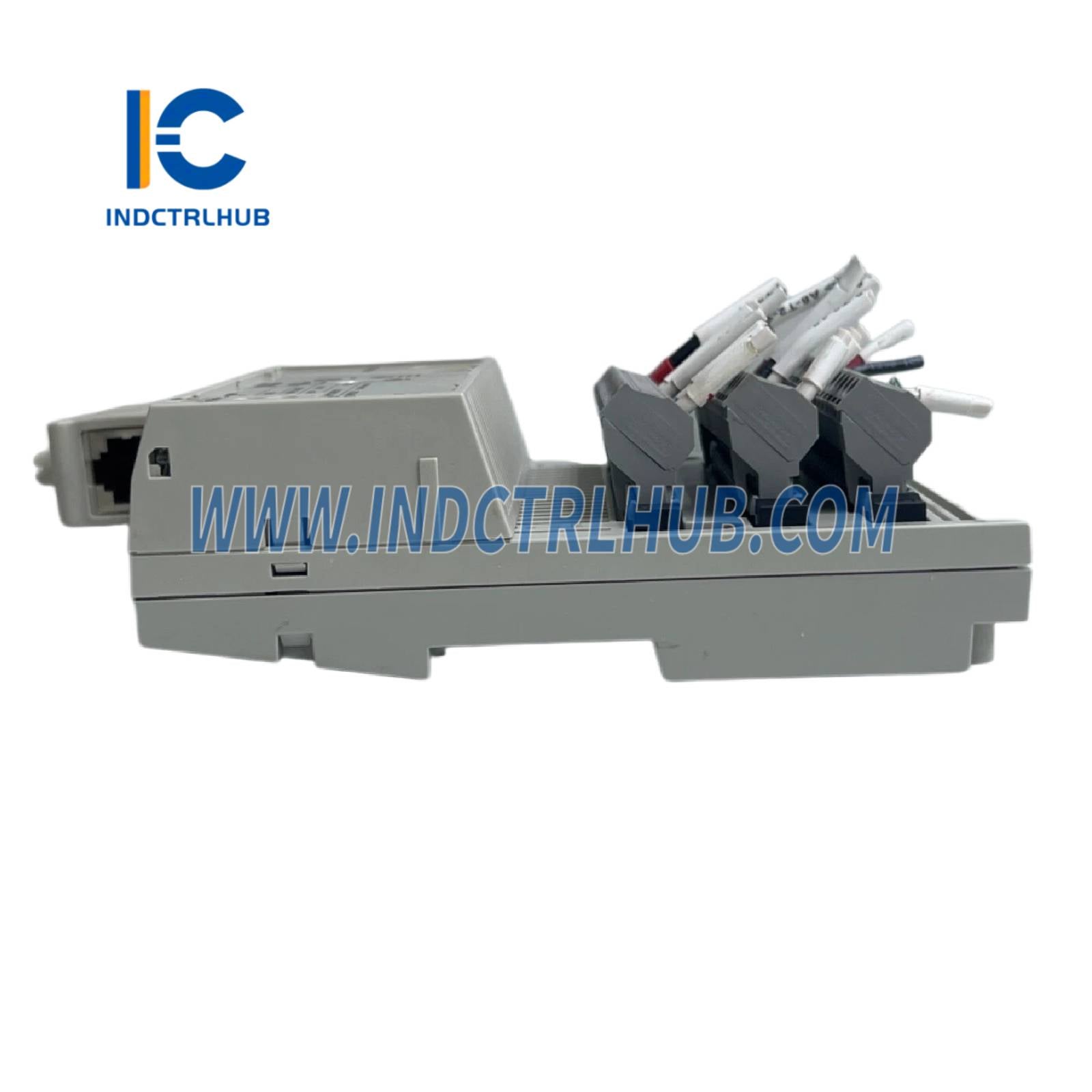

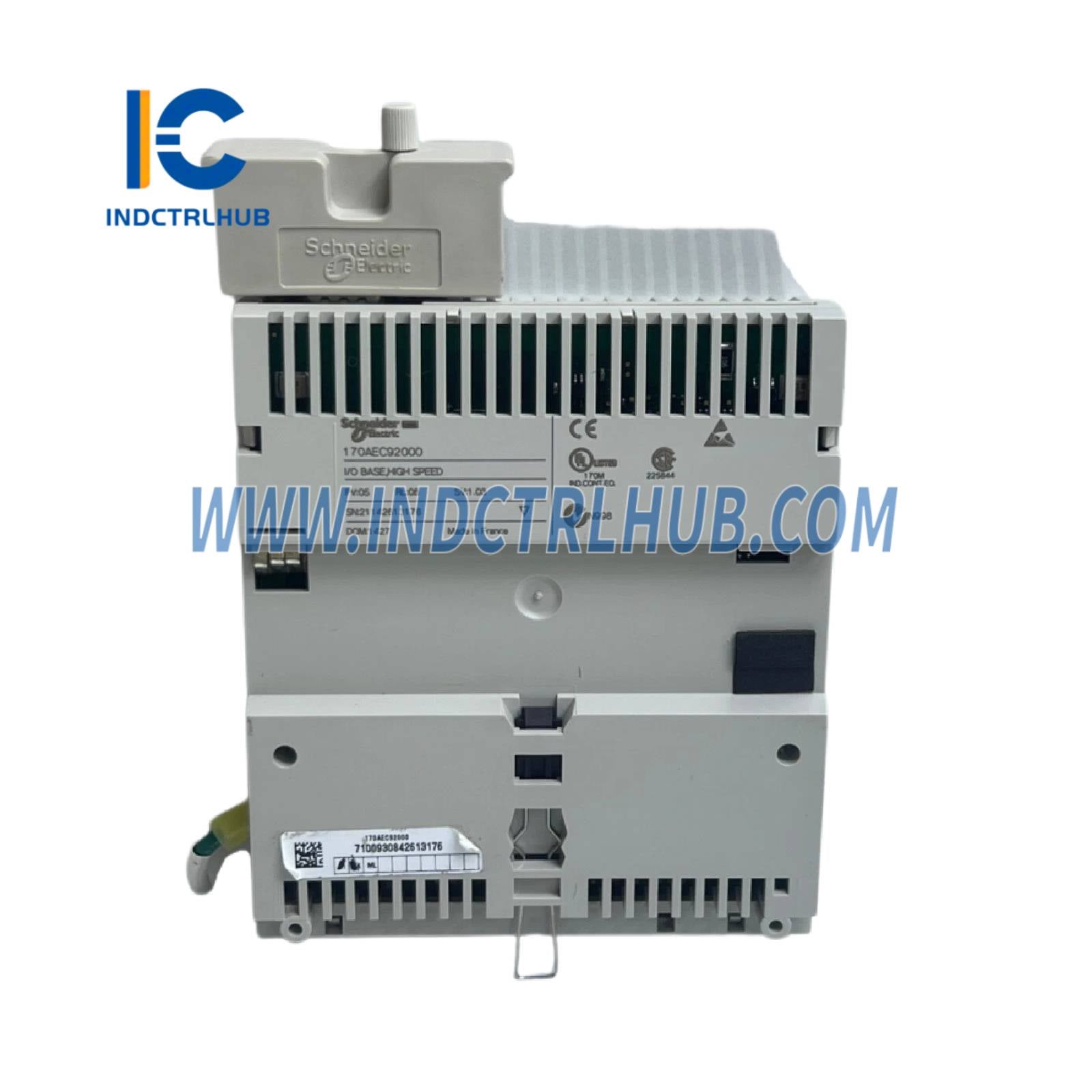

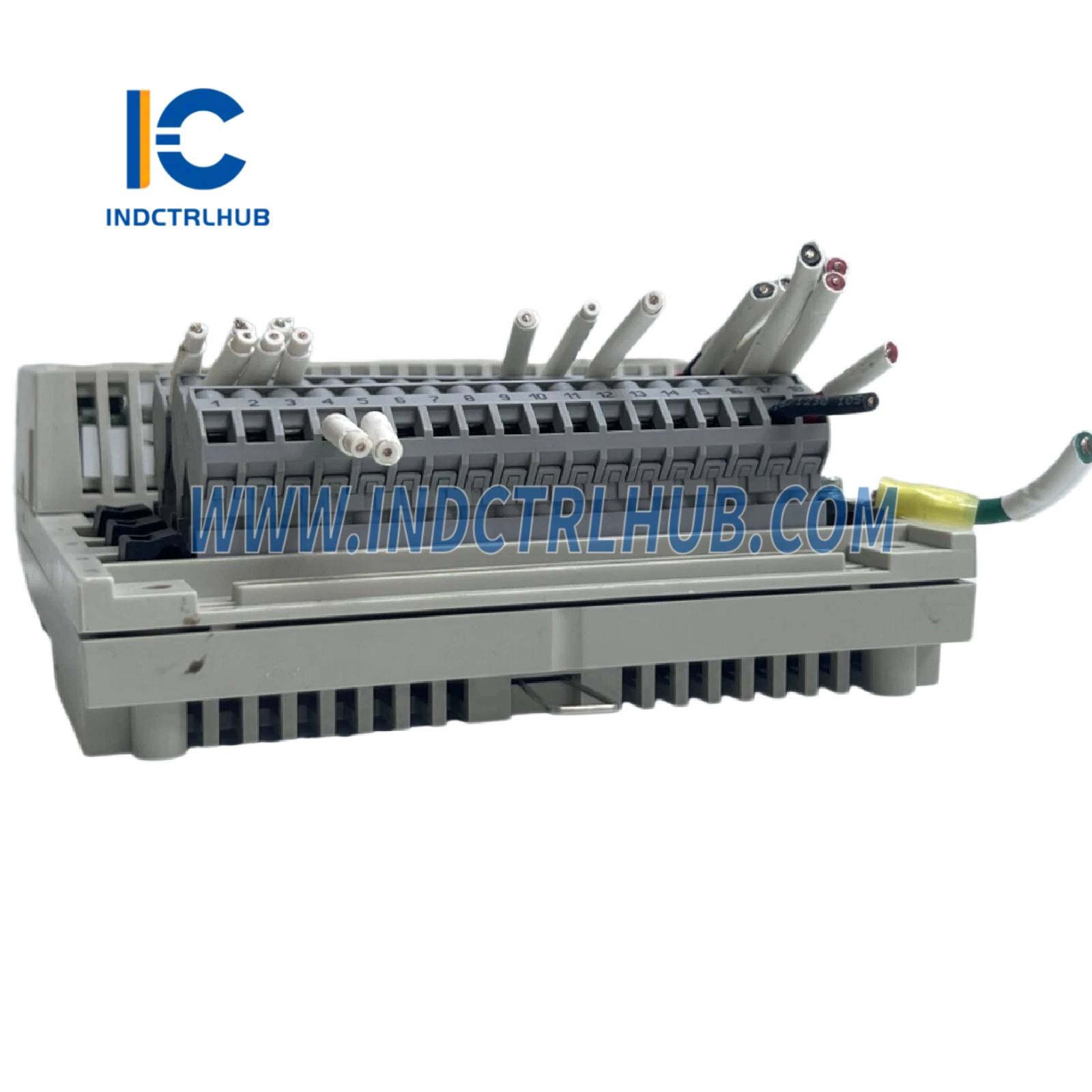

Schneider 170AEC92000 High speed counter module

Manufacturer

Schneider Electric

Model/Part Number

170AEC92000

Description

Modicon Momentum - High speed counter module base - 6 I / 4 O

Product Type

High speed counter module base

Range of Product

Modicon Momentum automation platform

Discrete Input Number

6

Discrete Output Number

4

Discrete Input Logic

Positive

Discrete Input Voltage

-3…30 V DC

Input Overvoltage Protection

45 V for 10 s

Discrete Output Logic

Positive

Discrete Output Voltage

24 V

Discrete Output Current

1 A per counter2 A per module0.5 A per point

Maximum Voltage Drop

< 0.5 V at 0.5 A (state on)

Maximum Leakage Current

1 mA at 24 V DC

Surge Current

5 A for 1 ms

Response Time

< 0.1 ms from state 0 to state 1 (output circuit)< 0.1 ms from state 1 to state 0 (output circuit)3 ms from state 0 to state 1 (input circuit)3 ms from state 1 to state 0 (input circuit)

Counting Input Type

Absolute SSI up, down with 4 sub-modesIncremental up, down, quadrature

Counting Input Voltage

24 V single ended5 V differential

Counting Frequency

10 kHz single ended200 kHz differential

Counter Inputs Resolution

24 bits + sign

Counter Configuration

Via communication adapter

Current Consumption

280 mA at 24 V DC

Weight

0.21 kg

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95% without condensation

Operating Altitude

≤ 5000 m

Electrostatic Discharge Resistance

4 kV contact, 8 kV air (IEC 801-2)

EM Field Resistance

10 V/m (80–1000 MHz, IEC 801-3)

CE

Marked

UL

Certified

CSA

Certified
