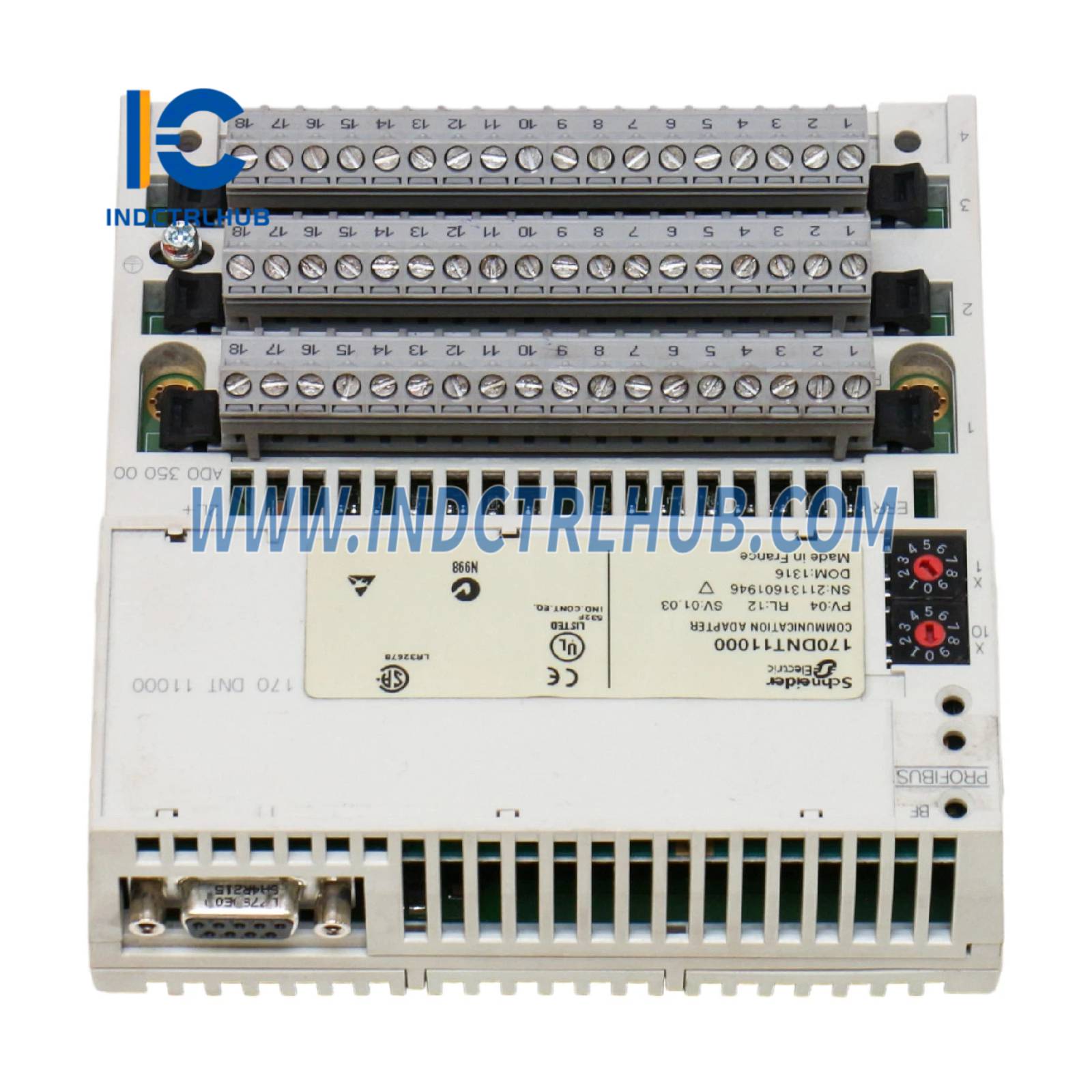

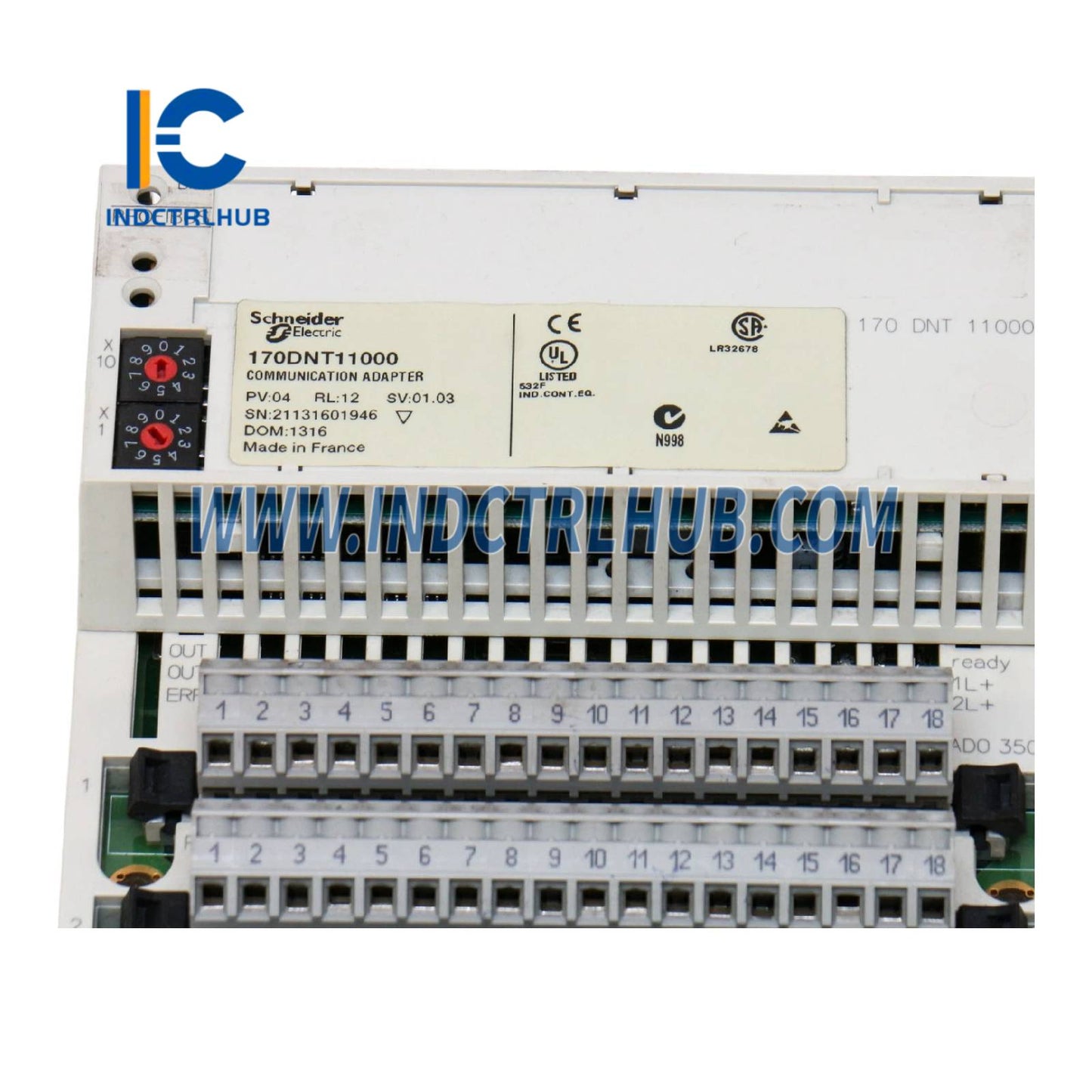

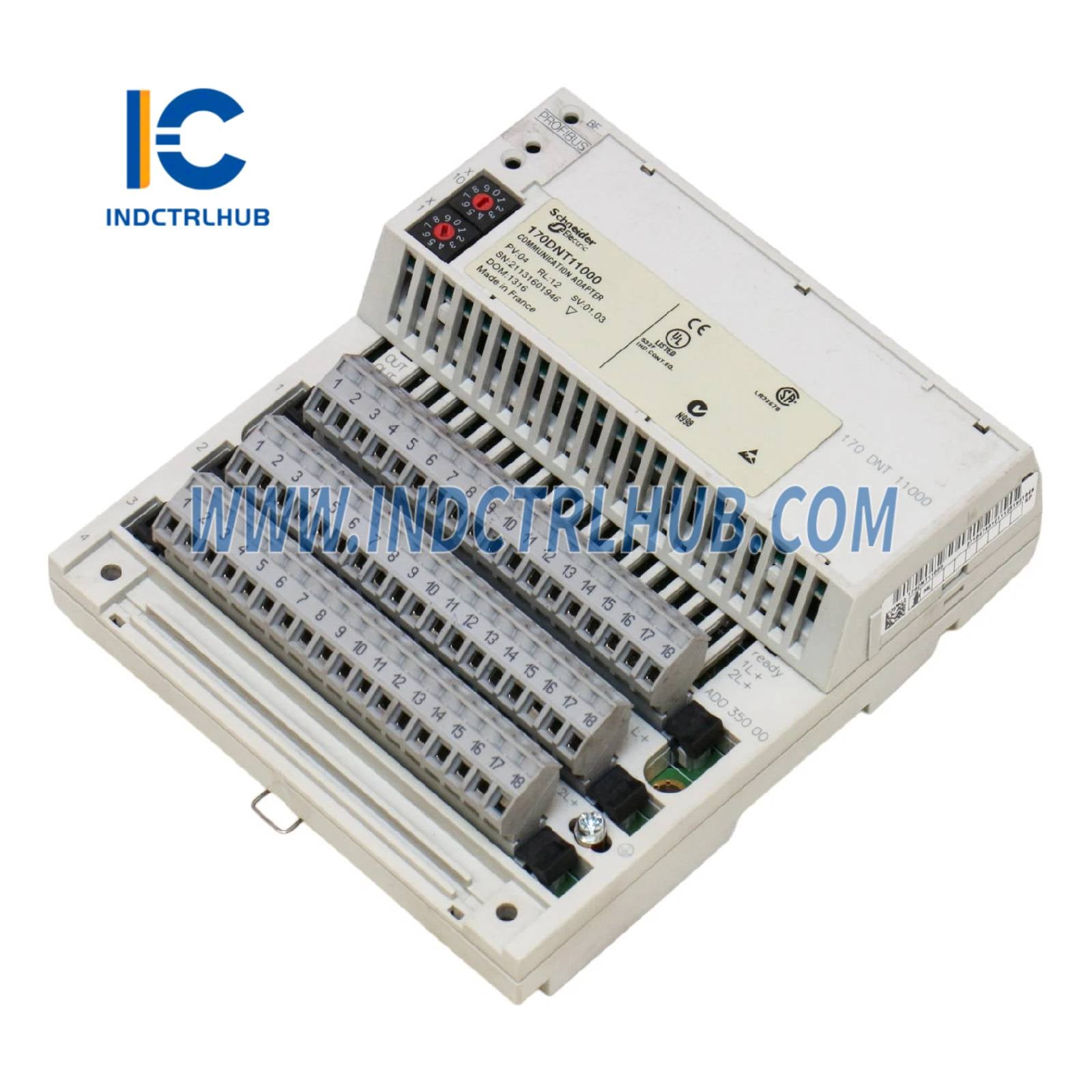

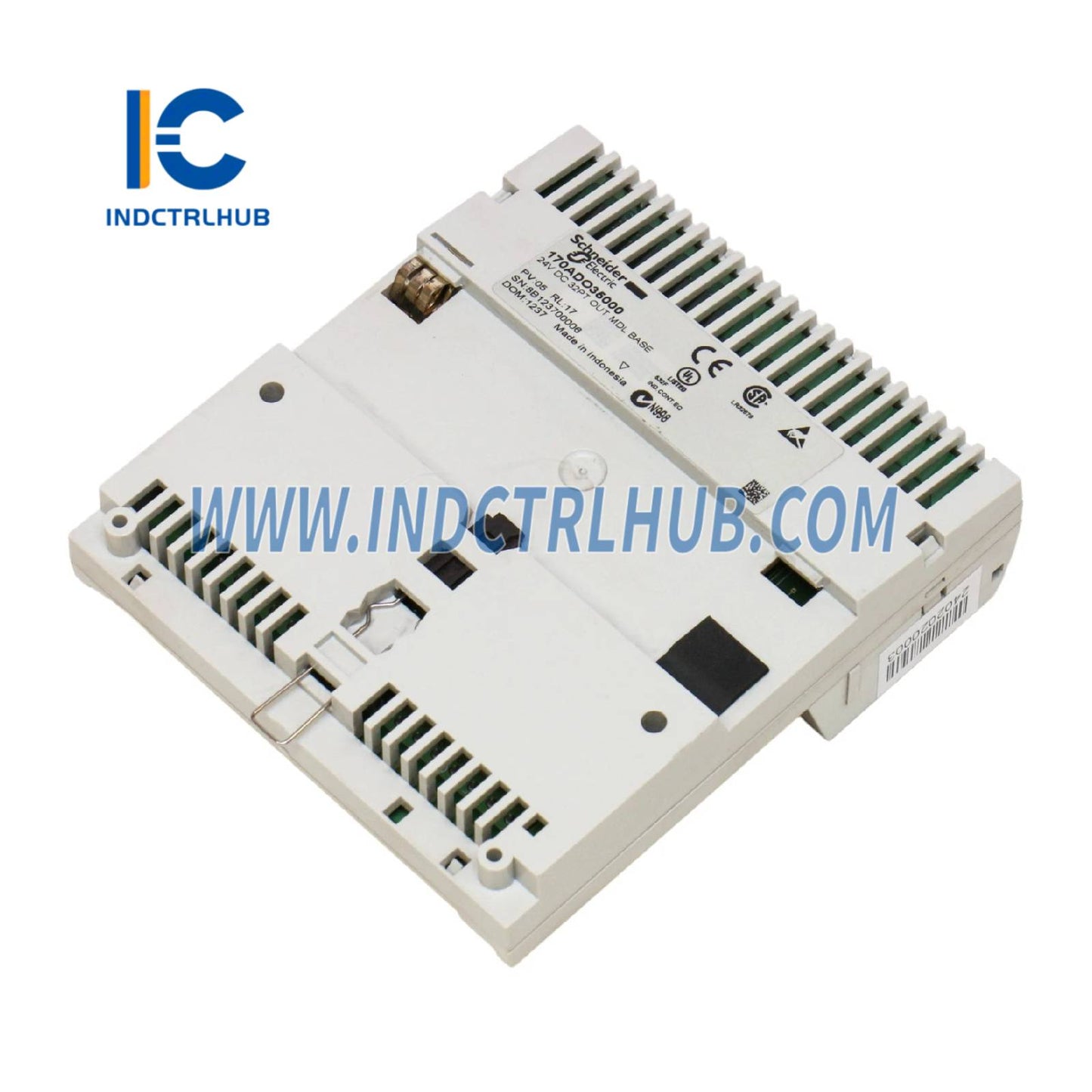

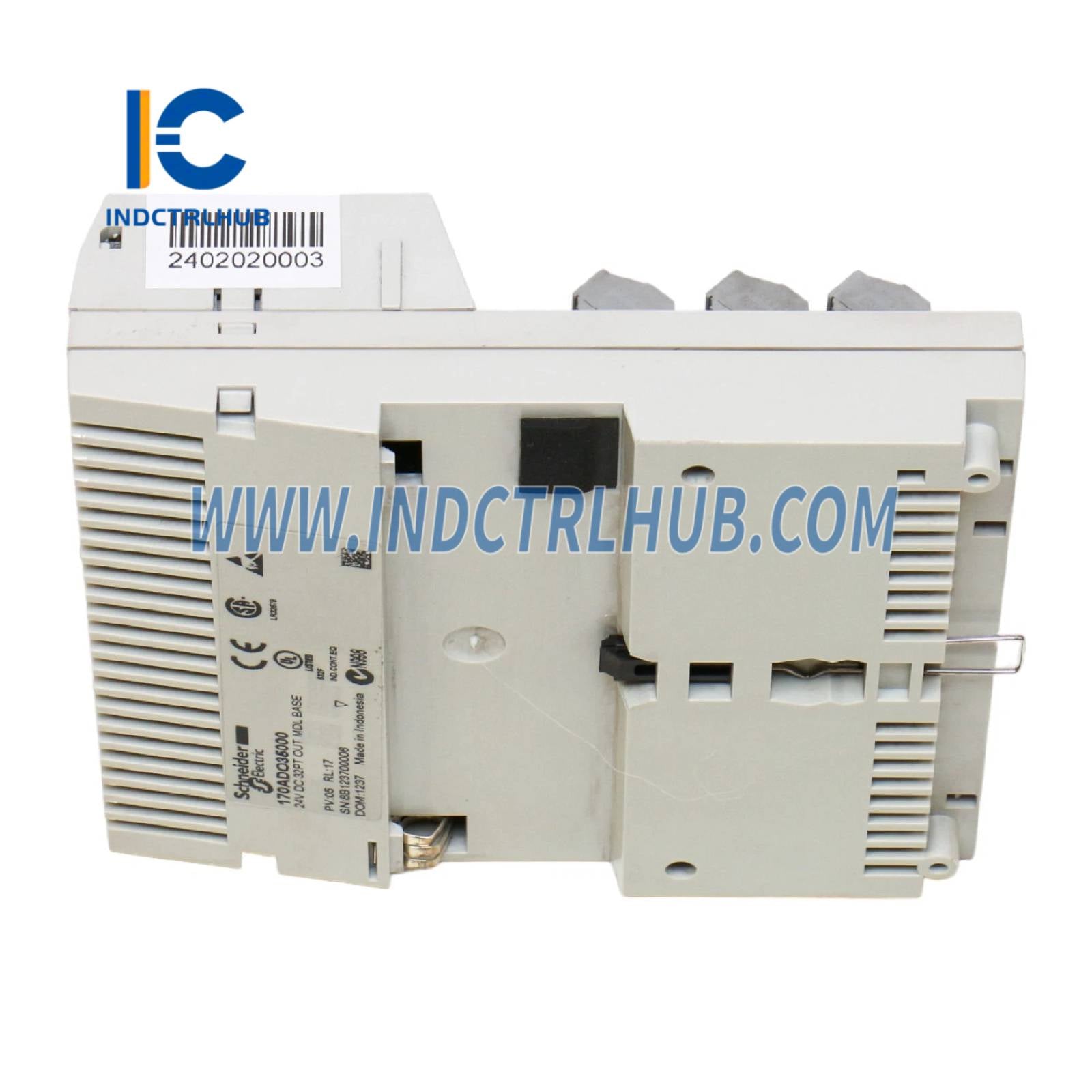

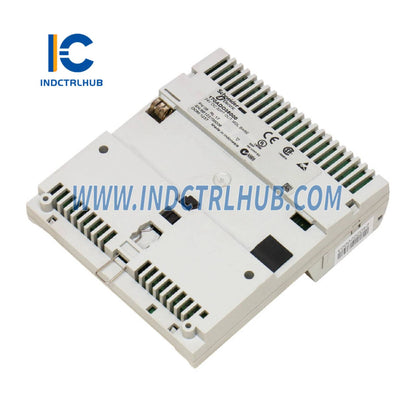

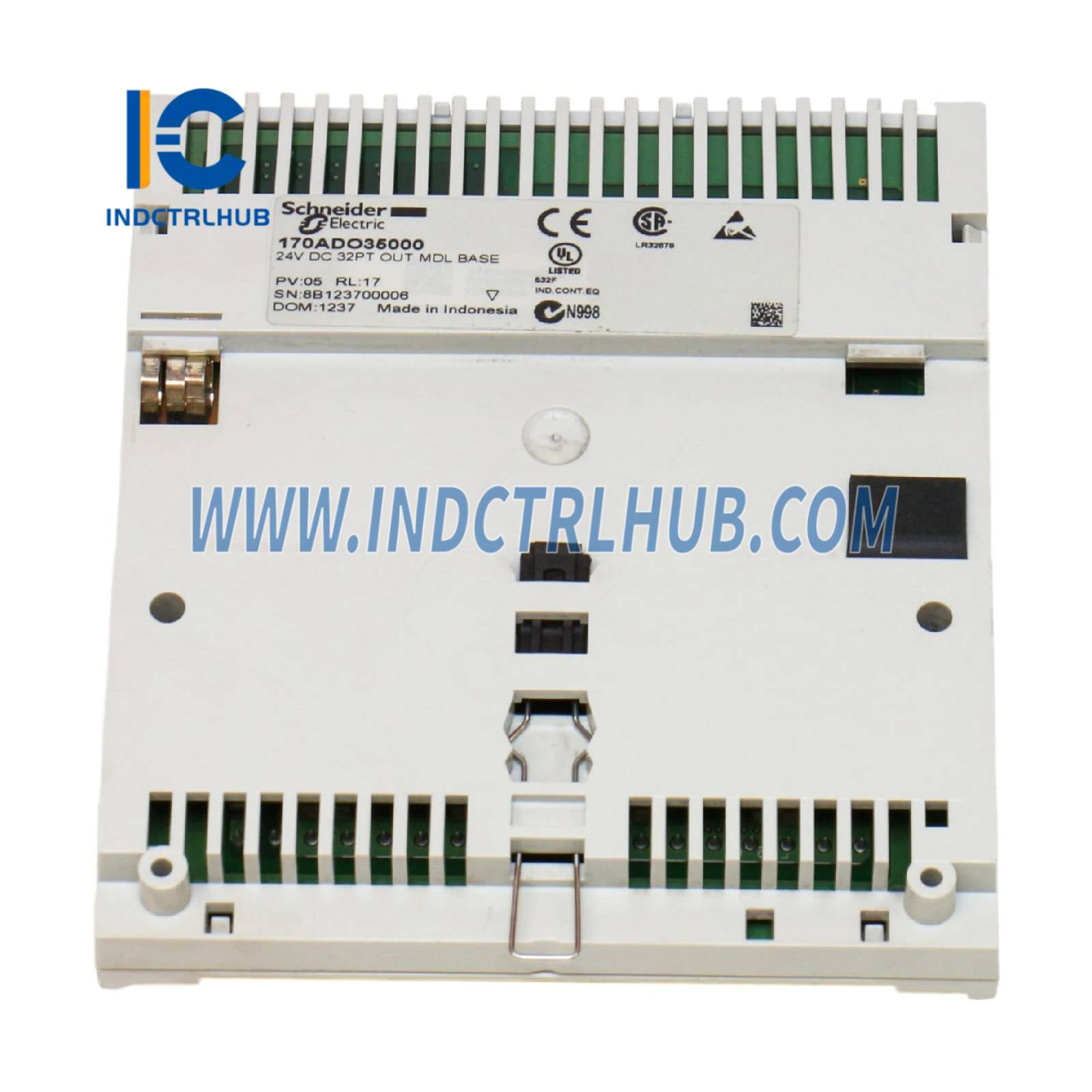

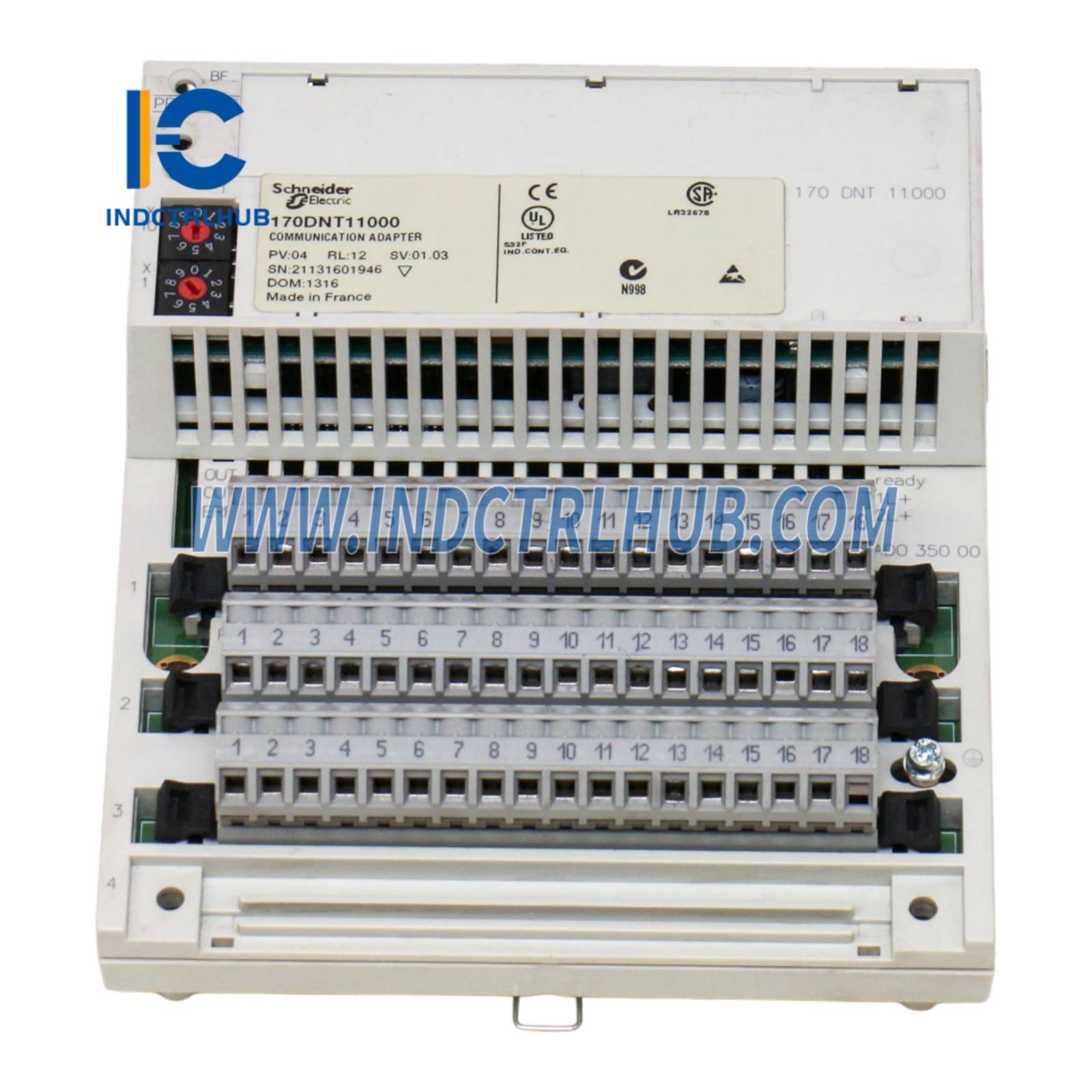

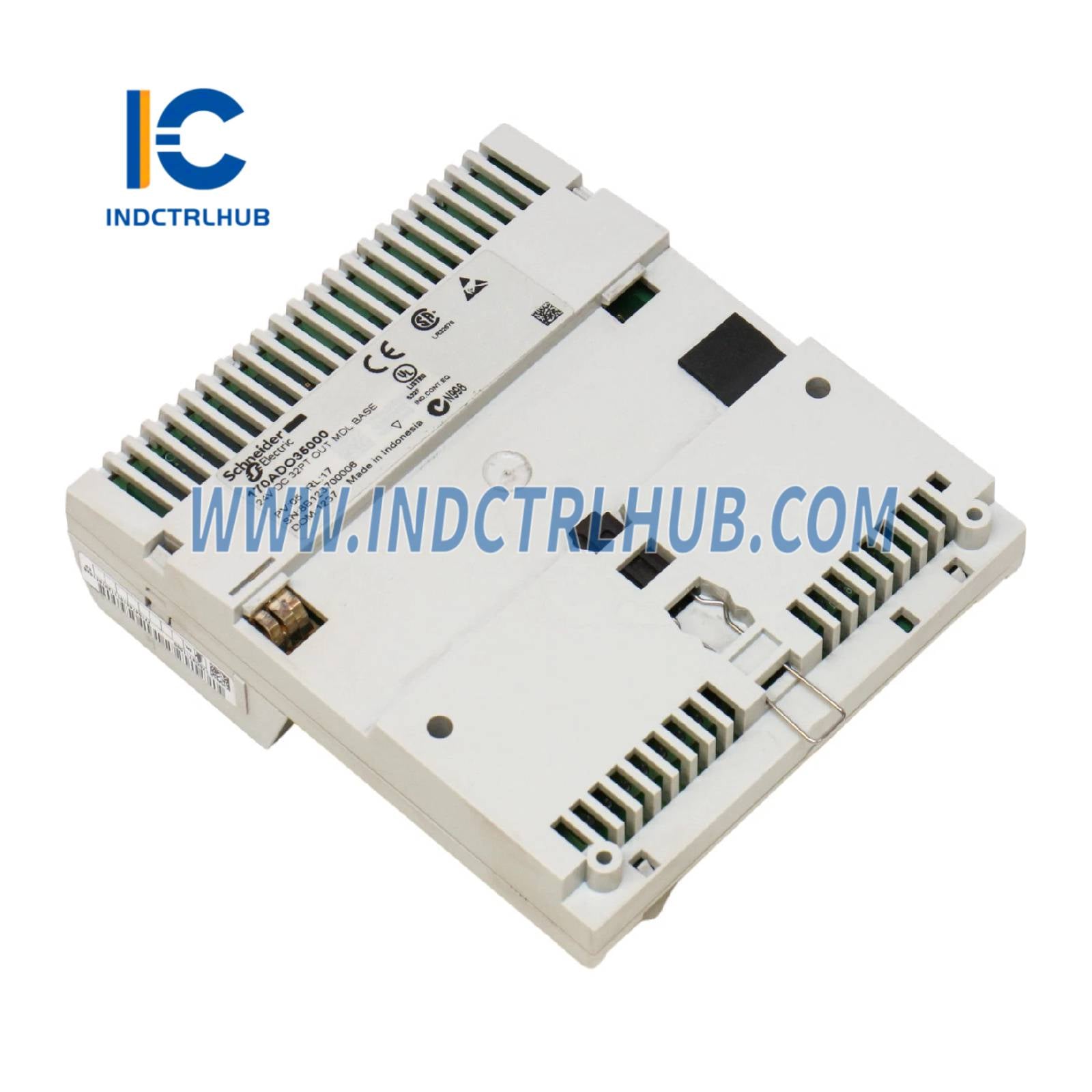

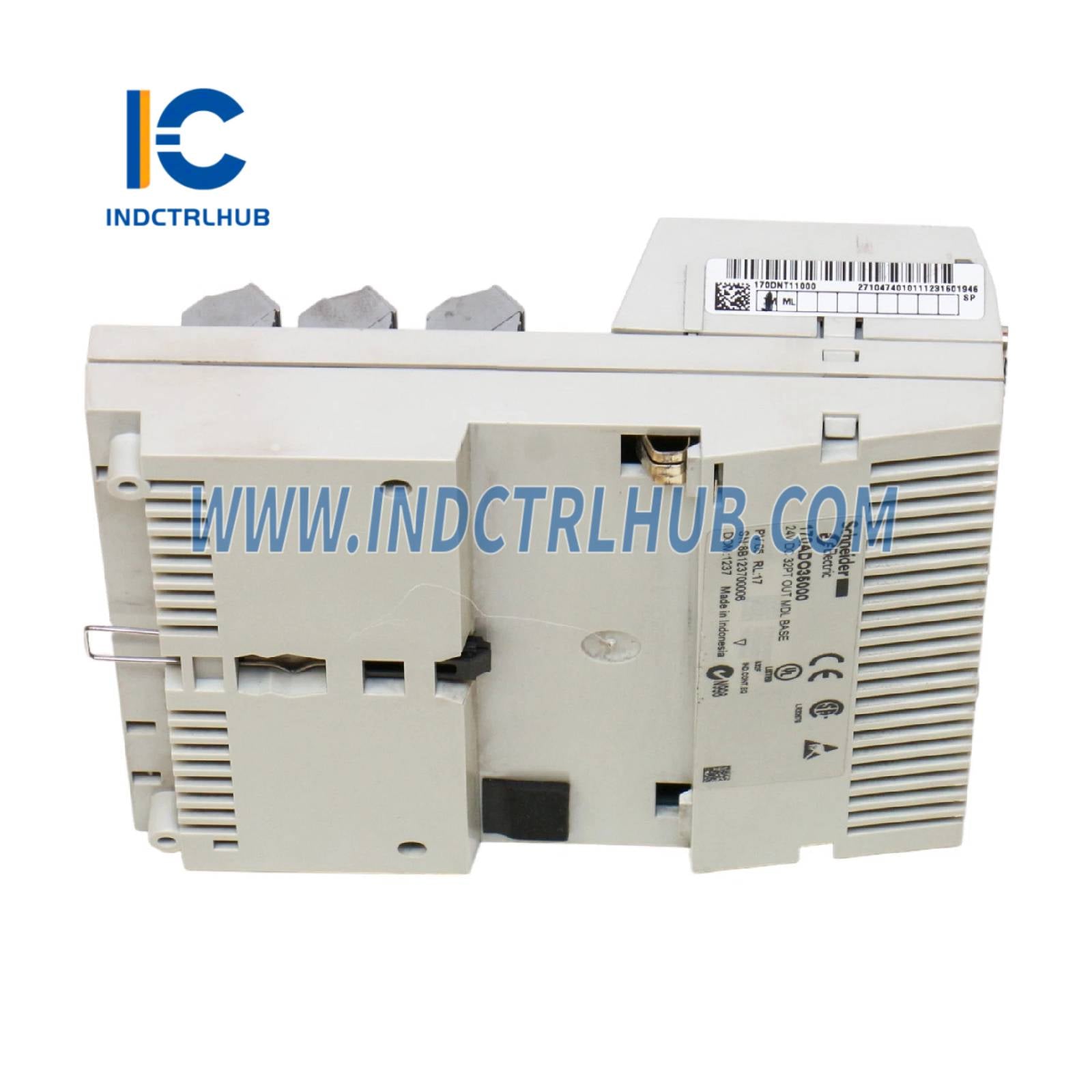

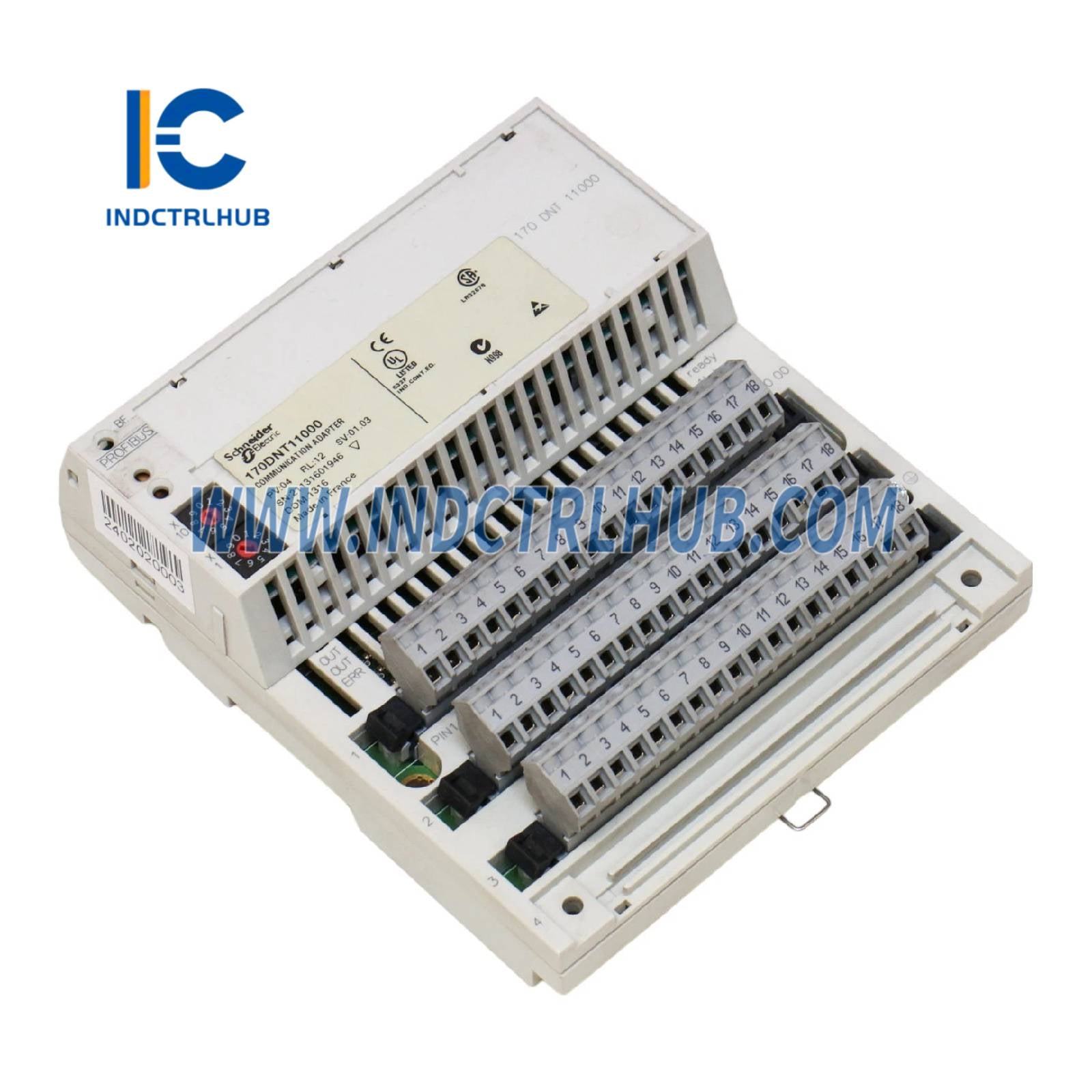

Schneider 170ADO35000 Discrete output module Modicon Momentum

Manufacturer

Schneider Electric

Model/Part Number

170ADO35000

Description

Discrete output module Modicon Momentum – 32 O solid state

Product Type

Discrete output base (DC)

Range of Product

Modicon Momentum automation platform

Discrete Output Number

32

Discrete Output Type

Solid state switch

Discrete Output Voltage

24 V DC

Current per Channel

0.5 A

Short-Circuit Protection

Outputs electronically protected

Rated Operational Voltage

24 V DC

Discrete Output Current

16 A per module8 A per group

Maximum Leakage Current

1 mA at 24 V DC

Surge Current

5 A during 1 ms

Maximum Voltage Drop

< 0.5 V at 0.5 A (state 1 output circuit)

Output Overload Protection

Outputs electronically protected

Response Time

0.1 ms from state 0 to state 10.1 ms from state 1 to state 0

Isolation Between Channels and Bus

500 V AC

Power Dissipation

6 W typical7.5 W maximum

Height

141.5 mm

Width

125 mm

Depth

47.5 mm

Weight

0.21 kg

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95% without condensation

Operating Altitude

≤ 5000 m

Electrostatic Discharge Resistance

4 kV contact, 8 kV air (IEC 801-2)

EM Field Resistance

10 V/m (80–1000 MHz, IEC 801-3)

CE

Marked

CSA

Certified

UL

Certified
