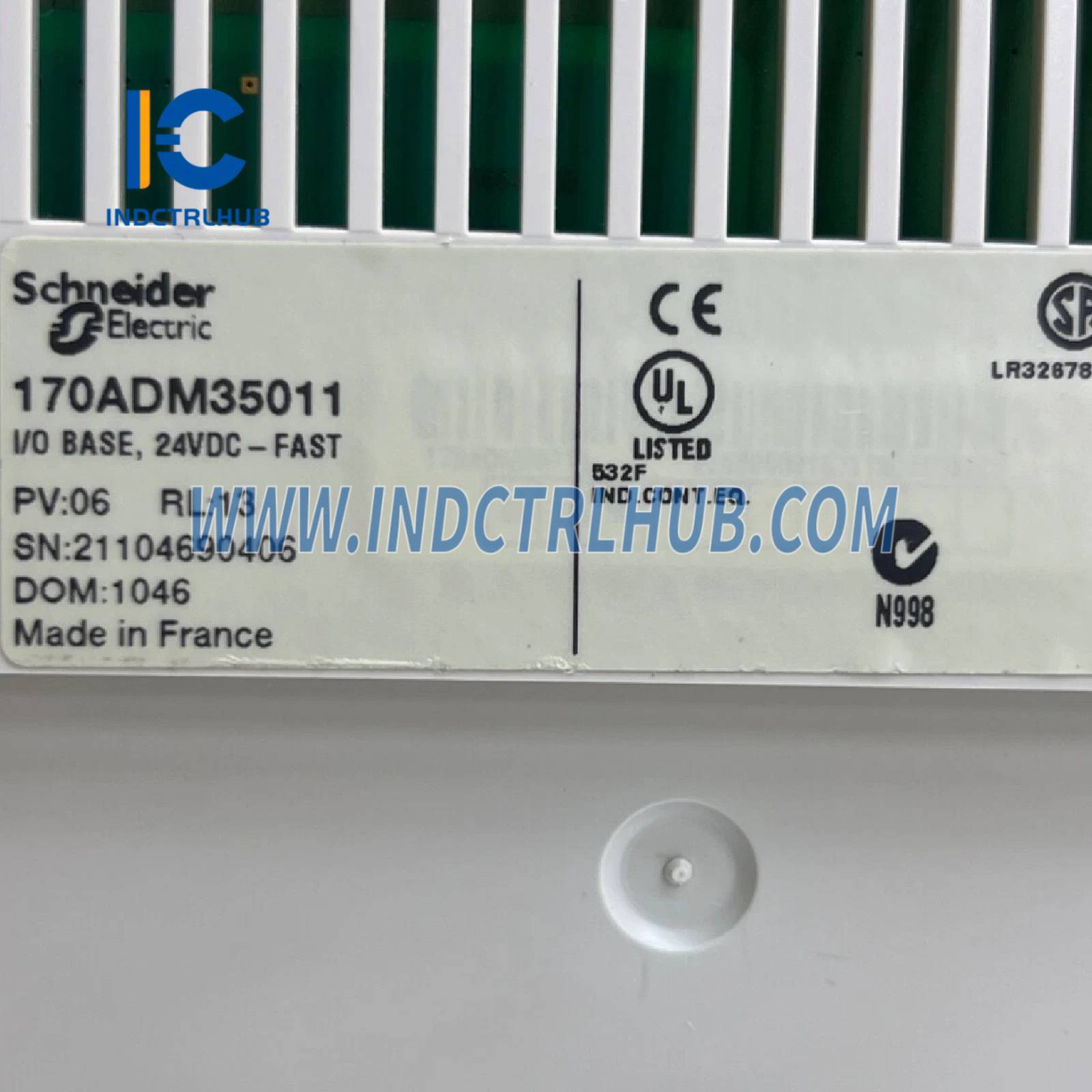

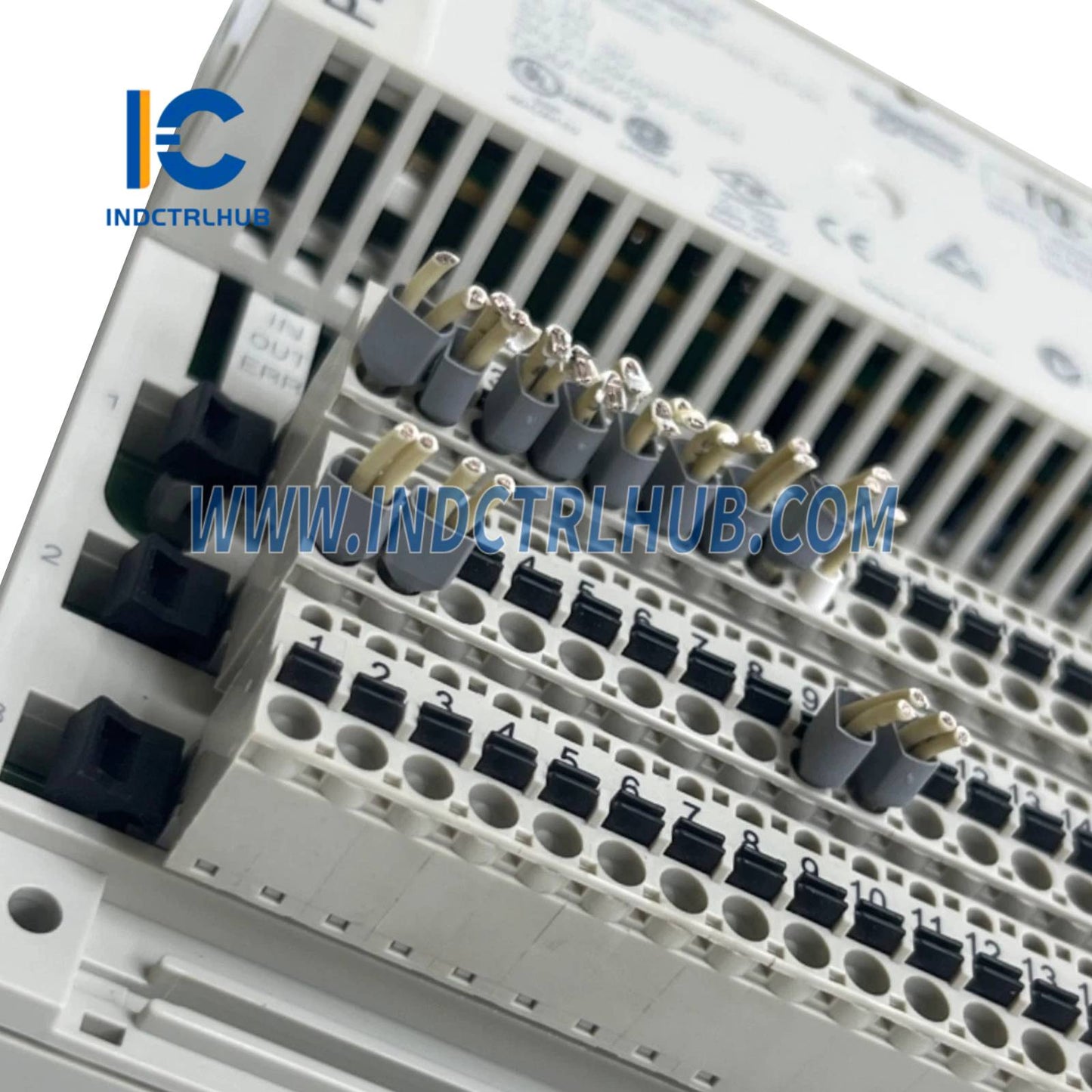

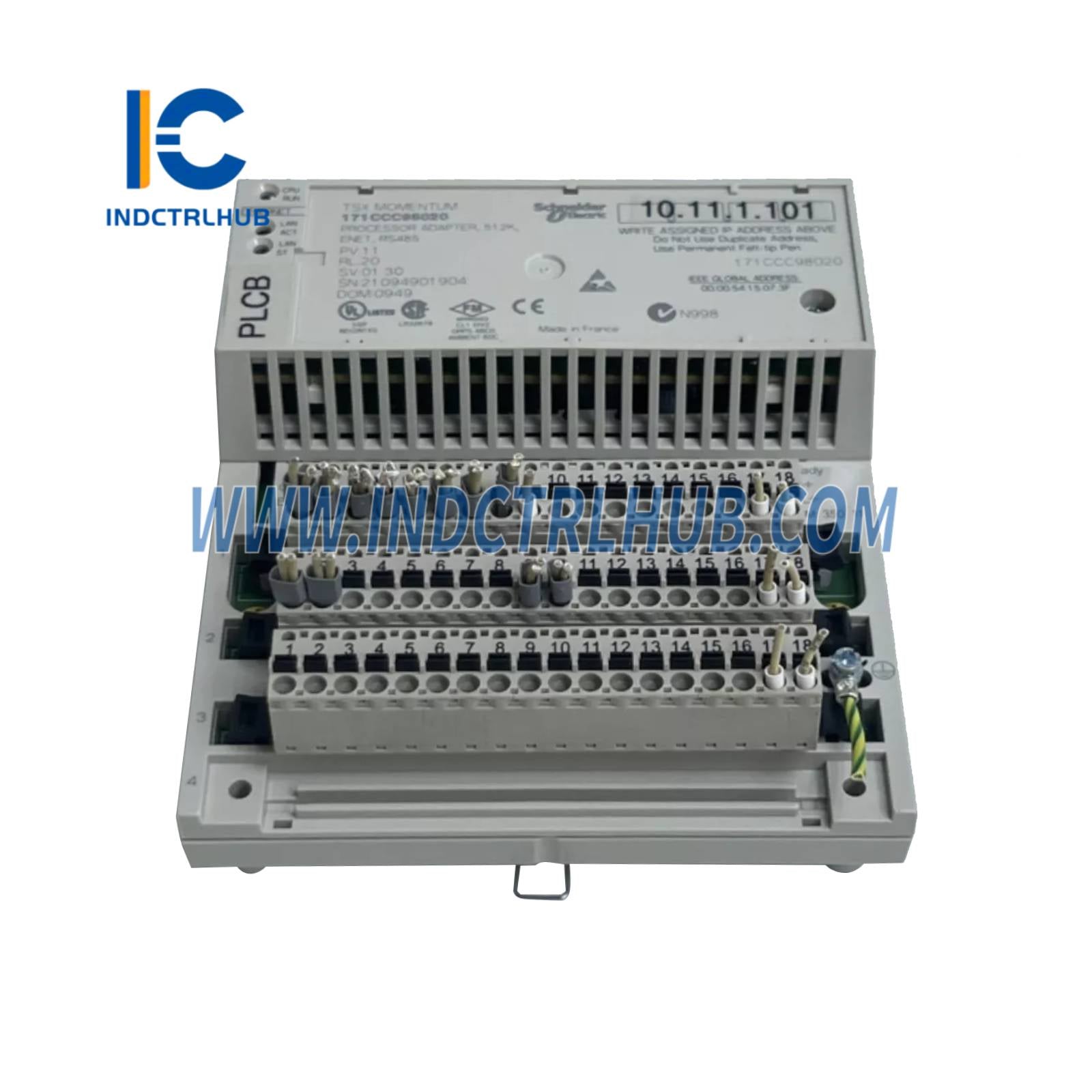

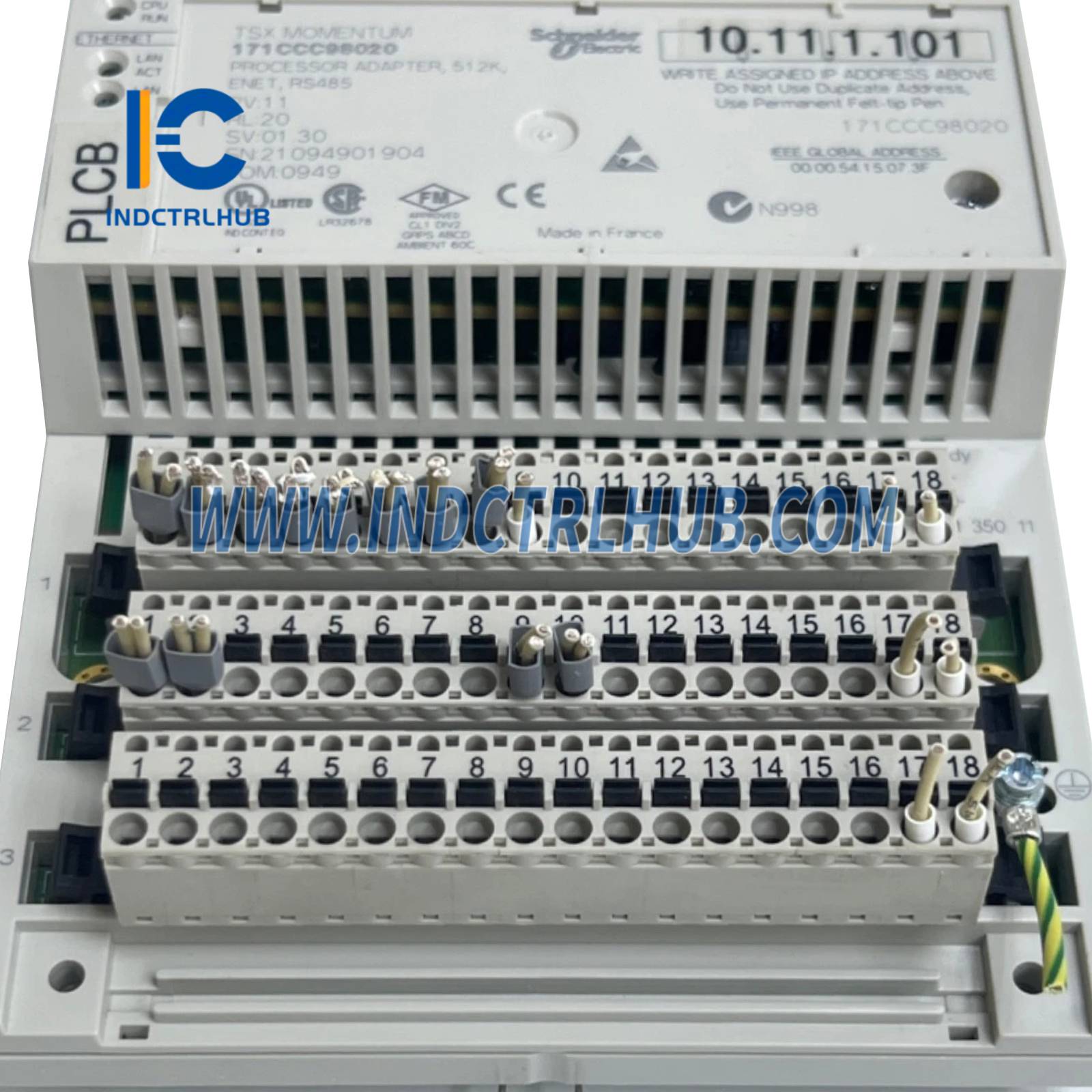

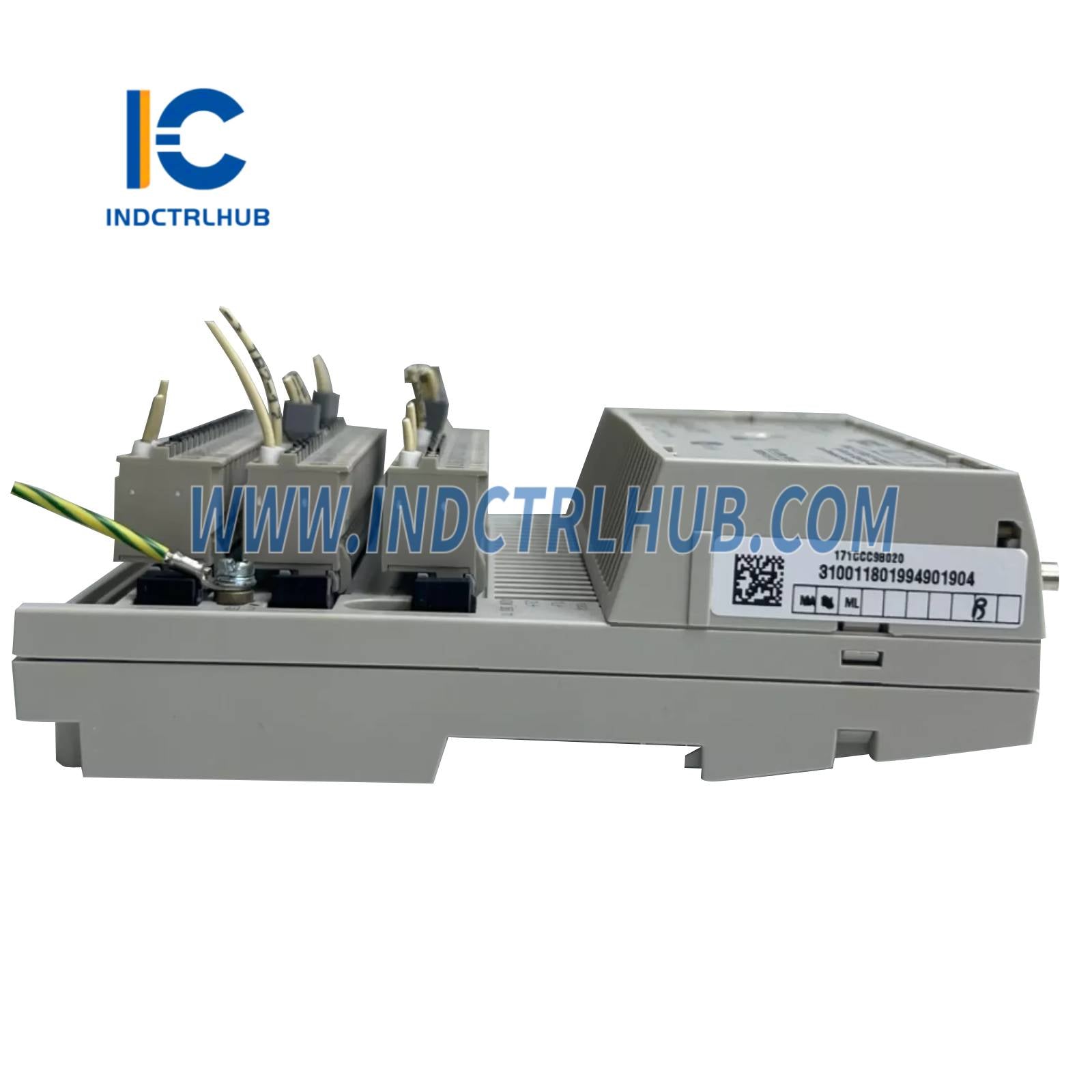

Schneider 170ADM35011 Discrete I/O module Modicon Momentum

Manufacturer

Schneider Electric

Model/Part Number

170ADM35011

Description

Discrete I/O module Modicon Momentum – 16 I/O solid state

Product Type

Discrete solid state I/O base (DC)

Range of Product

Modicon Momentum automation platform

Discrete Input Number

16

Discrete Input Logic

Positive

Discrete Input Voltage

24 V DC

Discrete Output Number

16

Discrete Output Type

Solid state switch

Discrete Output Voltage

≤ 30 V DC, 24 V DC

Discrete Output Logic

Positive

Supply Voltage

24 V DC

Input Voltage Limits

-3…30 V

Voltage State 0 Guaranteed

-3…5 V

Voltage State 1 Guaranteed

11…30 V

Current State 0 Guaranteed

≤ 1.2 mA

Current State 1 Guaranteed

≥ 2.5 mA

Input Resistance

4 kΩ

Discrete Output Current

4 A per group8 A per module0.5 A per point

Maximum Leakage Current

1 mA at 24 V (output circuit)

Peak Output Current

5 A

Maximum Voltage Drop

<0.5 V at 0.5 A (state 1 output circuit)

Fault Type

Overload on output

Response Time

< 0.1 ms (state 0 to 1 on output)< 0.1 ms (state 1 to 0 on output)0.06 ms (state 0 to 1 on input)0.08 ms (state 1 to 0 on input)

Isolation Between Channels and Bus

500 V AC

Power Dissipation

≤ 8 W6 W

Height

141.5 mm

Width

125 mm

Depth

47.5 mm

Weight

0.2 kg

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95% without condensation

Operating Altitude

≤ 5000 m

Electrostatic Discharge Resistance

4 kV contact, 8 kV air (IEC 801-2)

EM Field Resistance

10 V/m (80–1000 MHz, IEC 801-3)

CE

Marked

CSA

Certified

UL

Certified
