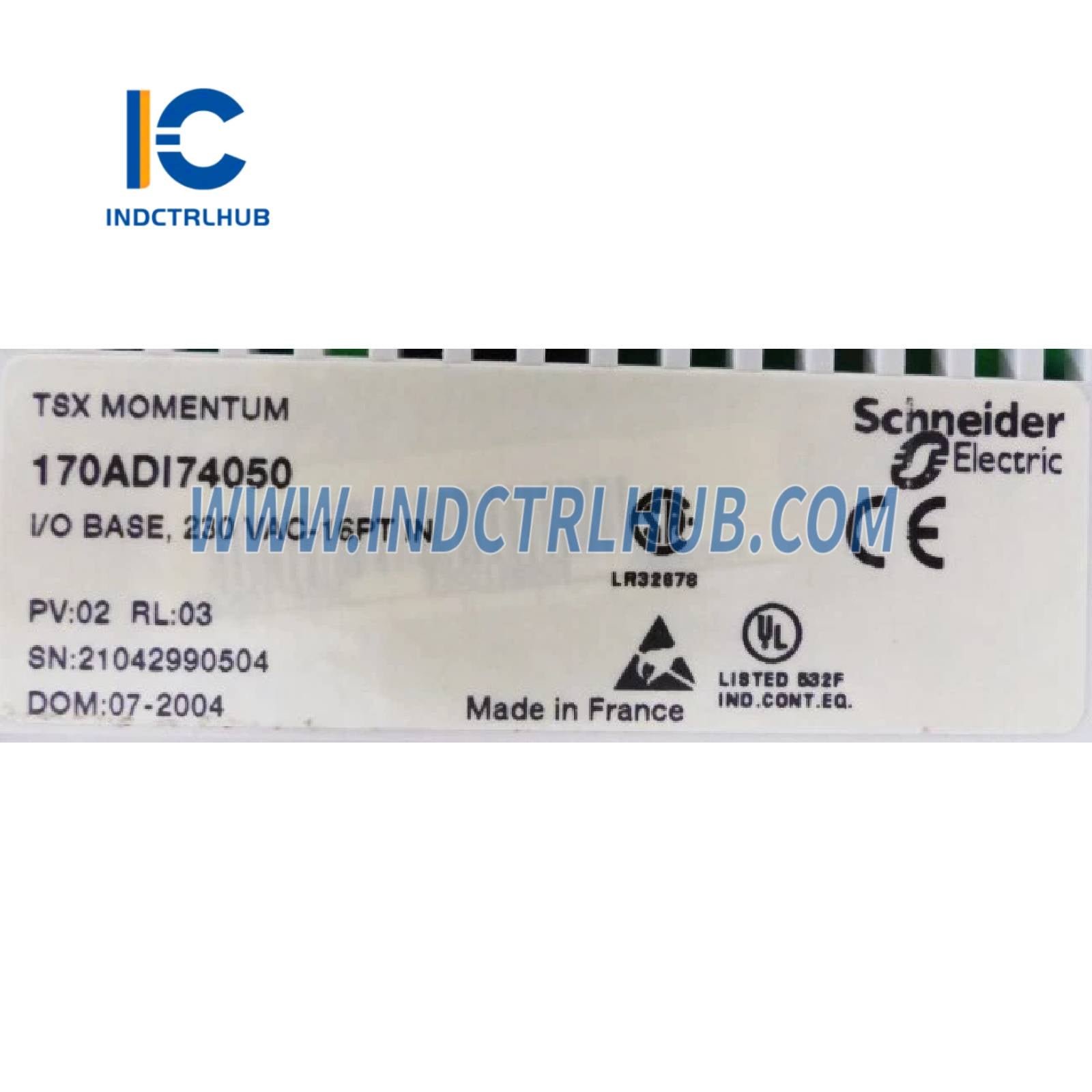

Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
170ADI74050 |
|
Description |

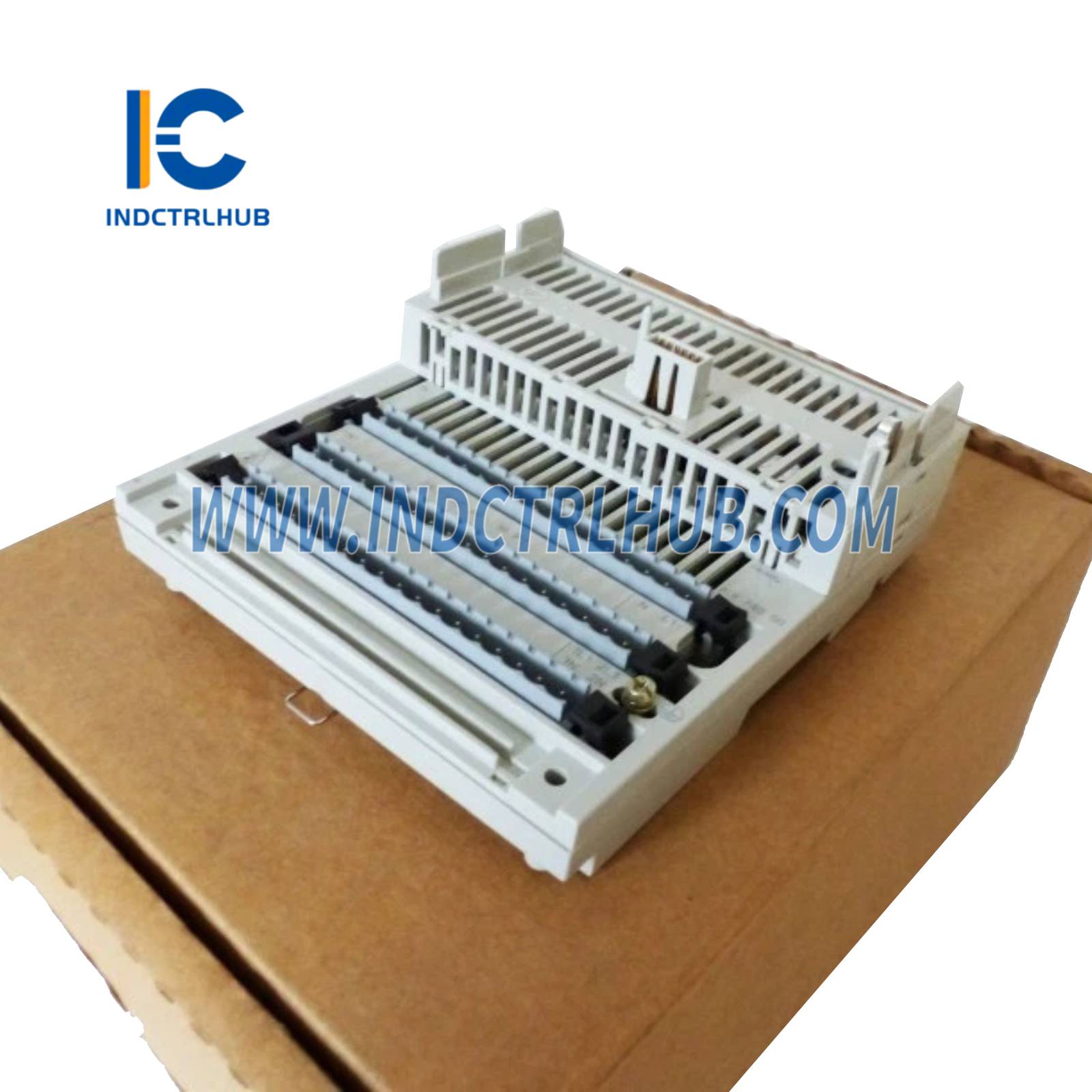

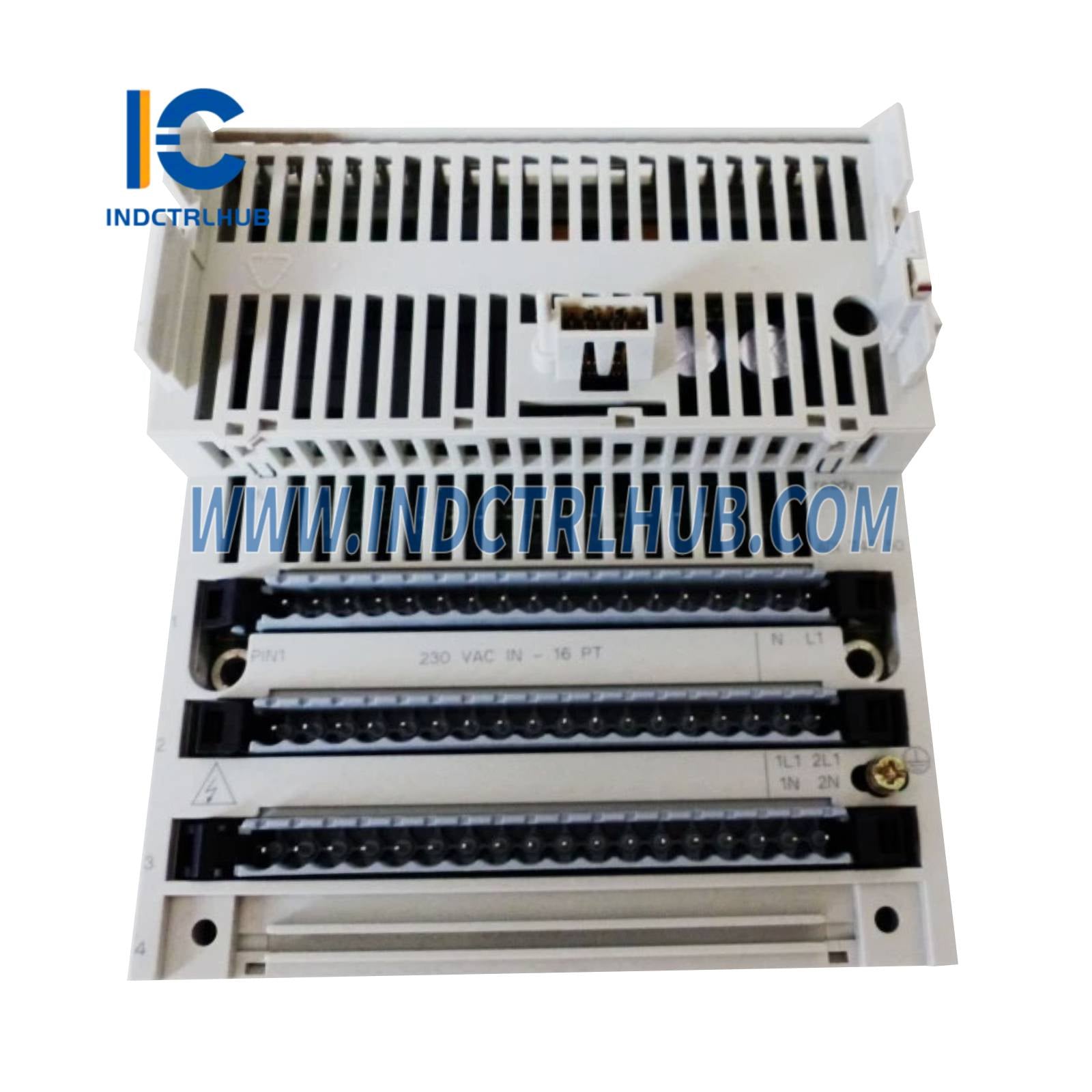

Discrete input module Modicon Momentum – 16 inputs (200…240 V AC) |
|
Product Type |
Discrete inputs base (AC) |
|
Range of Product |
Modicon Momentum automation platform |
Technical Specifications
Electrical
|
Specification |
Details |
|---|---|
|
Discrete Input Number |
16 |
|
Group of Channels |
2 groups of 8 inputs |
|
Discrete Input Voltage |
230 V AC |
|
Discrete Input Logic |
Positive |
|
Input Voltage Limits |
164…253 V |
|
Voltage Range |
163…253 V |
|
Voltage State 0 Guaranteed |
≤ 40 V |
|
Voltage State 1 Guaranteed |
≥ 164 V |
|
Current State 0 Guaranteed |
≤ 2 mA |
|
Current State 1 Guaranteed |
≥ 10 mA |
|
Input Resistance |
7.5 kΩ (60 Hz)9 kΩ (50 Hz) |
|
Response Time |
13.3 ms (60 Hz, state 0 to 1)13.3 ms (60 Hz, state 1 to 0) |
|
Isolation Between Group |
1780 V AC |
|
Isolation Between Channels and Bus |
1780 V AC |
Power
|
Specification |
Details |
|---|---|
|
Current Consumption |
≤ 125 mA at 230 V AC |
|
Protective Treatment |
TC |
Physical Specifications
|
Dimension |
Value |
|---|---|
|
Height |
141.5 mm |
|
Width |
125 mm |
|
Depth |
47.5 mm |
|
Weight |
0.284 kg |
Environmental Specifications
|
Specification |
Value |
|---|---|
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
95% without condensation |
|
Operating Altitude |
≤ 5000 m |
|
Electrostatic Discharge Resistance |
4 kV contact, 8 kV air (IEC 801-2) |
|
EM Field Resistance |
10 V/m (80–1000 MHz, IEC 801-3) |
Certifications and Compliance
|
Certification |
Description |
|---|---|
|
CE |
Marked |
|
CSA |
Certified |
|
UL |
Certified |
Local Signalling
-
16 LEDs: One per input channel to indicate status
