Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
170AD034000 |
|
Description |

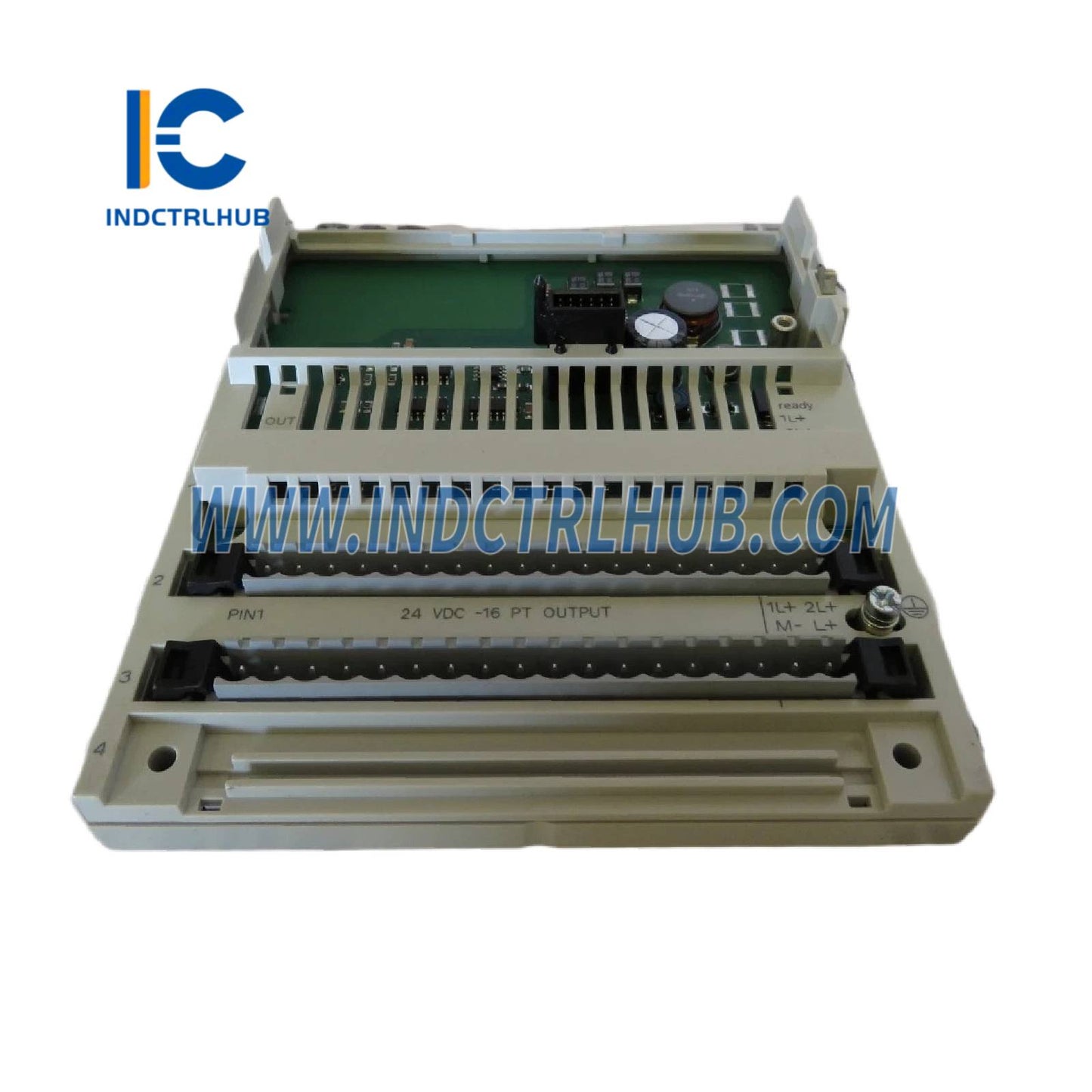

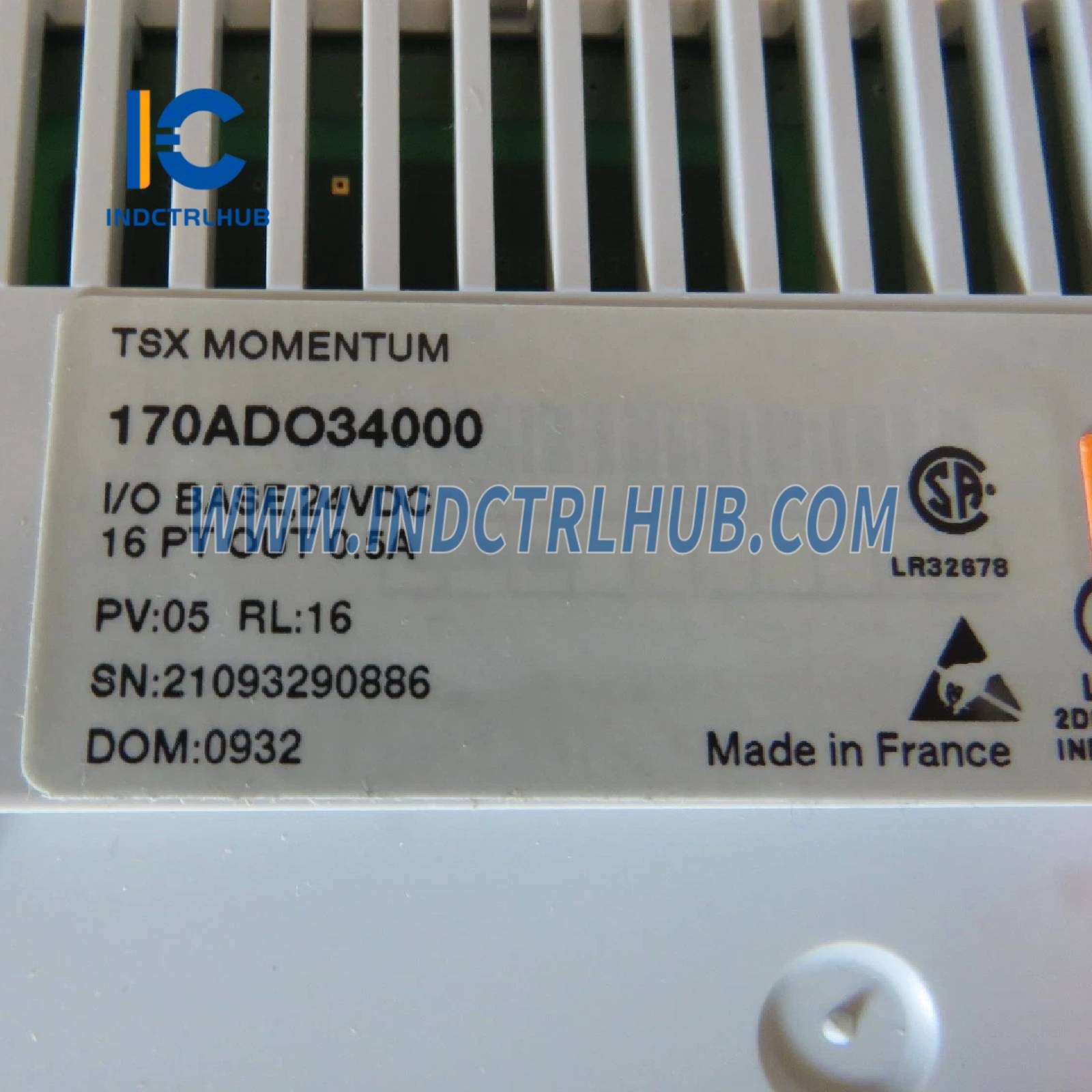

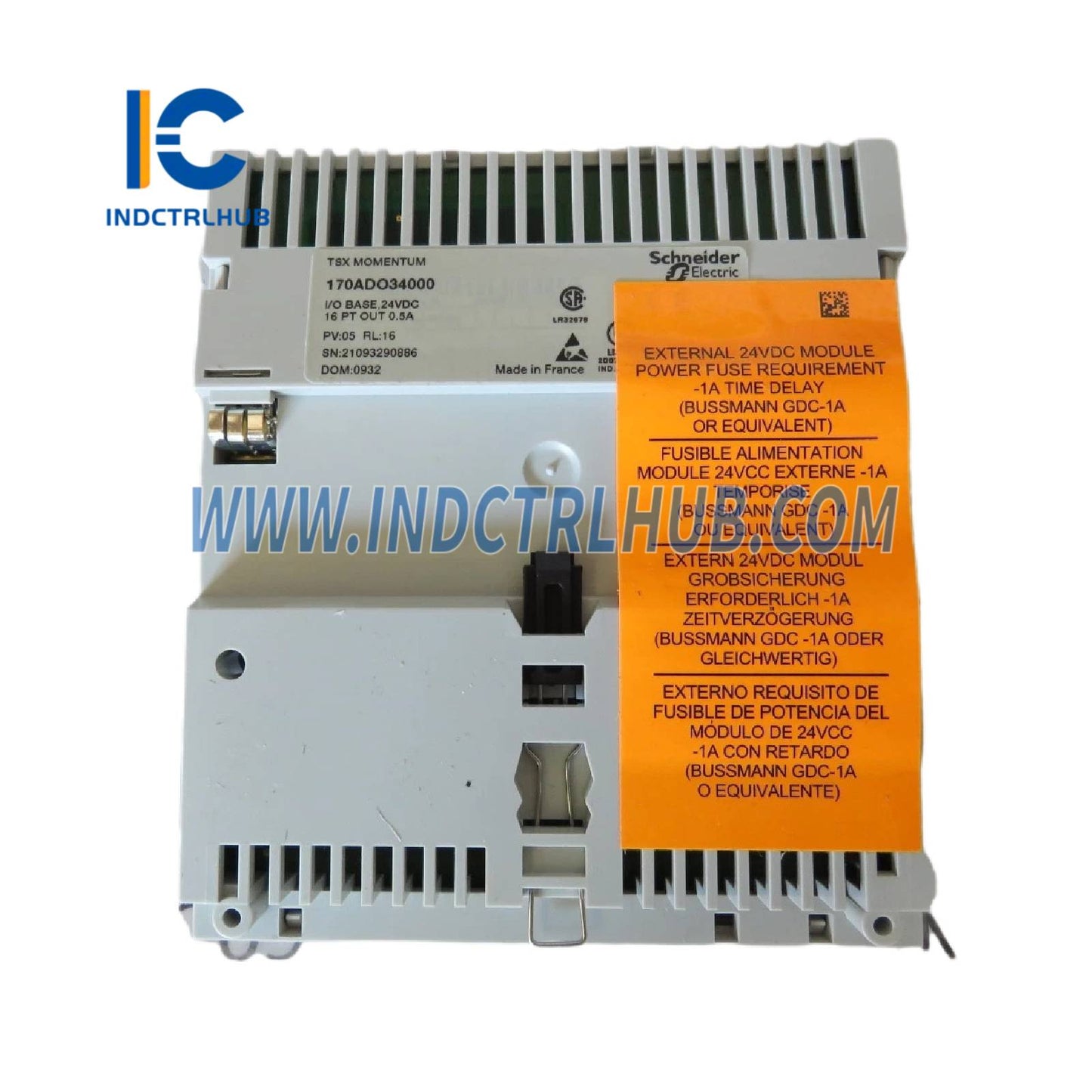

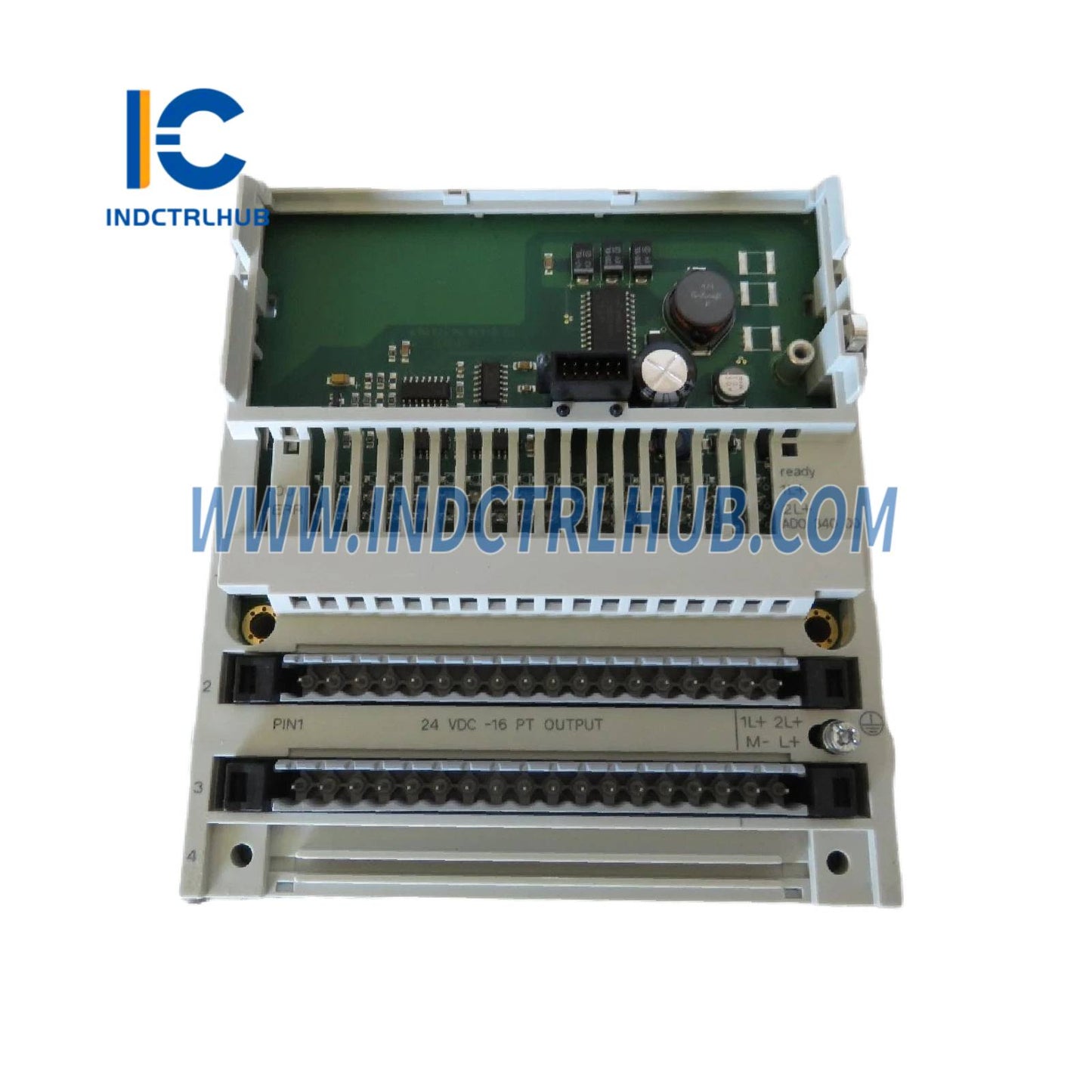

Discrete output module Modicon Momentum – 16 outputs (solid state) |
|
Product Type |
Discrete output base (DC) |
|
Range of Product |
Modicon Momentum automation platform |
Technical Specifications
Electrical
|
Specification |
Details |
|---|---|
|
Discrete Output Number |
16 |
|
Group of Channels |
2 groups of 8 outputs |
|
Discrete Output Type |
Solid state switch |
|
Rated Operational Voltage |
24 V DC |
|
Discrete Output Voltage |
24 V DC |
|
Current per Channel |
0.5 A |
|
Current per Group |
4 A |
|
Total Output Current |
8 A per module |
|
Short-Circuit Protection |
Electronically protected |
|
Output Overload Protection |
Electronically protected |
|
Surge Current |
5 A during 1 ms |
|
Maximum Leakage Current |
1 mA at 24 V DC |
|
Max Voltage Drop (ON State) |
< 0.5 V at 0.5 A |
|
Response Time |
0.1 ms (OFF to ON / ON to OFF) |
|
Isolation (Channels to Bus) |
500 V AC |
Power
|
Specification |
Details |
|---|---|
|
Power Dissipation |
3.5 W typical4.5 W max |
|
Current Consumption |
250 mA at 24 V DC |
|
Protective Treatment |
TC |
Physical Specifications
|
Dimension |
Value |
|---|---|
|
Height |
141.5 mm |
|
Width |
125 mm |
|
Depth |
47.5 mm |
|
Weight |
0.21 kg |
Environmental Specifications
|
Specification |
Value |
|---|---|
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
95% without condensation |
|
Operating Altitude |
≤ 5000 m |
|
Electrostatic Discharge Resistance |
4 kV contact, 8 kV air (IEC 801-2) |
|
EM Field Resistance |
10 V/m (80–1000 MHz, IEC 801-3) |
Certifications and Compliance
|
Certification |
Description |
|---|---|
|
CE |
Marked |
|
UL |
Certified |
|
CSA |
Certified |
|
FM Class 1 Div 2 |
Certified |
Local Signalling
-
16 LEDs: One per output channel to indicate status
