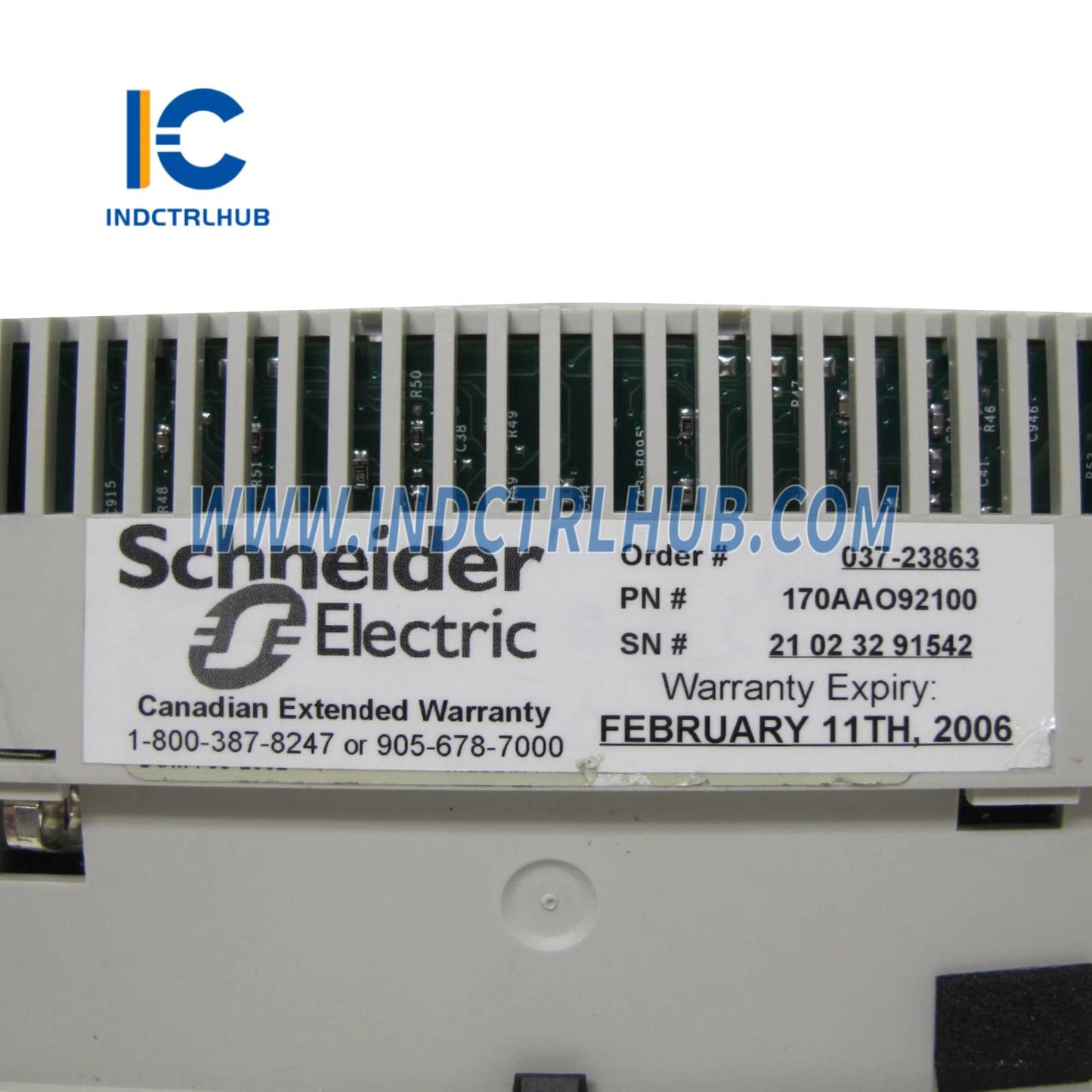

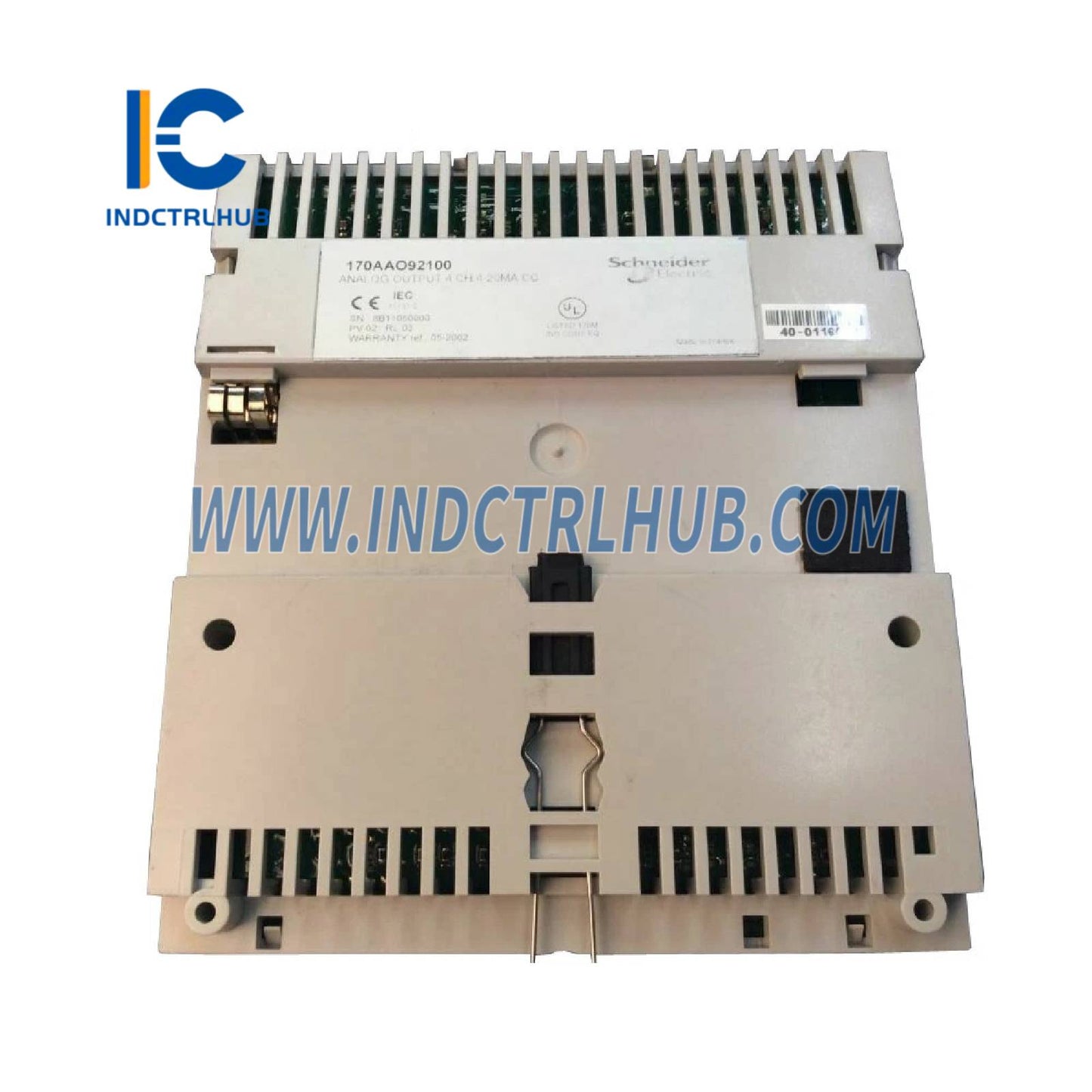

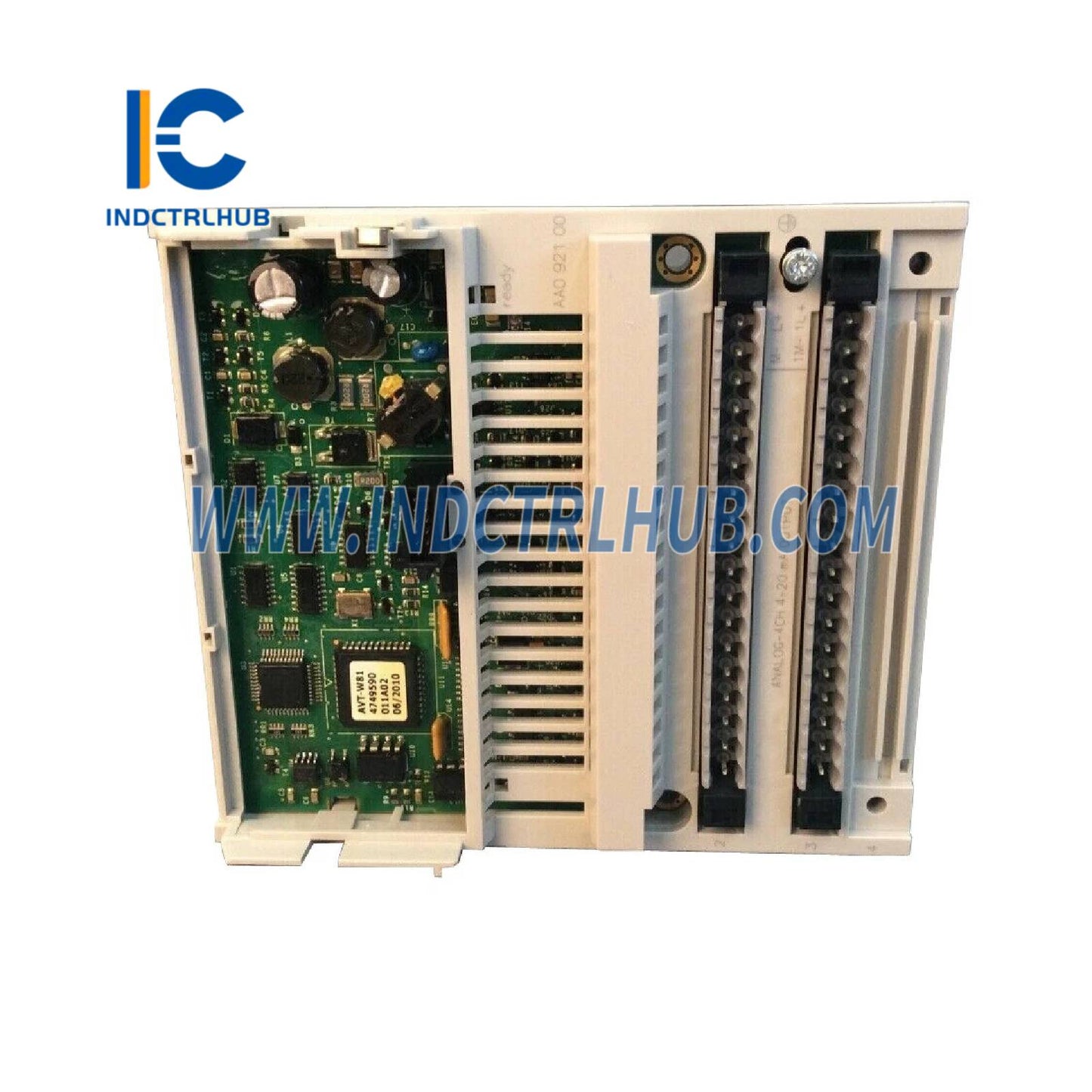

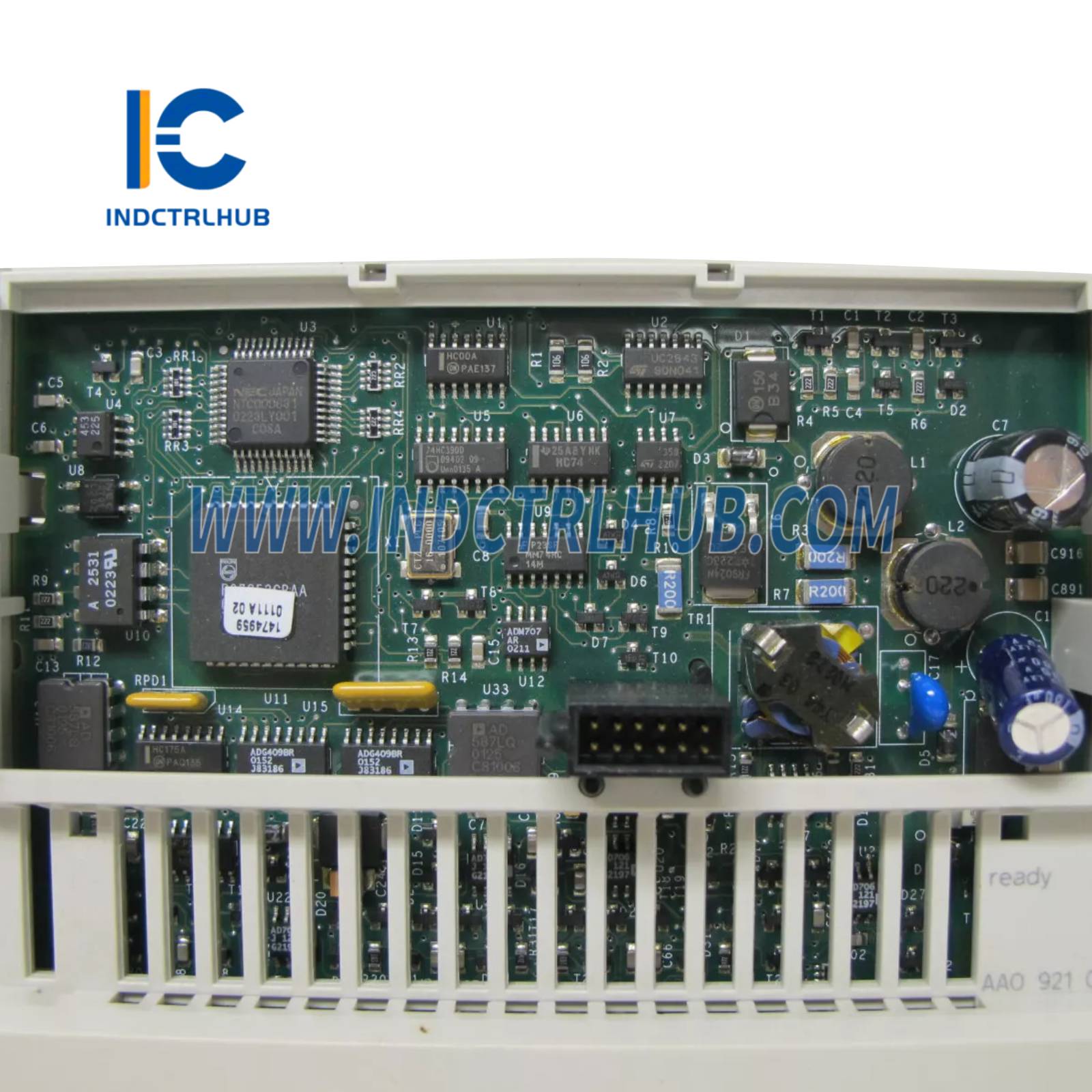

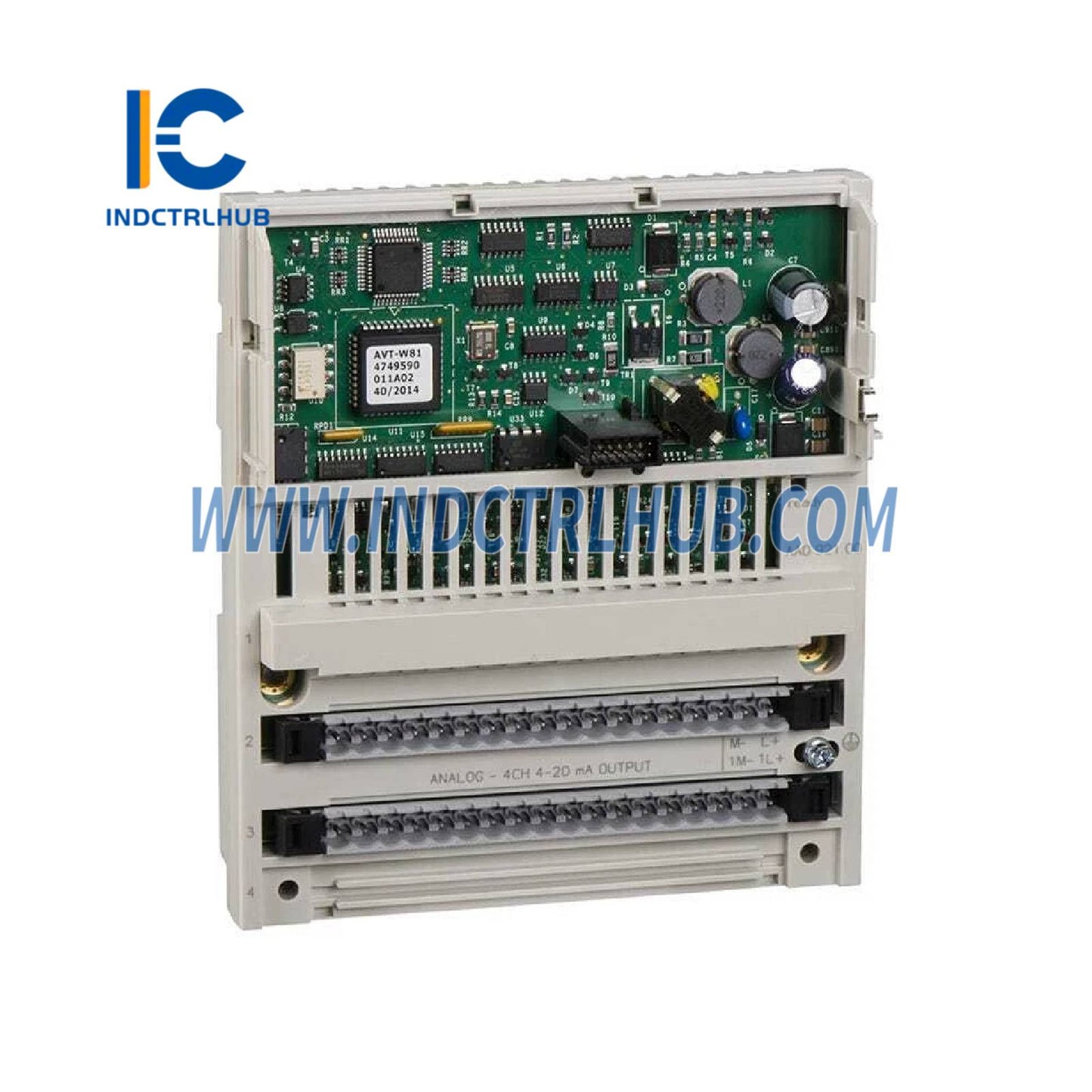

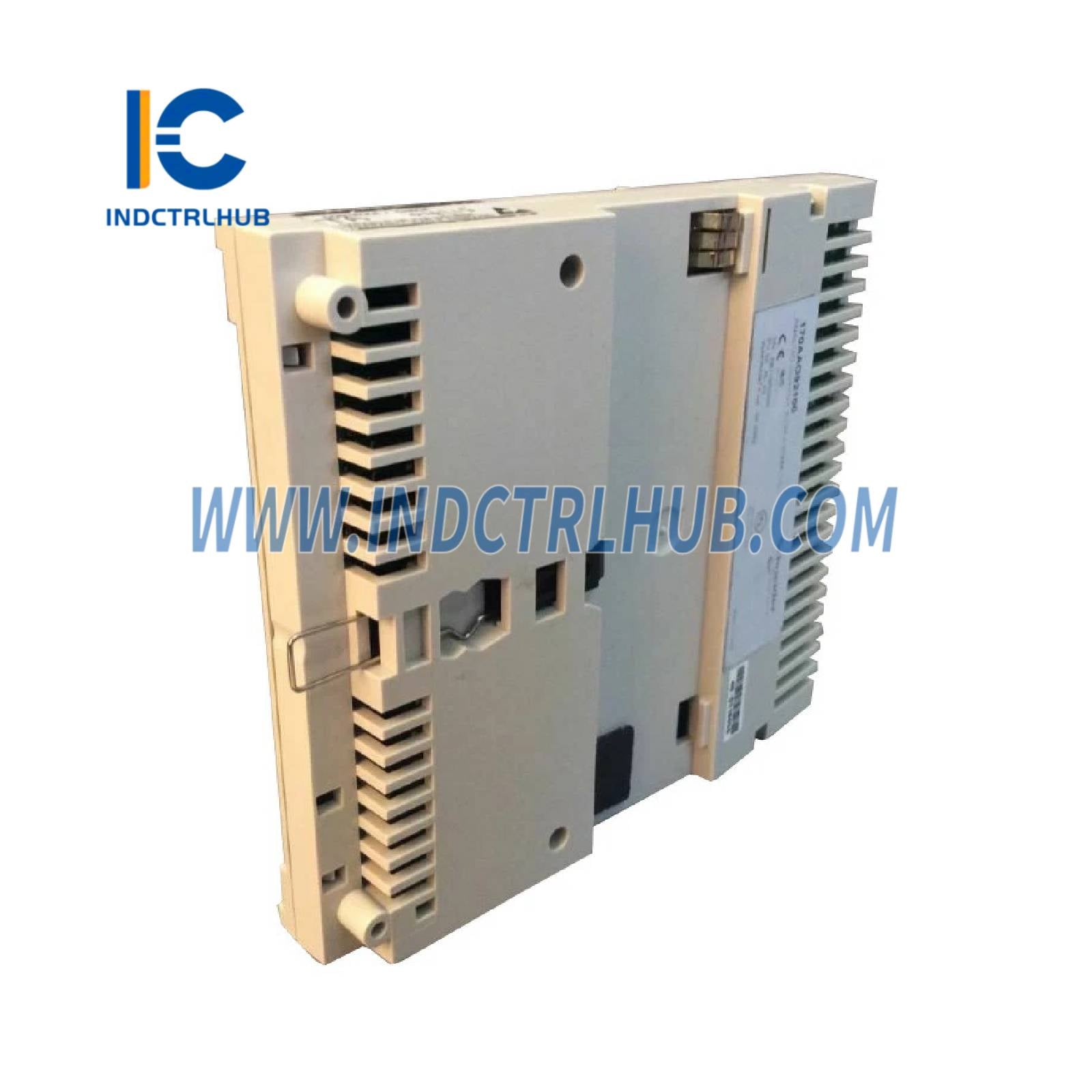

Schneider 170AAO92100 Distributed analog output module

Manufacturer

Schneider Electric

Model/Part Number

170AAO92100

Product Range

Modicon Momentum automation platform

Product Type

Analogue output base

Description

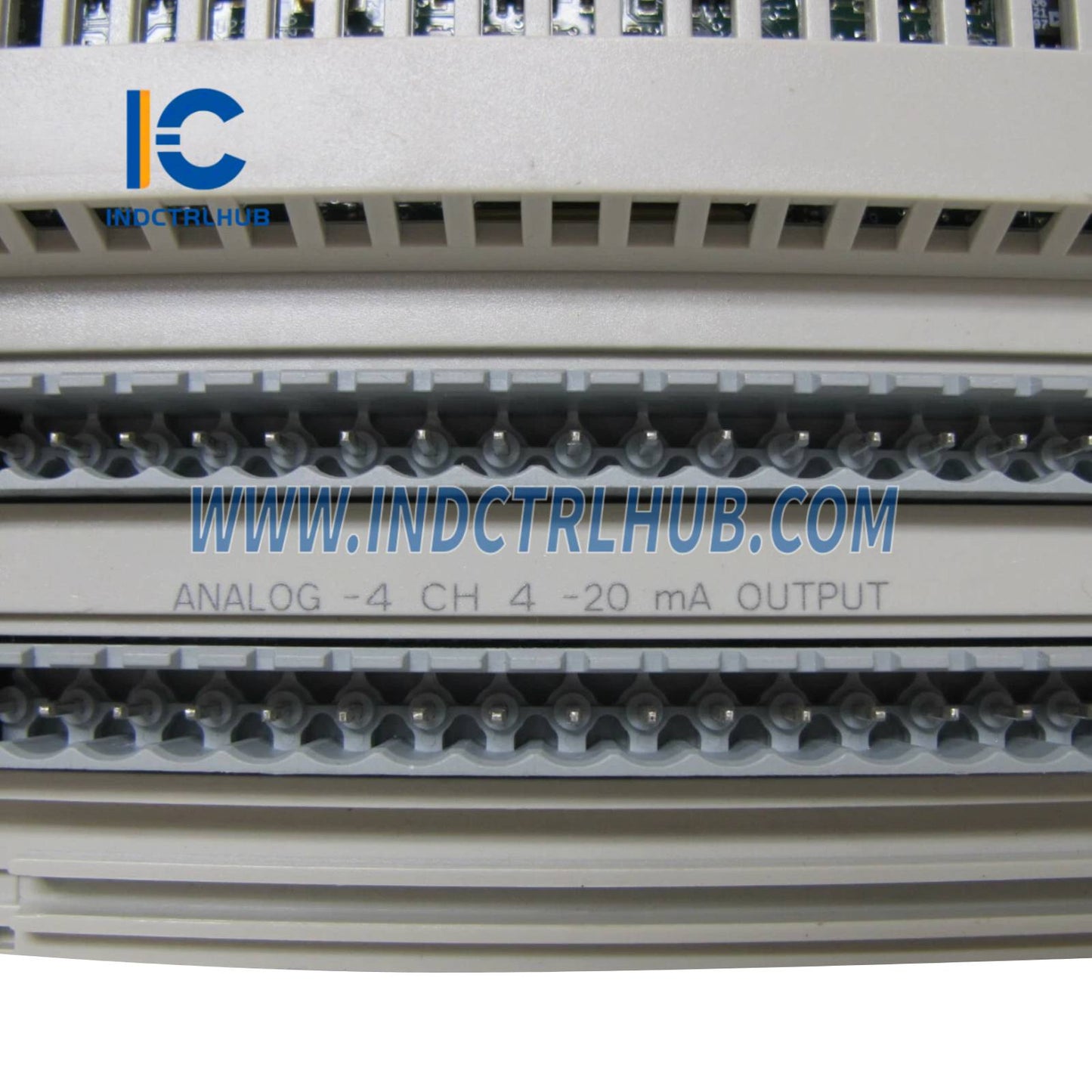

Distributed analog output module – 4 Outputs – 4…20 mA

Analogue Output Channels

4

Data Format

Full 16 bits signed

Output Ranges

±10 V (≥ 1 kΩ load), 4…20 mA (≤ 0.6 kΩ load)

Full Scale

10 V ±10 V; 2 mA (4…20 mA)

Maximum Load Capacitance

1 µF

Absolute Accuracy Error

±0.2% FS (±10 V at 25°C), ±0.25% FS (±10 V at 60°C),±0.4% FS (4…20 mA at 25°C), ±0.5% FS (4…20 mA at 60°C)

Temperature Drift

±10 %oFS/°C (±10 V at 60°C), ±30 %oFS/°C (4…20 mA at 60°C)

Update Time

2 ms

Fail State Modes

Hold, Reset to full scale, Reset to zero

Isolation (Channel to Ground)

500 V AC for 1 minute

Short-Circuit Protection

Yes, in voltage circuit

Protection Type

Internal 2 A slow-blow

External Power Requirement

±30 V DC, 24 V DC

Permissible Common Mode Voltage

250 V (AC: 47…63 Hz, DC)

Reverse Polarity Protection

Internal

Current Consumption

150 mA at 24 V DC (actuator), 530 mA at 24 V DC (base)

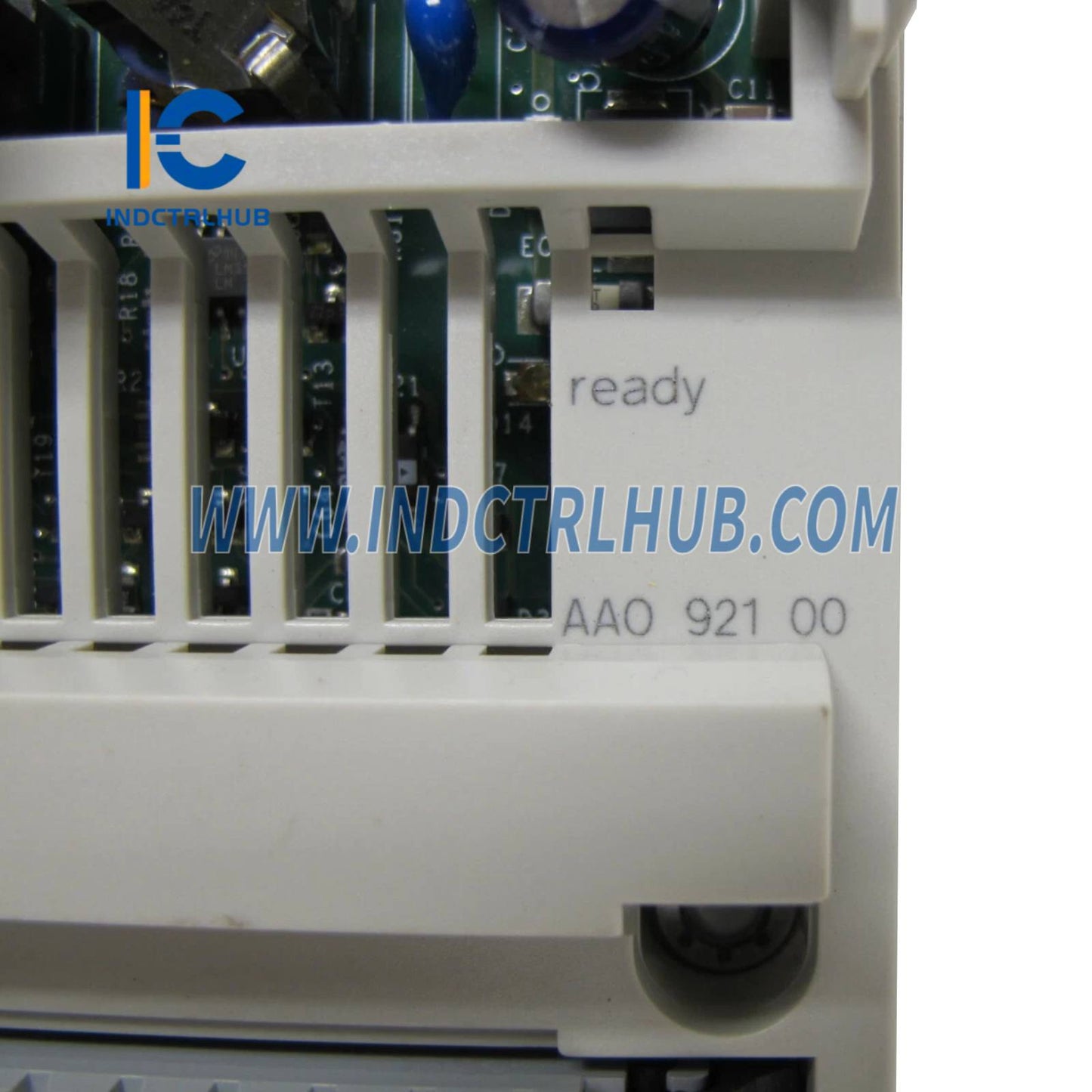

Local Signalling

4 LEDs (channel status)

Module Format

Standard

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95% (non-condensing)

Operating Altitude

≤ 5000 m

ESD Resistance

4 kV (contact), 8 kV (air), IEC 801-2 compliant

EM Field Resistance

10 V/m, 80…1000 MHz, IEC 801-3 compliant

Protective Treatment

TC

Certifications

UL, CSA, CE

Height

125 mm

Width

141.5 mm

Depth

47.5 mm

Net Weight

0.215 kg

PCE

1

5.5 (H) x 18 (W) x 26 (L)

375 g

S03

10

30 (H) x 30 (W) x 40 (L)

3.75 kg

P06

80

75 (H) x 40 (W) x 80 (L)

45 kg
