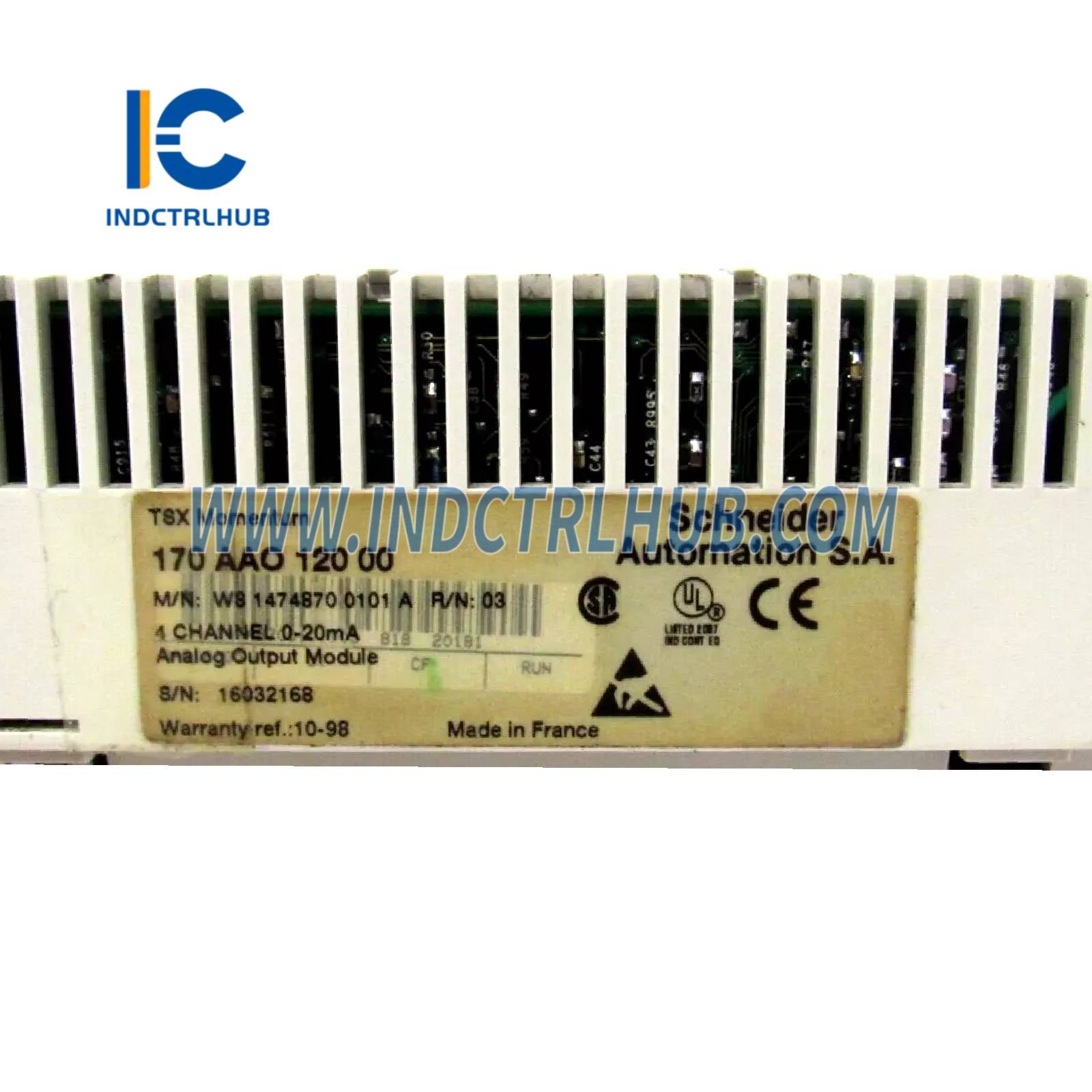

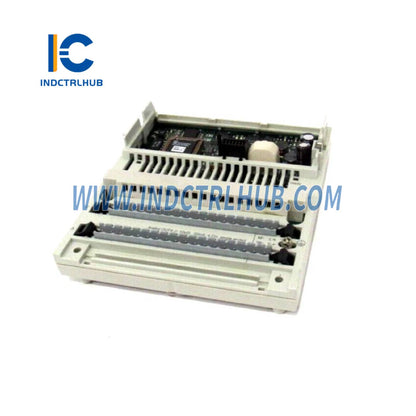

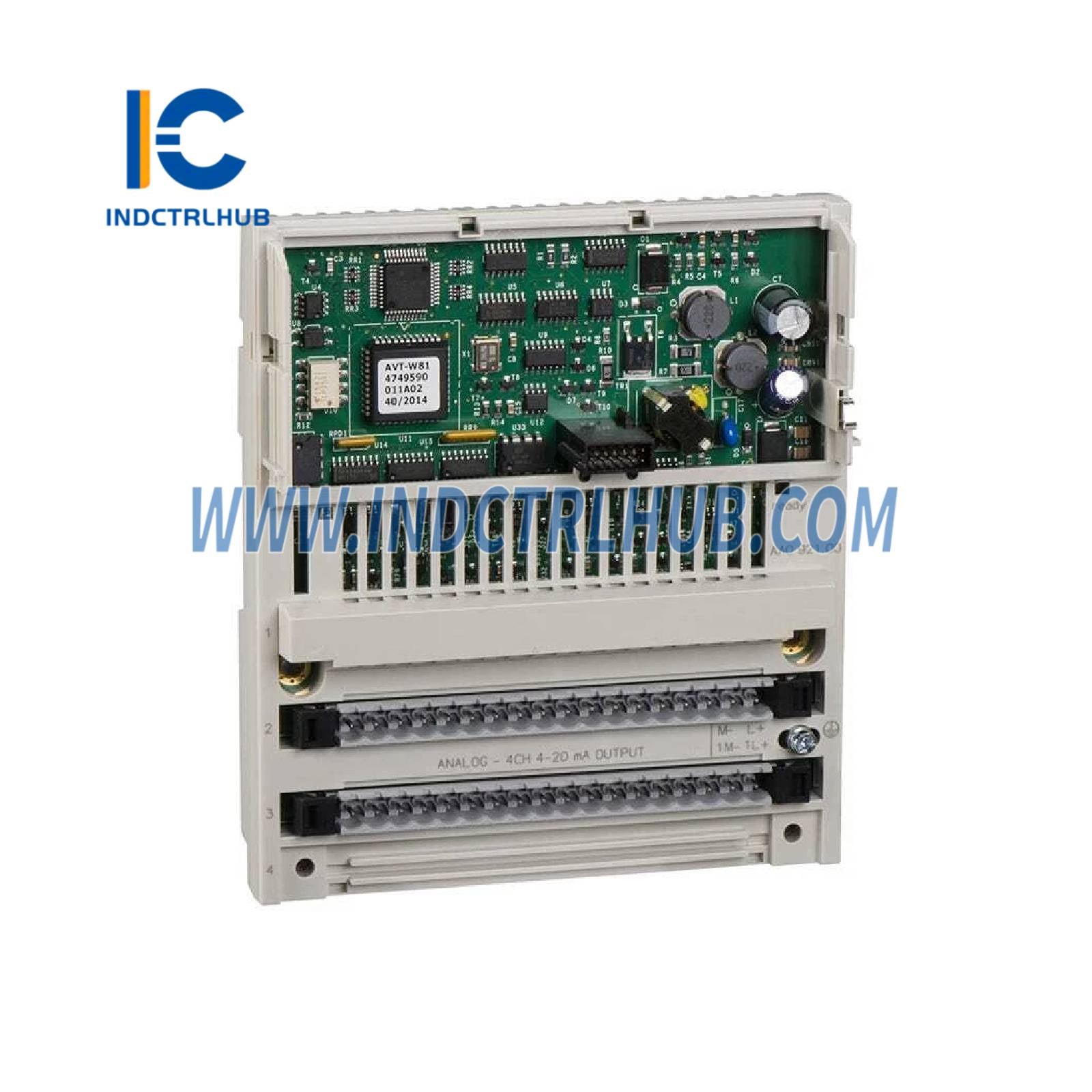

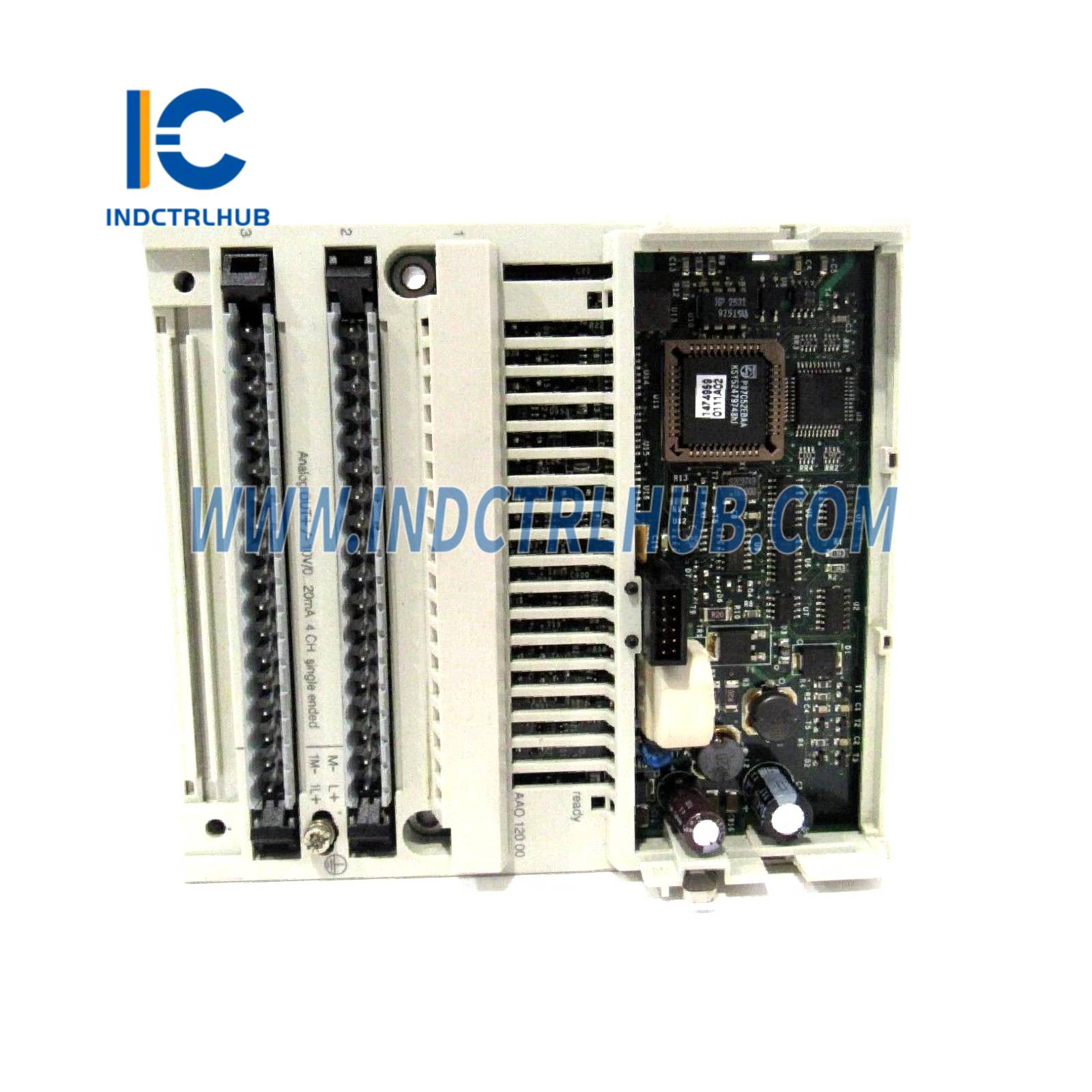

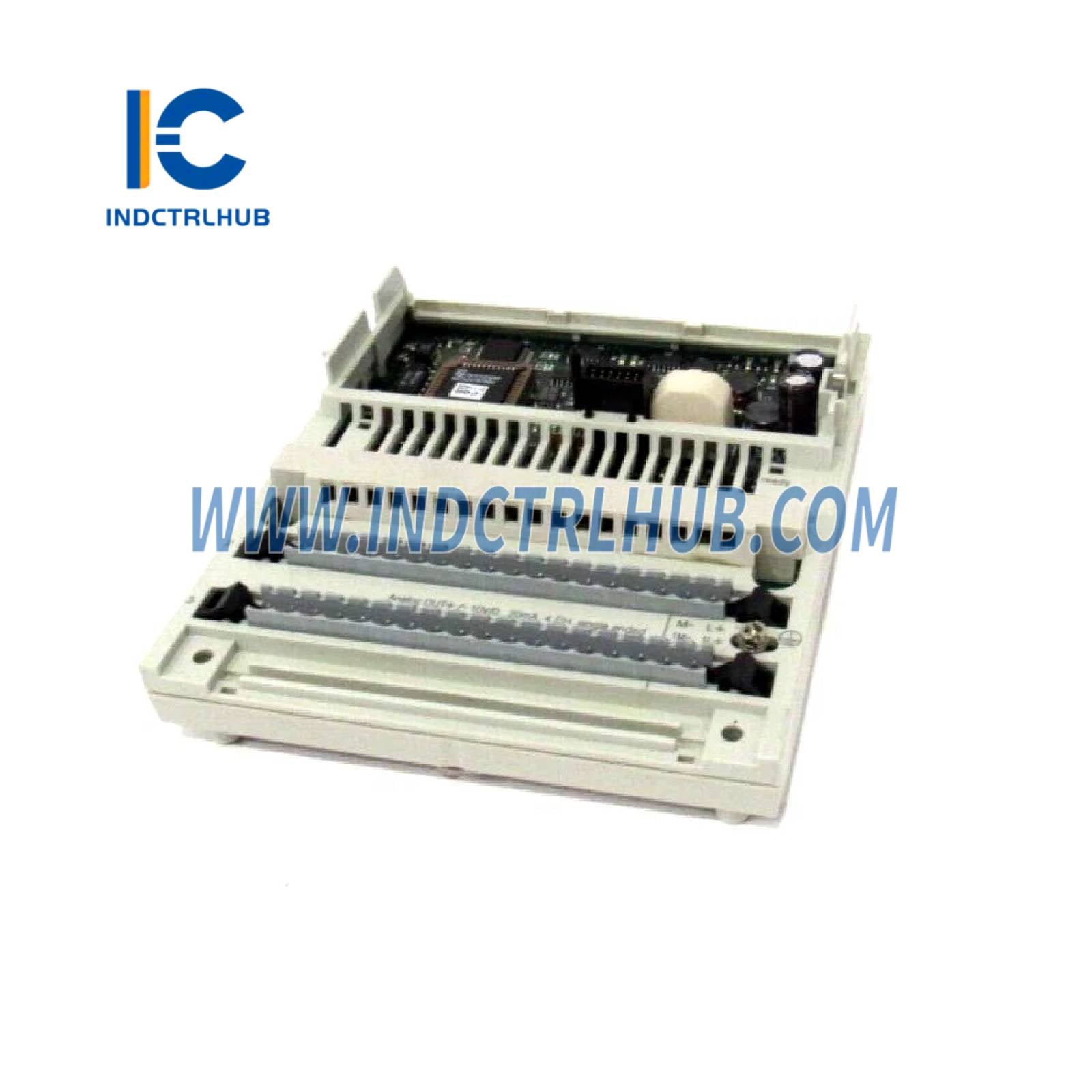

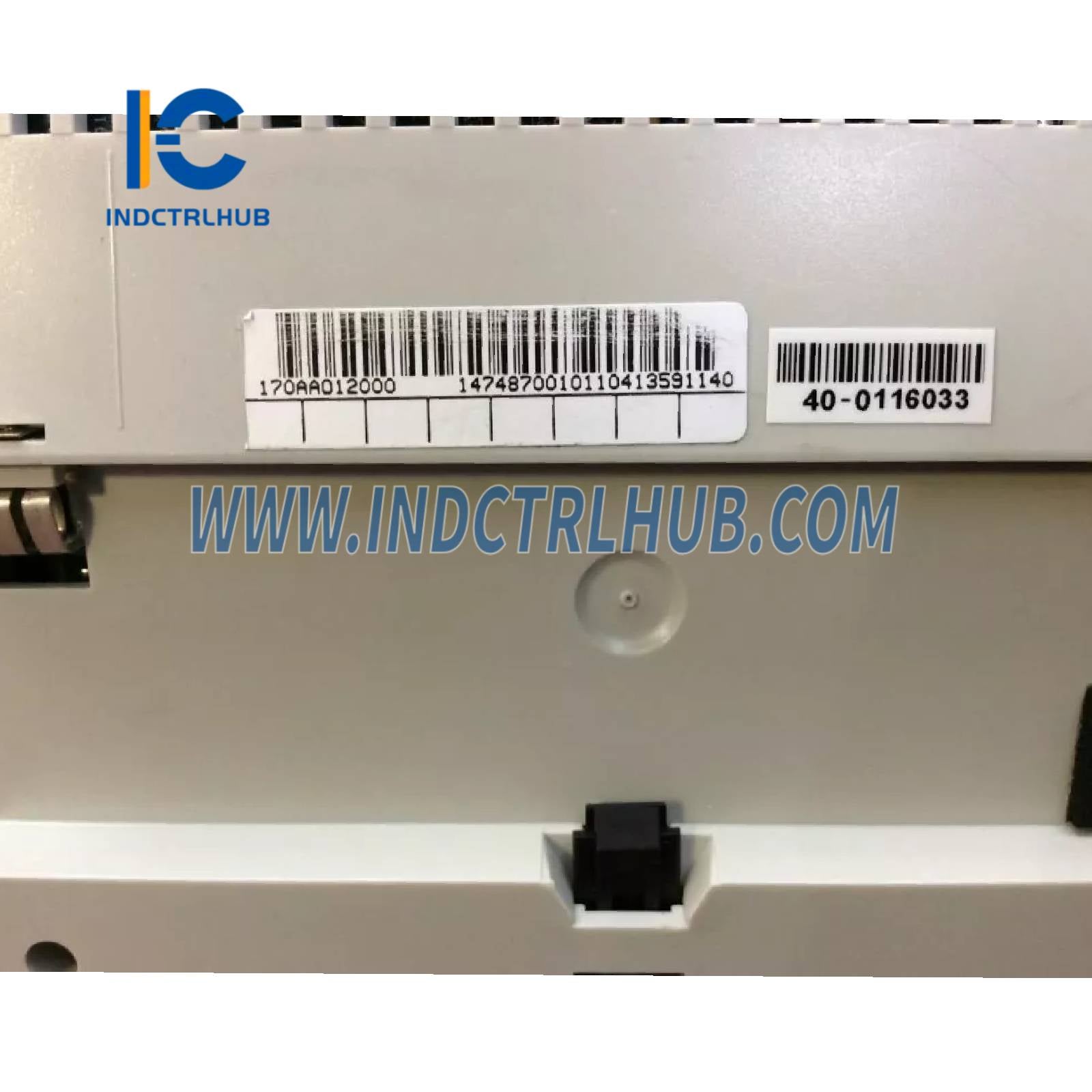

Schneider 170AAO12000 Distributed analog output Modicon Momentum

Manufacturer

Schneider Electric

Model/Part Number

170AAO12000

Description

Distributed analog output Modicon Momentum - 4 Output - 0..20 mA

Range of Product

Modicon Momentum automation platform

Product Type

Analogue output base

Analogue Output Channels

4

Data Format

Full 16 bits signed

Output Ranges

±10 V (≥ 1 kΩ), 0…20 mA (≤ 0.6 kΩ)

Max Load Capacitance

1 µF

Absolute Accuracy (25 °C)

±0.2 % (±10 V), ±0.3 % (0…20 mA)

Absolute Accuracy (60 °C)

±0.25 % (±10 V), ±0.4 % (0…20 mA)

Temperature Drift (60 °C)

10 %oFS/°C (±10 V), 30 %oFS/°C (0…20 mA)

Update Time

2 ms

Full Scale Values

10 V (±10 V), 2 mA (0…20 mA)

Fail State Options

Reset to full scale, Hold, Reset to zero

Isolation (Channels to Ground)

500 V AC for 1 minute

Common Mode Voltage

250 V AC/DC (47…63 Hz) between channels to ground

External Power Requirement

±30 V DC, 24 V DC

Power Dissipation

8.5 W

Short-circuit Protection

Yes (in voltage circuit)

Reverse Polarity Protection

Internal

Protection Type

Internal 2 A slow-blow

Local Signaling

4 LEDs (Channel Status)

Current Consumption

150 mA (actuator), 530 mA (base) at 24 V DC

Module Format

Standard

Certifications

UL, CSA

Protective Treatment

TC

Electrostatic Discharge

4 kV contact, 8 kV air (IEC 801-2)

Electromagnetic Fields Resistance

10 V/m (80…1000 MHz) (IEC 801-3)

Operating Temperature

0…60 °C

Storage Temperature

-40…85 °C

Relative Humidity

95 % without condensation

Maximum Operating Altitude

≤ 5000 m

Height

125 mm

Depth

47.5 mm

Width

141.5 mm

Net Weight

0.215 kg

PCE (1 unit)

1

5.5 (H) x 18.0 (W) x 25.5 (L)

380 g

S03 (Box)

10

30.0 (H) x 30.0 (W) x 40.0 (L)

4.226 kg
