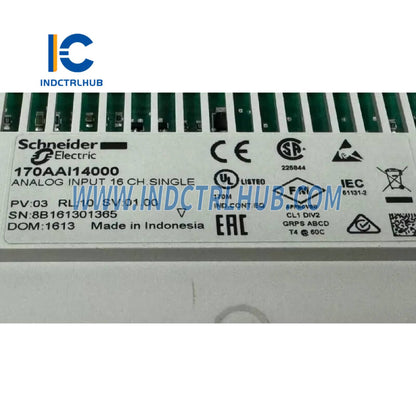

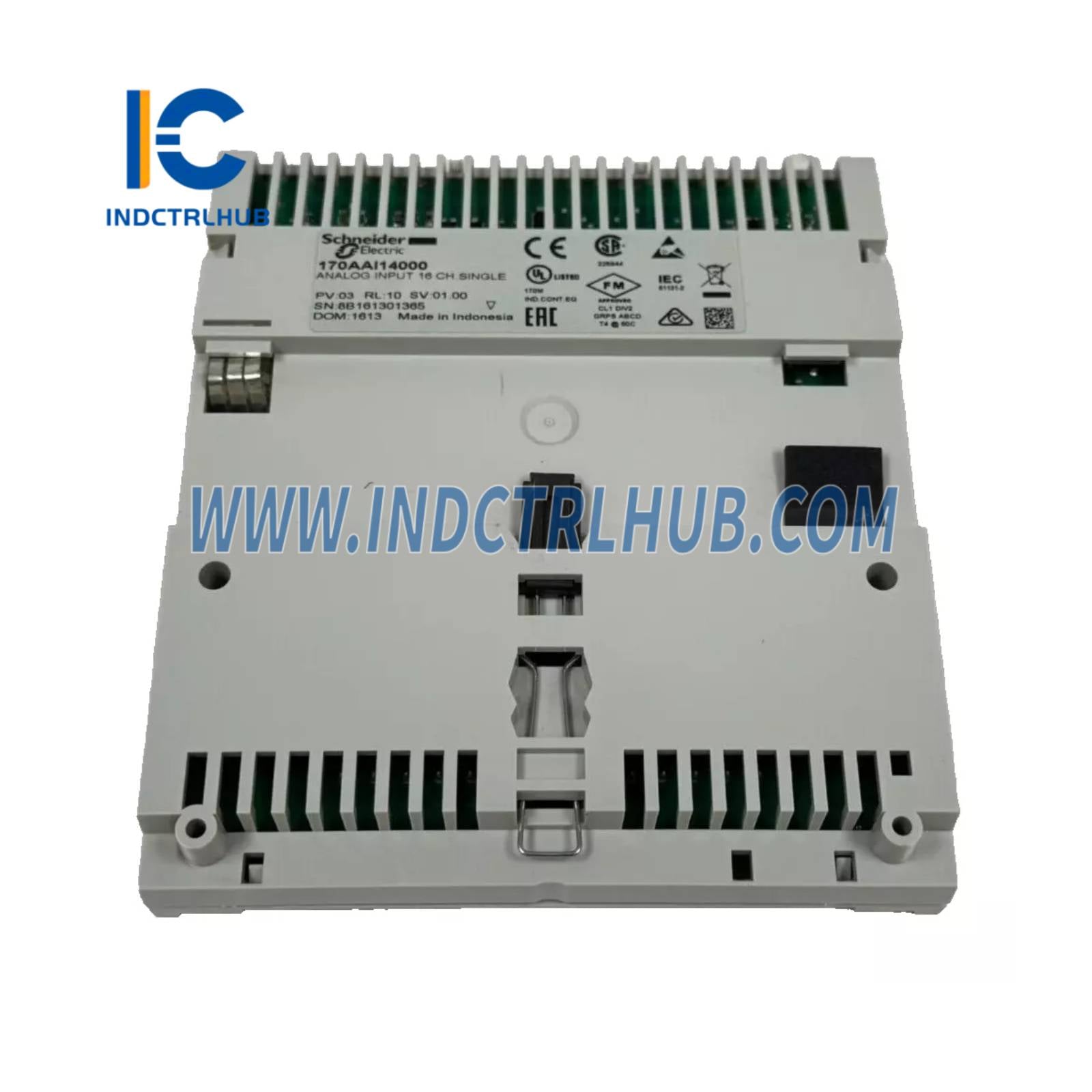

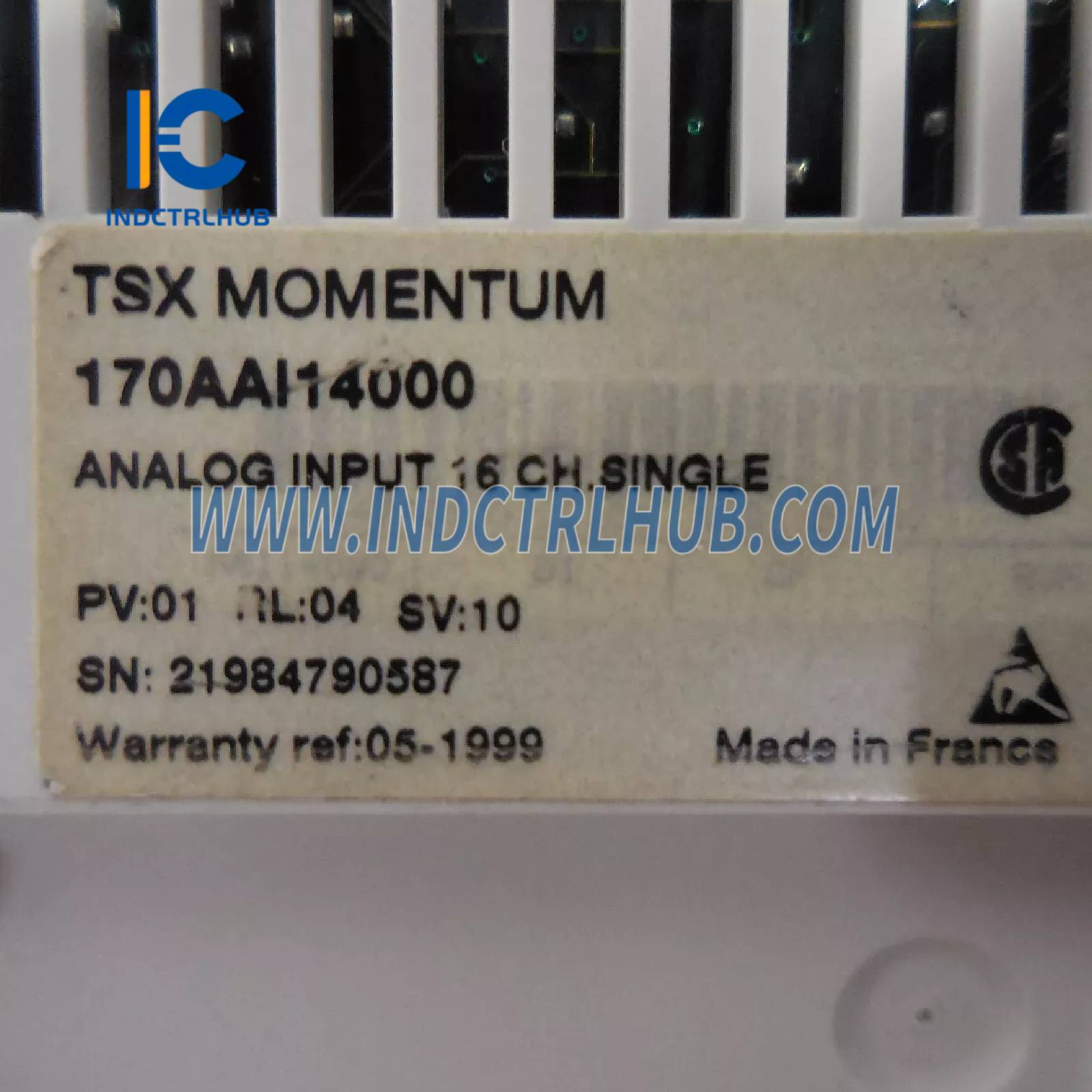

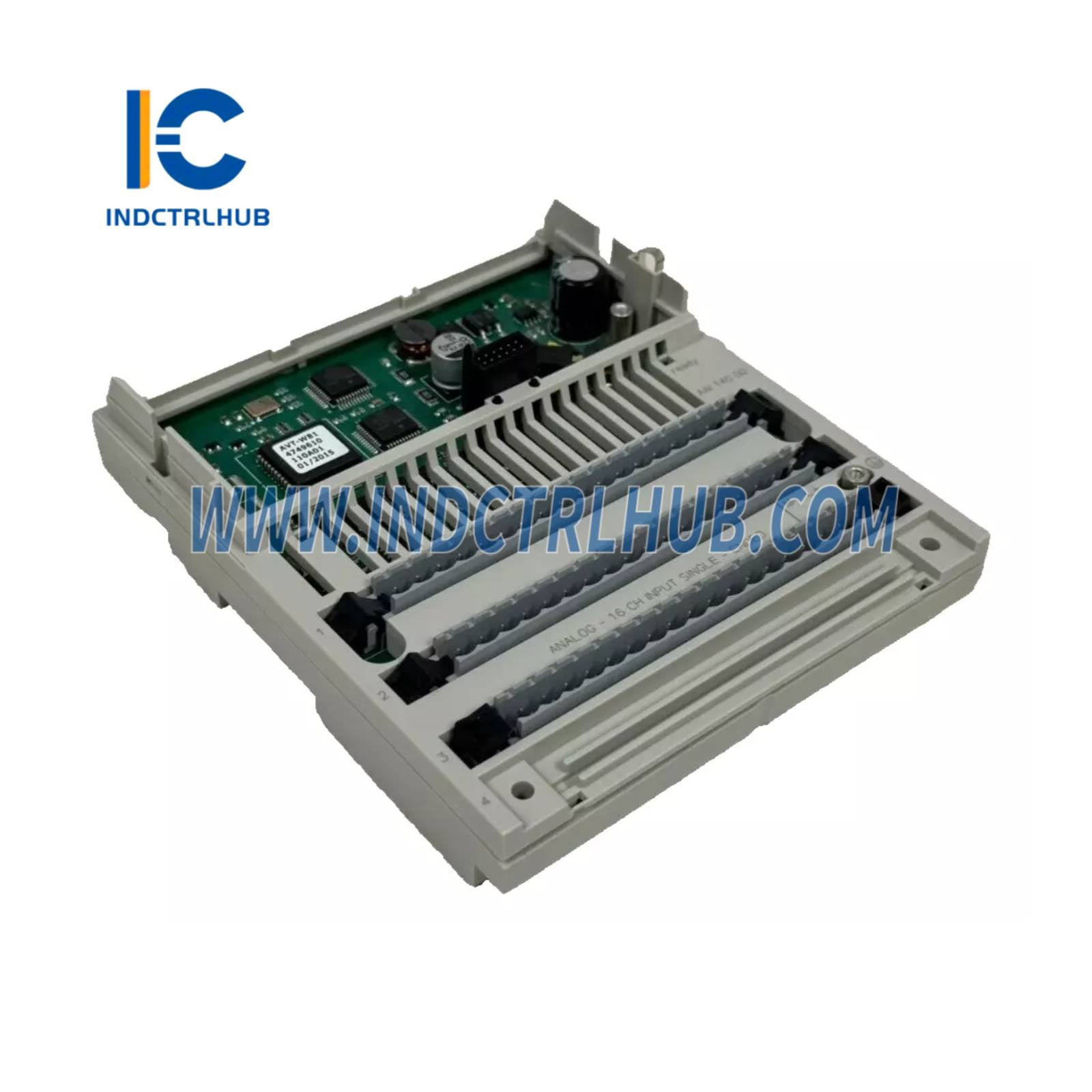

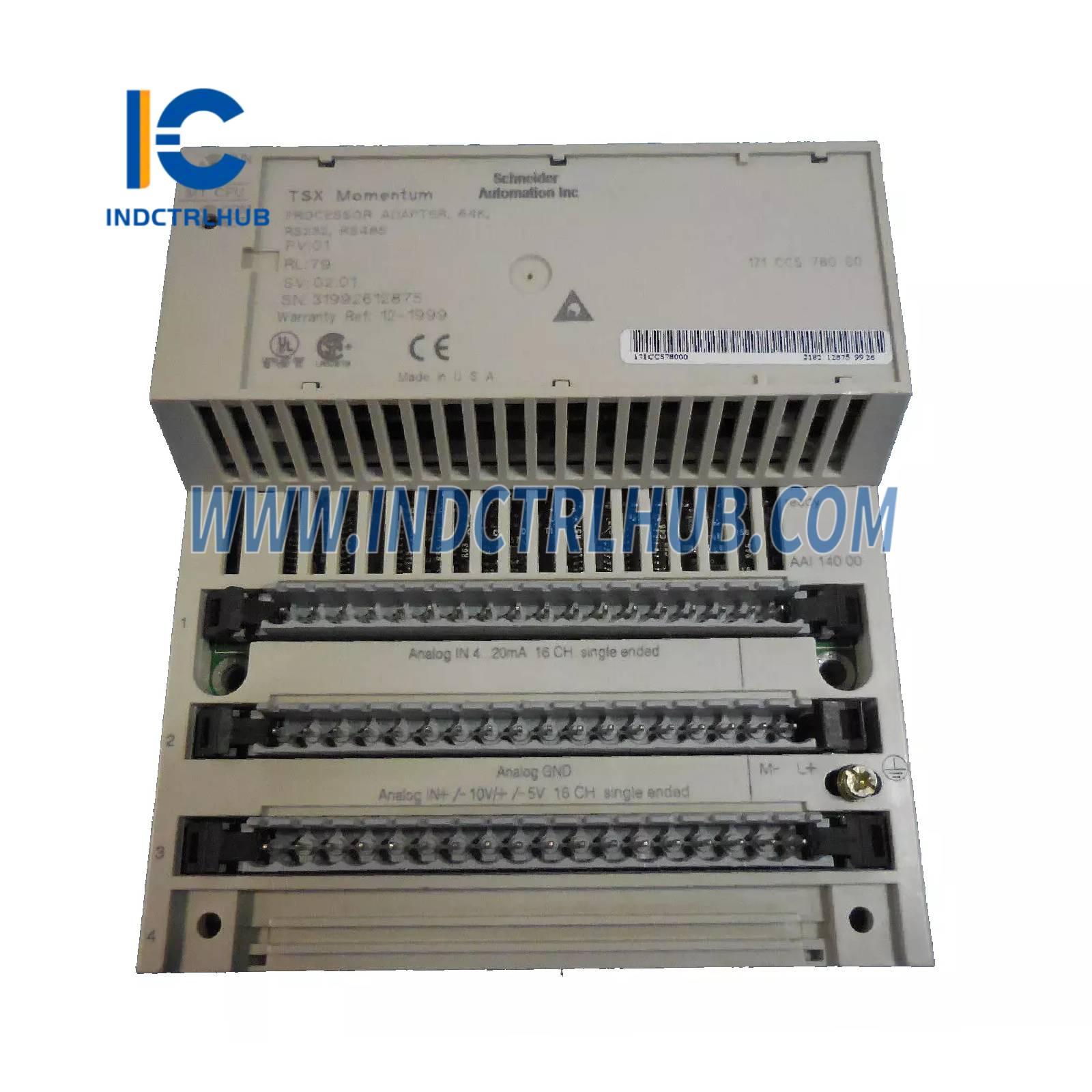

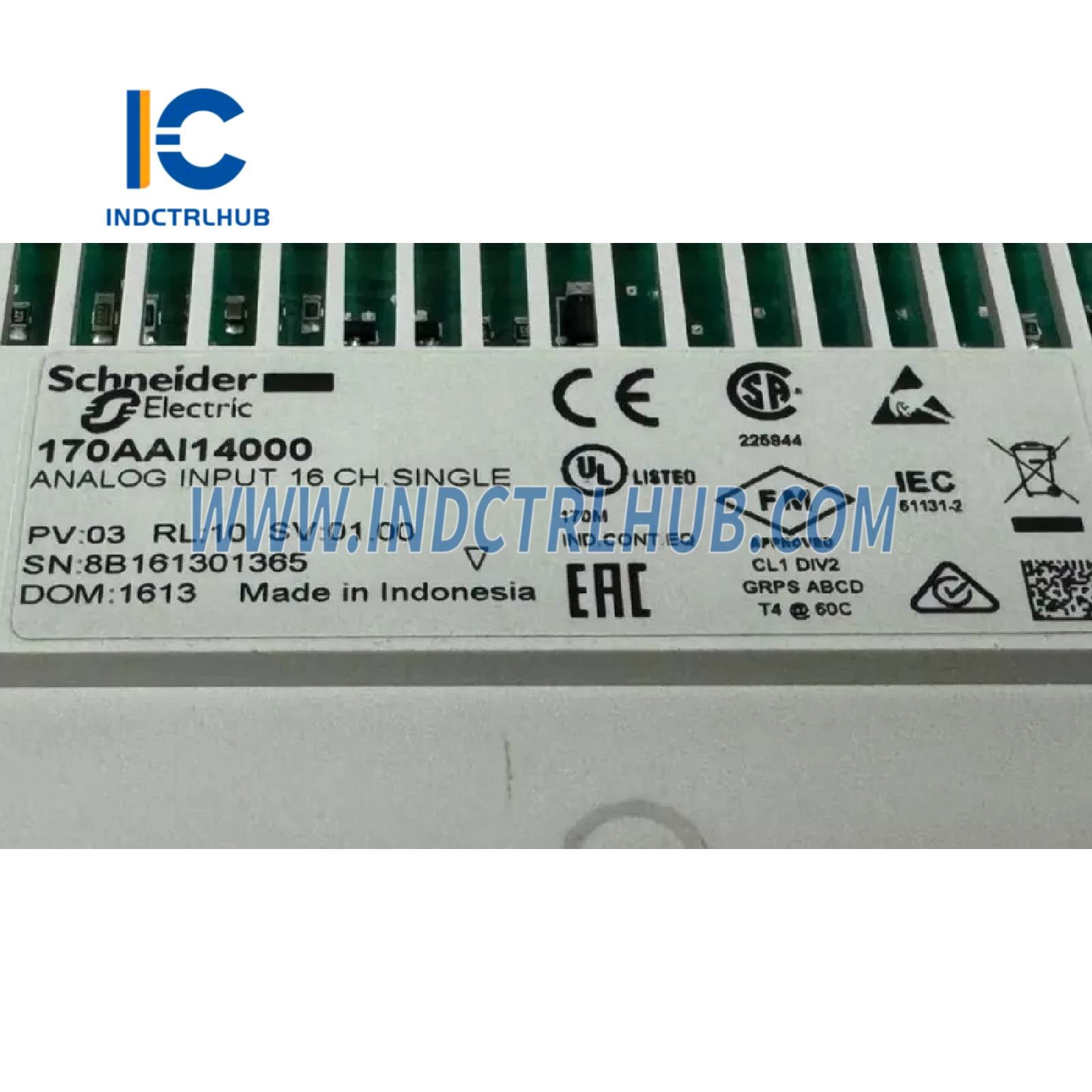

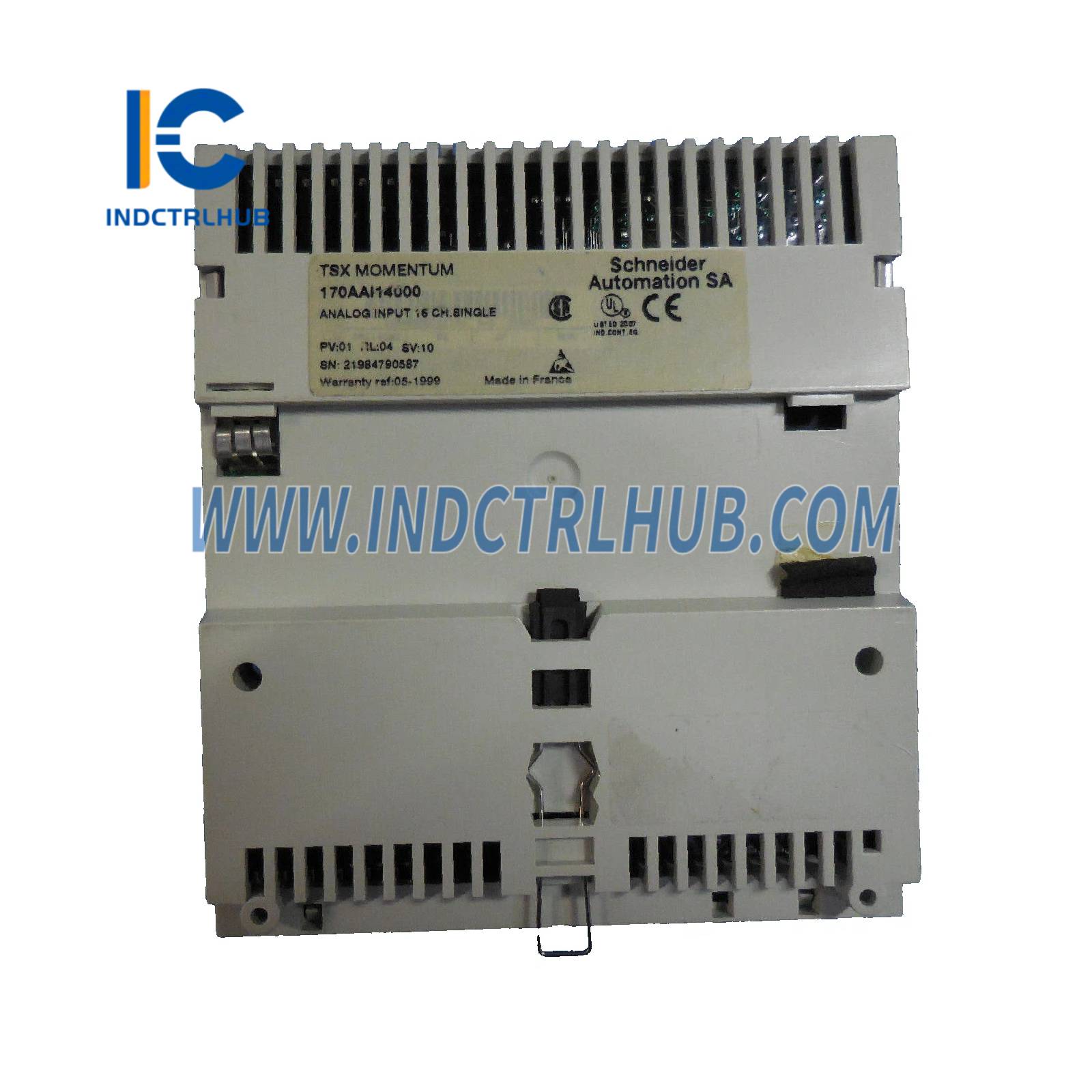

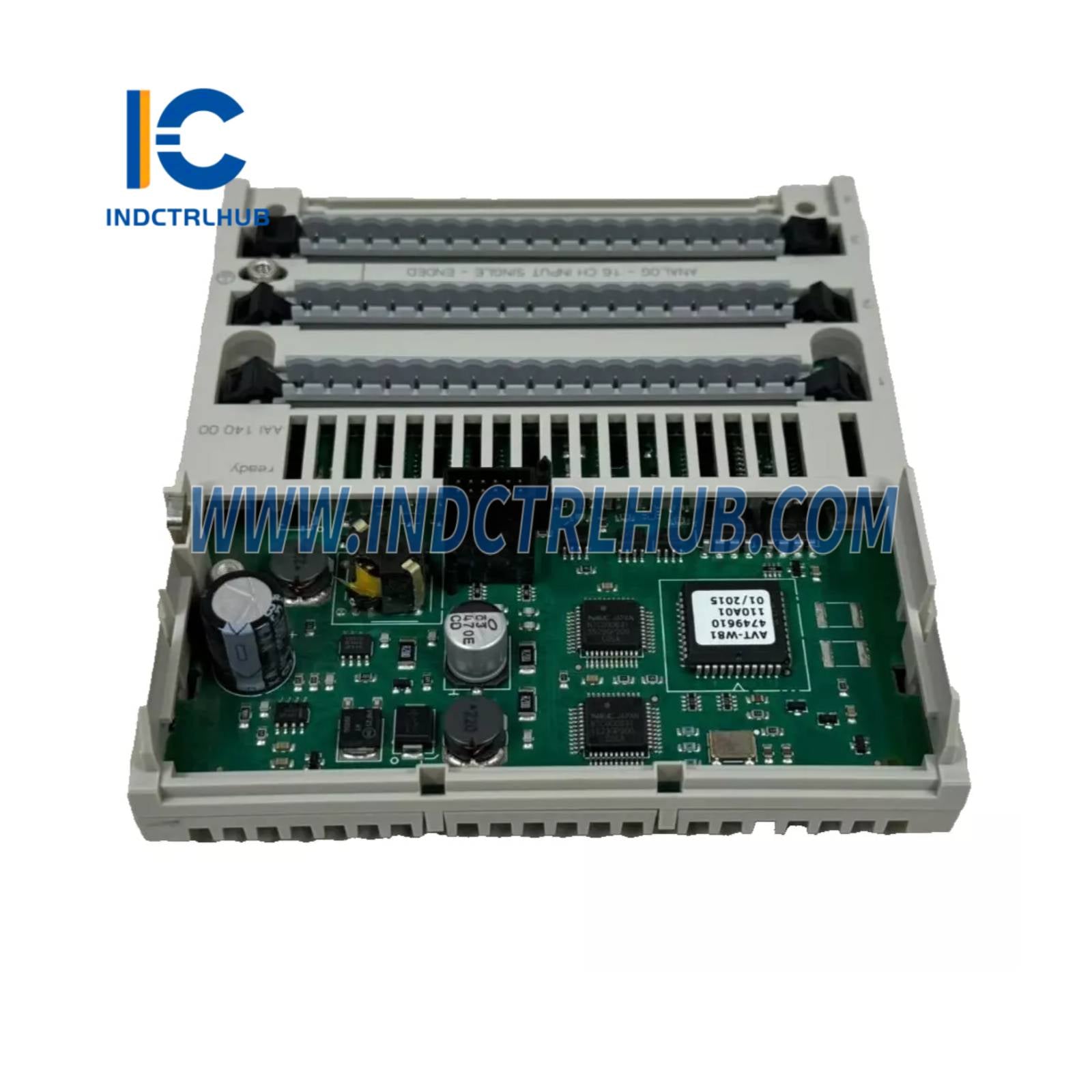

Schneider 170AAI14000 Distributed Analog Input Modicon Momentum
Schneider 170AAI14000 Distributed Analog Input Modicon Momentum
Manufacturer: Schneider
Product No.: 170AAI14000
Condition:1000 in stock
Product Type: Distributed Analog Input Modicon Momentum
Product Origin: USA
Payment: T/T, Western Union
Weight: 46000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Attribute |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
170AAI14000 |
|
Description |
Distributed Analog Input Modicon Momentum _ 16 Inputs |
_
_
Technical Specifications
_
Main
|
Attribute |
Details |
|---|---|
|
Range of Product |
Modicon Momentum automation platform |
|
Component Type |
Analogue input base |
|
Number of Analog Inputs |
16 |
|
Input Type |
Single-ended |
|
Input Ranges |
4_20 mA (12-bit, < 0.25 Ω) |
|
±10 V (12-bit + sign, > 2200 kΩ) |
|
|
±5 V (12-bit + sign, > 2200 kΩ) |
|
|
Input Filter Type |
Low-pass input filter 10 kHz |
_
Complementary
|
Attribute |
Details |
|---|---|
|
Data Format |
Full 16-bit signed |
|
Absolute Accuracy Error |
±0.15% FS @ 25°C (±10 V, ±5 V)±0.25% FS @ 25°C (4_20 mA) |
|
±0.25% FS @ 60°C (±10 V, ±5 V)±0.45% FS @ 60°C (4_20 mA) |
|
|
Temperature Drift |
30 %oFS/°C (±10 V, ±5 V @ 60°C), 60 %oFS/°C (4_20 mA @ 60°C) |
|
Full Scale Ranges |
±10 V, ±5 V, 4_20 mA |
|
Update Time |
25 ms |
|
Channel-to-Ground Isolation |
1780 V AC (1 min) |
|
Supply-to-Ground Isolation |
500 V (1 min) |
|
Common Mode Voltage |
100 V DC / 250 V AC (47_63 Hz) between channels and ground |
|
External Power Requirement |
±30 V DC |
|
Max Power Dissipation |
5.55 W |
|
Reverse Polarity Protection |
Internal |
|
Protection Type |
Internal 2 A slow-blow fuse |
|
Associated Fuse Rating |
500 mA, fast blow |
|
Marking |
CE |
|
Local Signalling |
16 LEDs (channel status) |
|
Electrical Connection |
2 connectors for removable terminal blocks |
|
Current Consumption |
305 mA @ 24 V DC |
_
_
Physical Specifications
|
Attribute |
Value |
|---|---|
|
Height |
125 mm |
|
Width |
141.5 mm |
|
Depth |
47.5 mm |
|
Net Weight |
0.215 kg |
_
_
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
Certifications |
UL, FM Class 1 Div 2, CSA |
|
Protective Treatment |
TC |
|
Electrostatic Discharge |
4 kV (contact), 8 kV (air) _ IEC 801-2 |
|
Electromagnetic Field Immunity |
10 V/m (80_1000 MHz) _ IEC 801-3 |
|
Operating Temperature |
0 to 60 °C |
|
Storage Temperature |
-40 to 85 °C |
|
Relative Humidity |
95% (non-condensing) |
|
Operating Altitude |
_ 5000 m |
_
_
Packing Information
_
Package 1
|
Attribute |
Value |
|---|---|
|
Package Type |
PCE |
|
Units |
1 |
|
Dimensions |
5.5 _ 18.0 _ 26.0 cm |
|
Weight |
385 g |
_
Package 2
|
Package Type |
S03 |
|---|---|
|
Units |
10 |
|
Dimensions |
30 _ 30 _ 40 cm |
|
Weight |
3.85 kg |
_
Package 3
|
Package Type |
P06 |
|---|---|
|
Units |
80 |
|
Dimensions |
75 _ 60 _ 80 cm |
|
Weight |
46 kg |
_
