Product Description
General Information
|
Attribute |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140NRP95401C |
|
Description |

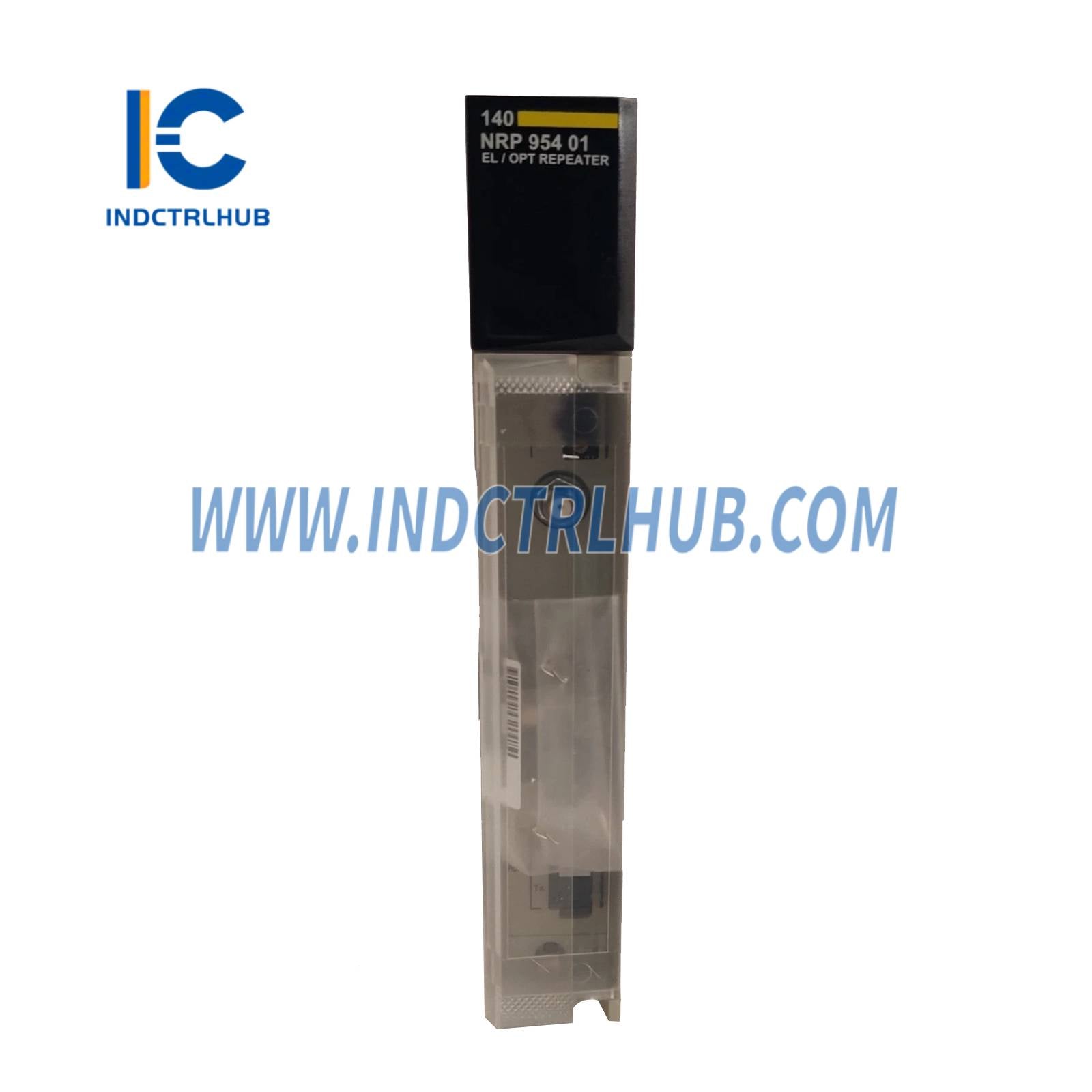

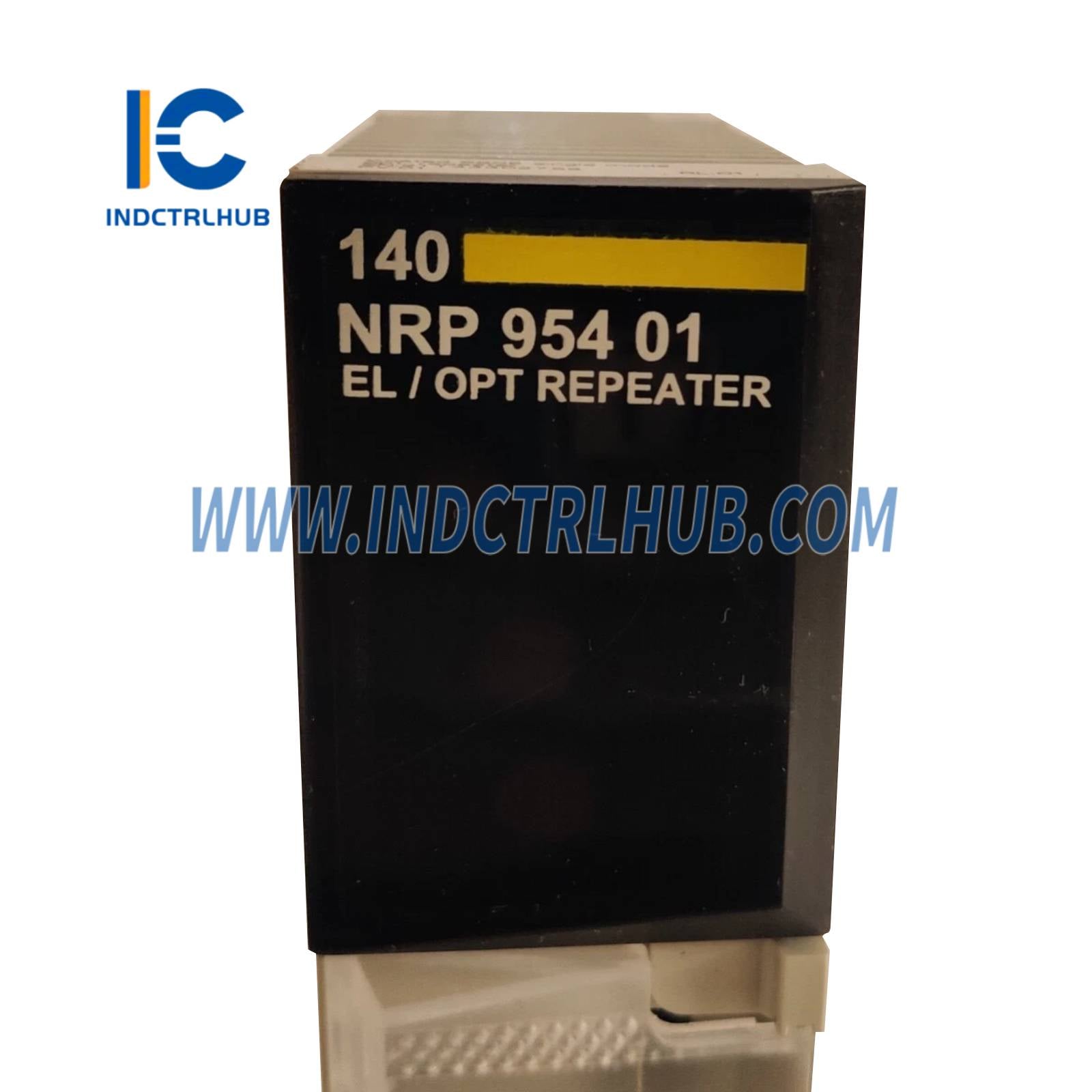

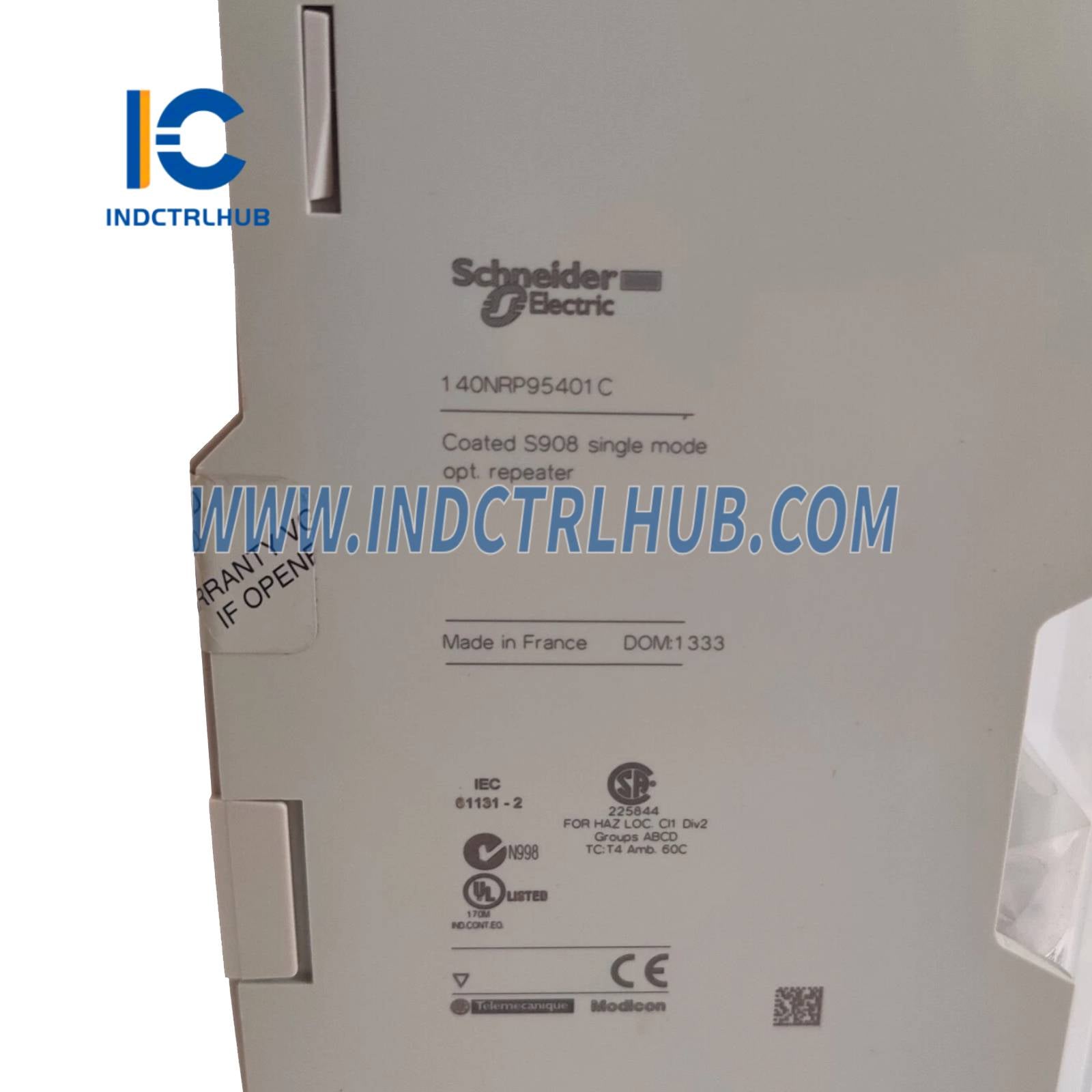

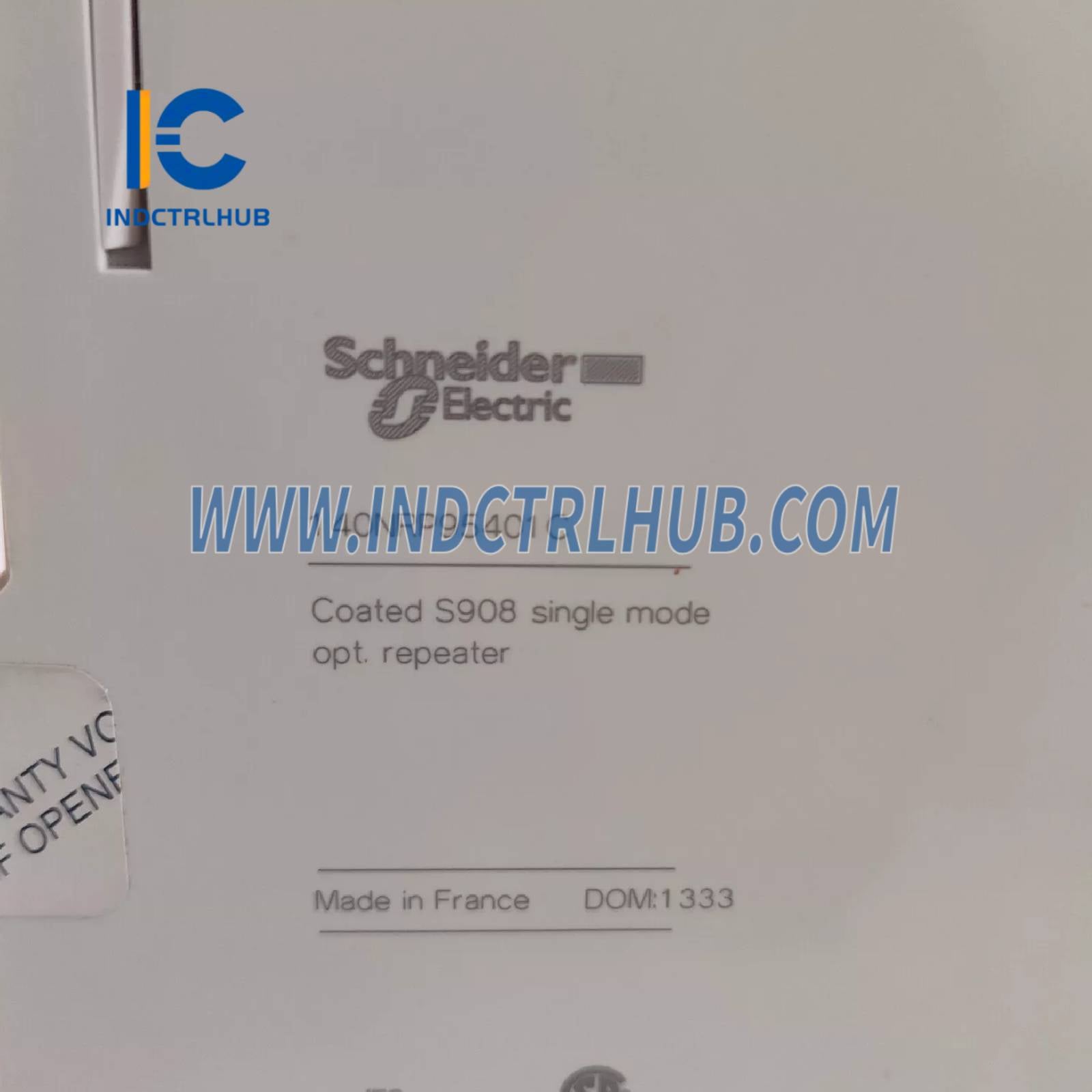

Coated Fibre Optic Repeater, Single-mode, LC connectors, RIO S908, 2 Channels |
Specifications
Main Specifications
|
Attribute |
Details |
|---|---|
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Fibre optic repeater |
|
Optic Fiber Type |
Single-mode |
Communication Interfaces
|
Port Type |
Quantity |
Connector Type |
|---|---|---|
|
Fiber Optic Ports |
2 |
LC |
|
Coaxial Port |
1 |
Coaxial connector |
Optical Characteristics
|
Attribute |
Details |
|---|---|
|
Wavelength |
1300 nm |
|
Distance (9/125 µm) |
16000 m (Optical Power: 0.45 dBm) |
|
Attenuation (9/125 µm) |
-15 to -8 dB |
|
Receiver Sensitivity |
-25 dBm |
|
Dynamic Range |
20 dB |
|
Detected Silence |
-45 dBm |
|
Rise/Fall Time |
20 ns |
Power and Electrical
|
Attribute |
Details |
|---|---|
|
Bus Current Requirement |
750 mA |
|
Power Dissipation |
5 W |
|
Inrush Current |
1.8 A at 5 V DC |
|
AWG Gauge Supported |
AWG 14 to AWG 1 |
Local Signaling LEDs
|
LED Marking |
Indication |
|---|---|
|
RDY (Green) |
Module status |
|
ERR (Red) |
Internal fault or module failure |
|
FAULT (Red) |
Error status |
|
ACTIVITY (Red) |
Activity detected |
|
Optical Status (Green) |
2 LEDs for optical communication status |
|
Coaxial Status (Green) |
Coaxial communication status |
Physical Characteristics
|
Attribute |
Details |
|---|---|
|
Material |
PC (Polycarbonate) |
|
Width |
40.34 mm |
|
Height |
250 mm |
|
Depth |
103.85 mm |
|
Net Weight |
0.554 kg |
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
0…95% (non-condensing) |
|
Operating Altitude |
0…2000 m |
|
Protection Standards |
UL 508, CSA C22.2 No 142, FM Class 1 Div 2 |
|

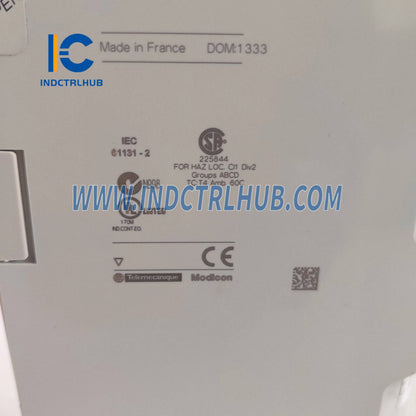

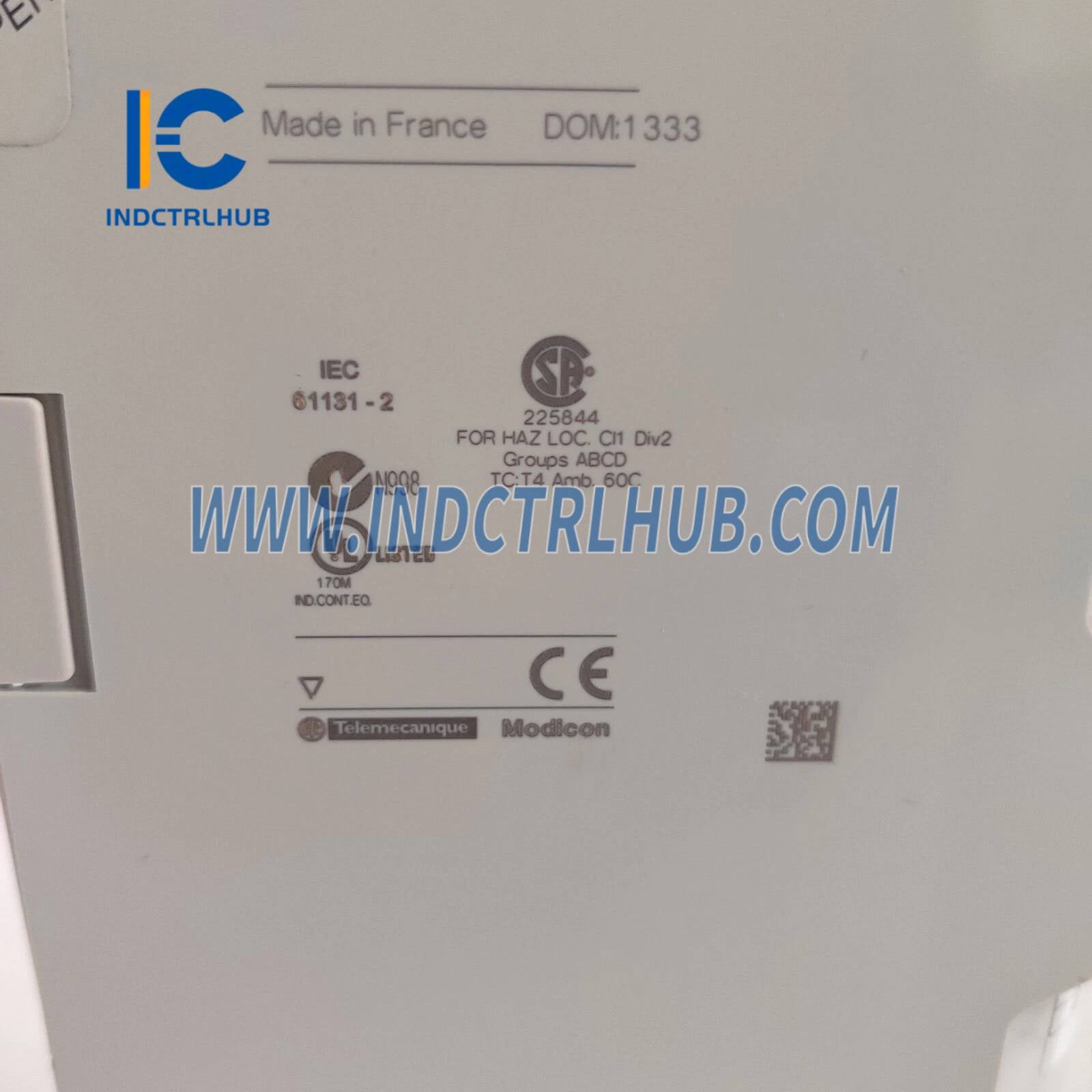

Certifications |
CE, Merchant Navy |

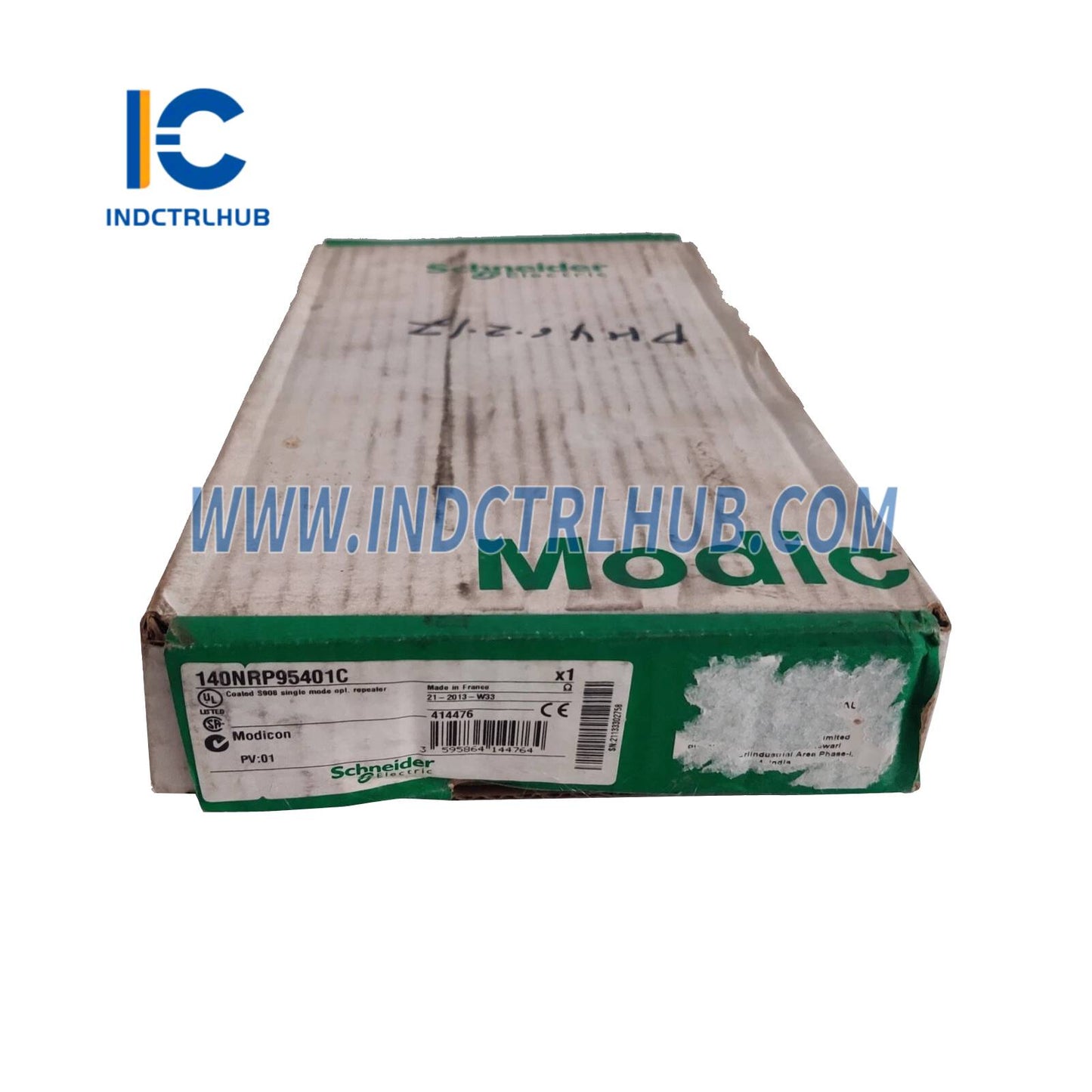

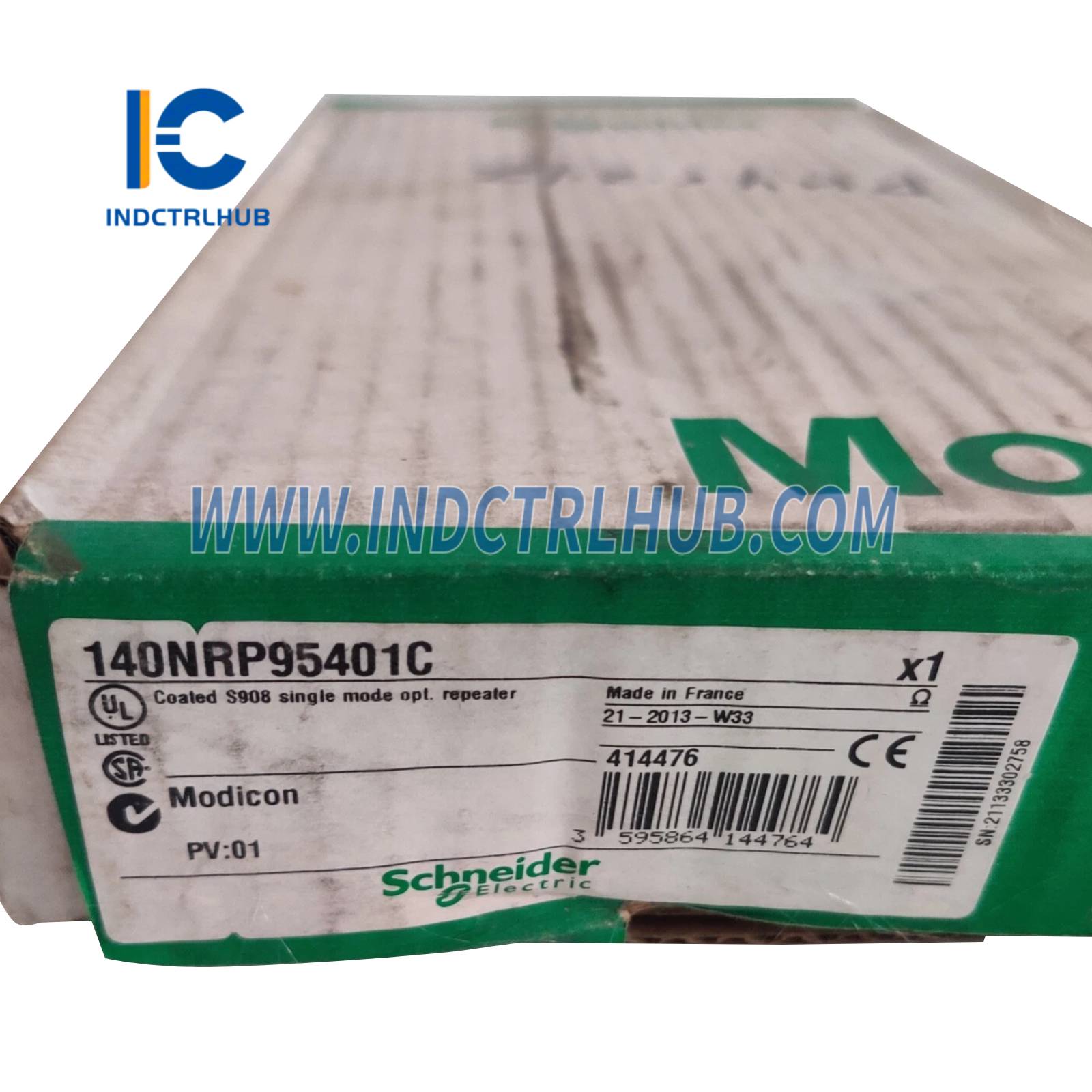

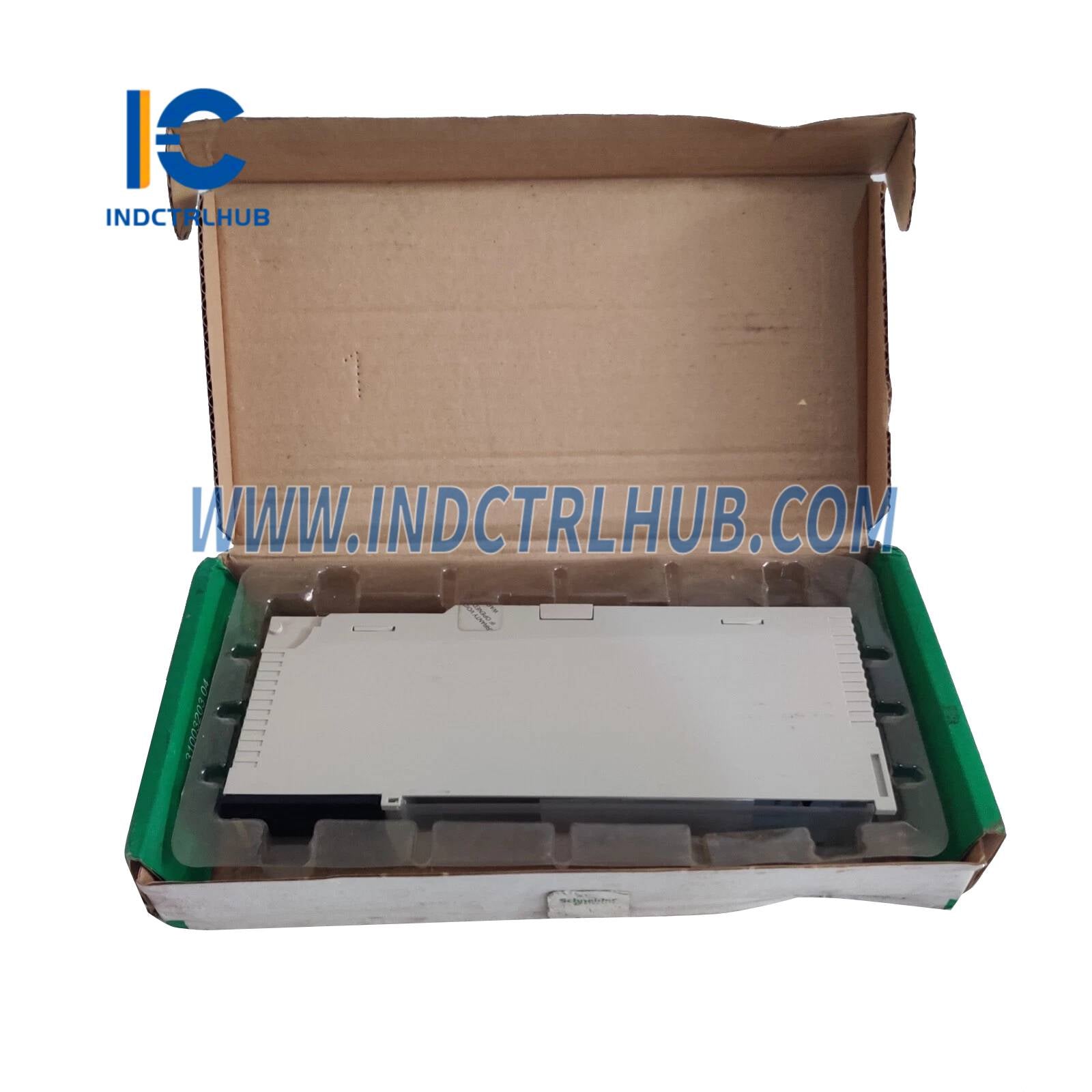

Packing Information
|
Package |
Details |
|---|---|
|
Unit Package Type |
PCE |
|
Units per Package |
1 |
|
Dimensions (H×W×L) |
4.5 × 16.5 × 31.5 cm |
|
Weight |
624 g |
