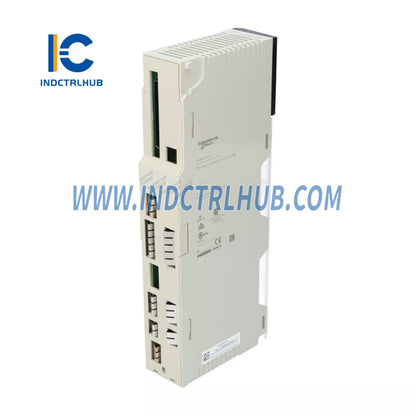

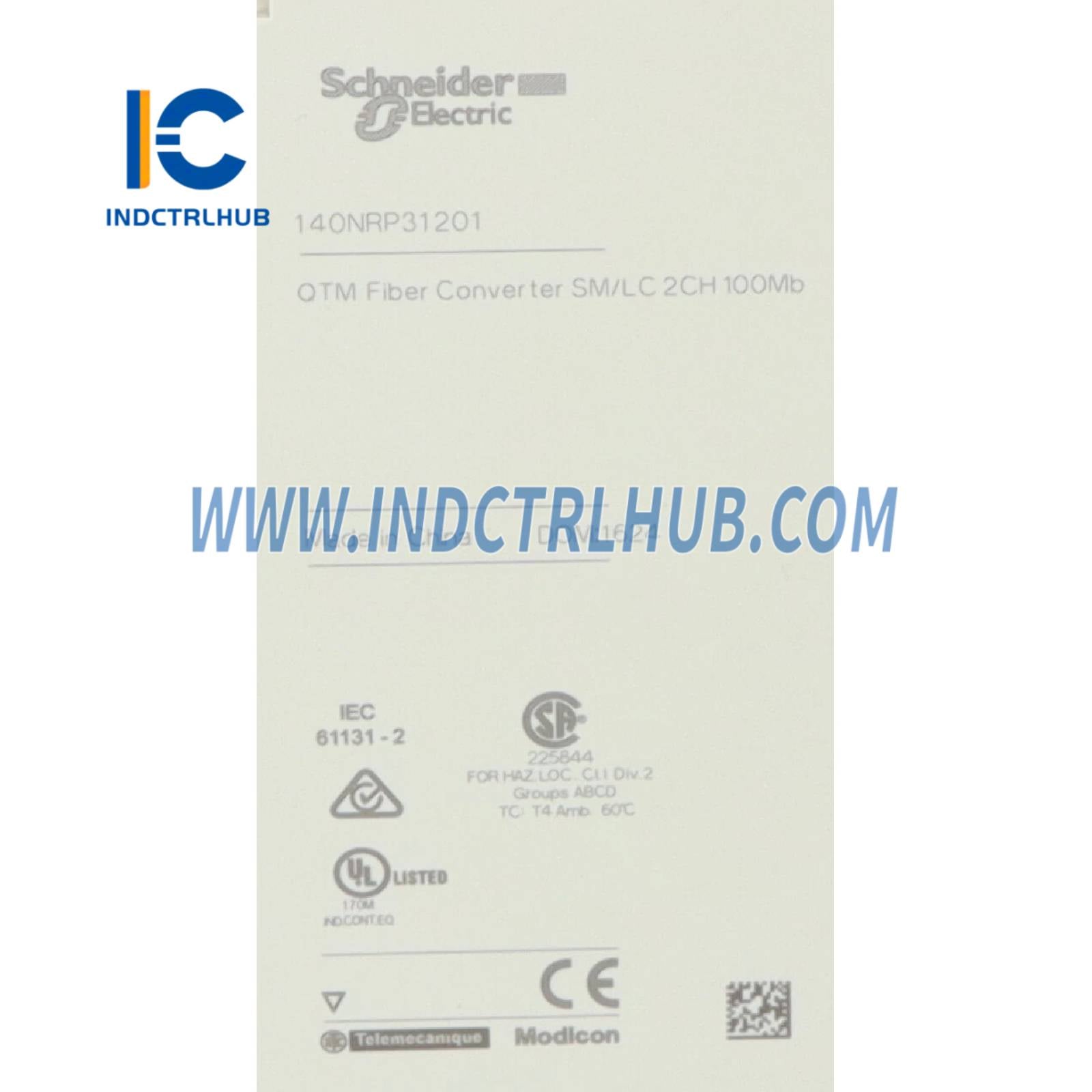

Product Description
General Information
|
Attribute |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140NRP31201 |
|
Description |
Ethernet fibre converter, Single-mode, LC connectors, 2 channels, 100 MB/s |
Specifications
Main Specifications
|
Attribute |
Details |
|---|---|
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Fibre converter |
|
Optic Fiber Type |
Single-mode |

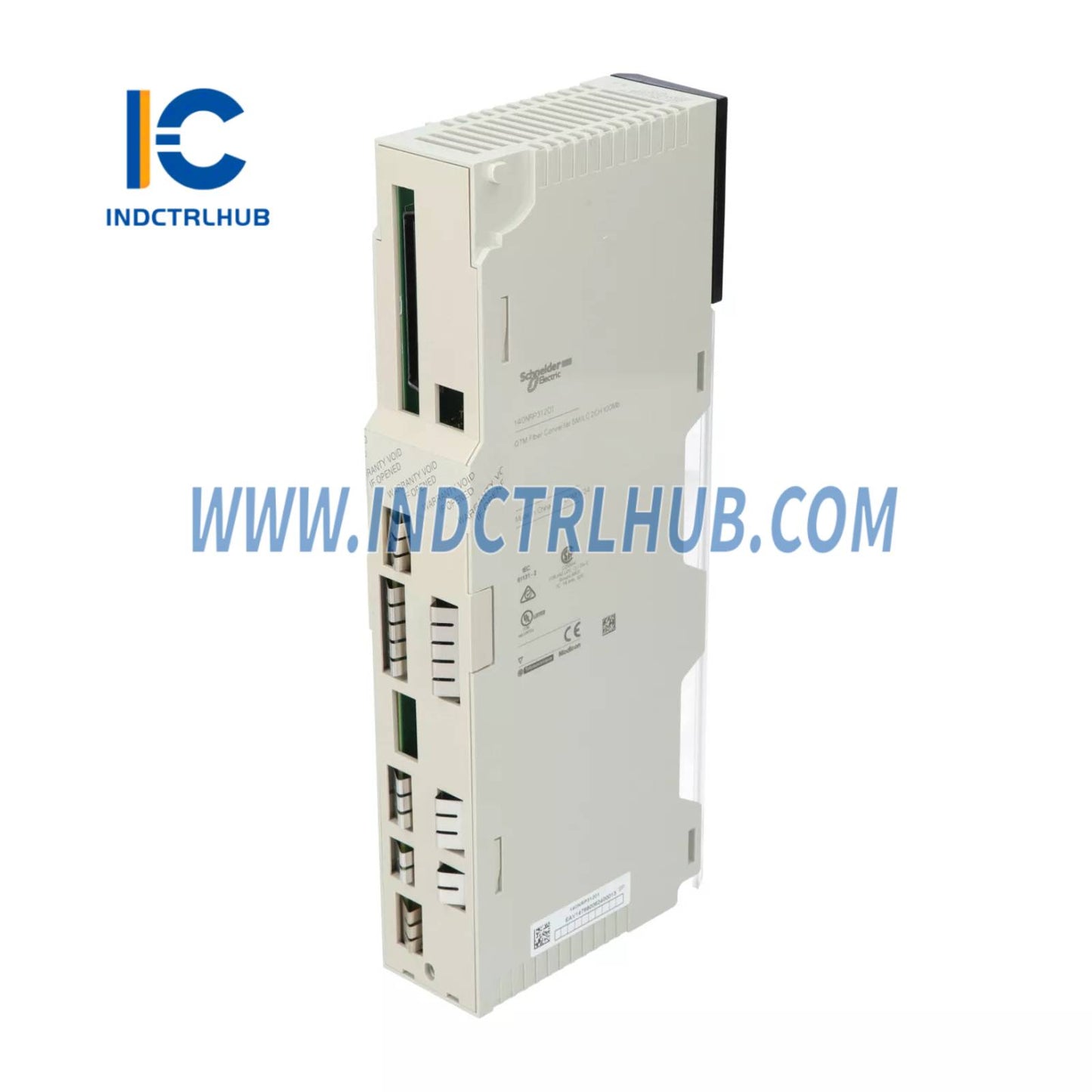

Communication Interfaces
|
Port Type |
Quantity |
Connector Type |
|---|---|---|
|
Fiber Optic Ports |
2 |
LC |
|
Ethernet Ports |
2 |
RJ45 |
Optical Characteristics
|
Attribute |
Details |
|---|---|
|
Wavelength |
1310 nm |
|
Distance (9/125 µm) |
15000 m (Optical Power: -15 to -8 dBm) |
|
Attenuation (9/125 µm) |
-15 to -8 dB |
|
Receiver Sensitivity |
-28 dBm |
|
Detected Silence |
-45 dBm |
|
Rise/Fall Time |
2.5 ns |
Power and Electrical
|
Attribute |
Details |
|---|---|
|
Bus Current Requirement |
1000 mA |
|
Power Dissipation |
5 W |
|
Inrush Current |
1 A at 5 V DC |

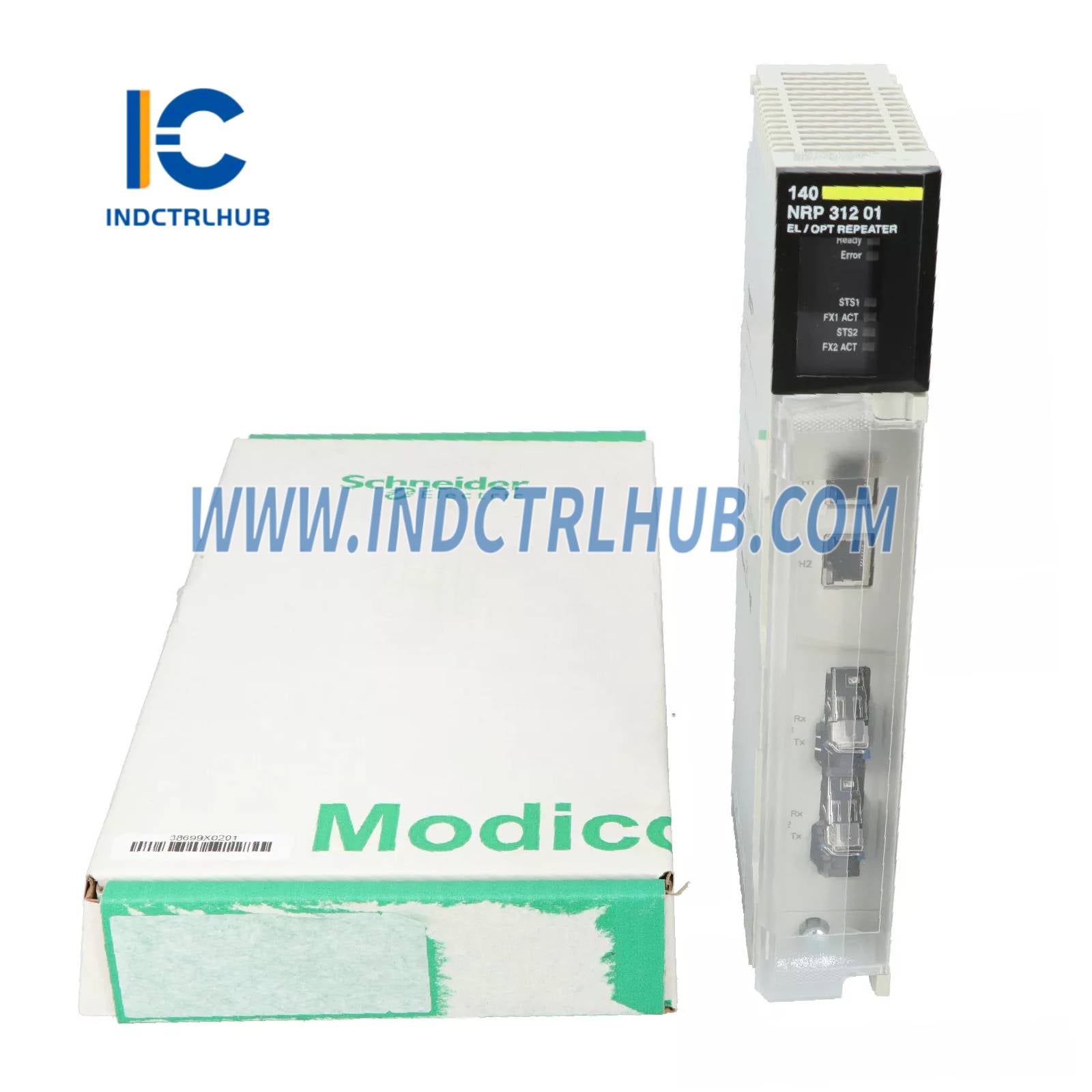

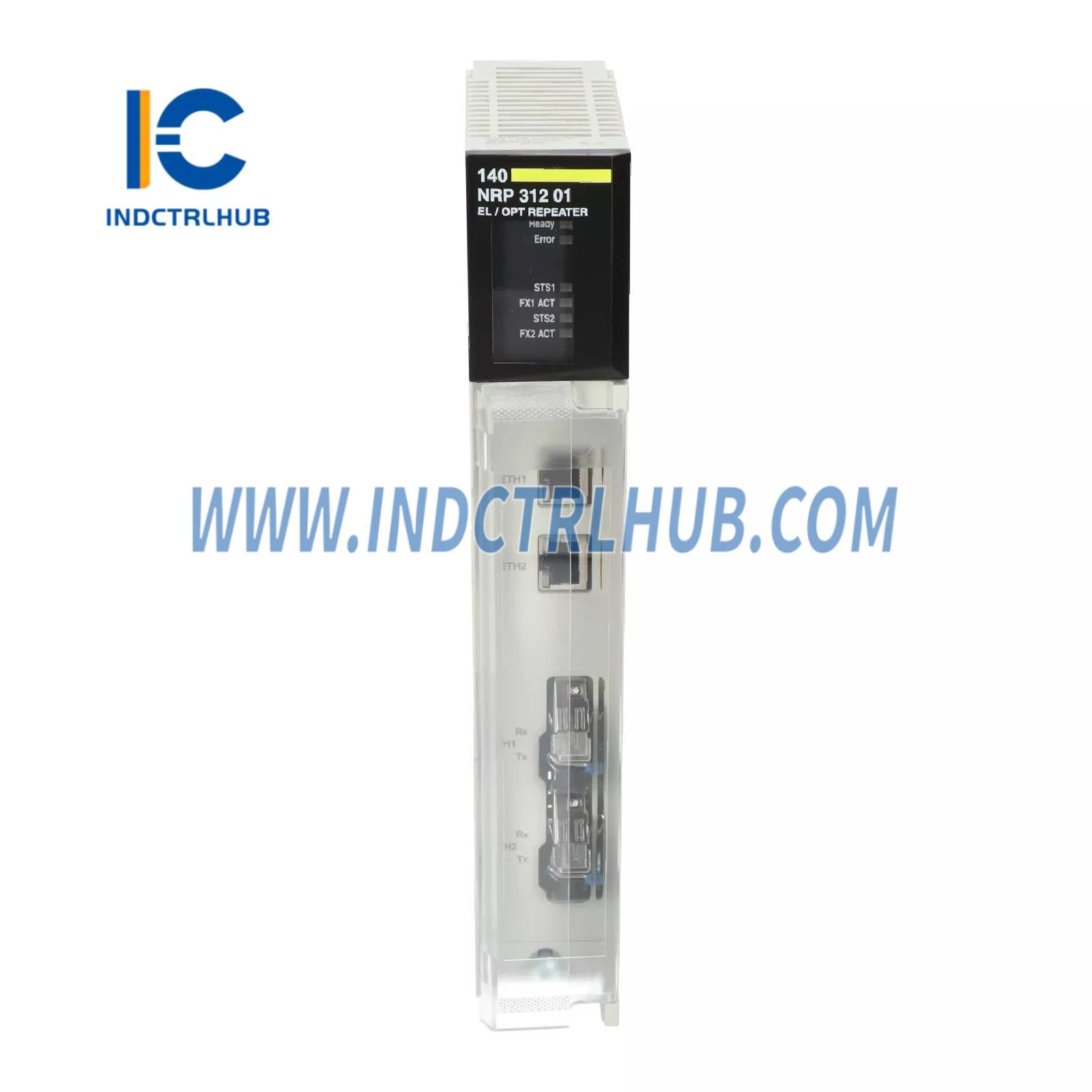

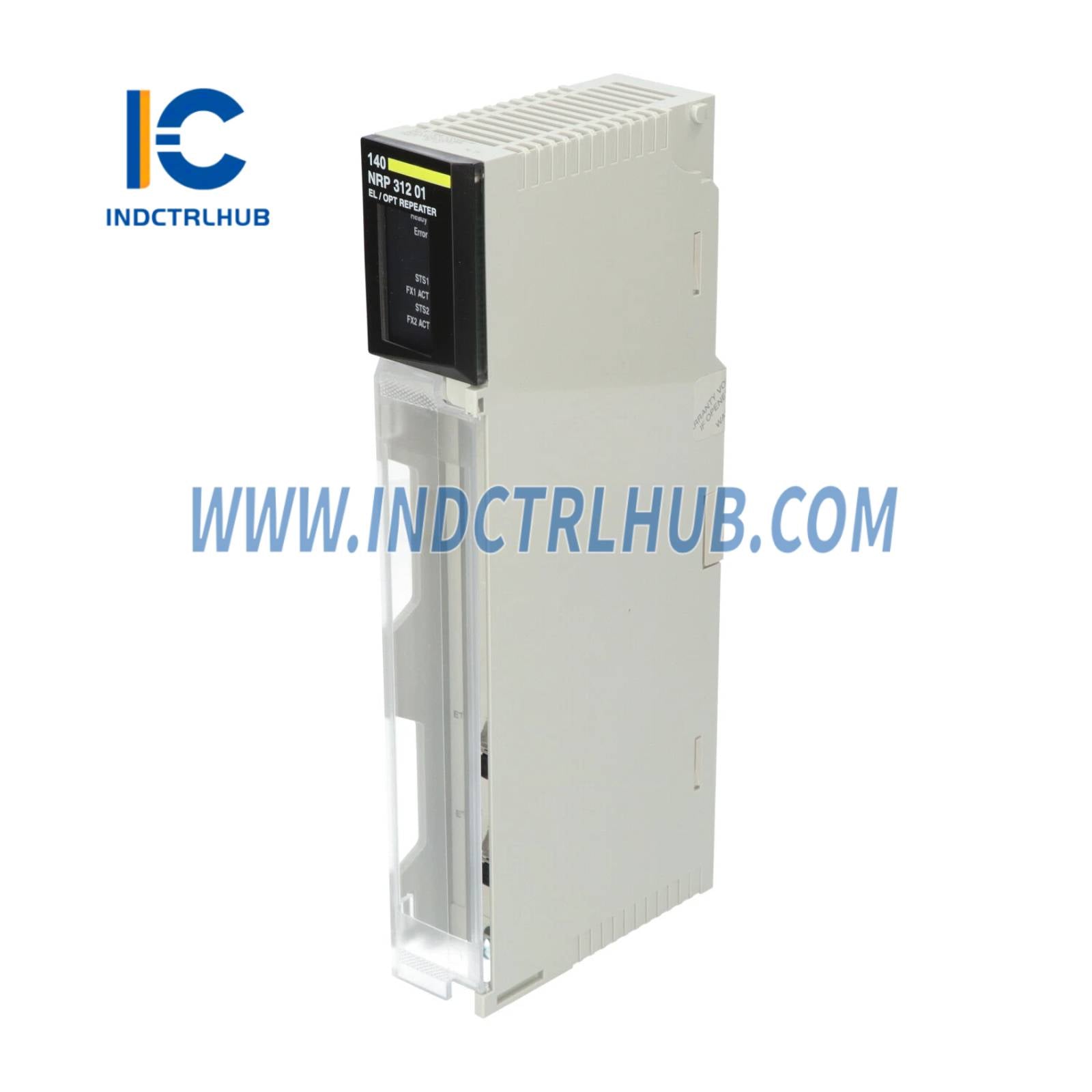

Local Signaling LEDs
|
LED Marking |
Indication |
|---|---|
|
RDY (Green) |
Module status |
|
ERR (Red) |
Internal fault or module failure |
|
STS1 (Green) |
Channel 1 link status |
|
FX1 ACT (Green) |
Channel 1 communication status |
|
STS2 (Green) |
Channel 2 link status |
|
FX2 ACT (Green) |
Channel 2 communication status |

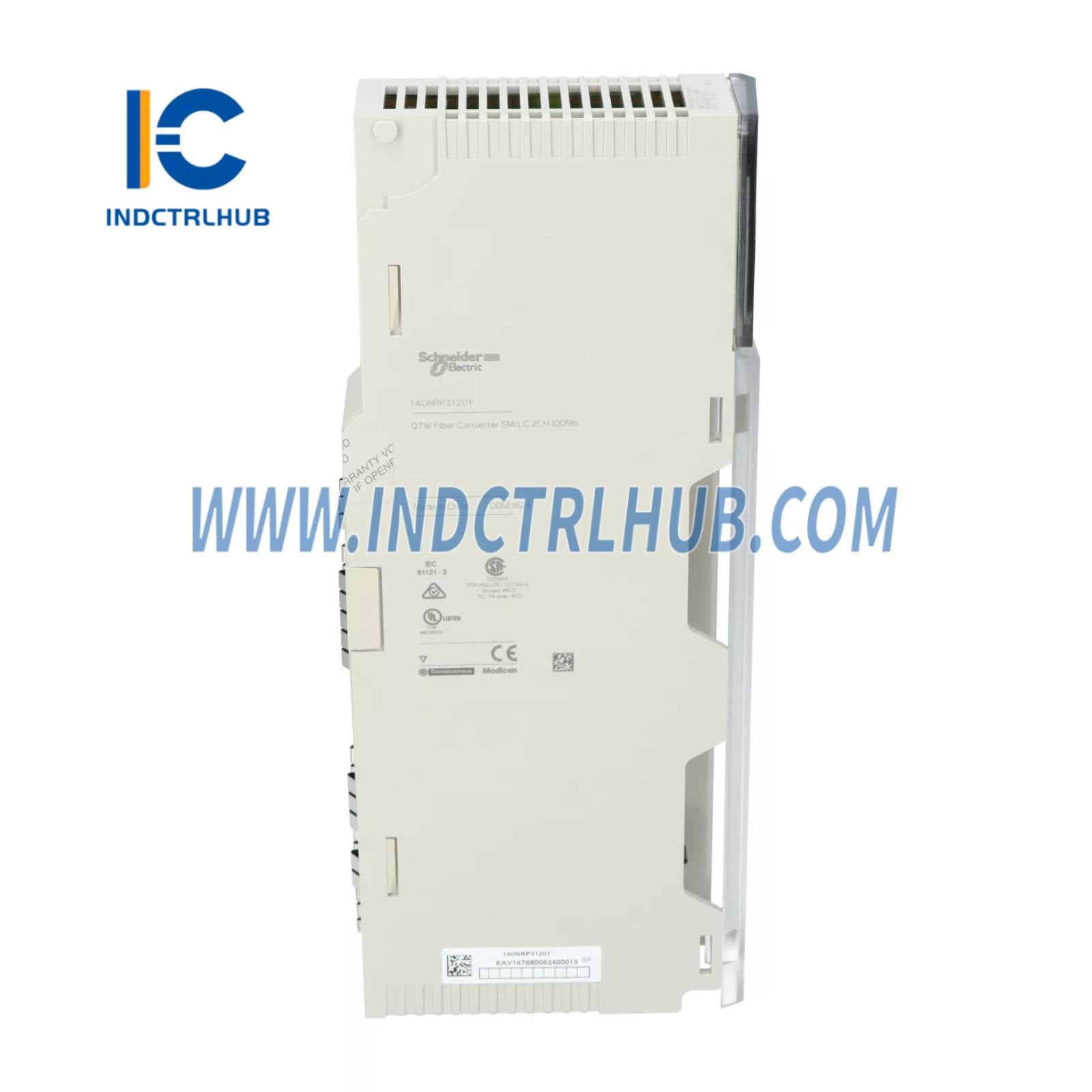

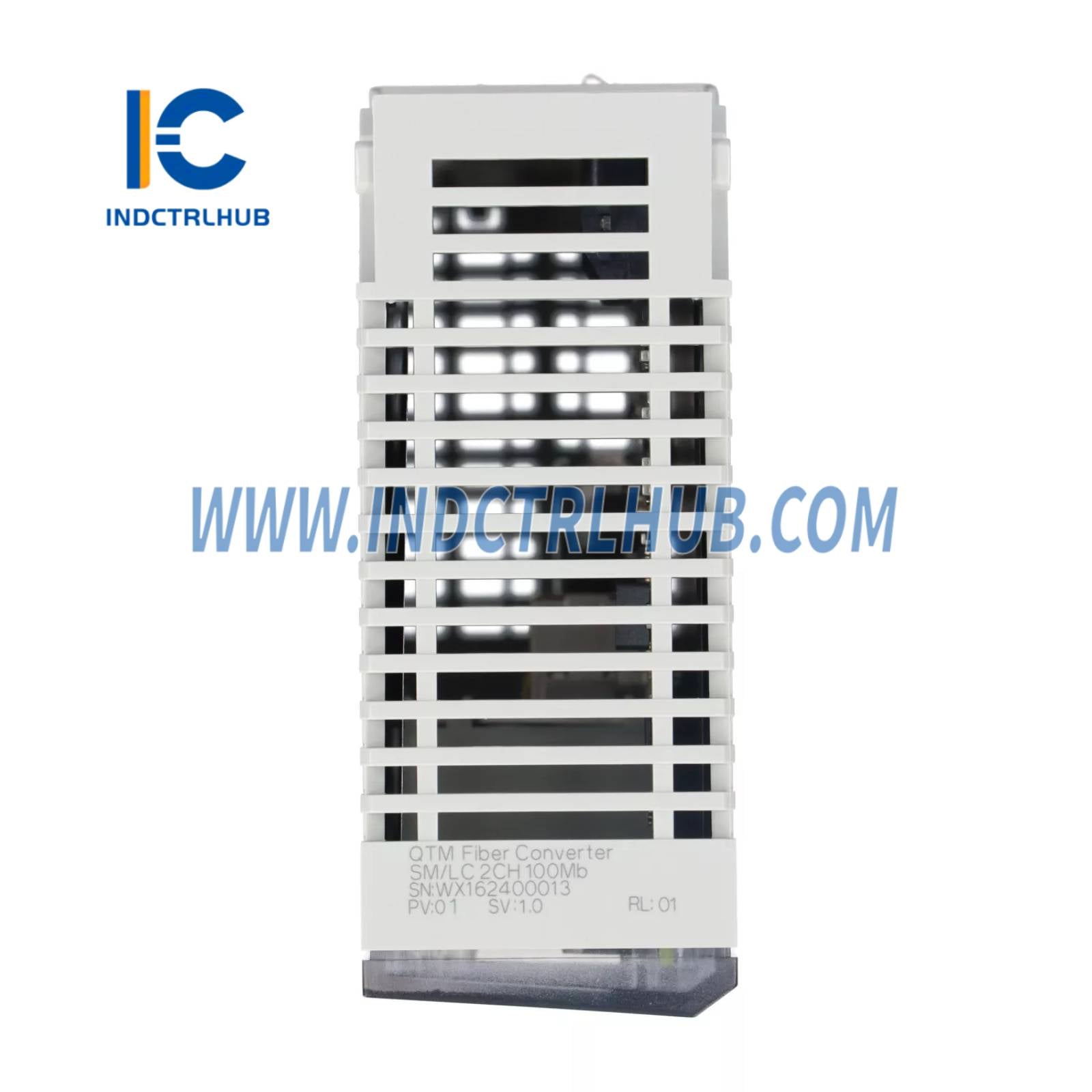

Physical Characteristics
|
Attribute |
Details |
|---|---|
|
Material |
PC (Polycarbonate) |
|
Width |
40.34 mm |
|
Height |
250 mm |
|
Depth |
103.85 mm |
|
Net Weight |
0.554 kg |
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
0…95% (non-condensing) |
|
Operating Altitude |
0…2000 m |
|
Protection Standards |
UL 508, CSA C22.2 No 142, FM Class 1 Div 2 |
|
Certifications |
CE, C-Tick, TÜV, Merchant Navy |
Packing Information
|
Package |
Details |
|---|---|
|
Unit Package Type |
PCE |
|
Units per Package |
1 |
|
Dimensions (H×W×L) |
16.3 × 4.5 × 31.2 cm |
|
Weight |
614 g |
|
Secondary Package Type |
S03 |
|
Units per Secondary Package |
7 |
|
Secondary Package Dimensions |
30 × 30 × 40 cm |
|
Secondary Package Weight |
4.298 kg |
