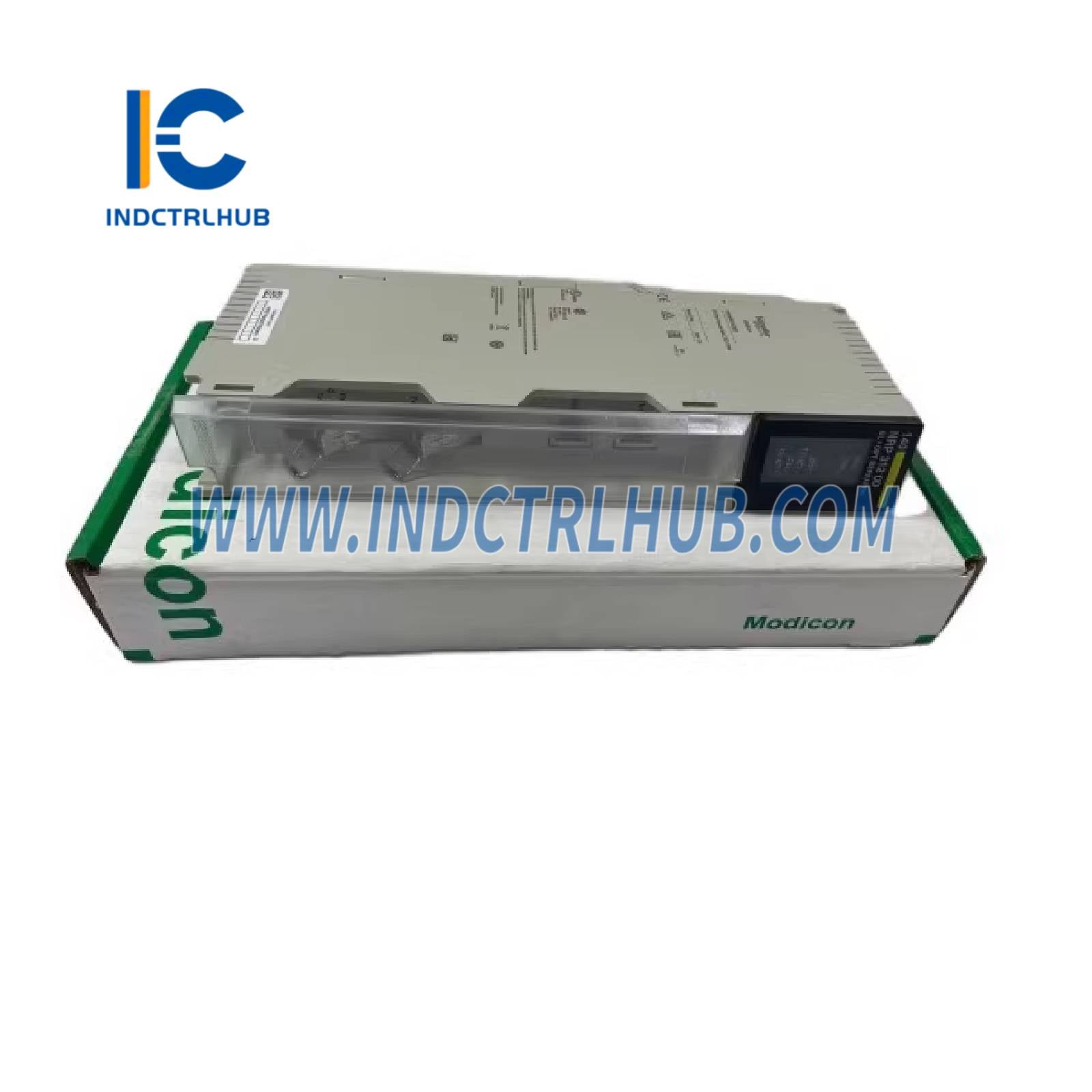

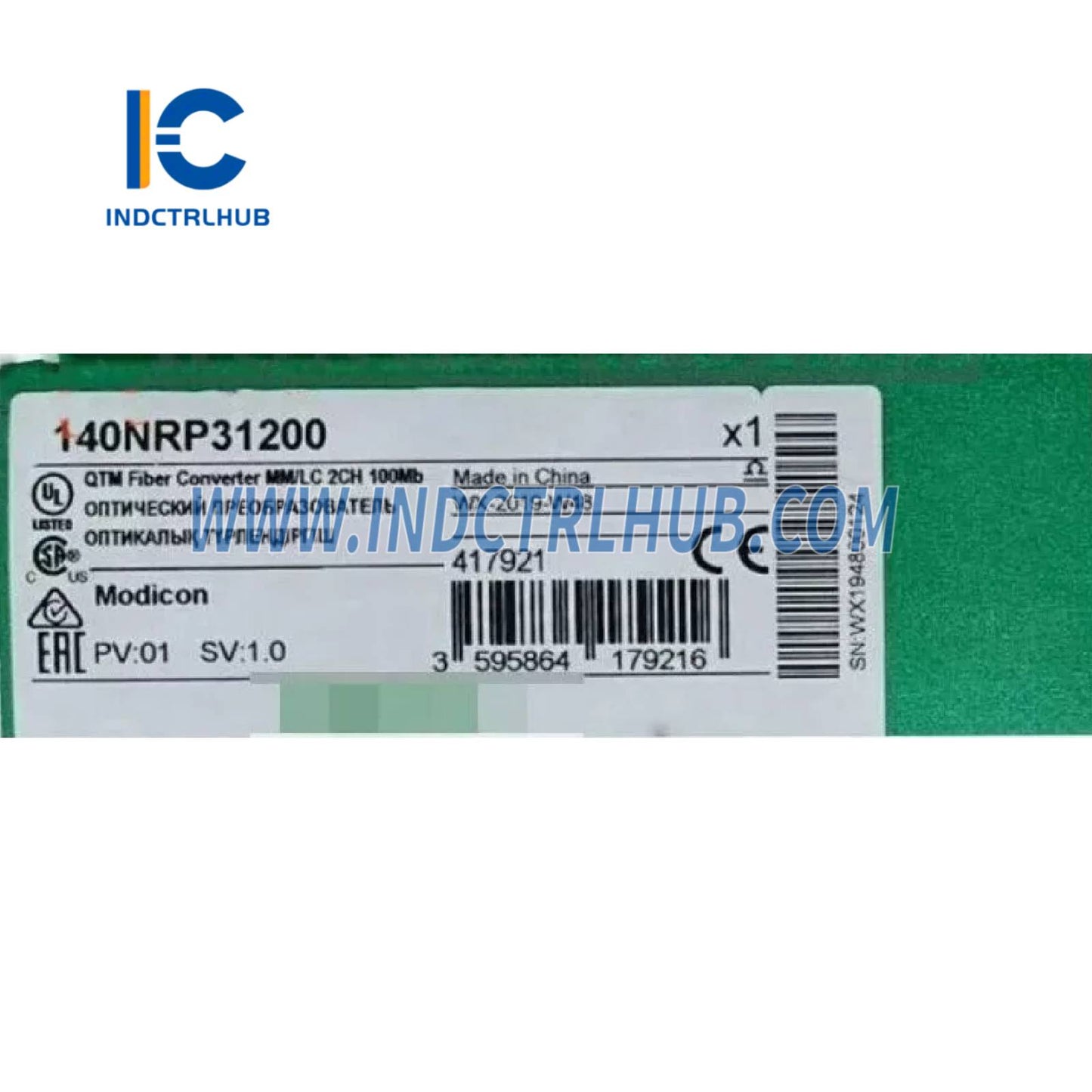

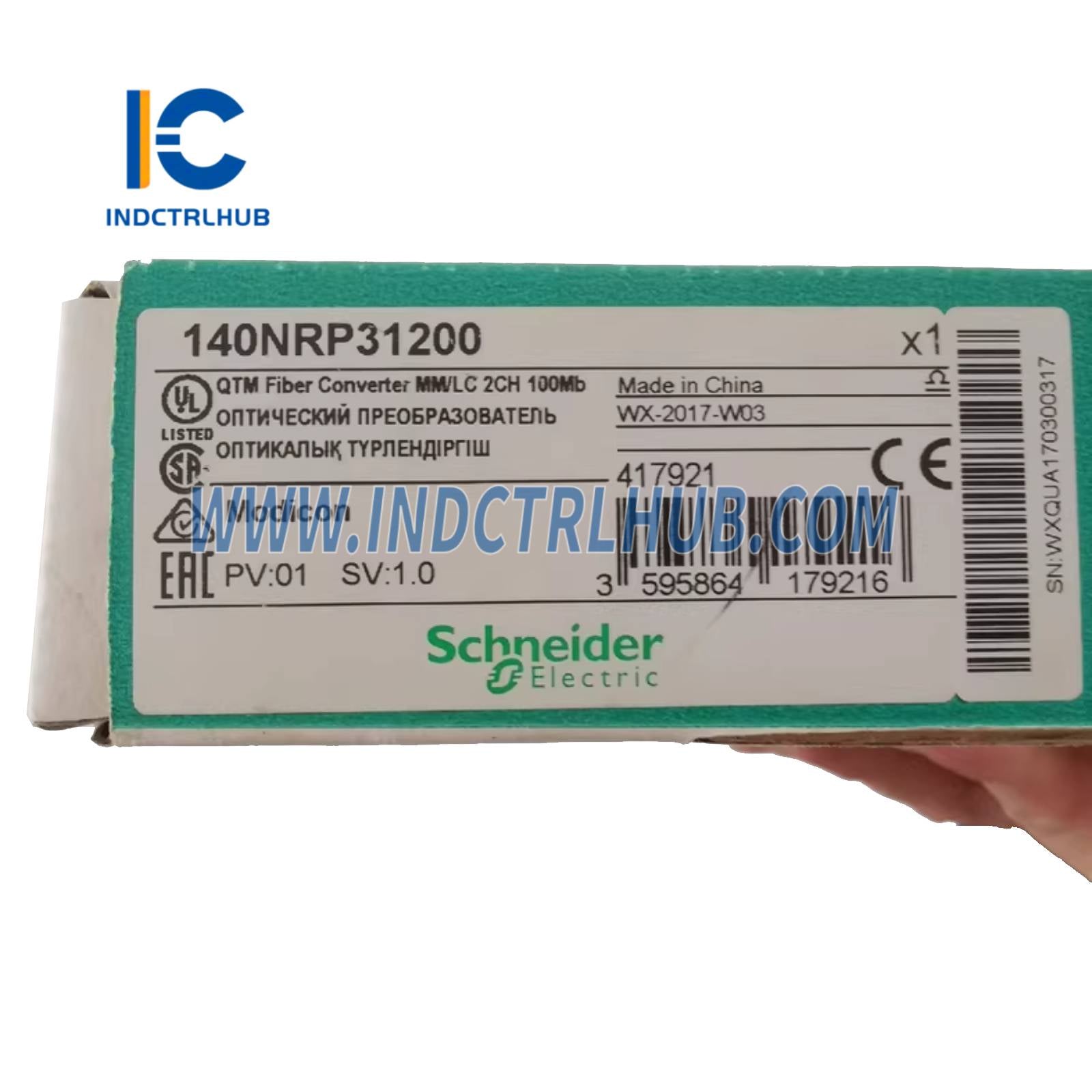

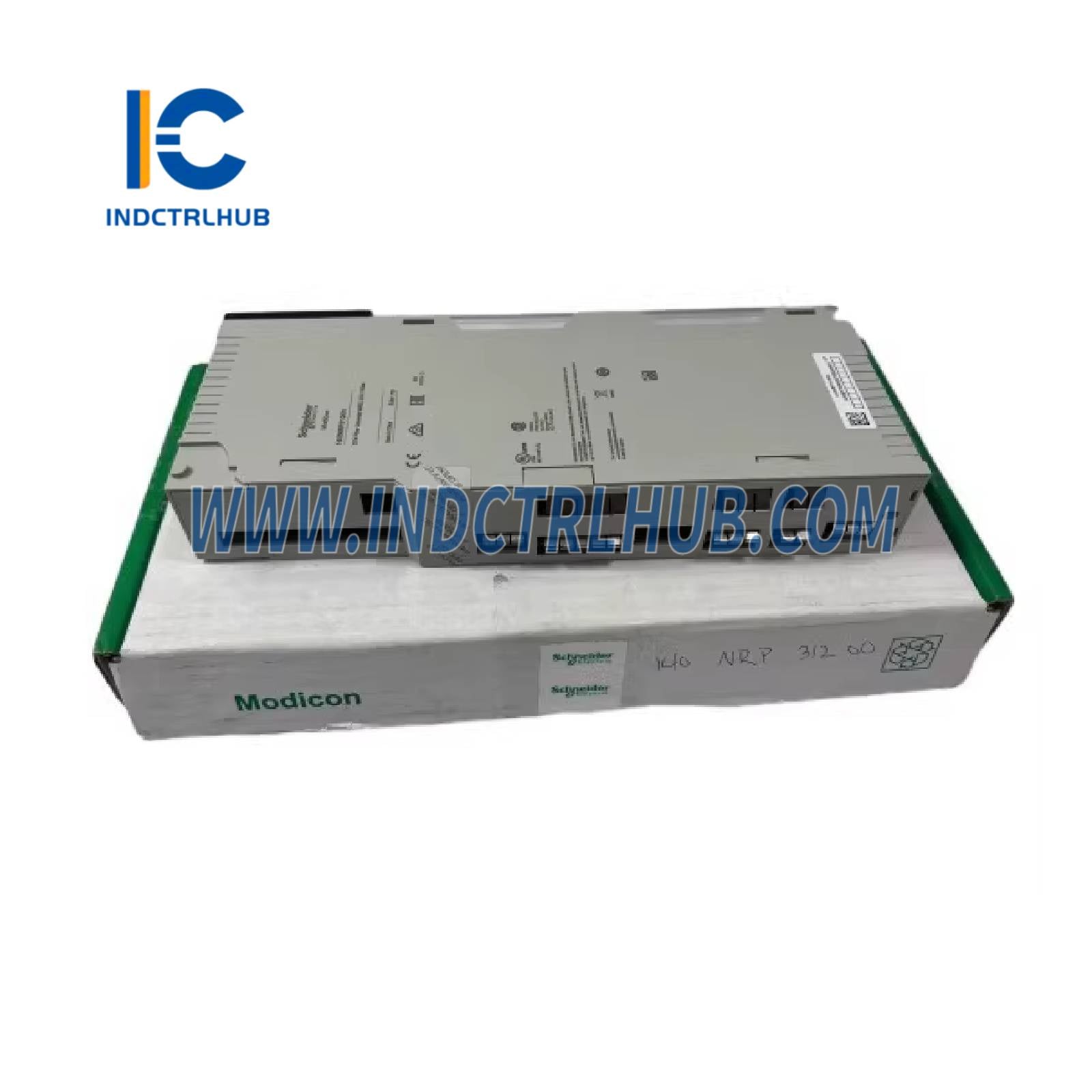

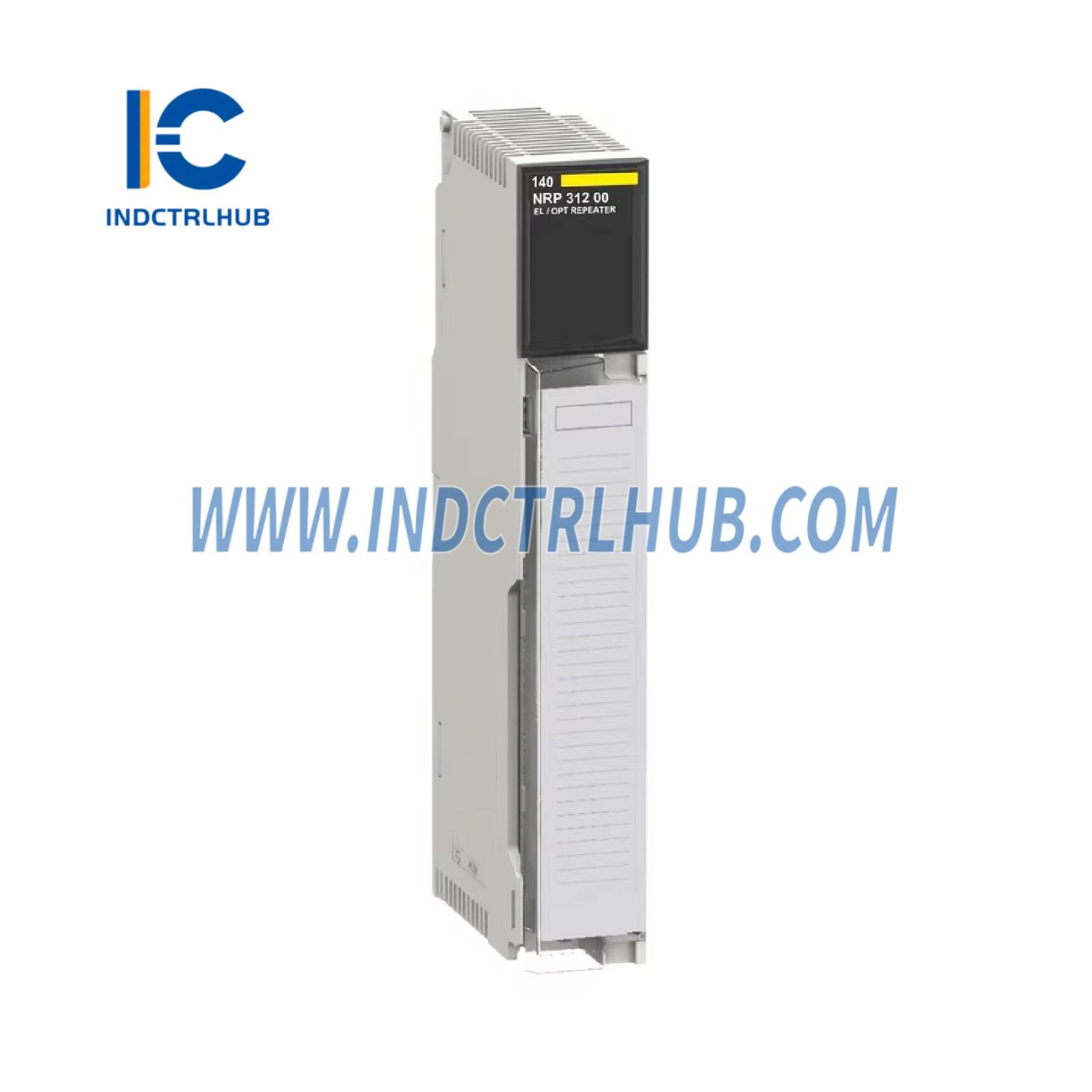

Schneider 140NRP31200 Ethernet fibre converter
Schneider 140NRP31200 Ethernet fibre converter
Manufacturer: Schneider
Product No.: 140NRP31200
Condition:1000 in stock
Product Type: Ethernet fibre converter
Product Origin: USA
Payment: T/T, Western Union
Weight: 4731g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Attribute |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140NRP31200 |
|
Description |
Ethernet fibre converter, Multi-mode, LC connectors, 2 channels, 100 MB/s |
_
_
Specifications
_
Main Specifications
|
Attribute |
Details |
|---|---|
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Fibre converter |
|
Optic Fiber Type |
Multi-mode |
_
Communication Interfaces
|
Port Type |
Quantity |
Connector Type |
|---|---|---|
|
Fiber Optic Ports |
2 |
LC |
|
Ethernet Ports |
2 |
RJ45 |
_
Optical Characteristics
|
Attribute |
Details |
|---|---|
|
Wavelength |
1310 nm |
|
Distance (50/125 µm) |
2000 m (Optical Power: -23.5 to -14 dBm) |
|
Distance (62.5/125 µm) |
3000 m (Optical Power: -20 to -14 dBm) |
|
Attenuation (50/125 µm) |
-23.5 to -14 dB |
|
Attenuation (62.5/125 µm) |
-20 to -14 dB |
|
Receiver Sensitivity |
-30 dBm |
|
Detected Silence |
-45 dBm |
|
Rise/Fall Time |
3 ns |
_
Power and Electrical
|
Attribute |
Details |
|---|---|
|
Bus Current Requirement |
1000 mA |
|
Power Dissipation |
5 W |
|
Inrush Current |
1 A at 5 V DC |
_
Local Signaling LEDs
|
LED Marking |
Indication |
|---|---|
|
RDY (Green) |
Module status |
|
ERR (Red) |
Internal fault or module failure |
|
STS1 (Green) |
Channel 1 link status |
|
FX1 ACT (Green) |
Channel 1 communication status |
|
STS2 (Green) |
Channel 2 link status |
|
FX2 ACT (Green) |
Channel 2 communication status |
_
Physical Characteristics
|
Attribute |
Details |
|---|---|
|
Material |
PC (Polycarbonate) |
|
Width |
40.34 mm |
|
Height |
250 mm |
|
Depth |
103.85 mm |
|
Net Weight |
0.554 kg |
_
_
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
Operating Temperature |
0_60 °C |
|
Storage Temperature |
-40_85 °C |
|
Relative Humidity |
0_95% (non-condensing) |
|
Operating Altitude |
0_2000 m |
|
Protection Standards |
UL 508, CSA C22.2 No 142, FM Class 1 Div 2 |
|
Certifications |
CE, C-Tick, T_V, Merchant Navy |
_
_
Packing Information
|
Package |
Details |
|---|---|
|
Unit Package Type |
PCE |
|
Units per Package |
1 |
|
Dimensions (H_W_L) |
5.0 _ 16.5 _ 31.5 cm |
|
Weight |
590 g |
|
Secondary Package Type |
S03 |
|
Units per Secondary Package |
7 |
|
Secondary Package Dimensions |
30 _ 30 _ 40 cm |
|
Secondary Package Weight |
4.731 kg |
_
