Product Description
General Information
|
Attribute |
Description |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |

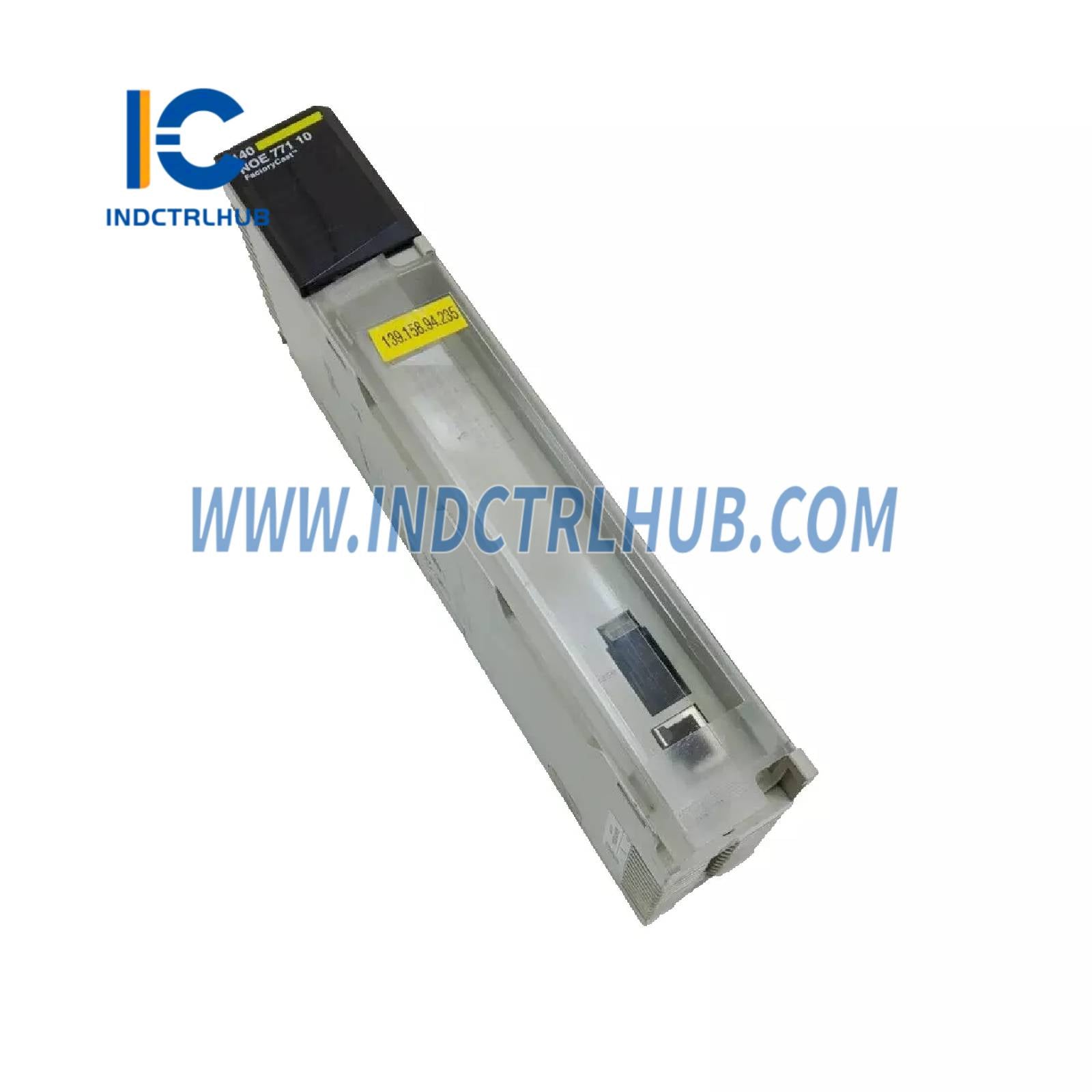

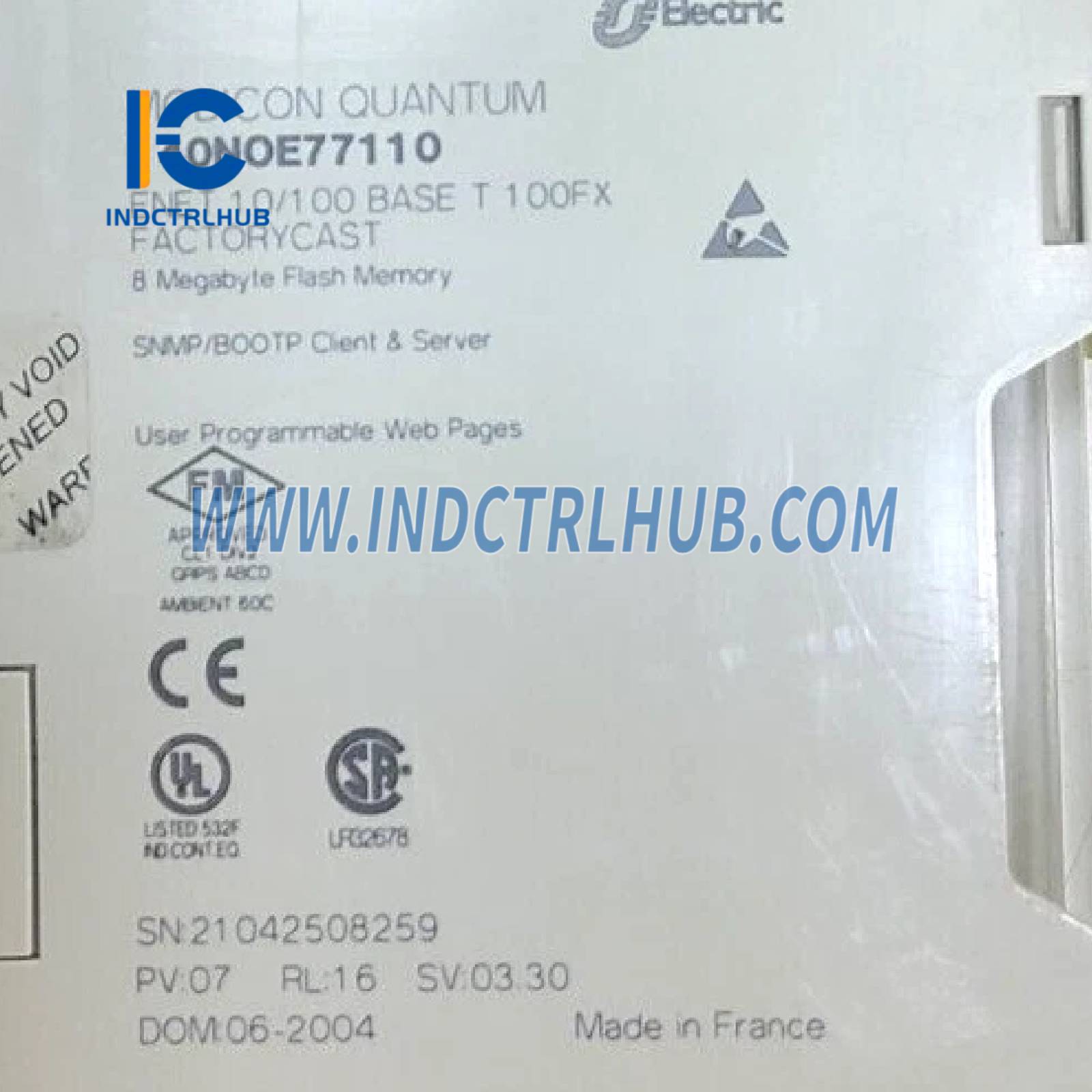

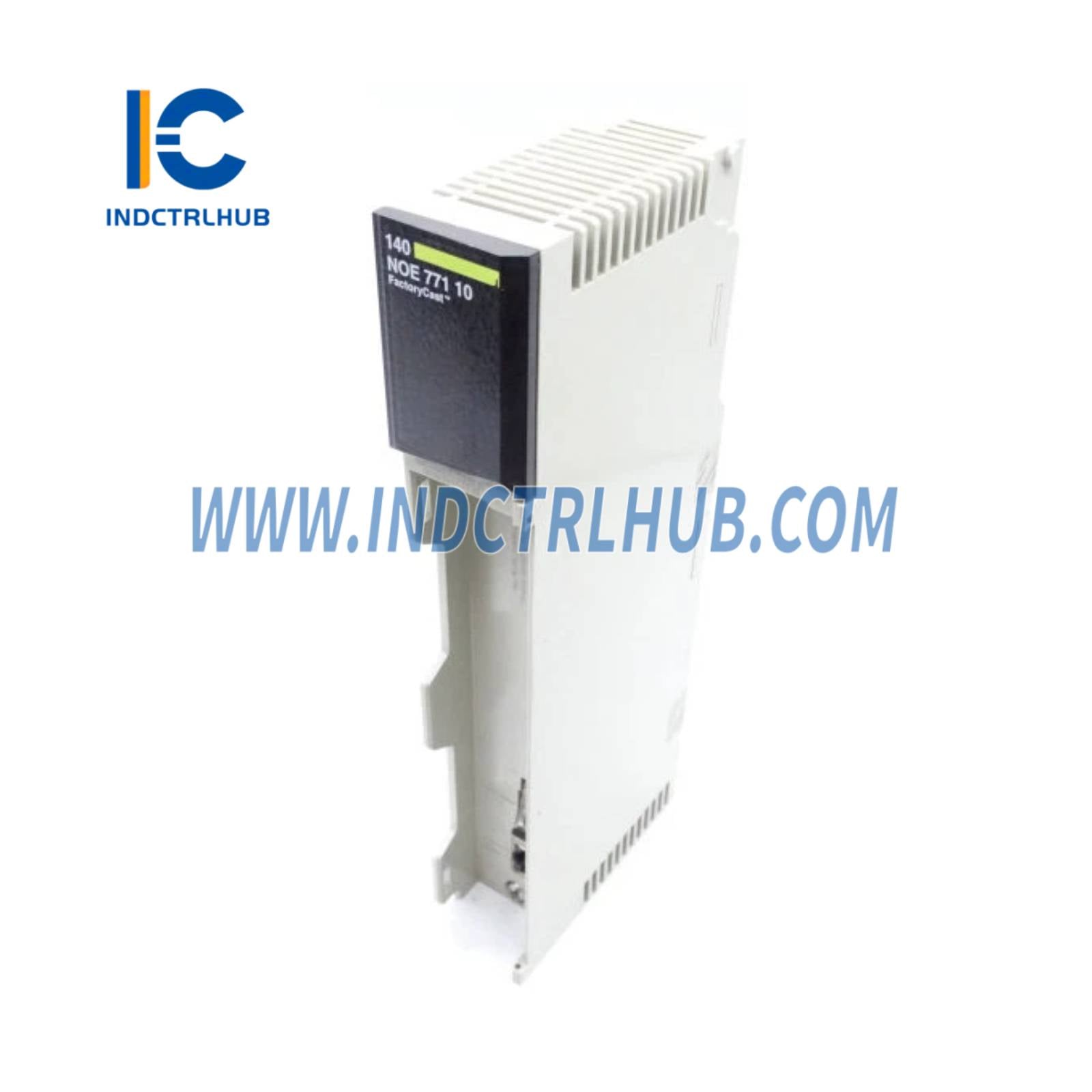

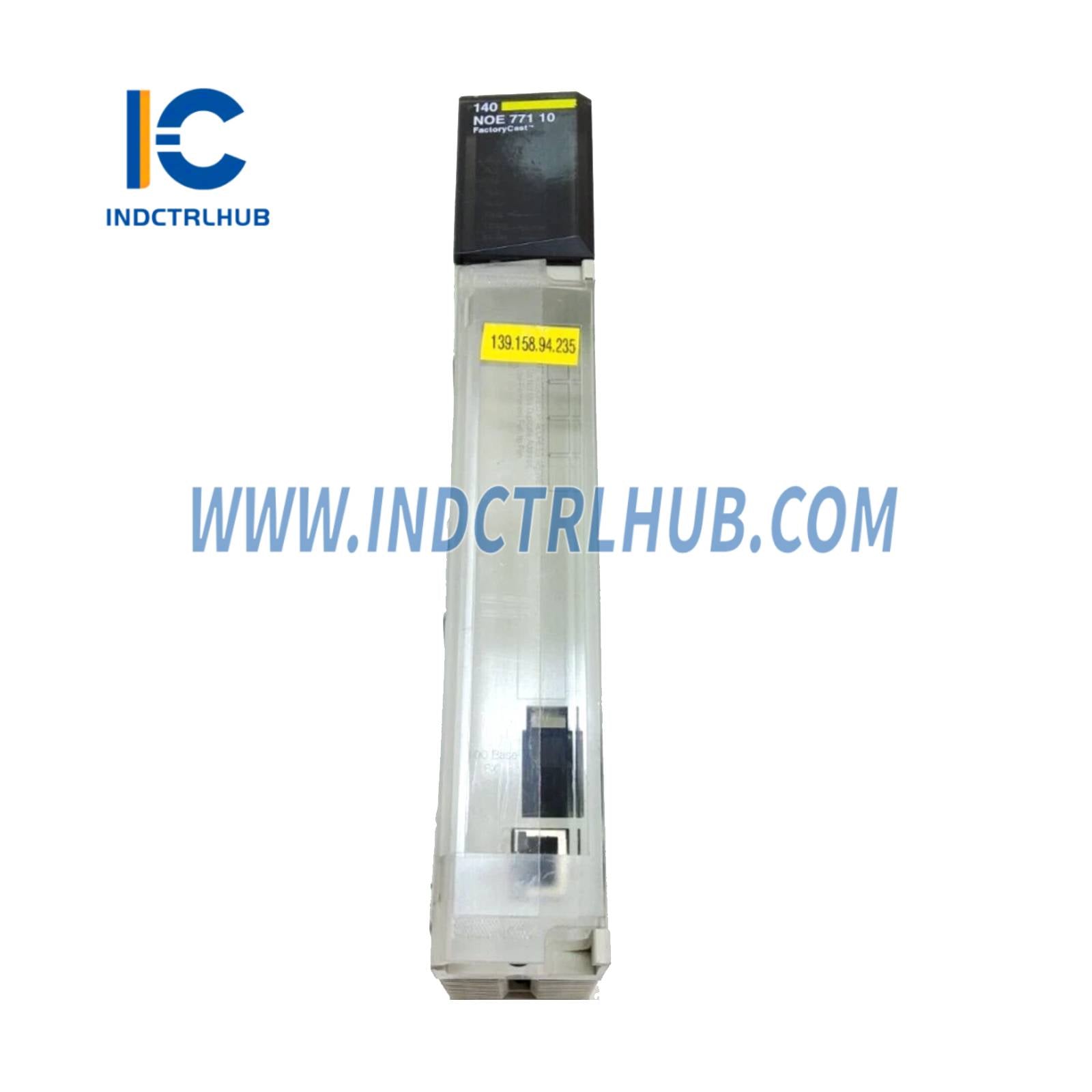

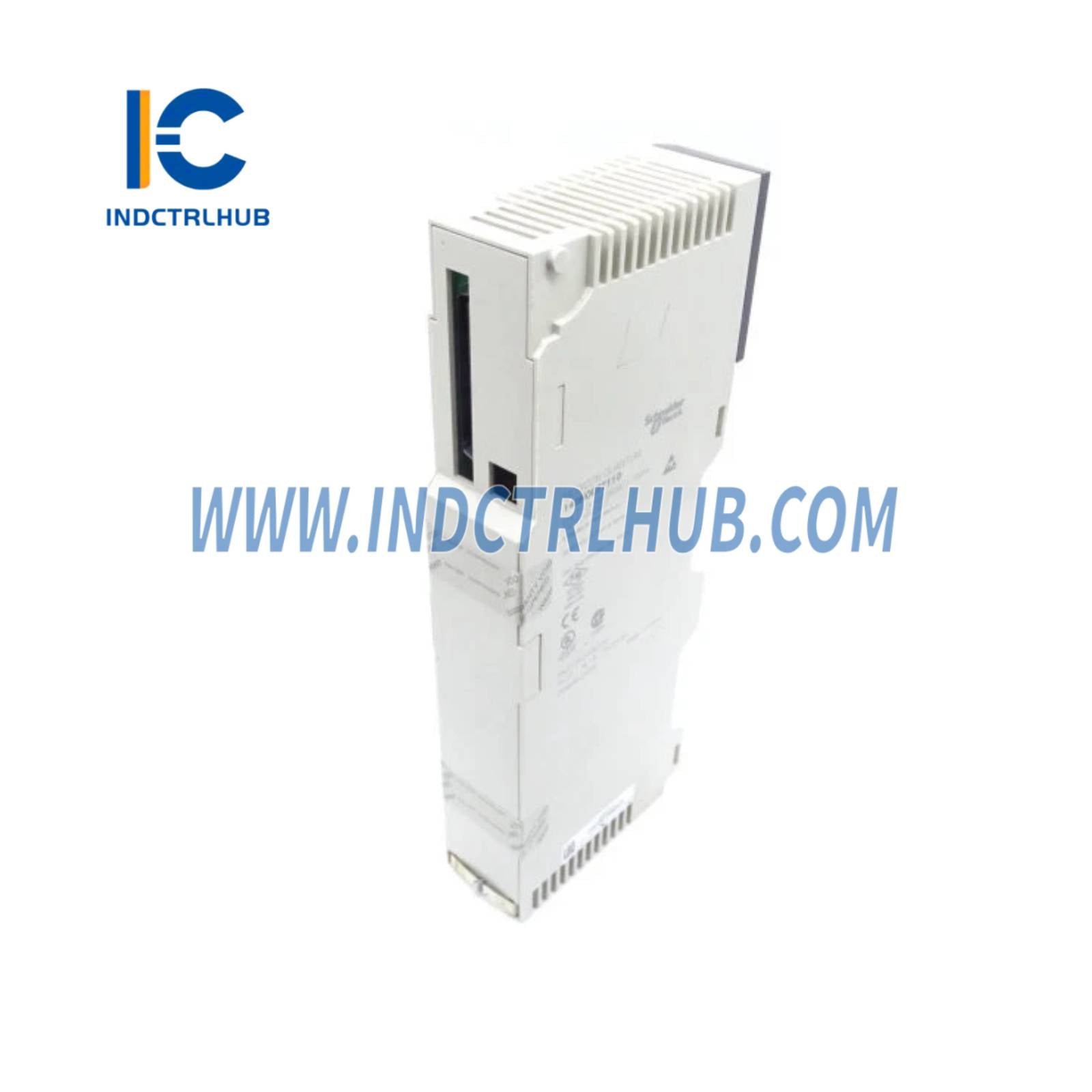

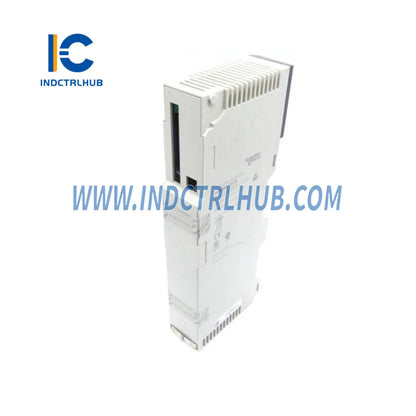

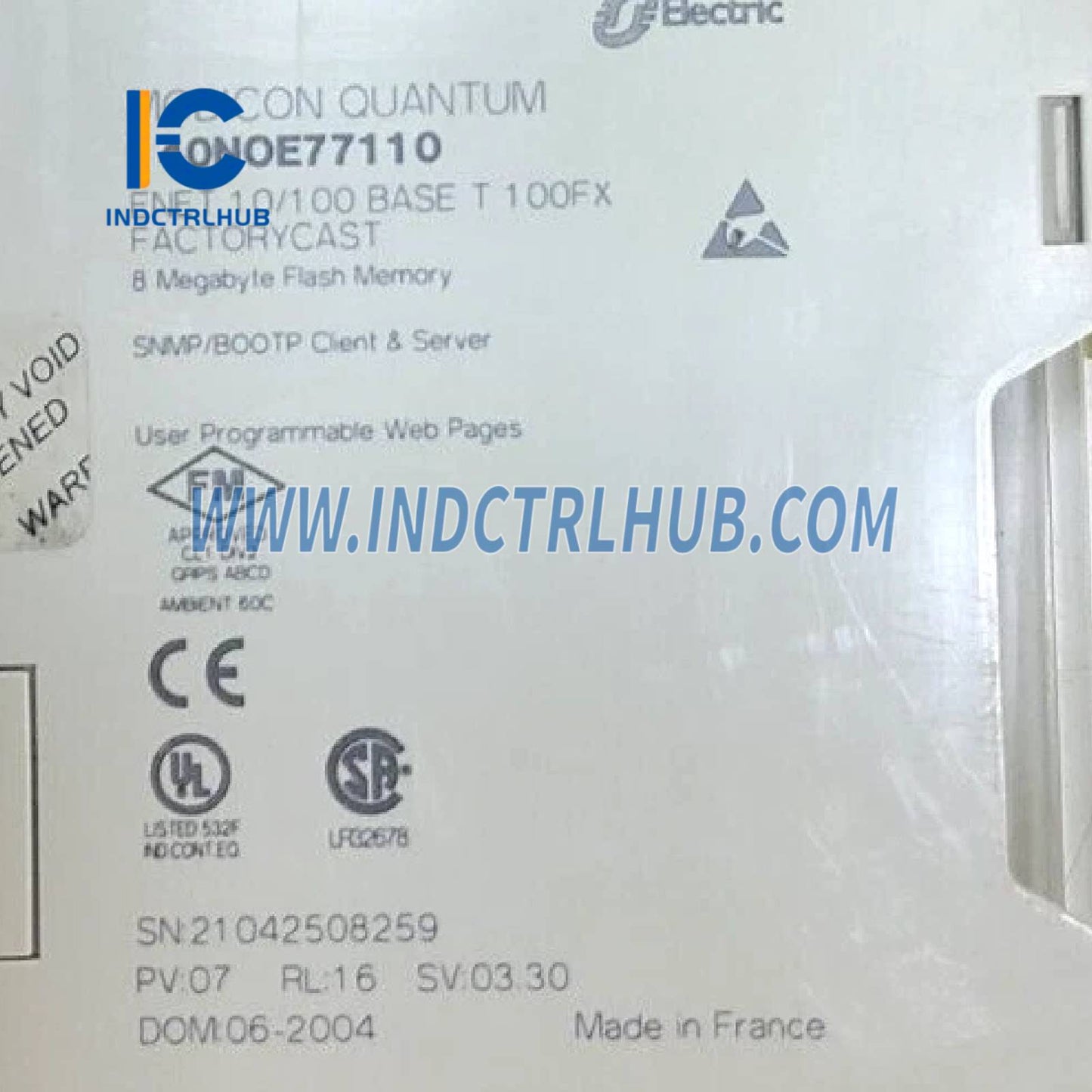

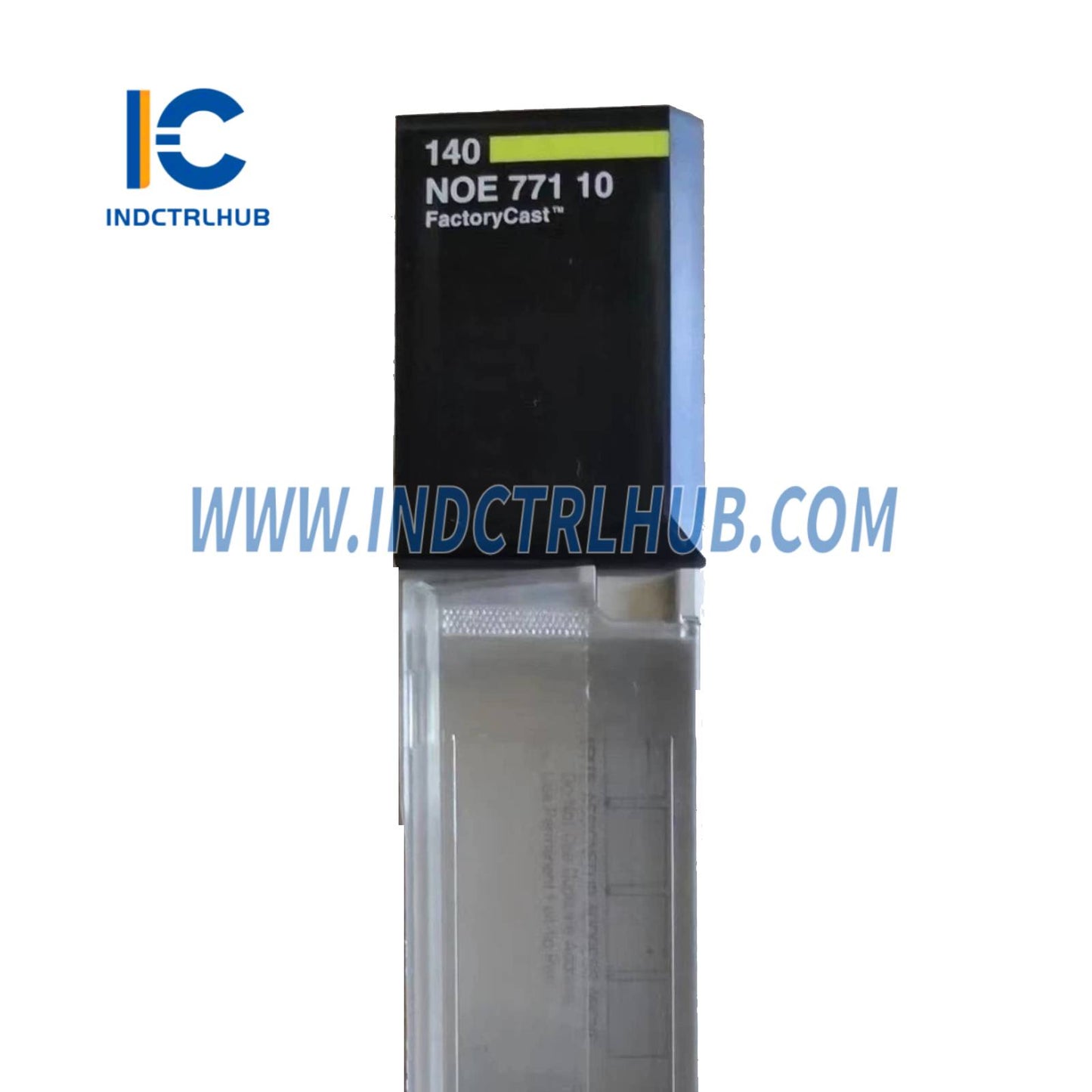

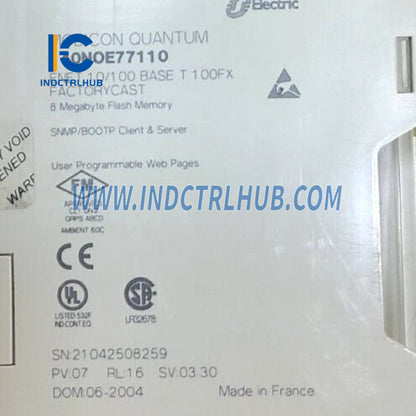

140NOE77110 |
|
Description |
Ethernet TCP/IP module for Modicon Quantum platform, Transparent Ready, Class C20, FactoryCast configurable |
Specifications
Main Specifications
|
Attribute |
Details |
|---|---|
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Ethernet network TCP/IP module |
|
Concept |
Transparent Ready |
|
Web Server |
Class C20 |
|
Web Services |
Rack viewerFactoryCast configurableData editor |
|
Communication Services |
Modbus TCP messagingSNMP network management |
|
Communication Protocol |
Ethernet Modbus TCP/IP |
|
Physical Interface |
MT/RJ – 100BASE-FX (fiber optic)RJ45 – 10BASE-T/100BASE-TX (twisted pair) |
|
Transmission Rate |
10/100 Mbit/s |
|
Redundancy |
Yes, hot standby architecture |
|
Power Supply |
Supplied via rack power supply |
|
Marking |
CE |
LED Indicators
|
Indicator |
Function |
|---|---|
|
10 MB/100 MB |
Data rate |
|
Coll |
Collision detection |
|
Kernel |
Download mode |
|
Fault |
Ethernet module fault |
|
RUN |
Network status |
|
Fduplex |
Full-duplex mode |
|
Ready |
Module ready |
|
Link |
Network active |
|
Active |
Rack operational |
|
TxAct/RxAct |
Transmission/reception activity |
Electrical & Physical Characteristics
|
Attribute |
Details |
|---|---|
|
Current Consumption |
750 mA at 5 V DC |
|
Module Format |
Standard |
|
Net Weight |
0.345 kg |
Environmental Specifications
|
Attribute |
Details |
|---|---|
|
IP Protection |
IP20 |
|
Certifications |
UL 508, cUL |
|
Standards |
FM Class 1 Division 2, CSA C22.2 No 142 |
|
Electrostatic Discharge |
4 kV (contact), 8 kV (air) per IEC 801-2 |
|
EM Field Resistance |
10 V/m (80–1000 MHz) per IEC 801-3 |
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
95% non-condensing |
|
Operating Altitude |
≤ 4500 m |
Packing Information
|
Attribute |
Details |
|---|---|
|
Package Type |
PCE |
|
Quantity per Package |
1 |
|
Package Dimensions (H × W × L) |
5.0 cm × 16.5 cm × 31.0 cm |
|
Package Weight |
668 g |
