Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140NOE77100 |
|
Description |

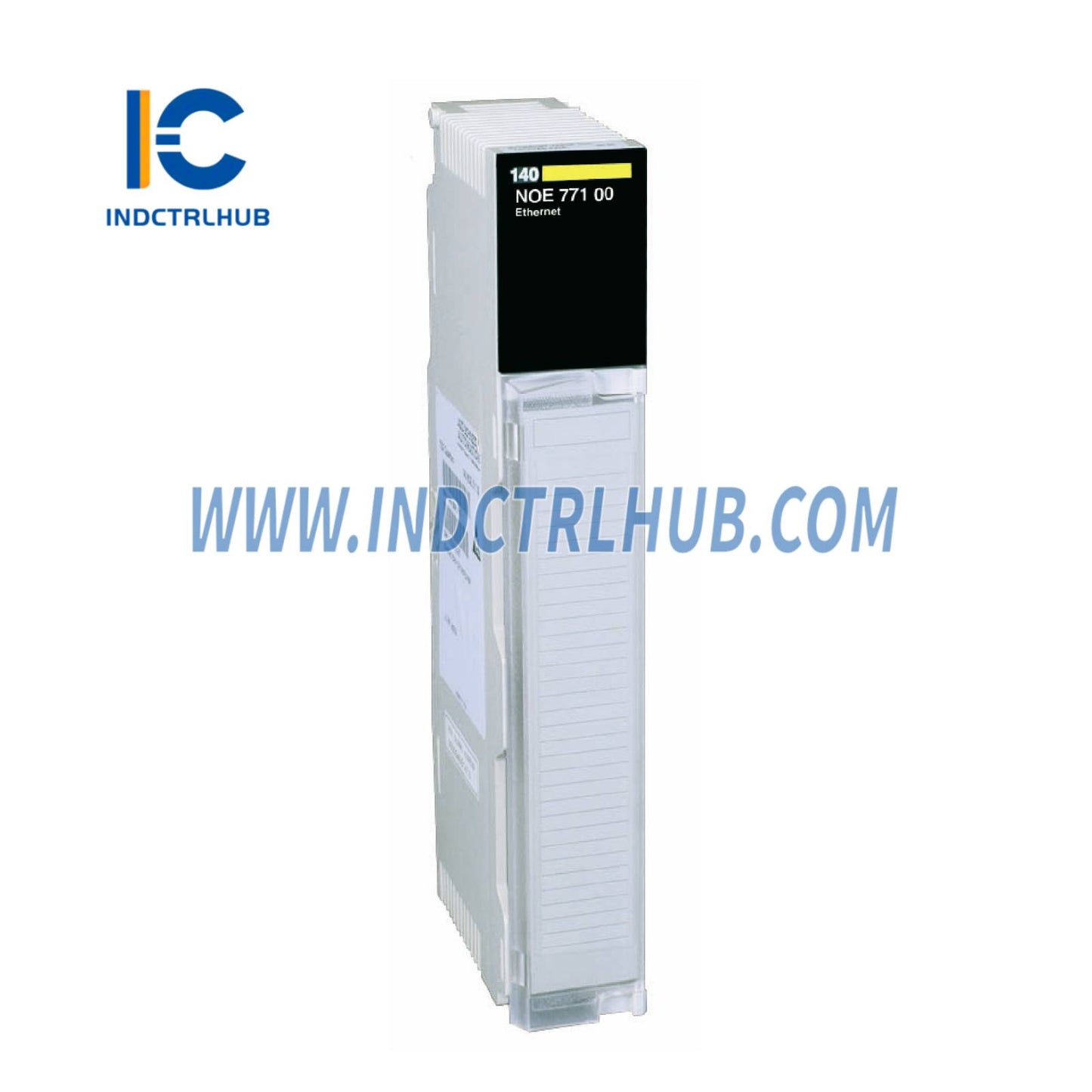

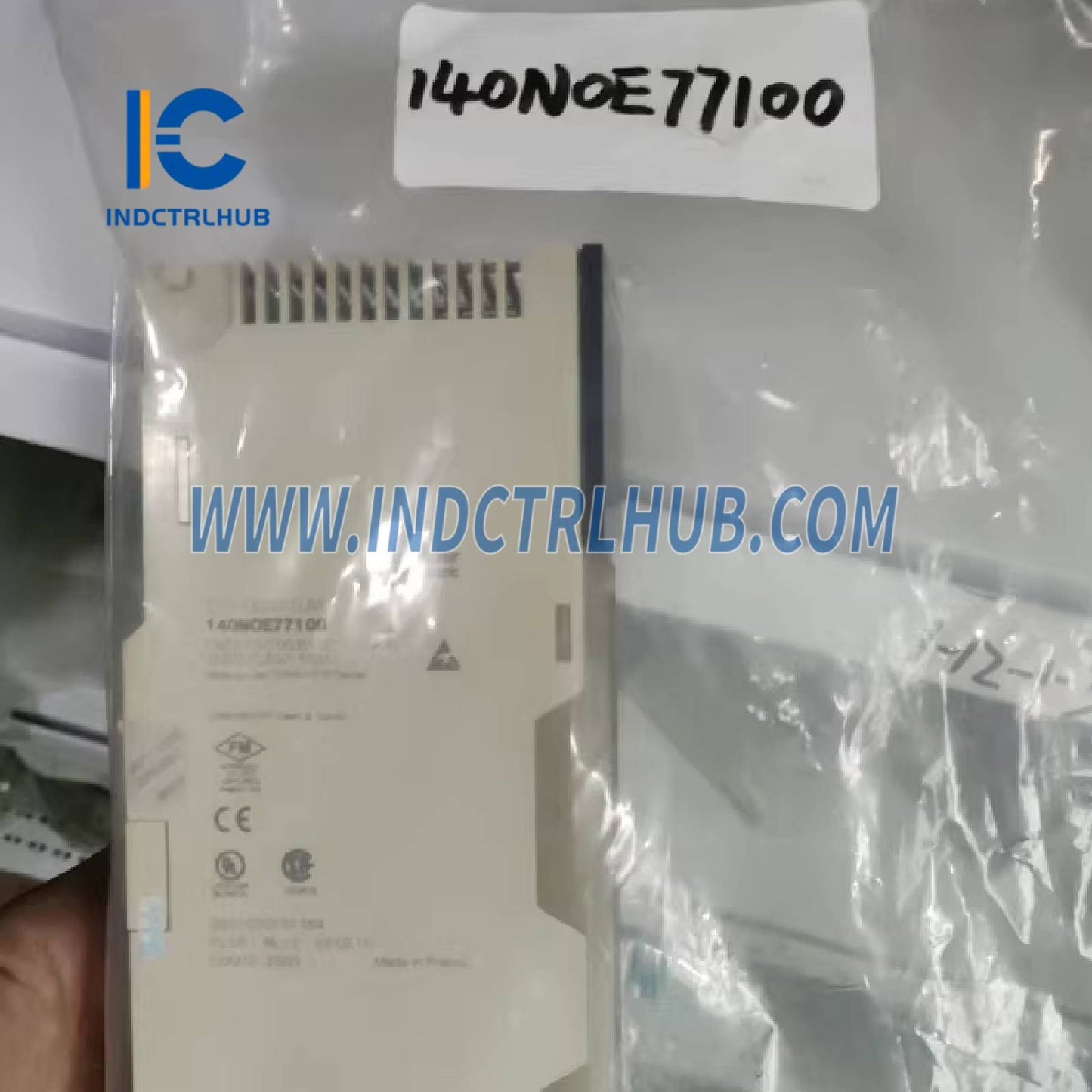

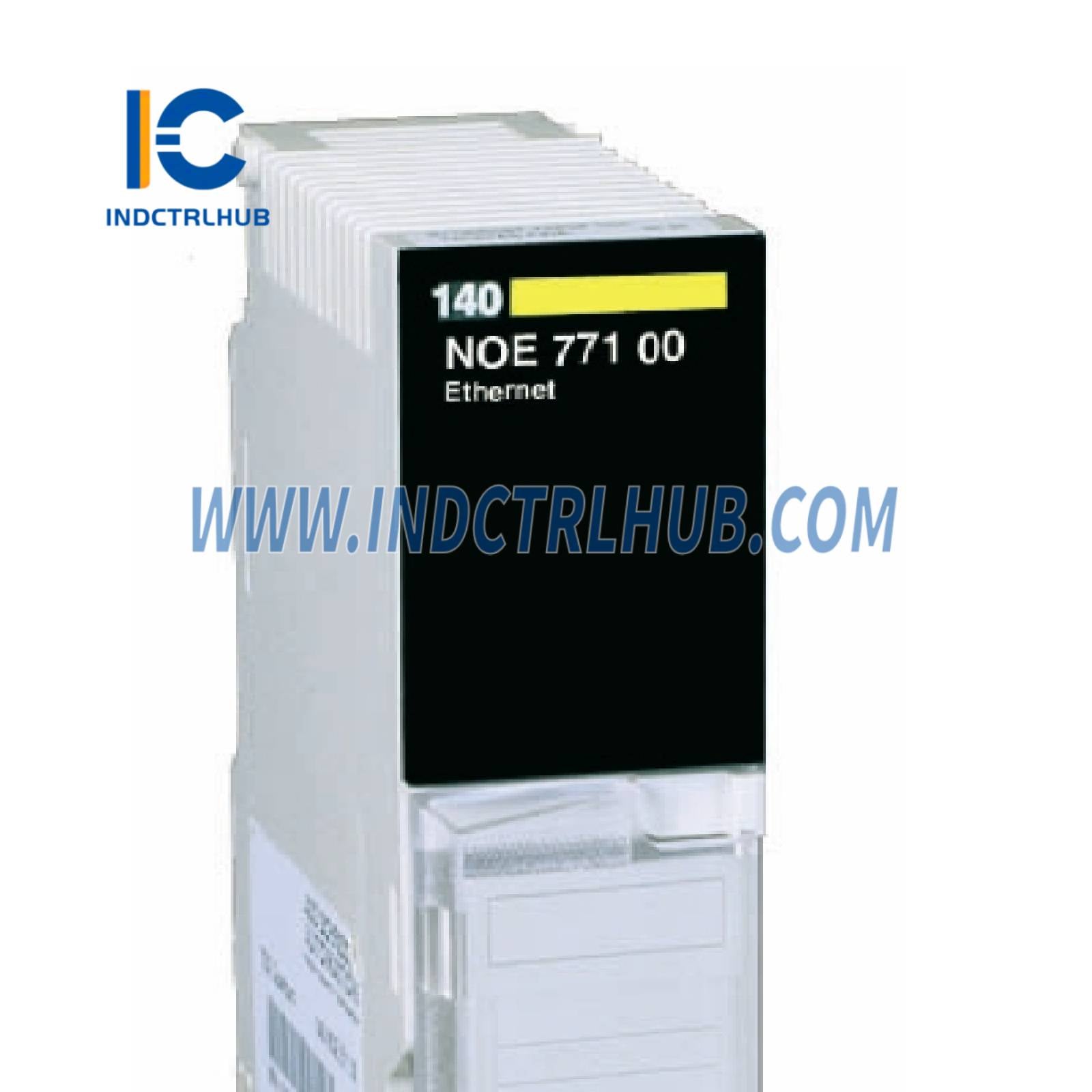

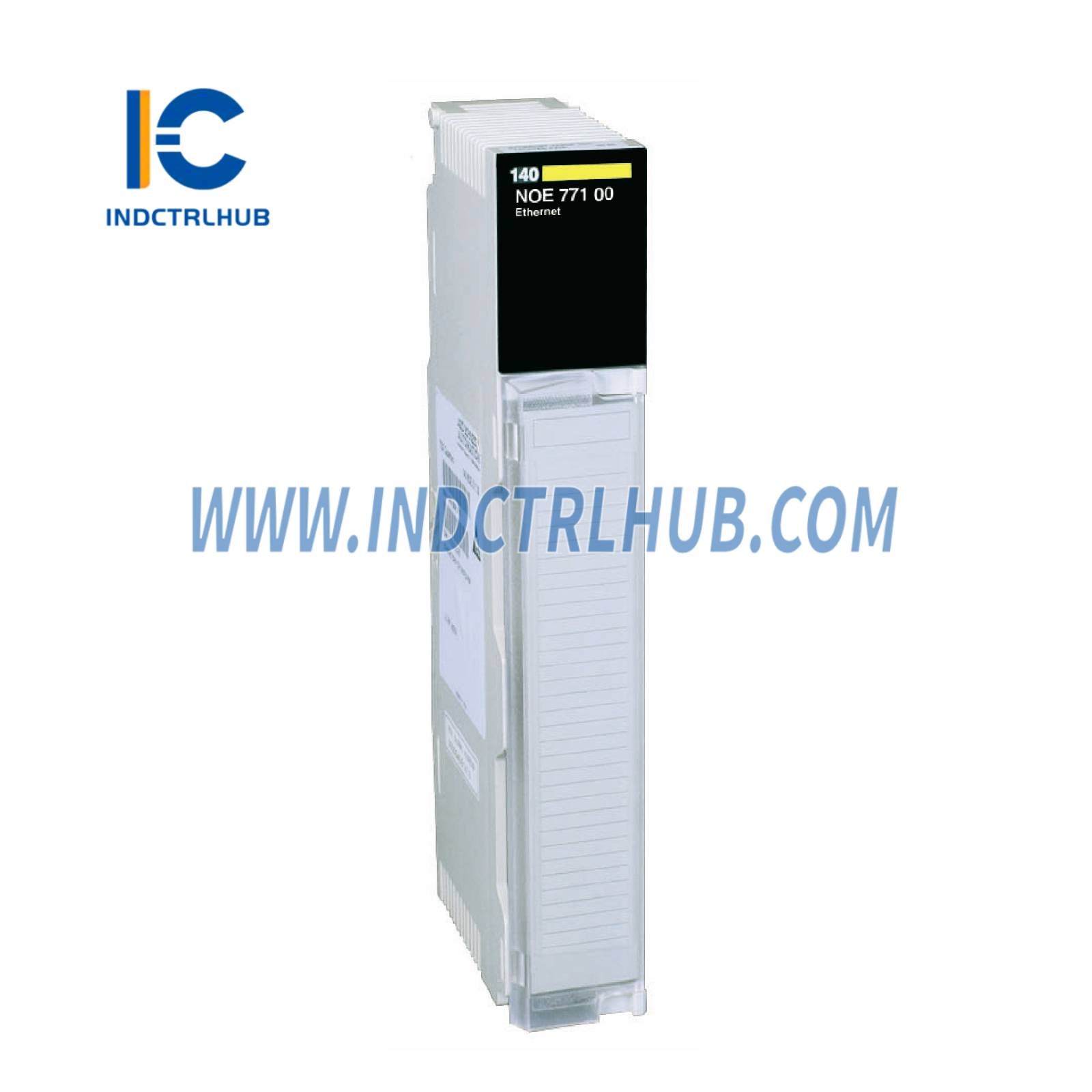

Ethernet TCP/IP module – Class B20 – Web server with rack viewer and data editor |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Ethernet network TCP/IP module |
Technical Information
|
Specification |
Details |
|---|---|
|
Concept |
Transparent Ready |
|
Web Server Features |
Class B20, Rack viewer, Diagnostics (predefined web pages), Data editor via PC |
|
Communication Services |
Modbus TCP messaging, I/O scanning |
|
Protocols Supported |
Ethernet Modbus TCP/IP |
|
Physical Interface |
RJ45 (10BASE-T/100BASE-TX), MT/RJ (100BASE-FX fiber optic) |
|
Transmission Rate |
10/100 Mbit/s |
|
Redundancy |
Supported (Hot standby architecture) |
|
Supply Voltage |
Supplied through rack power |
|
Current Consumption |
750 mA @ 5 V DC |
|
Local Signaling |
- 1 LED: Data rate (10 MB/100 MB) - 1 LED: Collision detection (Coll) - 1 LED: Download mode (Kernel) - 1 LED: Module fault (Fault) - 1 LED: Network status (RUN) - 1 LED: Full duplex (Fduplex) - 1 LED: Module ready (Ready) - 1 LED: Network link (Link) - 1 LED: Rack active (Active) - 1 LED: Tx/Rx activity (TxAct/RxAct) |
|
Module Format |
Standard |
|
Net Weight |
0.345 kg |
|
Marking |
CE |
Environmental Specifications
|
Specification |
Details |
|---|---|
|
Degree of Protection |
IP20 |
|
Operating Temperature |
0…60 °C |
|
Storage Temperature |
-40…85 °C |
|
Relative Humidity |
95 % without condensation |
|
Operating Altitude |
≤ 4500 m |
|
Electrostatic Discharge Resistance |
4 kV (contact), 8 kV (air) per IEC 801-2 |
|
Electromagnetic Field Resistance |
10 V/m (80…1000 MHz) per IEC 801-3 |
Certifications & Standards
|
Standard/Certification |
Details |
|---|---|
|
Certifications |
cUL, UL 508 |
|
Standards |
FM Class 1 Division 2, CSA C22.2 No 142 |
