Product Description

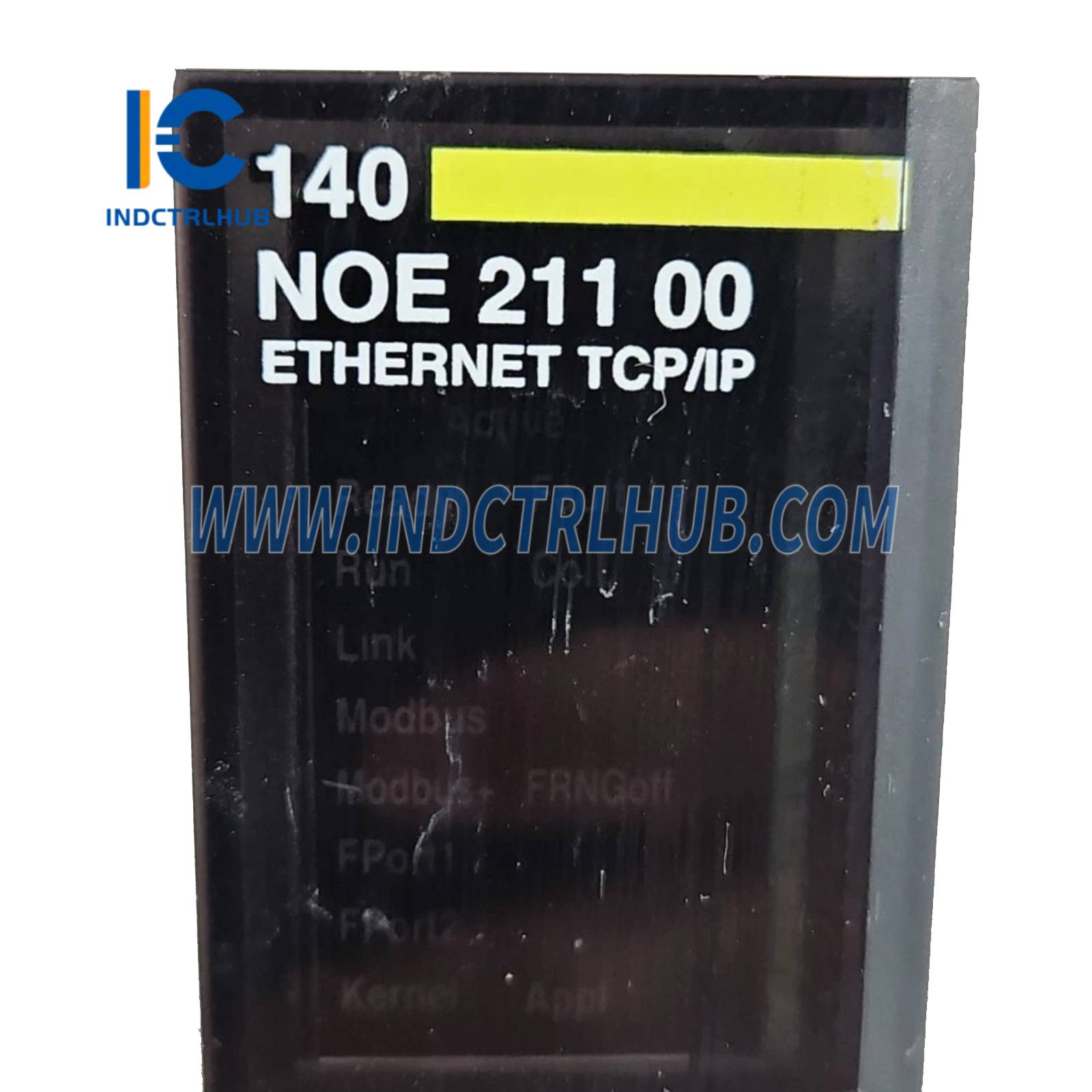

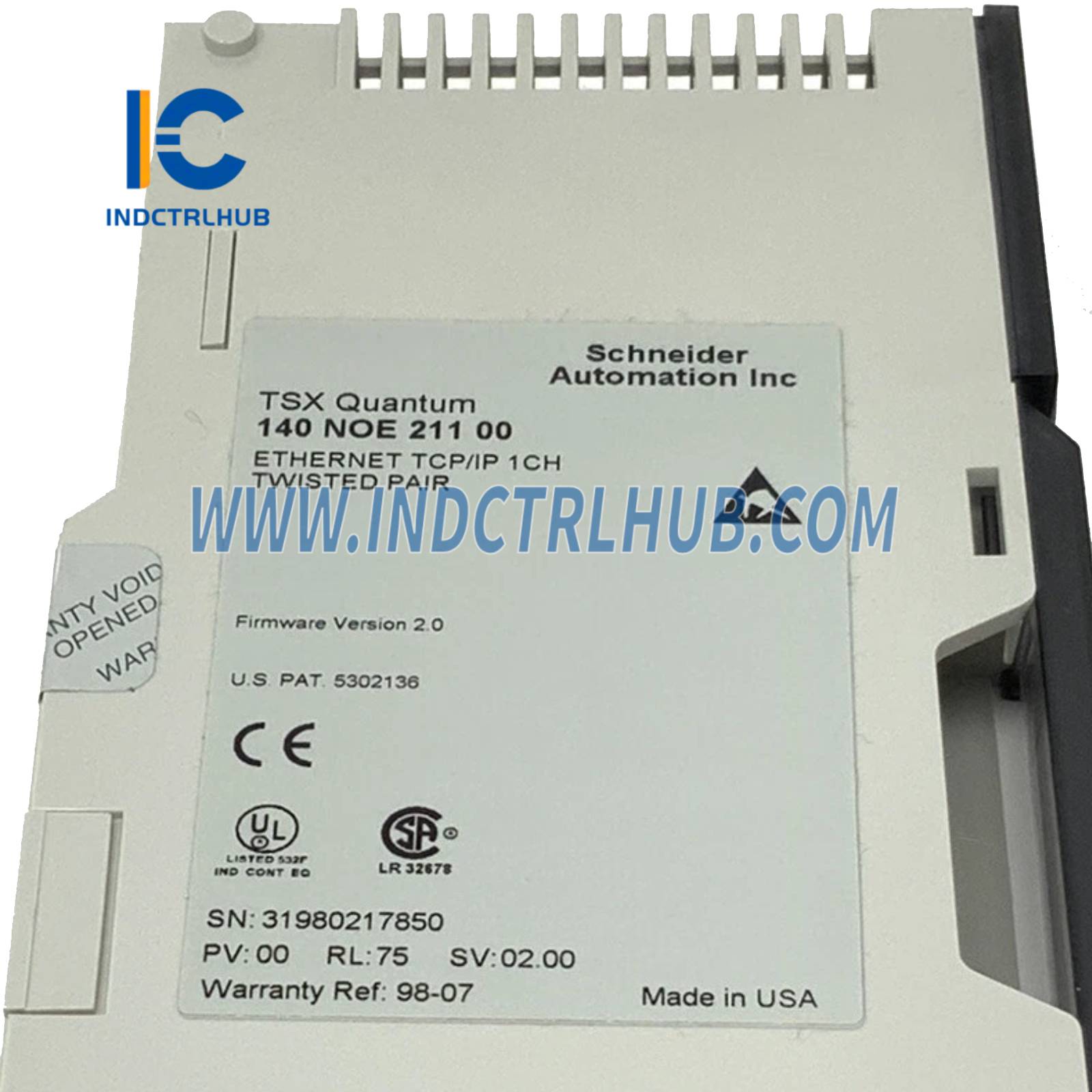

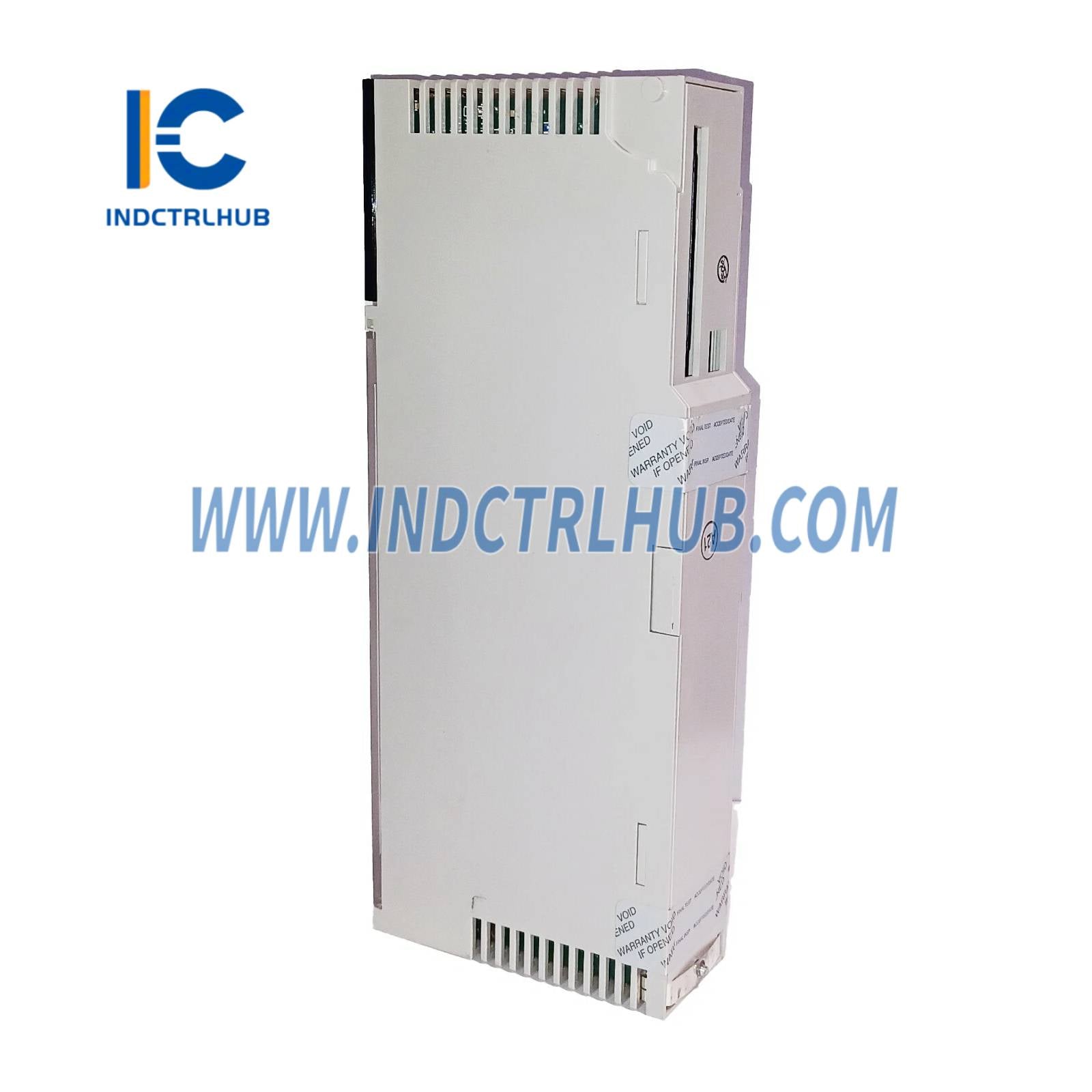

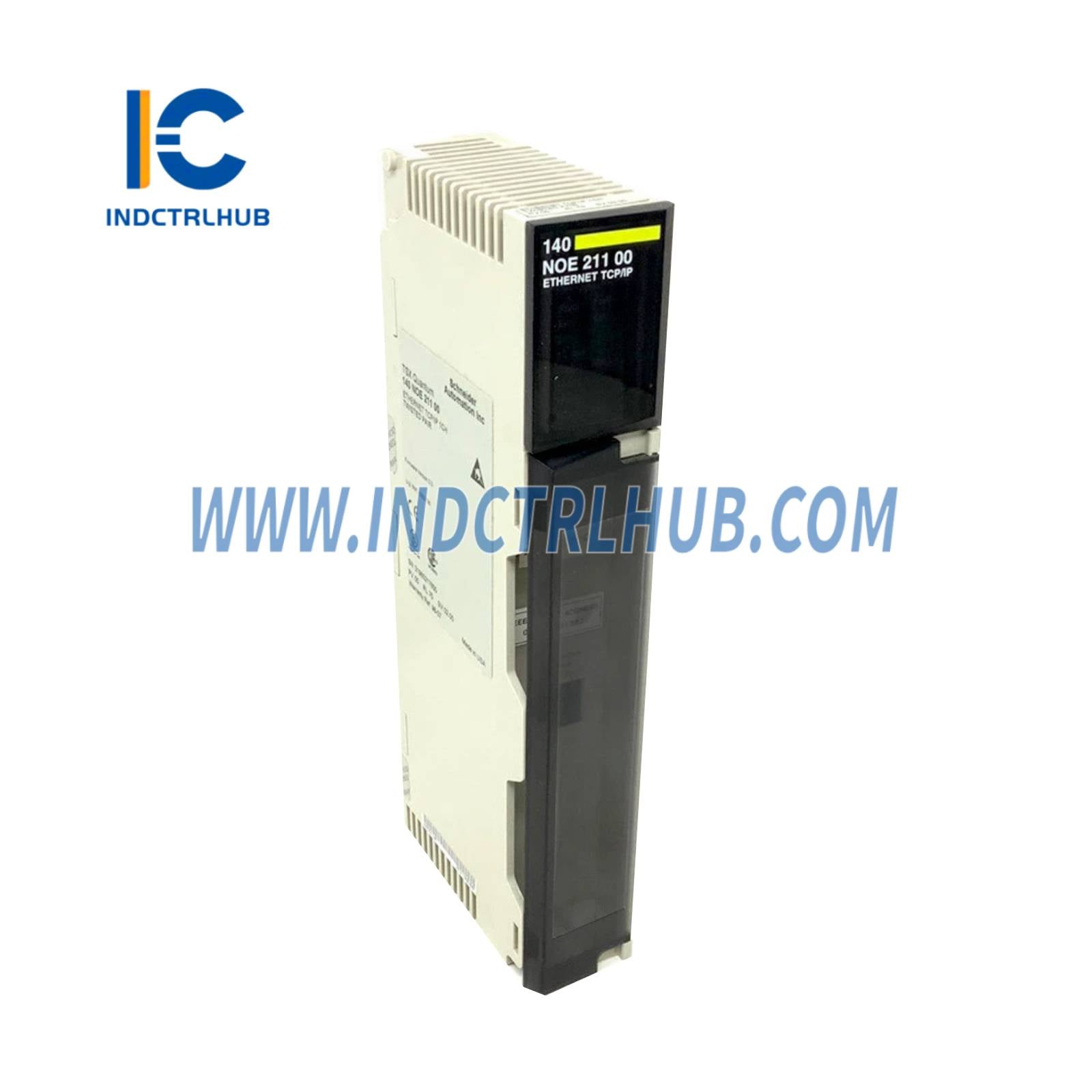

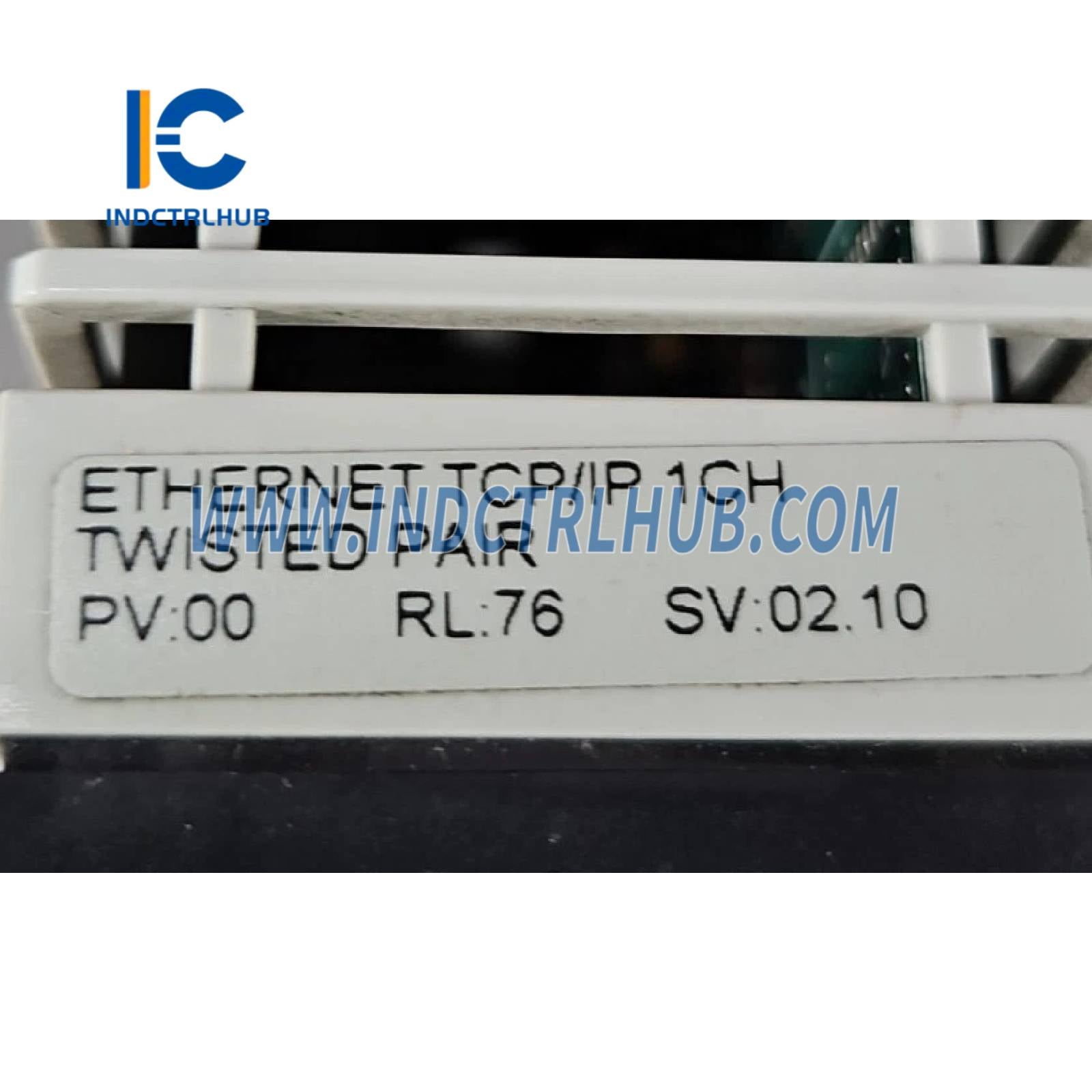

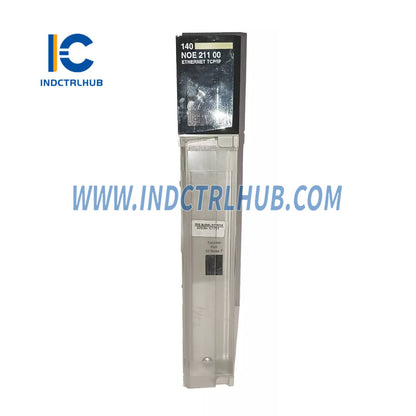

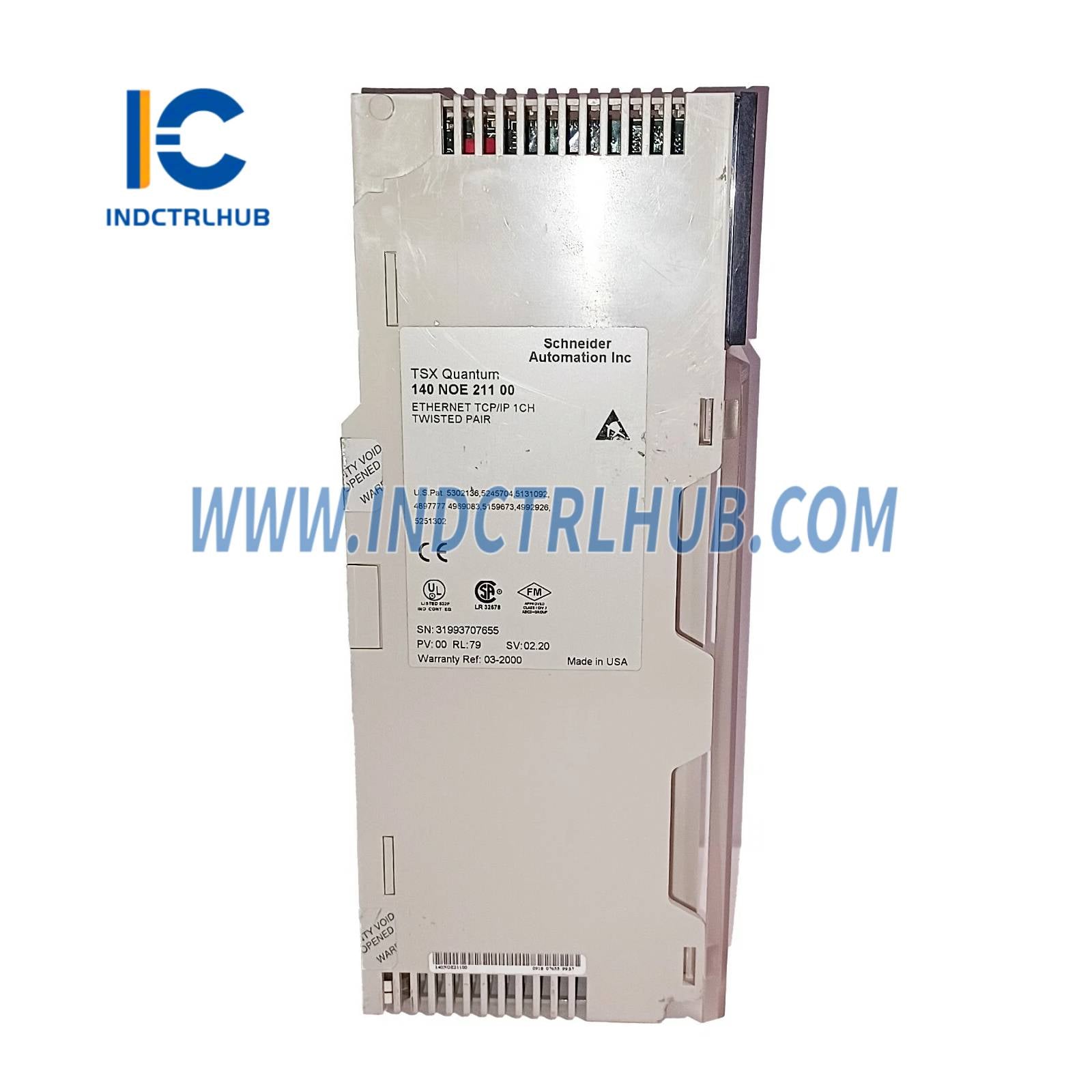

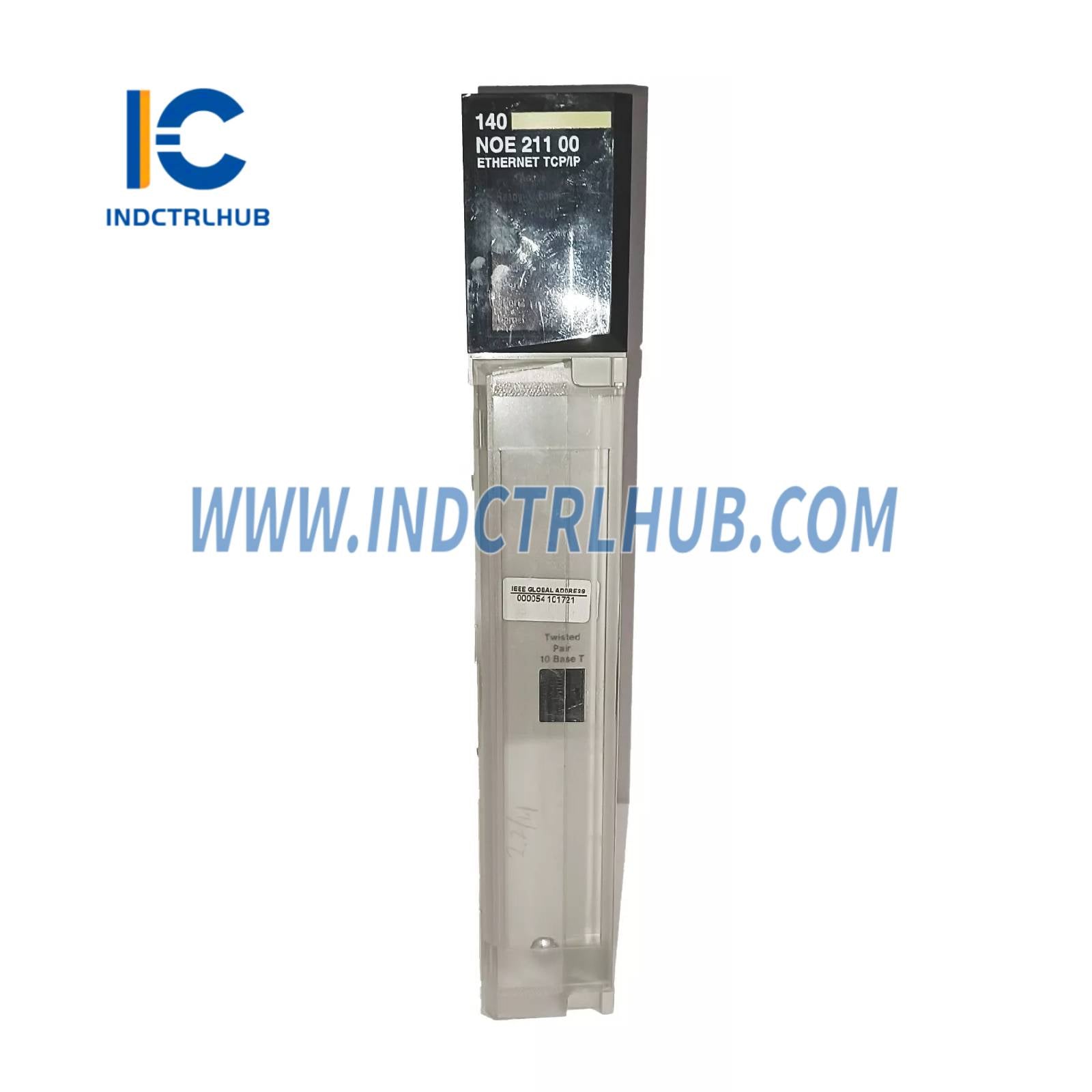

Schneider Electric 140NOE21100 Modicon Quantum Ethernet TCP/IP Module
Product Overview
- The Schneider Electric 140NOE21100 is a Modicon Quantum Ethernet TCP/IP Module designed for the Quantum automation platform. This communication module enables high-speed Ethernet connectivity, supporting Modbus TCP/IP and other Ethernet protocols for integration with PLCs, SCADA systems, and HMIs. It is used in industrial automation applications, such as manufacturing, oil and gas, and power generation, for real-time data exchange, remote monitoring, and control in distributed systems.
Technical Specifications
- The 140NOE21100 has the following specifications based on industry sources:
| Specification | Details |
|---|---|
| Model/Part Number | 140NOE21100 |
| Manufacturer | Schneider Electric |
| Description | Modicon Quantum Ethernet TCP/IP Communication Module |
| Series | Modicon Quantum |
| Function | Provides Ethernet TCP/IP communication for Quantum PLCs; supports Modbus TCP/IP, I/O scanning, and global data |
| Communication Protocols | Modbus TCP/IP, Ethernet IP (via firmware upgrade), HTTP, FTP, SNMP, SMTP |
| Port | 1 Ethernet port (10/100Base-TX, RJ45) |
| Data Rate | 10/100 Mbps |
| Connections | Up to 64 simultaneous Modbus TCP/IP connections |
| Web Server | Embedded web server for diagnostics and configuration |
| Power Supply | Via Quantum backplane (typically 5 VDC) |
| Bus Current Requirement | 750 mA |
| Power Consumption | Approx. 3.8 W |
| Environmental Specifications | Ambient Temperature: 0°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Shock: 15 g, 11 ms (IEC 60068-2-27) Vibration: 1 g, 10–500 Hz (IEC 60068-2-6) |
| Dimensions | Approx. 250 mm (H) x 40 mm (W) x 105 mm (D) |
| Weight | Approx. 0.34 kg |
| Mounting | Plugs into Modicon Quantum backplane |
| Certifications | CE, UL, CSA C22.2 No. 142, FM Class 1 Div 2 |
