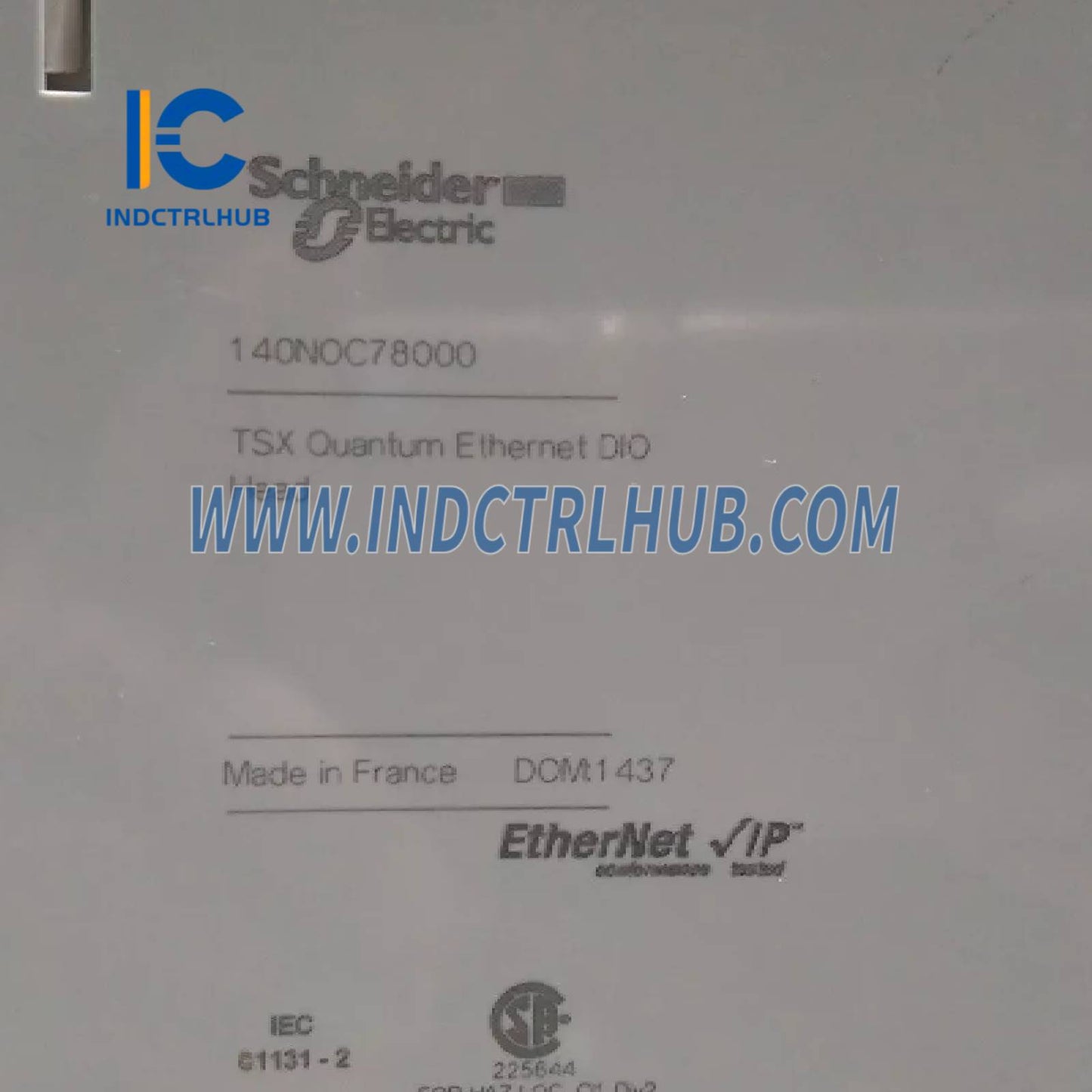

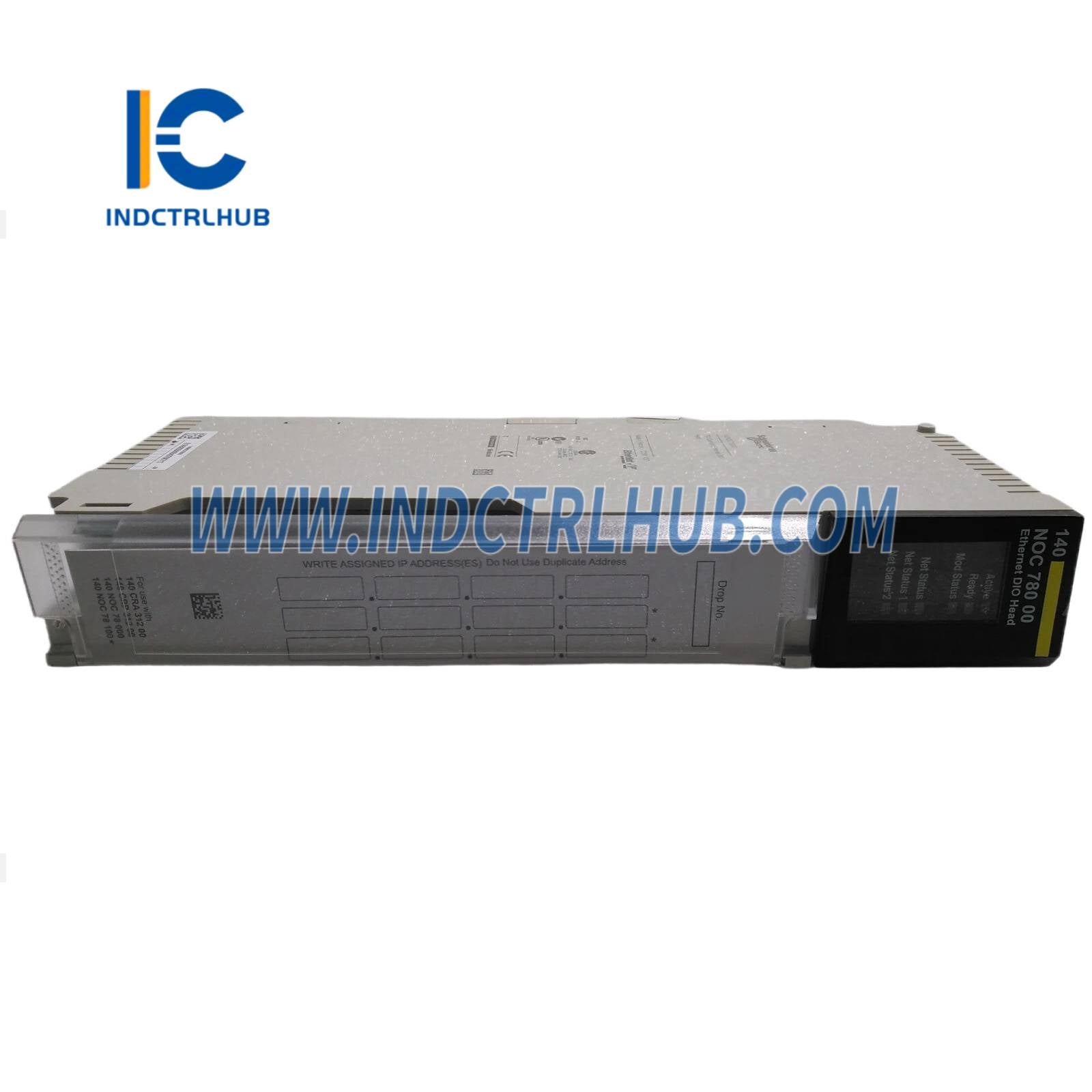

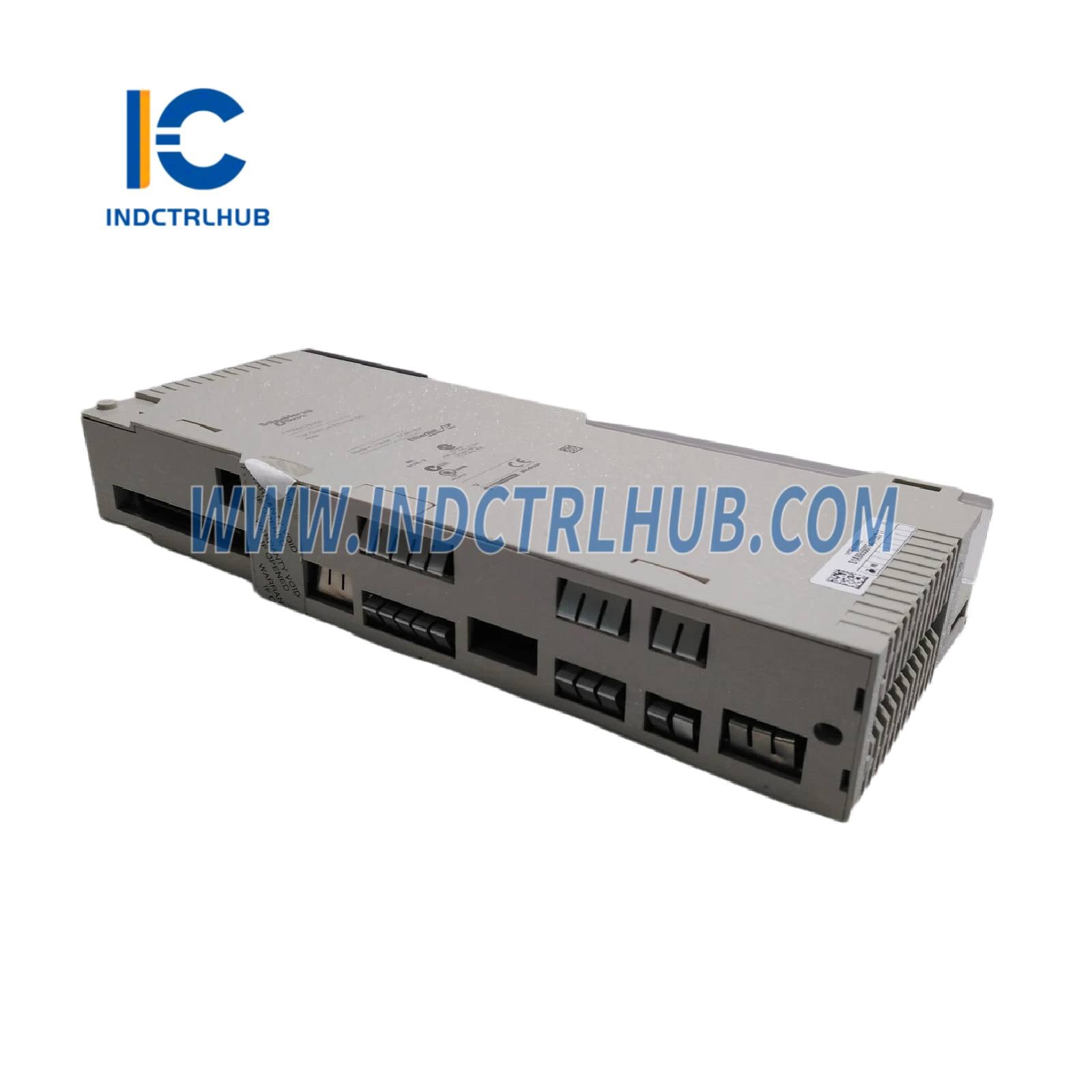

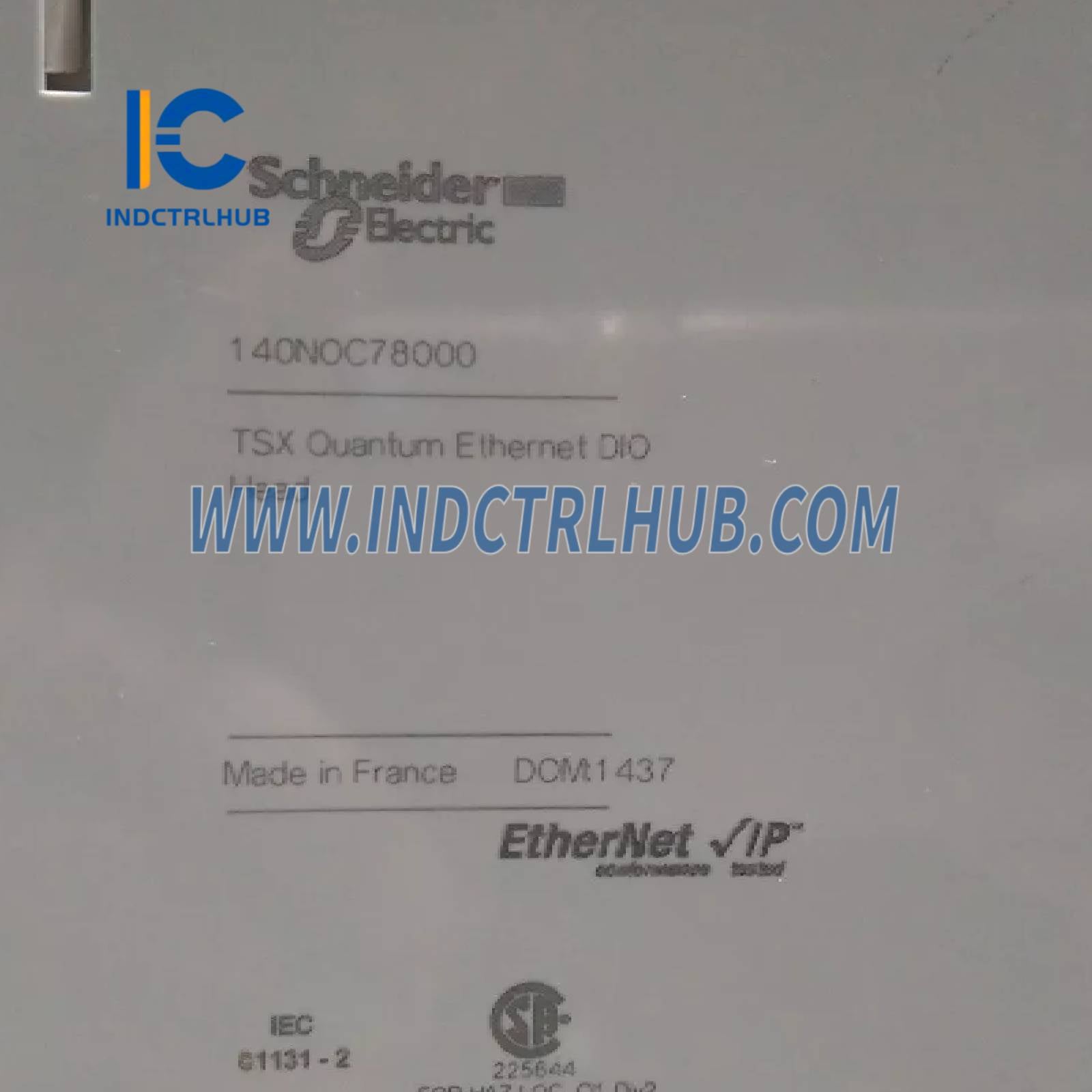

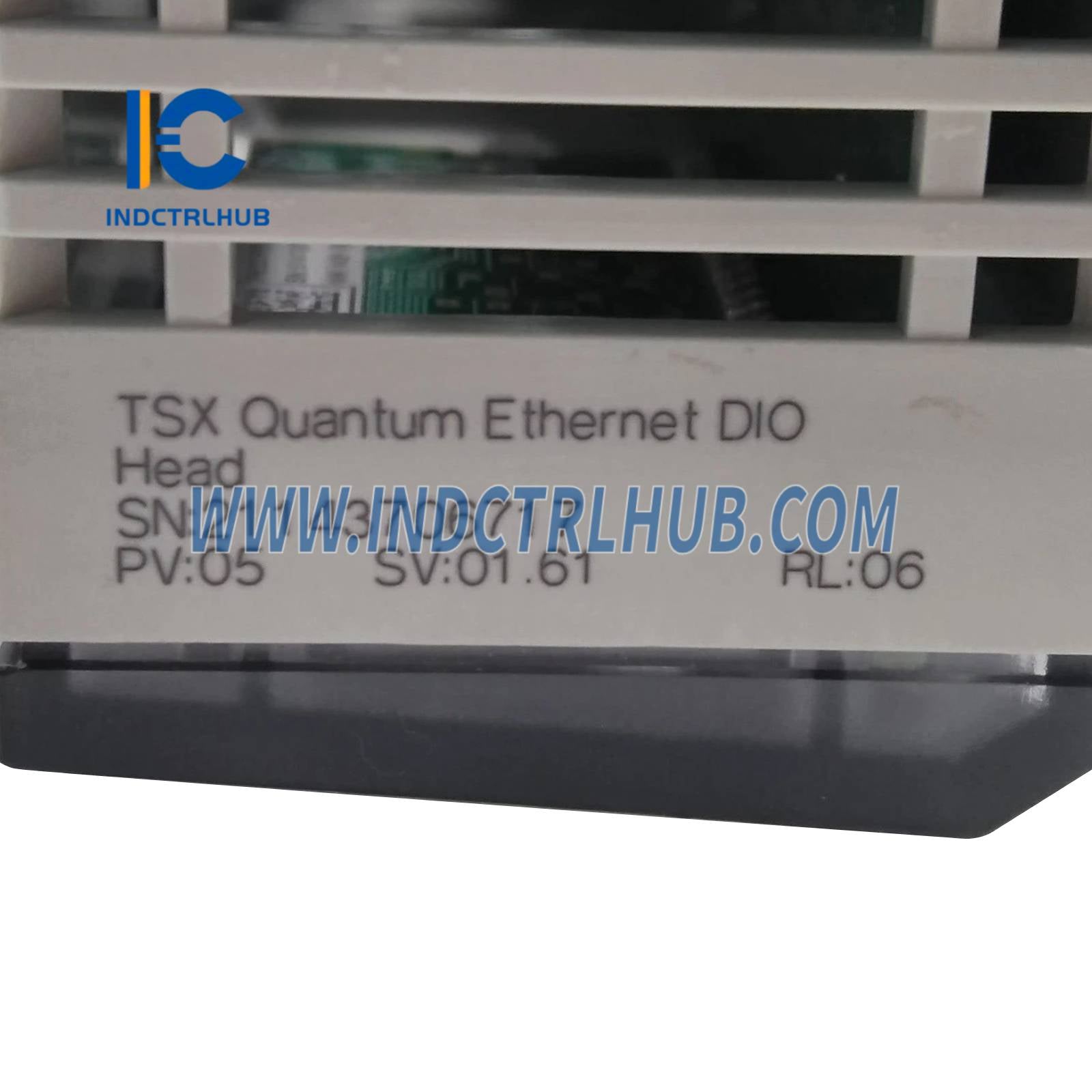

Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140NOC78000 |
|
Description |
Ethernet I/O head module, Modicon Quantum, Modbus TCP, EtherNet/IP, 10/100 Mbit/s |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Ethernet I/O head module |
Technical Information
|
Specification |
Details |
|---|---|
|
Product Compatibility |
140CPU6xxxx series |
|
Communication Protocols |
Modbus TCP, EtherNet/IP |
|
Exchange Mode |
Full duplex |
|
Max Number of Connections |
128 |
|
Transmission Rate |
10/100 Mbit/s |
|
Redundancy |
Yes – hot standby redundant architecture |
|
Topology |
Redundant ring, Daisy chain loop |
|
Web Server |
Embedded |
|
Communication Services |
NTP time synchronization Embedded 4-port switch CIP Explicit Messaging (client) FDR server CIP Implicit Messaging (I/O) SNMP agent Device Type Manager (DTM) DHCP/BootP server |
|
Ethernet Services |
Rapid Spanning Tree Protocol (RSTP) |
|
Transmission Medium |
Twisted pair |
|

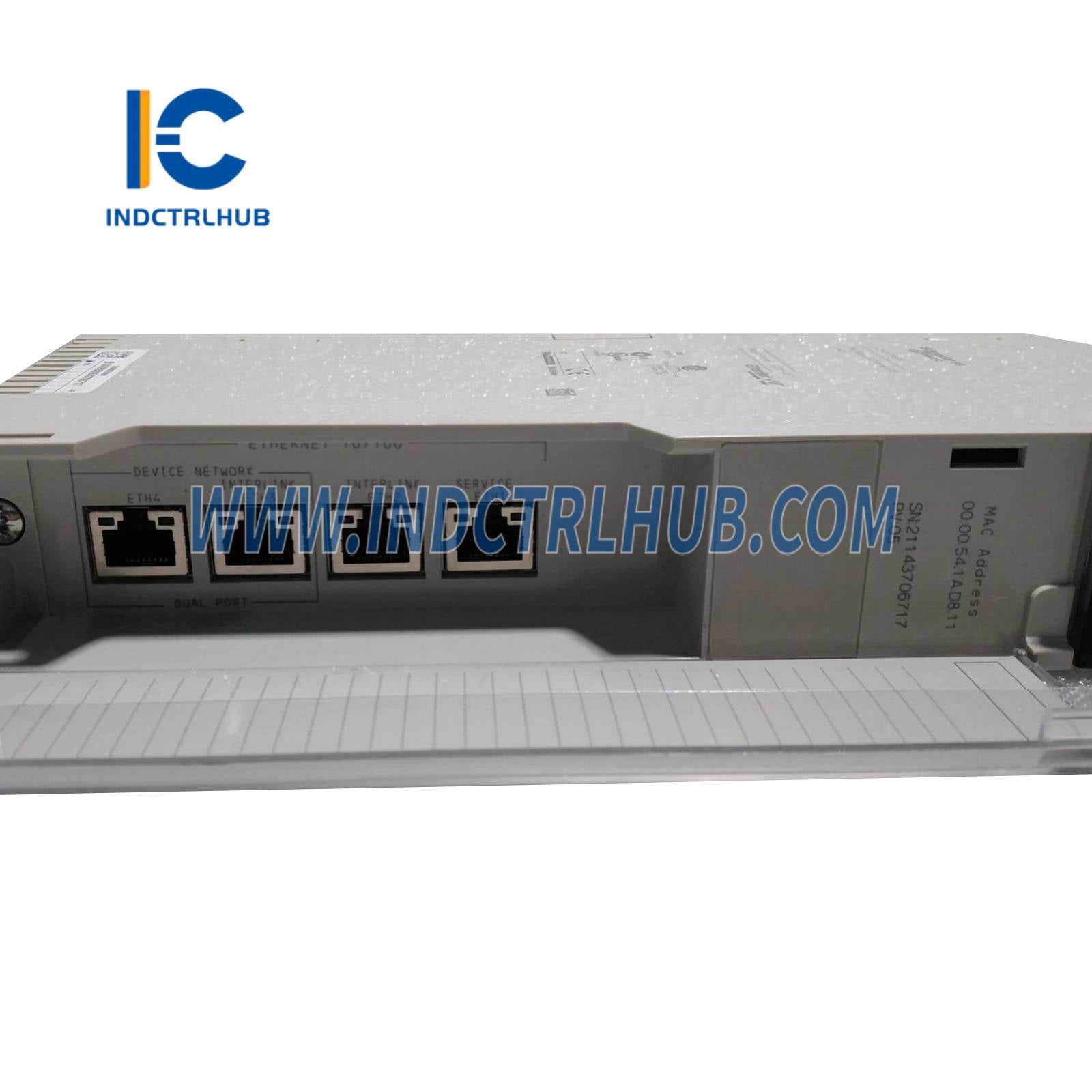

Ethernet Ports |
RJ45 (10BASE-T/100BASE-TX) |
|
Power Supply |
Supplied via the rack |
|
Module Format |
Standard |
|
Net Weight |
0.345 kg |
Local Signalling (LED Indicators)
|
LED Function |
Color |
|---|---|
|
Bus communication |
Green (Active) |
|
Configuration status |
Green (Ready) |
|
Module status |
Green/Red (Mod Status) |
|
Network communication status |
Green/Red (Net Status) |
|
Device network status |
Green/Red (Net Status 1) |
|
Extended DIO network status |
Green/Red (Net Status 2) |
Environmental Specifications
|
Specification |
Details |
|---|---|
|
IP Degree of Protection |
IP20 |
|
Operating Temperature |
0…60 °C |
|
Relative Humidity |
10…95 % @ 60 °C, non-condensing |
Standards & Certifications
|
Standards |
EN 61131-1, EN 61131-2, EN 55011, IEC 61000-4-16, UL 508 |
|---|---|
|
Certifications |
FM Class 1 Division 2, CSA C22.2 No 142, Merchant Navy, GOST, LR, C-Tick |
Packing Information
|
Field |
Details |
|---|---|
|
Package Type |
PCE |
|
Units per Package |
1 |
|
Package Dimensions |
32.0 × 16.5 × 4.5 cm |
|
Package Weight |
557 g |
