Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Schneider Electric |
|
Model/Part Number |
140NOC77101 |
|
Description |

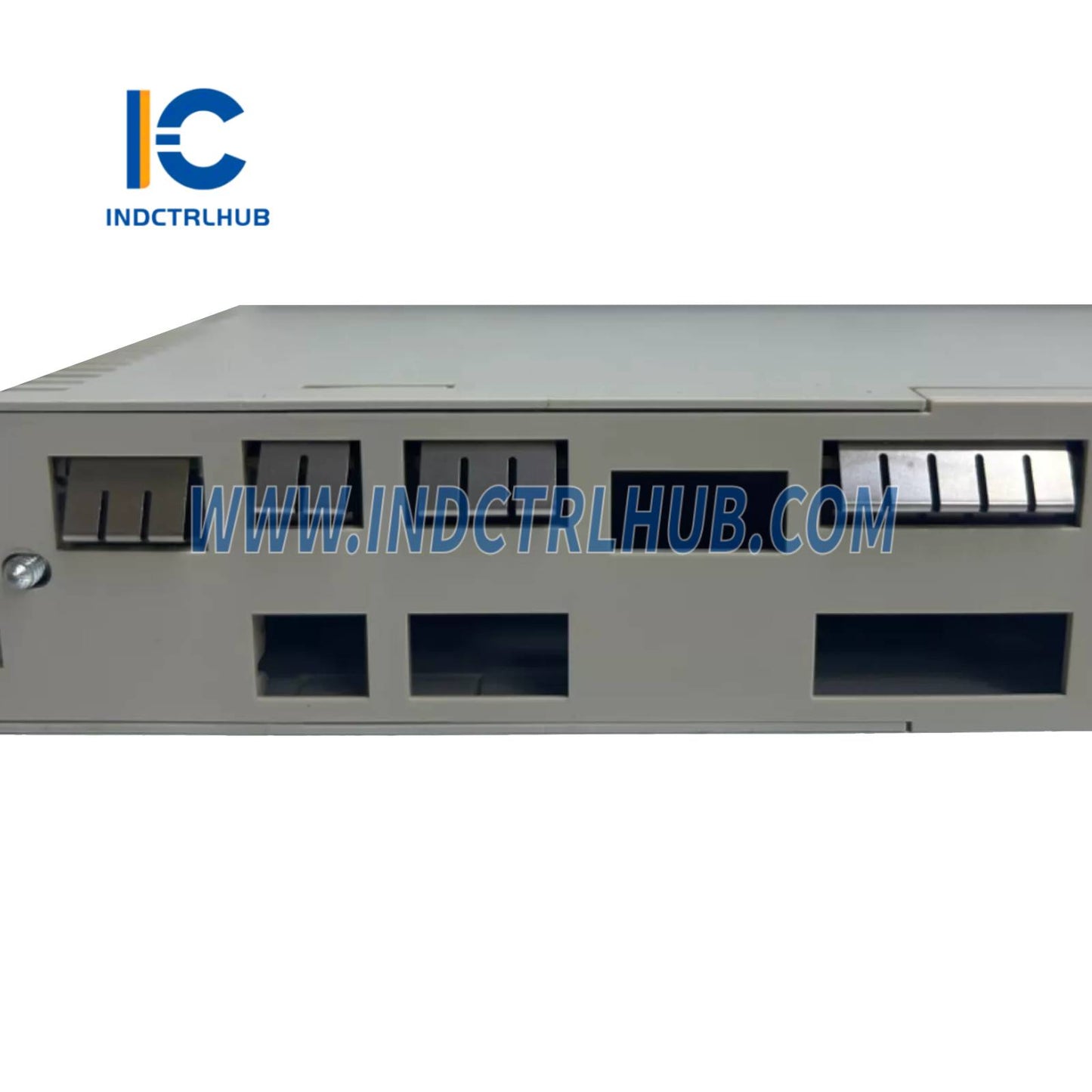

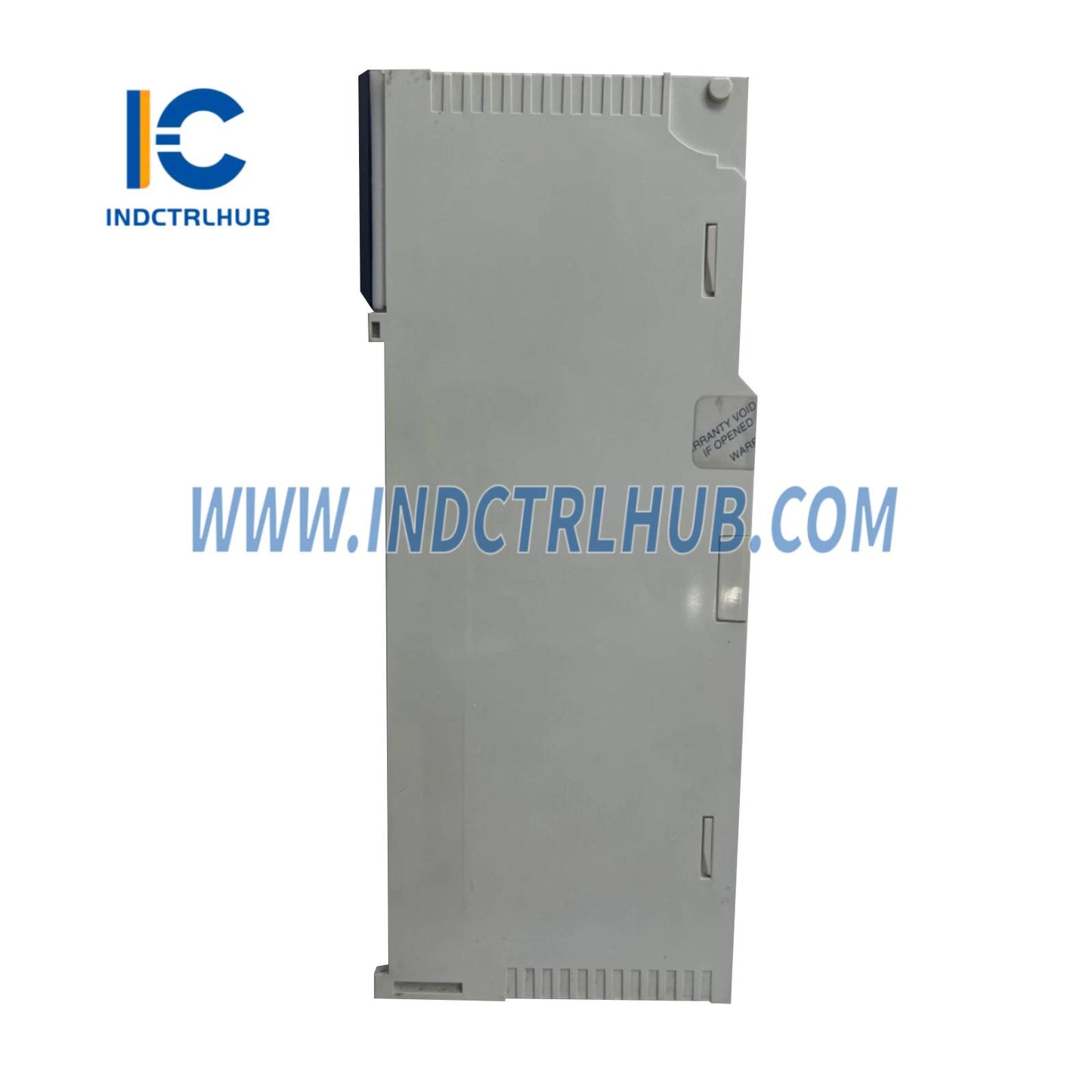

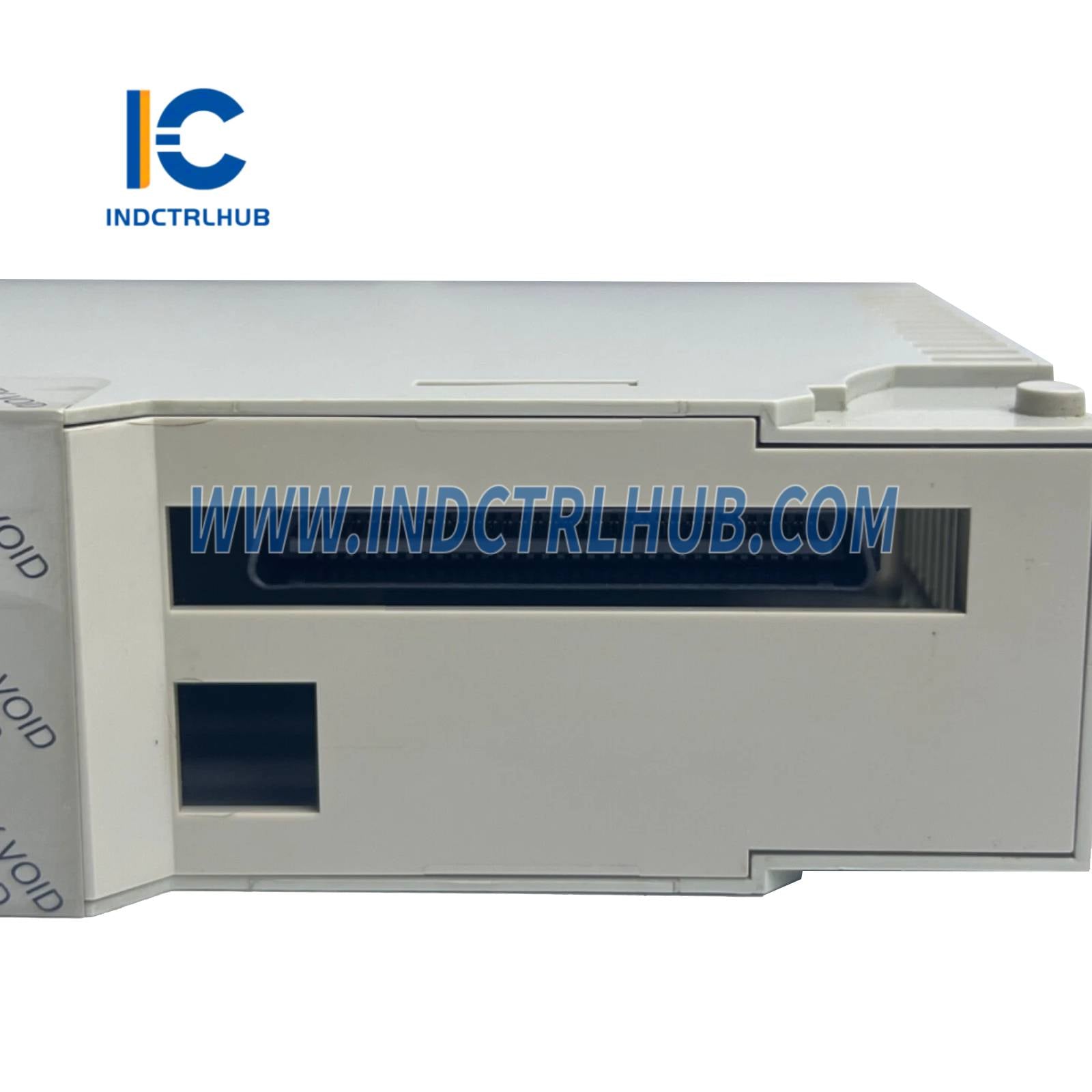

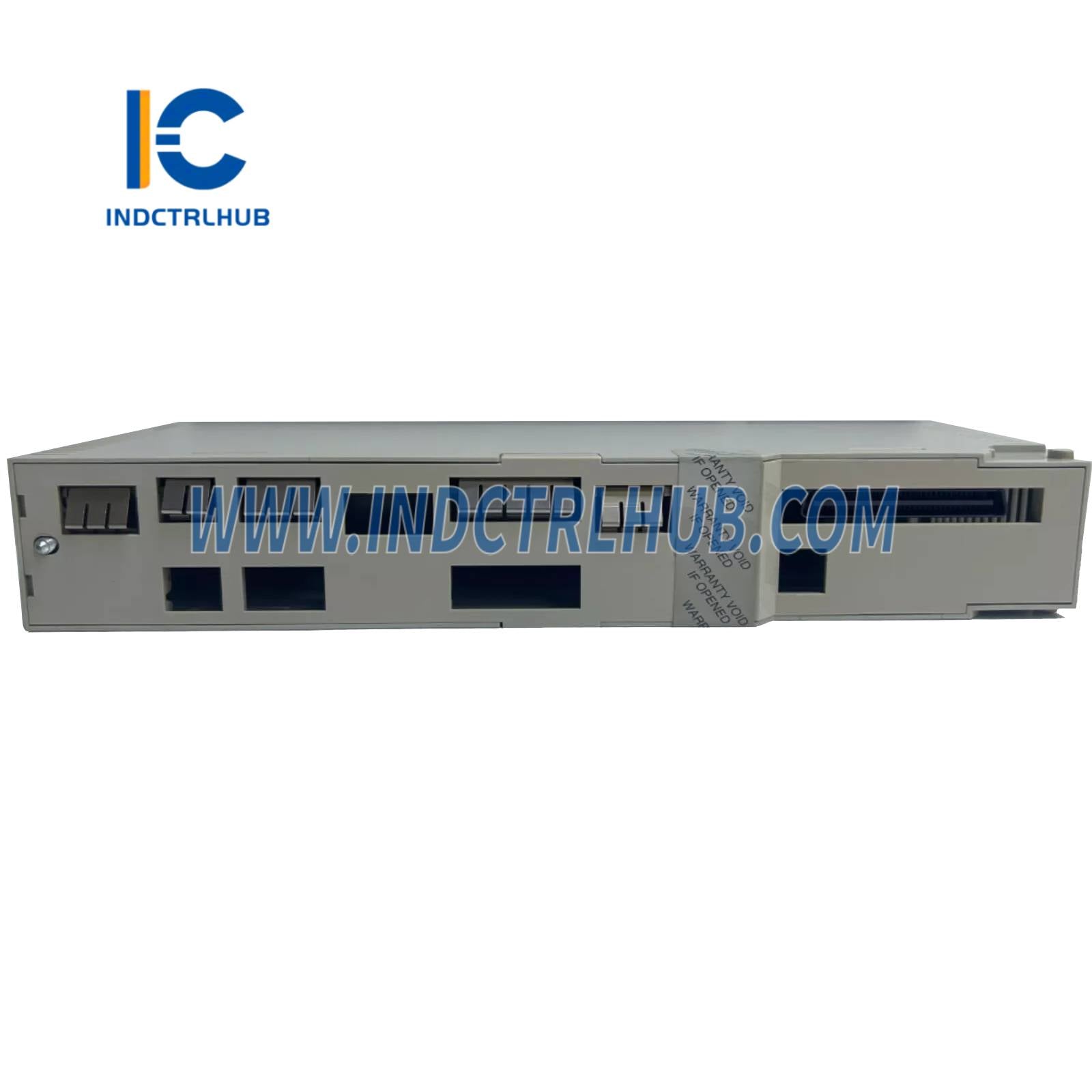

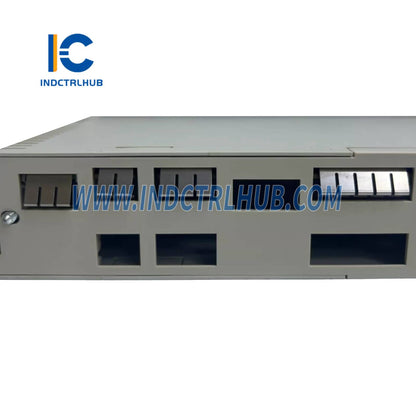

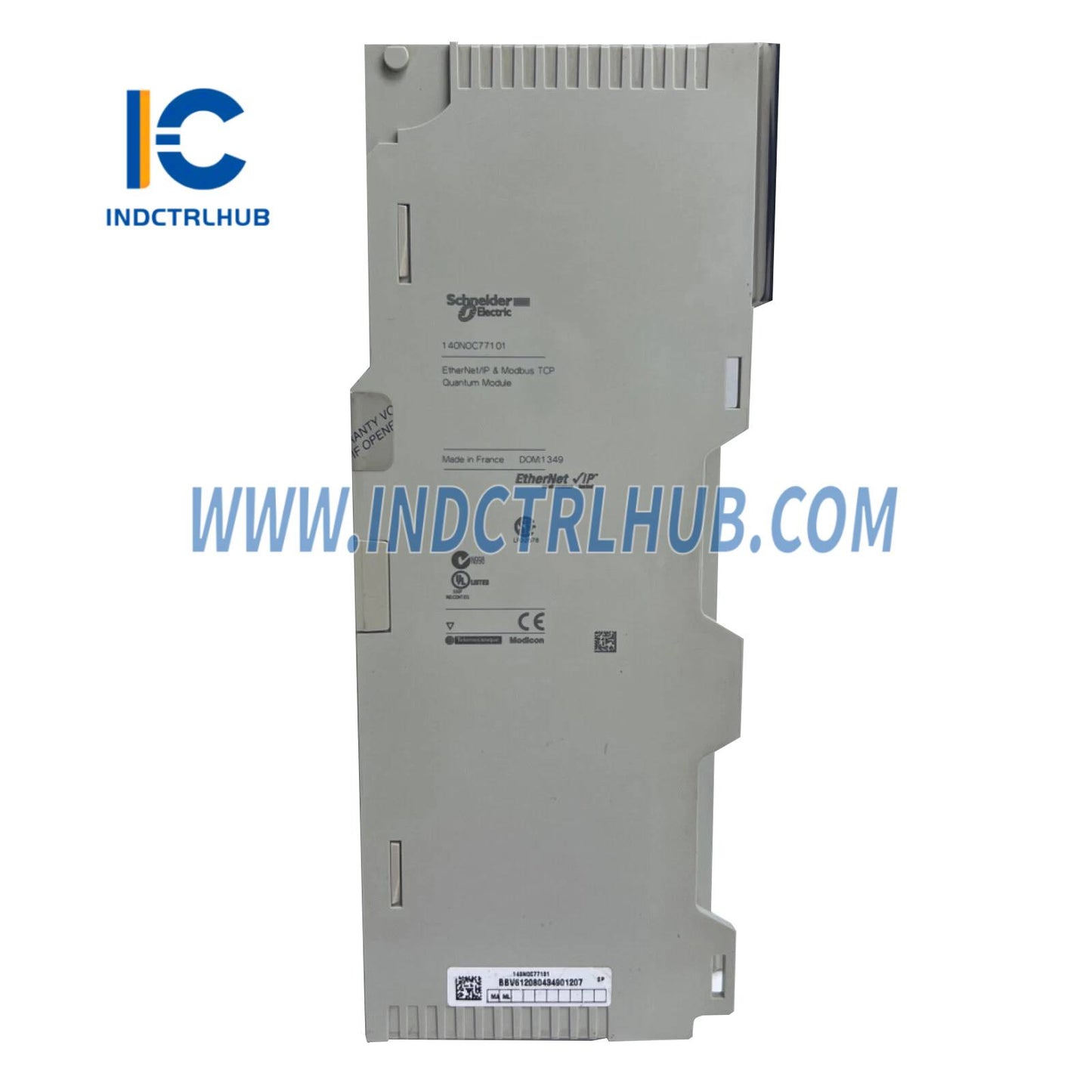

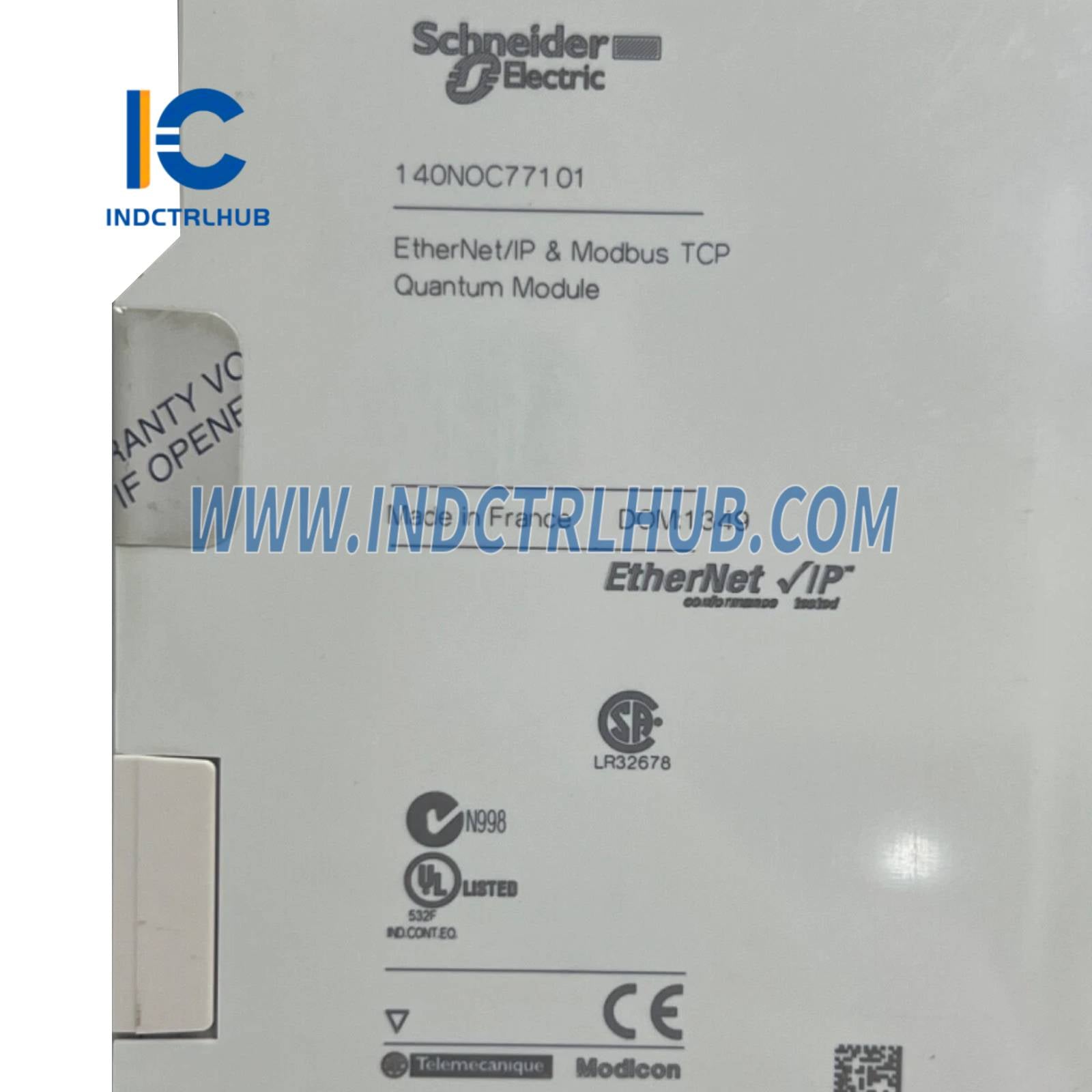

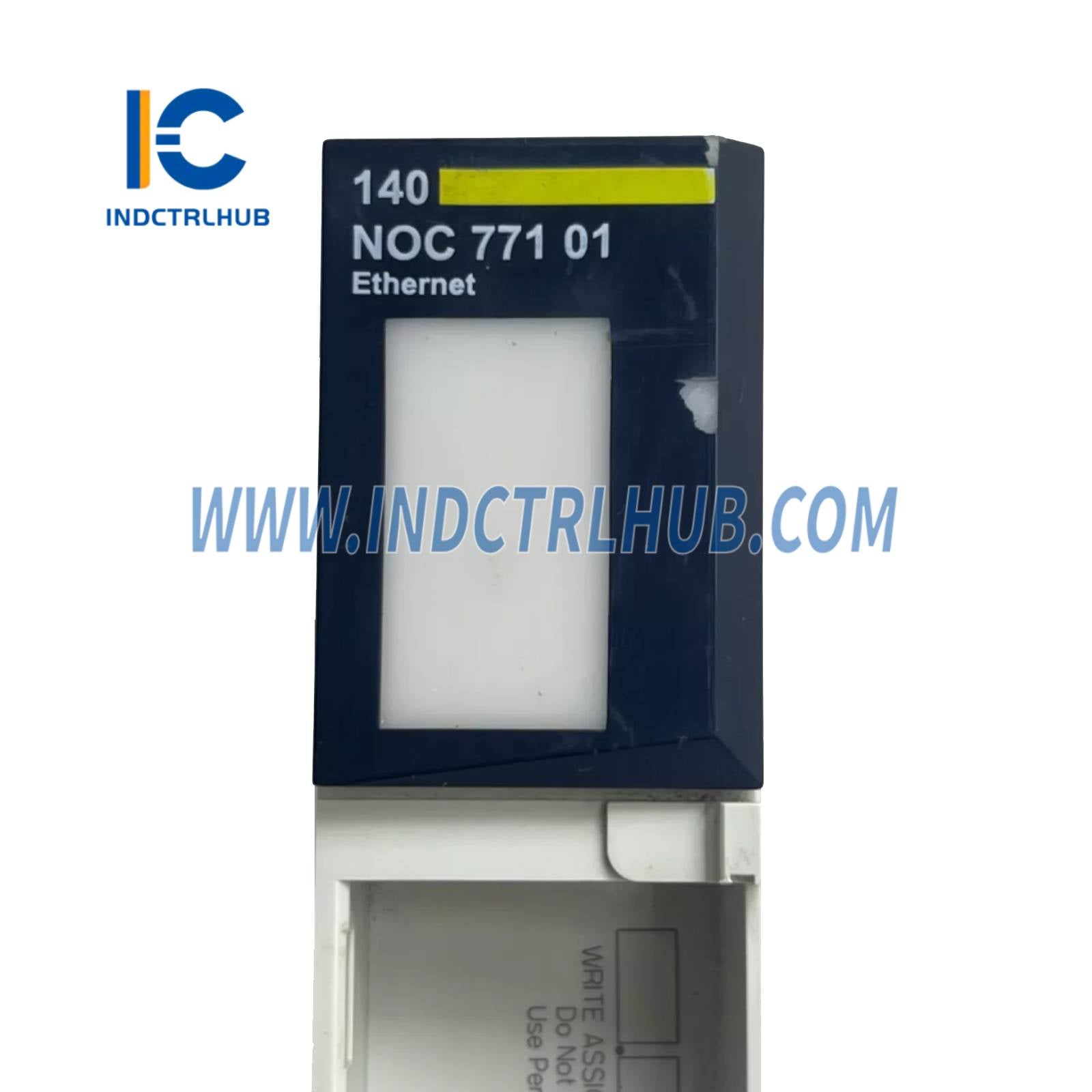

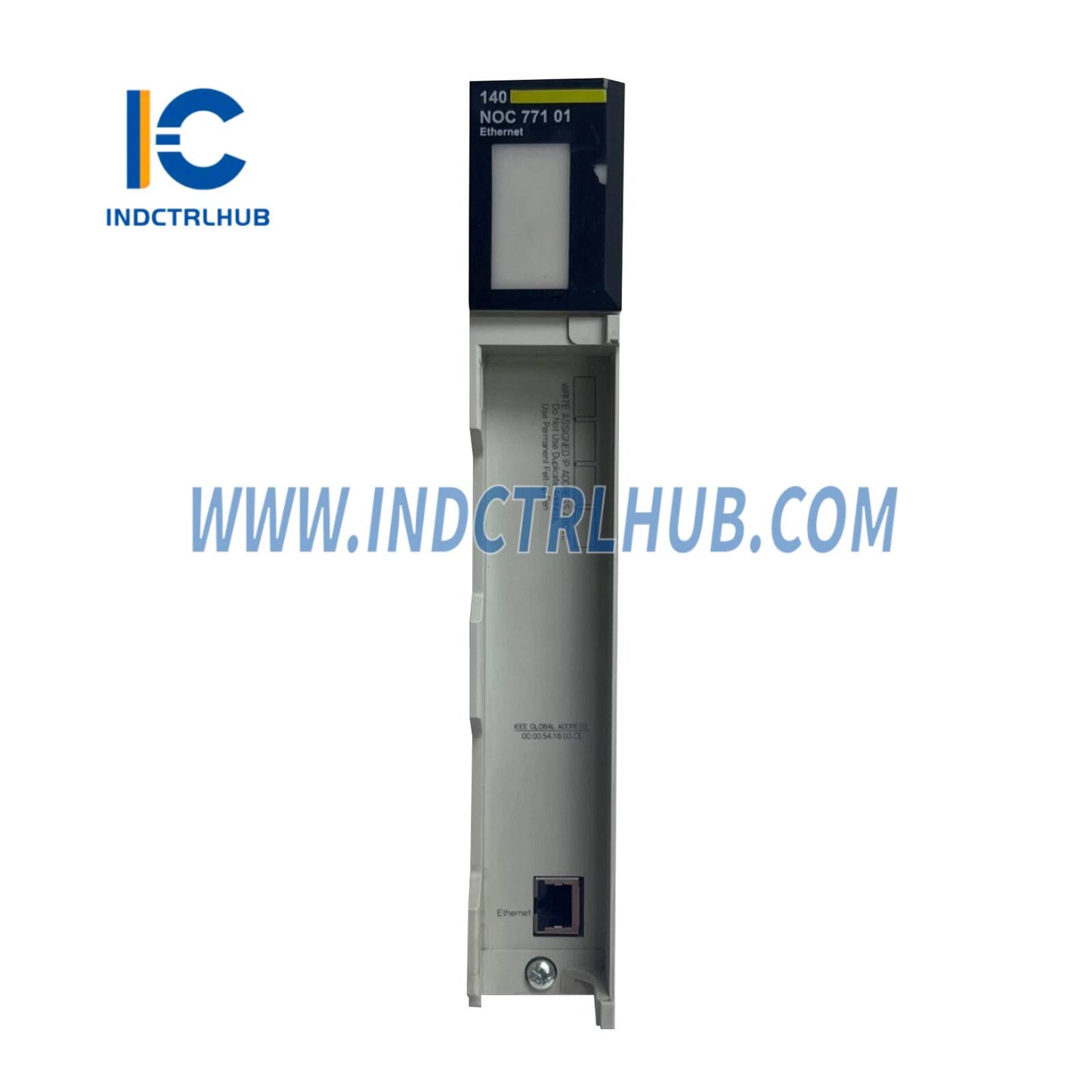

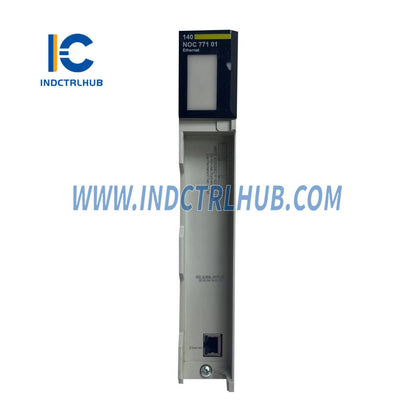

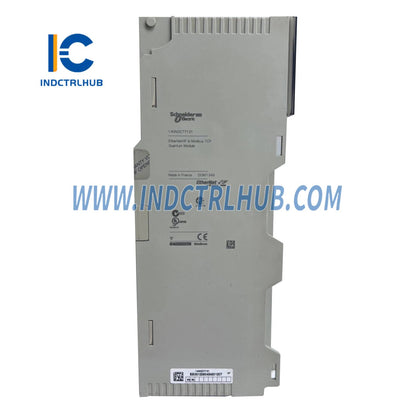

Modicon Quantum Ethernet communication module – RJ45 – 10/100 Mbit/s |
|
Range of Product |
Modicon Quantum automation platform |
|
Product Type |
Ethernet communication module |
Technical Information
|
Specification |
Details |
|---|---|
|
Product Compatibility |
All Unity CPUs |
|
Communication Protocols |
EtherNet/IP, Modbus TCP |
|
Exchange Mode |
Full duplex |
|
Max Number of Connections |
128 |
|
Transmission Rate |
10/100 Mbit/s |
|
Redundancy |
No (Standalone only) |
|
Web Server |
Transparent ready class B30 |
|
Communication Services |
DHCP/BootP server CIP Implicit Messaging (I/O communication) CIP Explicit Messaging (client and server) Modbus TCP Messaging SOAP XML Web (client/server) SNMP Agent FDR Server |
|
Transmission Medium |
Twisted pair |
|
Ethernet Port |

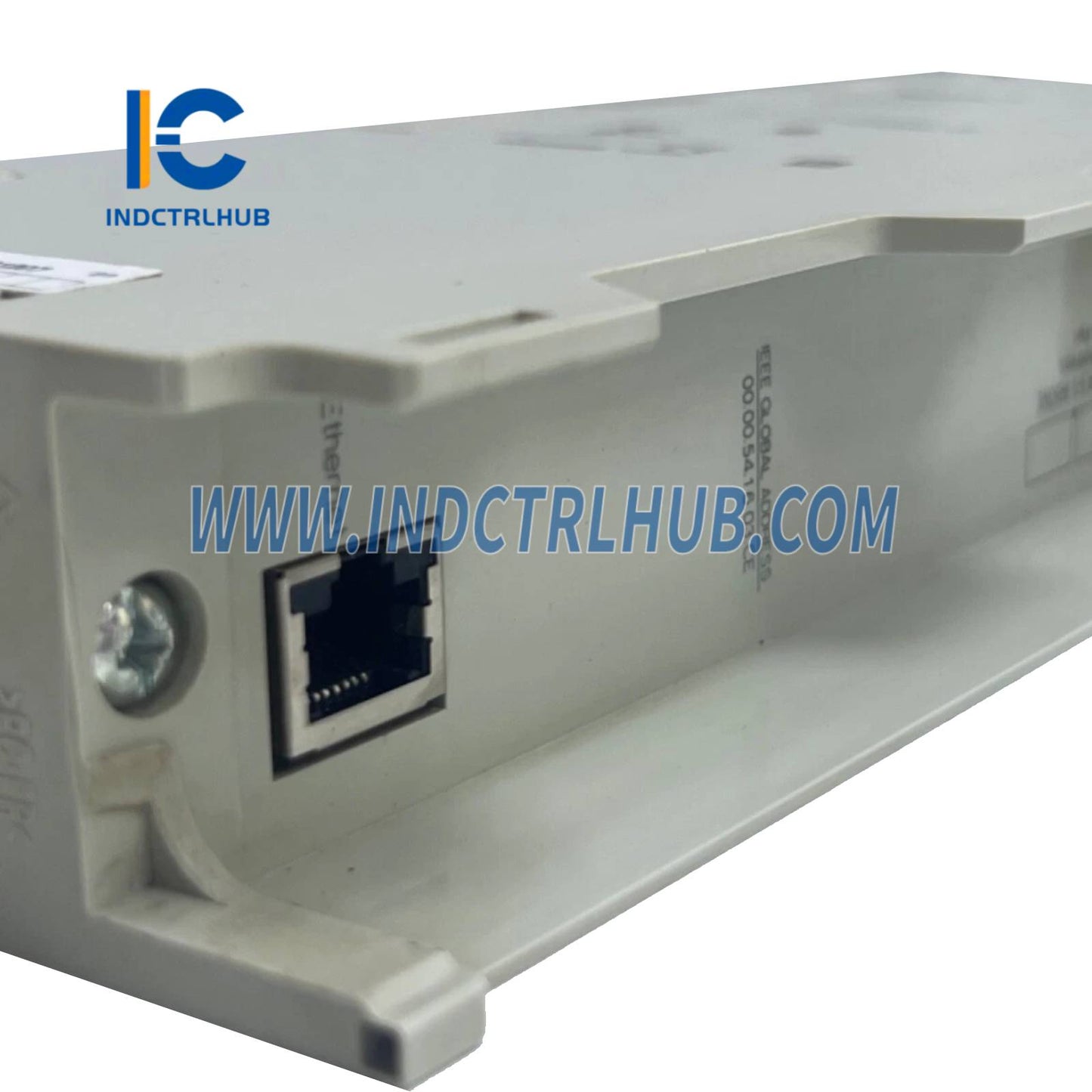

RJ45 (10BASE-T/100BASE-TX) |
|
Power Supply |
Supplied via the rack |
|
Current Consumption |
400 mA at 5 V DC |
|
Module Format |
Standard |
|
Net Weight |
0.345 kg |
Local Signalling (LED Indicators)
|
LED Function |
Color |
|---|---|
|
Communication on the bus |
Green (Active) |
|
Configuration status |
Green (Ready) |
|
Connection speed |
Green (100MB) |
|
Ethernet network link |
Green (Link) |
|
Module status |
Green/Red (Mod Status) |
|
Network communication status |
Green/Red (Net Status) |
|
Full-duplex mode |
Green (Fduplex) |
|
Transmission activity |
Green (TxActive) |
Environmental Specifications
|
Specification |
Details |
|---|---|
|
IP Degree of Protection |
IP20 |
|
Operating Temperature |
0…60 °C |
|
Relative Humidity |
10…95 % @ 60 °C, non-condensing |
Standards & Certifications
|
Standards |
EN 55011, EN 61131-2, IEEE 802.3 |
|---|---|
|
Certifications |
UL 508, CSA C22.2 No 142, FM 3611 Class 1 Division 2, Merchant Navy, ODVA |

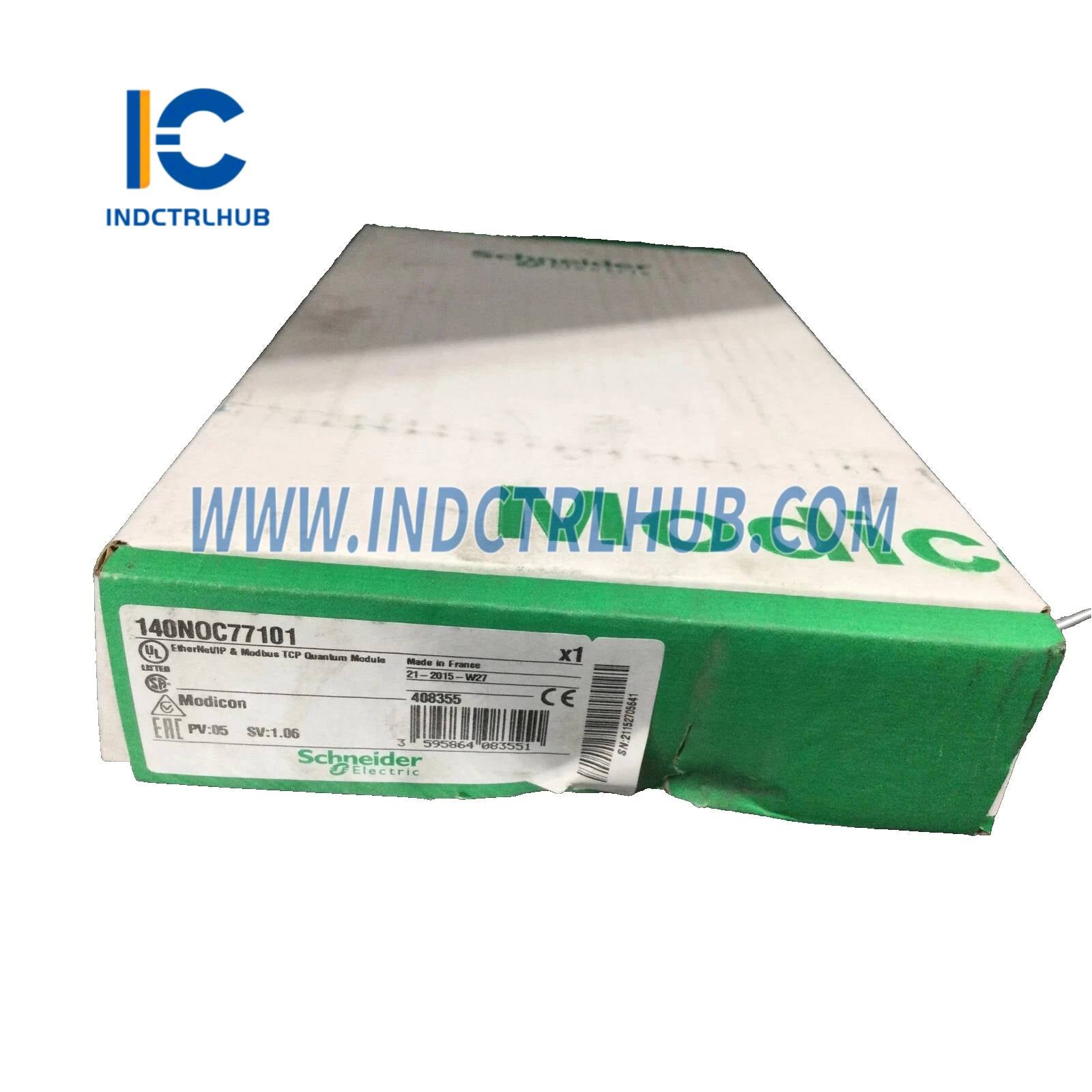

Packing Information
|
Field |
Details |
|---|---|
|
Package Type |
PCE |
|
Units per Package |
1 |
|
Package Dimensions |
31.5 × 16.5 × 5.0 cm |
|
Package Weight |
448 g |
